Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

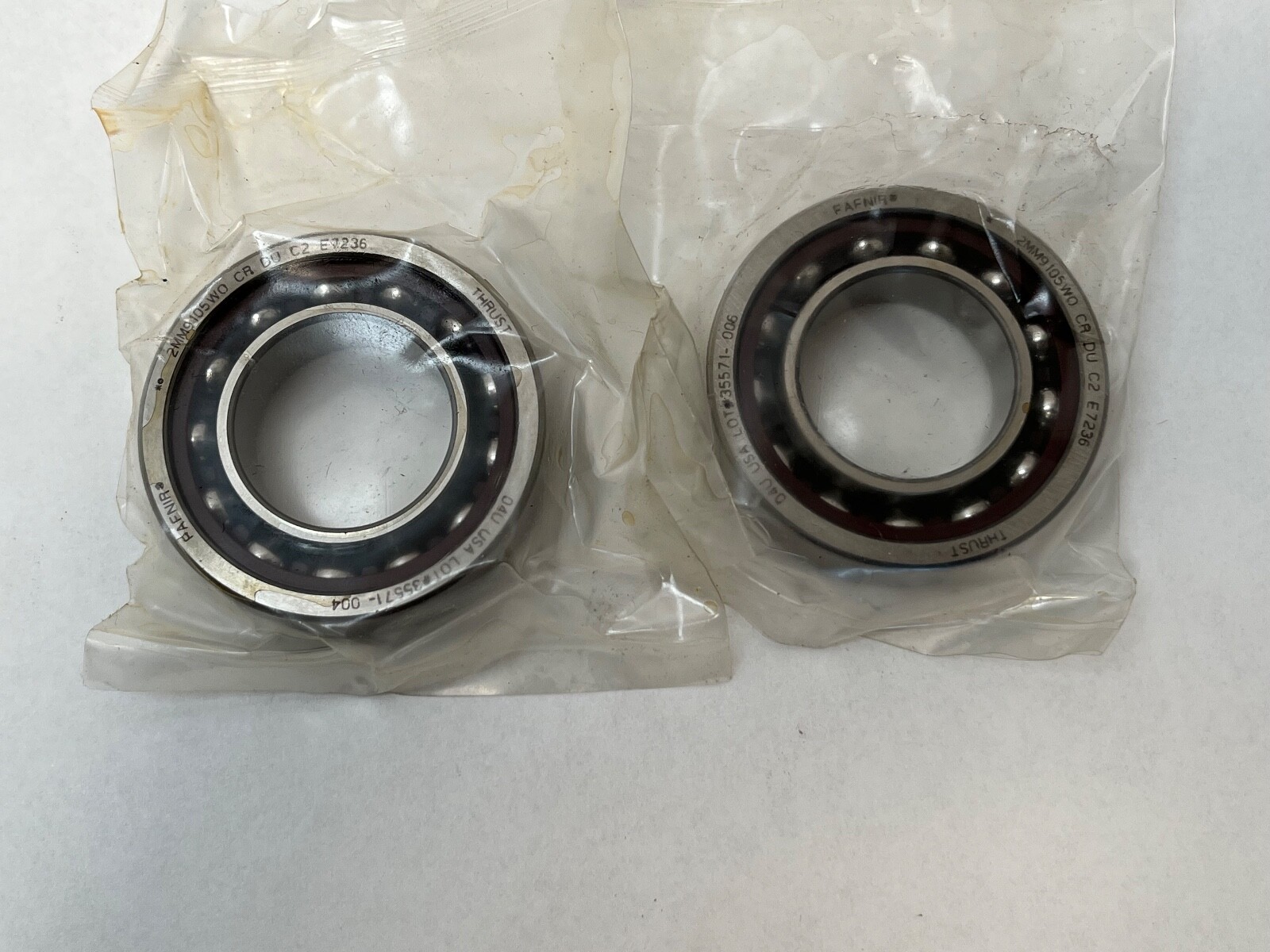

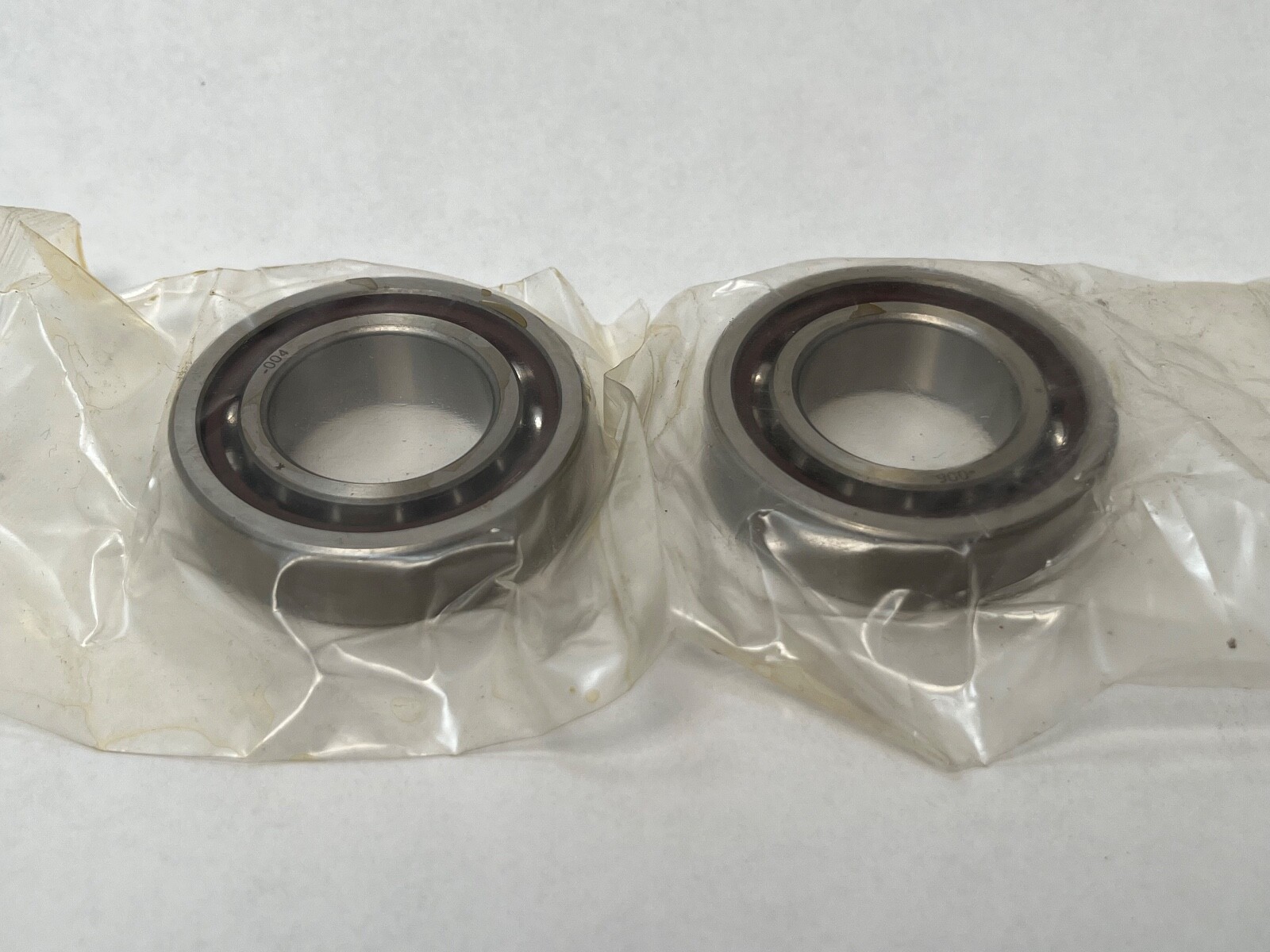

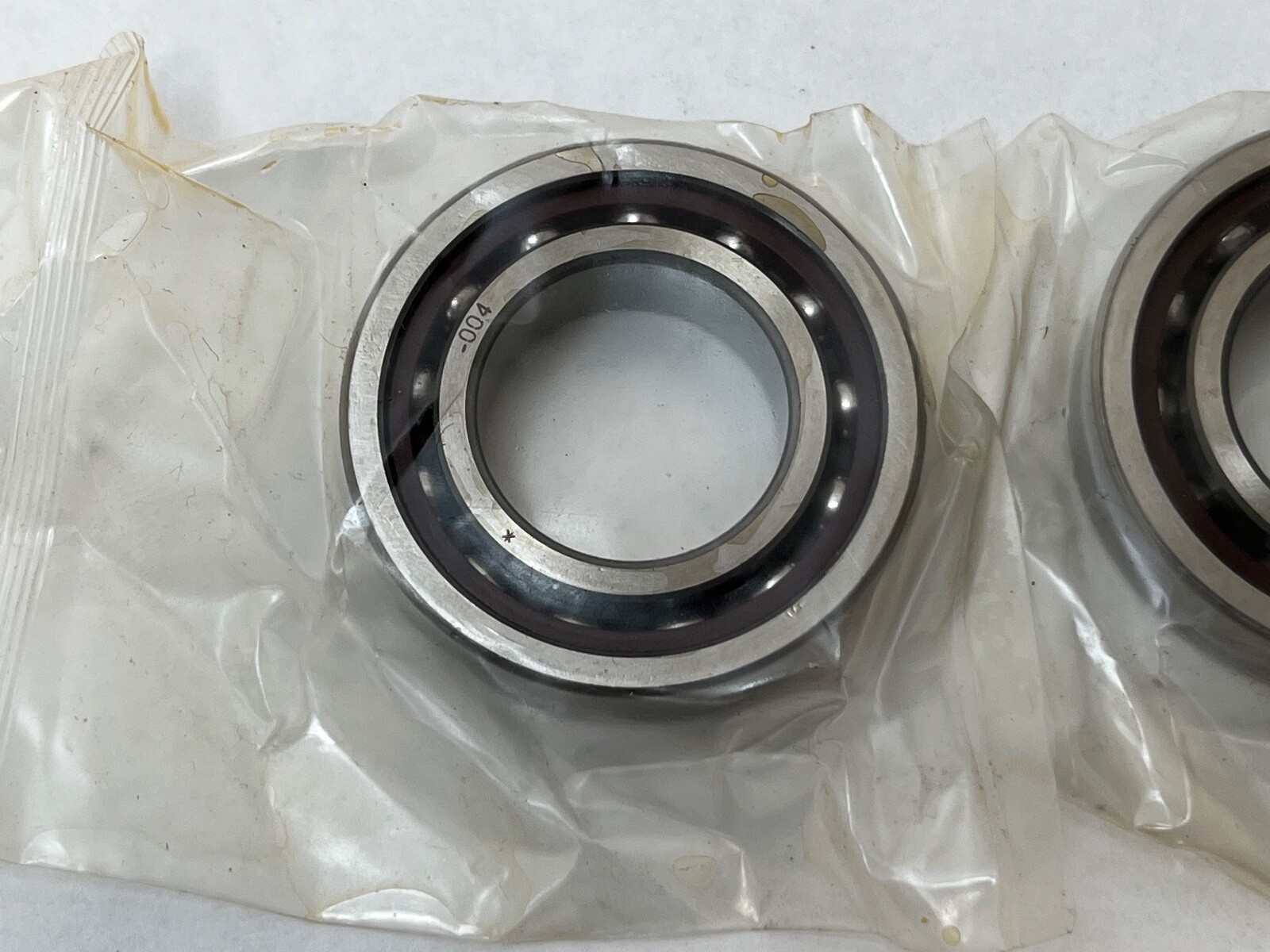

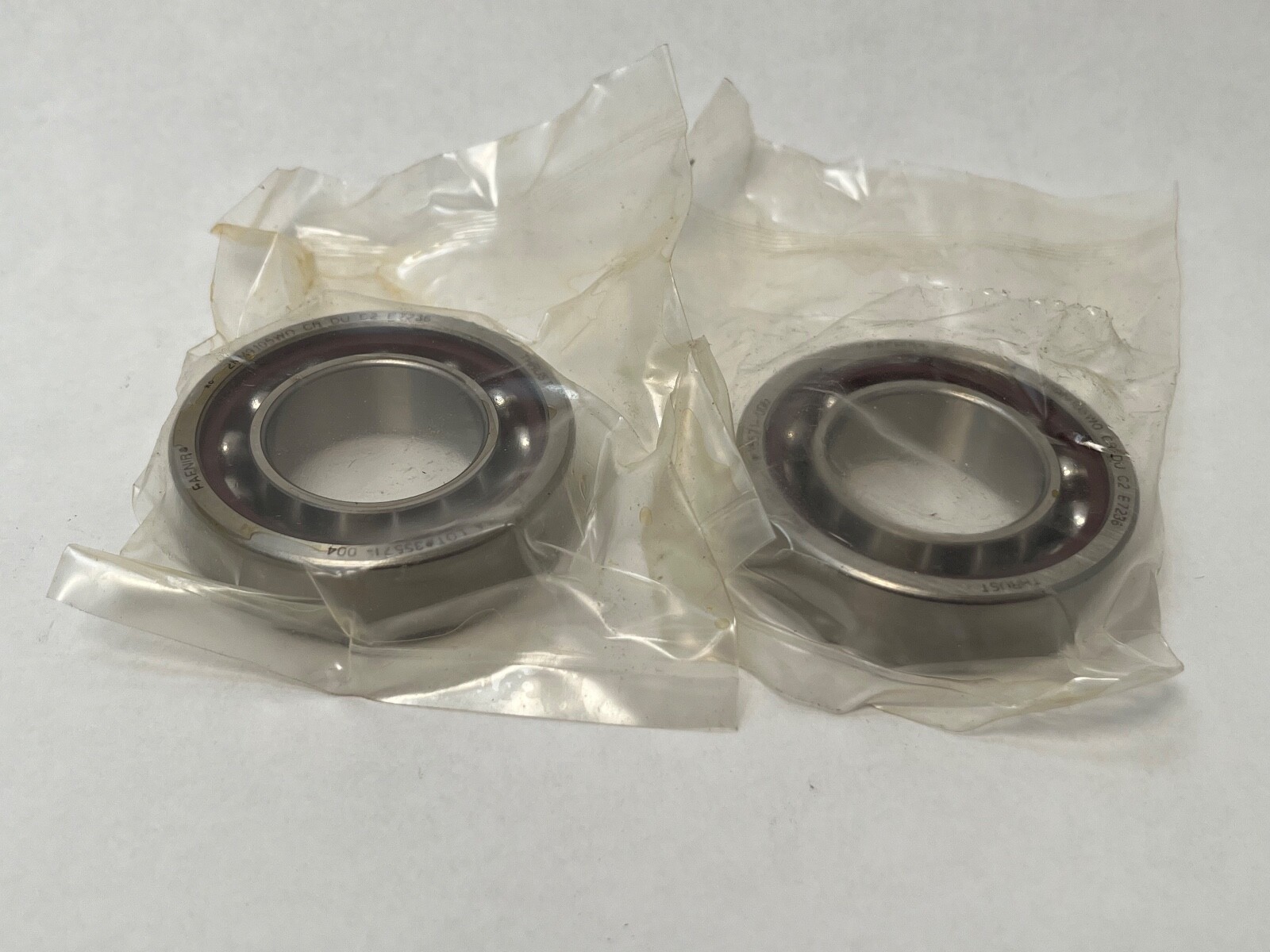

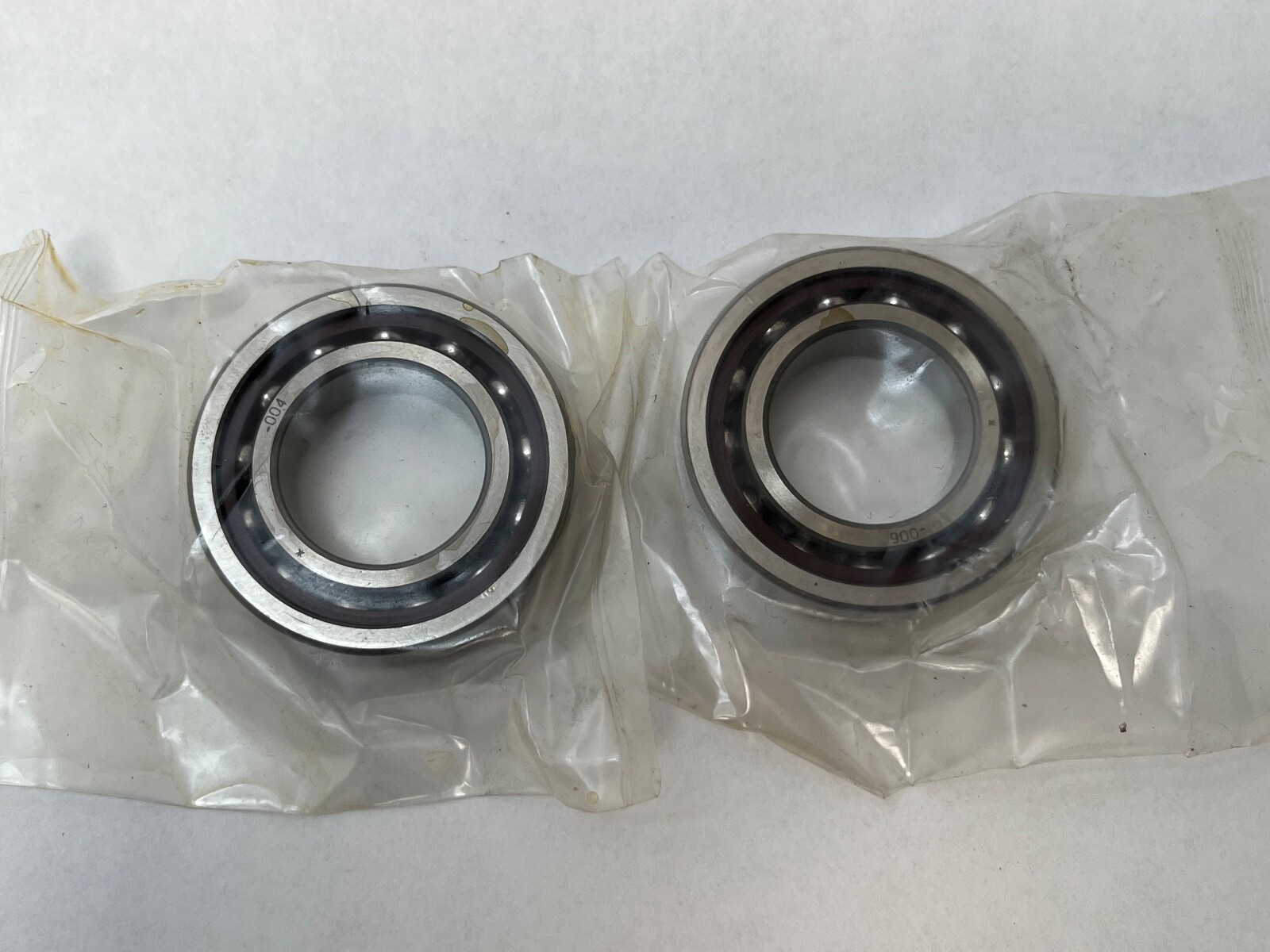

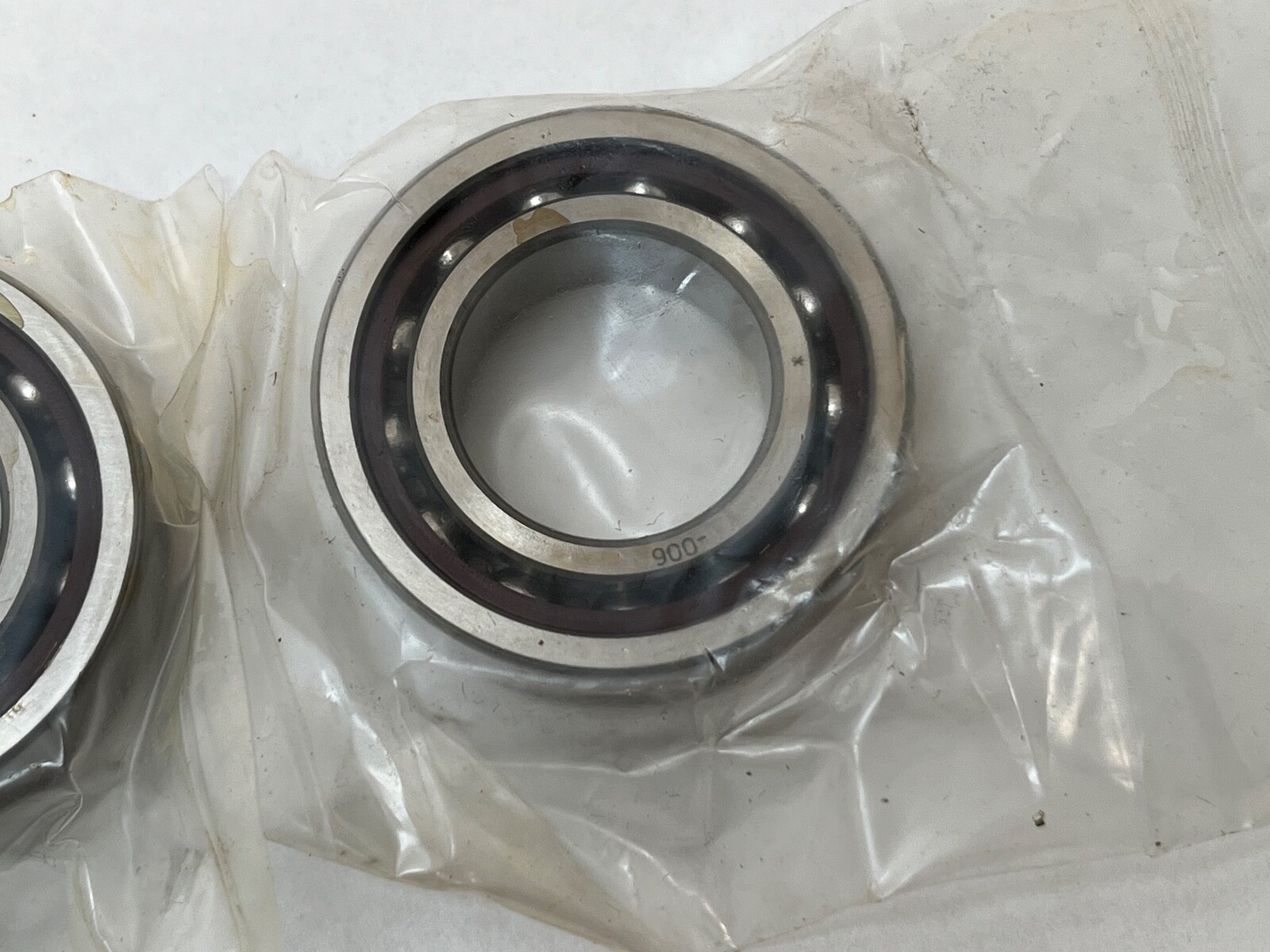

Super-precision angular contact ball bearing duplex pair, 25 x 47 x 12 mm each, 15° contact angle, phenolic cage, C2 internal clearance, open.
List Price
$145.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9105WODU-E7236 |
| GTIN | 087796072107 |
| Model | 2MM 9105 WO CR DU C2 E7236 / 7005 C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Preload | Light |
| Base Number | 9105 |
| Overall Width | 12 mm |
| Mpn Variants | 2MM9105WODU-E7236; 2MM9105WOCRDUC2E7236; 2MM-9105-WO-CR-DU-C2-E7236; 2MM 9105 WO CR DU C2 E7236 |
| Precision Class | ABEC 7/9 / P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | C2 |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex matched pair |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | 7005 C (25 x 47 x 12 mm, 15°) |
|---|---|
| Cross Reference 2 | SKF 7005 CD/P4A |
| Cross Reference 3 | FAG B7005-C-T-P4S |
| Cross Reference 4 | NSK 7005CTRSU P4 |
| Cross Reference 5 | NTN 7005 UCG/GNP4 |
| Cross Reference 6 | Fafnir 2MM9105WI-CR-DU (related, WI low-shoulder ring form) |

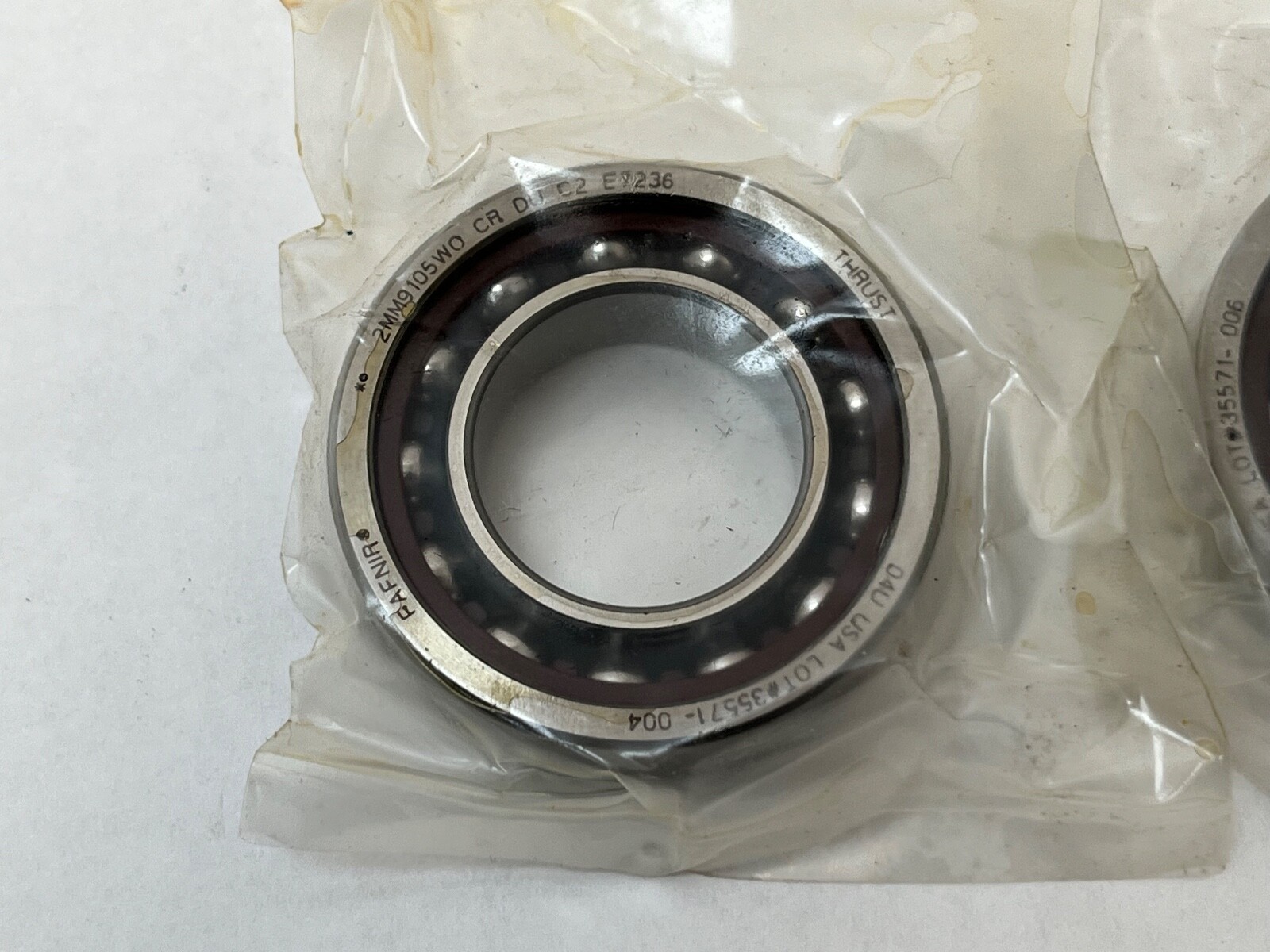

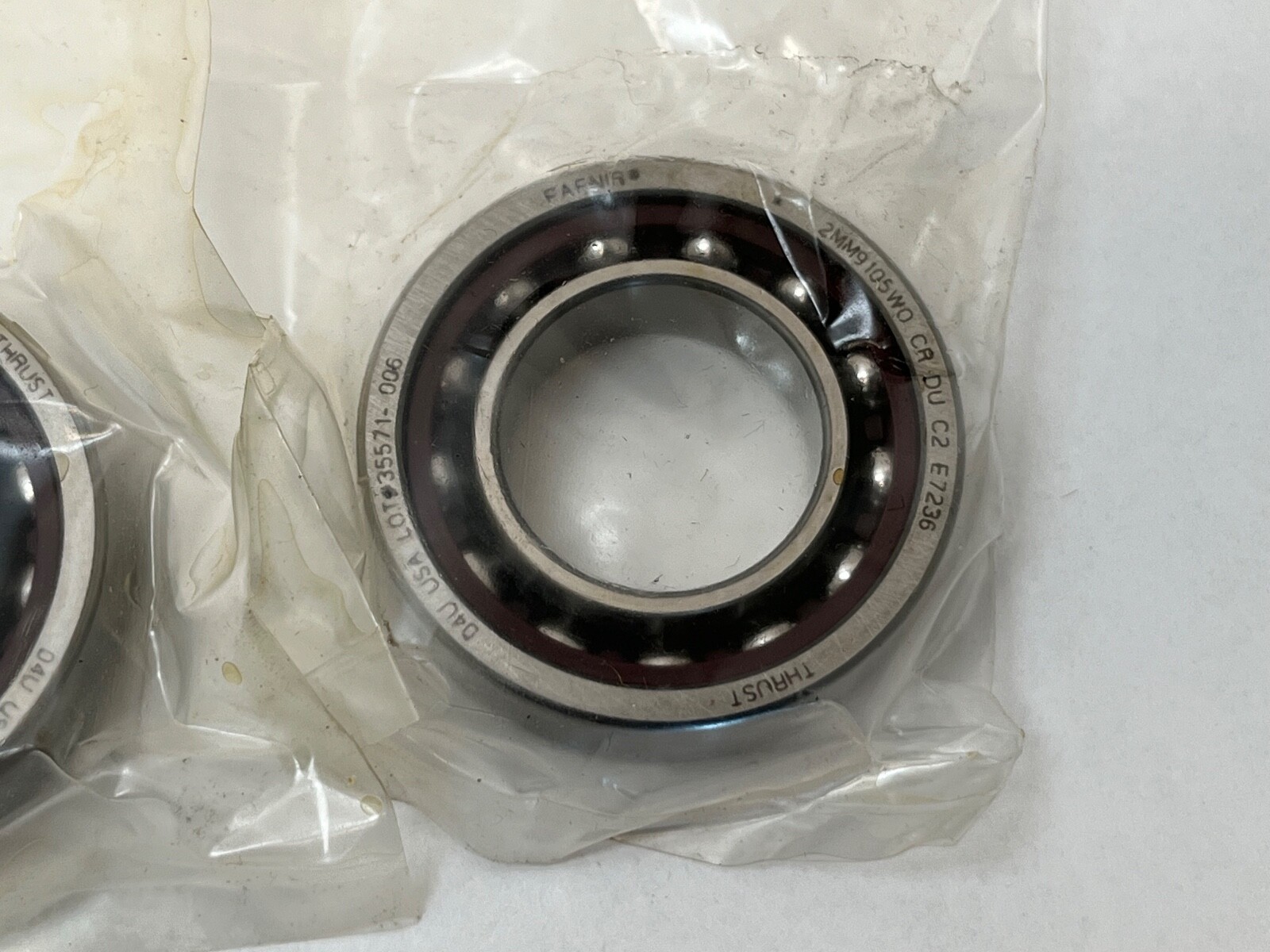

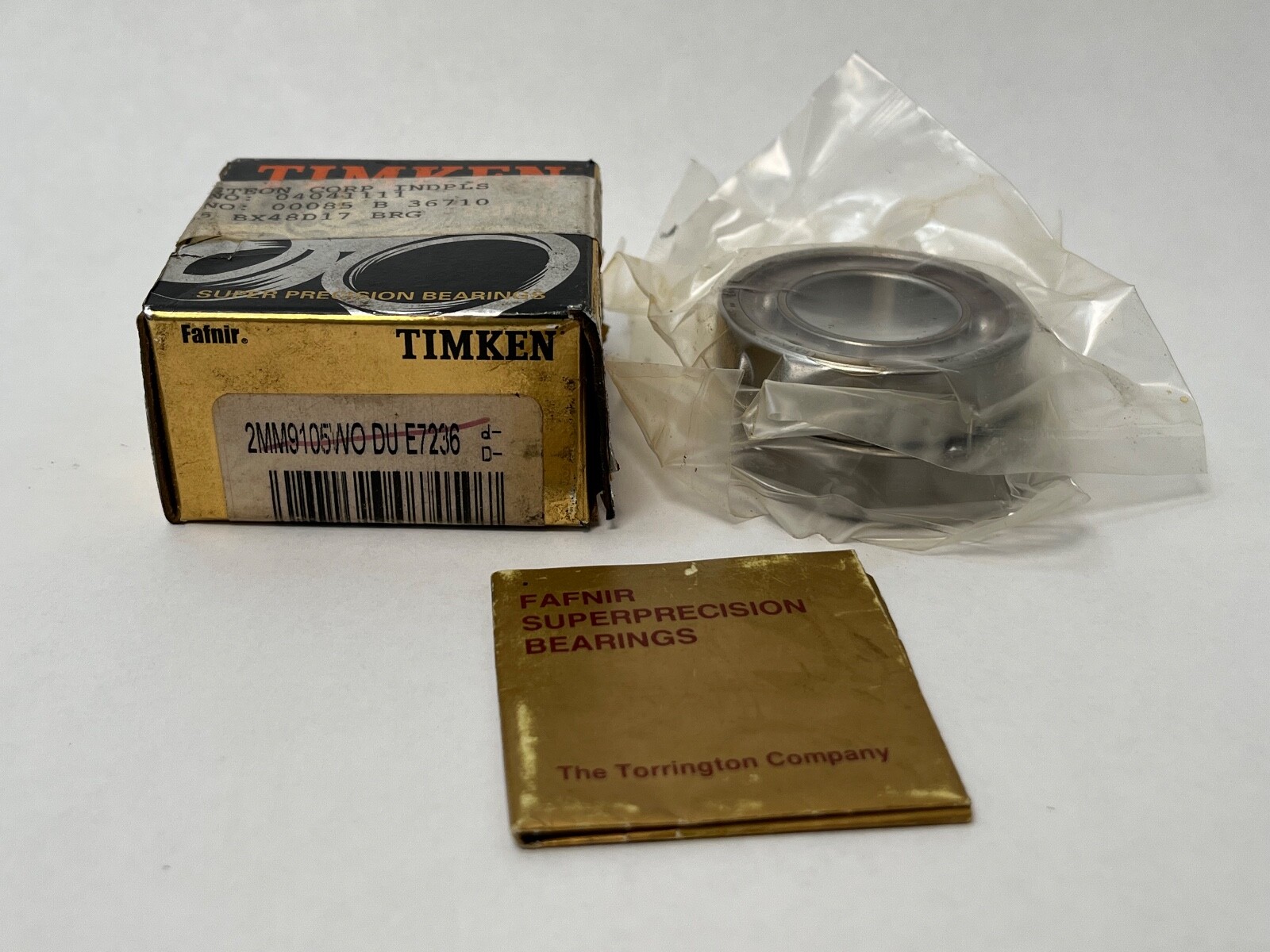

Fafnir 2MM9105WO-CR-DU-C2-E7236 super-precision angular contact ball bearing, supplied as a duplex pair. Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm per bearing. Series: 9100WO. Base Number: 9105. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing Steel. The 9105 size code matches the ISO 7005 envelope.
2MM — Contact Angle: 15°, in Timken’s MM super-precision spindle range.
MM — Precision Class: ABEC 7/9 (P4S), the tolerance grade the MM prefix carries.
9105 — the 25 mm bore size in the 9100 spindle series, on the ISO 7005 boundary dimensions.
CR — Cage Material: Phenolic.
DU — Mounting Arrangement: duplex, two bearings ground as a matched set.
C2 — Internal Clearance: C2, tighter than normal.
E7236 — a Timken engineering suffix identifying the specific build of this order code.
Contact Angle: 15°. A 15° angle favours speed and radial stiffness, and is the angle chosen for machine tool spindles where the thrust component is moderate and the running speed is high. Precision Class: ABEC 7/9. Internal Clearance: C2. Cage Material: Phenolic, which is light, self-lubricating and quiet at high surface speeds.
The straight bore seats directly on a ground spindle journal. Faces are universally ground so the two bearings of the set stack against each other and take up the built-in relationship when the clamp nut is tightened.
Unit Quantity: 2 Pcs. Number Of Rows: 2. A matched duplex set ships together.
The 25 x 47 x 12 mm envelope at 15° is the ISO 7005 C size, so a 15° super-precision 7005 duplex set from another maker fits the same seat. The Fafnir 2MM9105WI-CR-DU carries the same envelope with the WI low-shoulder ring form and is listed as a related execution.
