Availability:
2 in stock
Super-precision angular contact ball bearing, 35 x 62 x 14 mm, 25° contact angle, Light preload, universal ground. Fafnir 3MV9107WI-SUL, ISO 7007 size.
List Price
$197.15
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| GTIN | 053893176918 |
| Model | 3MV9107WICR SUL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 35 mm |
| OD | 62 mm |
| Preload | Light |
|---|---|
| Mpn Variants | 3MV9107WICRSUL, 3MV9107WI-SUL, 3MV9107WICR SUL, 3MV 9107 WI CR SUL |
| Dynamic Load Rating | 20,200 N |
| Static Load Rating | 13,000 N |
| Item Weight | 0.151 kg (0.33 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Limiting Speed | 20,300 rpm grease; 40,600 rpm oil |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | SKF 7007 ACDGB |
|---|---|
| Cross Reference 2 | FAG B7007-E-T-UL |
| Cross Reference 3 | NSK 7007A5TRSUL |

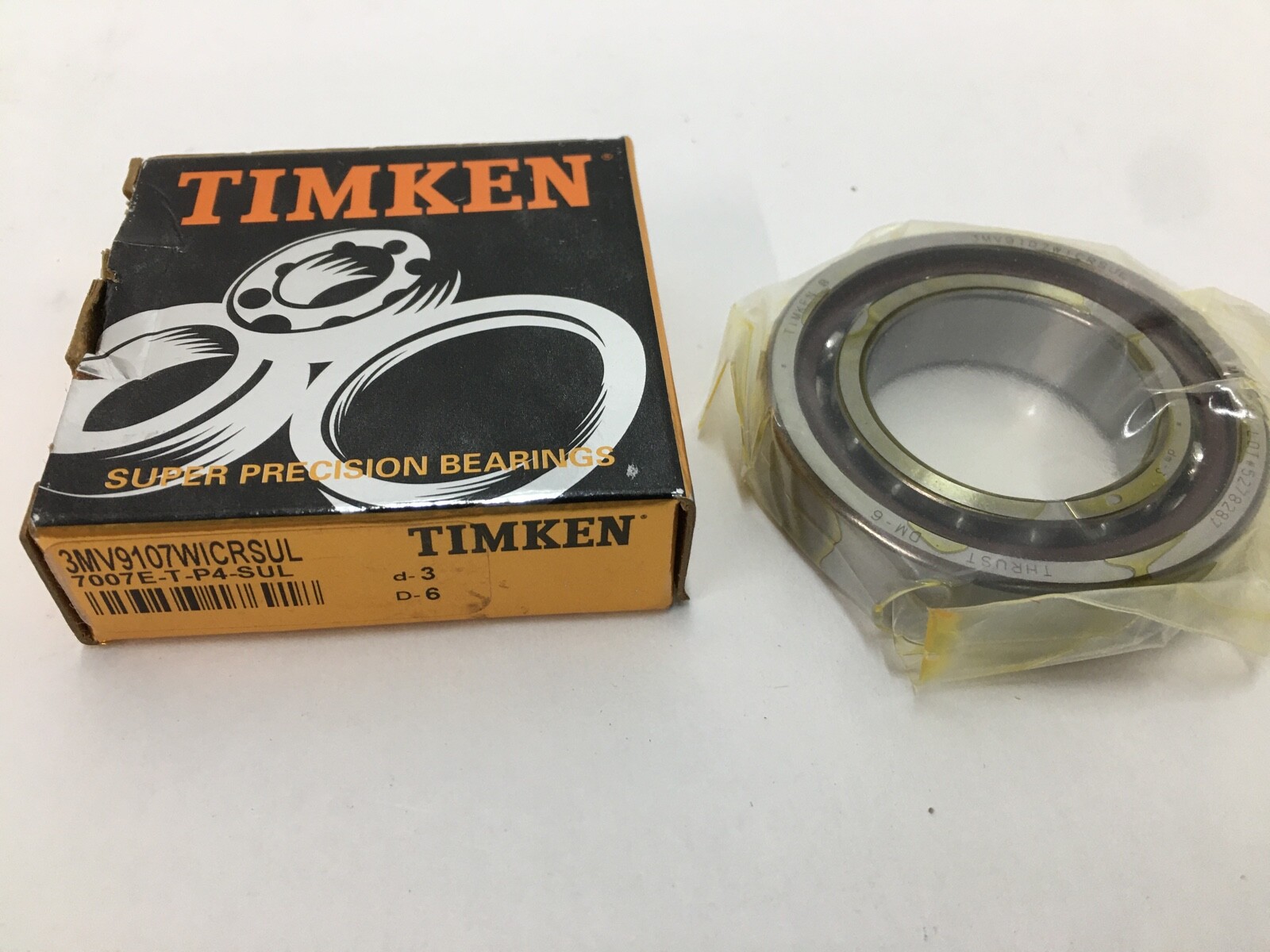

Timken Fafnir 3MV9107WICR-SUL is a single super-precision angular contact ball bearing, universally ground with Light preload. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Width: 14 mm. Contact Angle: 25°. Preload: Light. Cage Material: Phenolic. Closure Type: Open. Rolling Elements: Ball. Item Weight: 0.151 kg (0.33 lb).
9107 — 9100 extra-light series, ISO 7007 size, 35 x 62 x 14 mm.
WI — low shoulder on both rings, the duplex construction.
CR — phenolic cage.
SU — single bearing, universally flush-ground for back-to-back, face-to-face or tandem mounting with any other SU bearing of the same preload.
L — Light preload.
Dynamic Load Rating: 20,200 N (4,540 lbf), Timken C1. Static Load Rating: 13,000 N (2,930 lbf). Limiting Speed: 20,300 rpm grease; 40,600 rpm oil. The 25° angle carries more thrust than a 15° bearing of the same size; Light preload keeps heat generation low at speed.
Max Fillet Radius (mating part): 1 mm (0.039 in). Shaft Backing Shoulder Diameter: 40.6 mm (1.600 in). Housing Backing Shoulder Diameter: 56.6 mm (2.230 in).
Unit Quantity: 1 Pc. Single universal bearing. GTIN: 053893176918.
ISO 7007 25° universal light-preload alternatives from other makers: SKF 7007 ACDGB, FAG B7007-E-T-UL, NSK 7007A5TRSUL.
