Availability:
1 in stock

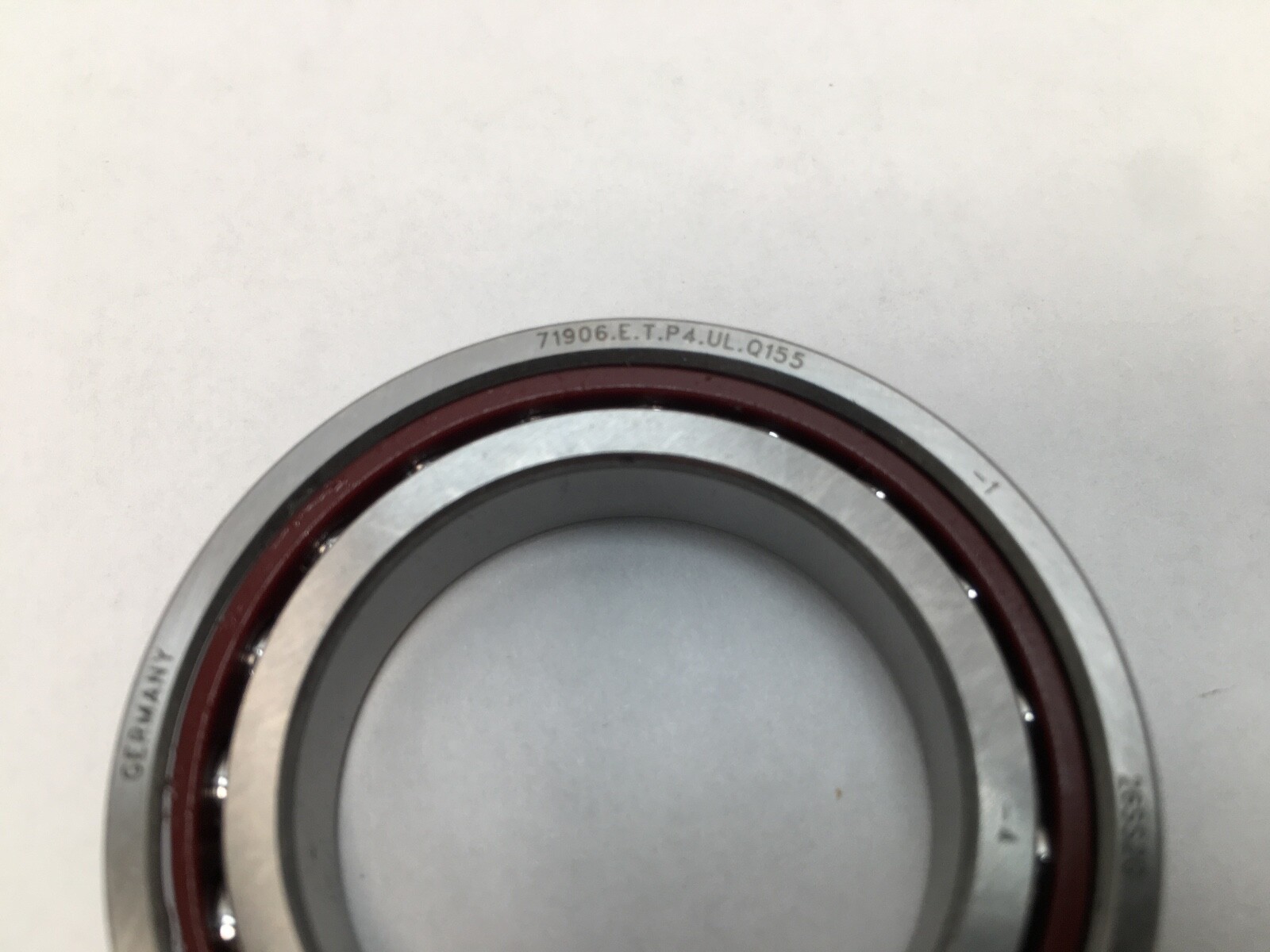

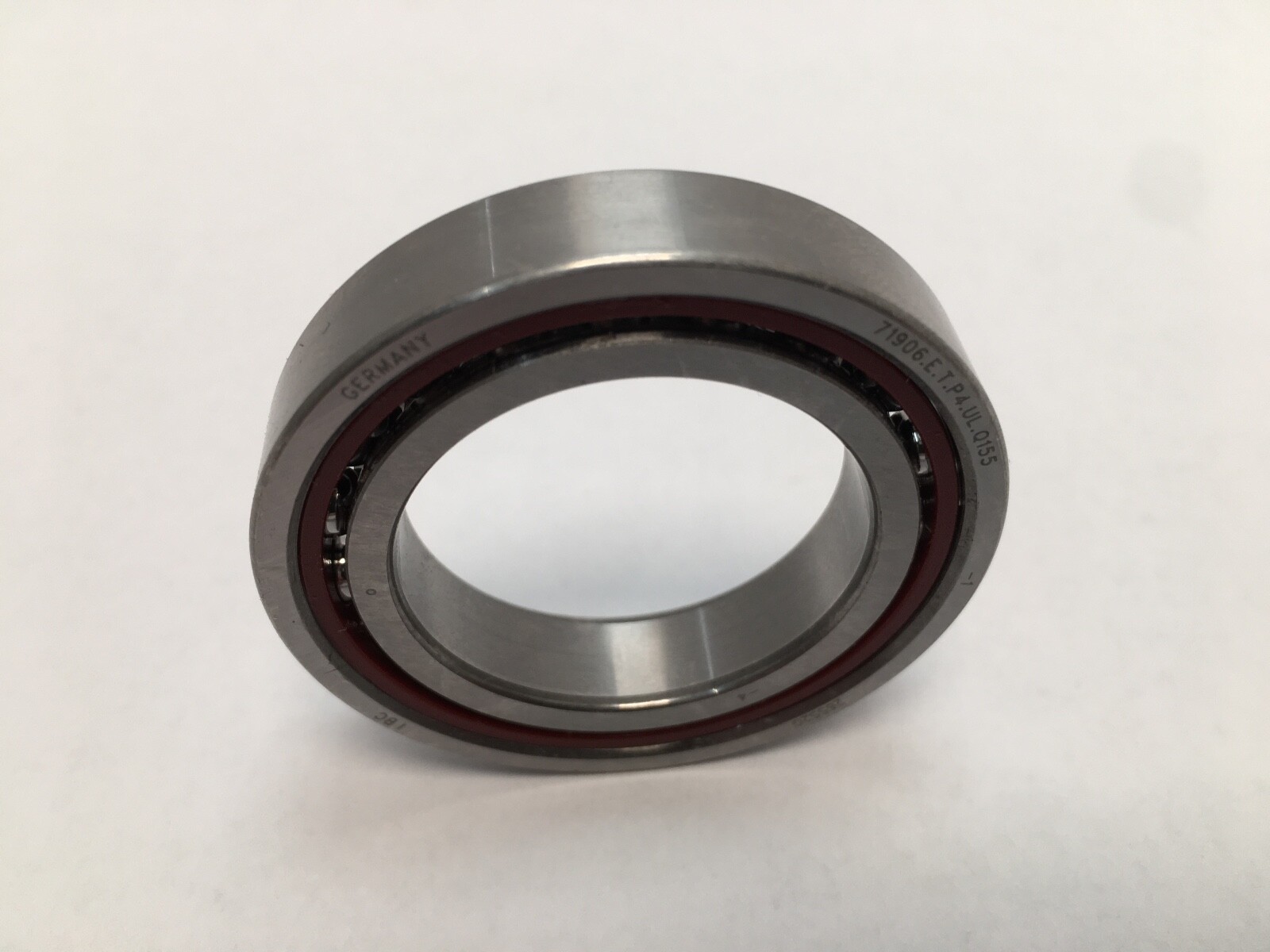

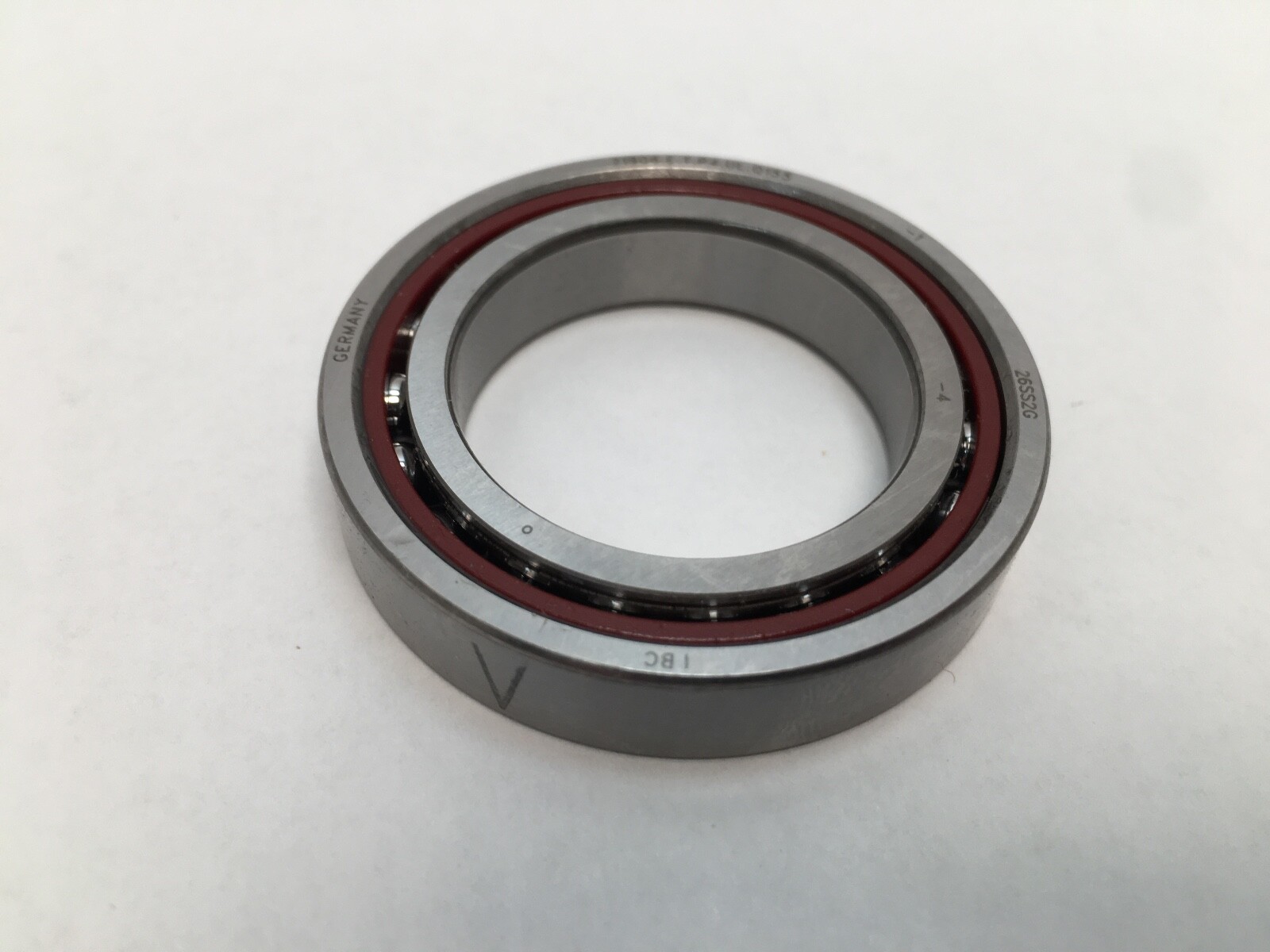

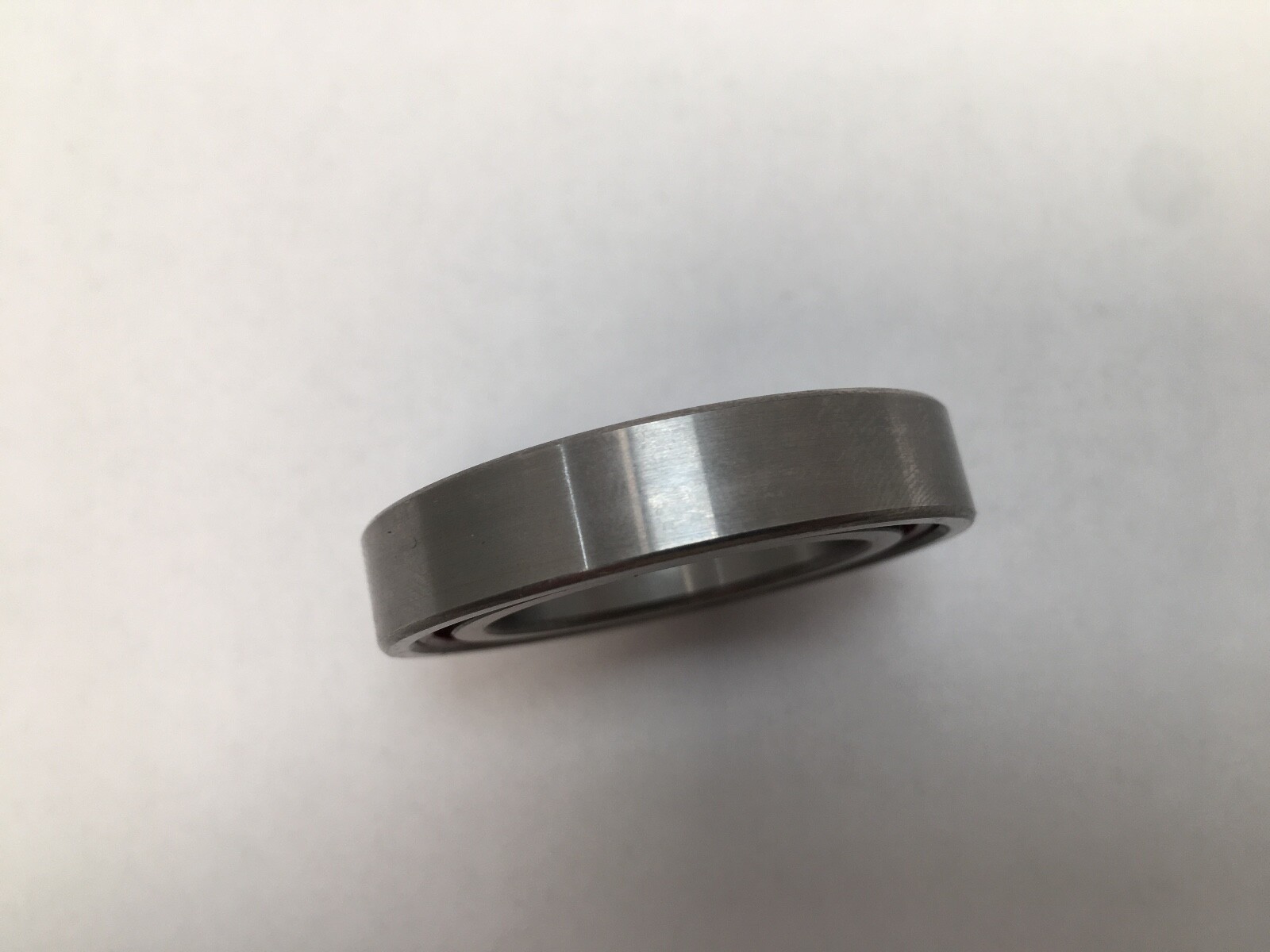

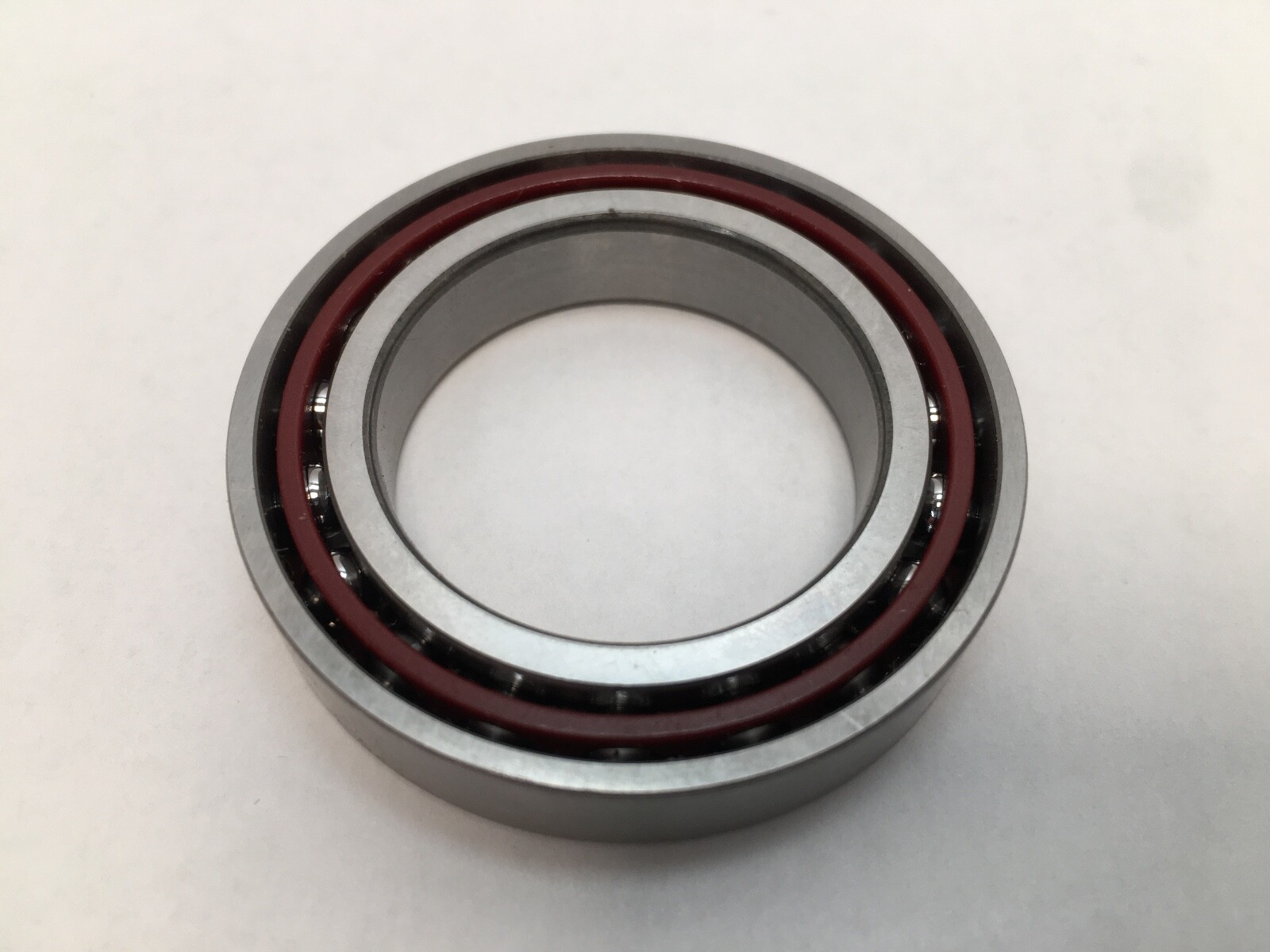

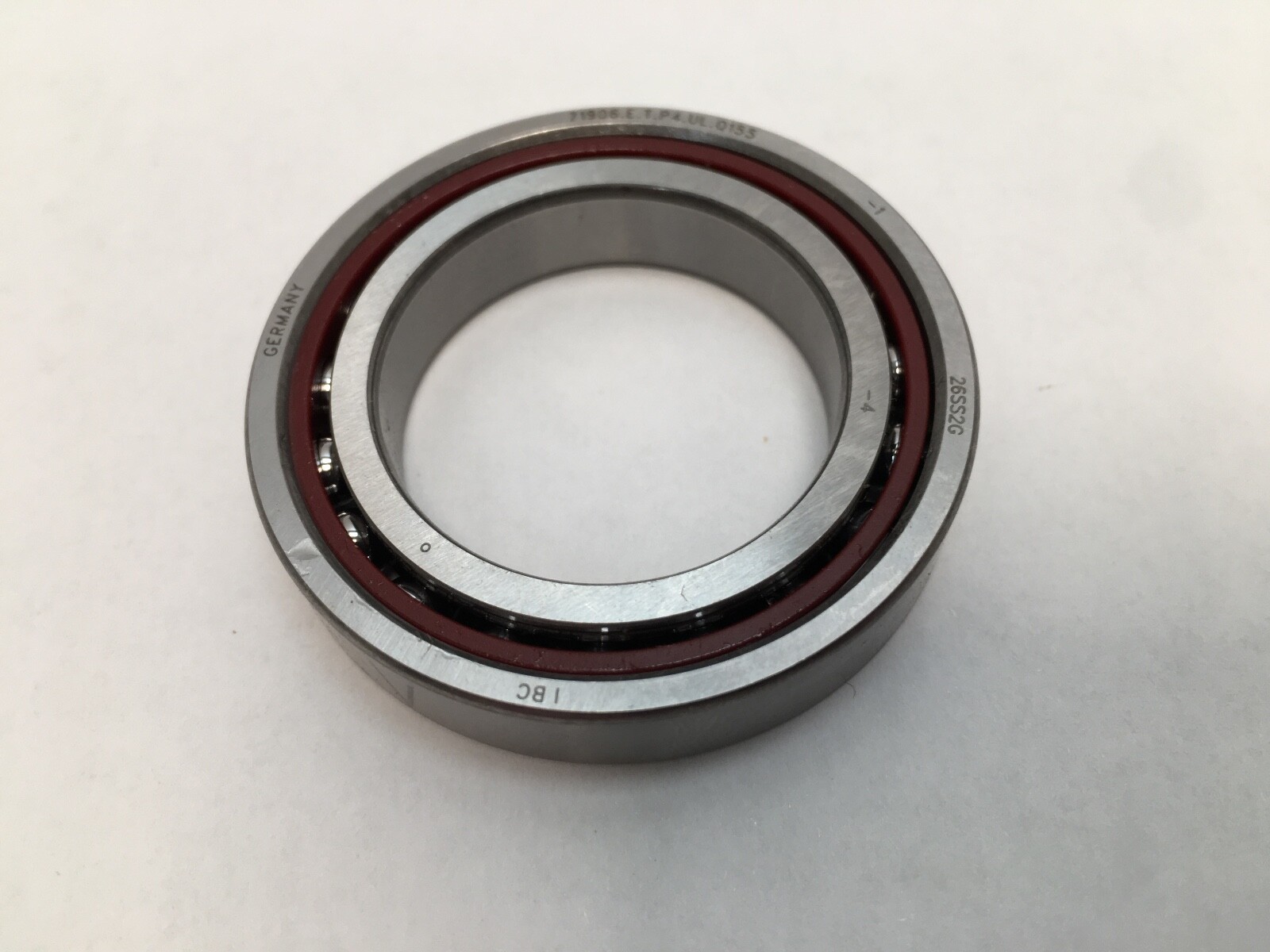

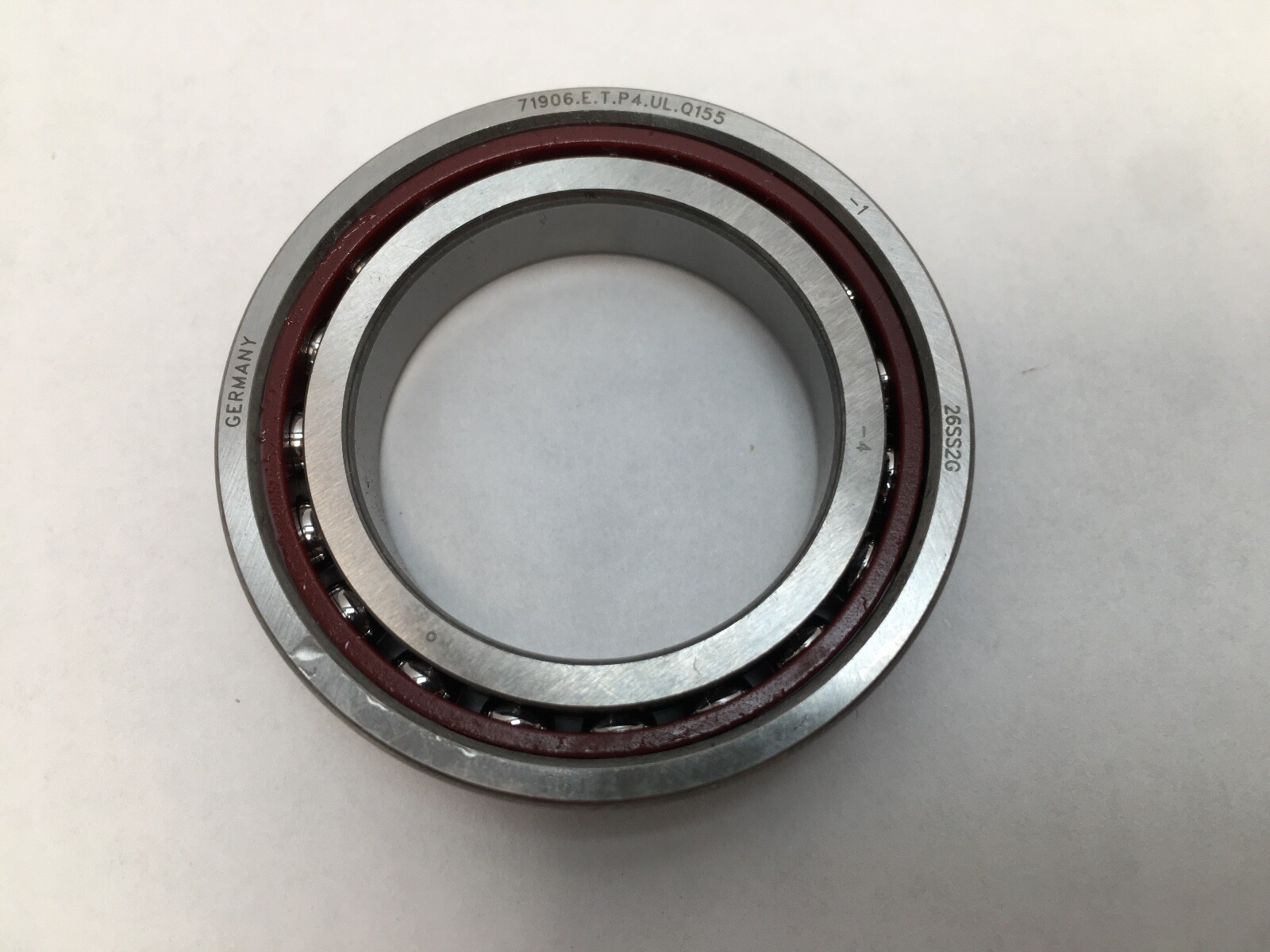

Super-precision angular contact ball bearing, 30 x 47 x 9 mm, 25° contact angle, open, phenolic land-riding cage, universal light preload, ISO P4 / ABEC 7.
List Price
$77.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | IBC |
|---|---|
| MPN | 71906ETP4UL |
| Model | 7906 3MV9306WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 47 mm (1.8504 in) |
| Width | 9 mm |
| Preload | Universal light |
|---|---|
| Material | Bearing Steel |
| Series | 719 (71906, ultra-light) |
| Base Number | 71906 |
| Industry Terms | Spindle bearing, super precision angular contact bearing, machine tool bearing, 25 degree angular contact, 719 series thin section bearing, IBC precision bearing |
| Common Misspellings | 71906 ETP4UL, 71906ET P4UL, 71906-ETP4-UL, IBC 71906E T P4 UL |
| Application Types | High-speed machine tool spindles, grinding spindles, precision gearboxes, robotics joints |
| Overall Width | 9 mm (0.3543 in) |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | 71906ETP4UL, 71906 ET P4 UL, 71906-E-T-P4-UL, 71906ET P4 UL, 71906ETP4UL Q155, Q155, 7906, 3MV9306WICRSUL, 3MV9306WI CR SUL |
| Precision Class | ABEC 7 / P4 |
| Closure Type | Open |
| Cage Type | Machined, outer-ring land-riding |
| Rolling Elements | Balls |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 25° |
| Part Number | 71906ETP4UL |
| Cross Reference 1 | Fafnir 3MV9306WICRSUL (25°, phenolic cage, universal light) |
|---|---|
| Cross Reference 2 | FAG B71906-E-T-P4S (25°, phenolic cage, P4) |
| Cross Reference 3 | SKF 71906 ACE/P4A (25°, same 30x47x9 mm envelope) |
| Cross Reference 4 | SKF 71906 CE/P4A (related size, 15° contact angle) |
IBC 71906ETP4UL single-row super-precision angular contact ball bearing. Bore Diameter: 30 mm. Outside Diameter: 47 mm. Width: 9 mm. Series: 719, ultra-light section. Bore Type: Straight. Closure Type: Open. Rolling Elements: Bearing steel balls. Cage: machined phenolic, outer-ring land-riding. Contact Angle: 25°. Preload: universal light. Precision Class: P4 / ABEC 7. Unit Quantity: 1 Pc.
71906 — 719 ultra-light series, bore code 06 for 30 mm, matching ISO 71906 at 30 x 47 x 9 mm.
E — 25° contact angle.
T — fabric-base laminate phenolic cage.
P4 — ISO P4 precision, equivalent to ABEC 7.
UL — universal light preload. Faces are flush-ground so pieces stack in any combination and reach light preload without shims.
Part Number: 71906ETP4UL. Base Number: 71906. Brand: IBC. Internal Clearance: N/A on a preloaded execution. Condition: New – Open box.
30 x 47 x 9 mm. A 25° contact angle carries roughly twice the thrust of a 15° bearing on the same envelope and gives higher axial stiffness. The 719 ultra-light section keeps the cross-section thin.

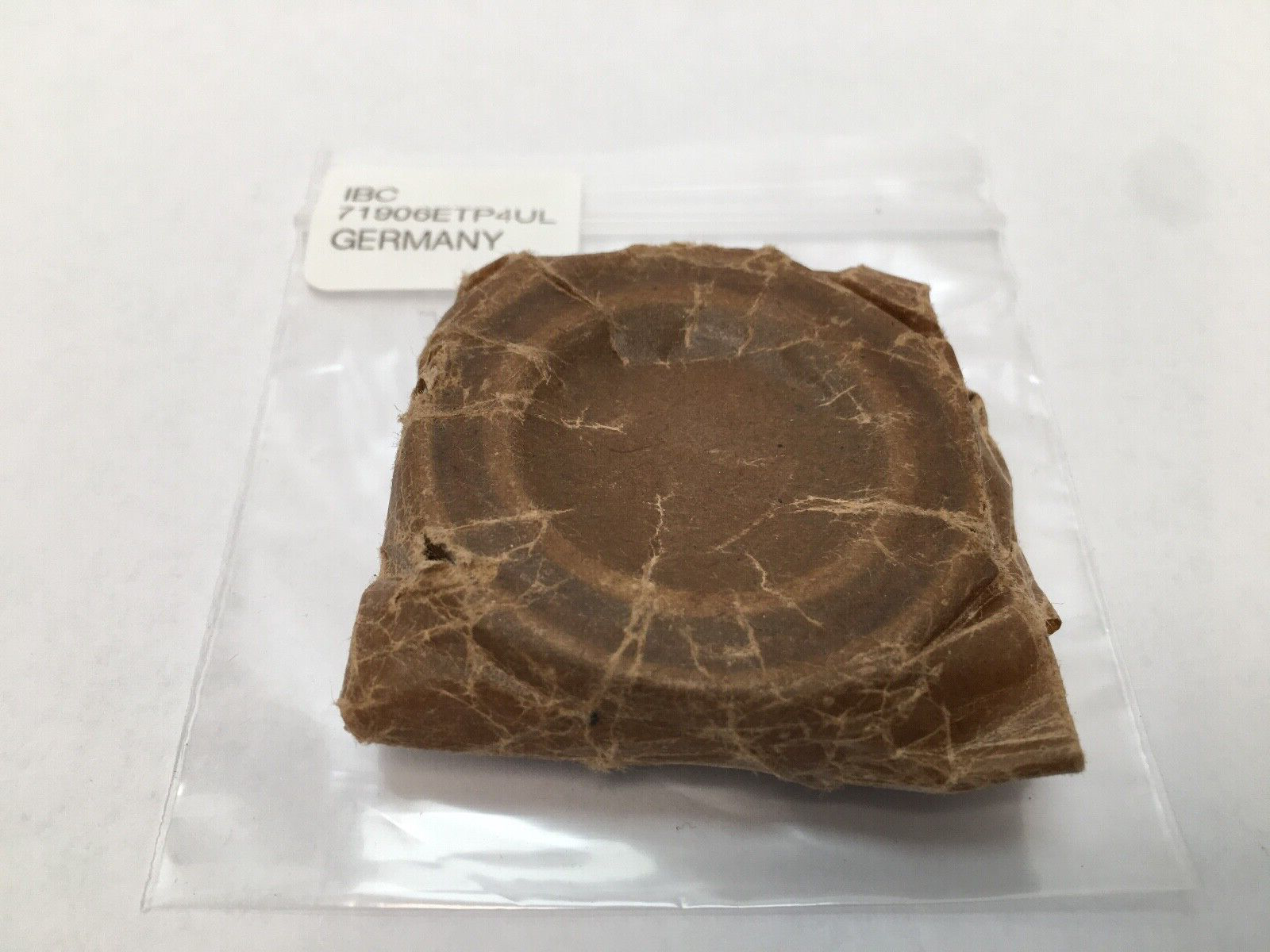

The carton also carries the cross-referenced number 3MV9306WICRSUL (Fafnir) and the execution code Q155. Same 25° angle, phenolic cage and universal light preload: Fafnir 3MV9306WICRSUL, FAG B71906-E-T-P4S. SKF 71906 ACE/P4A is the 25° execution on the same envelope; SKF 71906 CE/P4A is a related size at 15°.
25°, from the E in the designation.
Universal light preload: flush-ground faces that stack in any combination.
30 mm bore, 47 mm outside diameter, 9 mm width.
