Availability:
1 in stock

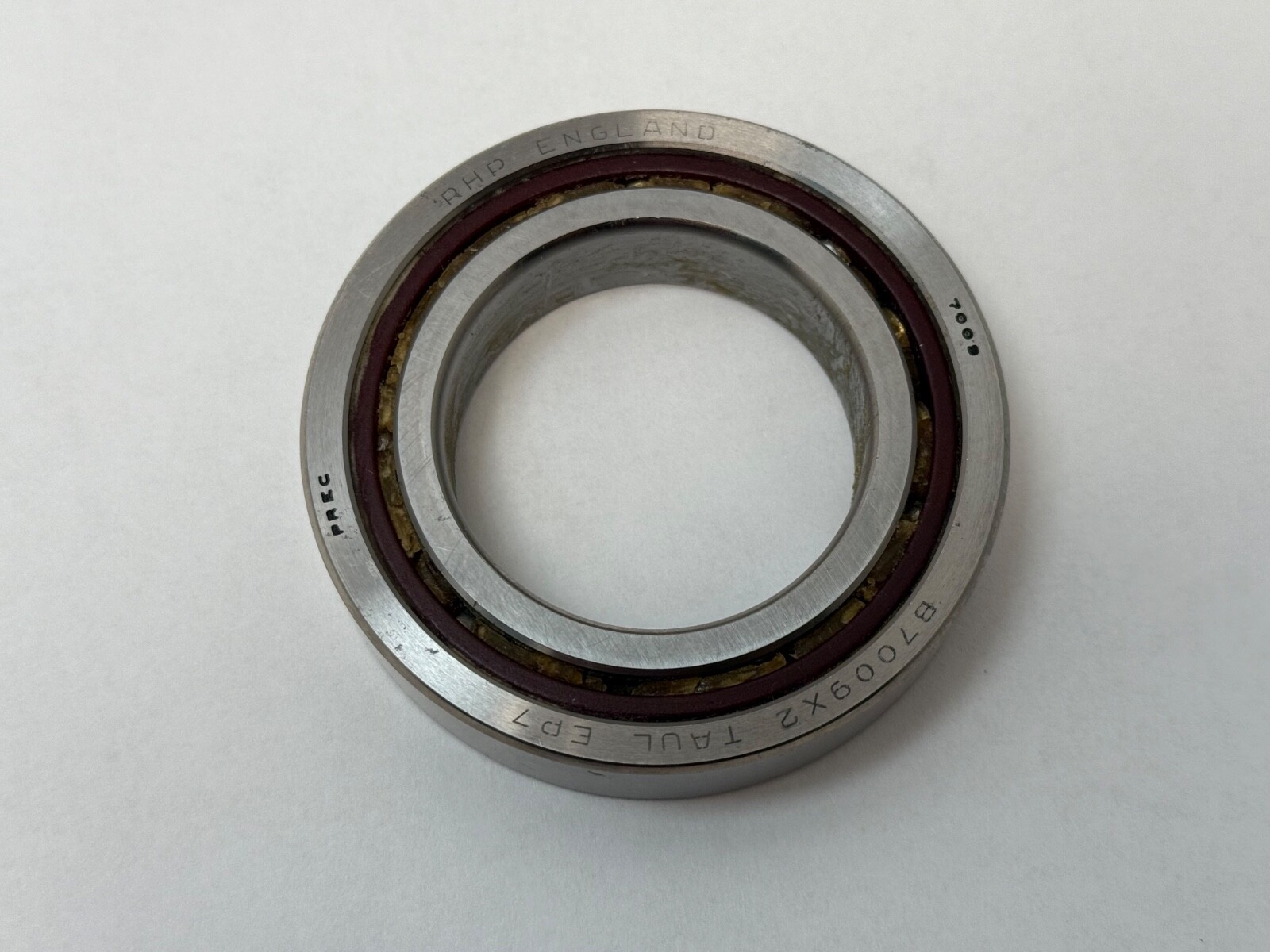

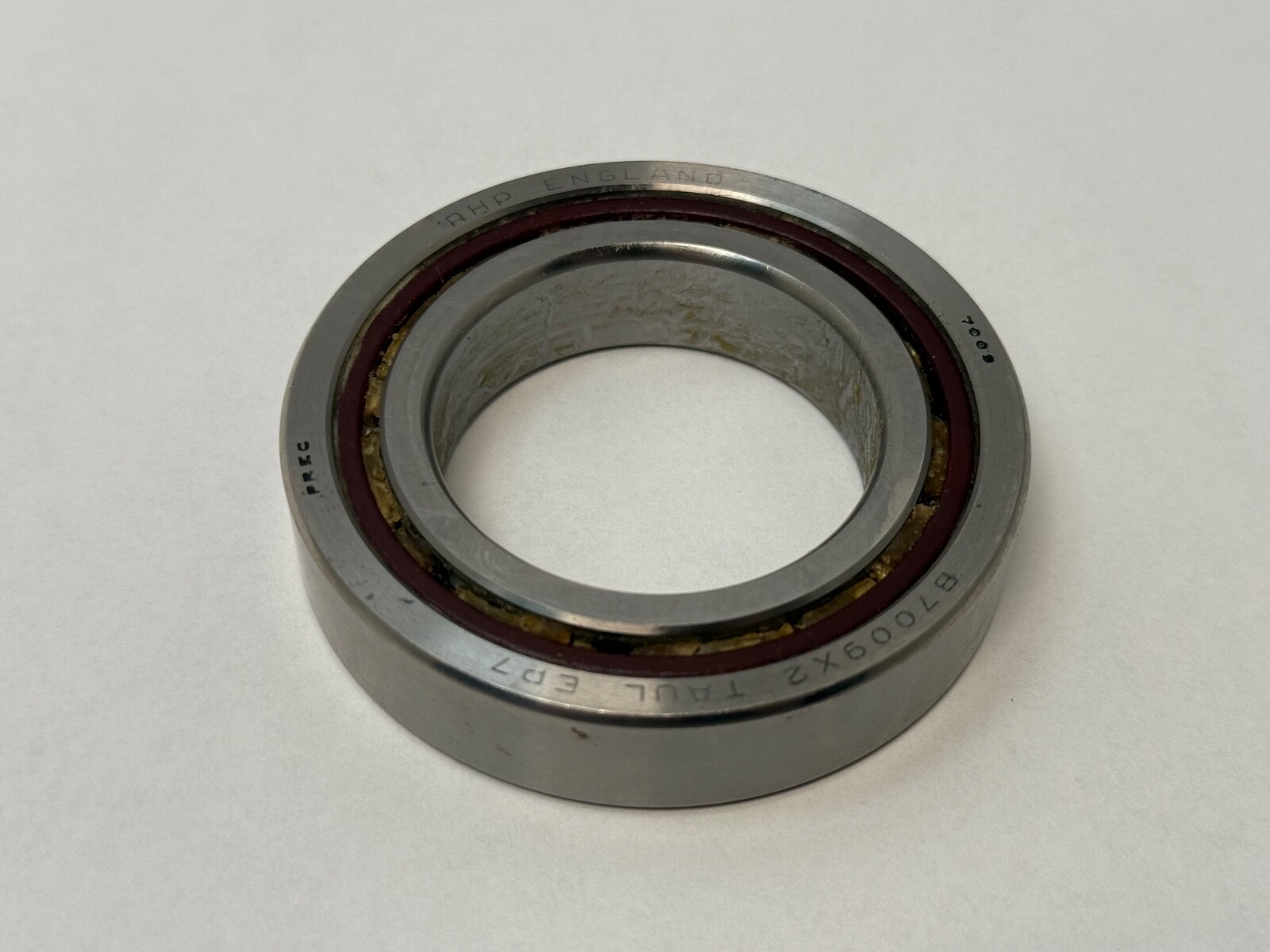

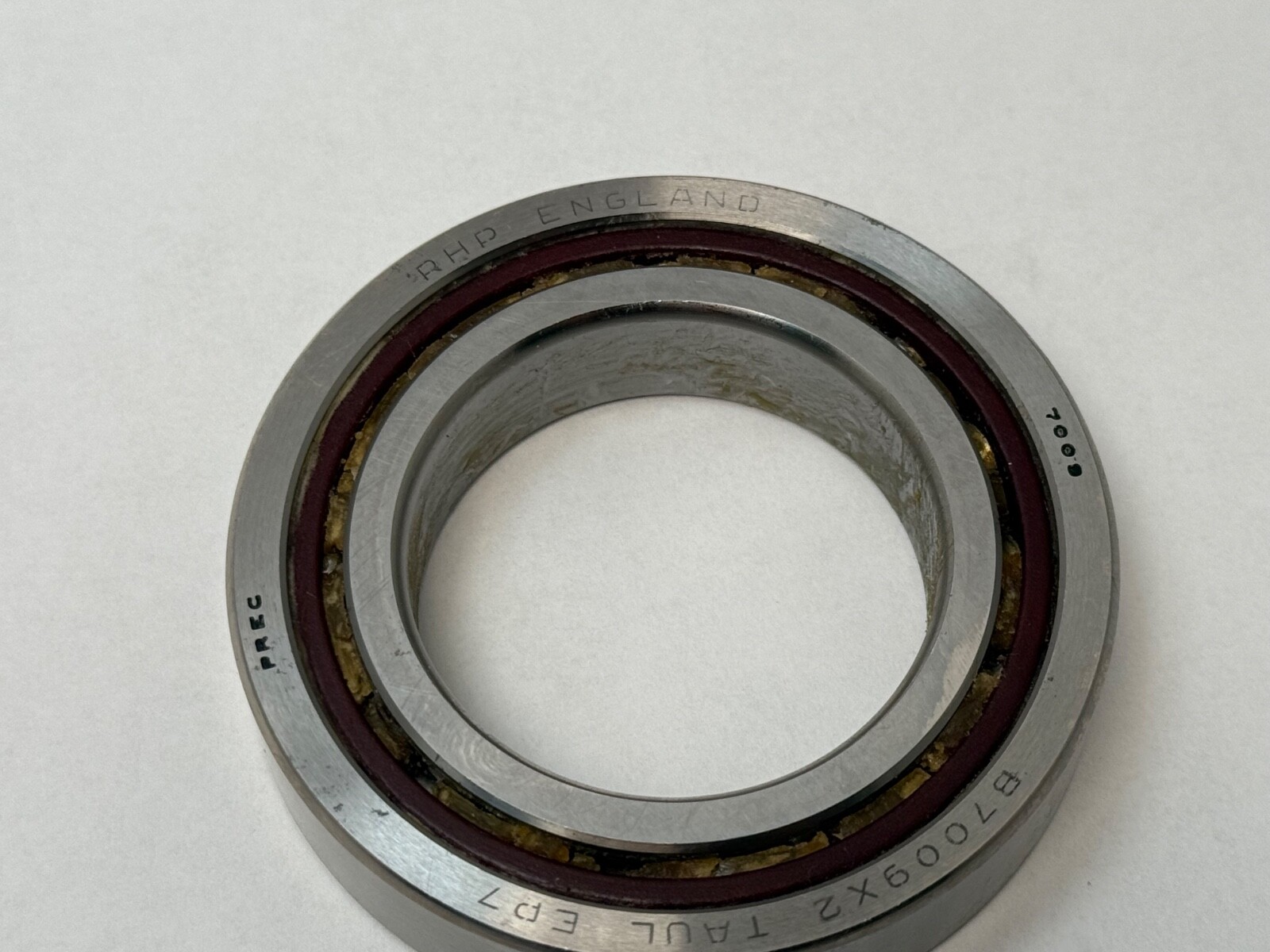

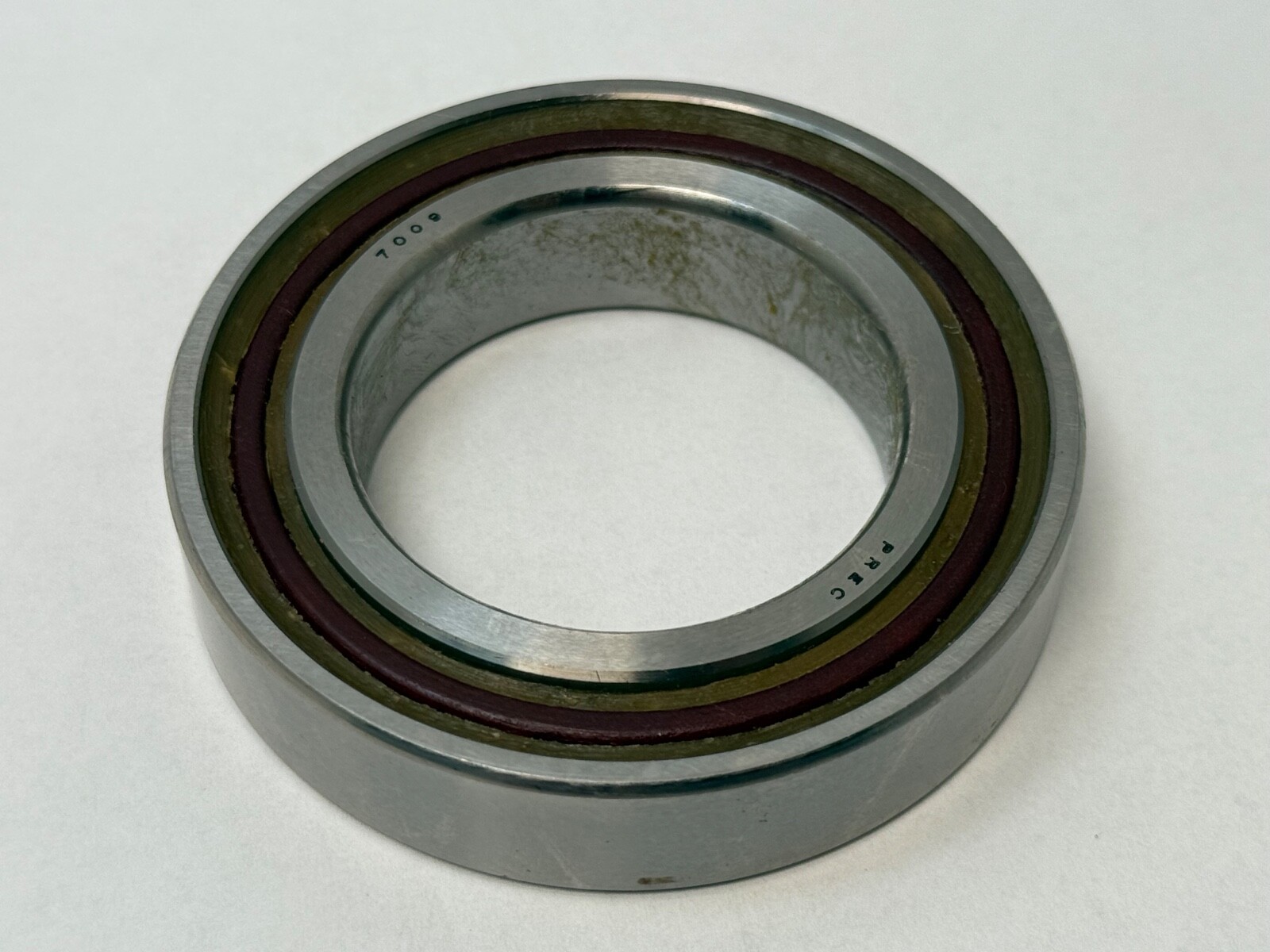

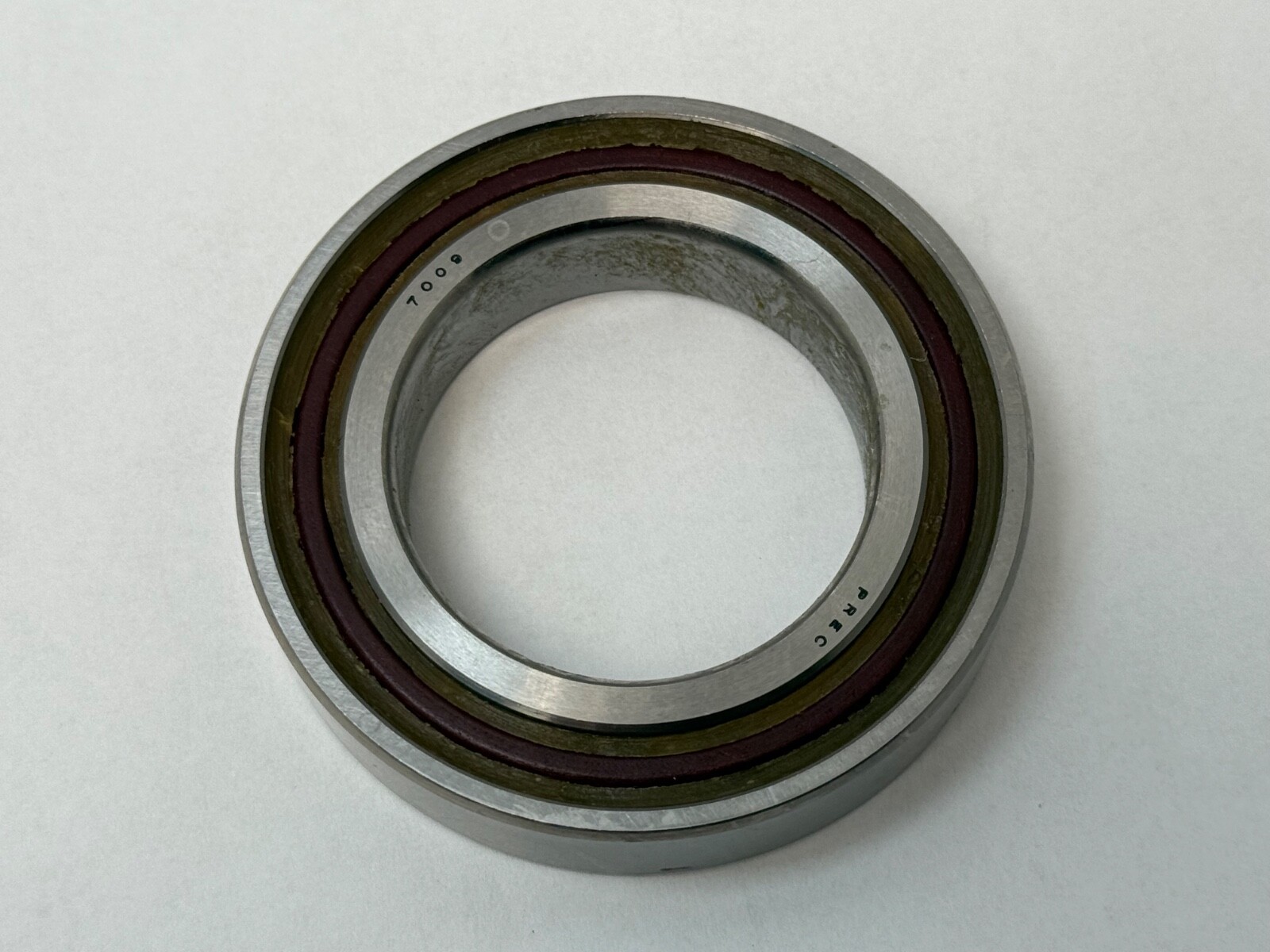

Super-precision angular contact ball bearing, 45 x 75 x 16 mm, 15 degree contact angle at ABEC 7 / P4. Light preload, phenolic cage, universally faced.
List Price
$51.72
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7009CTSULP4 |
| Model | 7009 C T SUL P4 / B 7009 X2 TA UL EP7 / 2MM9109WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Series | 7000 |
|---|---|
| Lubricant | grease or oil |
| Preload | Light |
| Material | Bearing Steel |
| Base Number | 7009 |
| Industry Terms | Super-precision spindle bearing; machine tool spindle bearing; precision angular contact bearing |
| Common Misspellings | 7009 CTSUL P4; 7009CTSUL-P4; 7009 C T SUL P4 |
| Application Types | Machine tool spindles; high-speed grinding spindles; precision gearboxes; milling heads |
| Mpn Variants | 7009CTSULP4; 7009-C-T-SUL-P4; B7009X2TAULEP7; 2MM9109WI CR SUL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 24,400 N |
| Static Load Rating | 19,300 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 18,800 rpm grease; 30,500 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal single |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken Fafnir 2MM9109WI CR SUL (Fafnir code) |
|---|---|
| Cross Reference 2 | FAG B7009-C-T-P4S-UL (P4S class) |
| Cross Reference 3 | IBC 7009-C-T-P4S-UL (P4S class) |
| Cross Reference 4 | SKF 7009 CD/P4ADGA (P4A class) |
| Cross Reference 5 | NSK 7009CTRSULP4 (RHP/NSK catalogue row) |
| Cross Reference 6 | Koyo 7009C (7009C base, class not stated) |
RHP 7009CTSULP4 super-precision single-row angular contact ball bearing, ISO dimension series 10. Open, straight bore, 15° contact angle, ABEC 7 / P4, light preload, phenolic cage. Unit Quantity: 1 Pc.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
09 — bore code 09, 45 mm bore.
C — 15° contact angle.
T — laminated phenolic resin cage, outer-ring guided.
SU — single universal. Inner and outer rings are the same width and the faces are ground, so two bearings mount back-to-back, face-to-face or in tandem at the designed preload.
L — light preload. Back-to-back pair: axial preload 150 N, axial stiffness 58 N/um.
P4 — ISO Class 4, ABEC 7, British Standard EP7.

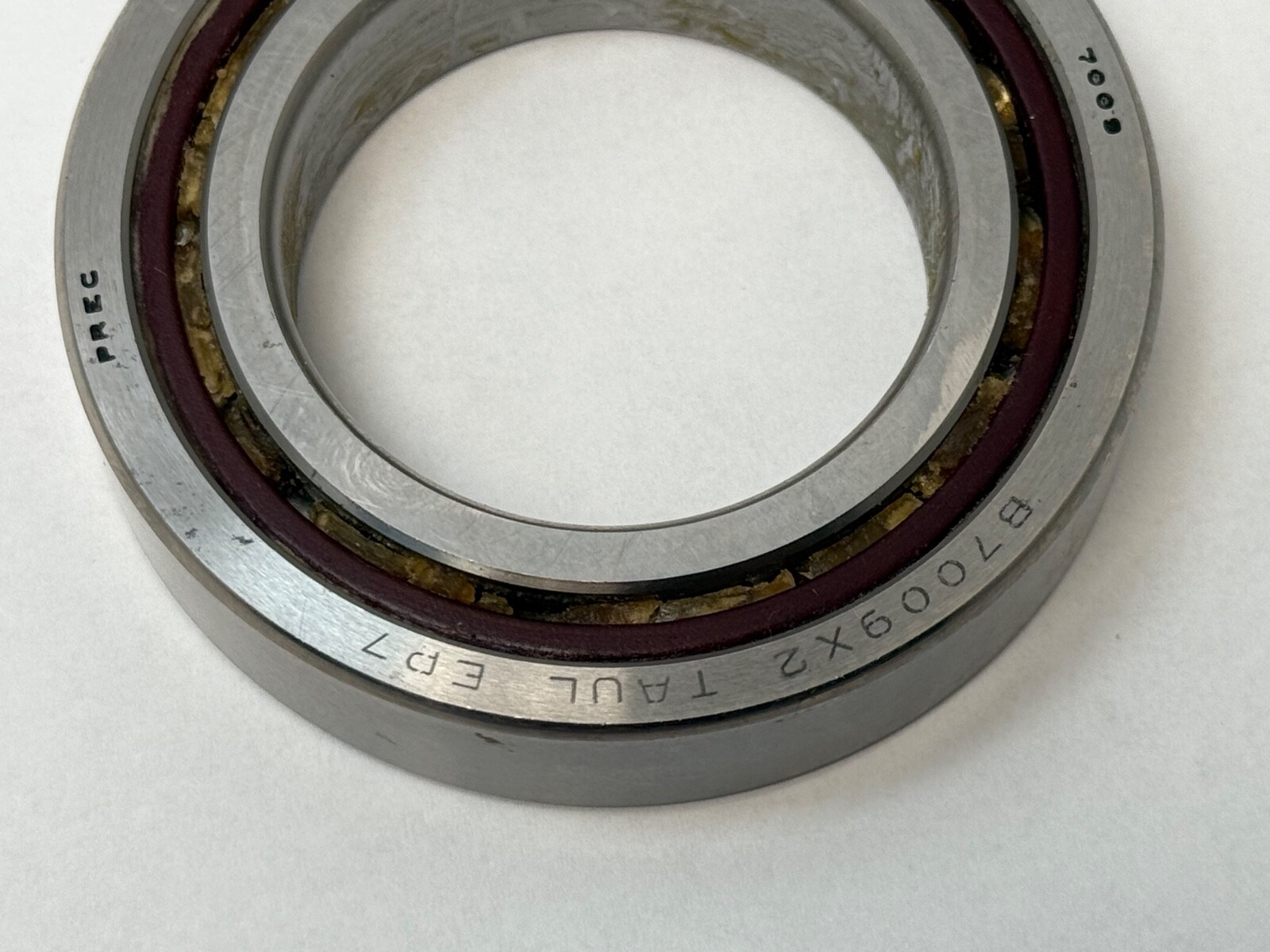

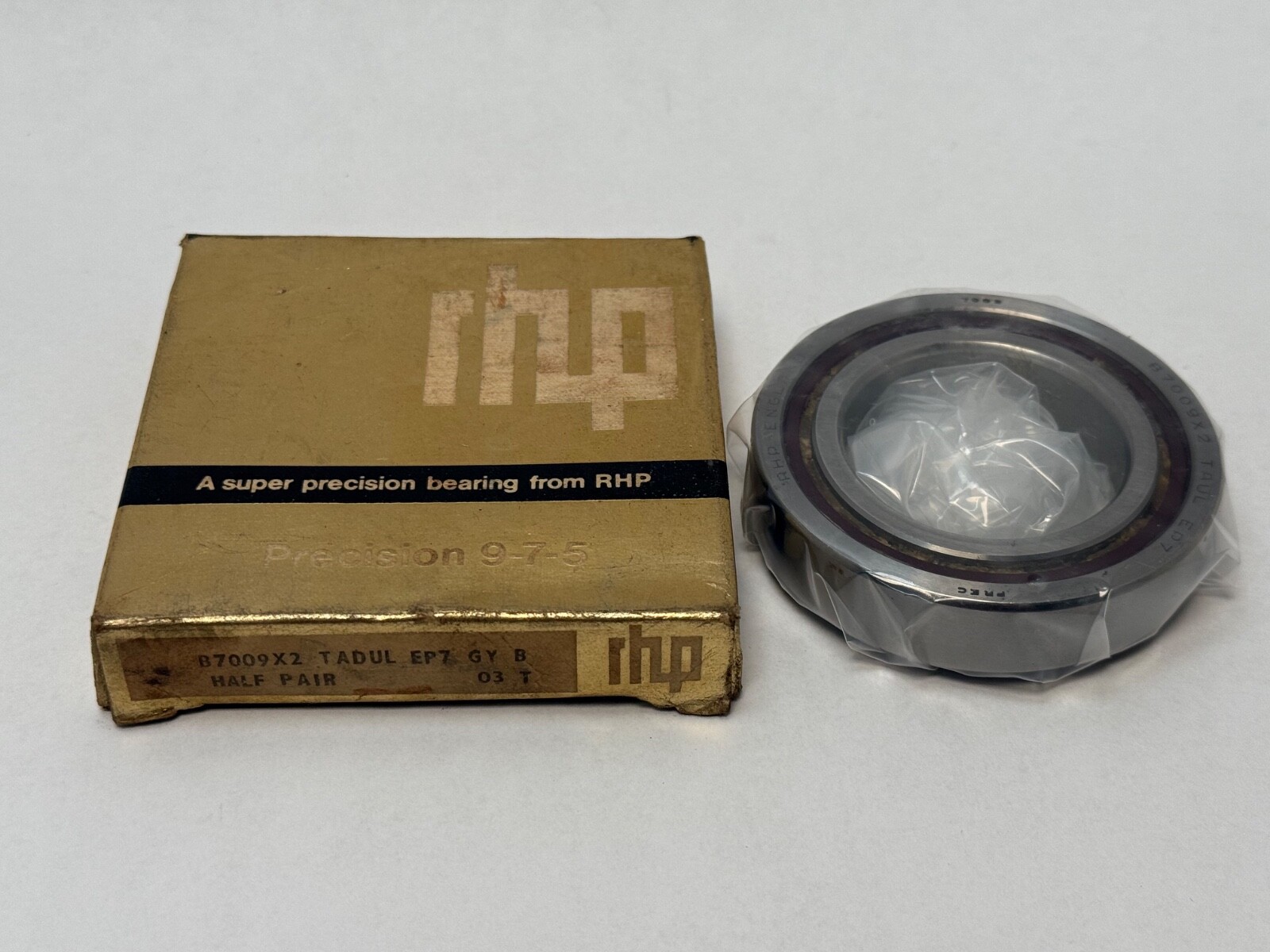

B7009X2TAULEP7 — the same bearing in the RHP B-series scheme: X2 is the 15° angle, TA the outer-ring-centred phenolic cage, UL universal light preload, EP7 the British Standard grade equal to P4.
Bearing Type: Angular Contact Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Series: 7000. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Mounting Arrangement: Universal single. Seal Type: Open. Bore Type: Straight. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Carbon chrome bearing steel, through hardened. Lubricant: grease or oil. Harmonization Code: 8482.10.50. Country of Origin: United Kingdom.
Dynamic Load Rating: 24,400 N. Static Load Rating: 19,300 N. Limiting Speed: 18,800 rpm grease; 30,500 rpm oil. Catalogue speed factor for a back-to-back pair at light preload: 0.80.
Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Item Weight: 0.238 kg (0.52 lb).
Inner ring abutment diameter d1 min: 51 mm. Outer ring abutment diameter D1 max: 69 mm. Outer ring seating diameter D2 max: 70 mm. Chamfer dimension r min: 1.0 mm. Chamfer dimension r1 min: 0.6 mm. Effective load centre a: 16.0 mm. Internal free volume: 11.2 cm3. PCD of lubrication jets: 55.6 mm.
Cross-references: Timken Fafnir 2MM9109WI CR SUL (Fafnir code), FAG B7009-C-T-P4S-UL (P4S class), IBC 7009-C-T-P4S-UL (P4S class), SKF 7009 CD/P4ADGA (P4A class), NSK 7009CTRSULP4 (RHP/NSK catalogue row), Koyo 7009C (class not stated). MPN Variants: 7009CTSULP4; 7009-C-T-SUL-P4; B7009X2TAULEP7; 2MM9109WI CR SUL.
Bore 45 mm, outside diameter 75 mm, width 16 mm.
15° contact angle, ABEC 7 / P4.
18,800 rpm on grease and 30,500 rpm on oil.
