Angular contact ball bearing, 45 x 75 x 16 mm, 15° contact angle, ABEC 7/P4 precision class. Open, straight bore, single row, new SKF spindle bearing.
List Price
$133.61
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7009CP4 |
| Model | 7009 C P4 / 2MM9109WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | Timken/Fafnir 2MM9109WICR |
|---|

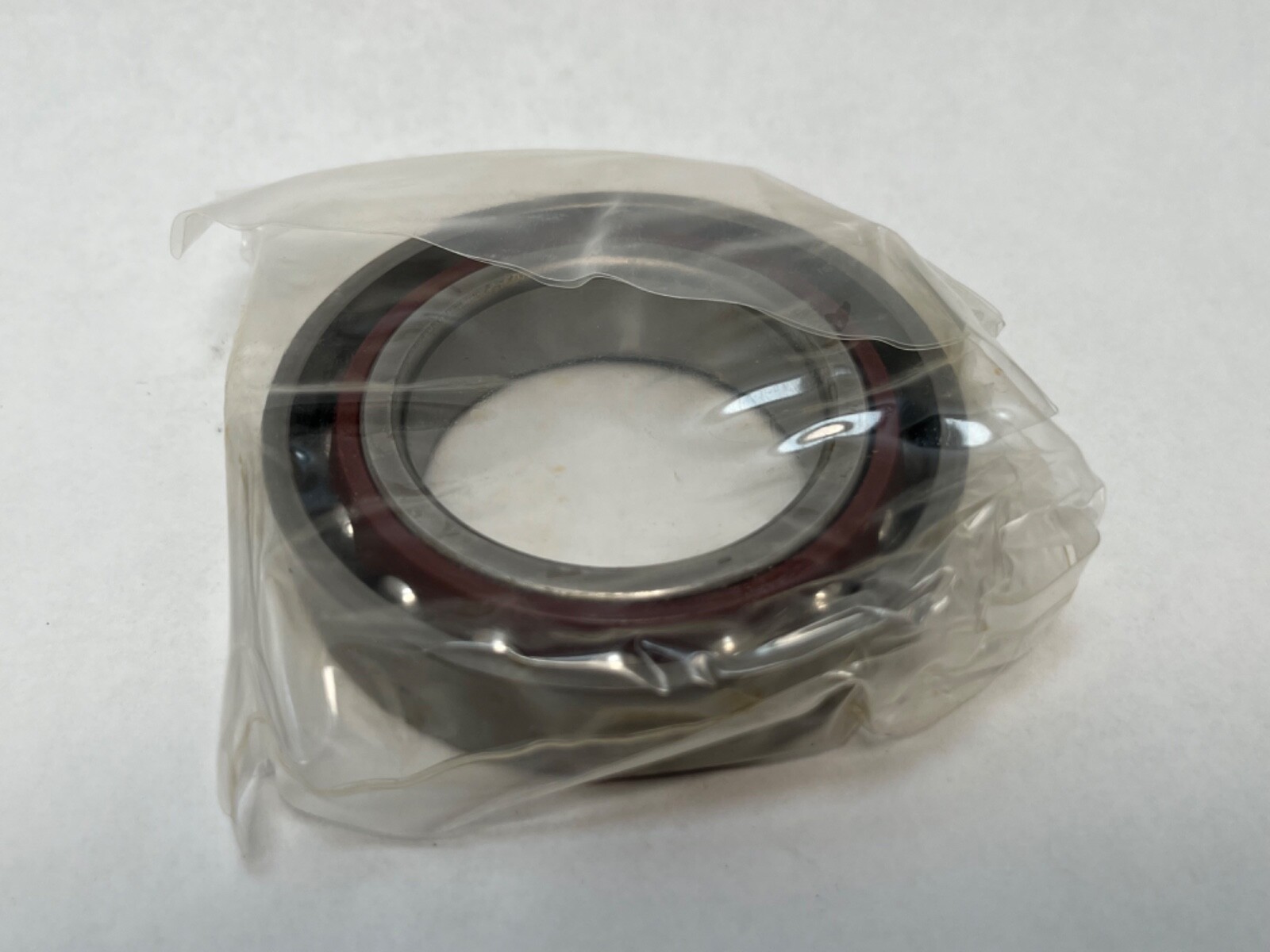

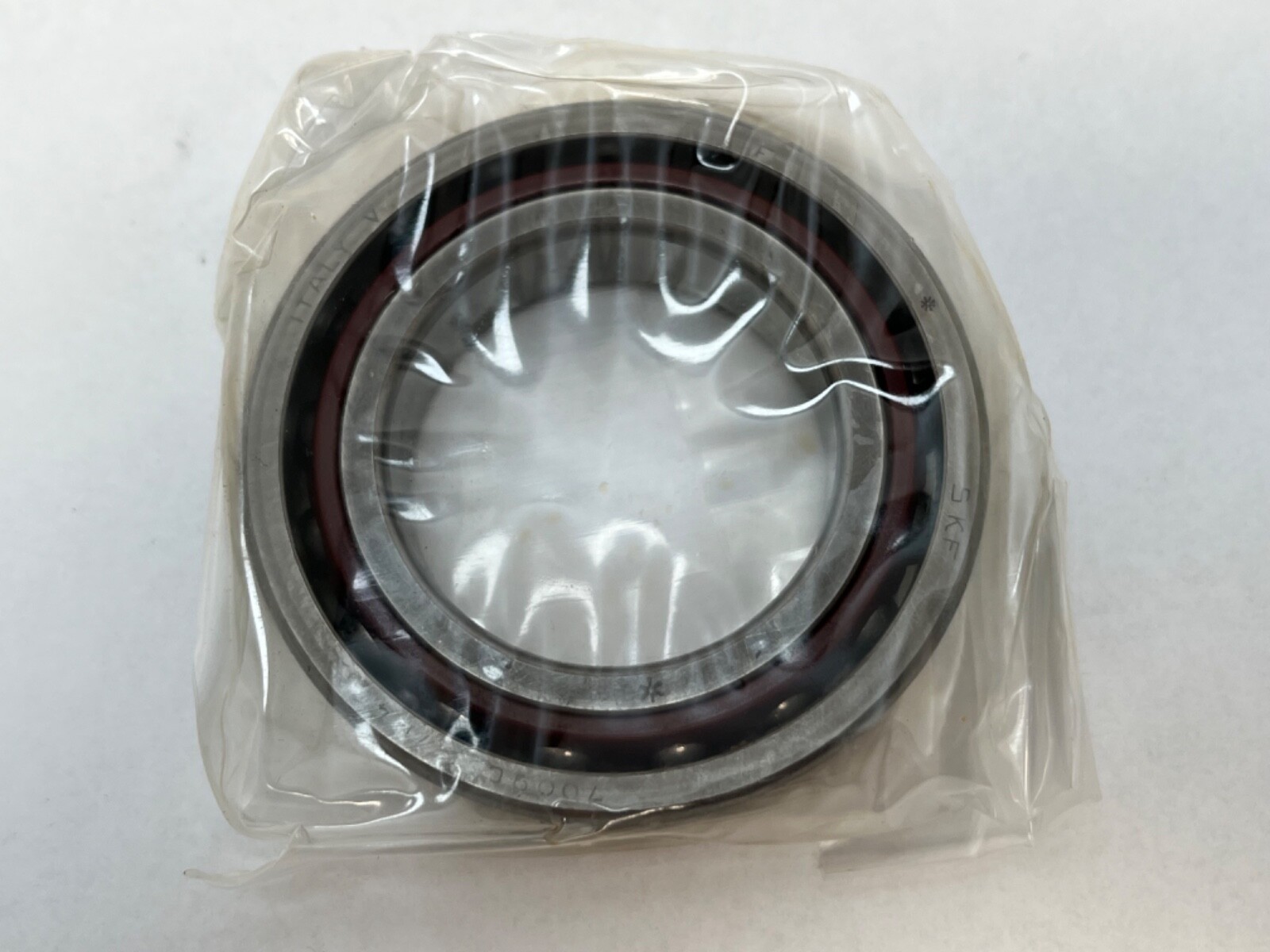

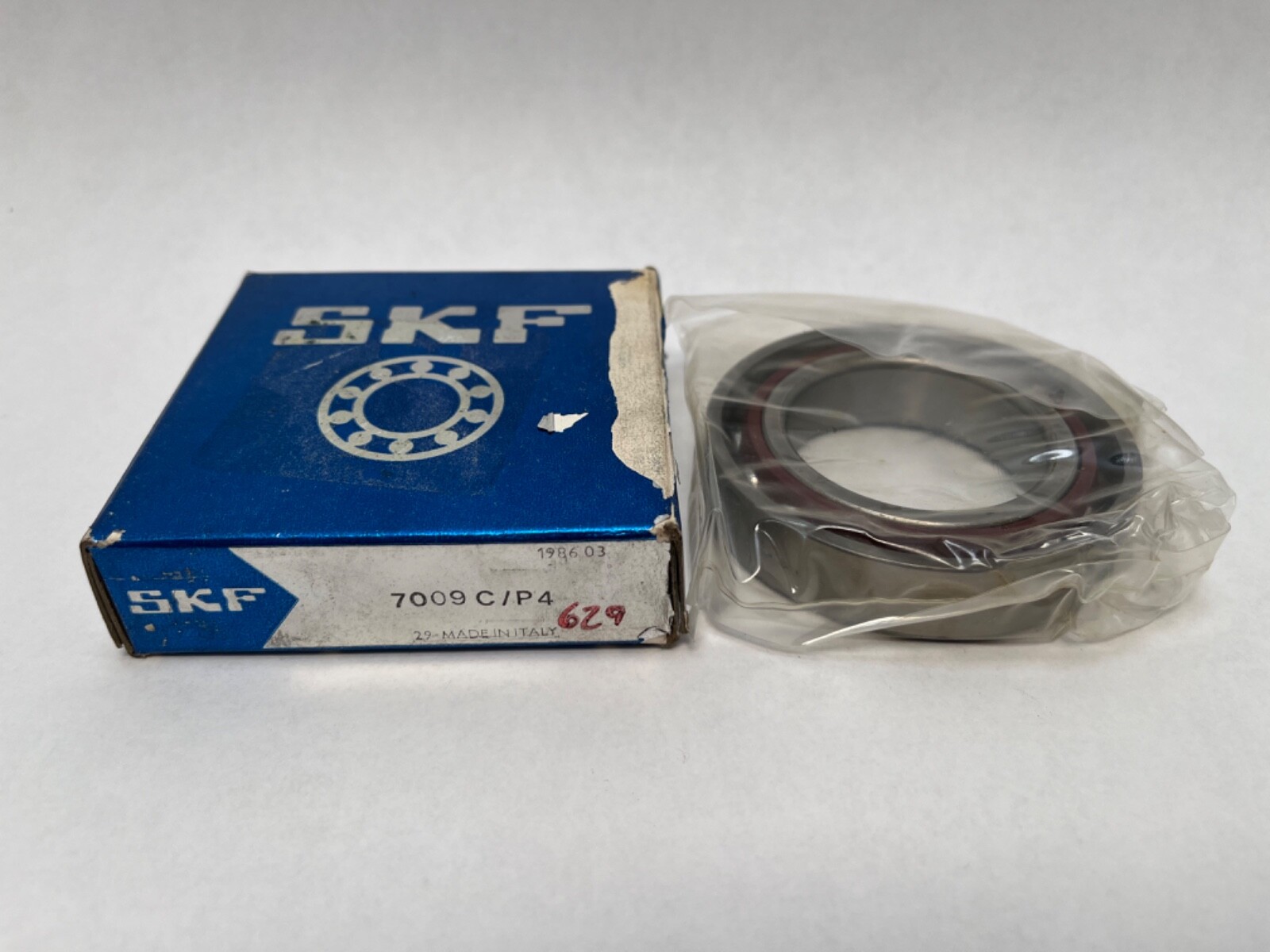

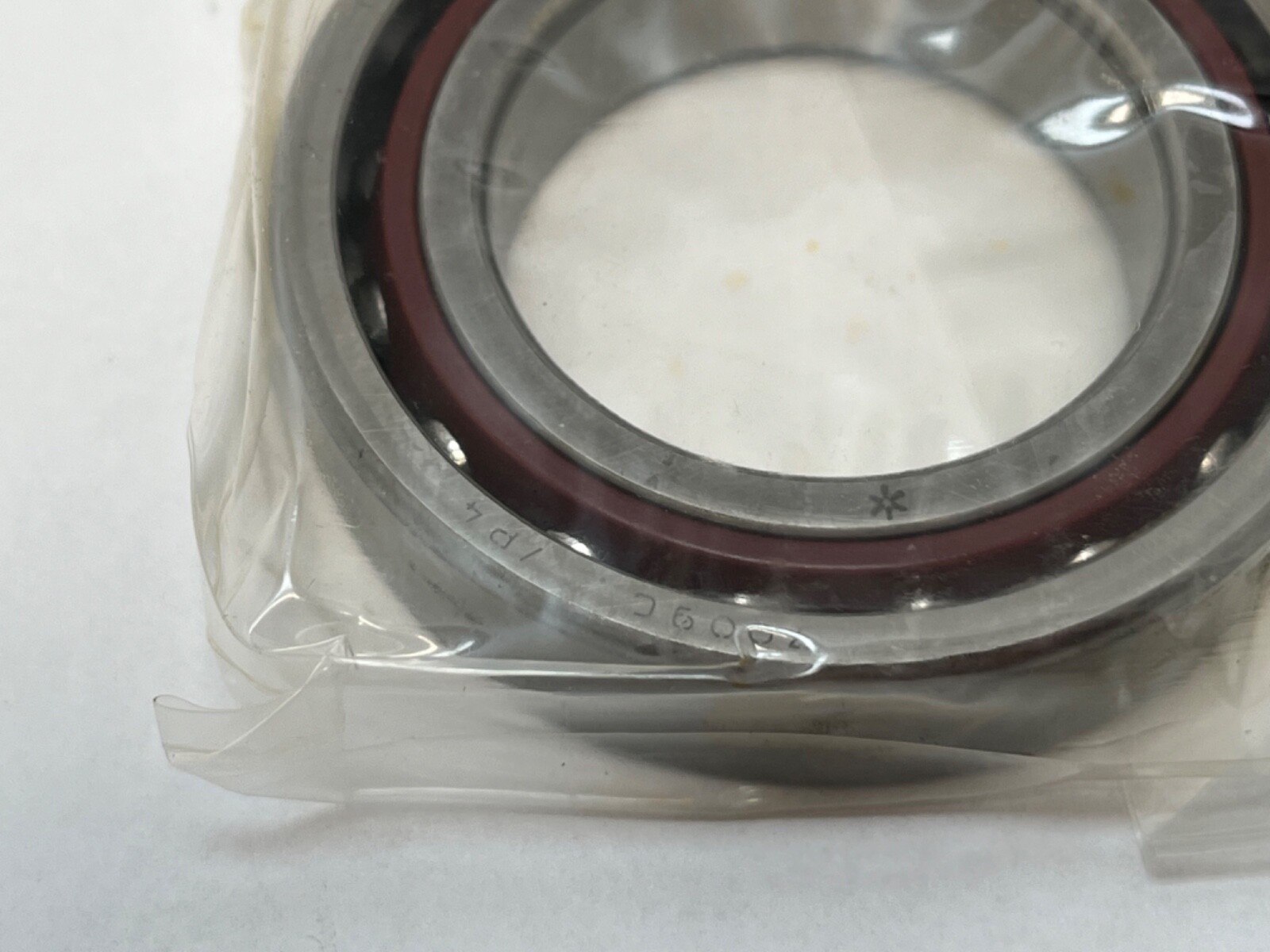

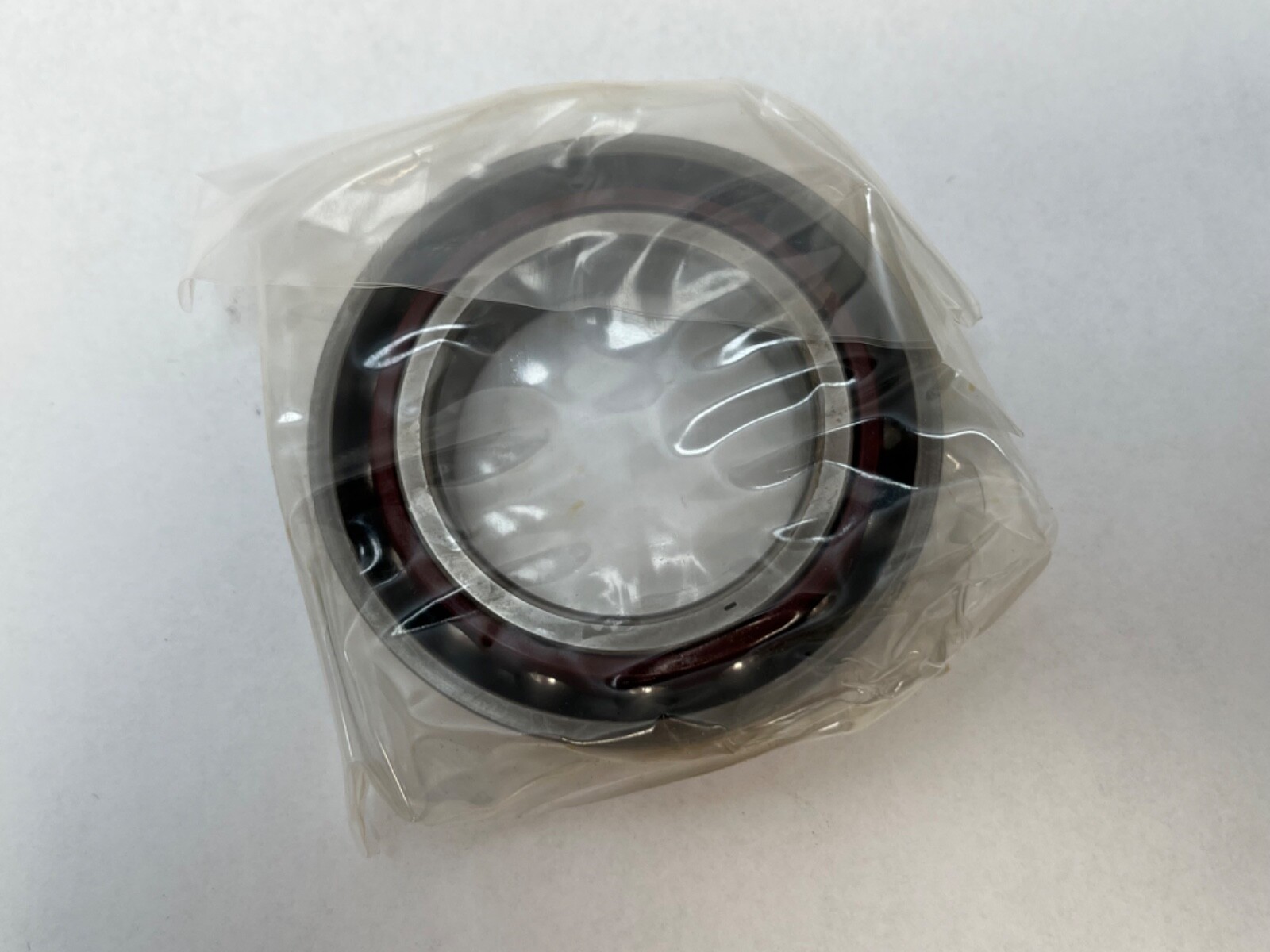

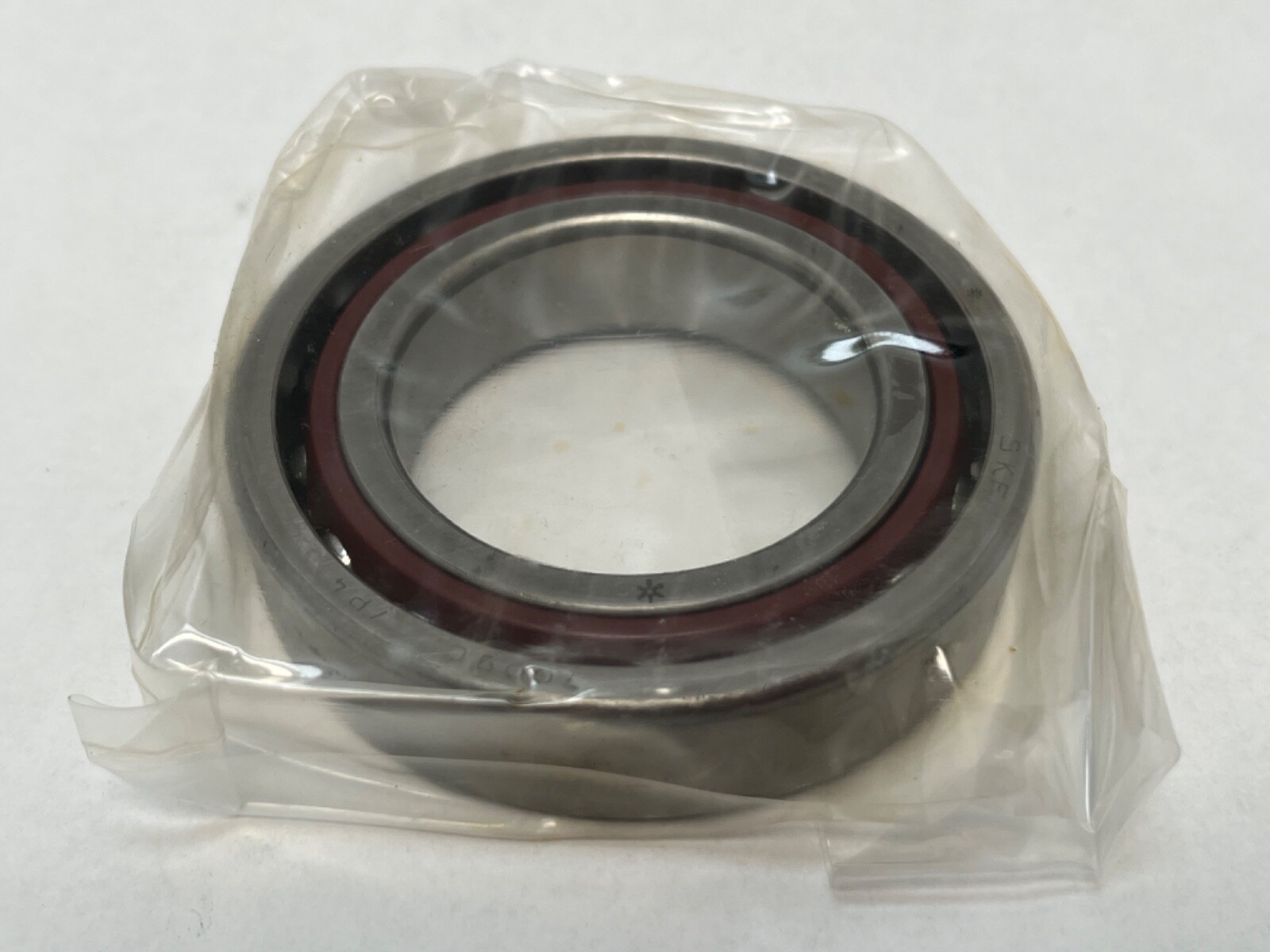

Single-row angular contact ball bearing, SKF 7009-C-P4. Bore 45 mm, outside diameter 75 mm, width 16 mm. Open construction, straight bore.
7009 — SKF’s number for the ISO 7009 size, 45 x 75 x 16 mm, in the 70-series angular contact family.
C — 15° contact angle.
P4 — ABEC 7 / ISO P4 precision class.
Contact Angle: 15°. Precision Class: ABEC 7 / P4. Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open.
Timken/Fafnir 2MM9109WICR shares the same 45 x 75 x 16 mm envelope and 15° contact angle in the equivalent super-precision series.
