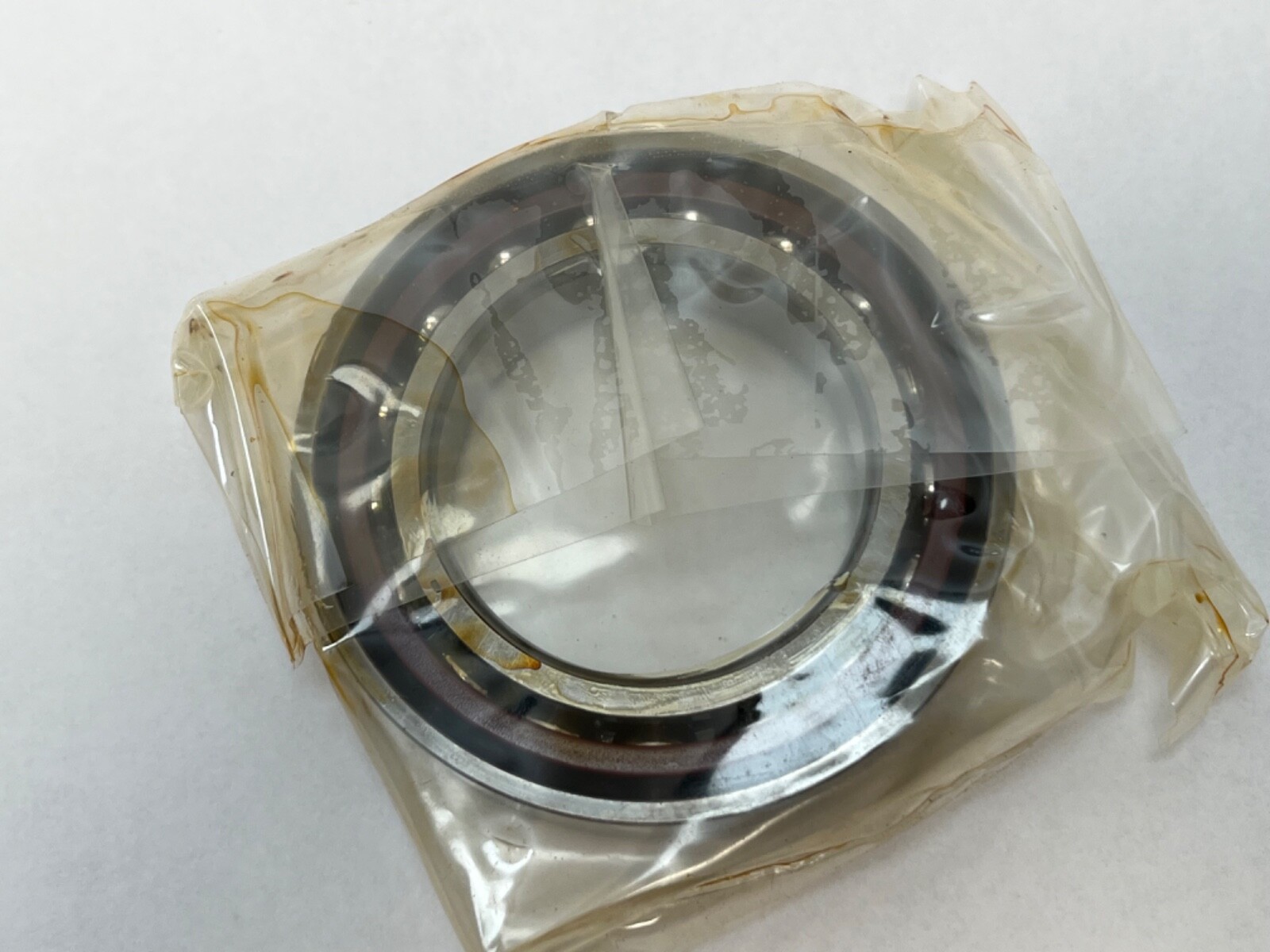

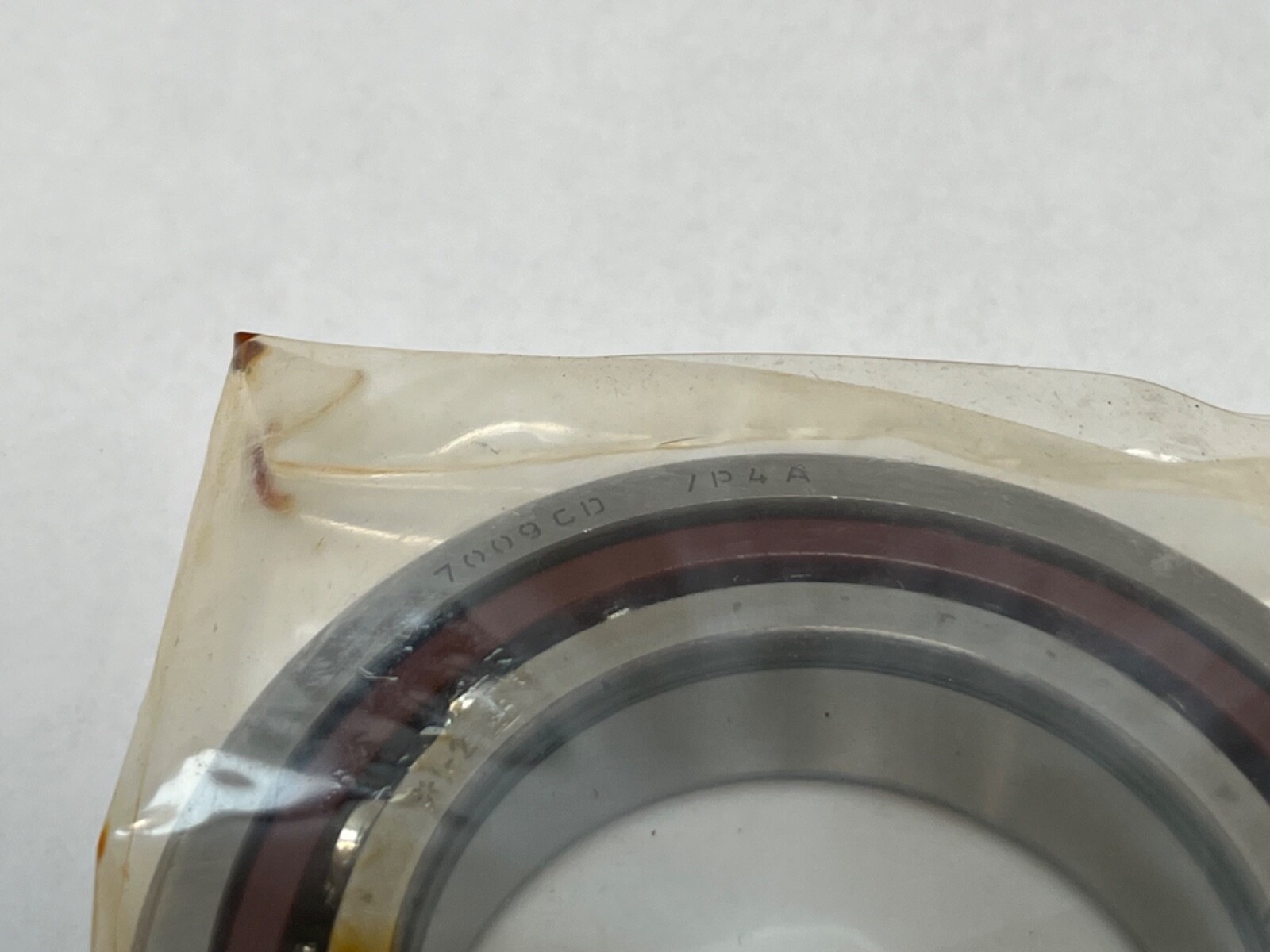

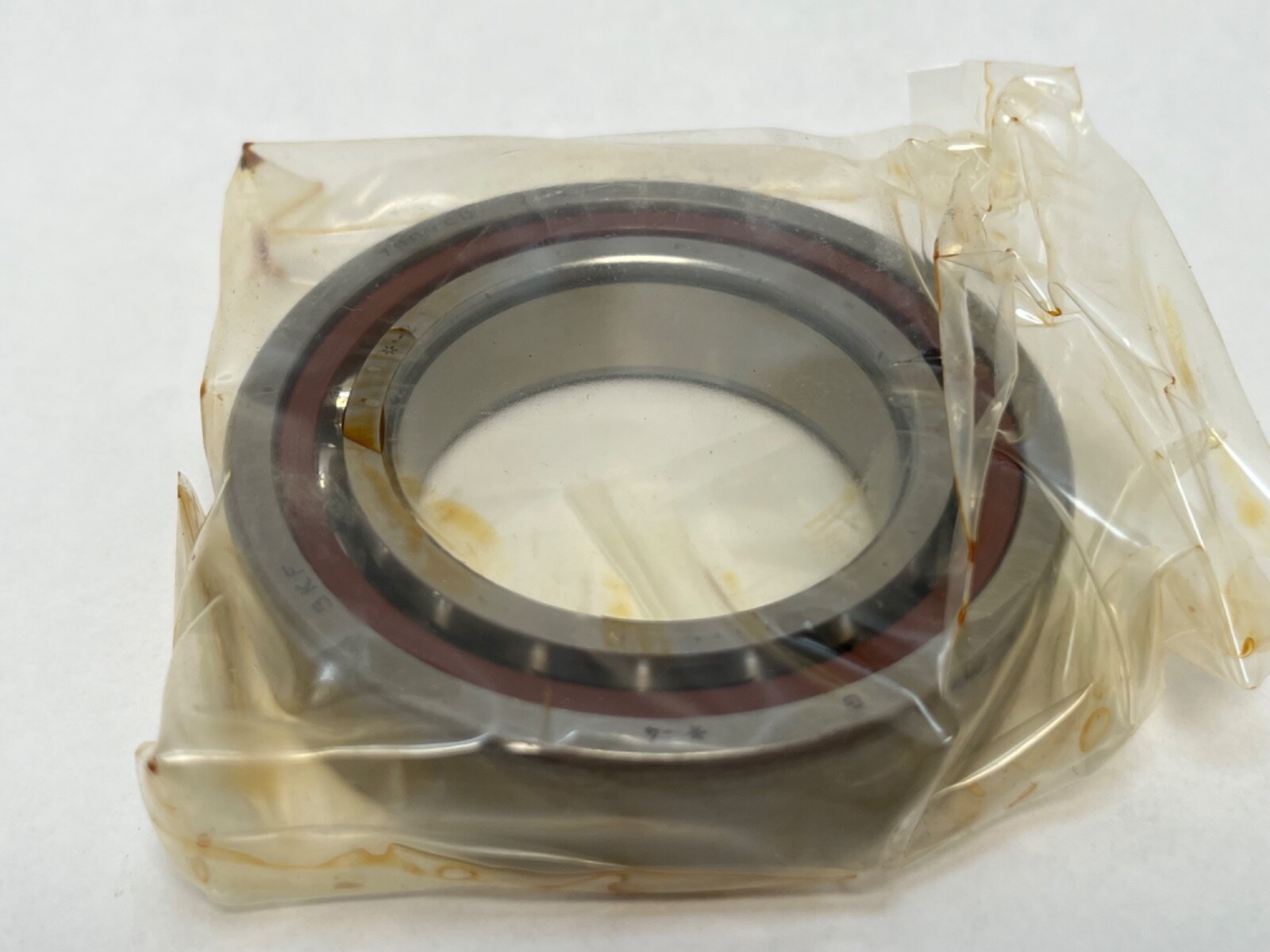

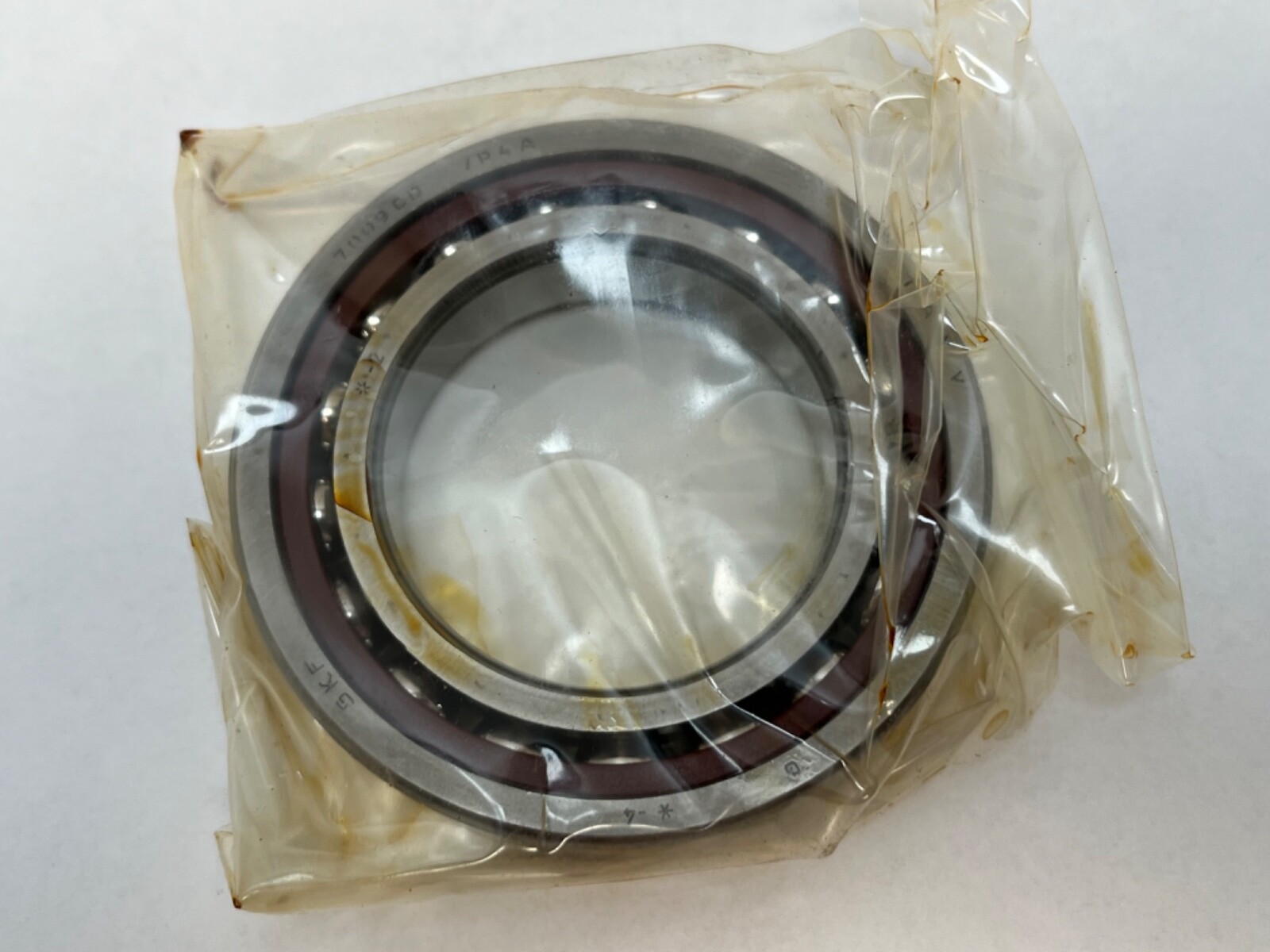

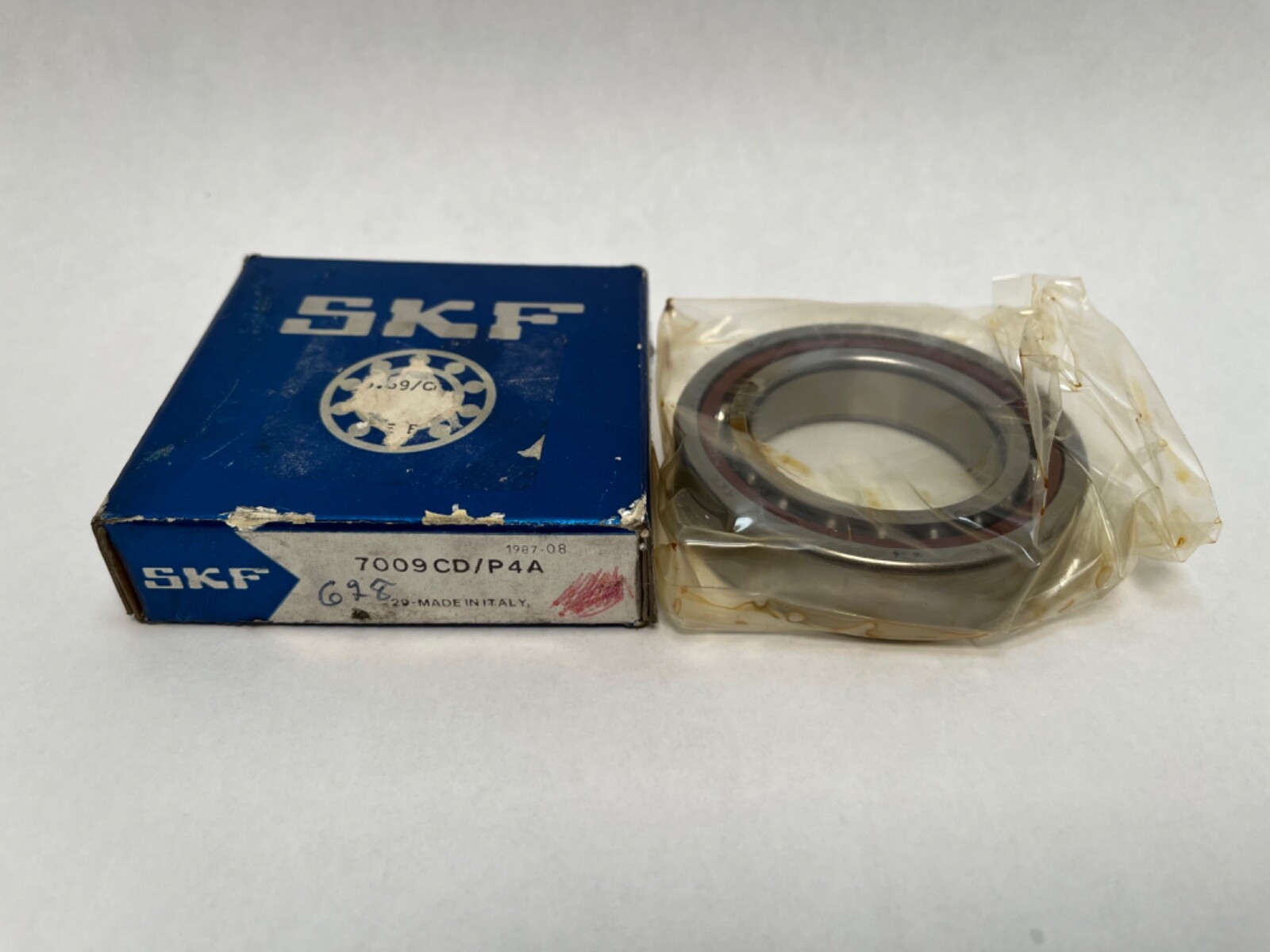

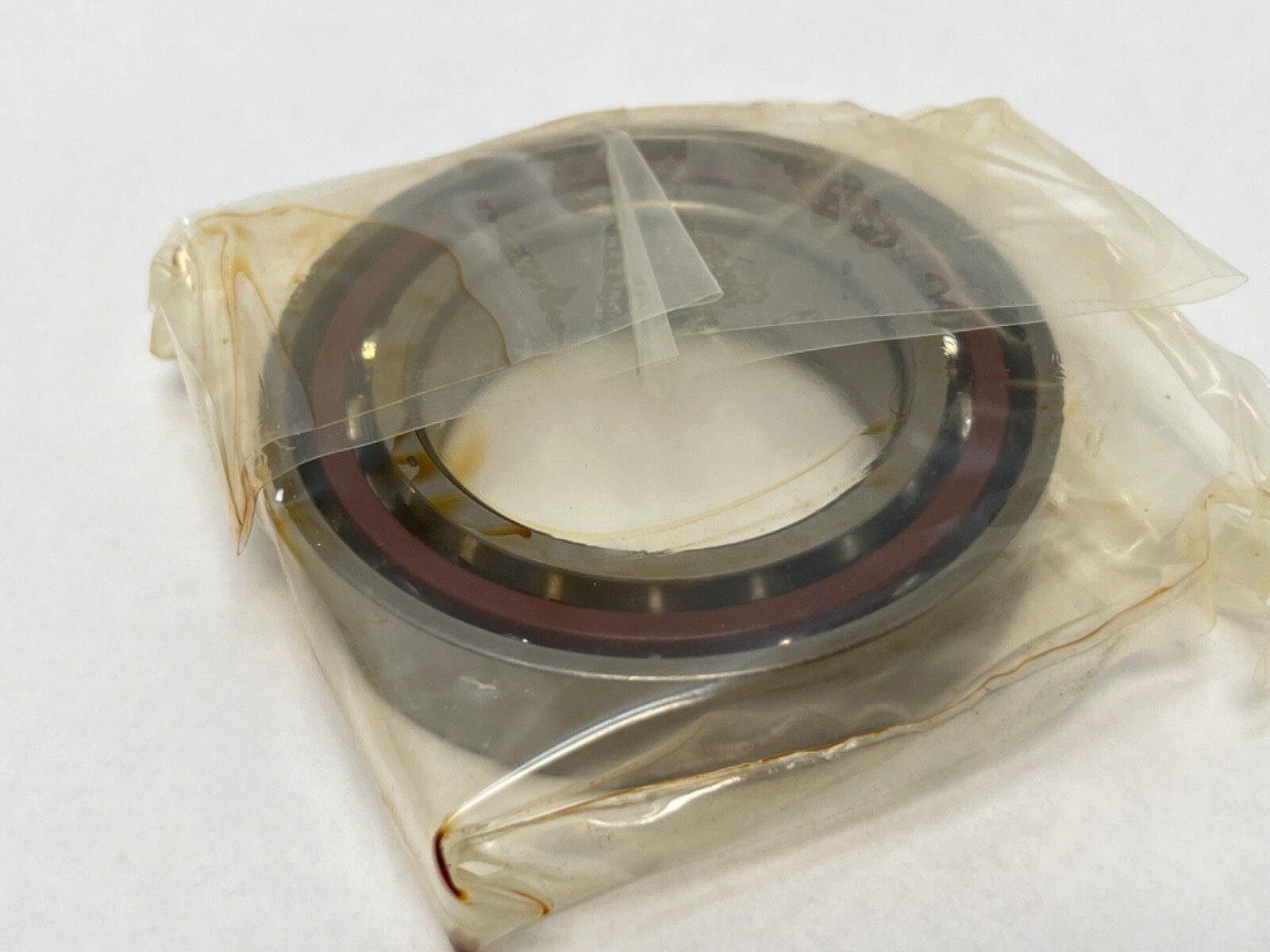

SKF 7009-CD/P4A angular contact ball bearing, 45 mm bore, 75 mm OD, 16 mm width, 15° contact angle, ABEC 7 / P4 precision, light preload.
List Price
$133.61
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7009 CD/P4A |
| Model | 7009 CD P4A / 2MM9109WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Bearing Material | Bearing Steel |
| Industry Terms | Angular contact ball bearing; spindle bearing; super-precision bearing; P4A bearing |
| Common Misspellings | SKF7009CDP4A; SKF 7009 CD P-4A; 7009 CD/P4; 7009CD-P4A |
| Application Types | Machine tool spindles; precision grinders; high-speed motor spindles |
| Mpn Variants | 7009 CD/P4A, 7009-CD/P4A, 7009CDP4A, 7009 CD P4A, 7009-CD-P4A, 7009C |
| Cross Reference 1 | Fafnir/Timken 2MM9109WICR (15°, P4) |
|---|
Angular contact ball bearing, SKF 7009-CD/P4A. Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Bore Type: Straight. Closure Type: Open. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Bearing Material: Bearing Steel. Unit Quantity: 1 Pc.
7009 — 70-series angular contact ball bearing, 45 mm bore.
CD — 15° contact angle.
P4A — ISO P4 precision class with class A light preload.
Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Bearing Material: Bearing Steel. Rolling Elements: Ball. Number Of Rows: 1. Series: 7000.
Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm.
Fafnir/Timken 2MM9109WICR: 45 x 75 x 16 mm, 15° contact angle, P4 precision class.
Other forms of the number: 7009CDP4A, 7009 CD P4A, 7009-CD-P4A, 7009C.
Bore Diameter is 45 mm, Outside Diameter is 75 mm and Overall Width is 16 mm.
The contact angle is 15°, set by the CD in the designation.
ISO P4 precision class (ABEC 7) with class A light preload.
