Super precision angular contact ball bearing, 45 x 75 x 16 mm, 15° contact angle, open, light preload, phenolic cage, ABEC 7 running accuracy.
List Price
$106.81
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7009CTSULP4 |
| GTIN | 747023141401 |
| Model | 7009-C-T-SUL-P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Preload | Light |
| Base Number | 7009 |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7009CTSULP4 / 7009-C-T-SUL-P4 / 7009-C-T-DUL-P4 / 7009X2TADUEP7 / 2MM9109WICRDUL |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Axial preload 150 N paired; axial stiffness 58 N/um paired; effective load centre 16.0 mm; internal volume 11.2 cm3; fillet radius r min 1.0 mm, r1 min 0.6 mm |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 24,400 N |
| Static Load Rating | 19,300 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.238 kg (0.52 lb) |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 18,800 rpm grease; 30,500 rpm oil or oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7009CTSULP4 |
| Industry Terms | Spindle bearing; super precision angular contact bearing; machine tool spindle bearing; 15 degree angular contact bearing |
| Common Misspellings | RHP 7009 CTSUL P4; RHP 7009CT SULP4; RHP7009CTSULP4; RHP 7009C TSUL P4 |
| Application Types | Machine tool spindles; high speed spindle units; grinding and milling spindles |
| Closure Type | Open |
| Cross Reference 1 | Fafnir 2MM9109WICRDUL |
|---|---|
| Cross Reference 2 | RHP 7009X2TADUEP7 |
| Cross Reference 3 | SKF 7009 CDGA/P4A – extra light preload, not light |
| Cross Reference 4 | RHP 7009A5 – 25° vs 15° contact angle |

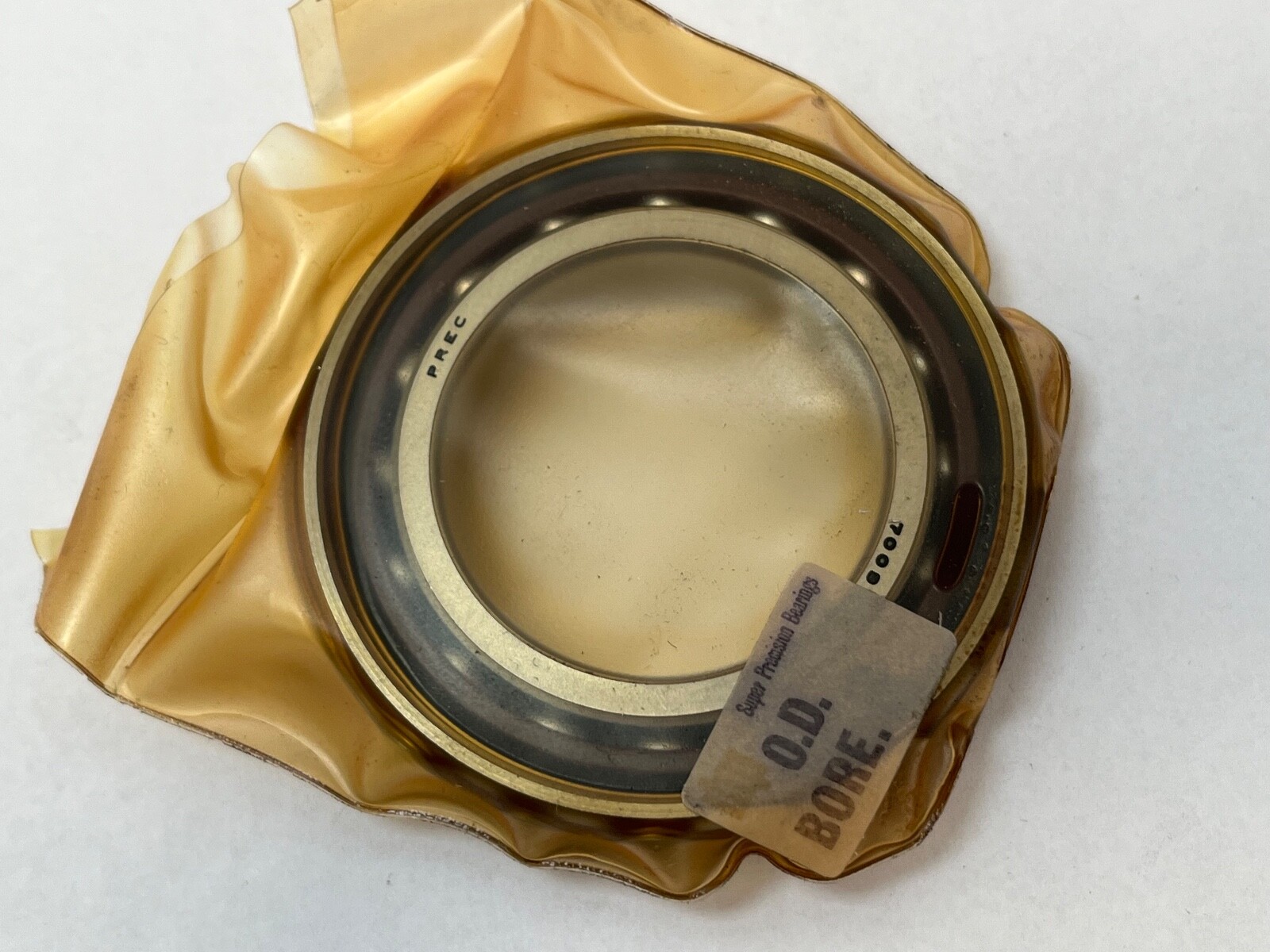

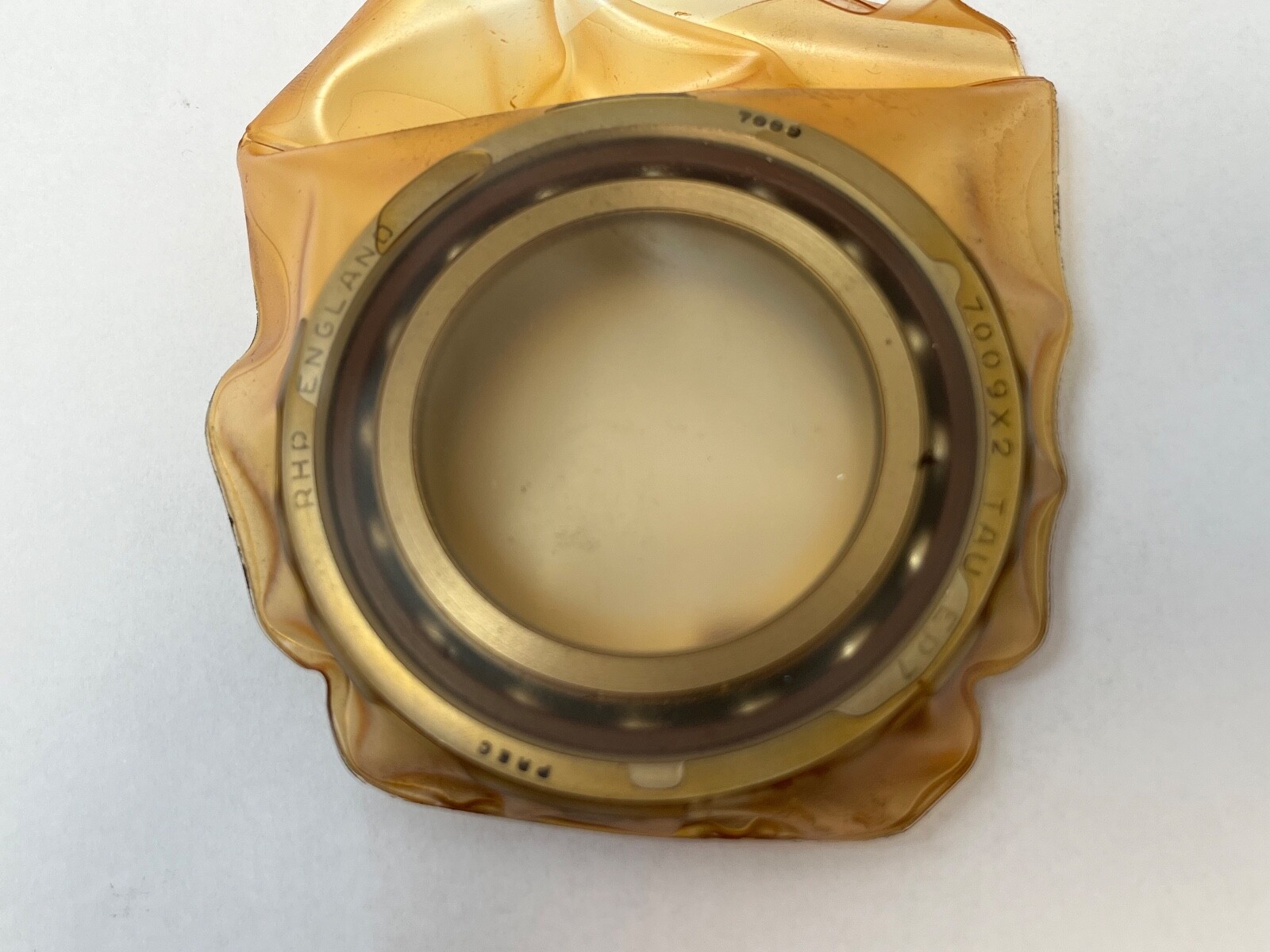

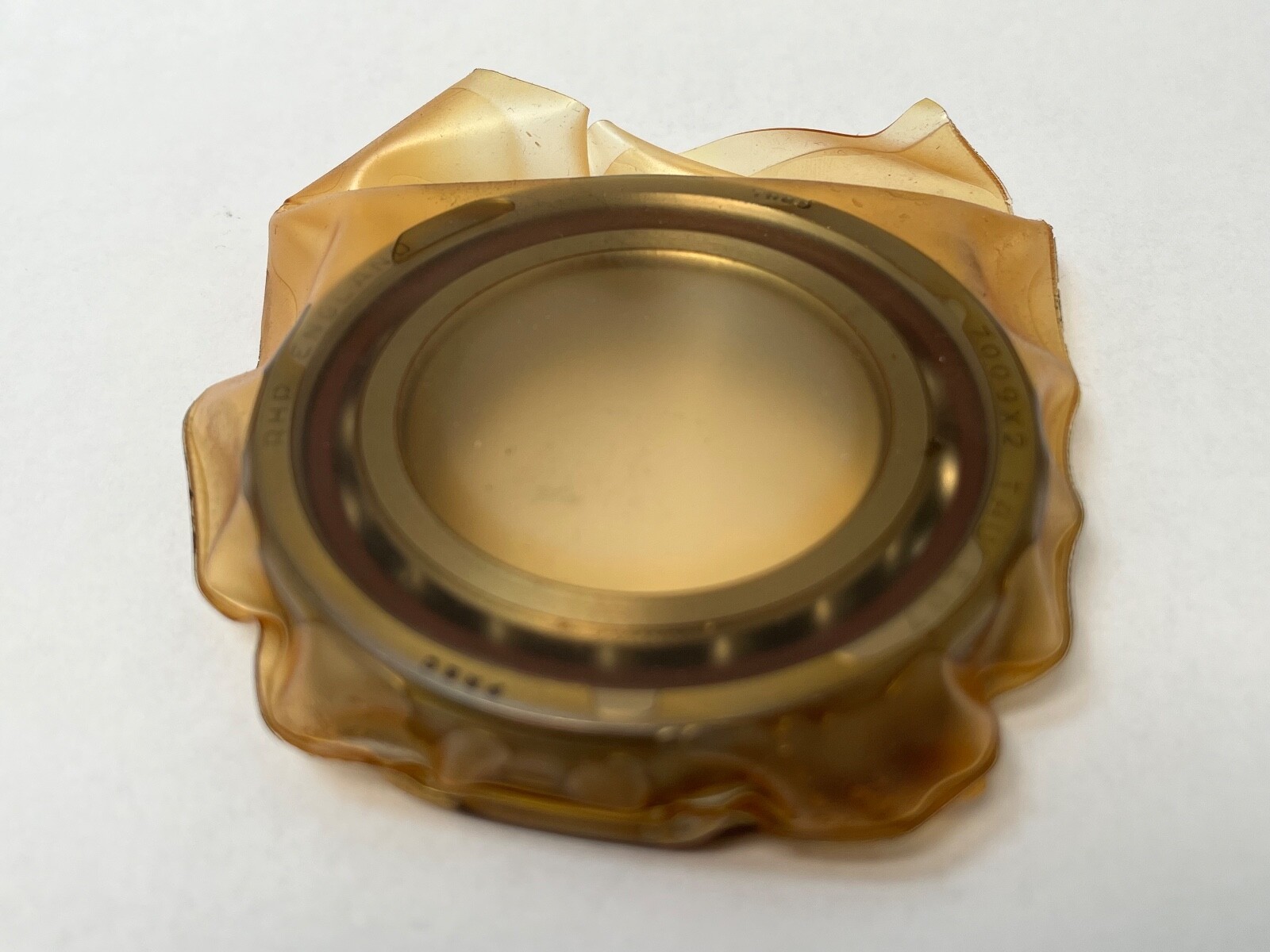

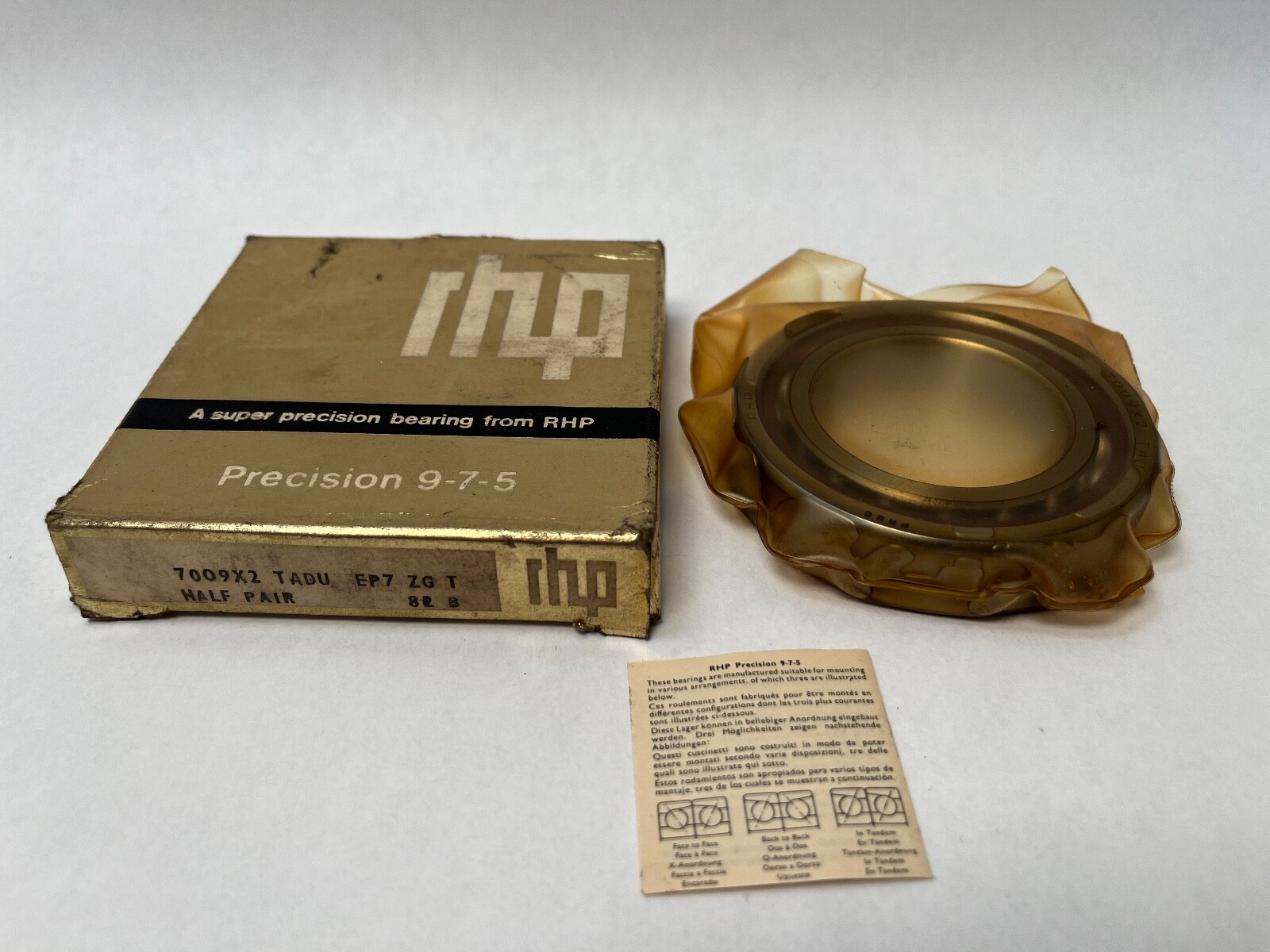

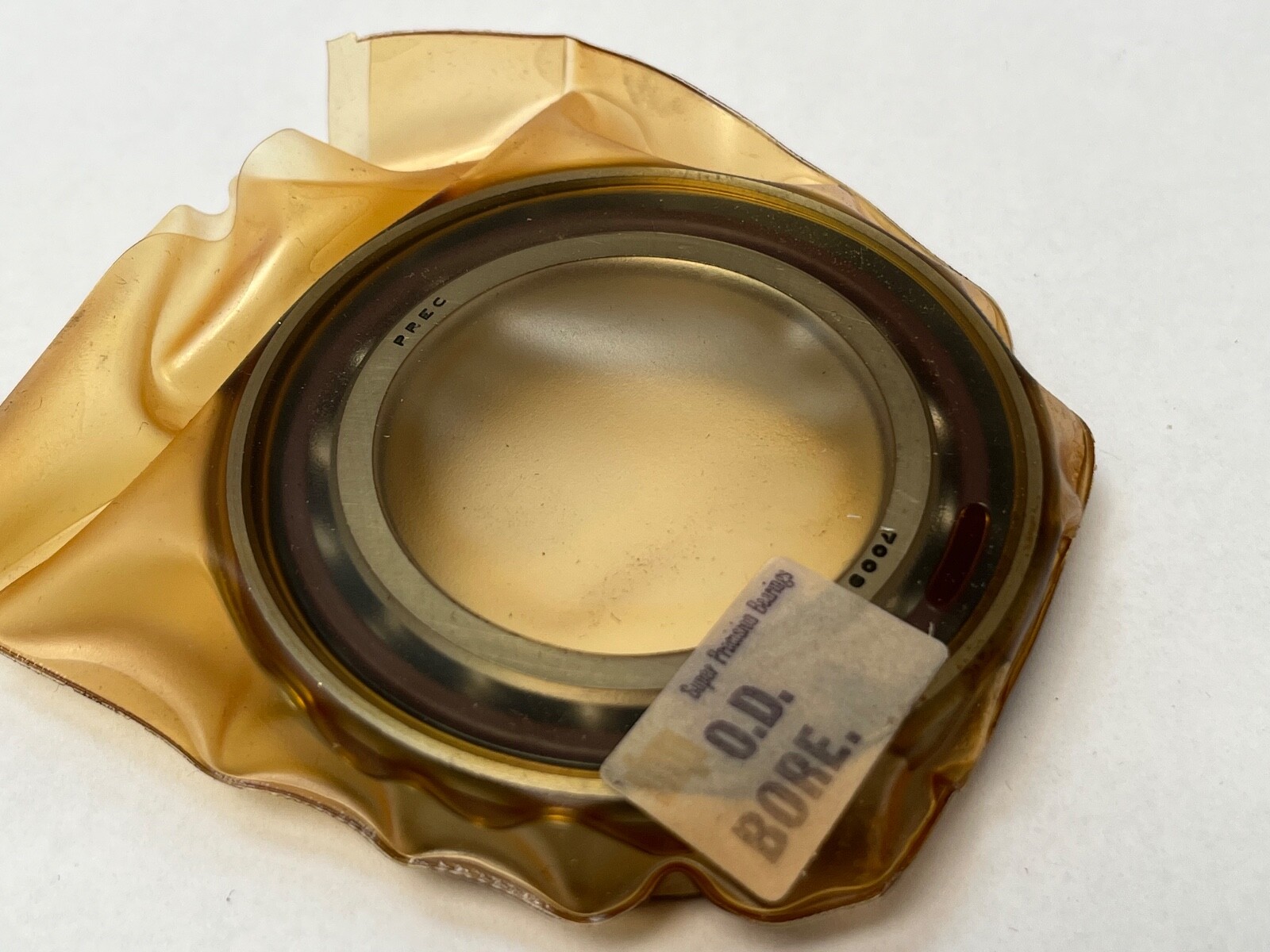

RHP 7009CTSULP4 is a super precision angular contact ball bearing, ISO dimension series 10. Single row, open, straight bore, single universal bearing with light preload. Unit Quantity: 1 Pc.
7009 — ISO dimension series 10 (70 series), bore code 09 = 45 mm bore.
C — 15° contact angle.
T — laminated phenolic resin cage, outer-ring guided.
SU — single universal, face-controlled for mounting in pairs or sets.
L — light preload.
P4 — precision class P4, equivalent to ABEC 7 and ISO Class 4.
Bore Diameter: 45 mm. Outside Diameter: 75 mm. Width: 16 mm. Contact Angle: 15°. Number of Rows: 1. Rolling Elements: Steel balls. Bearing Material: Carbon chrome bearing steel (SAE 52100). Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: Light. Dynamic Load Rating: 24,400 N. Static Load Rating: 19,300 N. Limiting Speed: 30,500 rpm on oil or oil-air; 18,800 rpm on grease. Both speeds are single-bearing values; a back-to-back pair at light preload runs at 0.80 of the tabulated speed. Axial Preload: 150 N paired. Axial Stiffness: 58 N per micrometre paired. Maximum Operating Temperature: 120 °C. Lubricant: grease or oil. Item Weight: 0.238 kg.
Inner Ring Abutment Diameter: 51 mm minimum. Outer Ring Abutment Diameter: 69 mm maximum. Housing Abutment Diameter: 70 mm maximum. Fillet Radius r min: 1.0 mm. Fillet Radius r1 min: 0.6 mm. Effective Load Centre: 16.0 mm. Internal Volume: 11.2 cm3.
Cross-references: Fafnir 2MM9109WICRDUL; RHP B-series 7009X2TADUEP7; SKF 7009 CDGA/P4A (extra light preload). RHP 7009A5 shares the 45 x 75 x 16 mm envelope at a 25° contact angle.
45 mm bore, 75 mm outside diameter, 16 mm width.
15° contact angle (the C in the designation) and precision class P4, equivalent to ABEC 7.
Dynamic load rating 24,400 N, static load rating 19,300 N. Limiting speed 30,500 rpm on oil or oil-air and 18,800 rpm on grease.
