Availability:
1 in stock

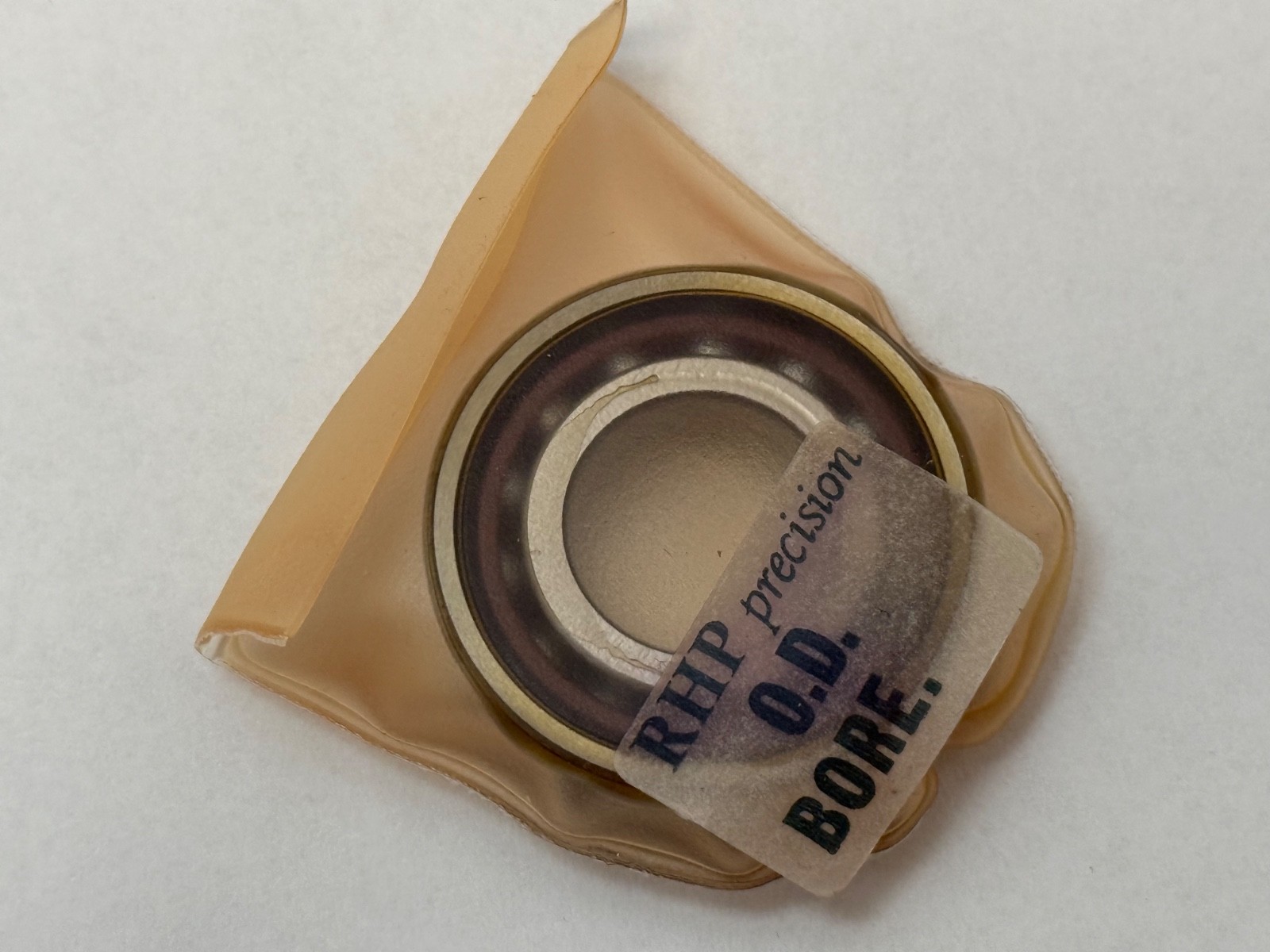

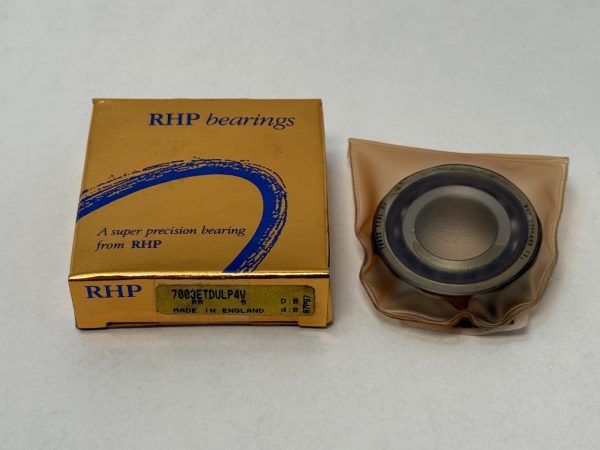

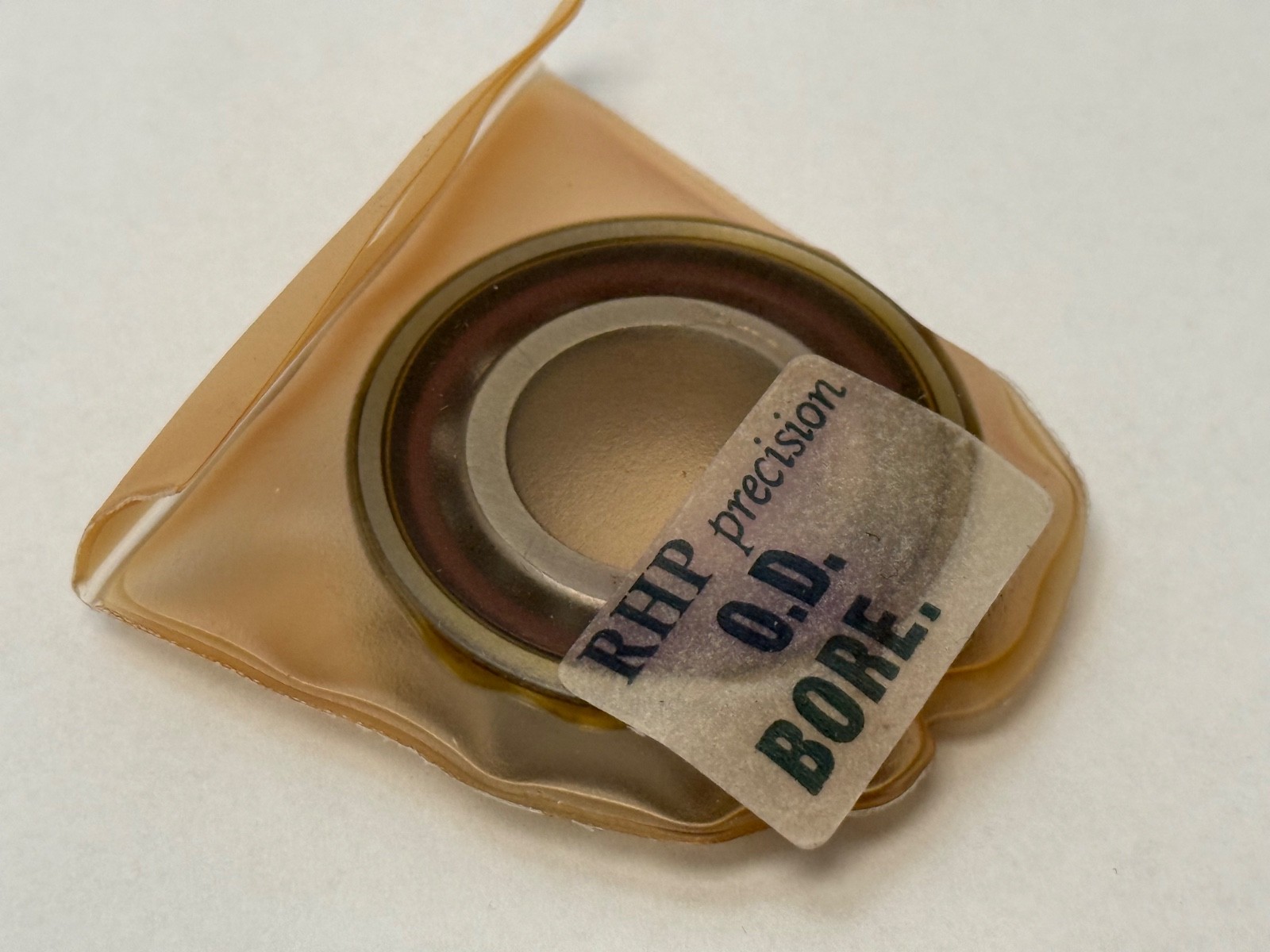

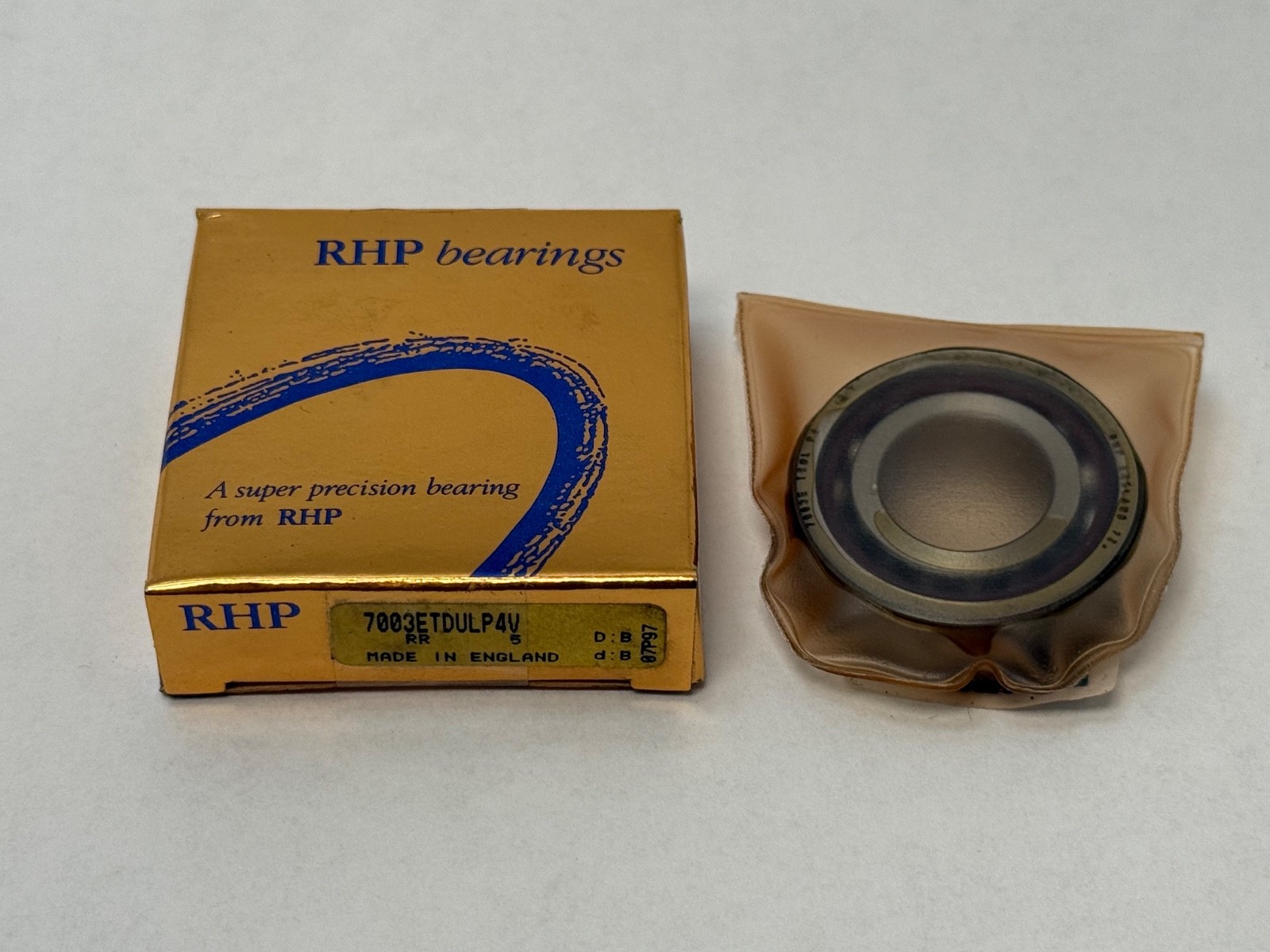

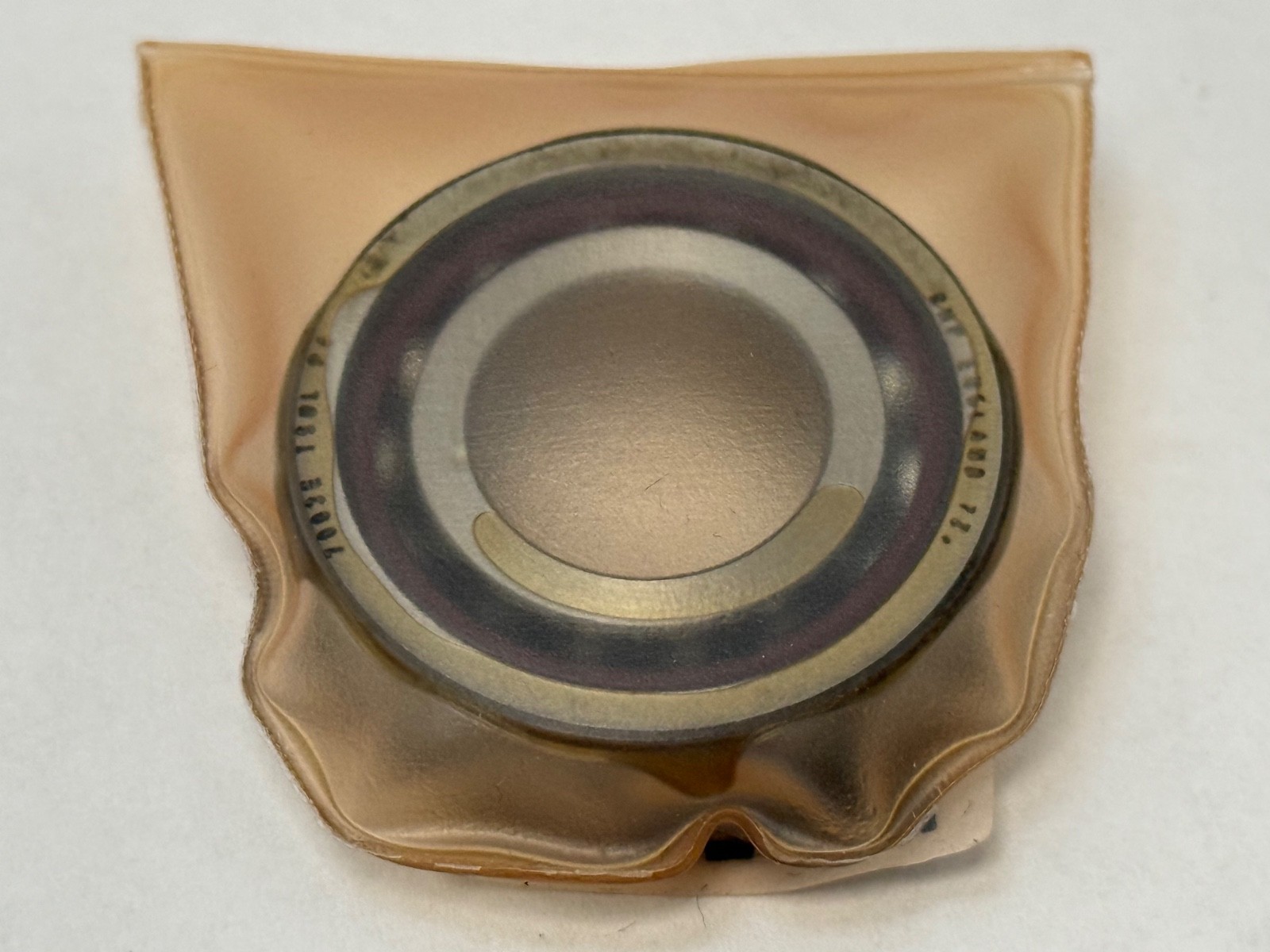

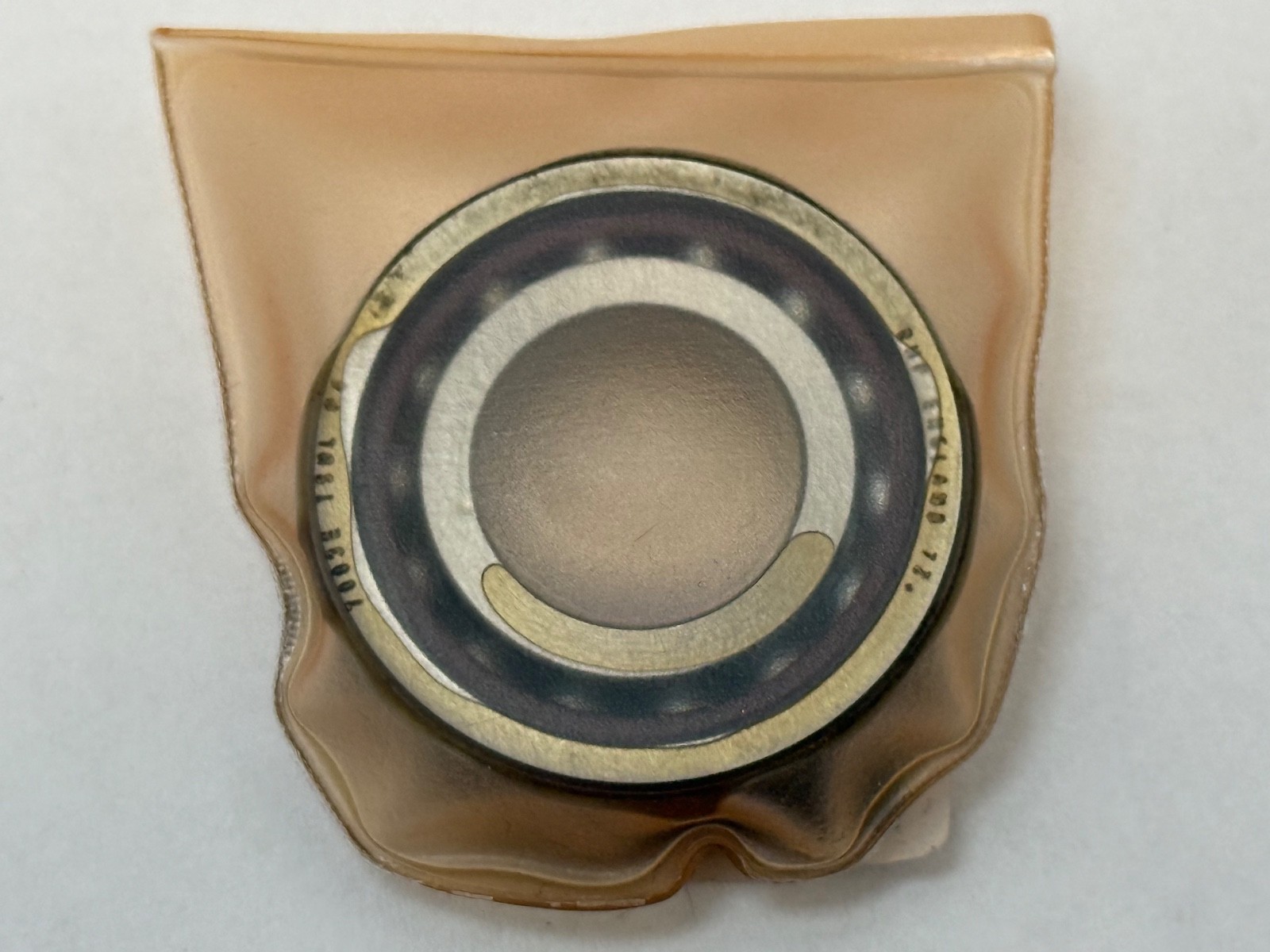

Super precision angular contact ball bearing, 17 x 35 x 10 mm, 25° contact angle, ABEC 7 / P4, light preload. Phenolic cage, universally ground, open.
List Price
$50.24
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7003ETSULP4V |
| Model | 7003 E T SUL P4V |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 35 mm |
| Width | 10 mm |
| Base Number | 7003 |
|---|---|
| Industry Terms | Super precision spindle bearing; 25 degree angular contact bearing; Machine tool spindle bearing; Universally ground angular contact bearing |
| Common Misspellings | 7003 ET SUL P4V; 7003ETSULP4-V; 7003ESULP4V; 7003ETSUL P4V; 7003 E T SUL P4 V |
| Application Types | High-speed grinding spindles; Machine tool spindles; Small precision spindles; Axially loaded precision spindles |
| Mpn Variants | 7003ETSULP4V; 7003-E-T-SUL-P4V; 7003-E-T-DUL-P4V; 7003E; 7003A5TSULP4; 3MM9103WICRSUL |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Effective load centre a: 11.1 mm; shaft abutment d1 min 19.5 mm; abutment D1 max 32.5 mm; abutment D2 max 33.8 mm; chamfer r min 0.3 mm; chamfer r1 min 0.15 mm; internal free volume 1.9 cm3; lubrication-jet PCD 23.5 mm; paired axial preload (light) 49 N; paired axial stiffness (light) 52 N/um |
| Material | Bearing steel (SAE 52100 equivalent) |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 6,300 N |
| Static Load Rating | 3,650 N |
| Series | 7000 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.040 kg (0.09 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 33,700 rpm grease; 53,600 rpm oil |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Preload | Light (L) |
| Mounting Arrangement | Single, universally ground for paired mounting |
| Bearing Material | Bearing steel (SAE 52100 equivalent) |
| Running Accuracy | Inner ring radial runout Kia 2.5 µm max; outer ring radial runout Kea 5 µm max |
| Cross Reference 1 | RHP 7003A5TSULP4 (current catalogue form) |
|---|---|
| Cross Reference 2 | SKF 7003 ACD/P4A |
| Cross Reference 3 | FAG B7003-E-T-P4S |
| Cross Reference 4 | NSK 7003A5TRSULP4 |
| Cross Reference 5 | Timken/Fafnir 3MM9103WICRSUL |
| Cross Reference 6 | SNR 7003HVUJ74 |
| Cross Reference 7 | IBC 7003-E-T-P4-UL |
RHP 7003ETSULP4V super precision single-row angular contact ball bearing. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Contact Angle: 25°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7003.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
03 — bore code 03, a 17 mm bore.
E — 25° contact angle. E is RHP’s legacy code for the angle now written A5, so the current catalogue designation for this bearing is 7003A5TSULP4.
T — machined cage in laminated phenolic resin, outer-ring guided.
SU — single universal face control. Inner and outer rings are ground to equal width and the face steps are pre-adjusted at manufacture, so two bearings mount back-to-back, face-to-face or in tandem without custom-ground spacers.
L — light preload. Preload: Light (L).
P4 — RHP precision grade P4. Precision Class: ABEC 7 / P4.
Dynamic Load Rating: 6,300 N. Static Load Rating: 3,650 N. Limiting Speed: 33,700 rpm grease; 53,600 rpm oil. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent, through hardened and heat treated for dimensional stability. Lubricant: Grease or oil. Max temp: 120 °C.
The 25° angle sits between the 15° and 30° executions of the same envelope and trades a little speed for axial rigidity: against the 15° 7003C the oil-air speed falls from 64,100 rpm to 53,600 rpm while the effective load centre moves out from 8.5 mm to 11.1 mm. Mounted as a back-to-back or face-to-face pair the light setting gives an axial preload of 49 N and an axial stiffness of 52 N/µm, and the pair speed falls to 80 per cent of the single-bearing figure. At P4 the assembled inner ring runs within 2.5 µm radial runout and the outer ring within 5 µm.
Shaft abutment diameter d1: 19.5 mm minimum. Abutment diameter D1: 32.5 mm maximum. Abutment diameter D2: 33.8 mm maximum. Chamfer dimension r: 0.3 mm minimum. Chamfer dimension r1: 0.15 mm minimum. Effective load centre a: 11.1 mm. Internal free volume: 1.9 cm³. Pitch circle diameter for lubrication jets: 23.5 mm. Item Weight: 0.040 kg (0.09 lb). Recommended shaft fit at P4 on a 17 mm seat: +2 to −2 µm. Recommended housing fit for a locating bearing on a 35 mm bore: +5 to 0 µm.

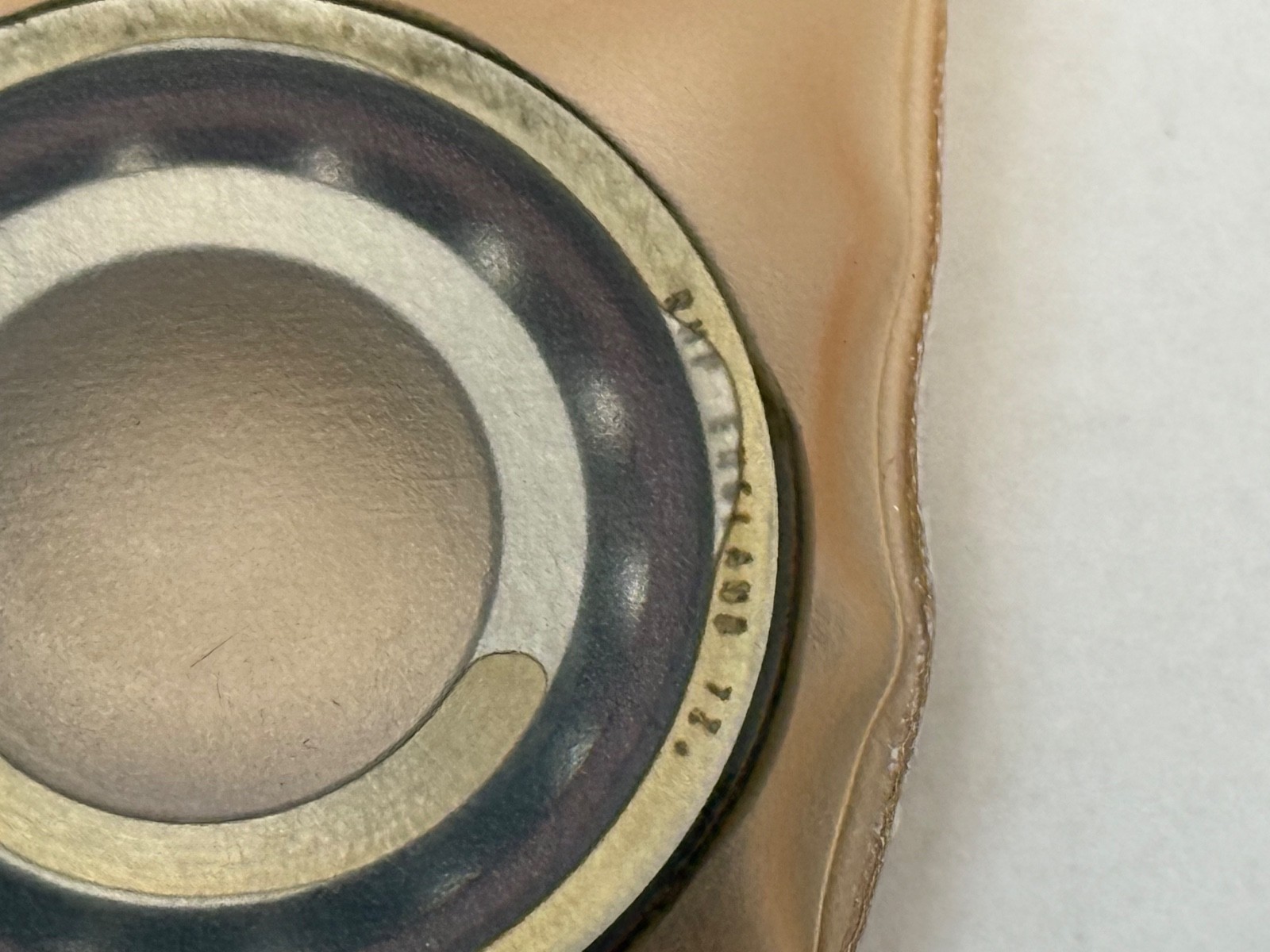

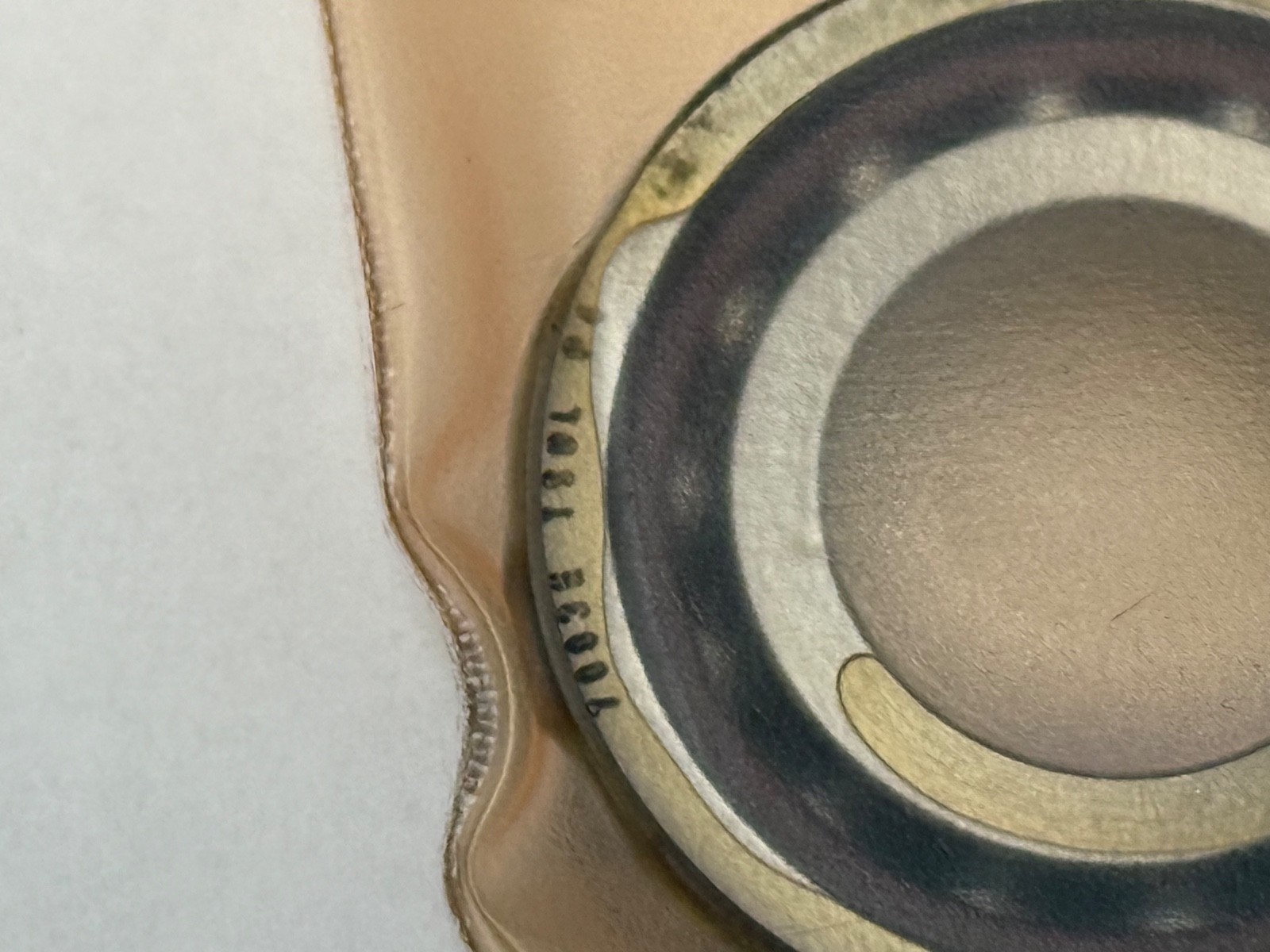

Unit Quantity: 1 Pc. Mounting Arrangement: single bearing, universally face-ground for paired or multiple-set mounting. Snap ring included: No. The ring is marked at the high point of radial runout by a burnished spot on the inner ring face and a V line on the outer ring outside diameter, and the V line points in the direction of the contact angle.
Same envelope, same 25° contact angle and same P4 class: RHP 7003A5TSULP4 (the current catalogue form of this designation), SKF 7003 ACD/P4A, FAG B7003-E-T-P4S, NSK 7003A5TRSULP4, Timken/Fafnir 3MM9103WICRSUL, SNR 7003HVUJ74, IBC 7003-E-T-P4-UL.
