RHP7203ETDUMP4VAngular Contact Ball Bearing – 17 mm ID, 40 mm OD, 12 mm Width, 25° Contact Angle, Medium Preload, ABEC 7 / P4, Phenolic Cage, Open.

Product Description

What this part is:

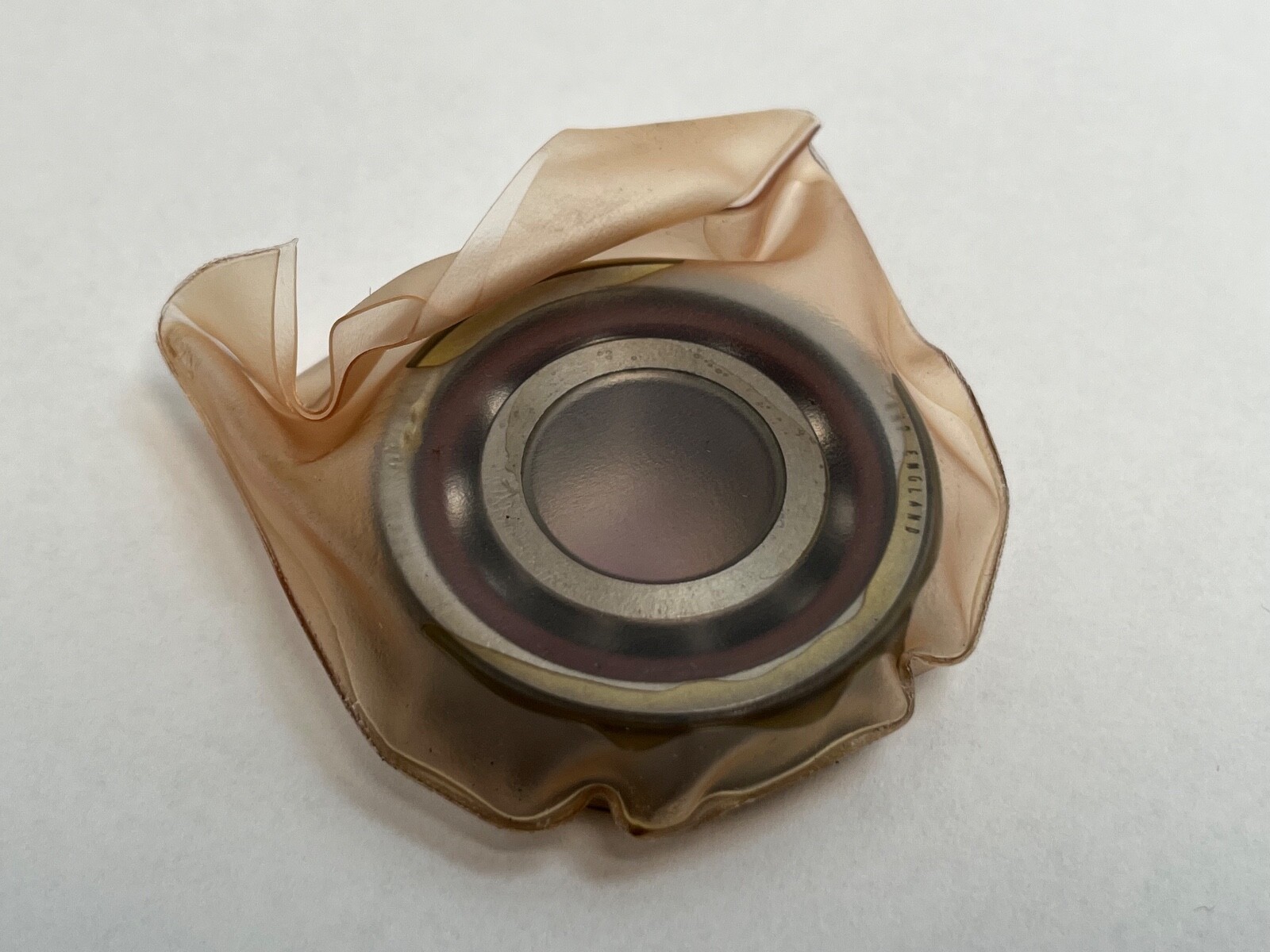

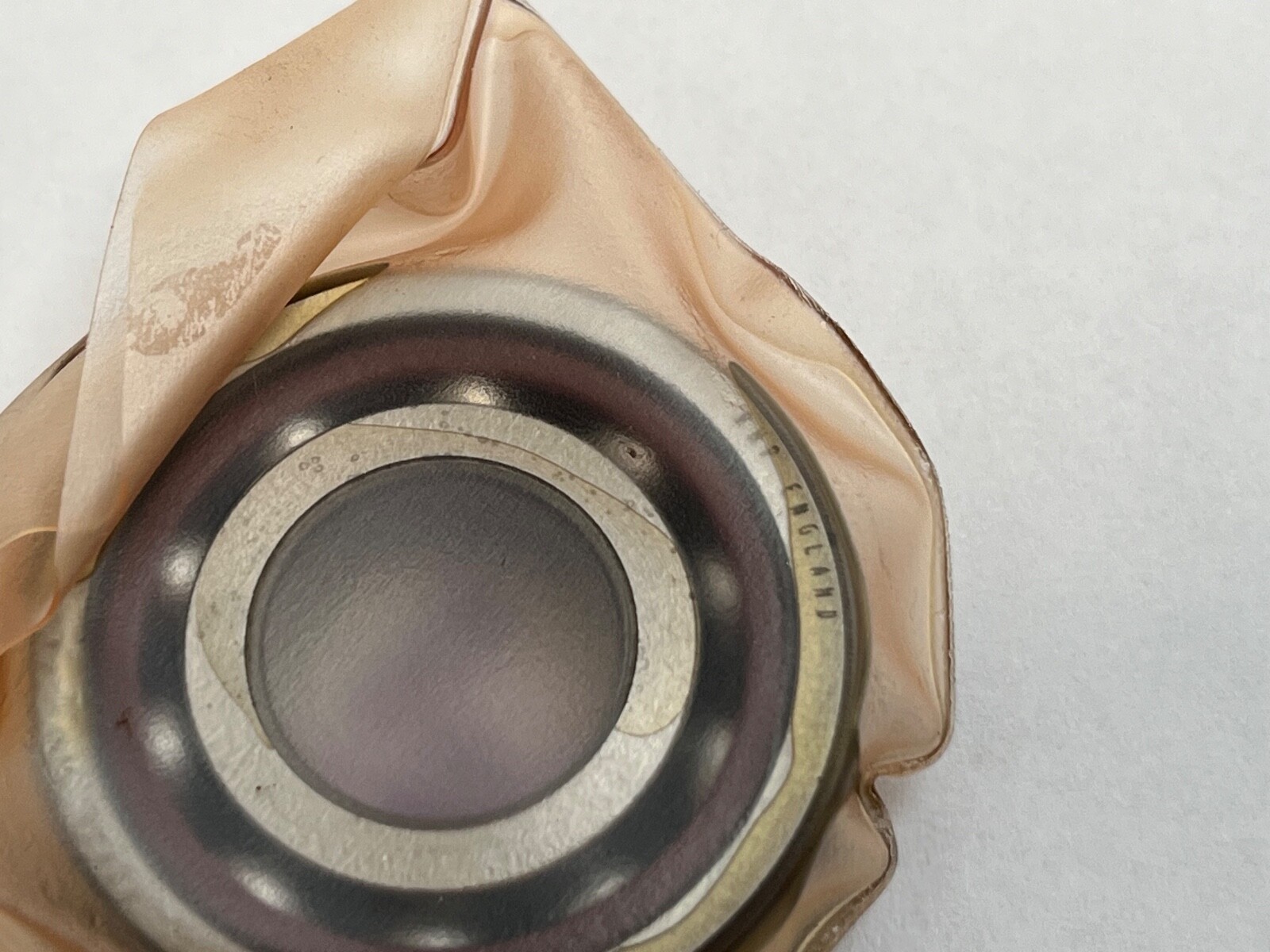

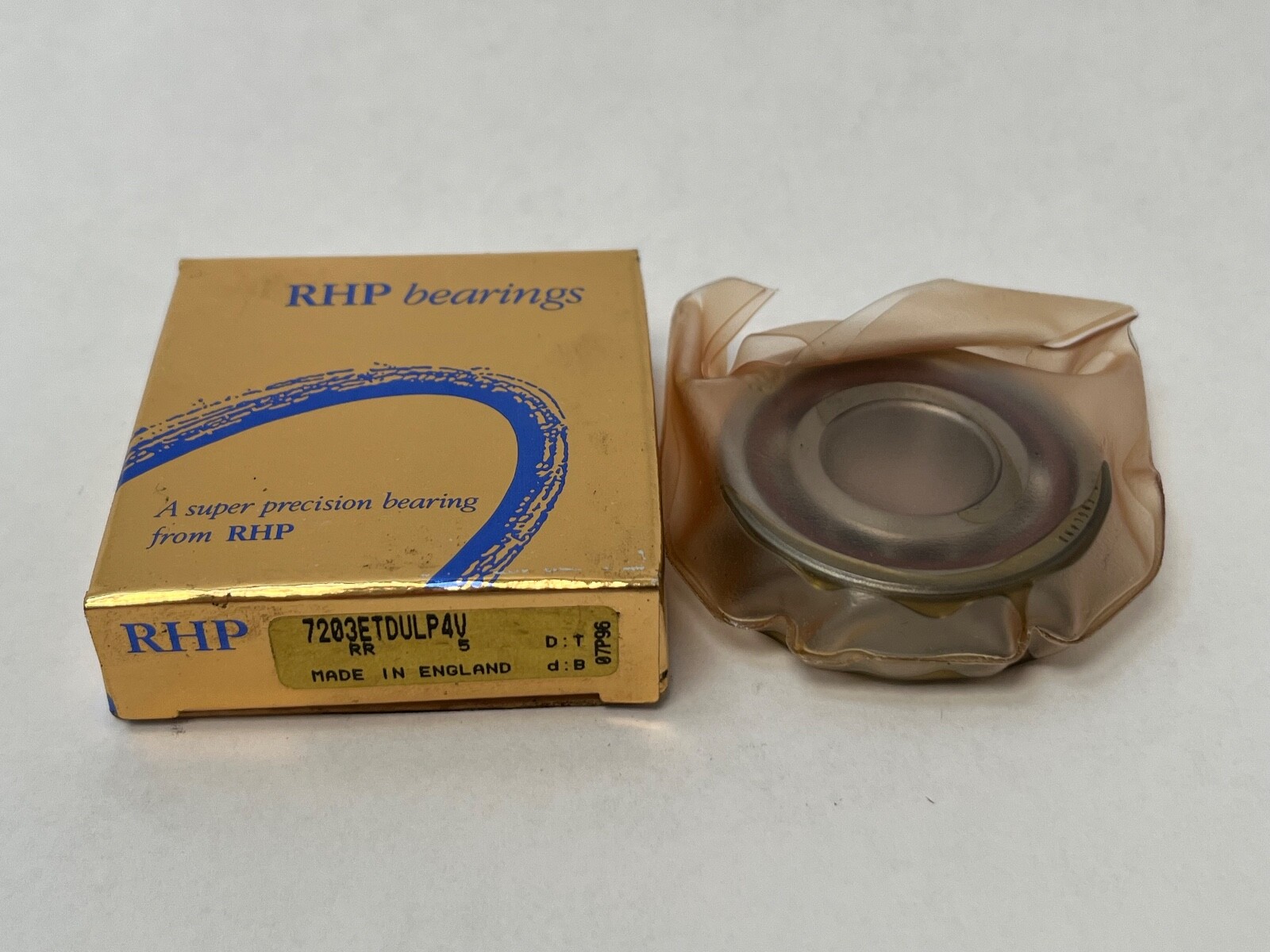

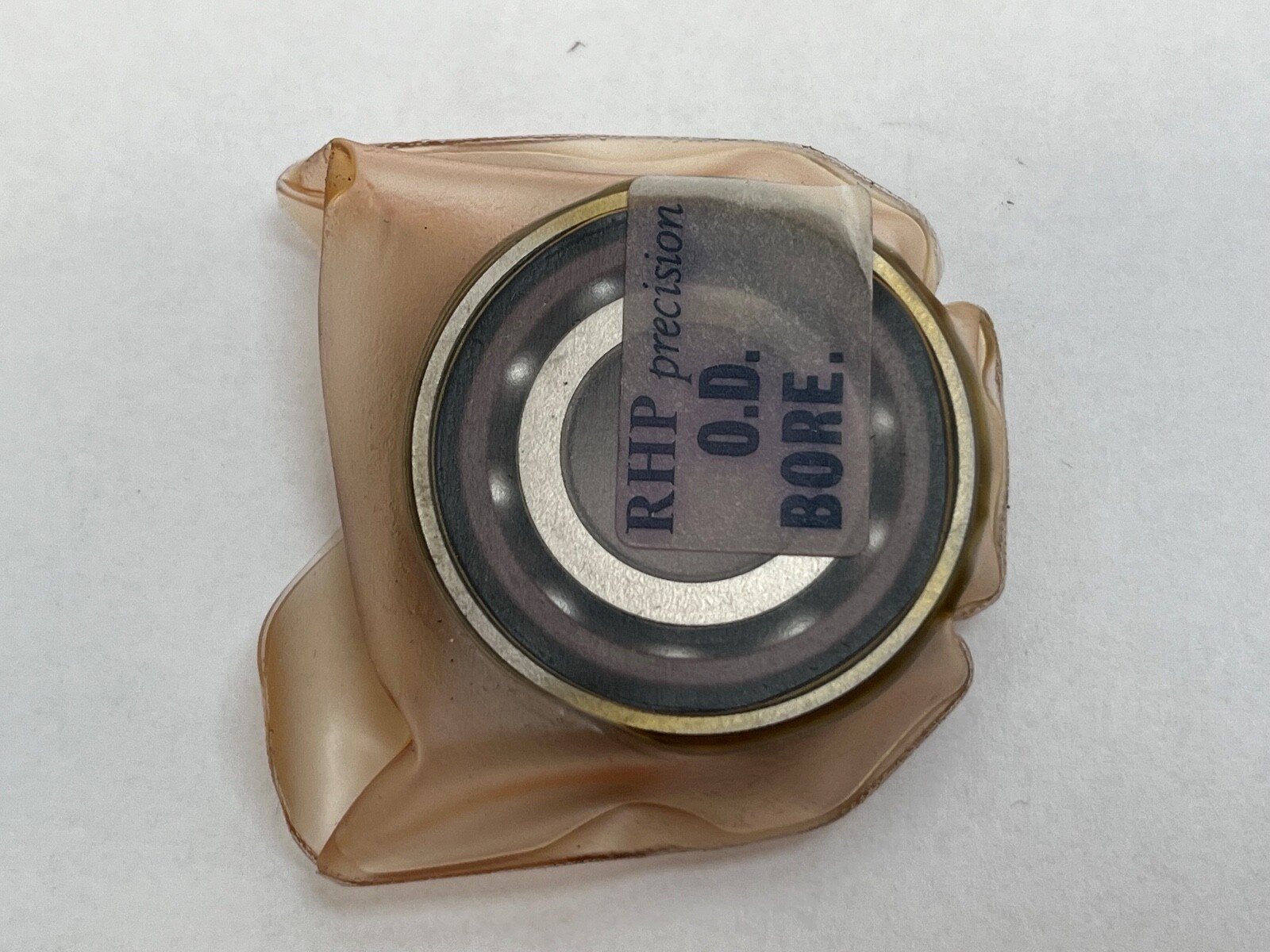

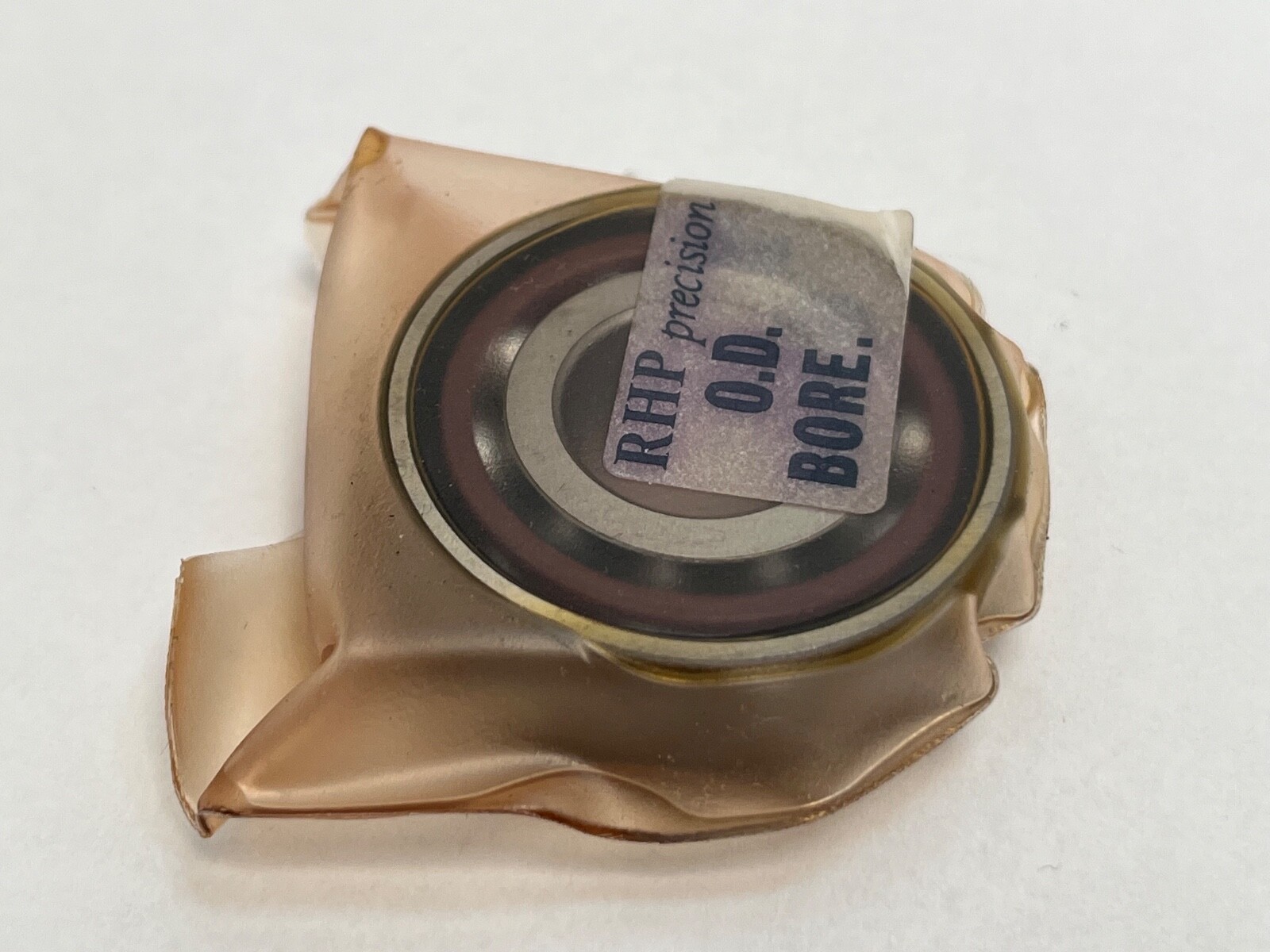

RHP 7203ETDUMP4V super-precision single-row angular contact ball bearing, ISO dimension series 02, 17 mm bore x 40 mm outside diameter x 12 mm width. One half of a factory duplex pair, universally faced. Unit Quantity: 1 Pc.

Decoding the designation:

7203 — single-row angular contact ball bearing, dimension series 02, bore code 03 = 17 mm.

E — 25° contact angle (legacy RHP code, current NSK A5).

T — laminated phenolic resin cage, outer-ring guided.

DU — paired unit, universally faced for back-to-back, face-to-face or tandem mounting.

M — medium preload. As a back-to-back pair this gives an axial preload of 200 N and an axial stiffness of 87 N/µm.

P4 — ISO Class 4, ABEC 7, British Standard EP7.

1/2PR — one half of the factory pair.

Specifications:

Bore Diameter: 17 mm. Outside Diameter: 40 mm. Overall Width: 12 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: Medium. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Carbon chrome bearing steel, through hardened. Dynamic Load Rating: 10,500 N. Static Load Rating: 5,600 N. Limiting Speed: 31,000 rpm grease; 50,100 rpm oil. Lubricant: grease or oil. Item Weight: 0.065 kg (0.14 lb). Cage Service Temperature: 120 °C maximum.

Dimensions and mounting:

Inner ring abutment diameter d1 min: 22 mm. Outer ring abutment diameter D1 max: 35 mm. Outer ring seating diameter D2 max: 37.5 mm. Chamfer dimension r min: 0.6 mm. Chamfer dimension r1 min: 0.3 mm. Effective load centre a: 12.6 mm. Internal free volume: 3.1 cm³. PCD of lubrication jets: 25.9 mm. Mounting Arrangement: Universally faced, half of a duplex pair. Set speed factor for a back-to-back pair at medium preload: 0.60 of tabulated speed.

Compatibility and replacement:

Cross-References: SKF 7203 ACD/P4ADGB, FAG B7203-E-T-P4S-UM, NSK 7203A5TRDUMP4, Timken Fafnir 3MM203WI DUM, IBC 7203-E-T-P4S-DUM, GMN S6203-E-TA-P4. MPN Variants: 7203ETDUMP4V, 7203-E-T-DUM-P4V, 7203ETDUMP4V-1/2PR, 3MM203WI DUM, B7203 E T P4S.

Frequently asked questions:

What is the contact angle of the RHP 7203ETDUMP4V?

25°, set by the E in the designation.

What preload does the 7203ETDUMP4V carry?

Medium preload, set by the M in the designation.

What are the load ratings of the 7203ETDUMP4V?

Dynamic load rating 10,500 N and static load rating 5,600 N.
