Fafnir 7205WN maximum-capacity angular contact ball bearing, 25 x 52 x 15 mm, 40° contact angle, one-piece pressed brass cage, 16,600 N dynamic, open.
List Price
$42.31
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 7205WN |
| GTIN | 087796198937 |
| Model | 7205-WN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Grease or oil |
| Base Number | 7205 |
| Industry Terms | max capacity angular contact bearing; 40 degree angular contact |
| Common Misspellings | Fafner 7205WN; Faffnir 7205WN; 7205 WM; 7205NW |
| Bore Shaft Size | 25 mm |
| Mpn Variants | 7205WN; 7205-WN; 7205 WN; 7205W |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 16,600 N |
| Additional Attributes | Fillet r max 1 mm; shaft shoulder 29 mm; housing shoulder 46 mm |
| Cage Type | One-piece, ball-piloted |
| Dynamic Load Rating | 16,600 N |
| Static Load Rating | 9,400 N |
| Precision Rating | Not specified |
| Rolling Elements | Ball |
| Item Weight | 0.132 kg (0.29 lb) |
| Cage Material | Pressed brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,200 rpm grease; 7,800 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 7205WN |
| Closure Type | Open |
| Cross Reference 1 | SKF 7205 BECBP |
|---|---|
| Cross Reference 2 | FAG 7205-B-XL-TVP |
| Cross Reference 3 | NSK 7205B |
| Cross Reference 4 | NTN 7205B |
| Cross Reference 5 | Koyo 7205B |
| Cross Reference 6 | RHP 7205 |
| Cross Reference 7 | MRC 7205P |
| Cross Reference 8 | SNR 7205B |
| Cross Reference 9 | 6205 (related, Conrad type, dimensionally interchangeable) |

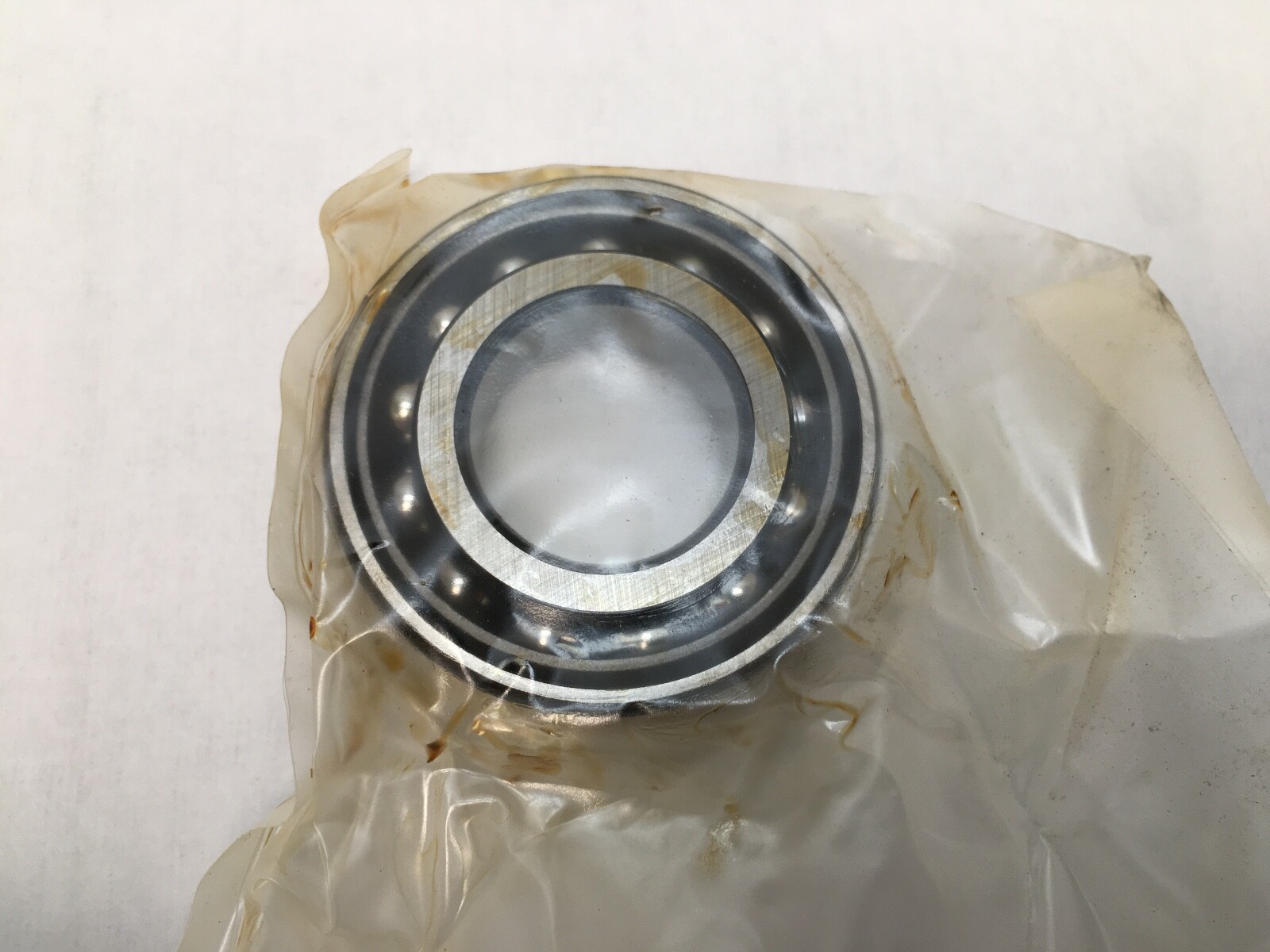

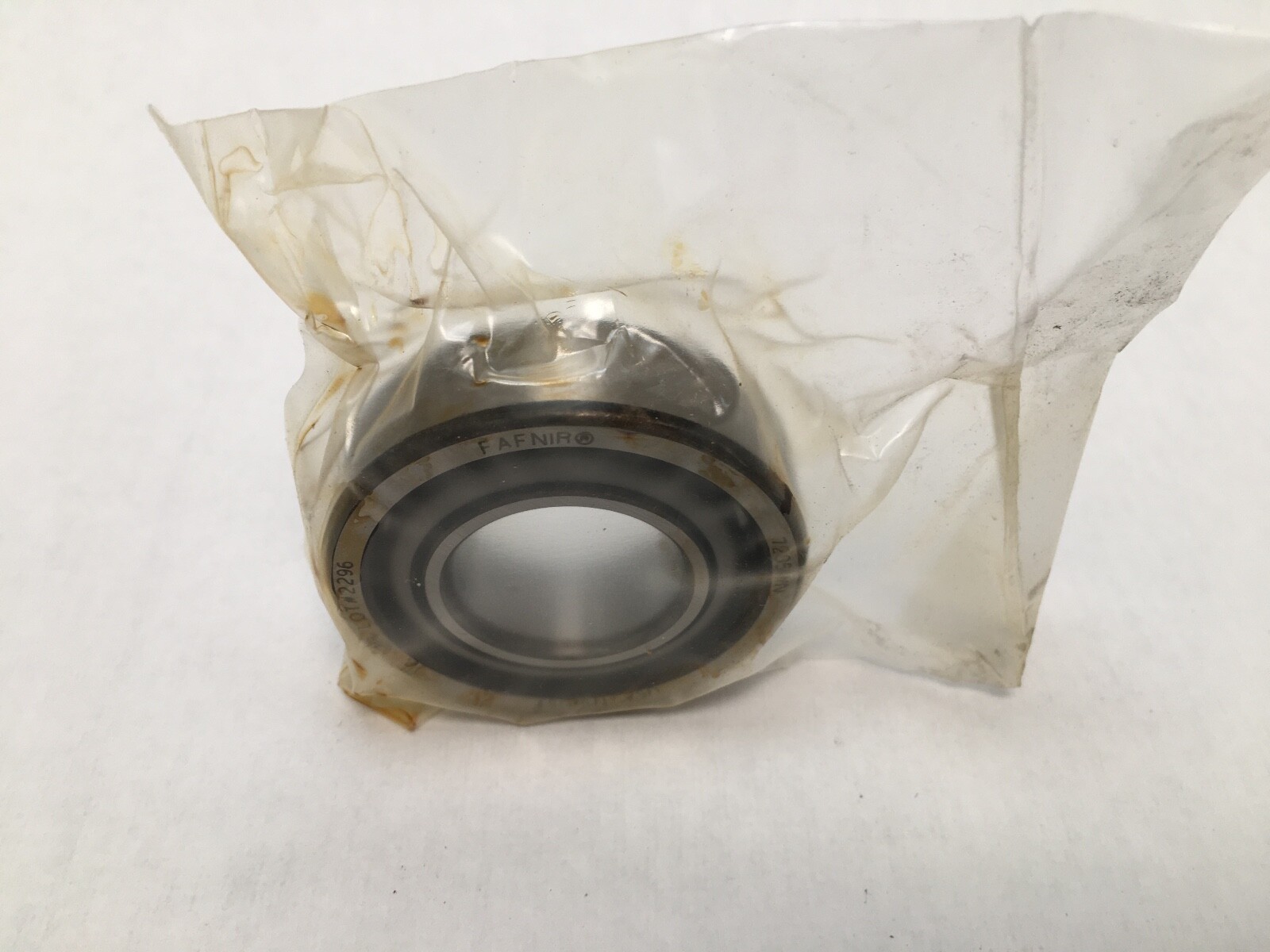

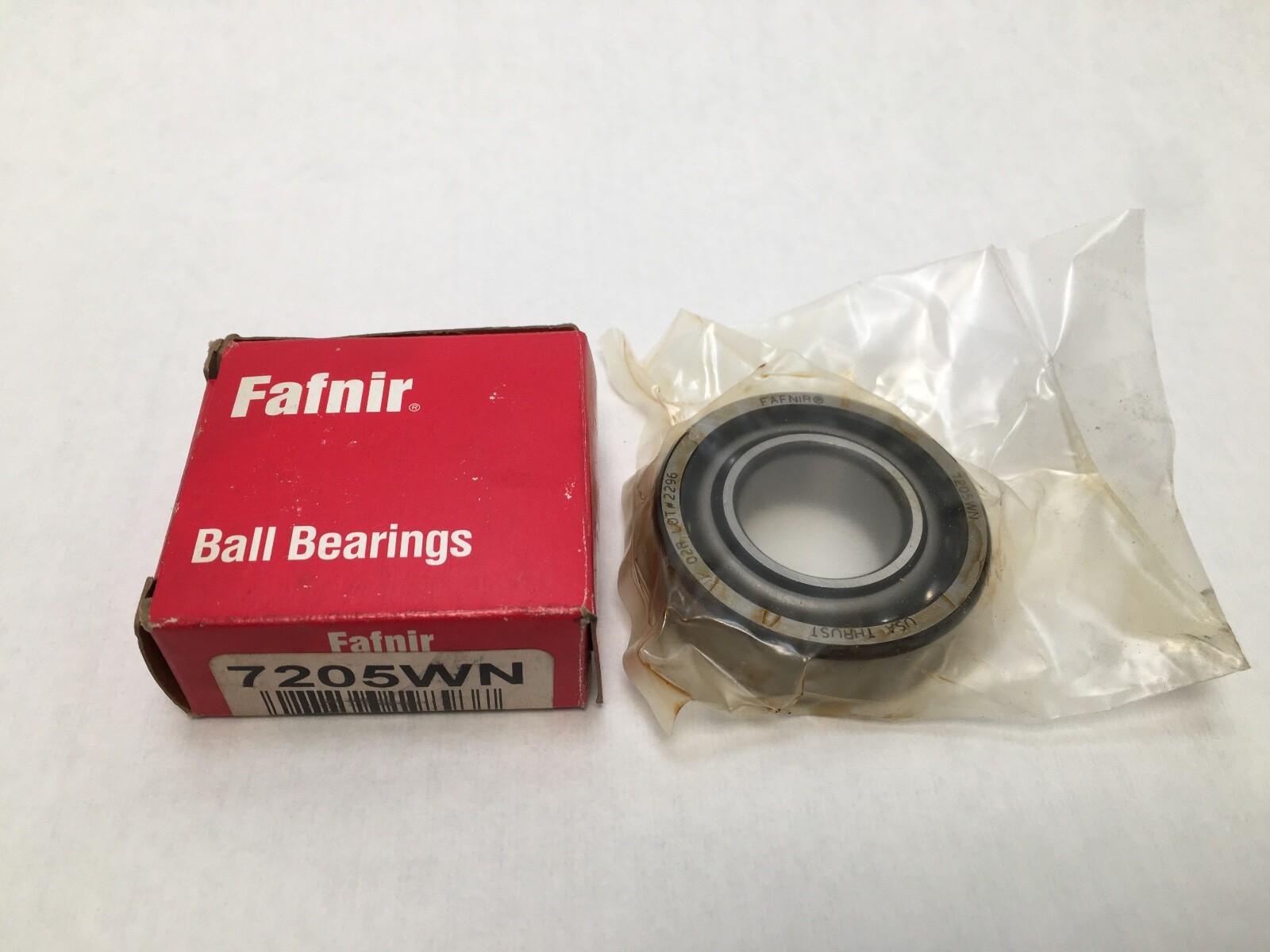

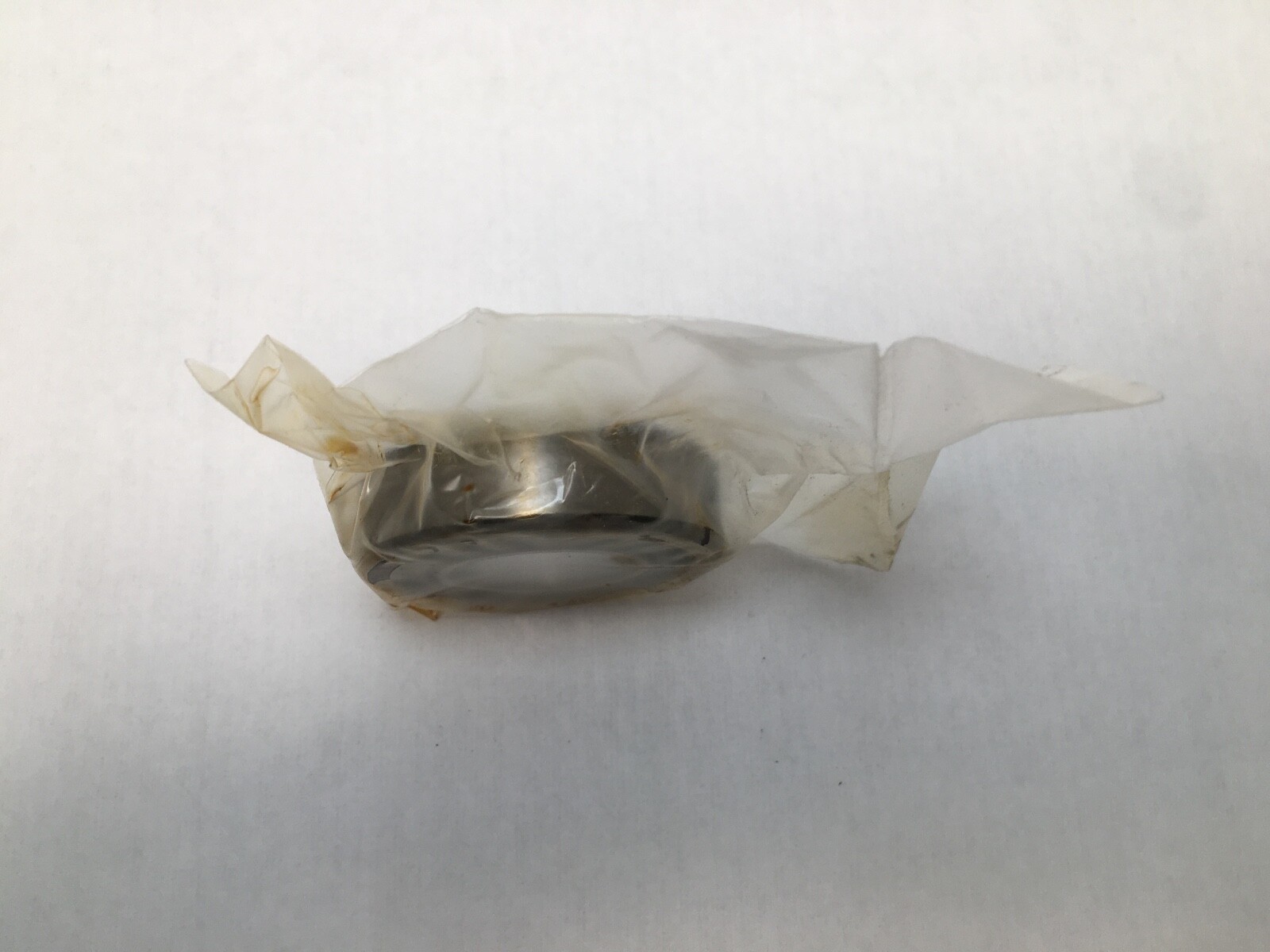

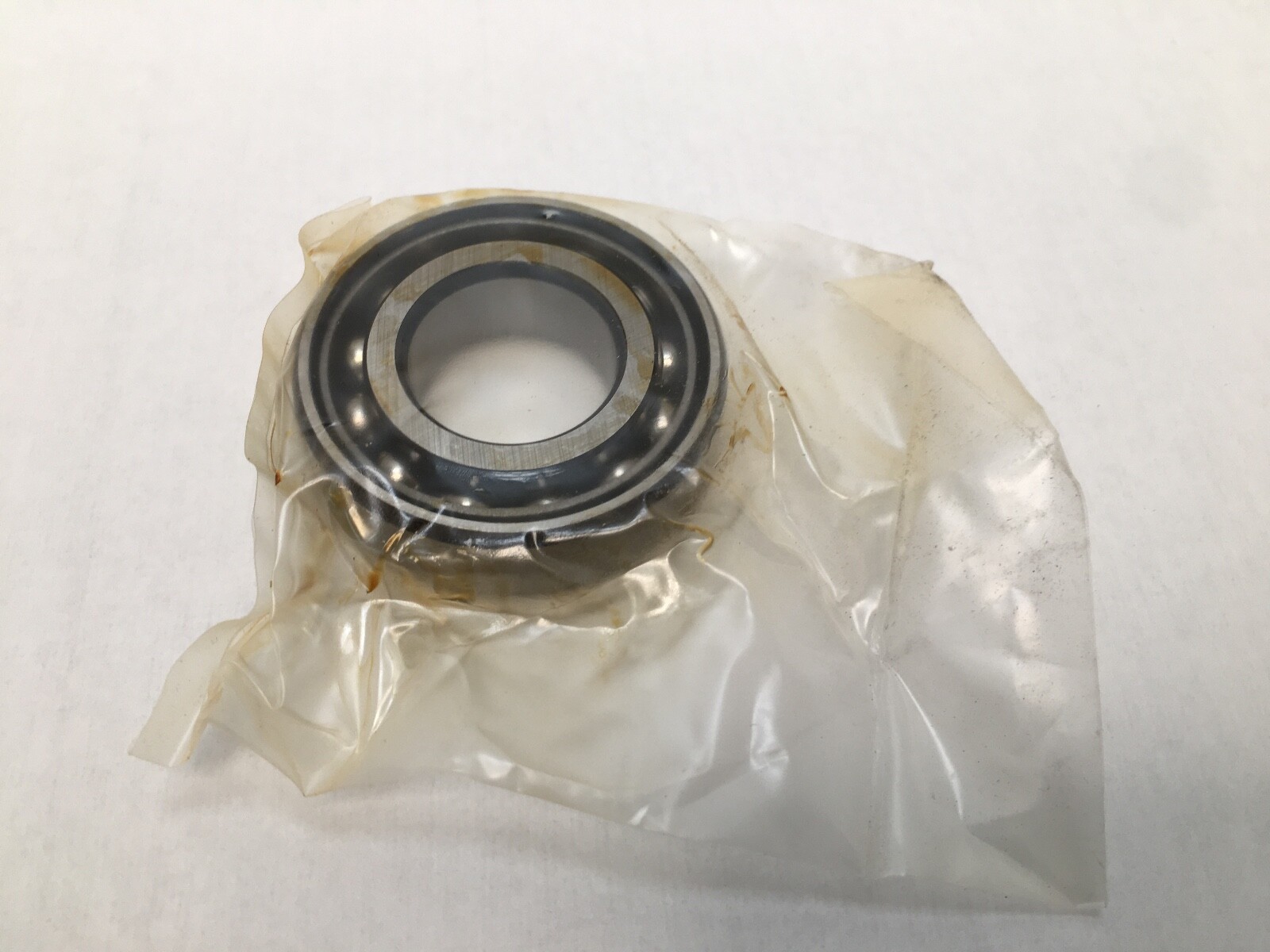

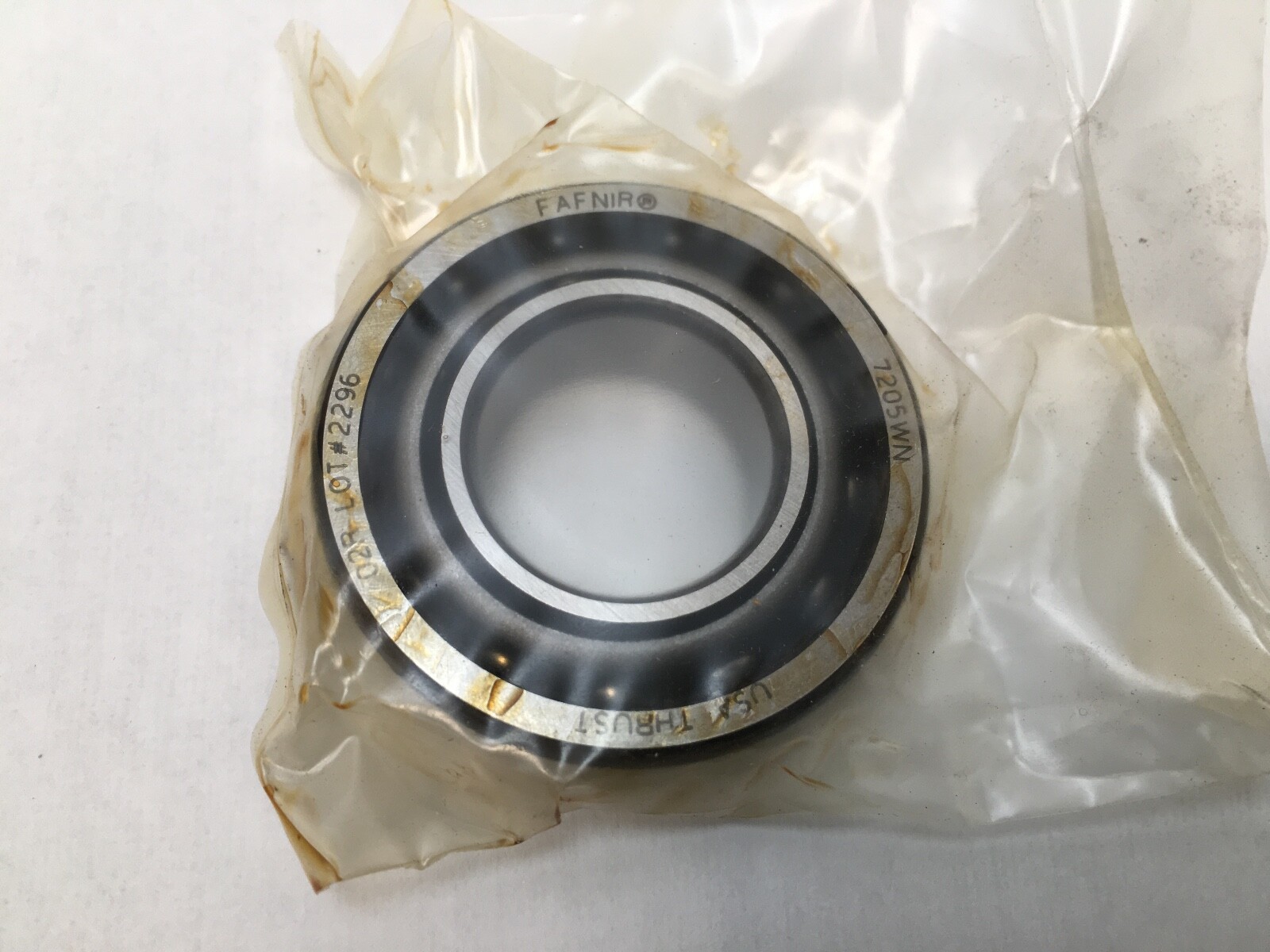

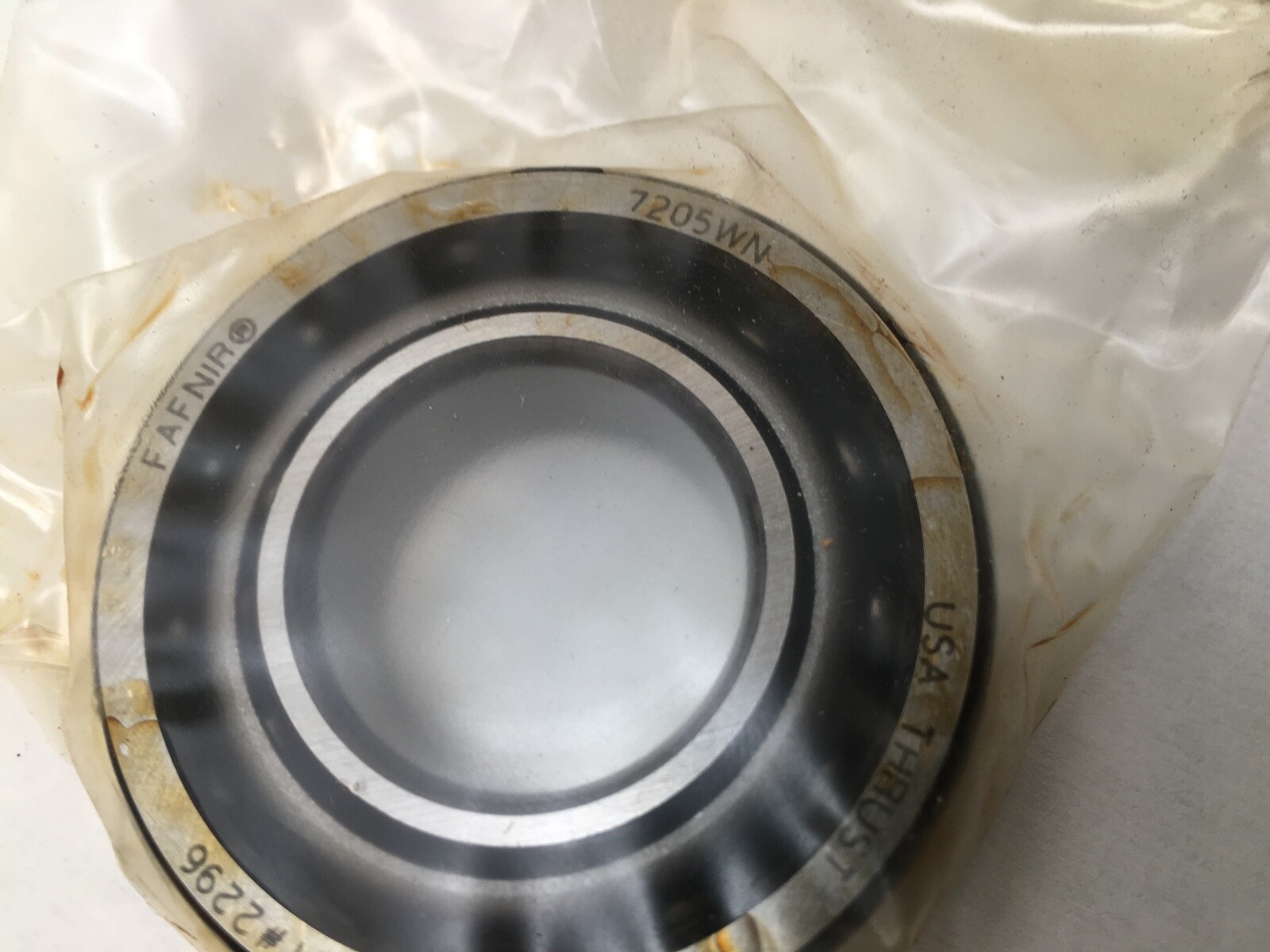

Fafnir 7205WN is a single-row maximum-capacity angular contact ball bearing. Series: 7200. Base Number: 7205. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Contact Angle: 40°. Cage Material: Pressed brass. Cage Type: One-piece, ball-piloted. Closure Type: Open. Unit Quantity: 1 Pc.
7205 — the 7200 light angular contact series, 25 mm bore.
W — the Fafnir maximum-capacity angular contact design, with a low outer ring shoulder that lets the full ball complement be loaded.
N — 40° contact angle.
Contact Angle: 40°. Dynamic Load Rating: 16,600 N. Static Load Rating: 9,400 N. Limiting Speed: 5,200 rpm grease; 7,800 rpm oil. Lubricant: Grease or oil. Internal Clearance: CN. Cage Material: Pressed brass. Cage Type: One-piece, ball-piloted. Bearing Material: Chrome steel. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Item Weight: 0.132 kg (0.29 lb). Design Units: Metric. Harmonization Code: 8482.10.50.28. GTIN: 087796198937. Enhanced raceway finish and refined bore diameter tolerance.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Bore Type: Straight. Maximum Shaft Fillet Radius: 1 mm. Shaft Backing Shoulder Diameter: 29 mm. Housing Backing Shoulder Diameter: 46 mm.
Same 25 x 52 x 15 mm envelope at 40°: SKF 7205 BECBP, FAG 7205-B-XL-TVP, NSK 7205B, NTN 7205B, Koyo 7205B, SNR 7205B. Also listed: RHP 7205, MRC 7205P. Related: 6205, a Conrad-type radial bearing in the same envelope, dimensionally interchangeable with the 200 series deep groove ball bearing. Searchable forms: 7205WN, 7205-WN, 7205 WN, 7205W.
Contact Angle: 40°. The N in the designation denotes 40°.
A one-piece, ball-piloted pressed brass cage.
Dynamic Load Rating: 16,600 N. Static Load Rating: 9,400 N.
