Super-precision angular contact ball bearing matched pair, 25 x 52 x 15 mm, 15° contact angle, ABEC 7, light preload, duplex tandem. NDH Q20205DTL7A.
List Price
$100.82
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | Q20205DTL7A |
| Model | Q-20205-DT-L7A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Rolling Elements | Ball |
|---|---|
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex tandem (DT) |
| Base Number | 20205 |
| Industry Terms | super precision angular contact bearing, spindle bearing, duplex tandem set, New Departure Hyatt |
| Common Misspellings | O20205DTL7A, Q2O2O5DTL7A |
| Application Types | Machine tool spindles, precision shafts |
| Mpn Variants | Q20205DTL7A, Q-20205-DT-L7A, Q 20205 DT L7A, 20205, 7205-C-P4 |
| Precision Class | ABEC 7 / P4 |
| Preload | Light |
| Closure Type | Open |
| Cross Reference 1 | SKF 7205 CD/P4A - single bearing, not a pair |
|---|---|
| Cross Reference 2 | FAG B7205-C-T-P4S - single bearing, not a pair |
| Cross Reference 3 | NSK 7205CTYNSULP4 - universal single, light preload |

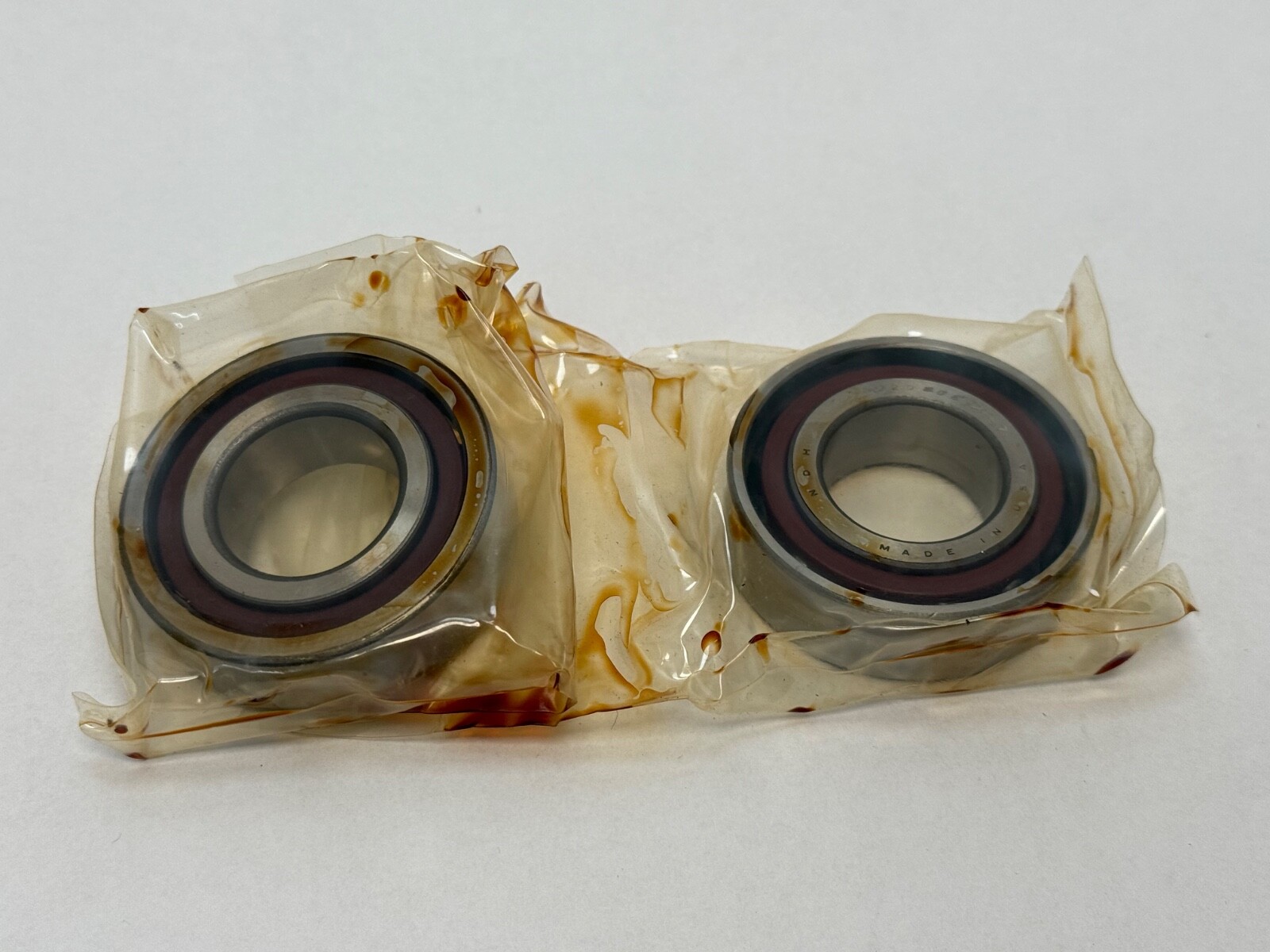

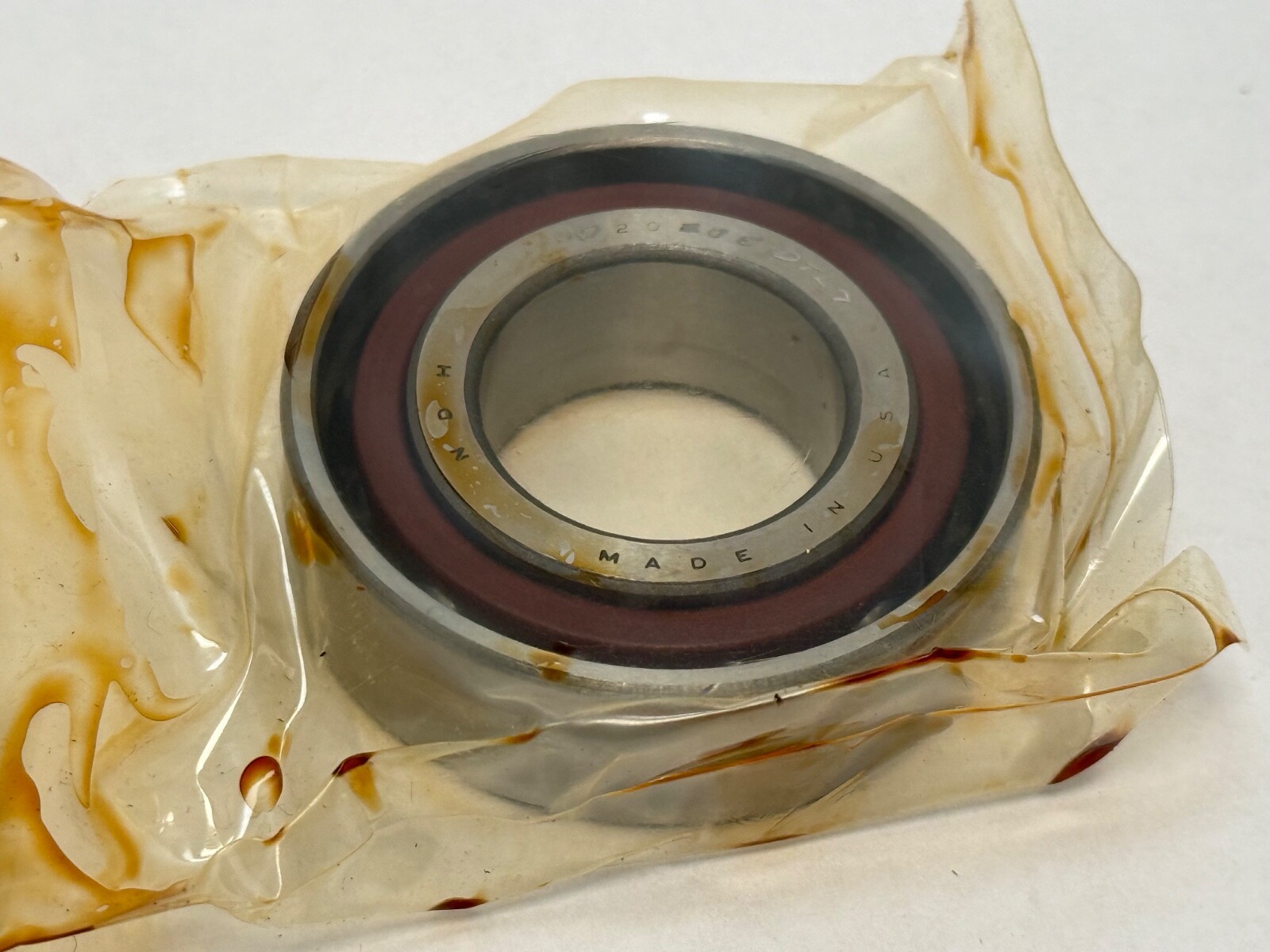

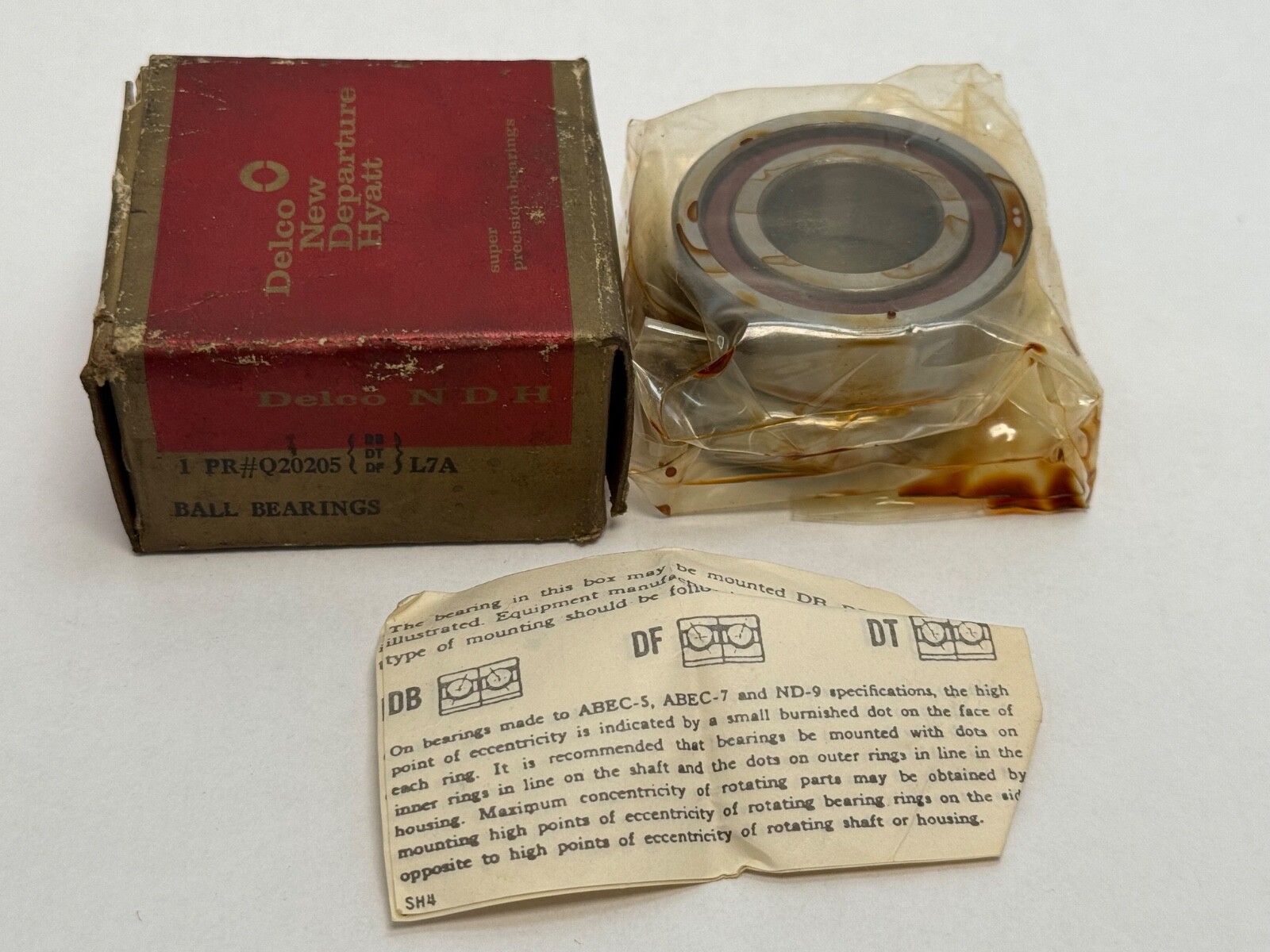

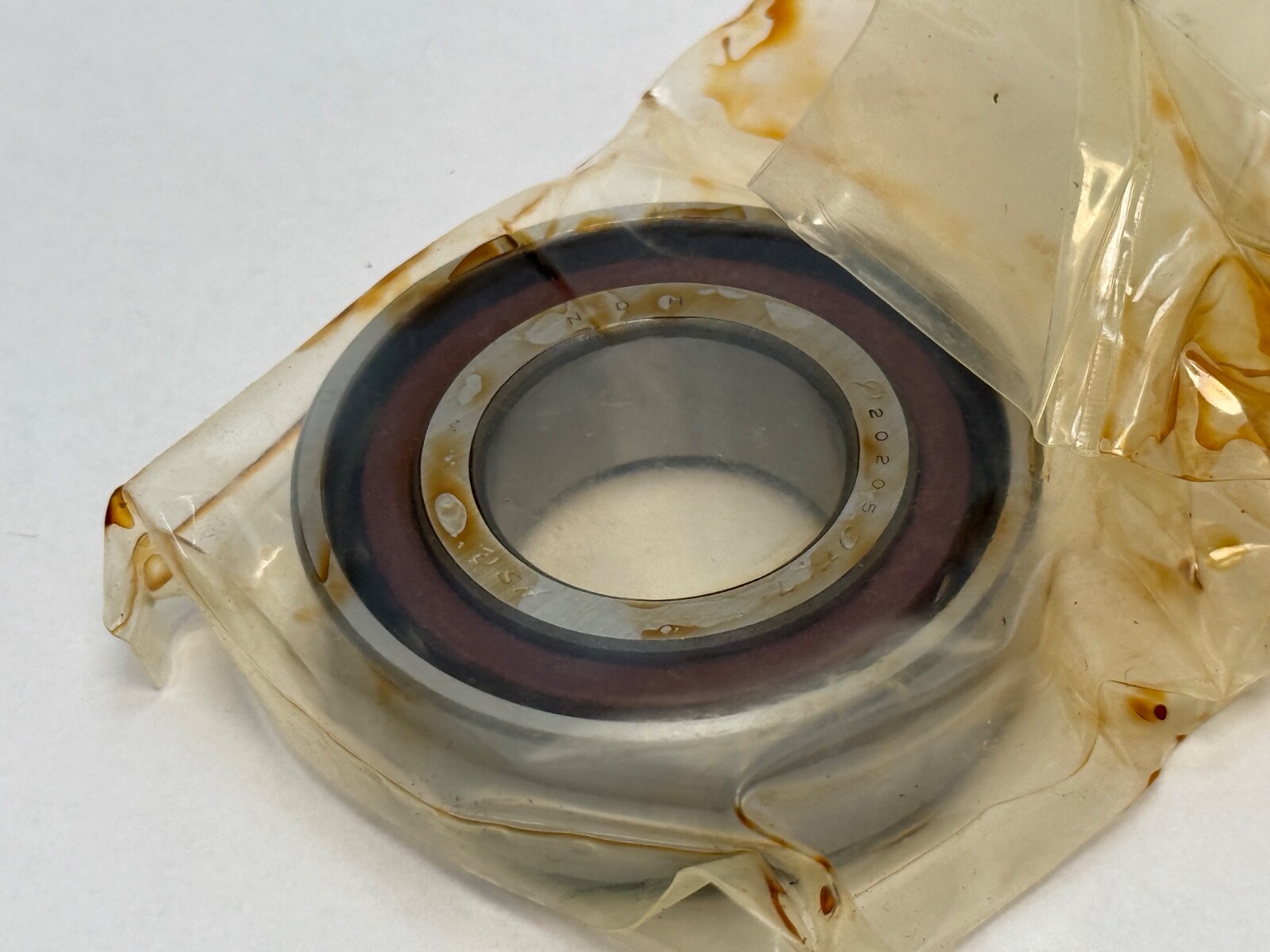

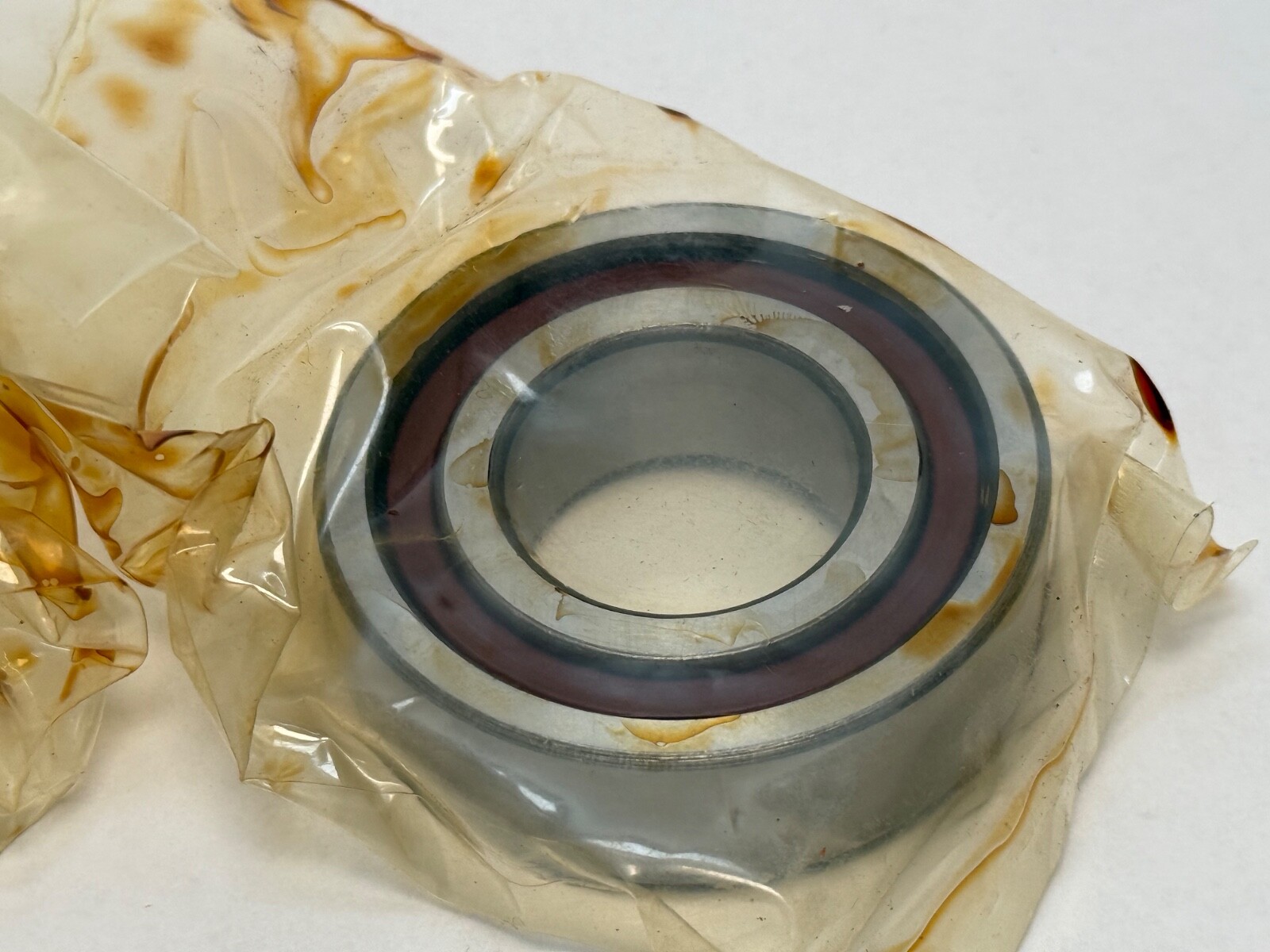

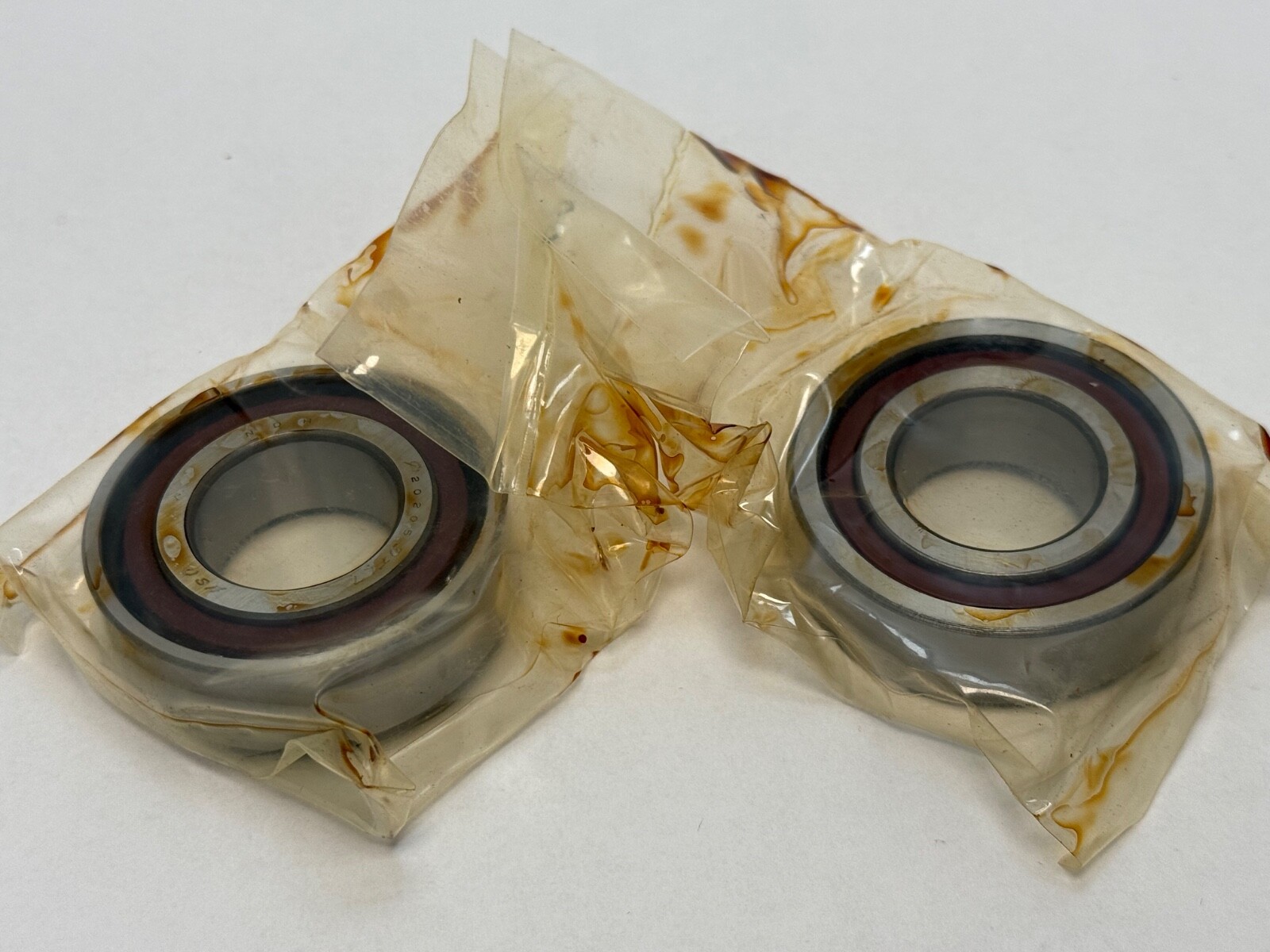

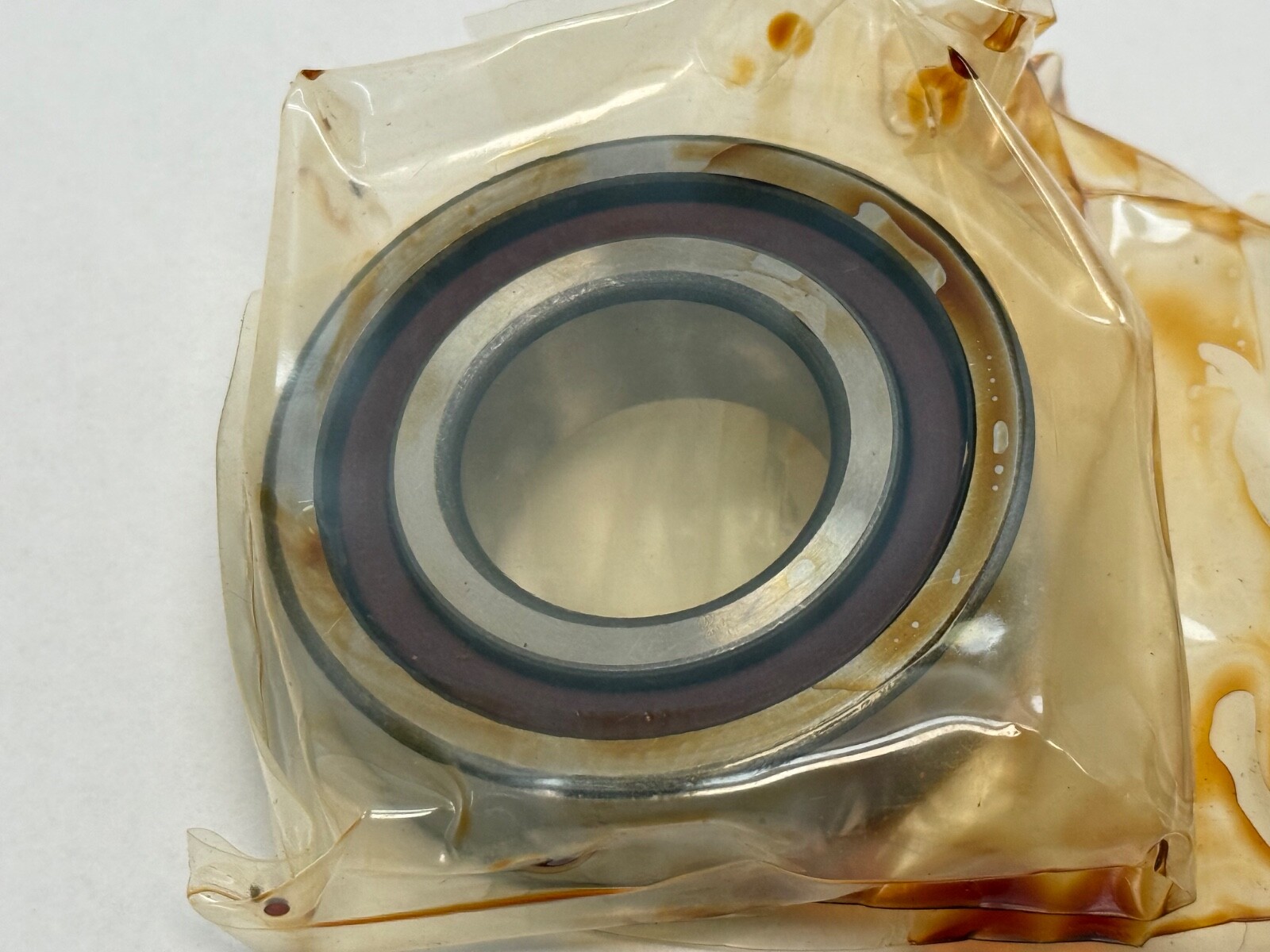

NDH Q20205DTL7A is a super-precision single-row angular contact ball bearing set supplied as a duplex matched pair, ISO 7205 size, 25 x 52 x 15 mm per bearing, duplex tandem arrangement. Unit Quantity: 2 Pcs.
Q — phenolic ball separator.
20205 — NDH number for the ISO 7205 size, 25 x 52 x 15 mm.
DT — duplex tandem: two single-row bearings ground as a matched set, mounted facing the same direction.
L — light preload.
7 — ABEC 7 tolerance.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Mounting Arrangement: Duplex tandem (DT). Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open.
Envelope: 25 mm bore, 52 mm outside diameter, 15 mm width per bearing, ISO 7205. Also written 7205-C-P4.
Cross-Reference 1: SKF 7205 CD/P4A (single bearing, not a pair). Cross-Reference 2: FAG B7205-C-T-P4S (single bearing, not a pair). Cross-Reference 3: NSK 7205CTYNSULP4 (universal single, light preload).
A New Departure Hyatt super-precision angular contact ball bearing pair, ISO 7205 size, 15° contact angle, ABEC 7, light preload, duplex tandem.
Bore 25 mm, outside diameter 52 mm, width 15 mm per bearing.
Same-envelope 15° P4 single bearings: SKF 7205 CD/P4A, FAG B7205-C-T-P4S and NSK 7205CTYNSULP4. This item is a matched pair.
