Angular contact ball bearing, 12 x 32 x 10 mm, 15 deg contact angle, phenolic cage, ABEC 5, light preload. Two bearings ground as a duplex tandem matched set.
List Price
$52.49
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | Q20201DTL5A |
| Model | Q-20201-DTL-5A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 12 mm |
| OD | 32 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Preload | Light |
| Precision Rating | ABEC 5 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Tandem (DT) |
| Mpn Variants | Q20201DTL5A, Q-20201-DTL-5A, Q 20201 DTL 5A, 7201C |
| Precision Class | ABEC 5 |
| Closure Type | Open |
| Cross Reference 1 | 7201C (single bearing, same ISO 15 deg size) |
|---|

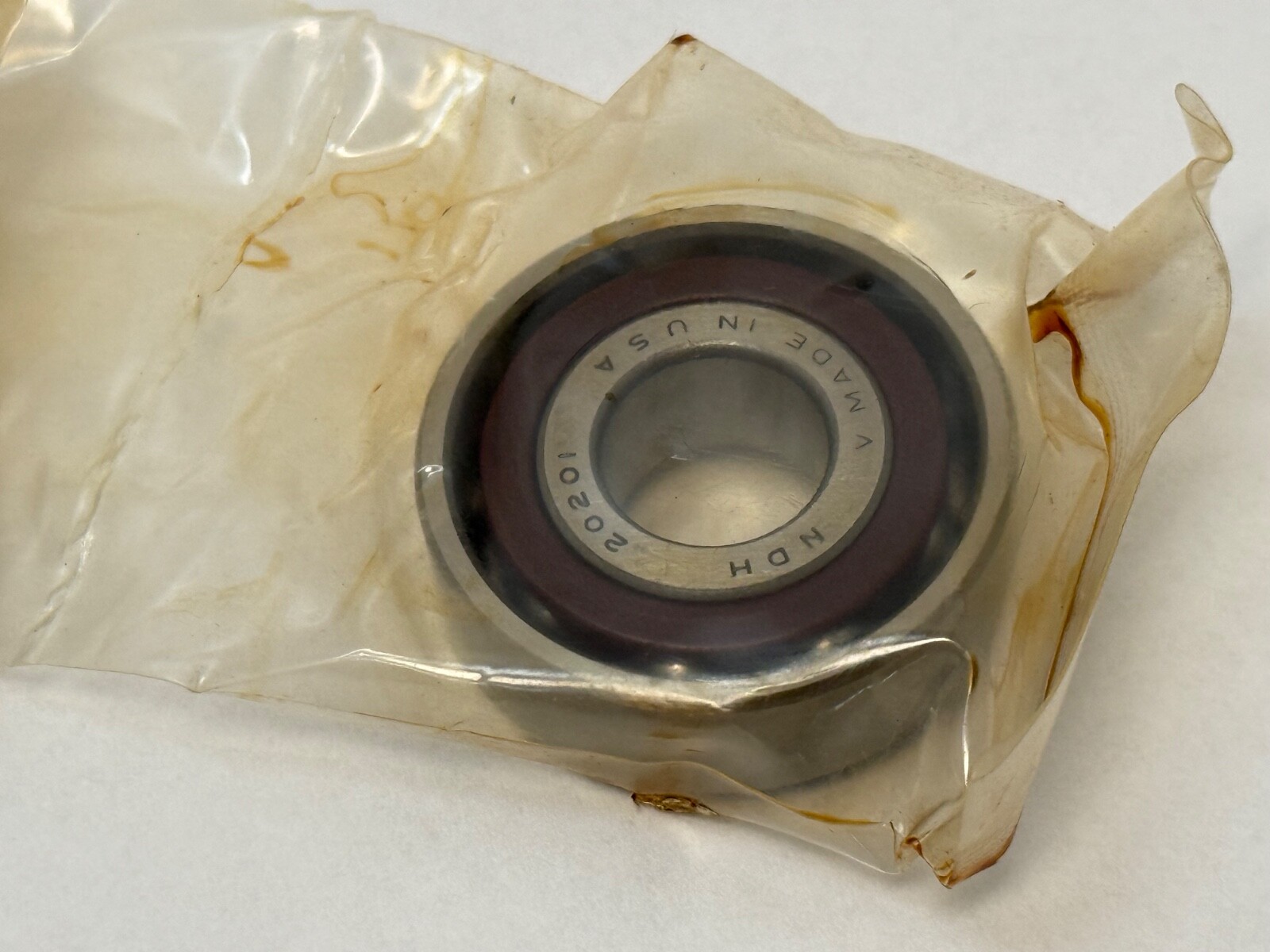

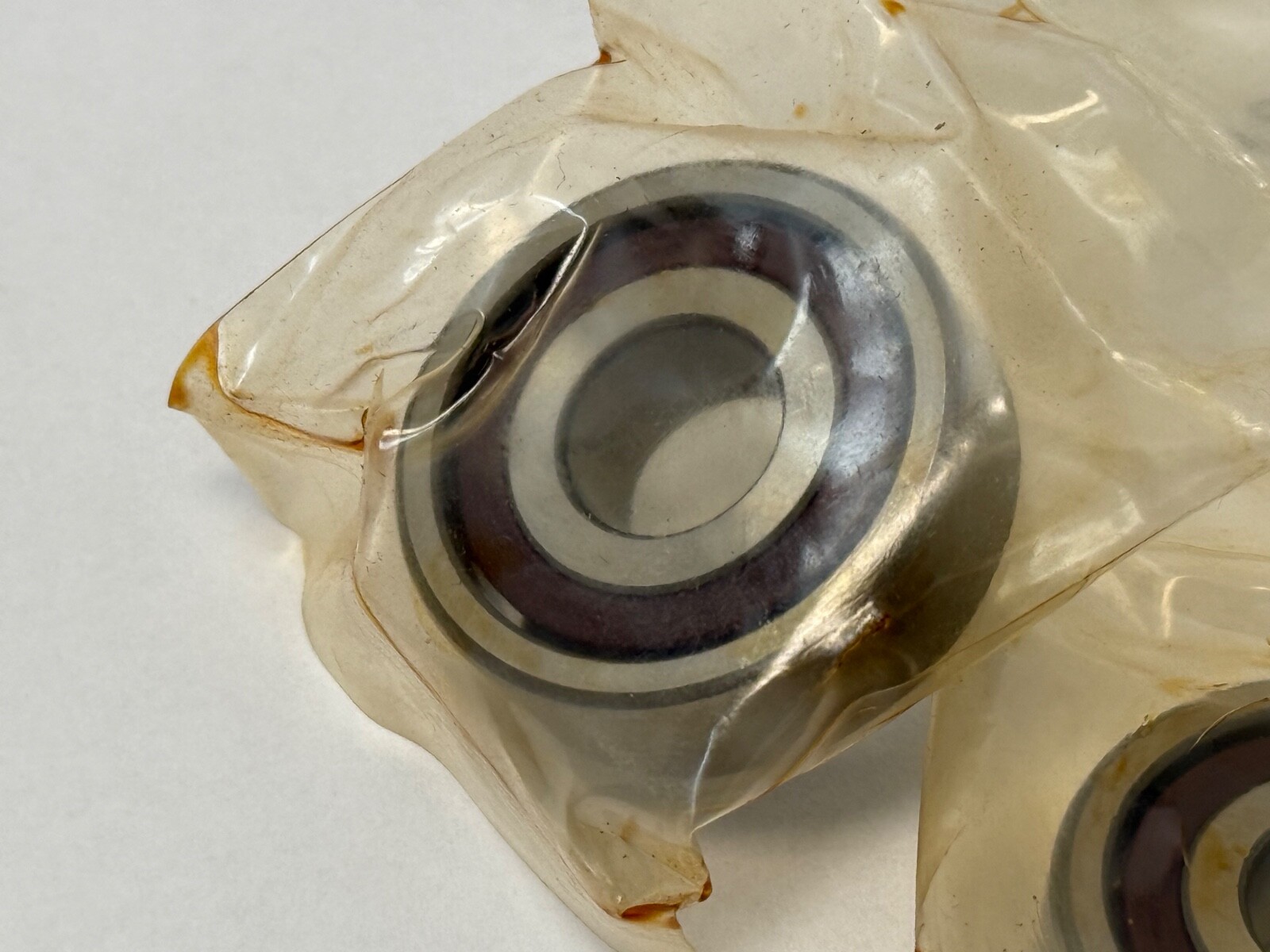

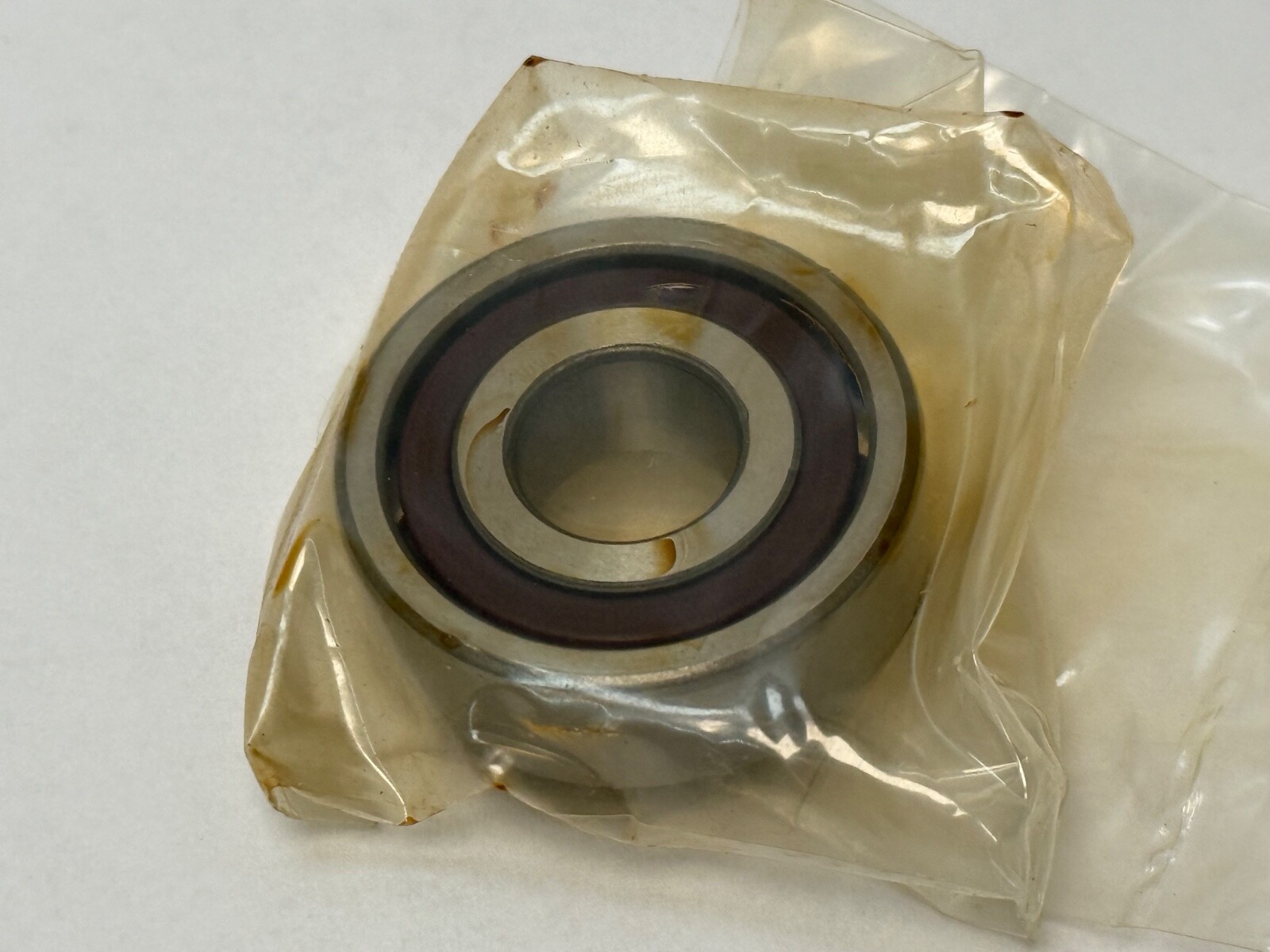

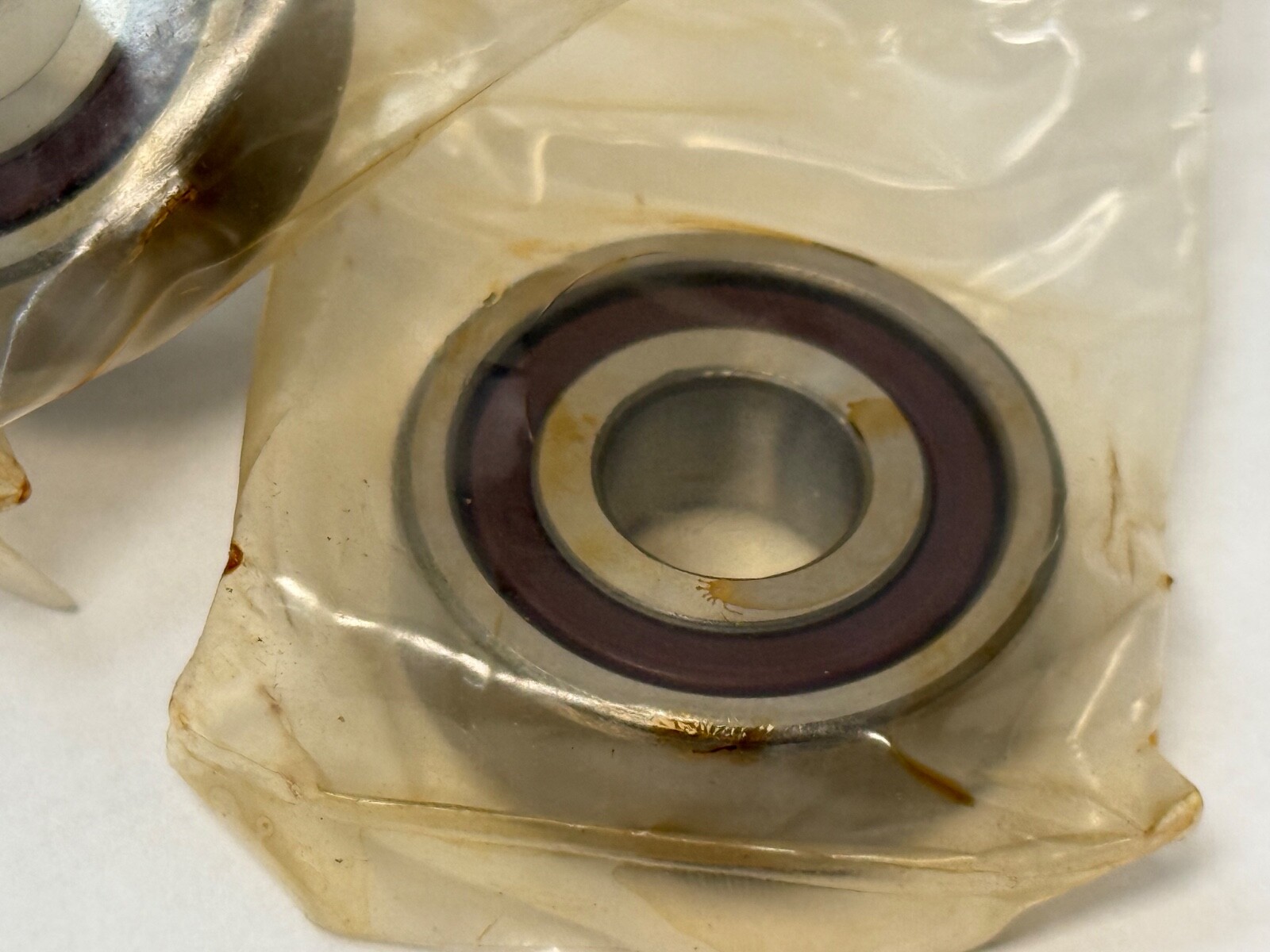

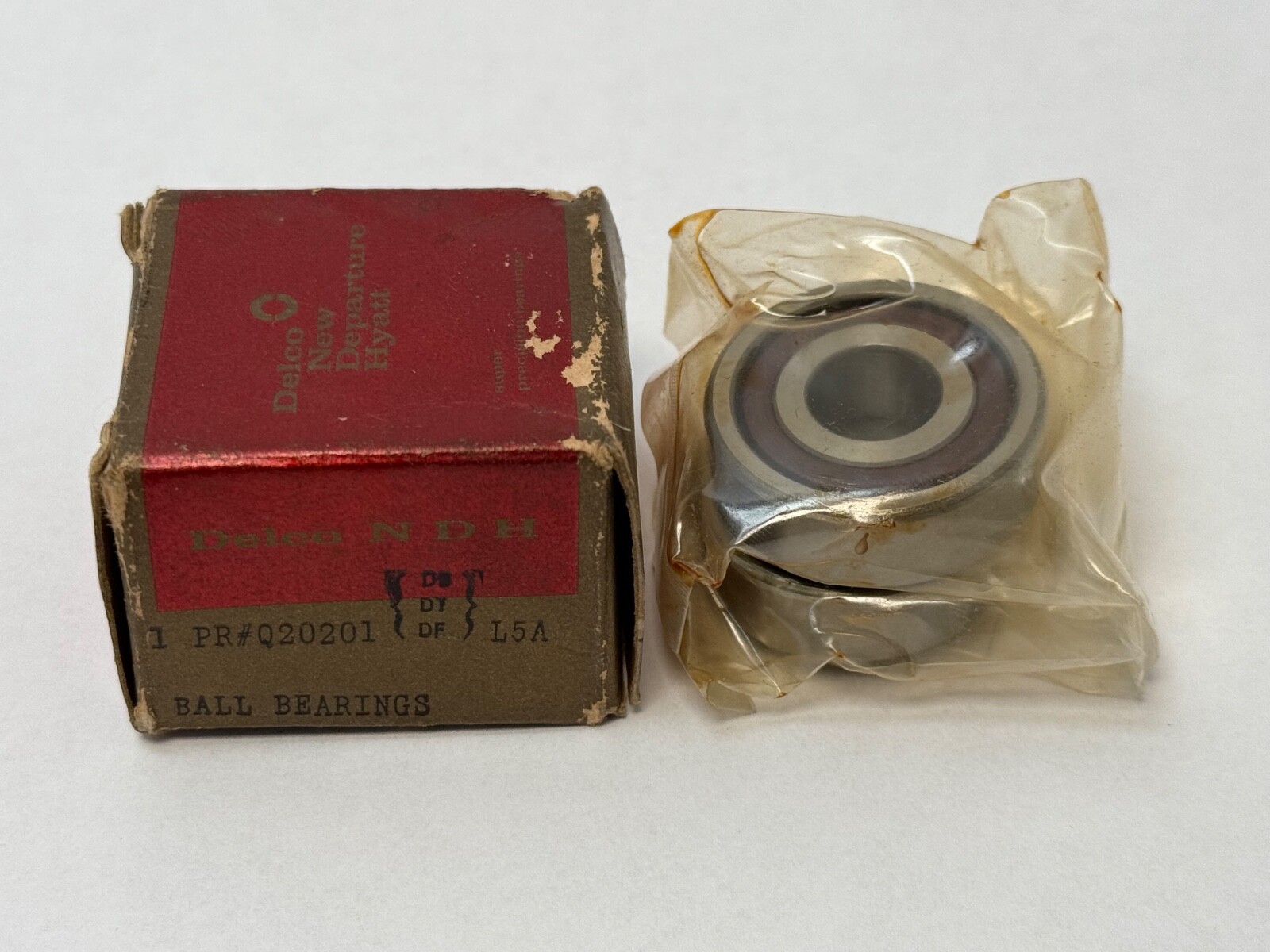

NDH Q20201DTL5A is a matched set of two single-row angular contact ball bearings in the ISO 7201 size, ground for duplex tandem mounting with light preload. Bore Diameter: 12 mm. Outside Diameter: 32 mm. Width: 10 mm per bearing. Contact Angle: 15°. Cage Material: Phenolic. Precision Class: ABEC 5. Unit Quantity: 2 Pcs.
Q — phenolic separator.
20201 — NDH number for the ISO 7201 size, 12 x 32 x 10 mm. The 20-series prefix is the 15° angular contact family.
DT — duplex tandem. Two single-row bearings ground as a matched set, mounted facing the same direction. Not a double-row bearing.
L — light preload.
5 — NDH tolerance grade, equivalent to ABEC 5.
Bearing Type: Angular contact ball bearing. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Contact Angle: 15°. Cage Material: Phenolic. Precision Class: ABEC 5. Preload: Light. Mounting Arrangement: Tandem (DT). Closure Type: Open. Bore Type: Straight.
Bore Diameter: 12 mm. Outside Diameter: 32 mm. Width: 10 mm per bearing.
ISO 7201C 15° angular contact size, supplied as a duplex tandem pair. MPN variants: Q20201DTL5A, Q-20201-DTL-5A, Q 20201 DTL 5A, 7201C.

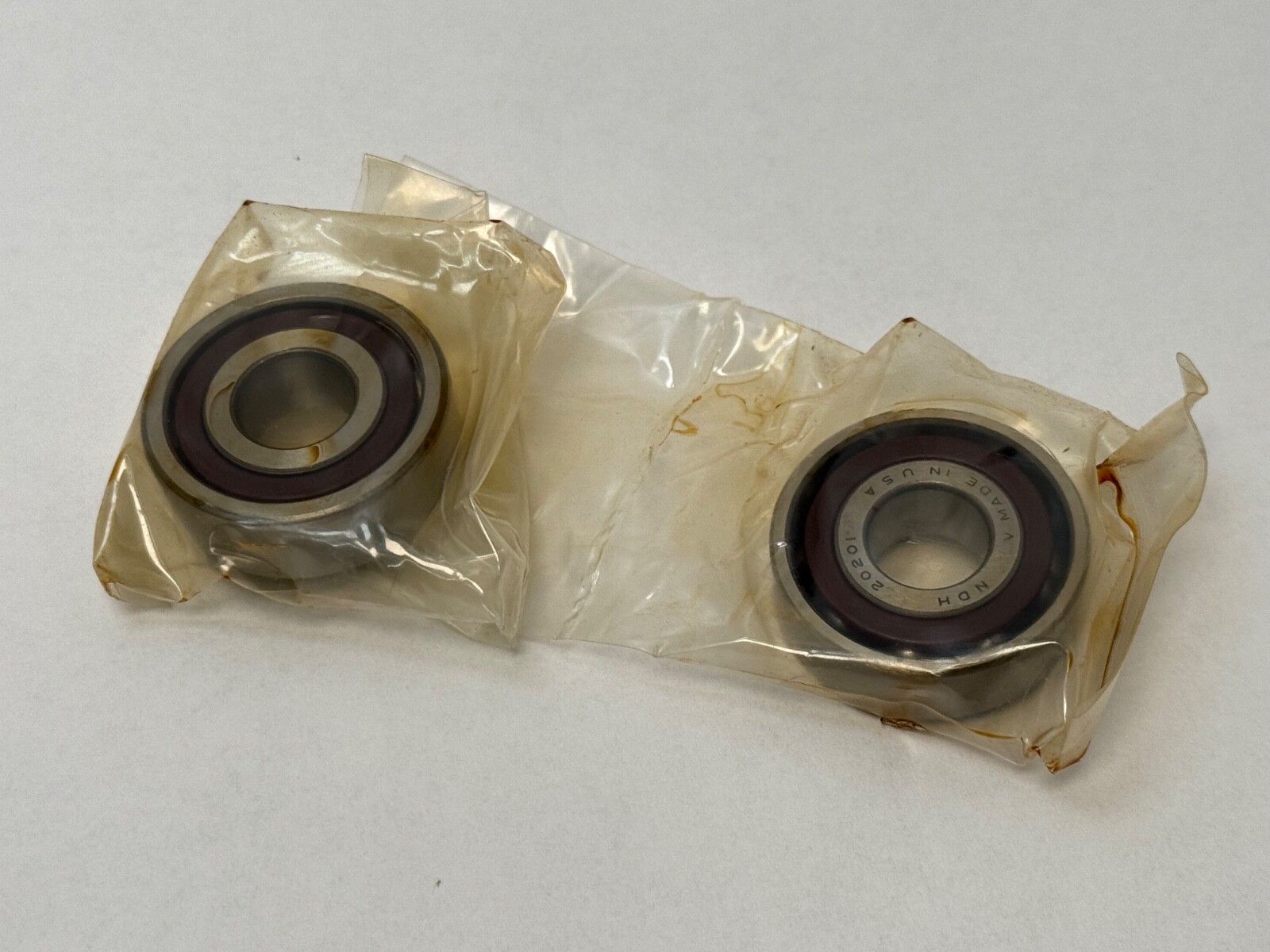

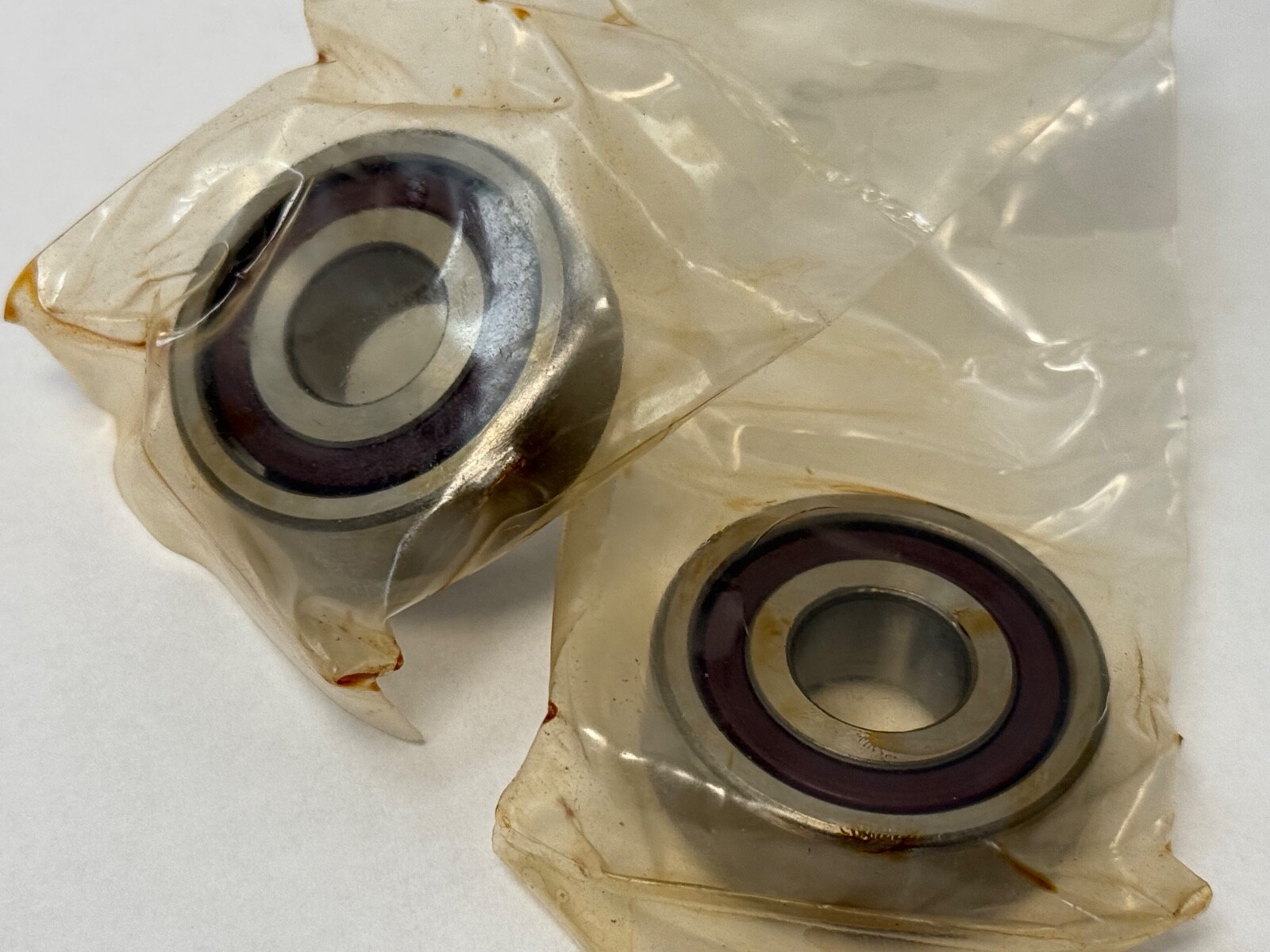

Two bearings, ground as a duplex tandem matched set.
15°, carried by the NDH 20-series number.
Q marks a phenolic separator (cage).
