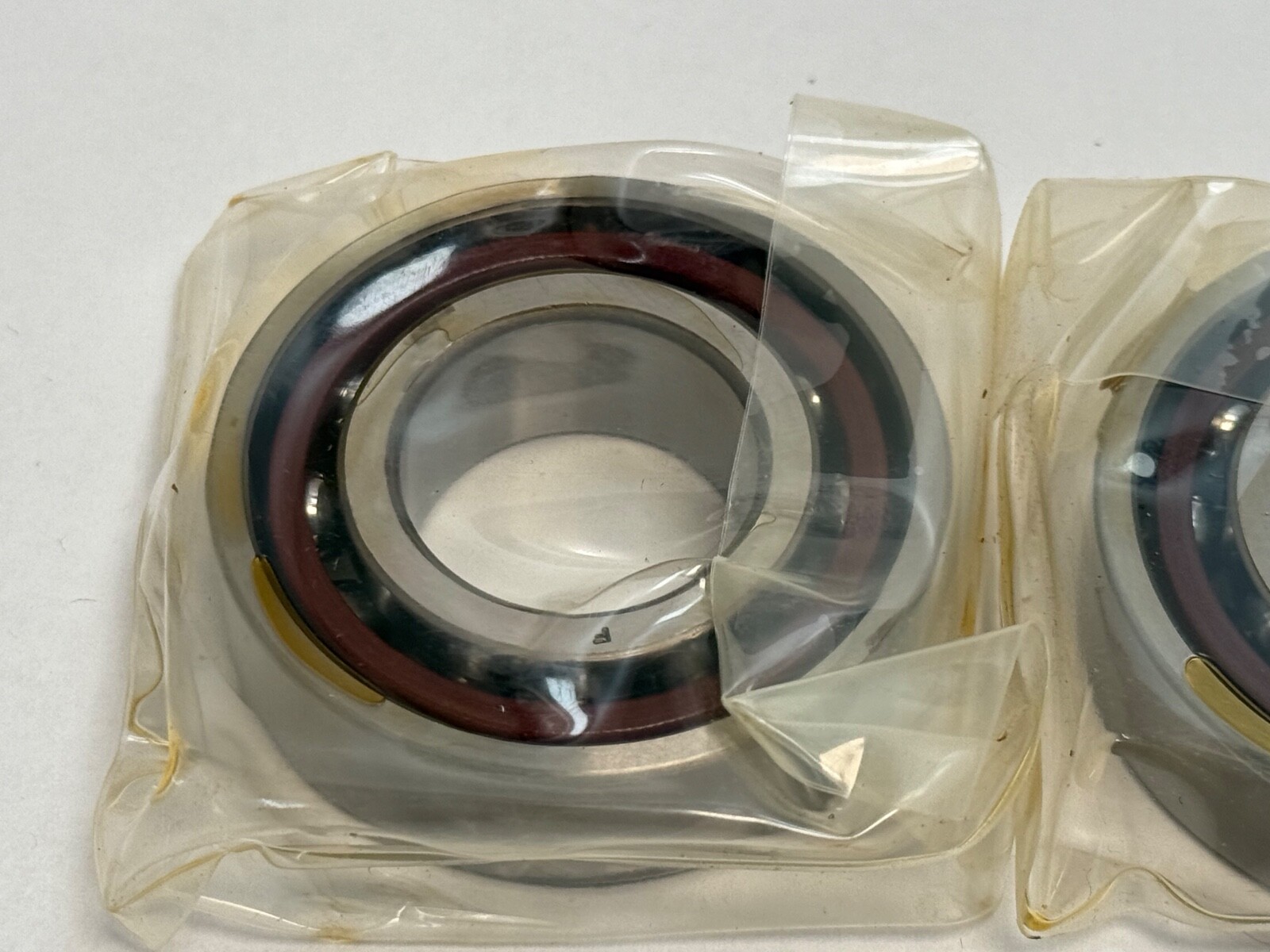

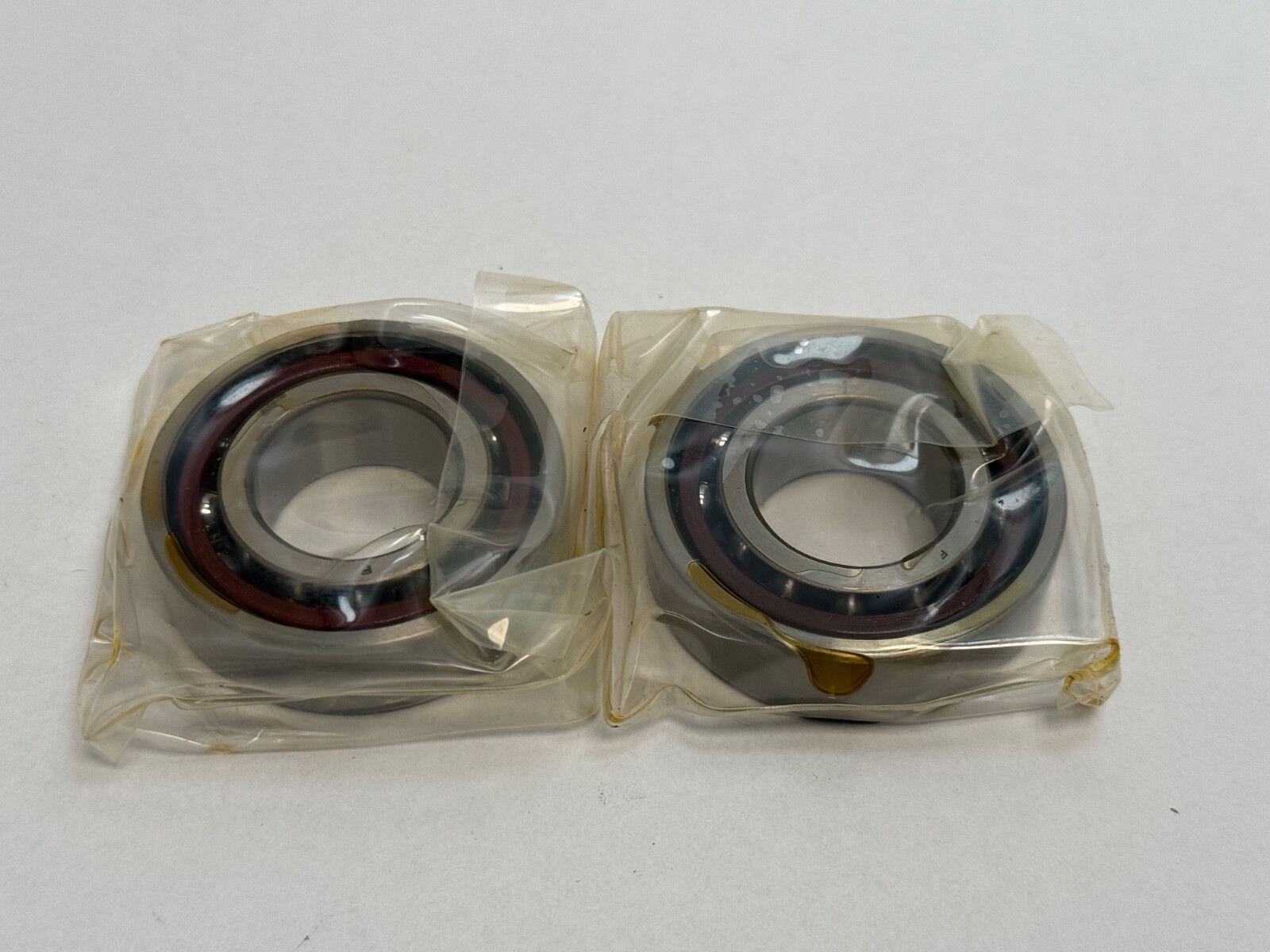

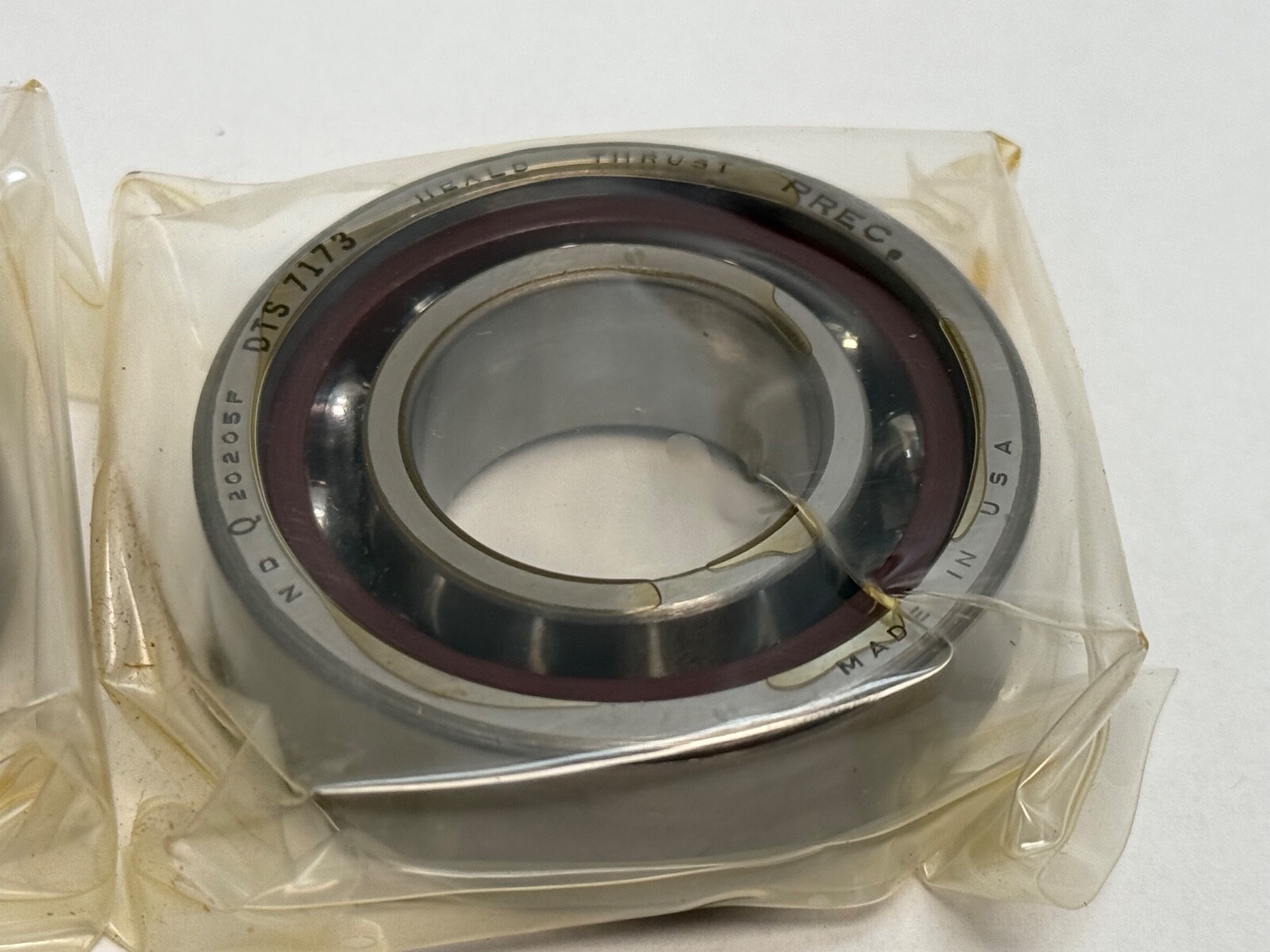

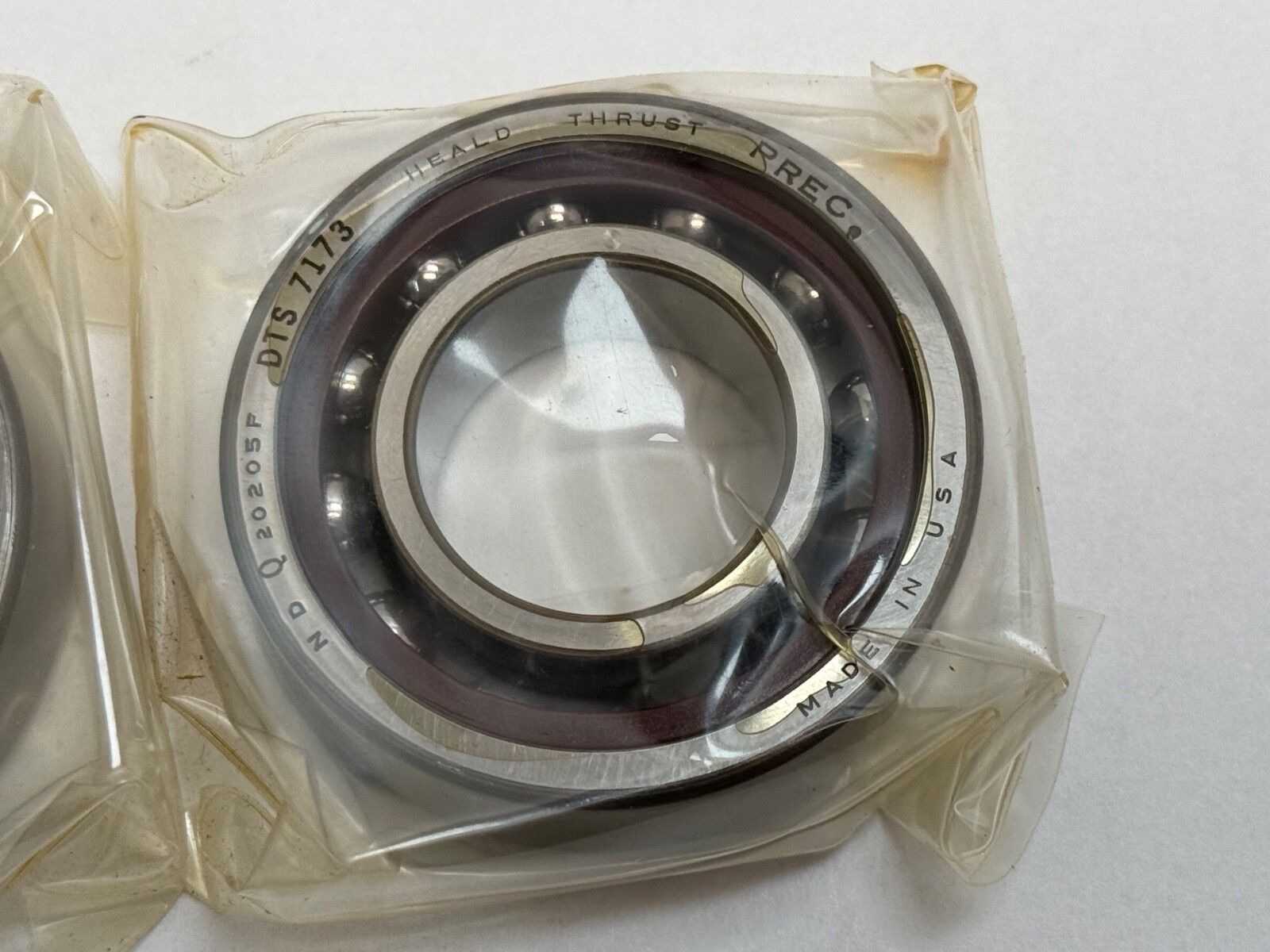

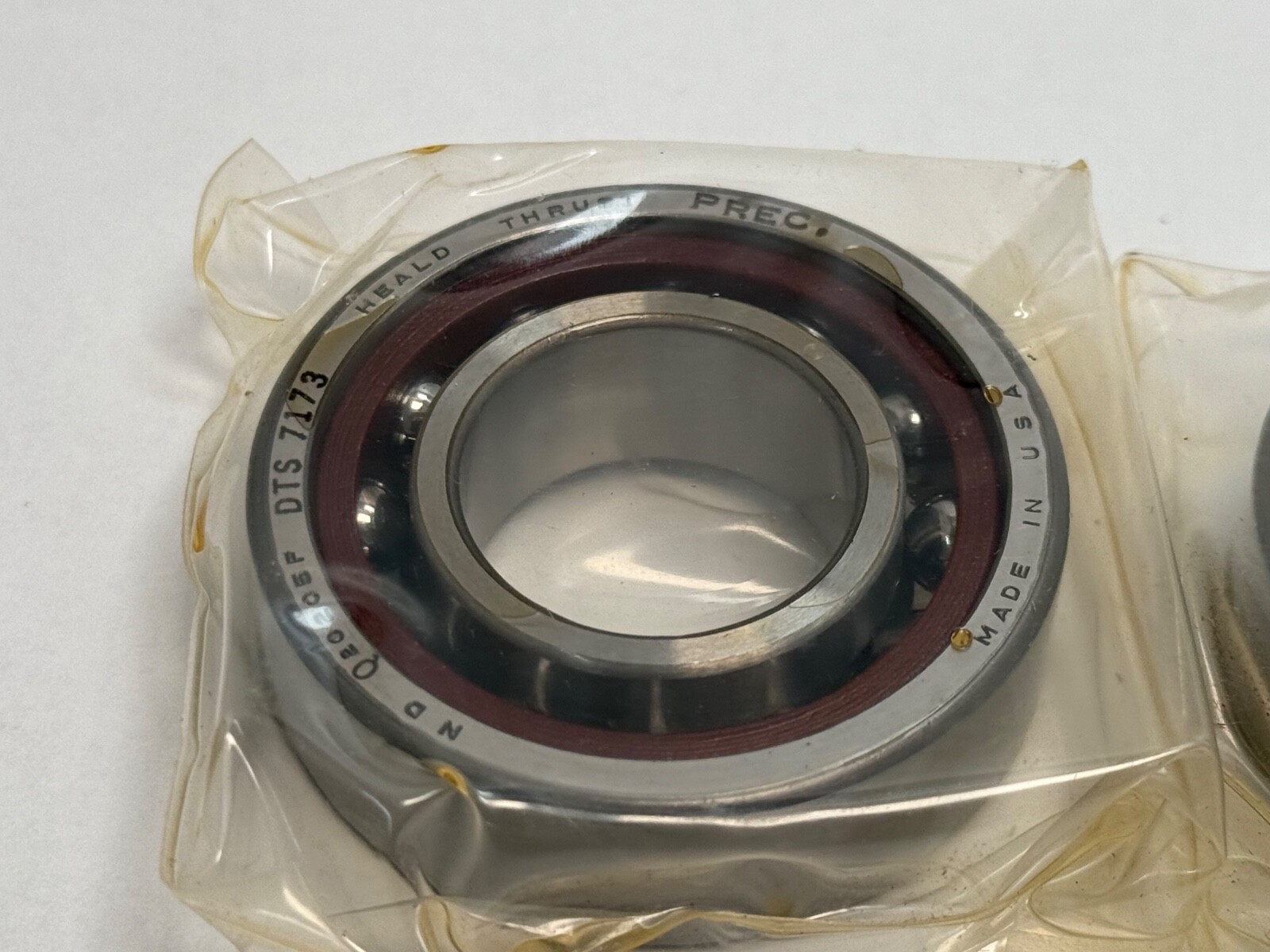

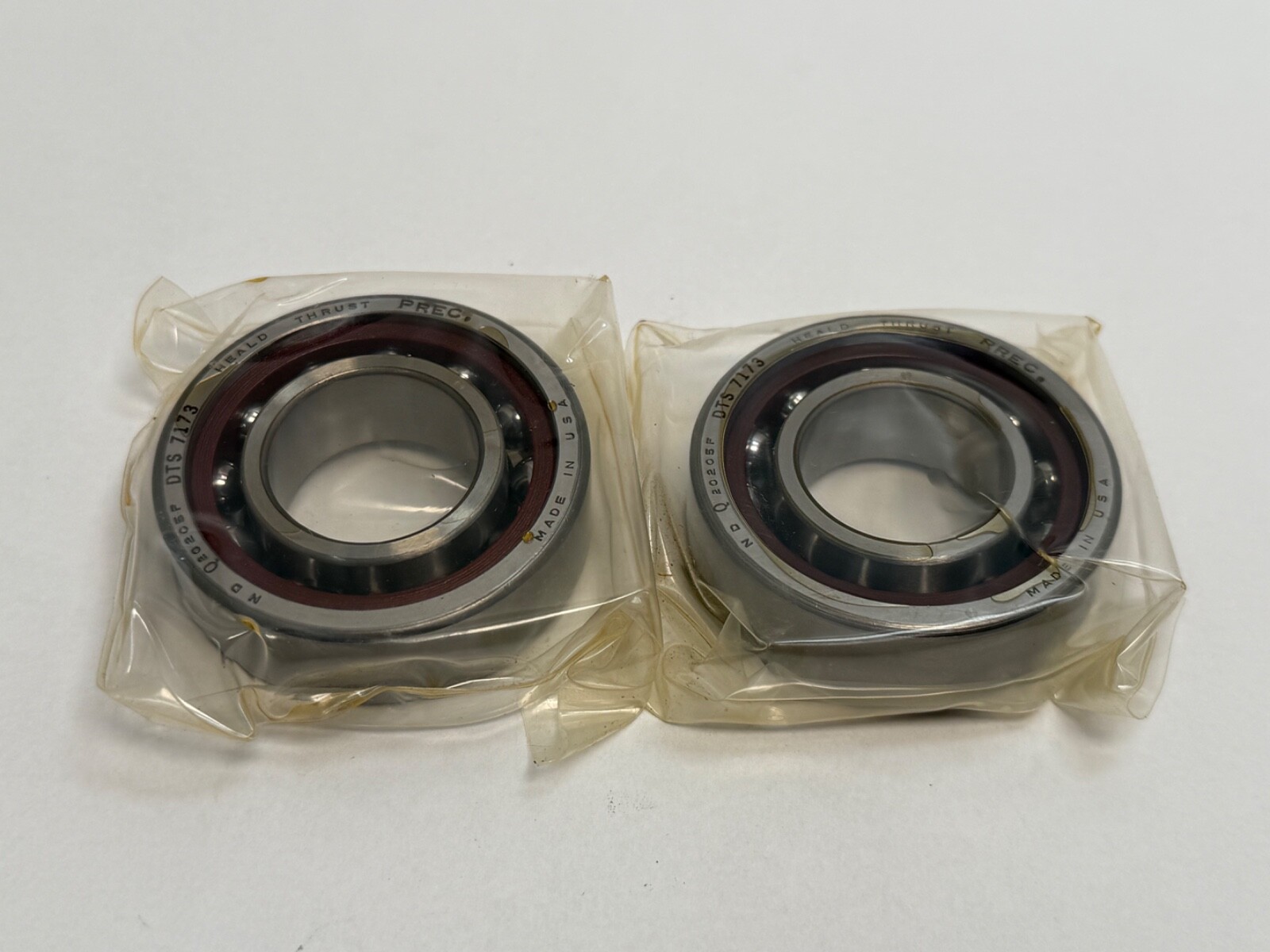

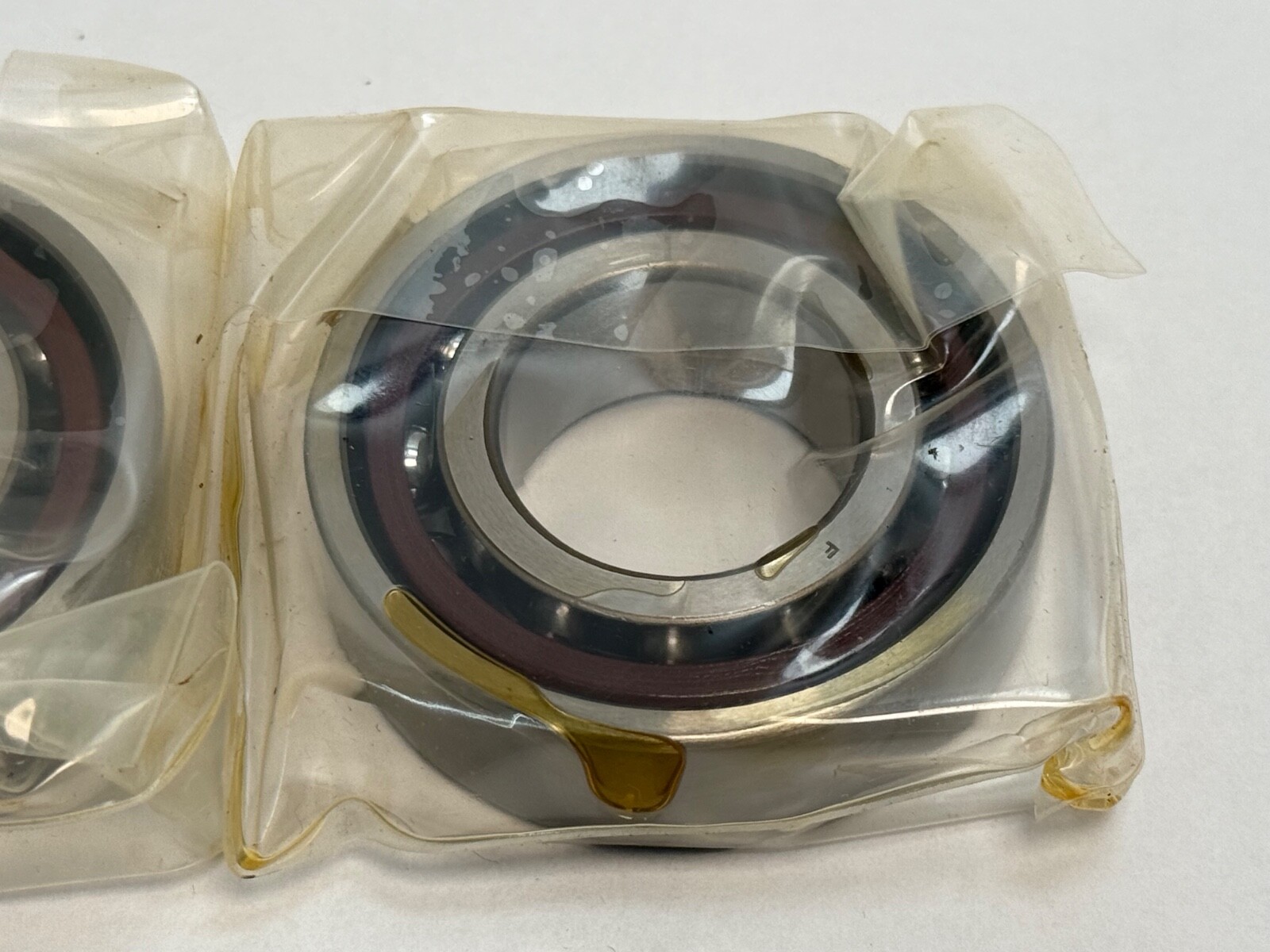

NDH Q20205FDT angular contact ball bearing pair, 25 x 52 x 15 mm ISO 7205 size, 15°, duplex tandem. Phenolic separator, listed against Fafnir 2MM205WN, 2 Pcs.
List Price
$100.50
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| Model | Q20205FDT |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Condition | New |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex tandem (DT) |
| Base Number | 20205 |
| Industry Terms | angular contact bearing, duplex tandem set, New Departure Hyatt |
| Mpn Variants | Q20205FDT, Q-20205-F-DT, Q 20205 F DT S7173A, Q20205F, 20205, 2MM205WN CR, 7205 C T |
| Cage Material | Phenolic |
| Cross Reference 1 | Fafnir 2MM205WN CR |
|---|---|
| Cross Reference 2 | NTN 7205C - single bearing, not a matched set |
The NDH Q20205FDT is a New Departure Hyatt 15° angular contact ball bearing set supplied as a duplex matched pair. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing. Contact Angle: 15°.
Q — phenolic ball separator.
20205 — NDH number for the ISO 7205 size, 25 x 52 x 15 mm. The 20-series prefix is the 15° angular contact family.
DT — duplex tandem. Two single-row bearings ground as a matched set, mounted facing the same direction.
Cage Material: Phenolic. Mounting Arrangement: Duplex tandem (DT). Rolling Elements: Ball. Bore Type: Straight. A 15° angle favours speed and radial stiffness.
Unit Quantity: 2 Pcs, one duplex matched set.

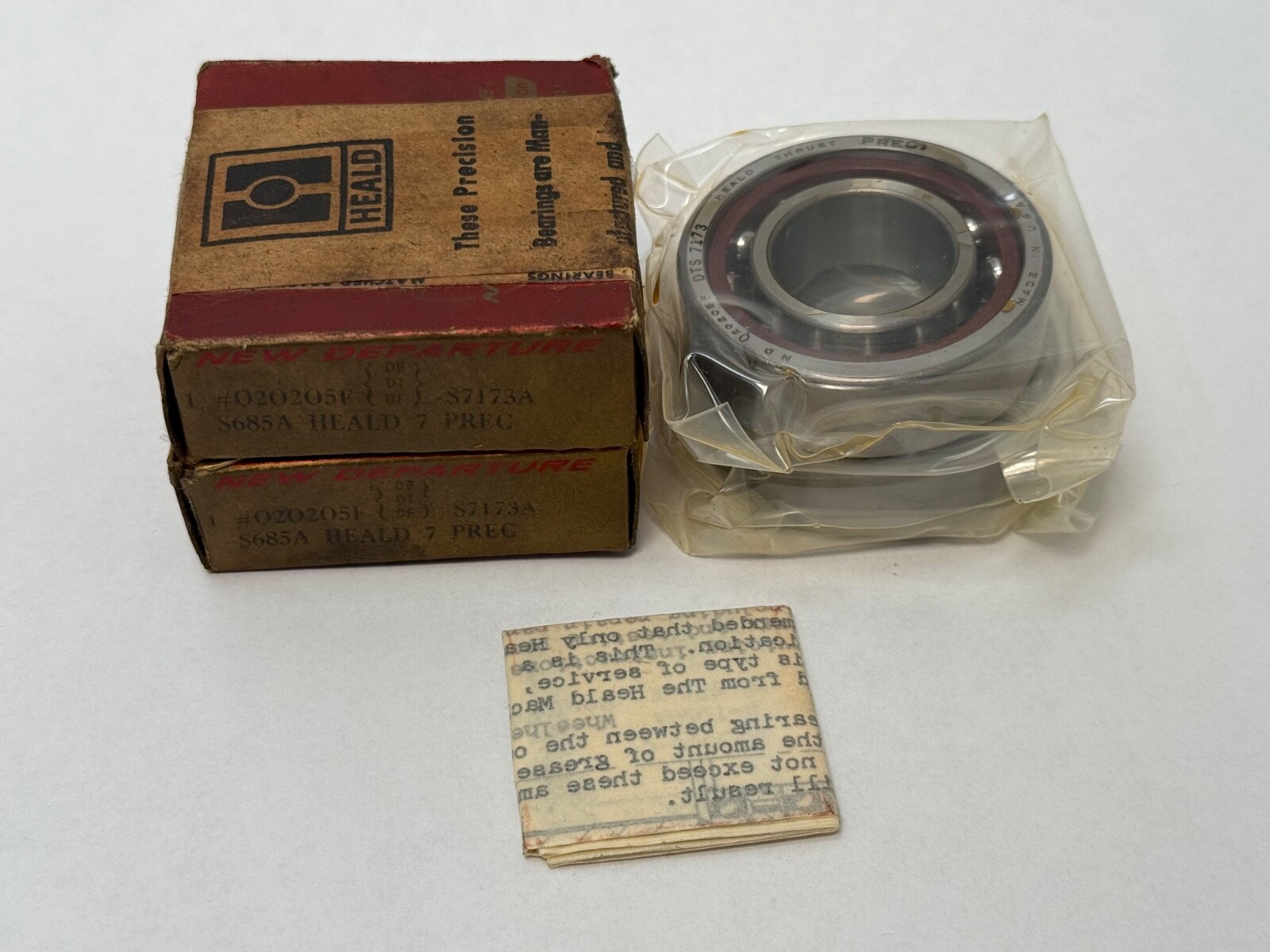

ISO 7205 envelope, 15°, listed against Fafnir 2MM205WN CR and 7205 C T. NTN 7205C is the same size and angle as a single bearing, not a matched set. Carton code S7173A. Also written Q-20205-F-DT.
Frequently asked questions
What is the NDH Q20205FDT?The NDH Q20205FDT is a New Departure Hyatt 15° angular contact ball bearing pair in the ISO 7205 size, duplex tandem, with a phenolic separator.
What size is it?Bore 25 mm, outside diameter 52 mm, width 15 mm per bearing.
What Fafnir part is it listed against?The carton carries Fafnir 2MM205WN CR, the 15° 7205-size bearing.
