Availability:
1 in stock

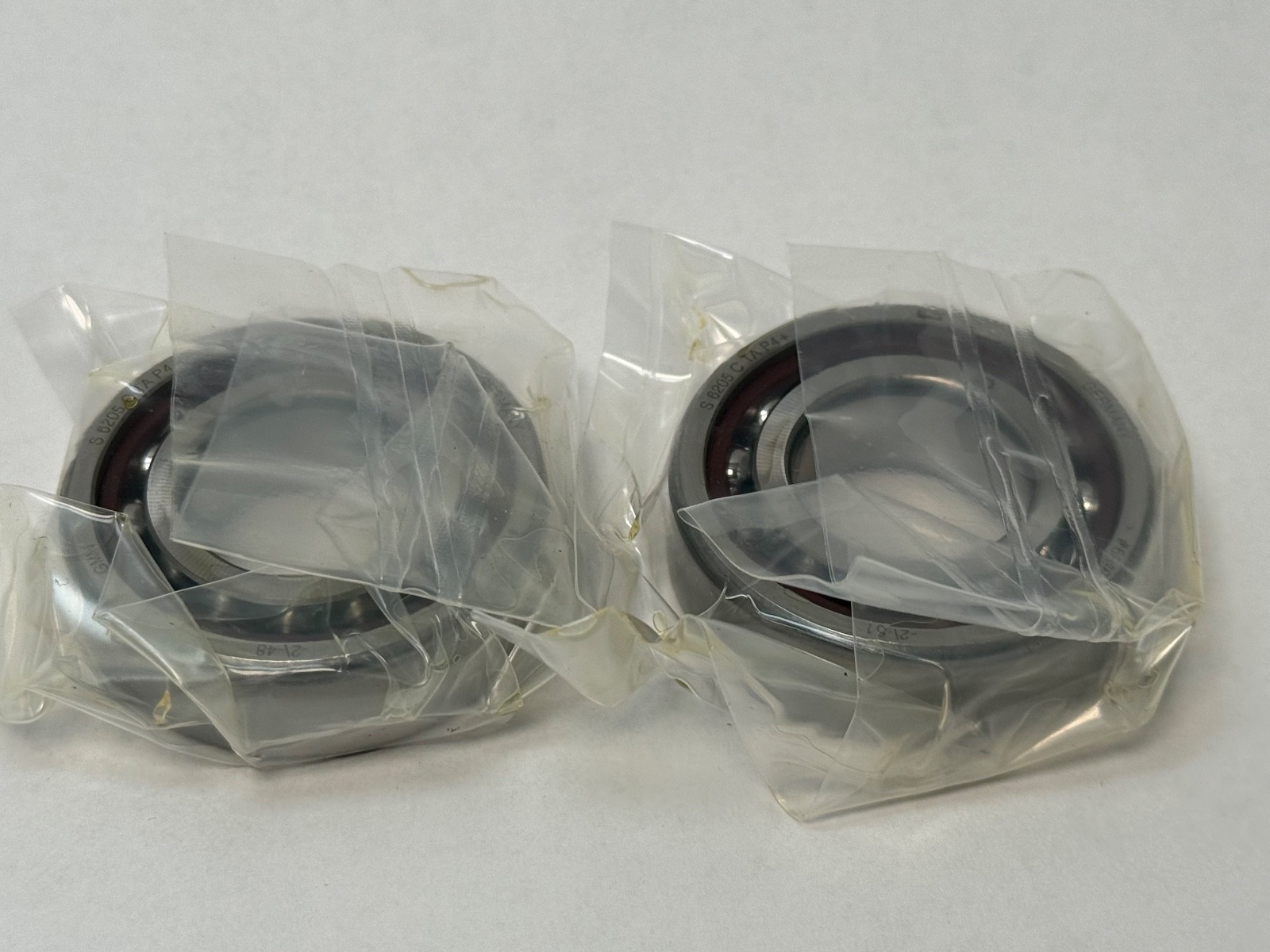

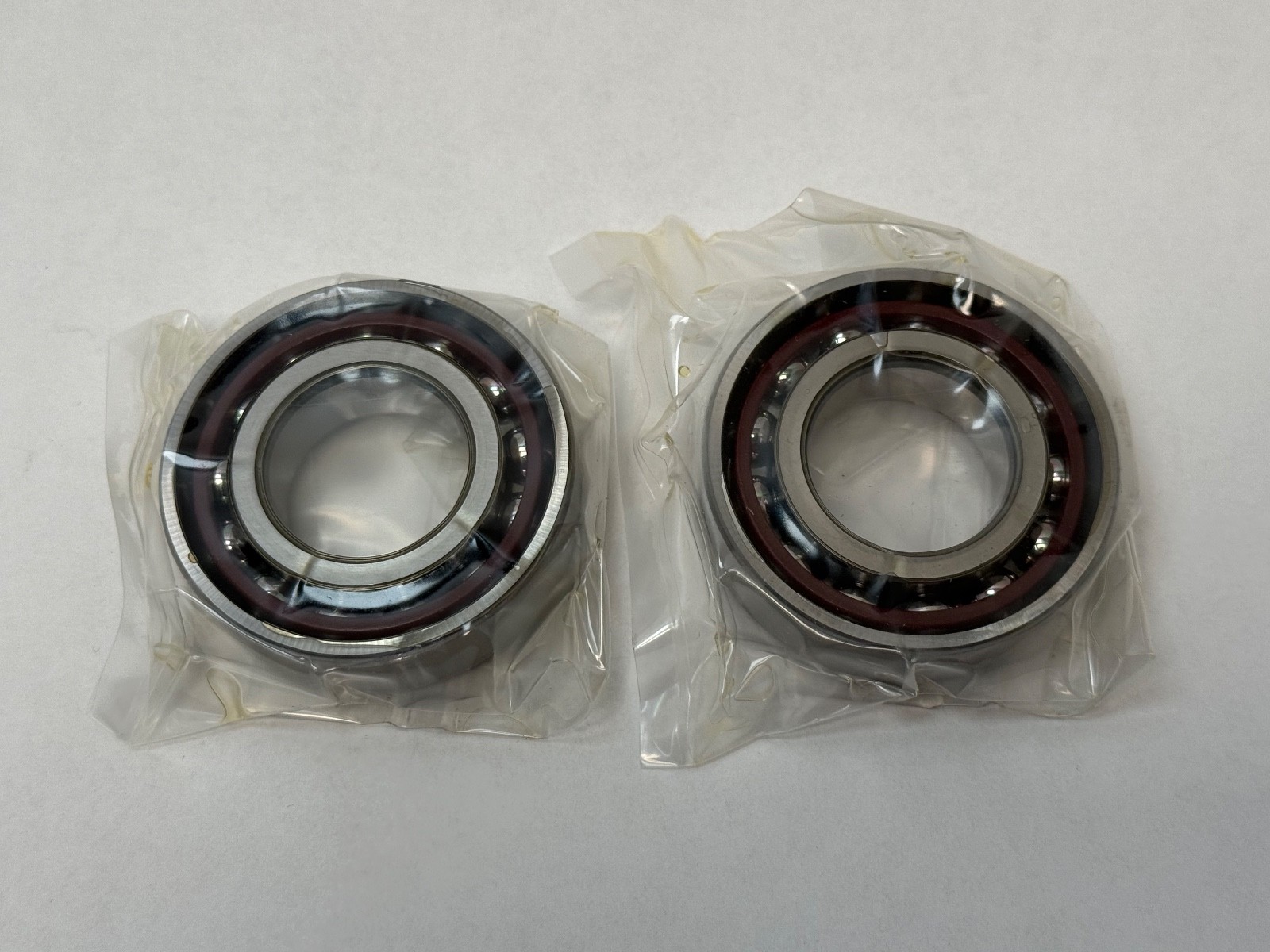

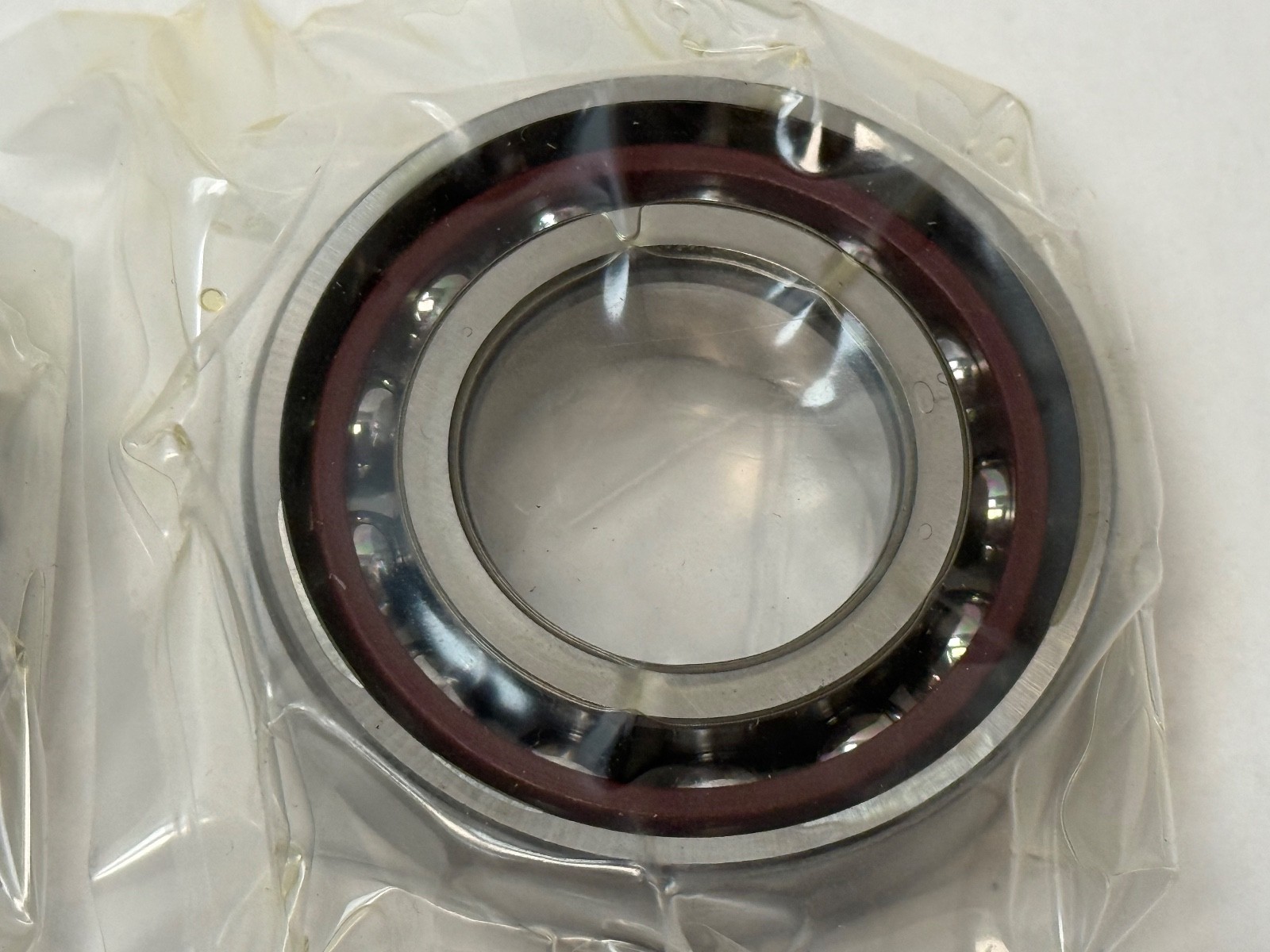

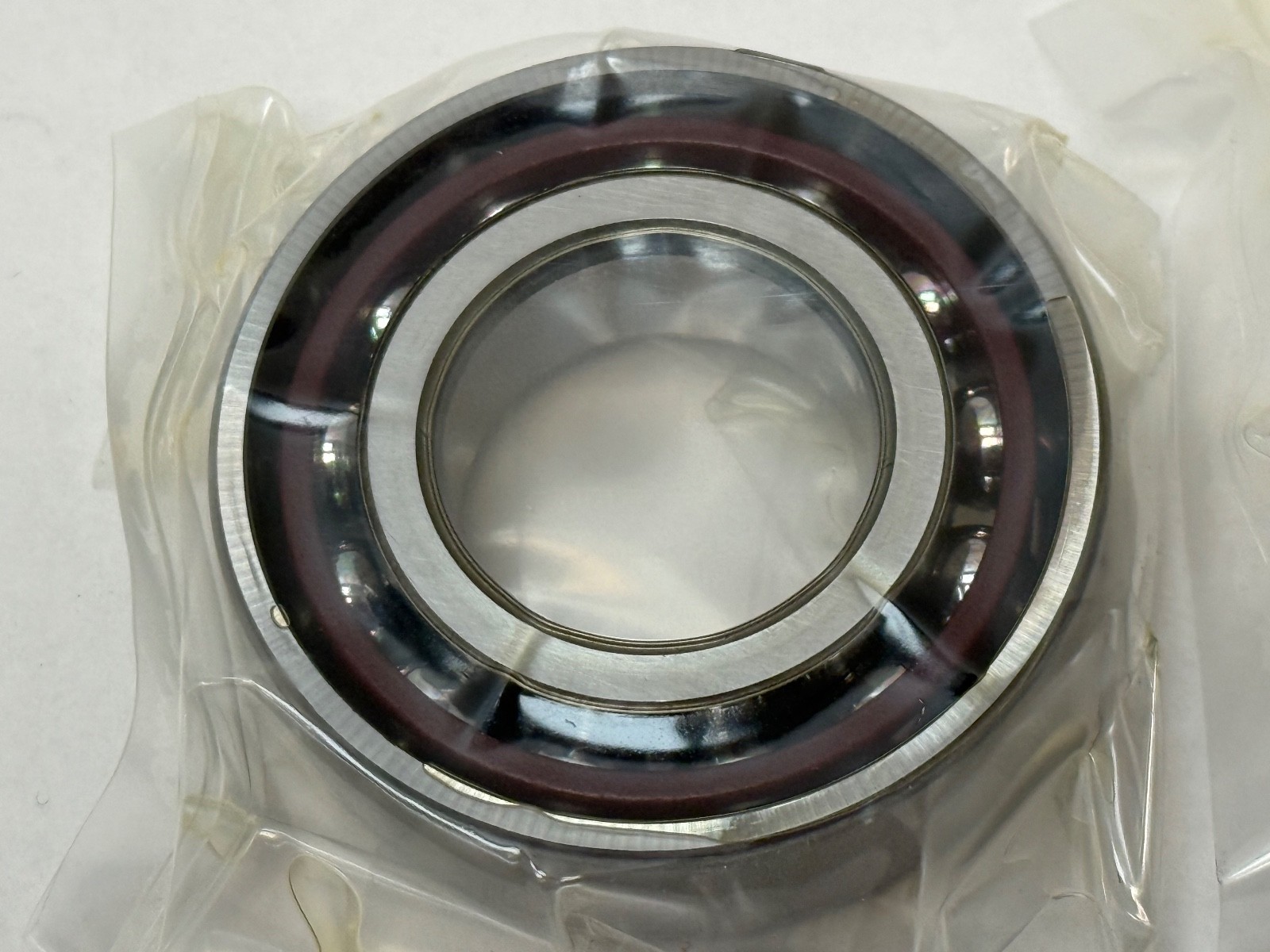

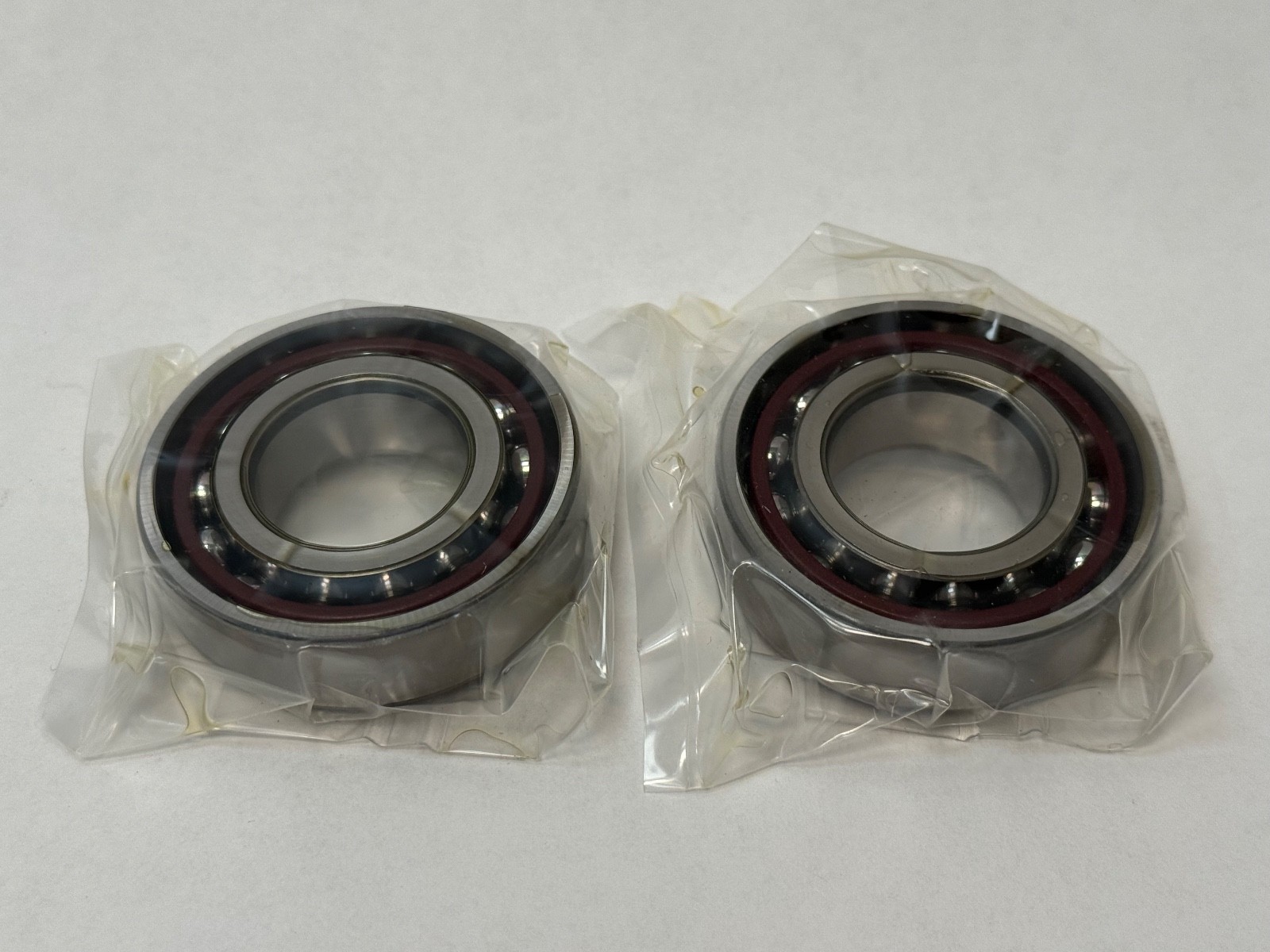

Angular contact spindle bearing pair, 25 mm bore x 52 mm OD x 15 mm, 15°, phenolic TA cage, ABEC 7 / P4, universal light preload 100 N. GMN S 6205 C TA P4 DUL, 2 Pcs.
List Price
$134.92
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S-6205-C-TA-P4-DUL |
| Model | S-6205-C-TA-P4-DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Steel |
|---|---|
| Overall Width | 15 mm |
| Mpn Variants | S-6205-C-TA-P4-DUL, S6205CTAP4DUL, S6205CTAP4-DUL, S 6205 C TA P4 DUL, 7205C |
| Arrangement Configuration | DUL — universal matched pair (DB, DF or DT) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Bearing design: S, two lands on inner ring, non-separable; Balls: 13 x 7.938 mm; Axial rigidity (pair, light preload): 45 N/µm; Cage max operating temperature: 120 °C |
| Cage Type | TA, machined, outer-ring guided |
| Dynamic Load Rating | 19,000 N |
| Static Load Rating | 12,600 N |
| Series | S 62 |
| Rolling Elements | Ball |
| Item Weight | 0.128 kg (0.28 lb) per bearing |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 33,000 rpm grease; 44,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | L (light), 100 N |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | Fafnir 2MM205WI |
|---|---|
| Cross Reference 2 | FAG B7205-C-T |
| Cross Reference 3 | SKF 7205 CD |
| Cross Reference 4 | RHP 7205 X2TA |
| Cross Reference 5 | Barden 205H |

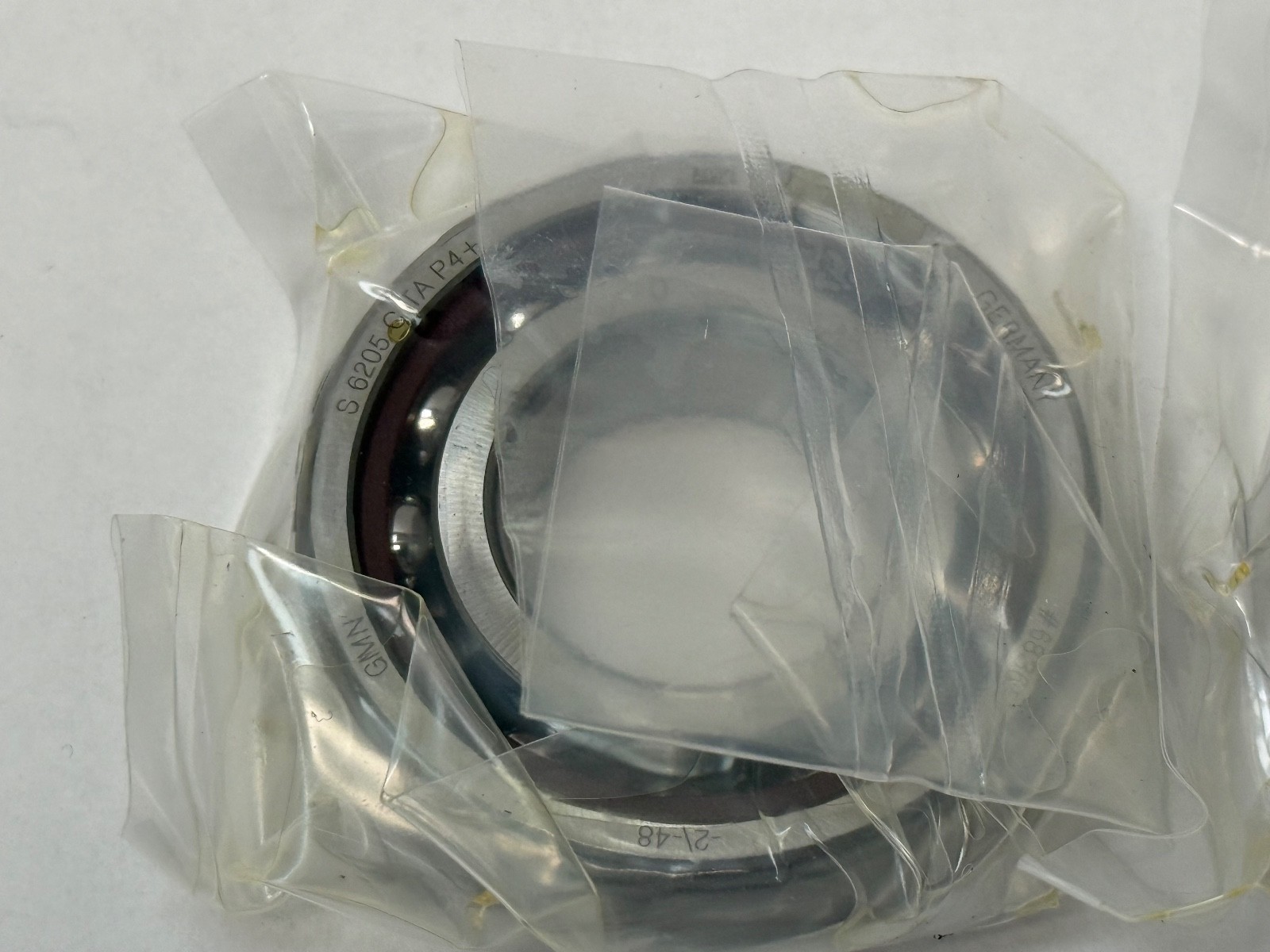

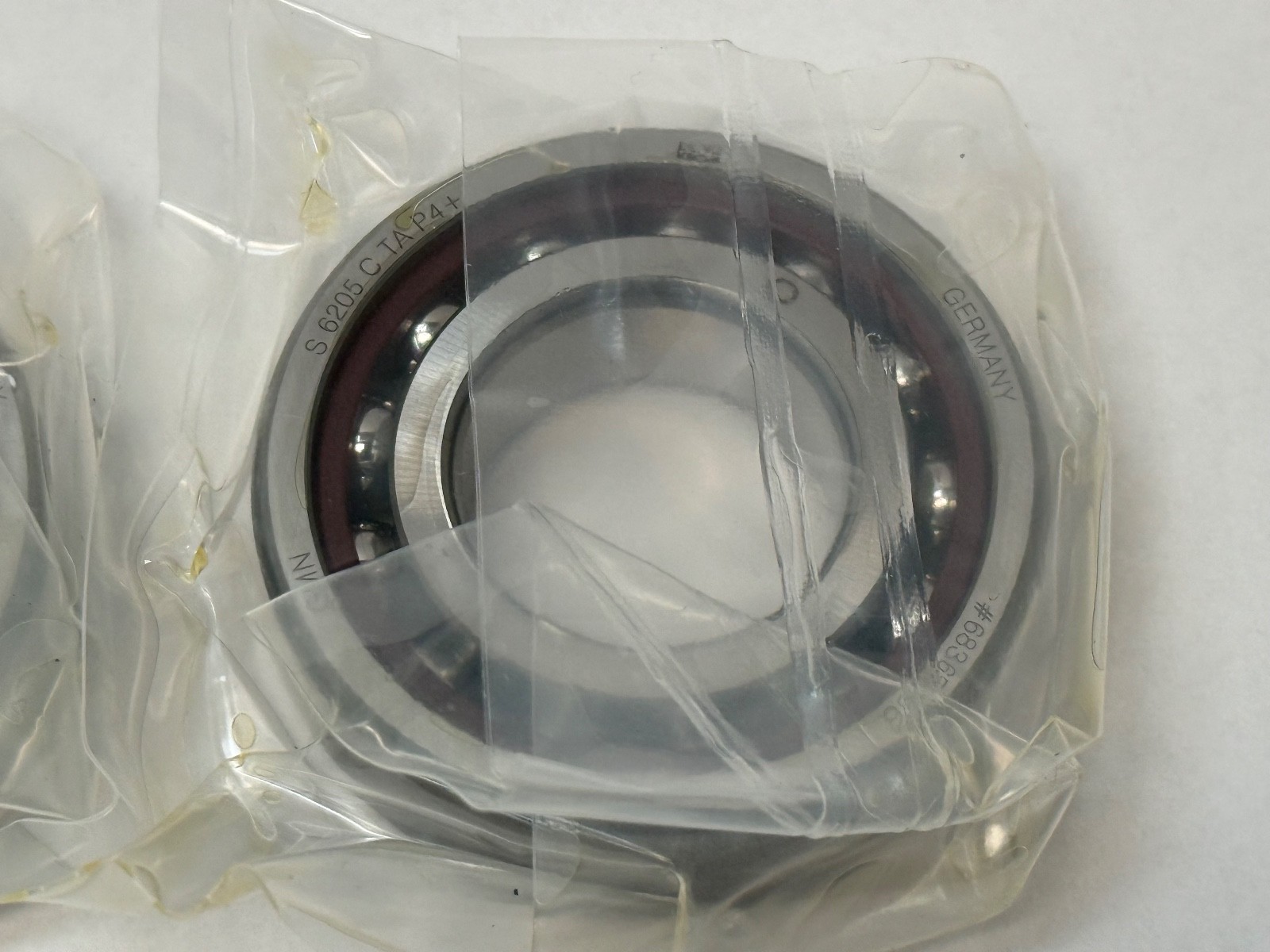

GMN S 6205 C TA P4 DUL super-precision angular contact spindle bearing set, two bearings universally matched with light preload. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm per bearing. Contact Angle: 15°. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: L (light), 100 N. Rolling Elements: Ball, 13 x 7.938 mm.
S — GMN standard spindle bearing, two lands on the inner ring, non-separable.
6205 — dimension series 02, bore code 05: 25 x 52 x 15 mm, the ISO 7205 size.
C — 15° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring, rated to 120 °C.
P4 — GMN P4 tolerance class, equivalent to P4S per DIN 628-6.
D — set of two bearings.
UL — universal matching, light preload. The pair mounts back-to-back, face-to-face or in tandem.
Dynamic Load Rating: 19,000 N. Static Load Rating: 12,600 N. Limiting Speed: 33,000 rpm grease; 44,000 rpm oil. Item Weight: 0.128 kg per bearing. Axial rigidity at light preload: 45 N/µm per pair. The 15° angle favours speed and radial stiffness in machine tool and high-speed motor spindles. Lubricant: grease or oil. Closure Type: Open. Snap Ring: No.

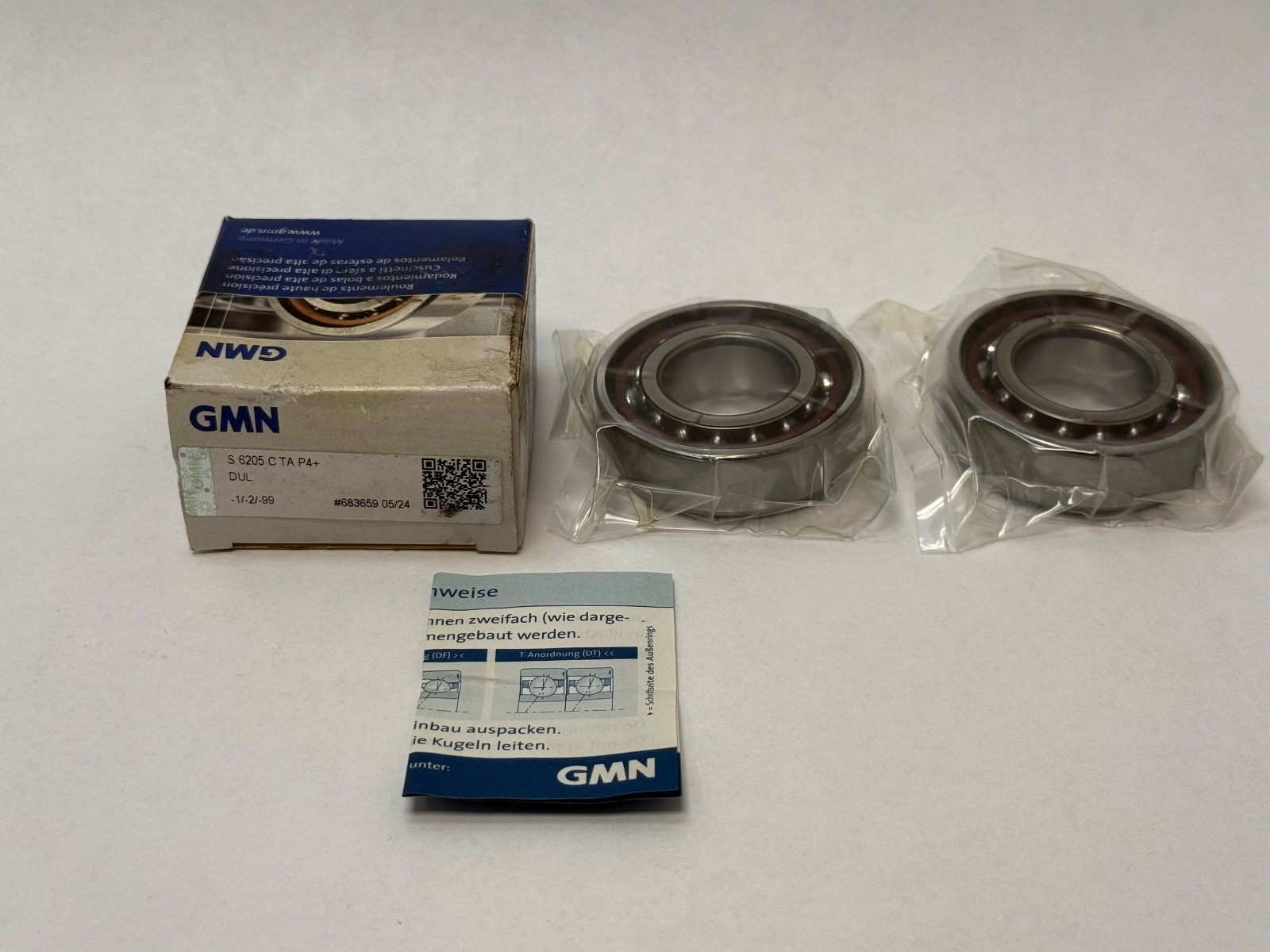

Unit Quantity: 2 Pcs. One factory duplex set, universally ground.
Same 25 x 52 x 15 mm envelope and 15° angle: Fafnir 2MM205WI, FAG B7205-C-T, SKF 7205 CD, RHP 7205 X2TA, Barden 205H.
