Availability:
1 in stock

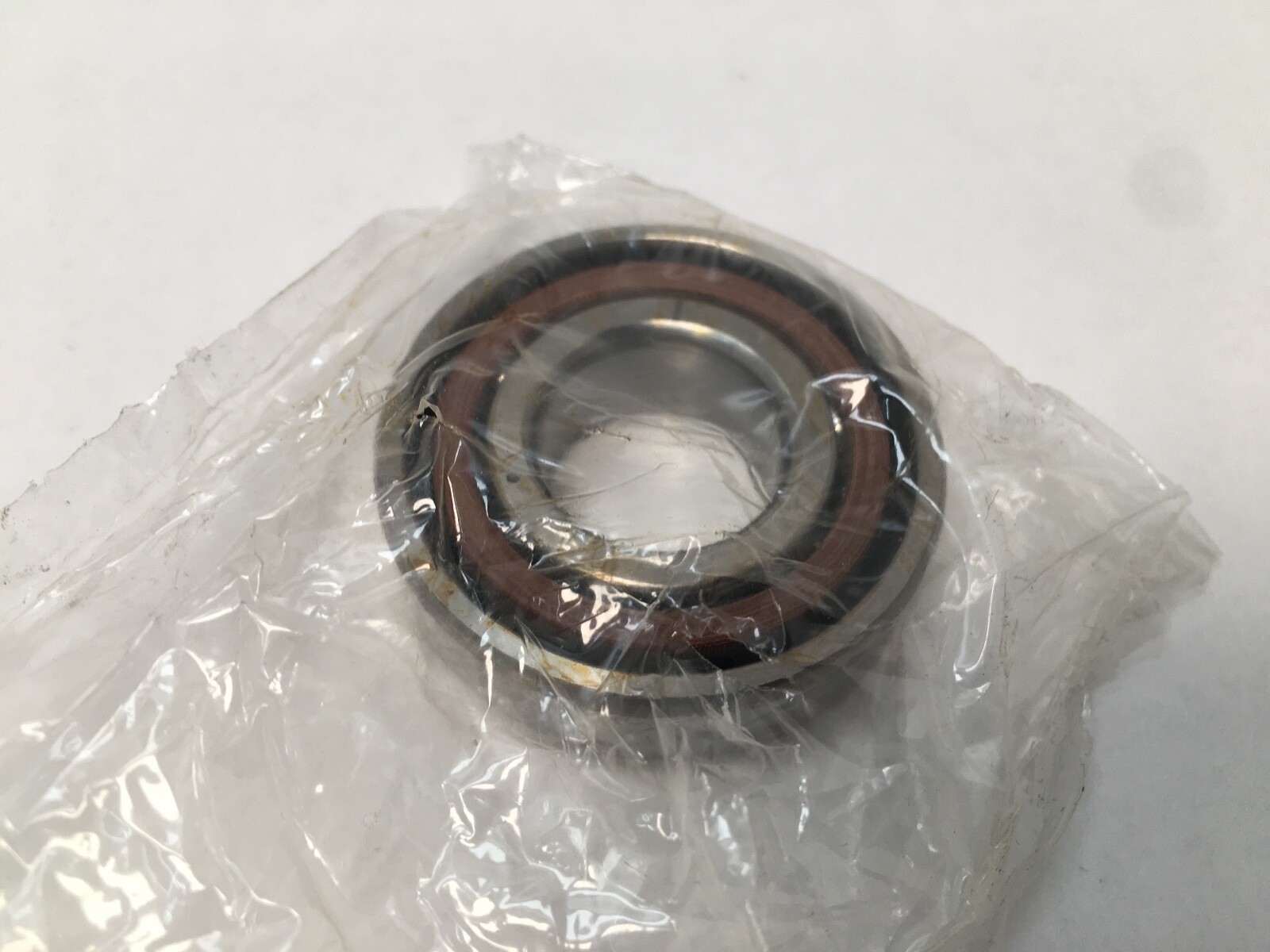

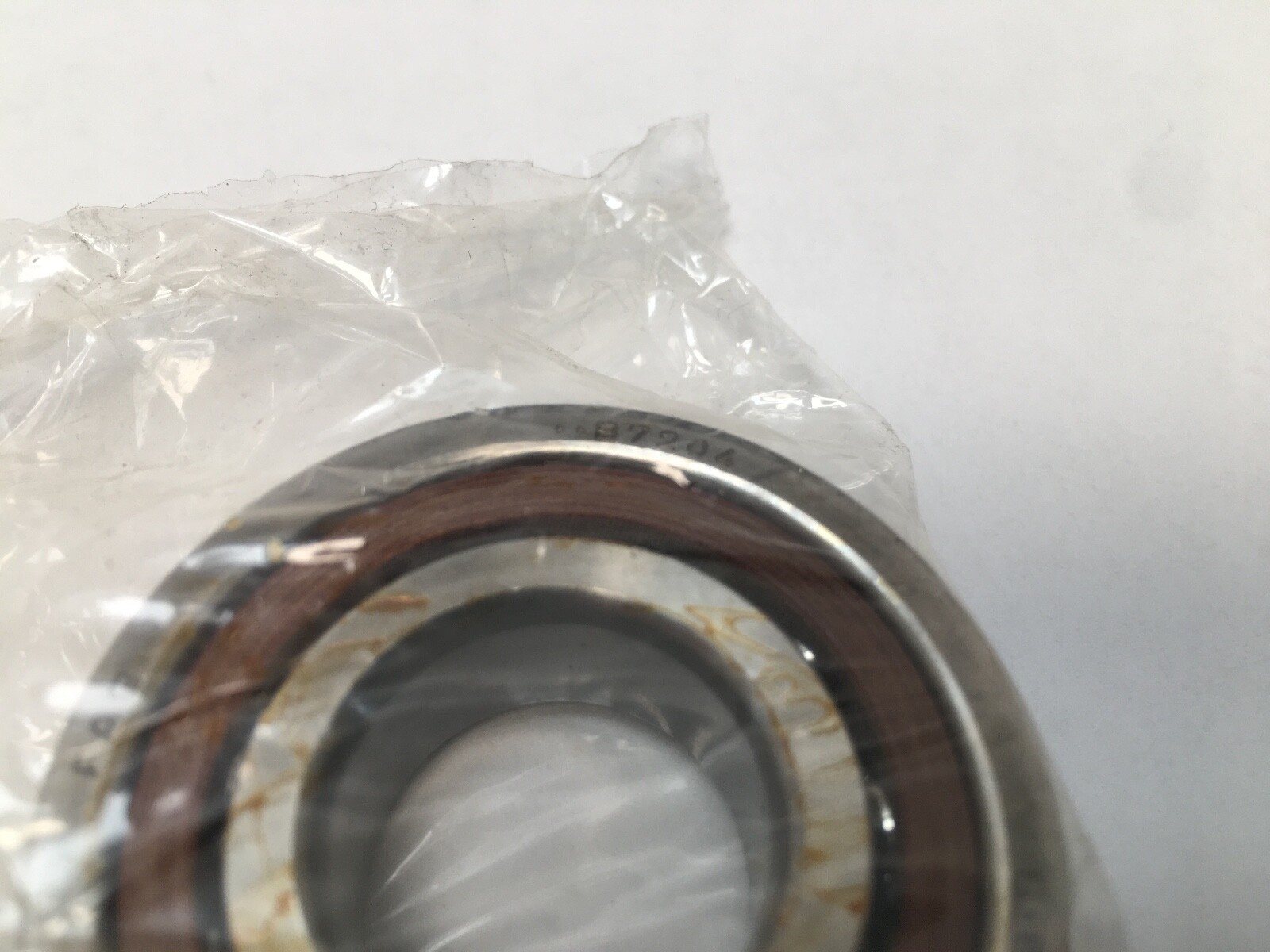

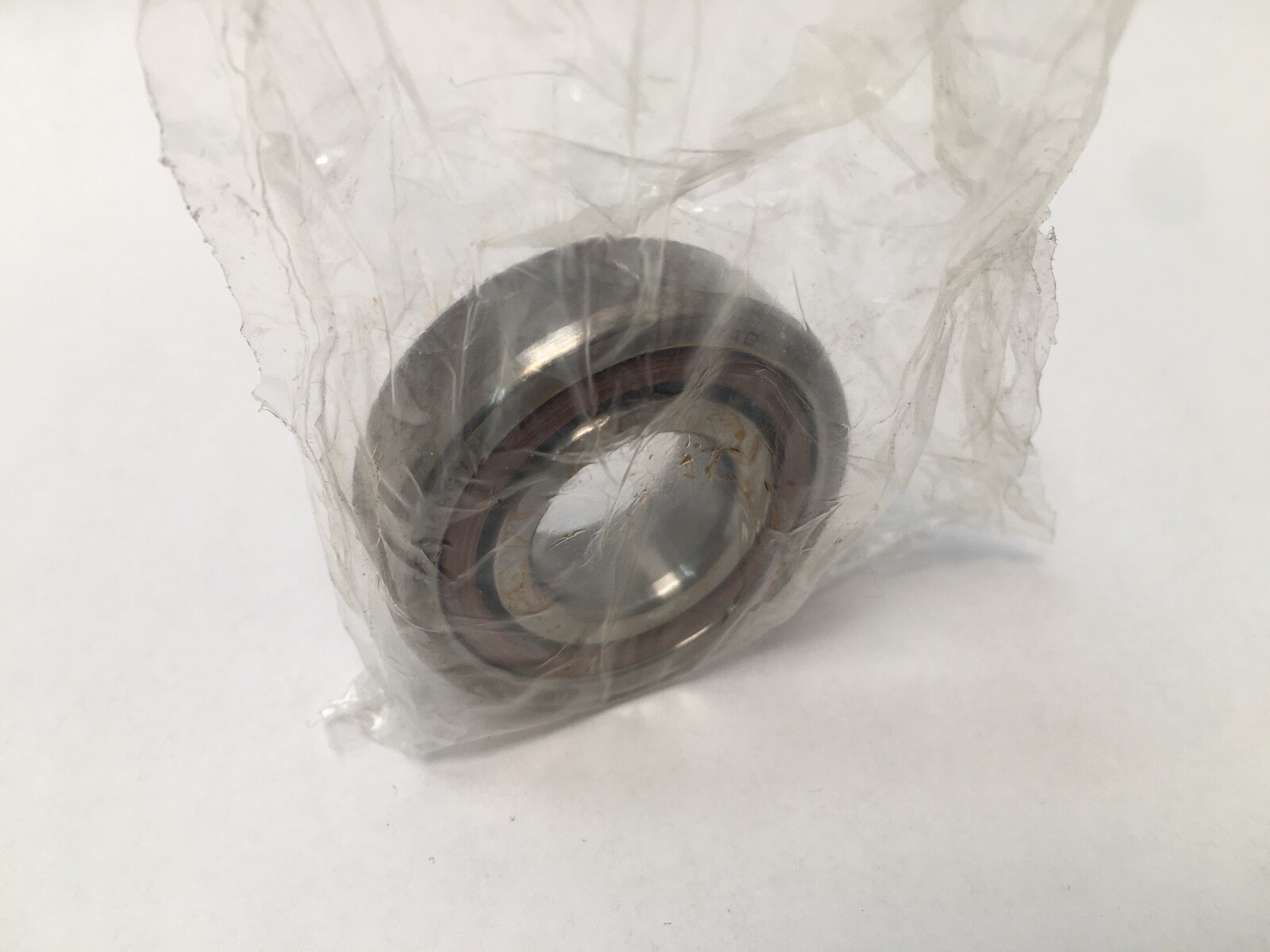

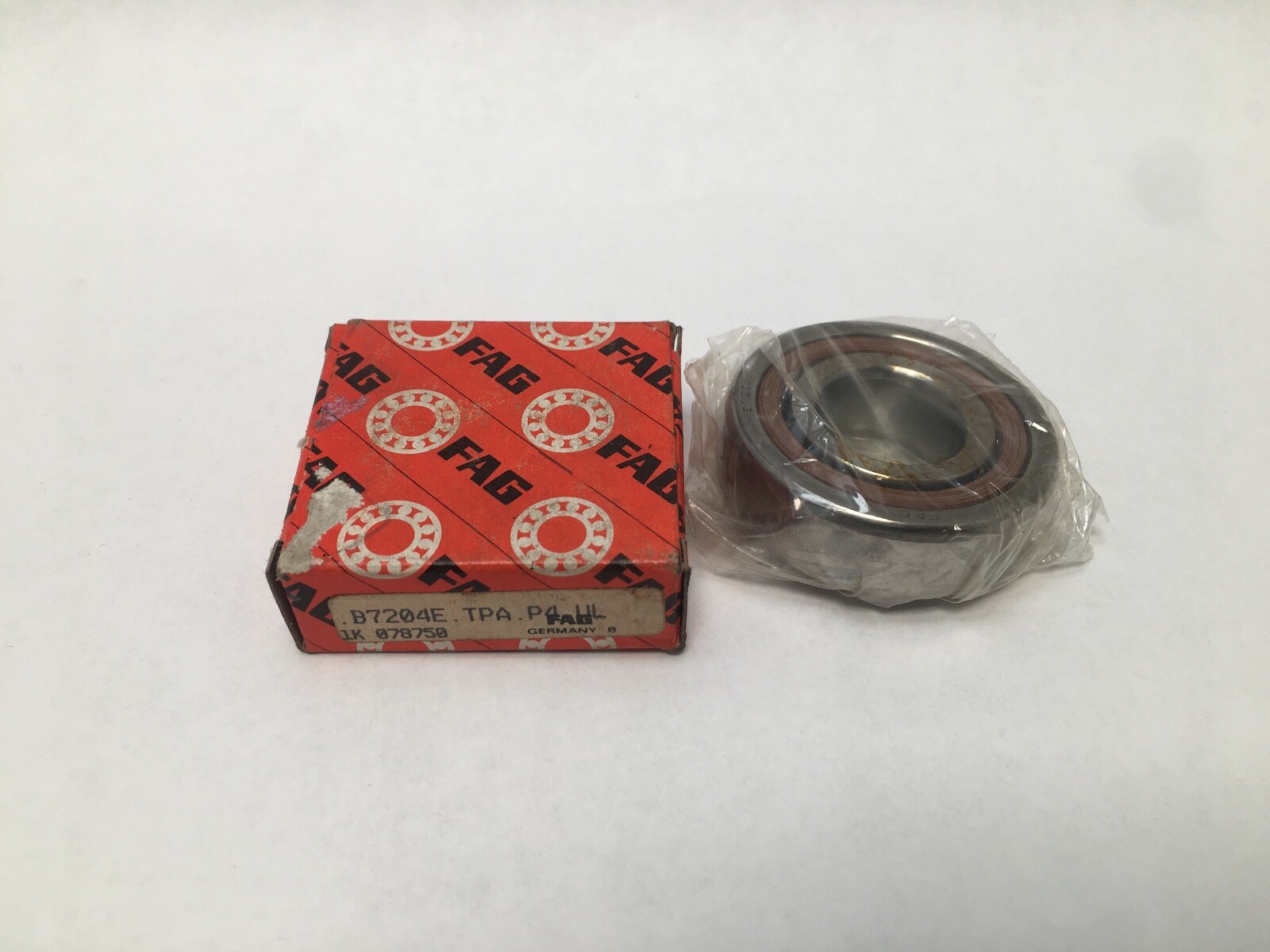

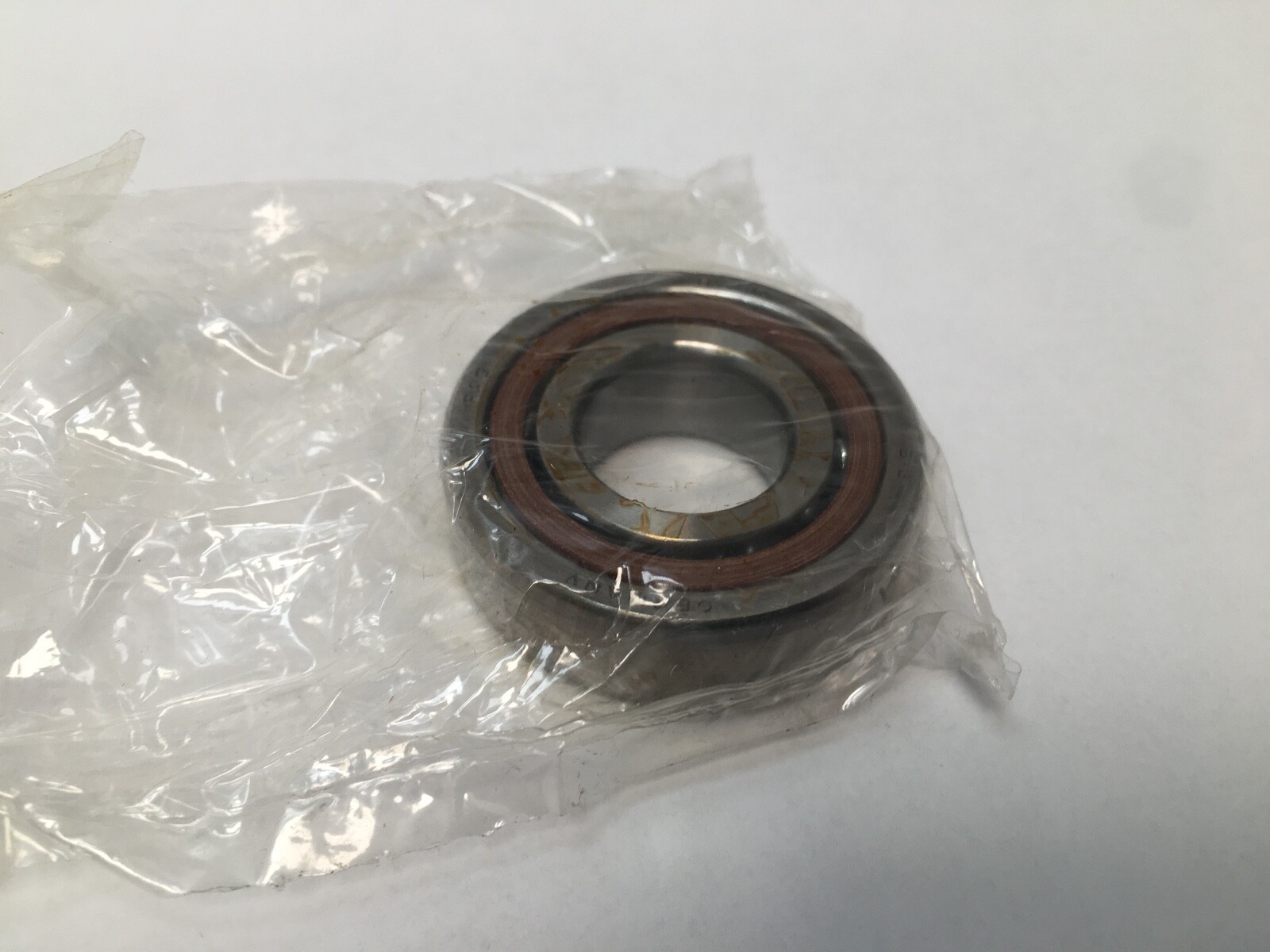

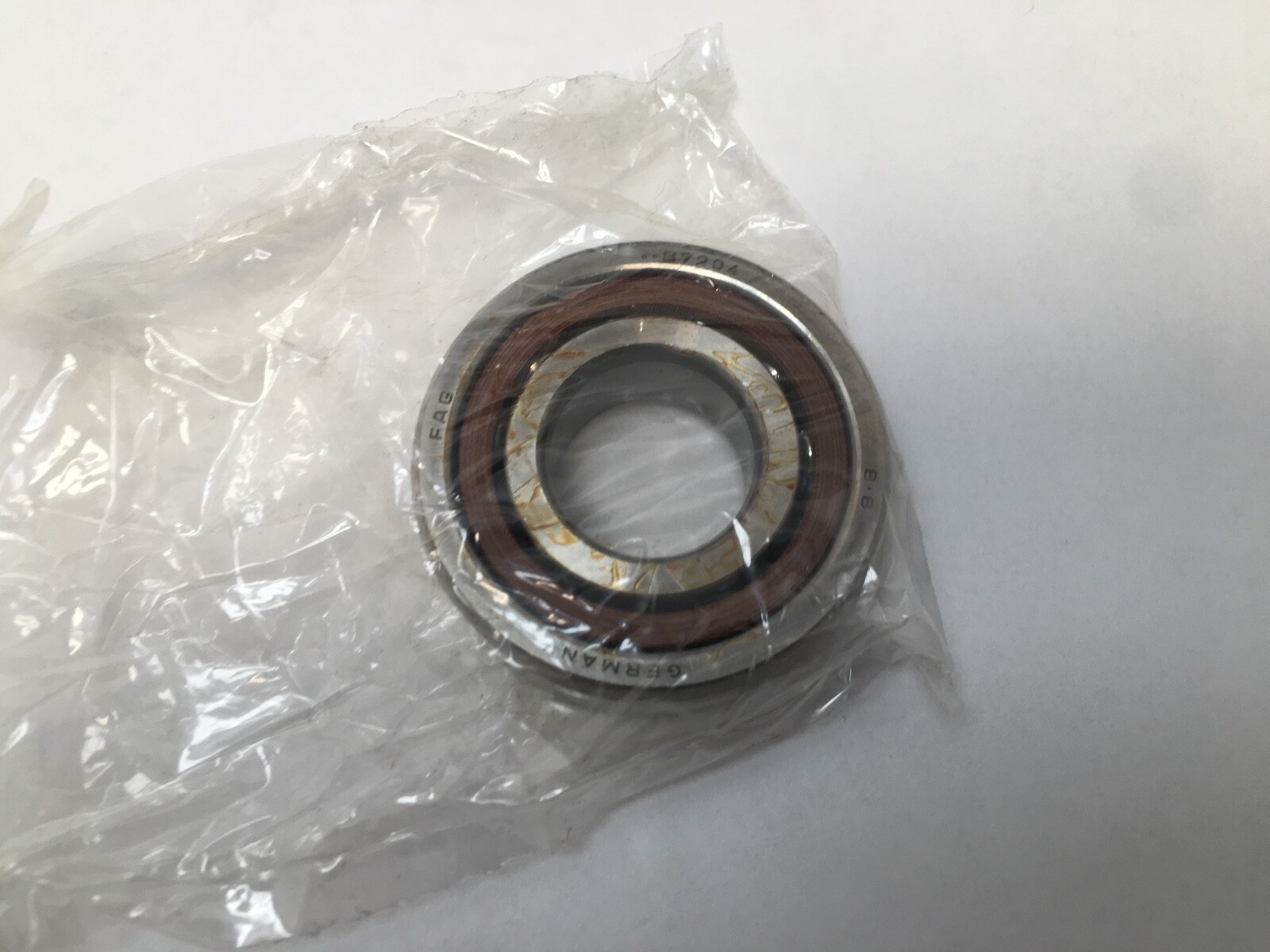

Super-precision angular contact bearing, 20 x 47 x 14 mm, 25° contact angle, P4 (ABEC 7), phenolic cage, universal Light preload 107 N, 30,000 rpm grease.
List Price
$69.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7204E.TPA.P4.UL |
| Model | B7204E TPA P4 UL / 3MM204 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Series | 7200 |
|---|---|
| Preload | Light (107 N) |
| Material | Bearing Steel |
| Base Number | 7204 |
| Industry Terms | spindle bearing; super precision angular contact bearing; machine tool bearing; ABEC 7 angular contact bearing |
| Application Types | Machine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables |
| Mpn Variants | B7204E.TPA.P4.UL; B7204-E-TPA-P4-UL; B7204ETPAP4UL; B7204E; 7204E; B7204-E-T-P4S-UL |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 16,500 N |
| Static Load Rating | 7,700 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.100 kg (0.22 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 30,000 rpm grease; 45,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (UL), any paired arrangement |
| Common Misspellings | FAG B7204ETPAP4UL; B 7204 E TPA P4 UL; FAG 7204E P4; B7204E-TPA-P4-UL |
| Cross Reference 1 | FAG B7204-E-T-P4S-UL (current designation) |
|---|---|
| Cross Reference 2 | SKF 7204 ACD/P4A |
| Cross Reference 3 | NSK 7204A5TRSULP4 |
| Cross Reference 4 | Fafnir 3MM204WI-SUL |
| Cross Reference 5 | GMN S6204ETA |
FAG B7204E.TPA.P4.UL super-precision angular contact ball bearing, single row, for machine tool spindles. Single universal bearing, open. Unit Quantity: 1 Pc.
B — FAG spindle bearing.
72 — ISO dimension series 02.
04 — bore code, 04 × 5 = 20 mm.
E — 25° contact angle.
TPA — fabric-base laminated phenolic cage.
P4 — ISO P4 precision, ABEC 7.
UL — universal flush-ground faces for any paired arrangement, with Light preload.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Width: 14 mm. Contact Angle: 25°. Seal Type: Open. Dynamic Load Rating: 16,500 N. Static Load Rating: 7,700 N. Limiting Speed: 30,000 rpm grease; 45,000 rpm oil. Preload: Light, 107 N. Axial Rigidity: 64 N/µm at Light preload. Cage Material: Phenolic. Operating Temperature: −30 to 100 °C. Item Weight: 0.100 kg (0.22 lb).
Shaft Shoulder Diameter: 26.5 mm. Housing Shoulder Diameter: 40.5 mm. Maximum Fillet Radius: 1 mm. Pressure Cone Apex Distance: 14.9 mm. Oil Injection Pitch Diameter: 29.6 to 31.7 mm.
Current Schaeffler designation: B7204-E-T-P4S-UL. Cross-references: SKF 7204 ACD/P4A, NSK 7204A5TRSULP4, Fafnir 3MM204WI-SUL, GMN S6204ETA.
20 mm bore, 47 mm outside diameter, 14 mm width.
25°, designated by the E in the part number.
Universal flush-ground faces for any paired arrangement, with Light preload.
