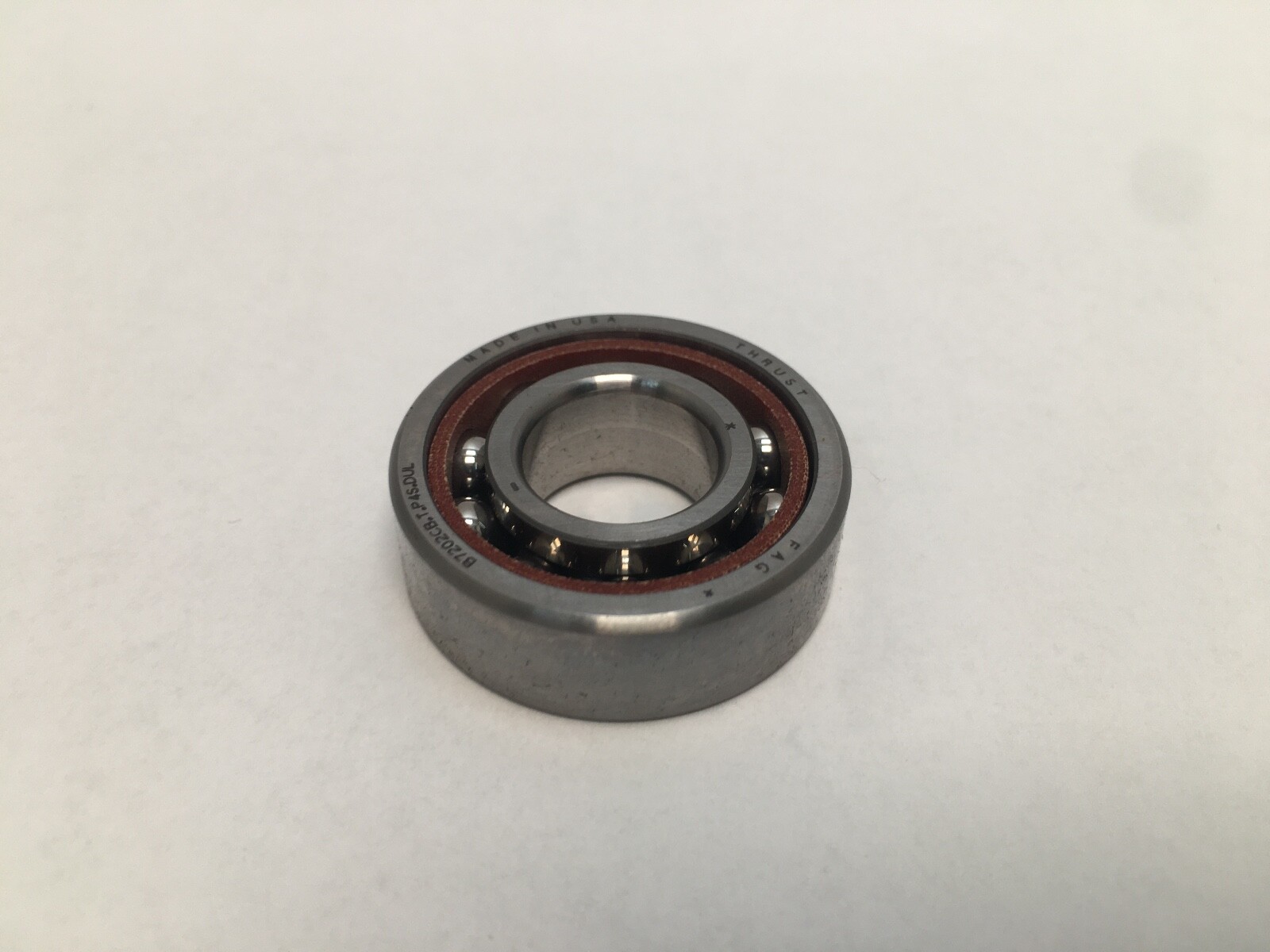

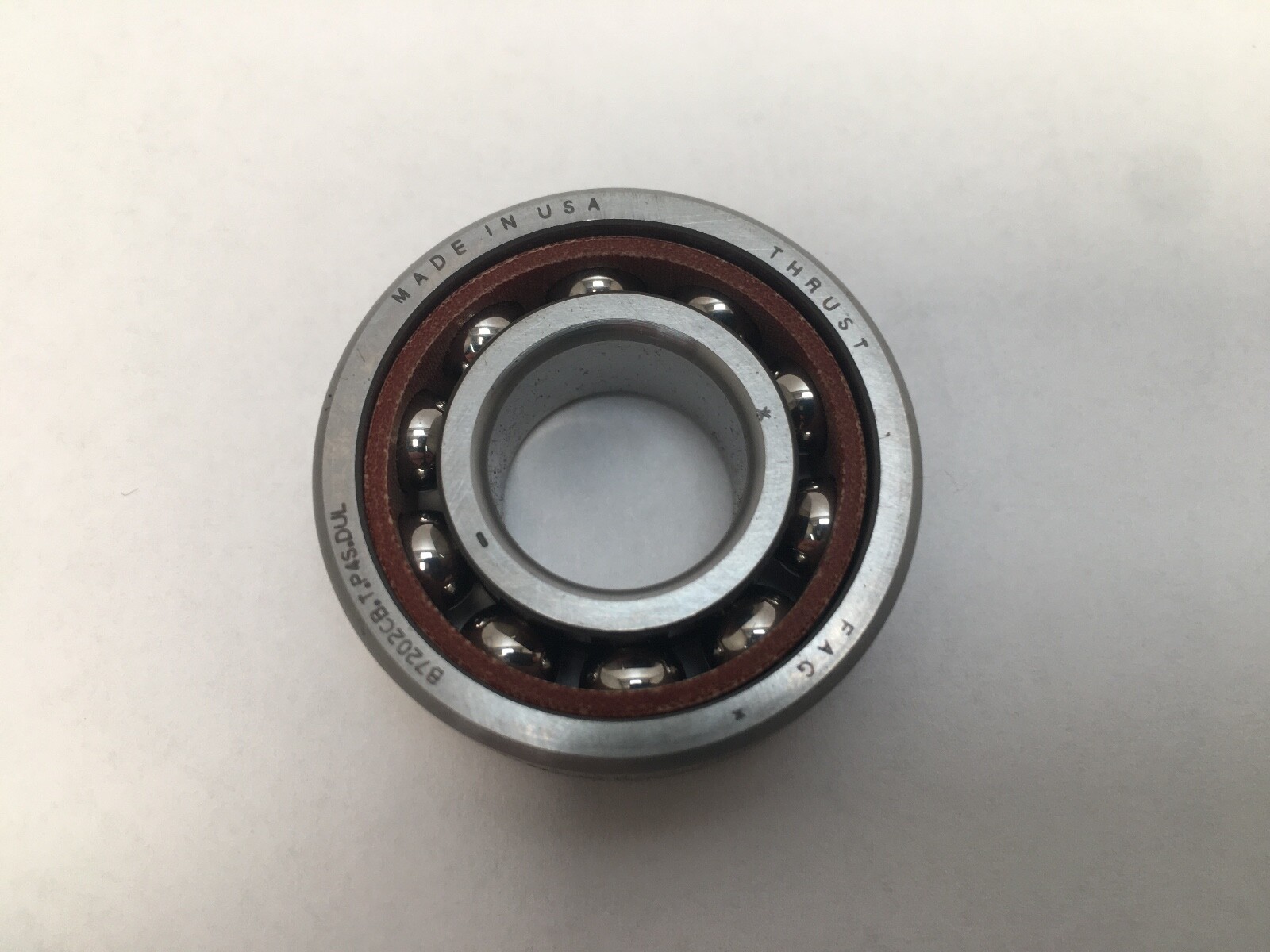

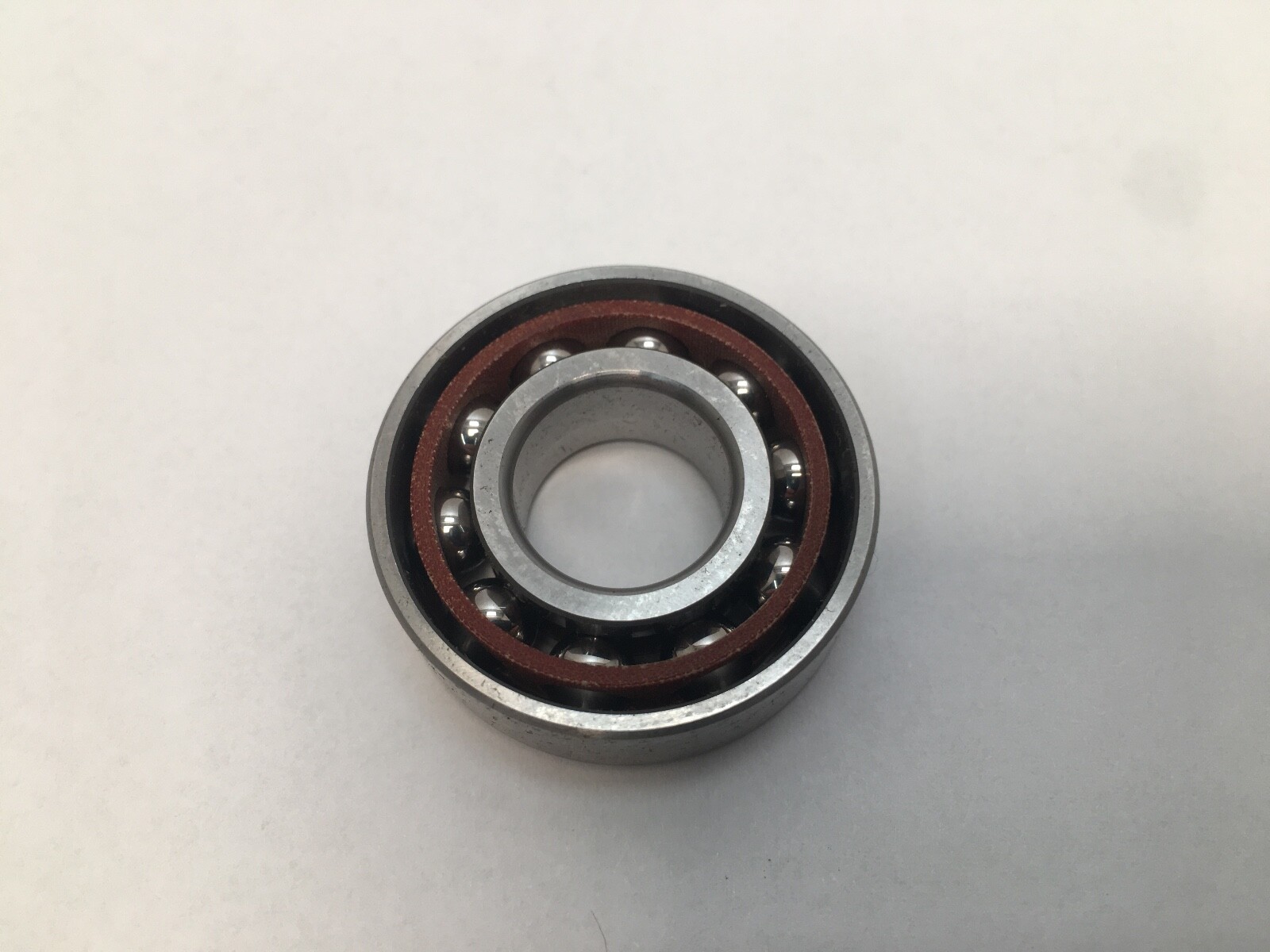

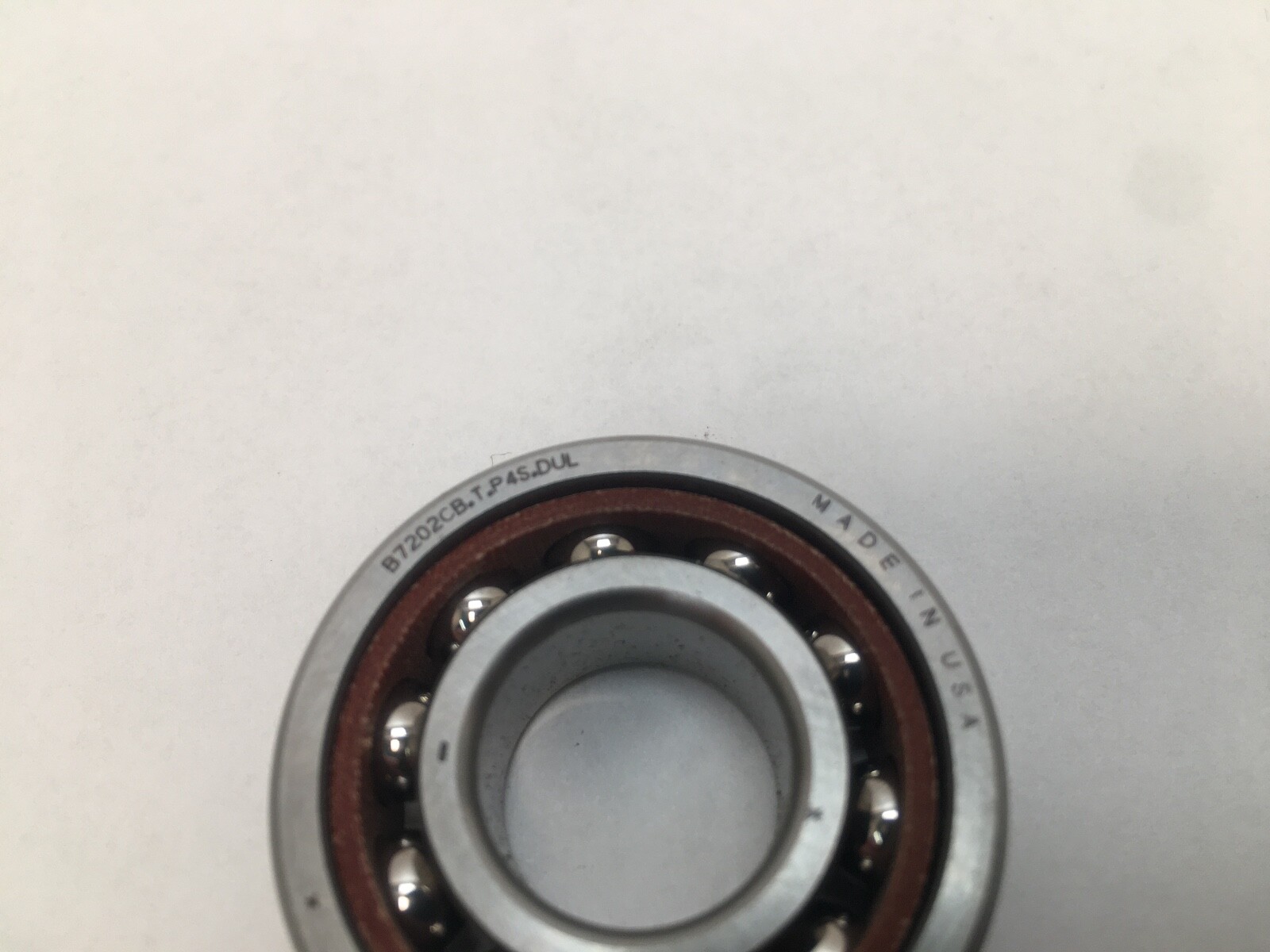

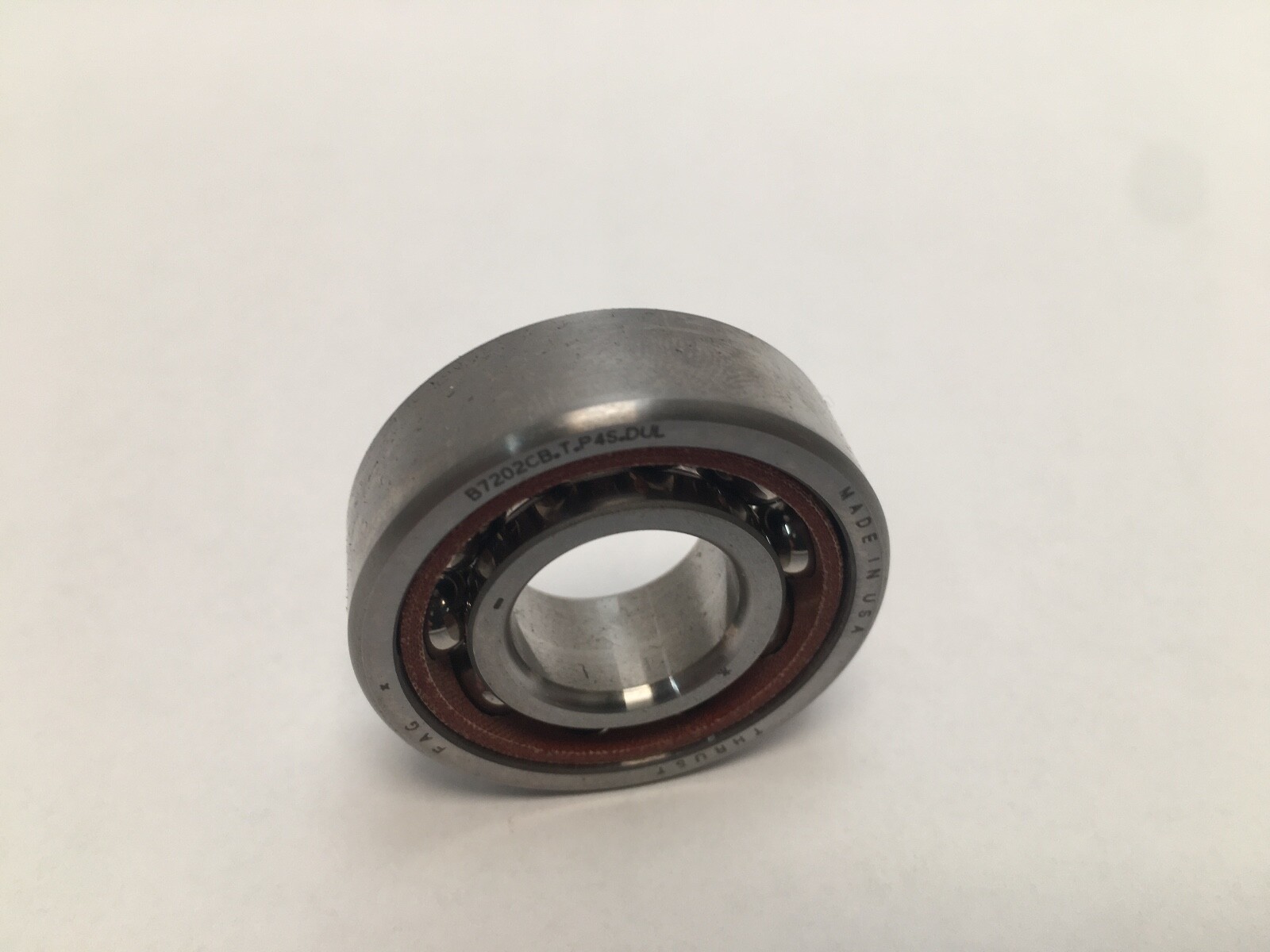

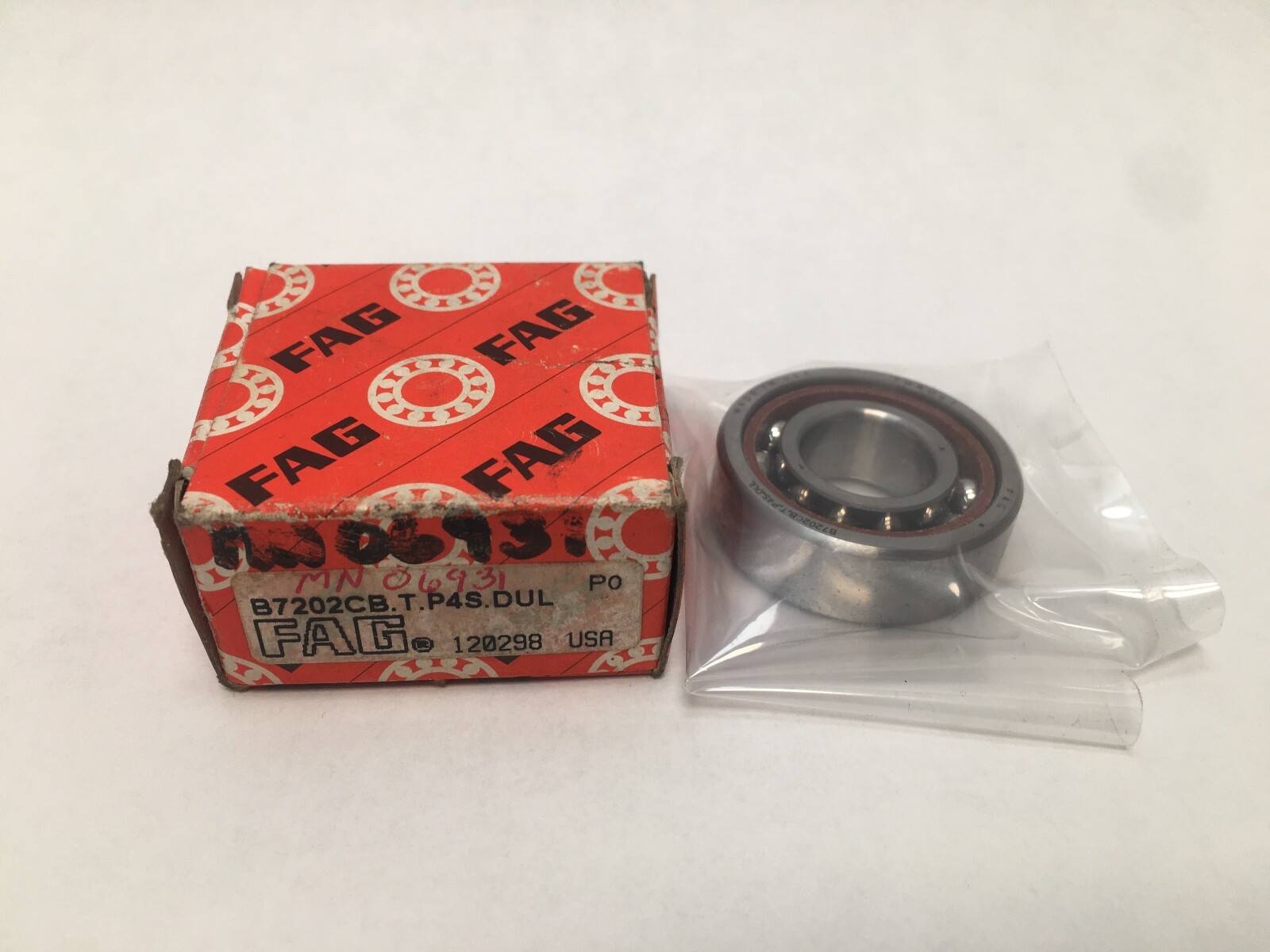

FAG B7202CB.T.P4S.UL spindle bearing, 15 x 35 x 11 mm, 15° contact angle, phenolic cage, P4S tolerance, universal light preload. Cr 11,600 N, C0r 5,000 N.
List Price
$51.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7202CB.T.P4S.UL |
| Model | B7202CB.T.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 35 mm |
| Width | 11 mm |
| Series | B72 |
|---|---|
| Preload | Light |
| Min Temp | -30 °C |
| Dynamic Load Rating | 11,600 N |
| Static Load Rating | 5,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.04 kg (0.09 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 45,000 rpm grease; 67,000 rpm oil |
| Harmonization Code | 8482.10 |
| Contact Angle | 15° |
| Industry Terms | spindle bearing; machine tool spindle bearing |
| Common Misspellings | B7202CB.T.P4.SUL, B7202CBT P4SUL |
| Overall Width | 11 mm |
| Mpn Variants | B7202CB.T.P4S.UL, B7202CB-T-P4S-UL, B7202CBTP4SUL, 7202C |
| Compatible With Replaces | FAG B7202-C-T-P4S-UL; B7202C.T.P4S.UL; B7202C.TPA.P4.UL |
| Precision Class | ABEC 7 / P4S |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | SKF 7202 CD/P4A |
|---|---|
| Cross Reference 2 | Timken 2MM202WI (related) |
| Cross Reference 3 | NSK 7202CTYNSULP4 (polyamide cage) |
| Cross Reference 4 | Barden 202H (related) |
| Cross Reference 5 | NTN 7202C (related, standard precision) |
FAG B7202CB.T.P4S.UL is a single-row super-precision spindle bearing (angular contact ball bearing) with a 15° contact angle, universally matchable with light preload. Bore Diameter: 15 mm. Outside Diameter: 35 mm. Overall Width: 11 mm. Contact Angle: 15°. Closure Type: Open. Unit Quantity: 1 Pc.
B72 — FAG spindle bearing, ISO 72 dimension series.
02 — bore code, 15 mm.
C — 15° contact angle.
T — solid phenolic (fabric-base laminate) cage.
P4S — FAG restricted tolerance: P4 dimensional accuracy with tighter running accuracy.
UL — universal design, Light preload when mounted in any arrangement.
FAG published data for B7202-C-T-P4S-UL: Dynamic Load Rating: 11,600 N. Static Load Rating: 5,000 N. Limiting Speed: 45,000 rpm grease; 67,000 rpm oil. Preload: Light. Preload Force (Light): 46 N. Lift-off Force (Light): 144 N. Axial Rigidity (Light): 22 N/µm. Item Weight: 0.04 kg (0.09 lb). Operating Temperature: -30 °C to 100 °C. Precision Class: ABEC 7 / P4S. Cage Material: Phenolic. Series: B72. Mounting Arrangement: Universal (DB, DF or DT). Country of Origin: United States.
Shaft Abutment da: 19.5 mm. Housing Abutment Da: 30.5 mm. Chamfer r min: 0.6 mm. Chamfer r1 min: 0.6 mm. Pressure Centre Distance a: 8.8 mm.
Replaces FAG B7202-C-T-P4S-UL, B7202C.T.P4S.UL and B7202C.TPA.P4.UL. 15° ISO 7202 equivalents: SKF 7202 CD/P4A, Timken 2MM202WI, NSK 7202CTYNSULP4 (polyamide cage), Barden 202H, NTN 7202C (standard precision).
15 mm bore, 35 mm outside diameter and 11 mm width.
15°, from the C in the designation.
Universal design with light preload, matchable in DB, DF or DT arrangements.
