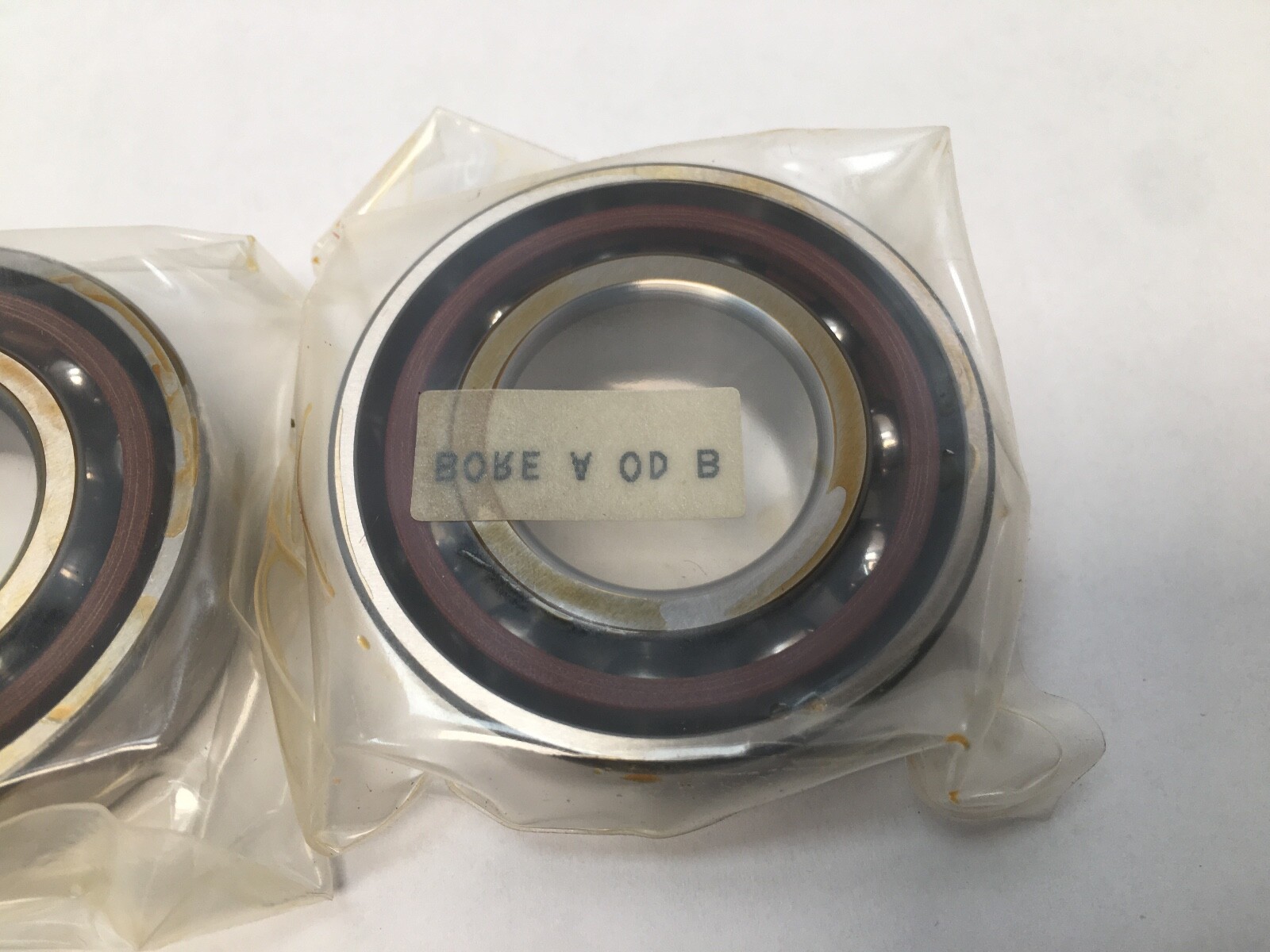

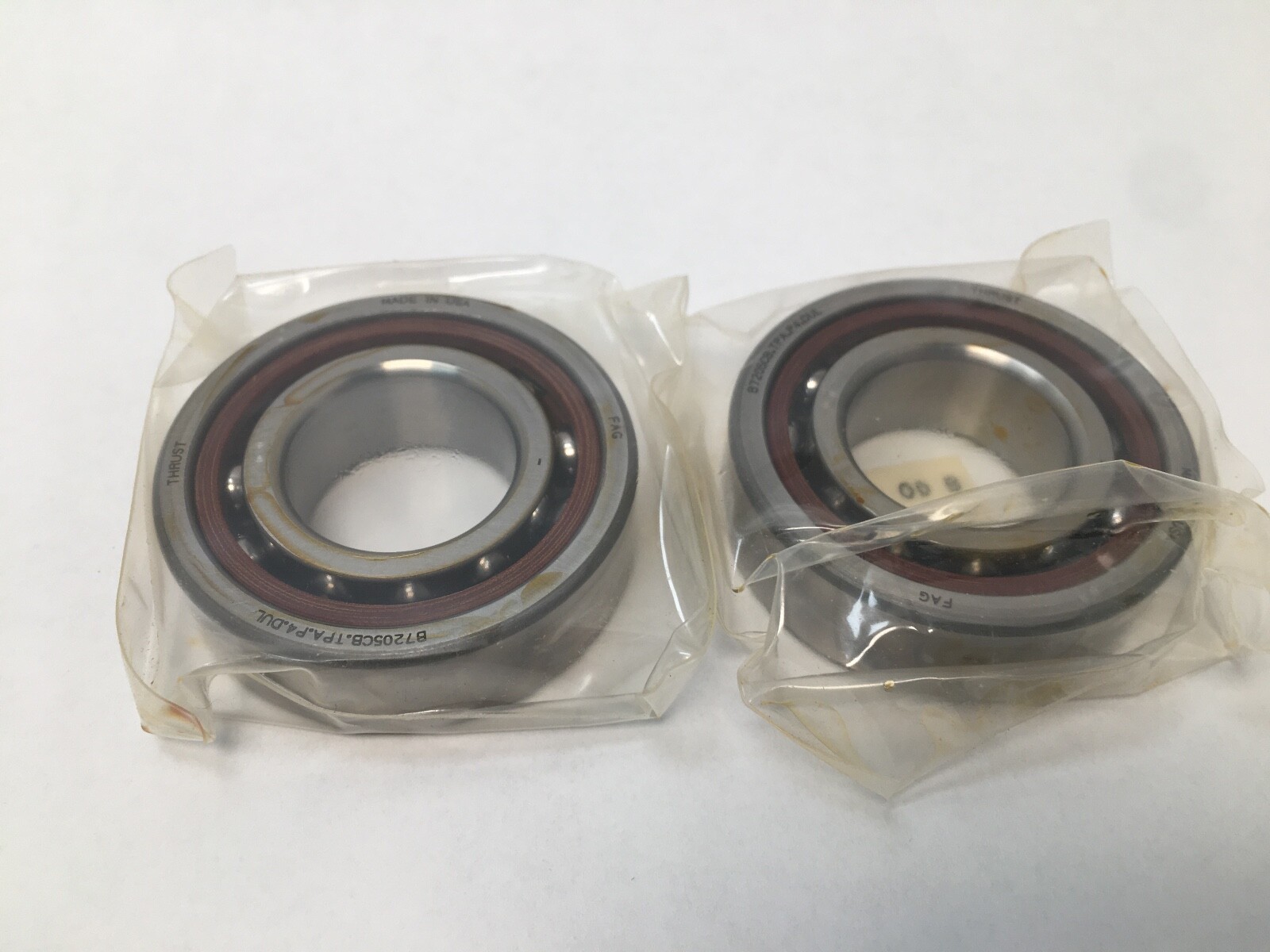

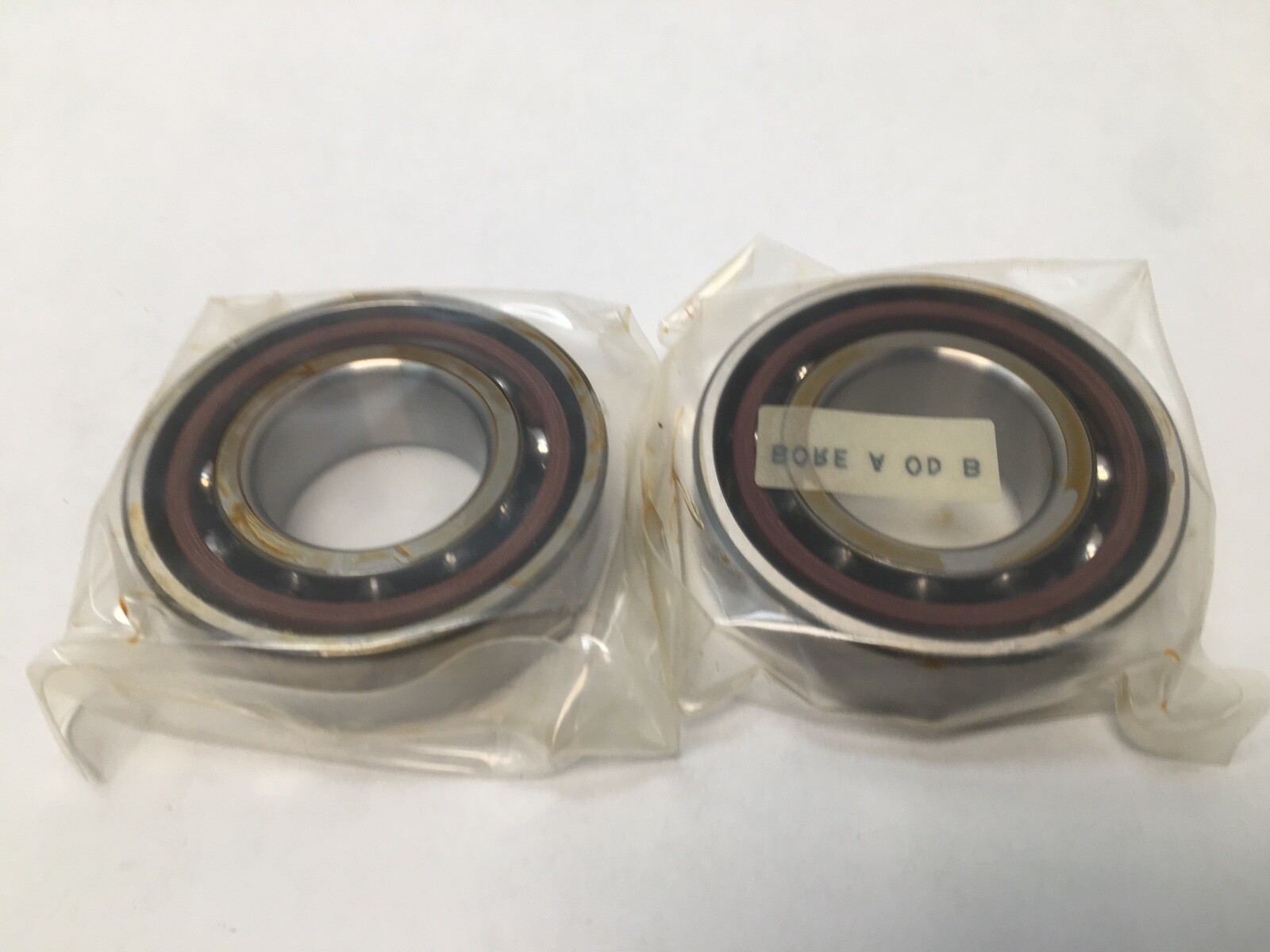

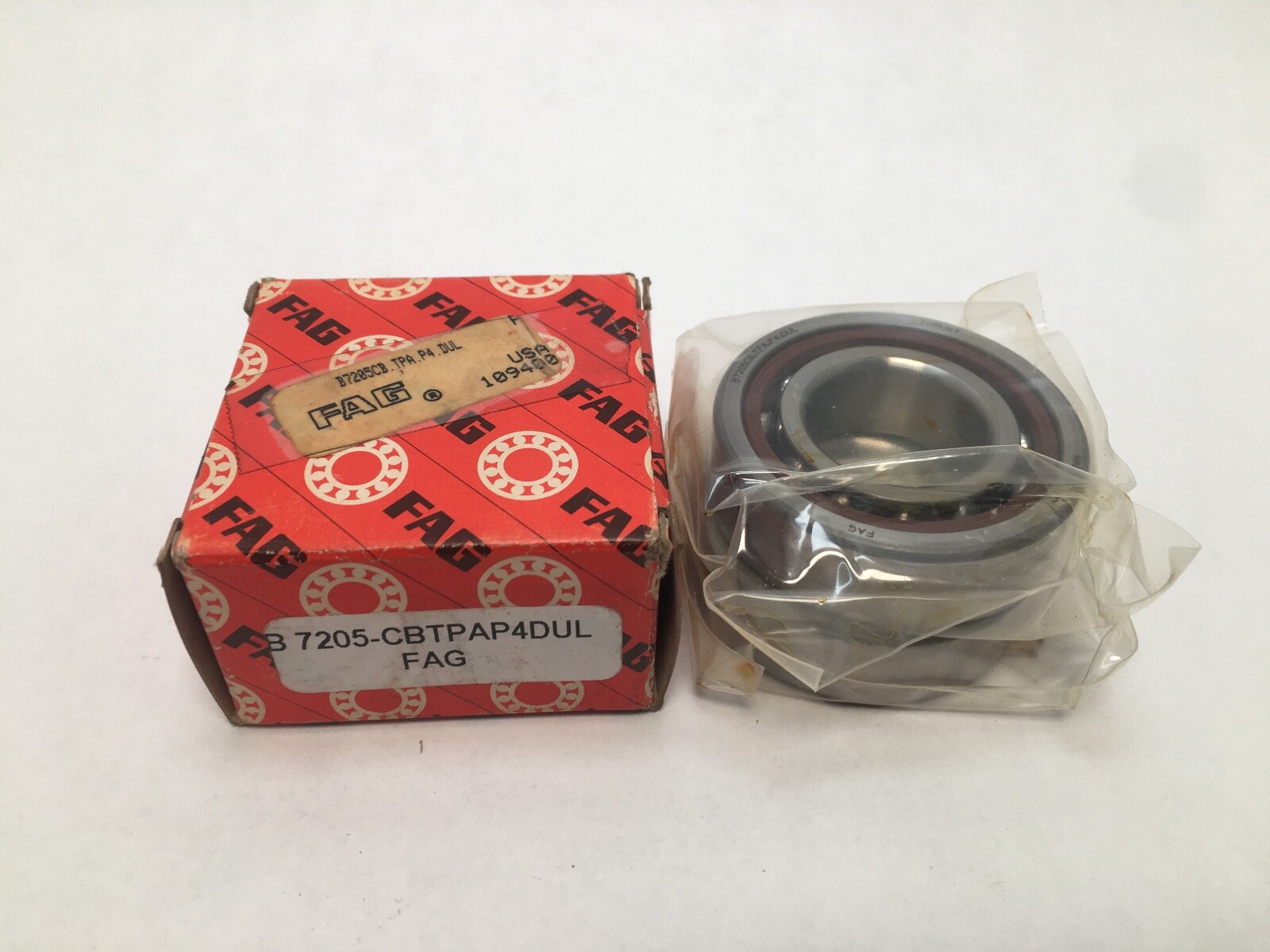

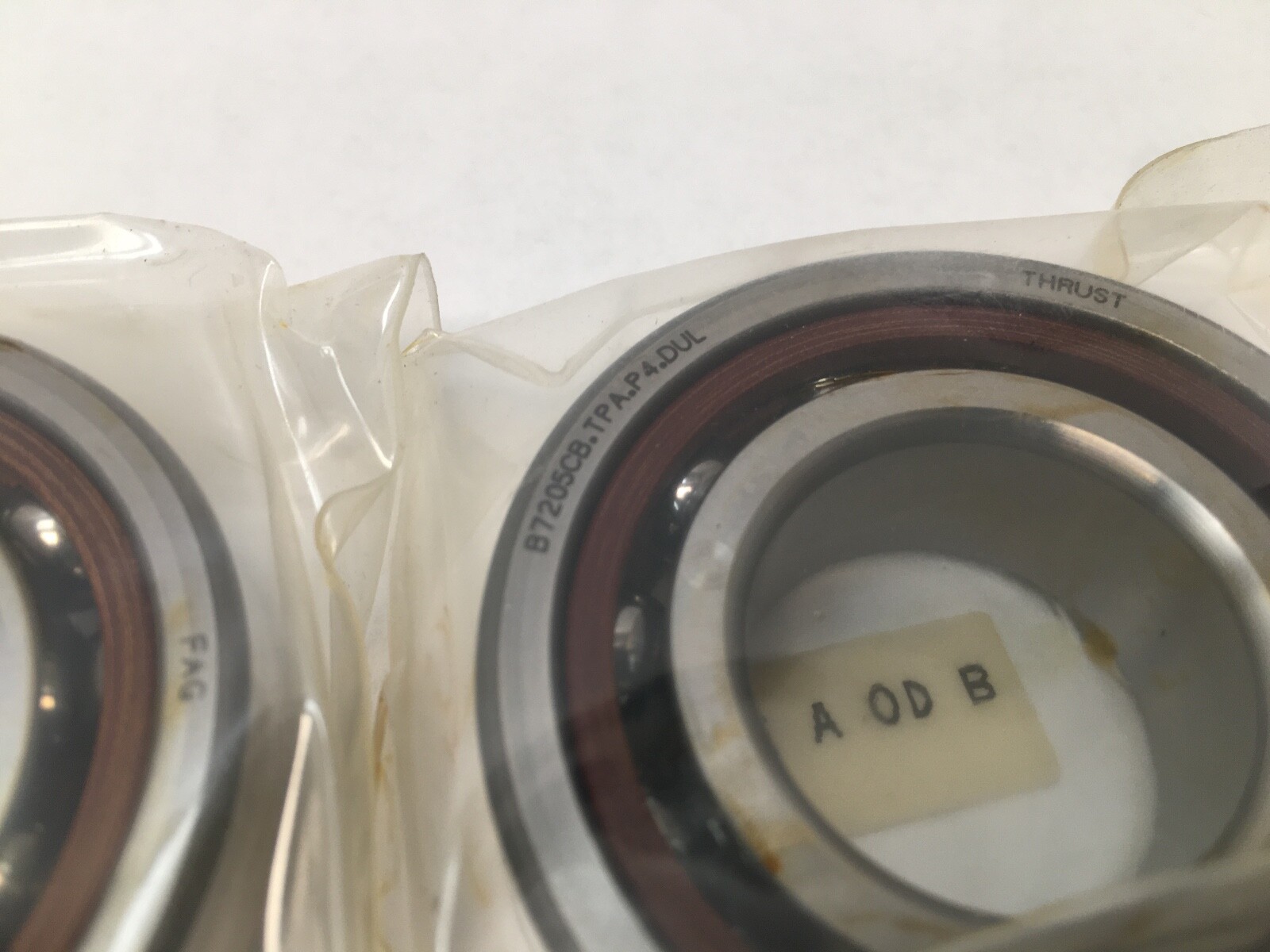

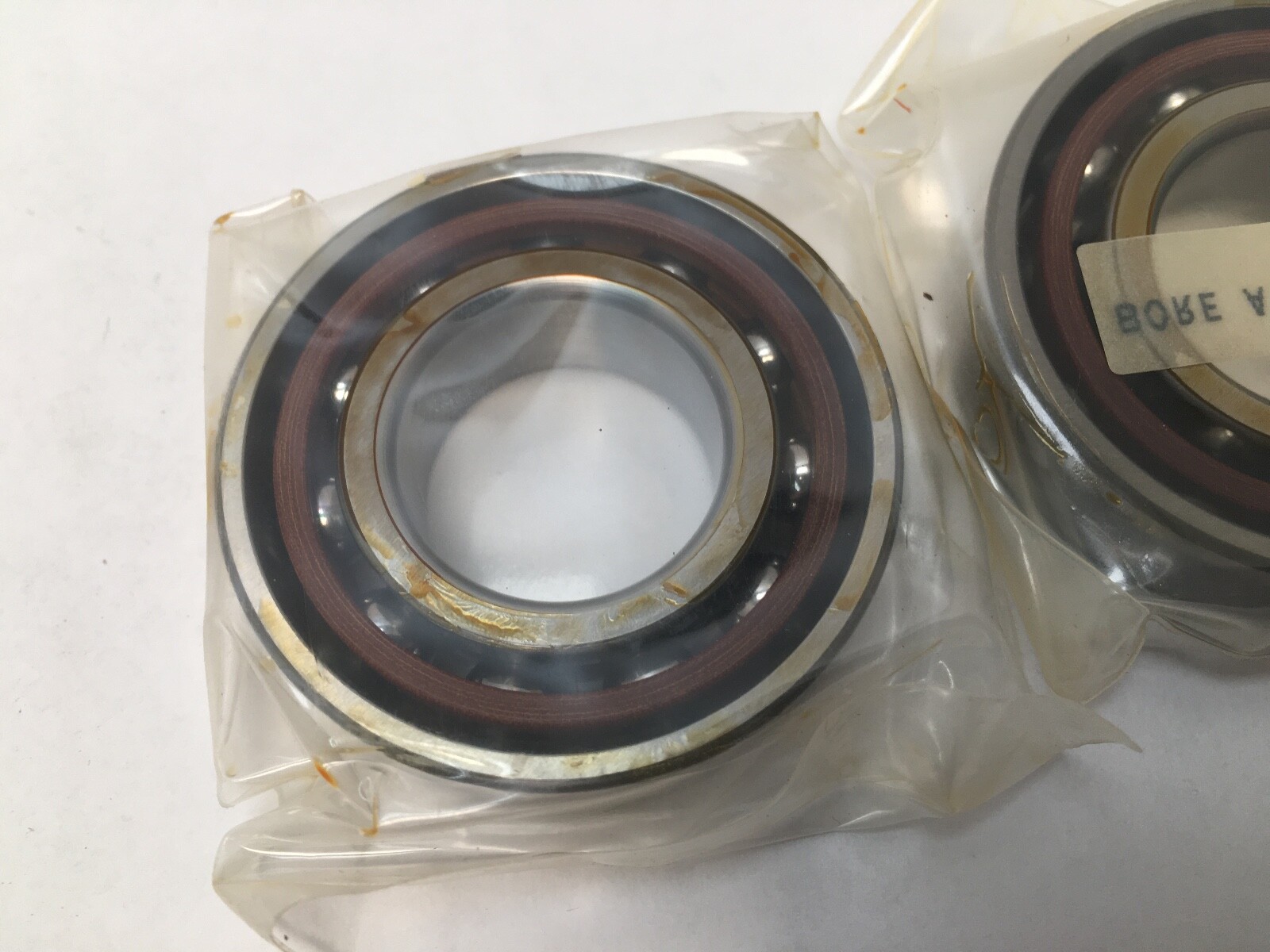

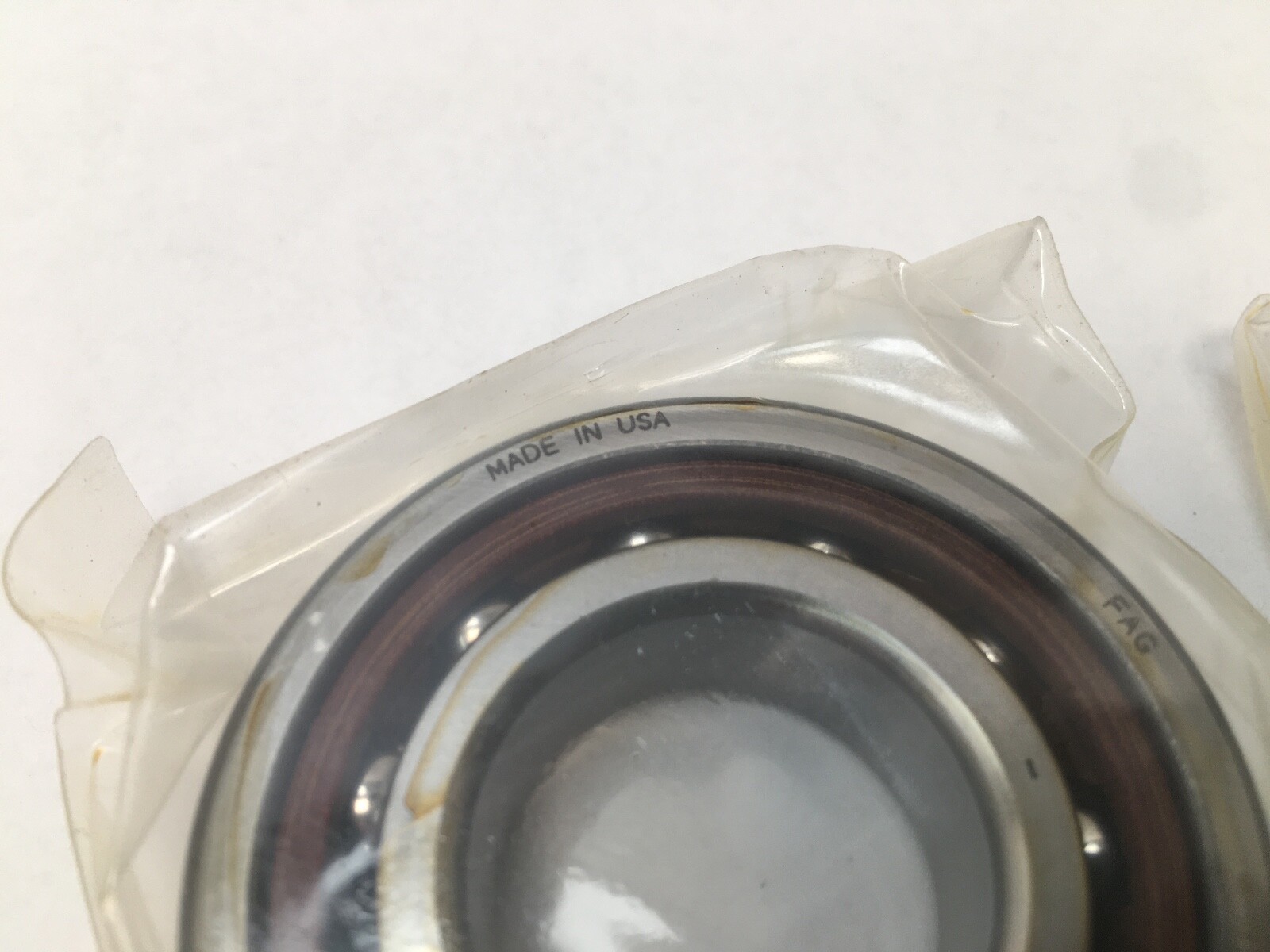

Angular contact ball bearing, 25 mm bore, 52 mm OD, 15 mm width, 15° contact angle. Universally ground duplex set, light preload, P4 precision class.
List Price
$145.17
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7205CB.TPA.P4.DUL |
| Model | B-7205-CB-TPA-P4-DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7200 |
| Preload | Light |
| Base Number | 7205 |
| Industry Terms | spindle bearing; super precision angular contact; duplex matched set; ABEC 7 bearing; phenolic cage bearing; light preload bearing pair |
| Application Types | Machine tool spindles; precision rotary tables; grinding and milling heads; high-speed precision assemblies |
| Bore Shaft Size | 25 mm |
| Mpn Variants | B7205CB.TPA.P4.DUL; B7205CBTPAP4DUL; B-7205-CB-TPA-P4-DUL; B7205CB TPA P4 DUL; B7205C.TPA.P4.DUL; 7205C |
| Manufacturer Status | FAG is an active Schaeffler brand; supportable through Schaeffler |
| Arrangement Configuration | Duplex, universally ground |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | FAG B-design high-speed spindle bearing; duplex universally ground (DU) |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | B7205CB.TPA.P4.DUL |

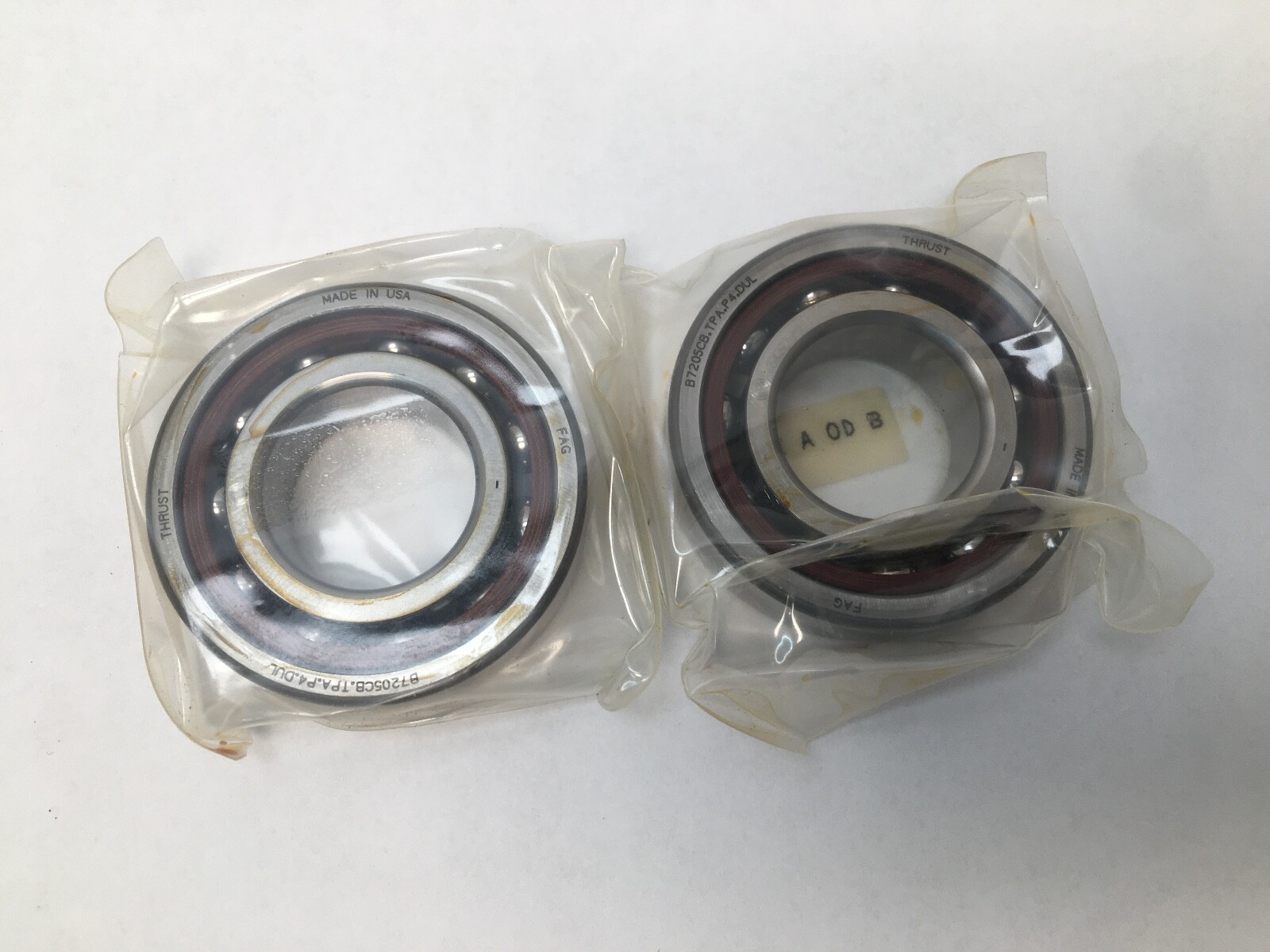

FAG B7205CB.TPA.P4.DUL is a super-precision angular contact ball bearing in the 7205 size, supplied as a universally ground duplex set with light preload. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm per bearing. Contact Angle: 15°. Precision Class: P4 (ABEC 7). Cage Material: Phenolic. Preload: Light.
B — FAG high-speed spindle bearing design.
7205 — ISO base number: 25 mm bore, 52 mm OD, single-row angular contact.
C — FAG 15° contact angle.
TPA — fabric-base laminate (phenolic) cage.
P4 — super-precision tolerance class, equivalent to ABEC 7.
DUL — DU: duplex, universally ground; L: light preload. A factory-matched set.
Bearing Type: Angular Contact Ball Bearing. Series: FAG B7200 high-speed spindle series. Base Number: 7205. Bore Diameter: 25 mm. Outside Diameter: 52 mm. Width: 15 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Arrangement: Duplex, universally ground. Seal Type: Open. Rolling Elements: Ball. Harmonization Code: 8482.10.50.

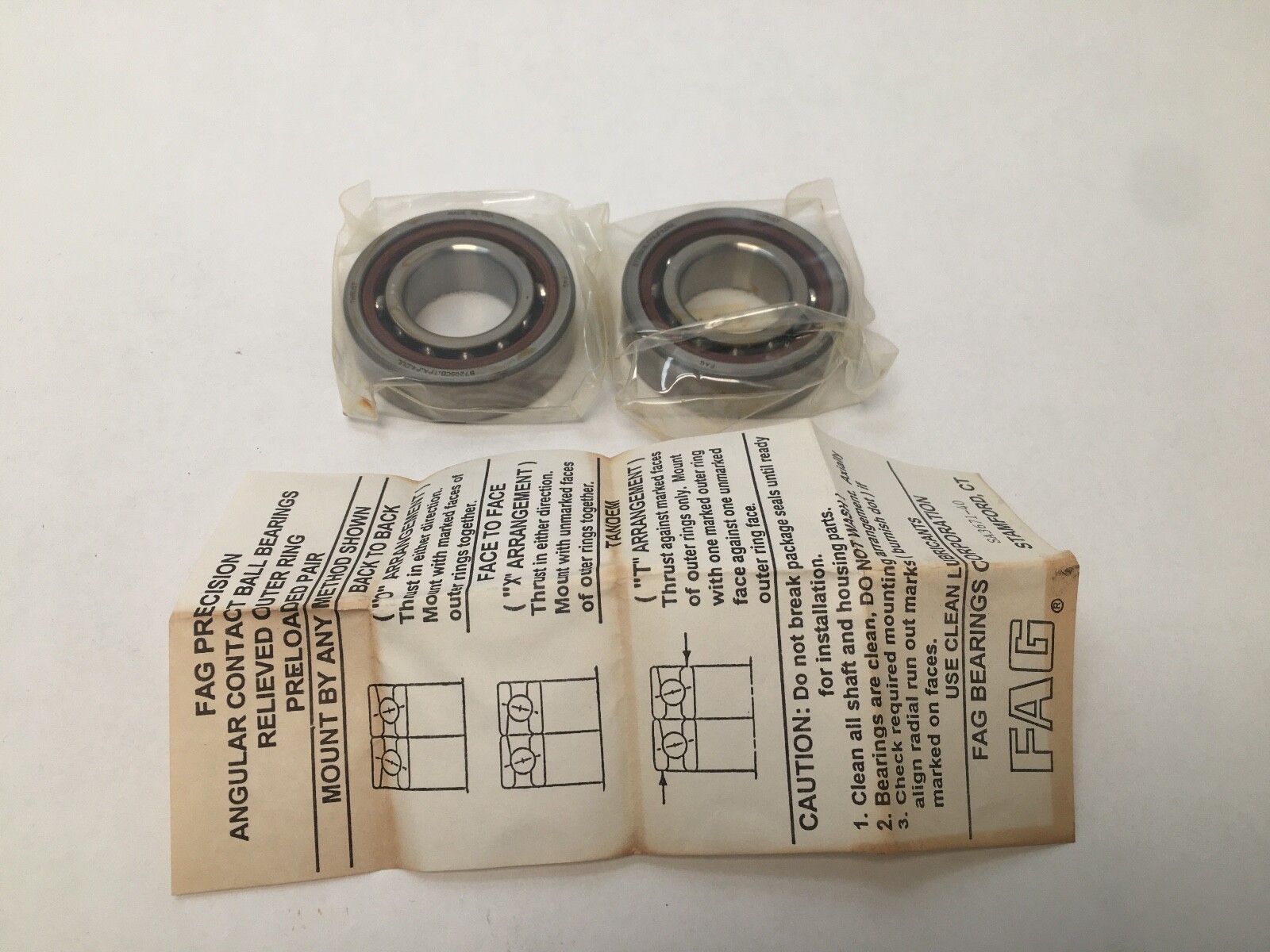

Envelope: 25 x 52 x 15 mm per bearing. Bore Type: Straight. The duplex universal grinding lets the bearings be mounted in any arrangement with the set preload.
Manufacturer: FAG (Schaeffler). ISO base number: 7205. Also written B7205CBTPAP4DUL, B-7205-CB-TPA-P4-DUL, B7205CB TPA P4 DUL and B7205C.TPA.P4.DUL. Related Timken/Fafnir designation 2MM205 has a different cage and precision convention.
25 mm bore, 52 mm outside diameter and 15 mm width per bearing, in the ISO 7205 size.
DU is a duplex, universally ground set; L is light preload. The bearings are ground and matched as a set.
P4 precision class (equivalent to ABEC 7) with a TPA fabric-base laminate (phenolic) cage.
