RHP 7208ETASUL angular contact ball bearing, 40 x 80 x 18 mm, 25° contact angle, P0 class, outer-ring centred cage, open, 34,500 N dynamic load rating.
List Price
$42.05
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7208ETASUL |
| Model | 7208 E TA SUL P0 / B 7208 X3 T UL EP1 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 18 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7200 |
| Precision Class | P0 |
| Dynamic Load Rating C1 | 34,500 N |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 34,500 N |
| Static Load Rating | 24,100 N |
| Precision Rating | P0 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Cross Reference 1 | SKF 7208 ACD |
|---|---|
| Cross Reference 2 | FAG B7208-E |
| Cross Reference 3 | NSK 7208A5 |

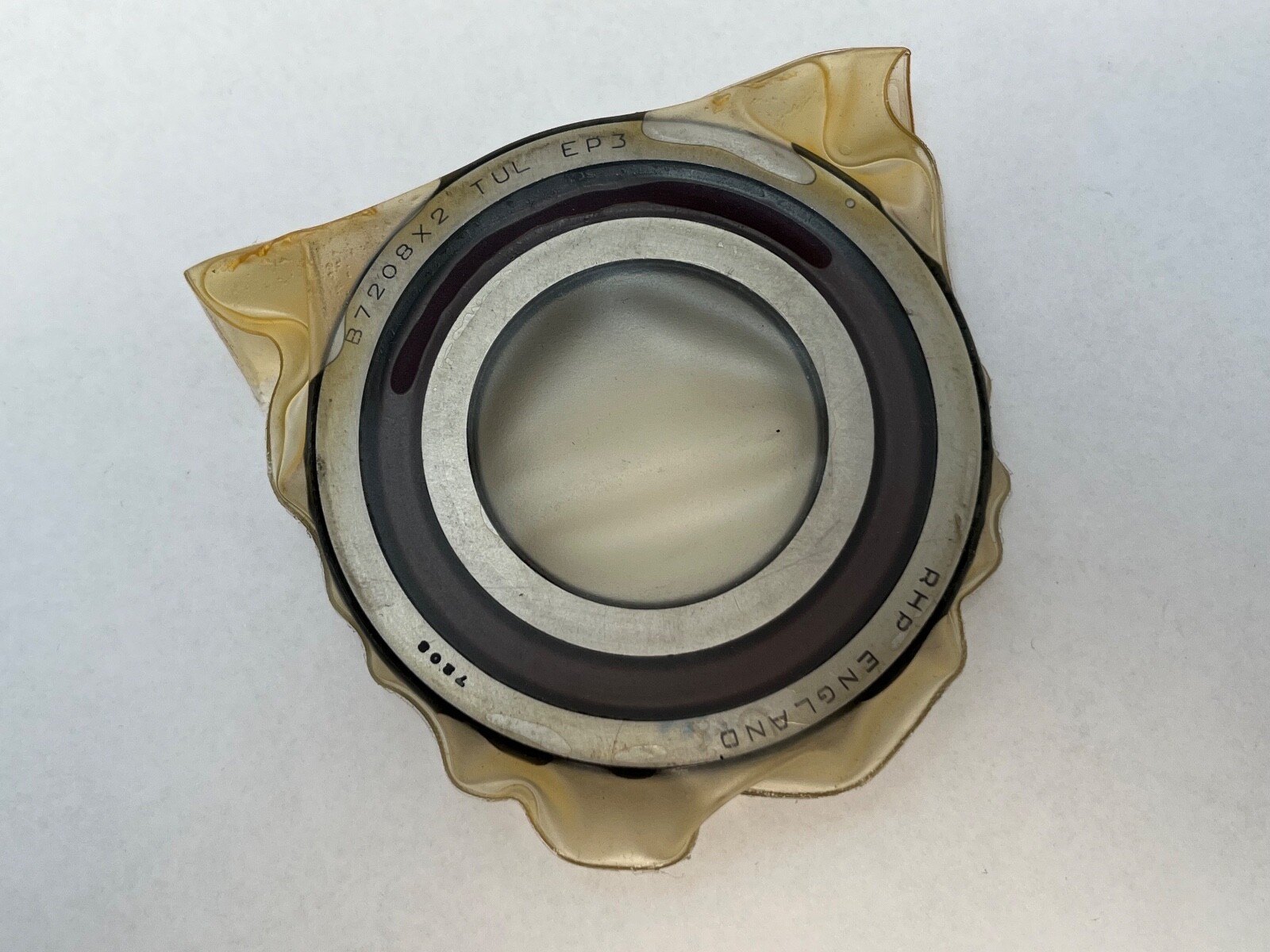

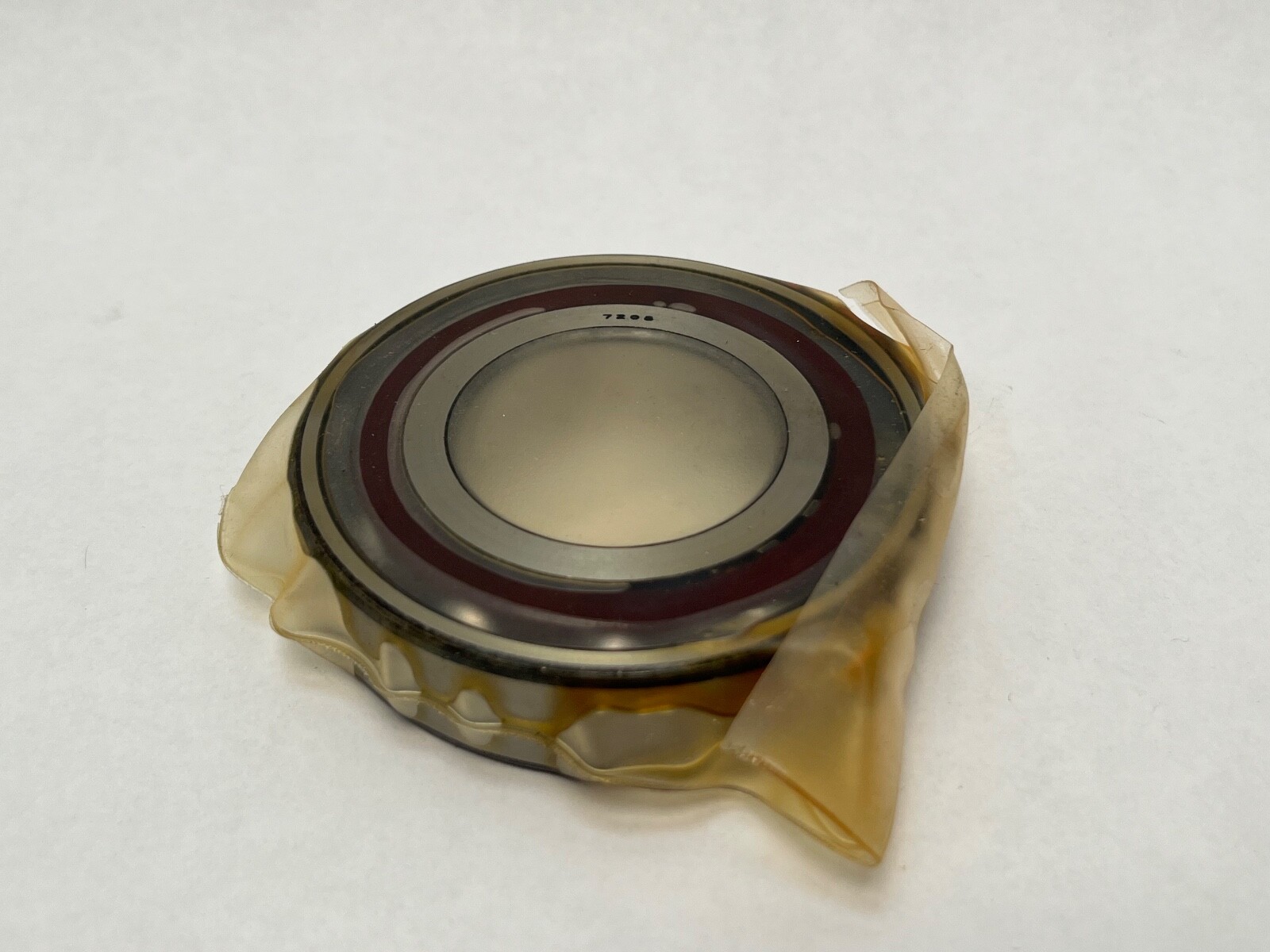

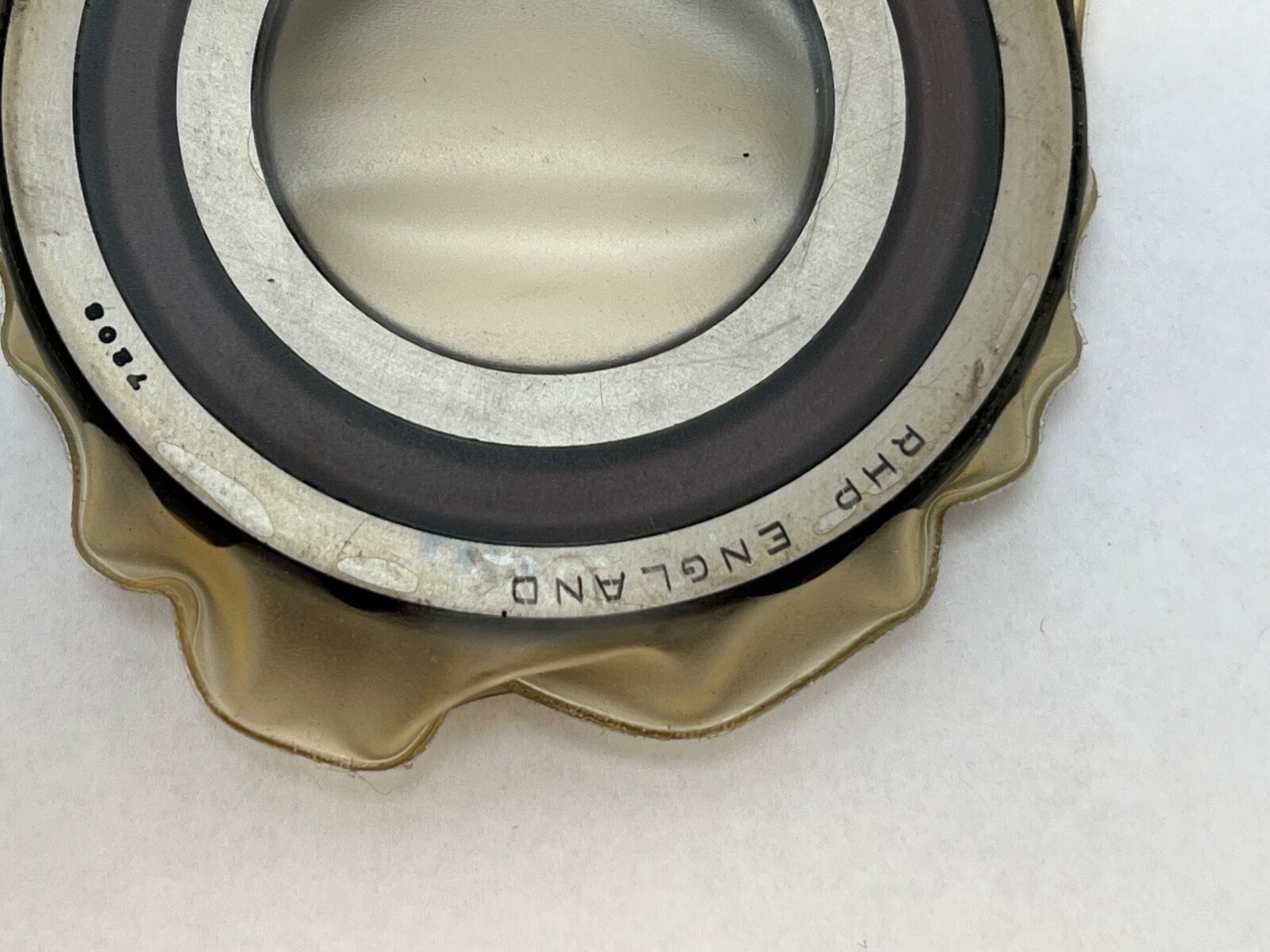

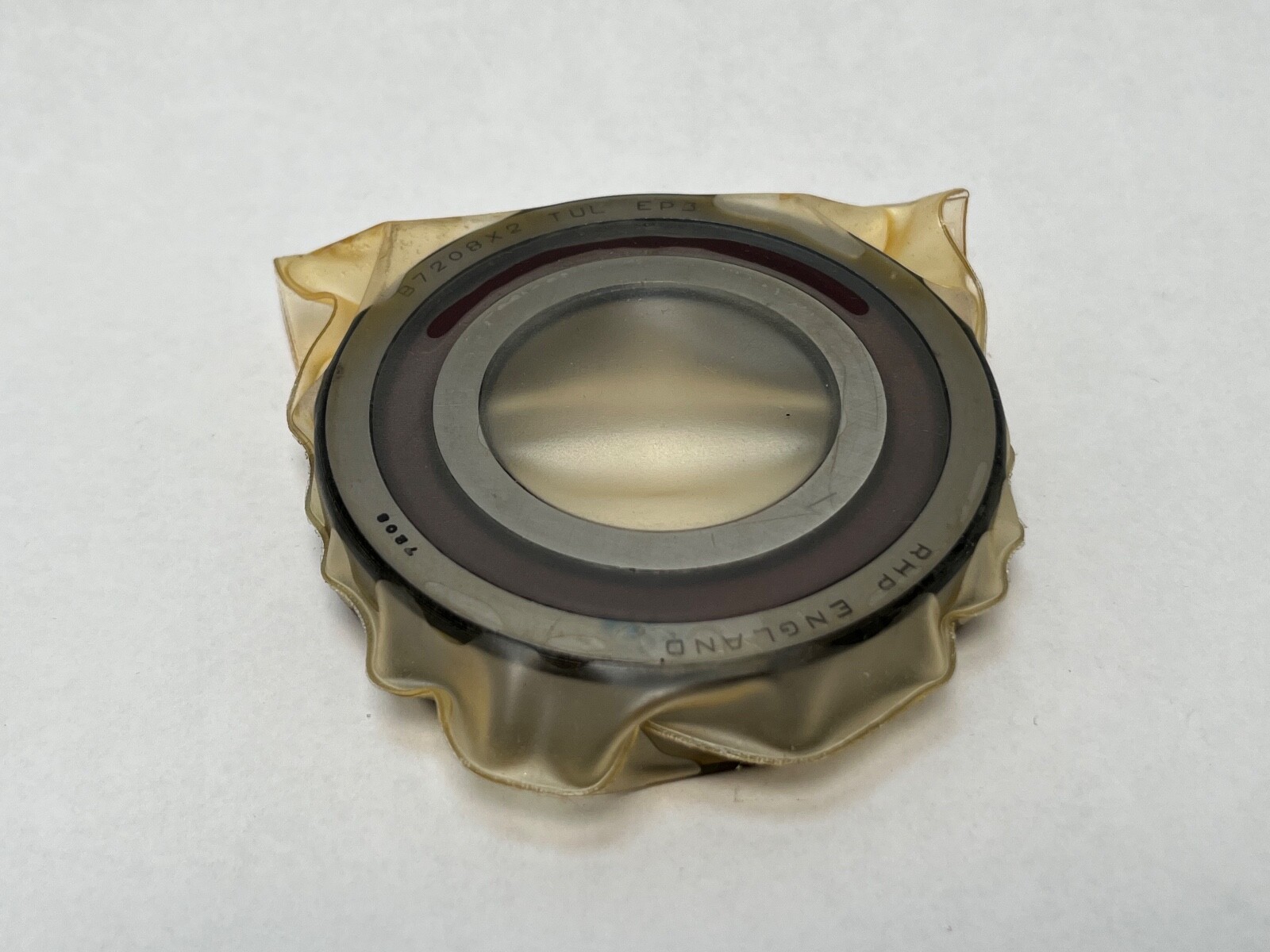

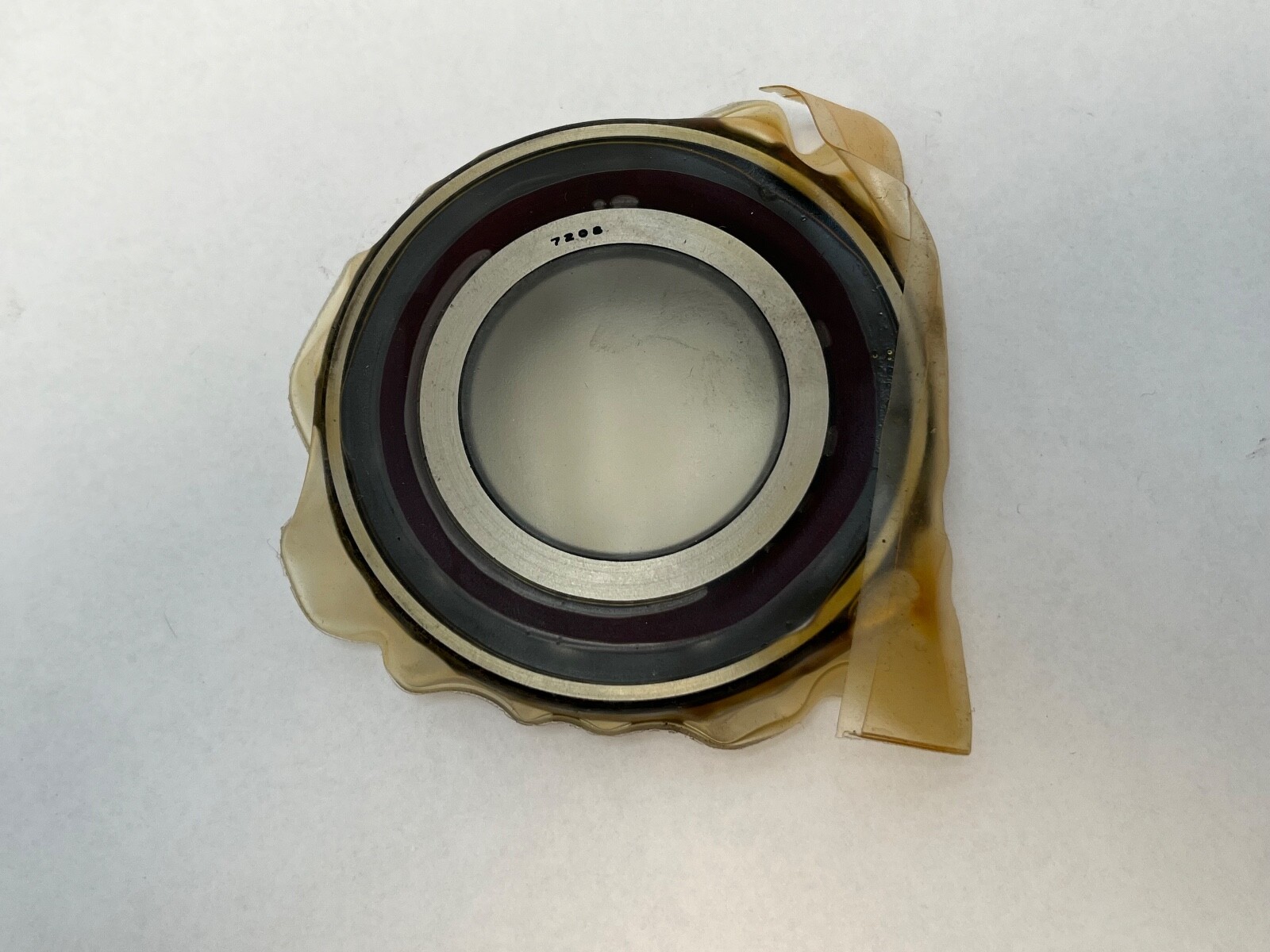

RHP 7208ETASUL single-row angular contact ball bearing. Envelope: 40 mm bore, 80 mm outside diameter, 18 mm width. 25° contact angle, P0 precision class, outer-ring centred cage, open. Unit Quantity: 1 Pc.
7208 — RHP’s number for the ISO series 02 size, 40 x 80 x 18 mm.
E — 25° contact angle, the current A5 execution.
TA — outer-ring centred cage.
SUL — universal face control, L = light preload letter.
P0 — RHP precision class, the current equivalent of the legacy EP1 grade.
B7208X3TULEP1 — RHP B-series code also carried on the carton; X3 is the 25° contact angle.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Series: 7200. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open.
Contact Angle: 25°. Precision Class: P0. Cage Type: Outer-ring guided.
Dynamic Load Rating: 34,500 N. Static Load Rating: 24,100 N.
Unit Quantity: 1 Pc. Country of Origin: United Kingdom. Harmonization Code: 8482.10.50.28.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Standard series 02 envelope.
SKF 7208 ACD. FAG B7208-E. NSK 7208A5. These are 40 x 80 x 18 mm at a 25° contact angle.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm.
Contact Angle: 25°, from the E in the designation.
Dynamic Load Rating: 34,500 N. Static Load Rating: 24,100 N.
