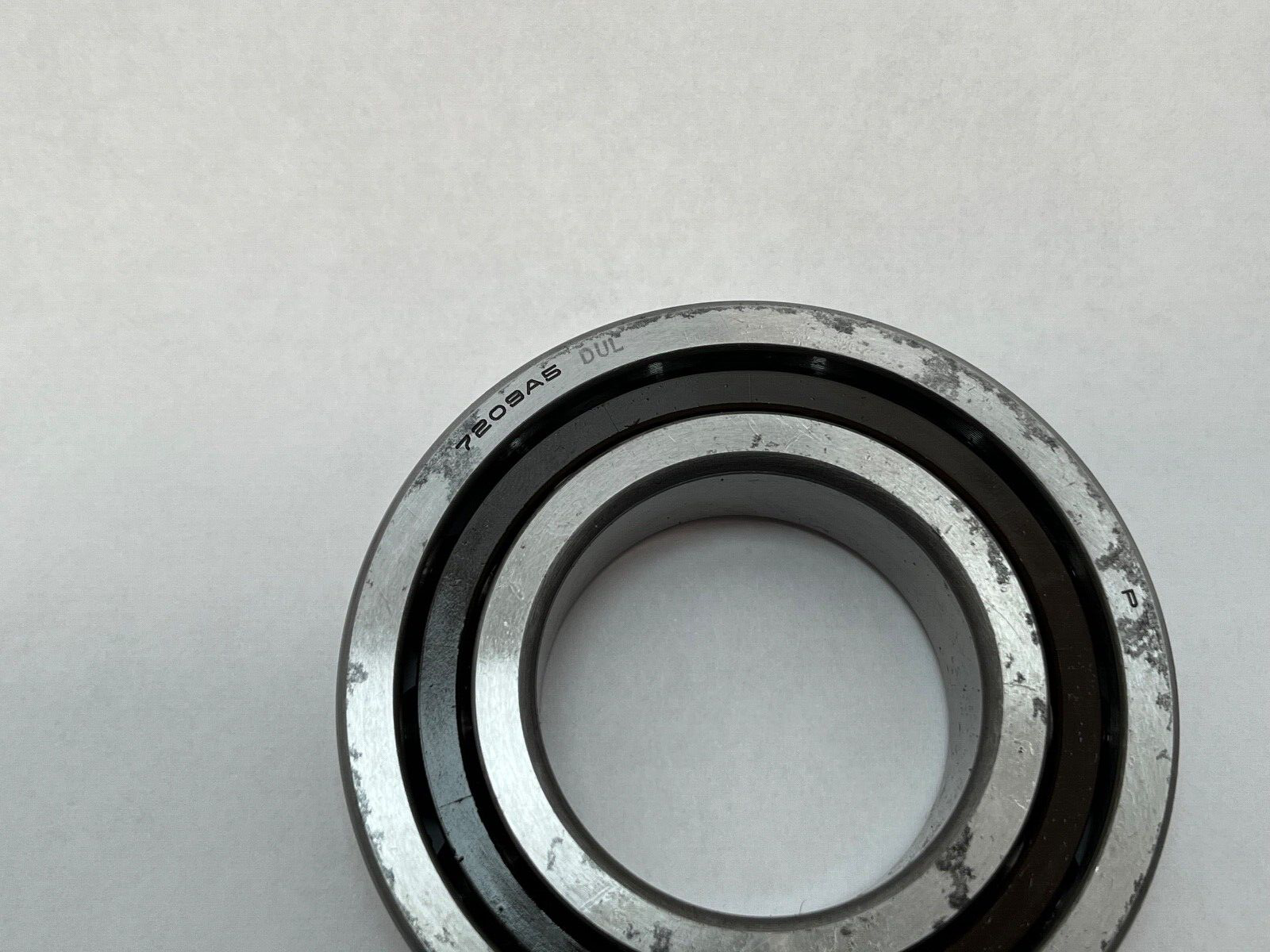

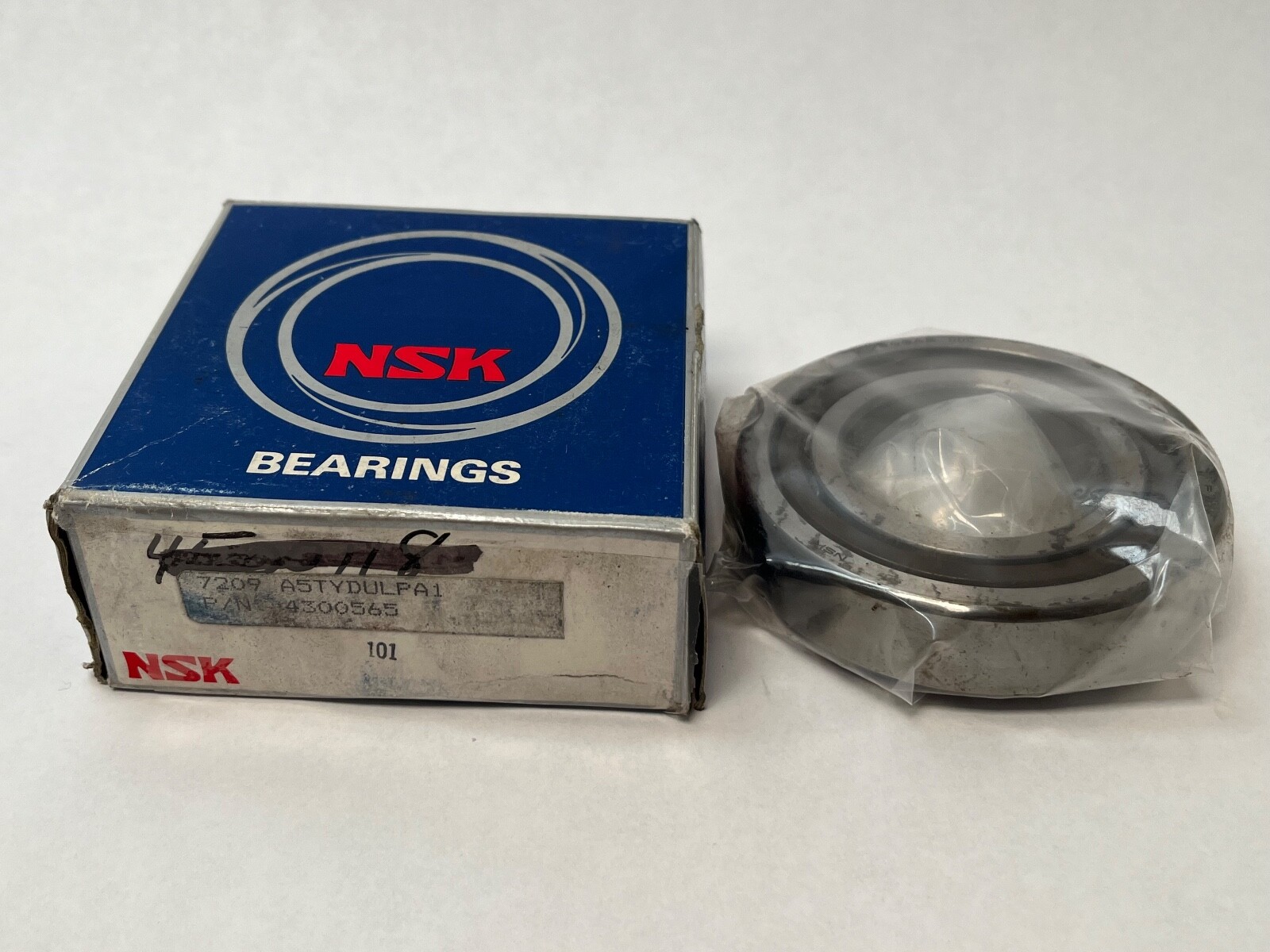

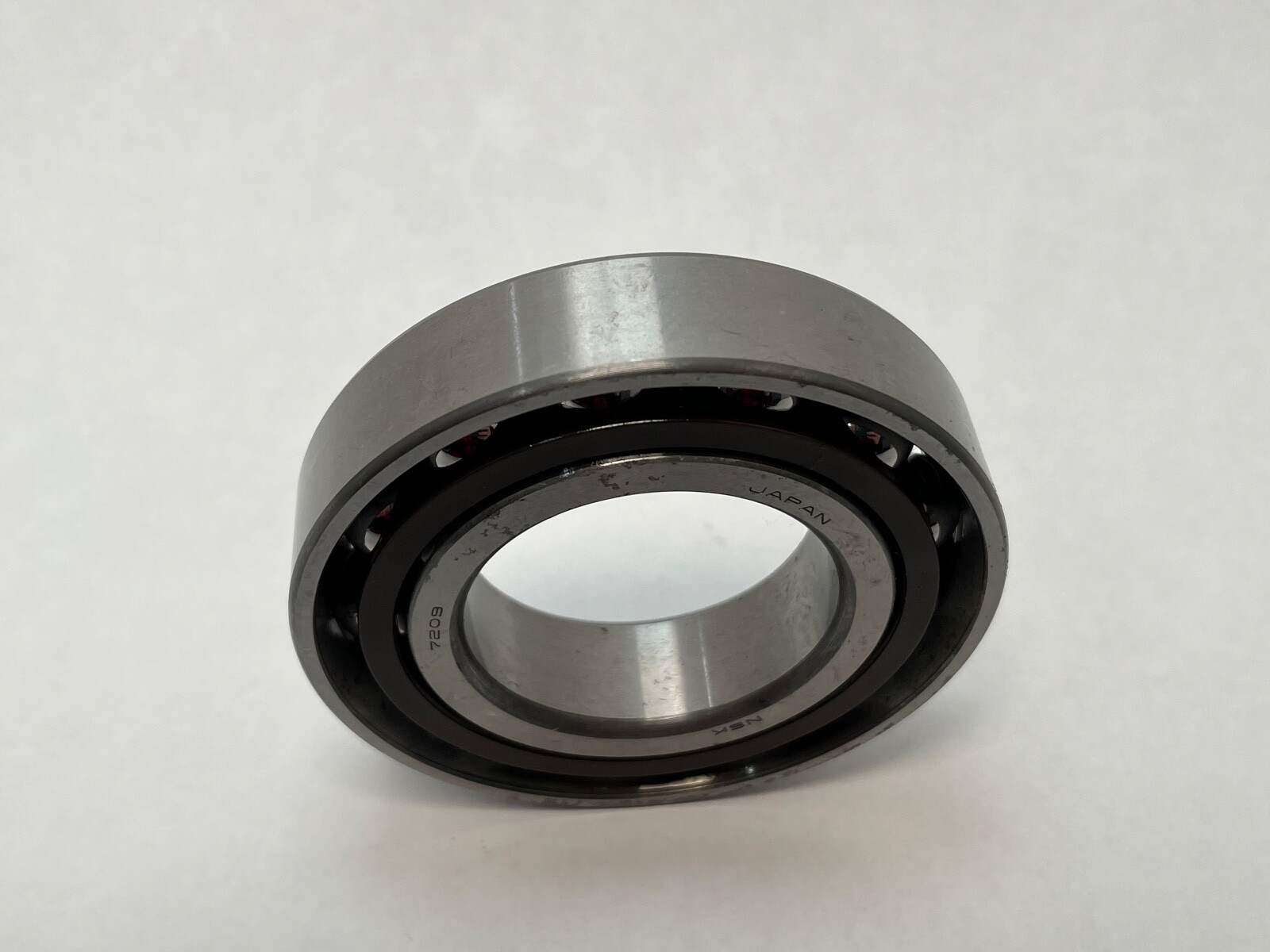

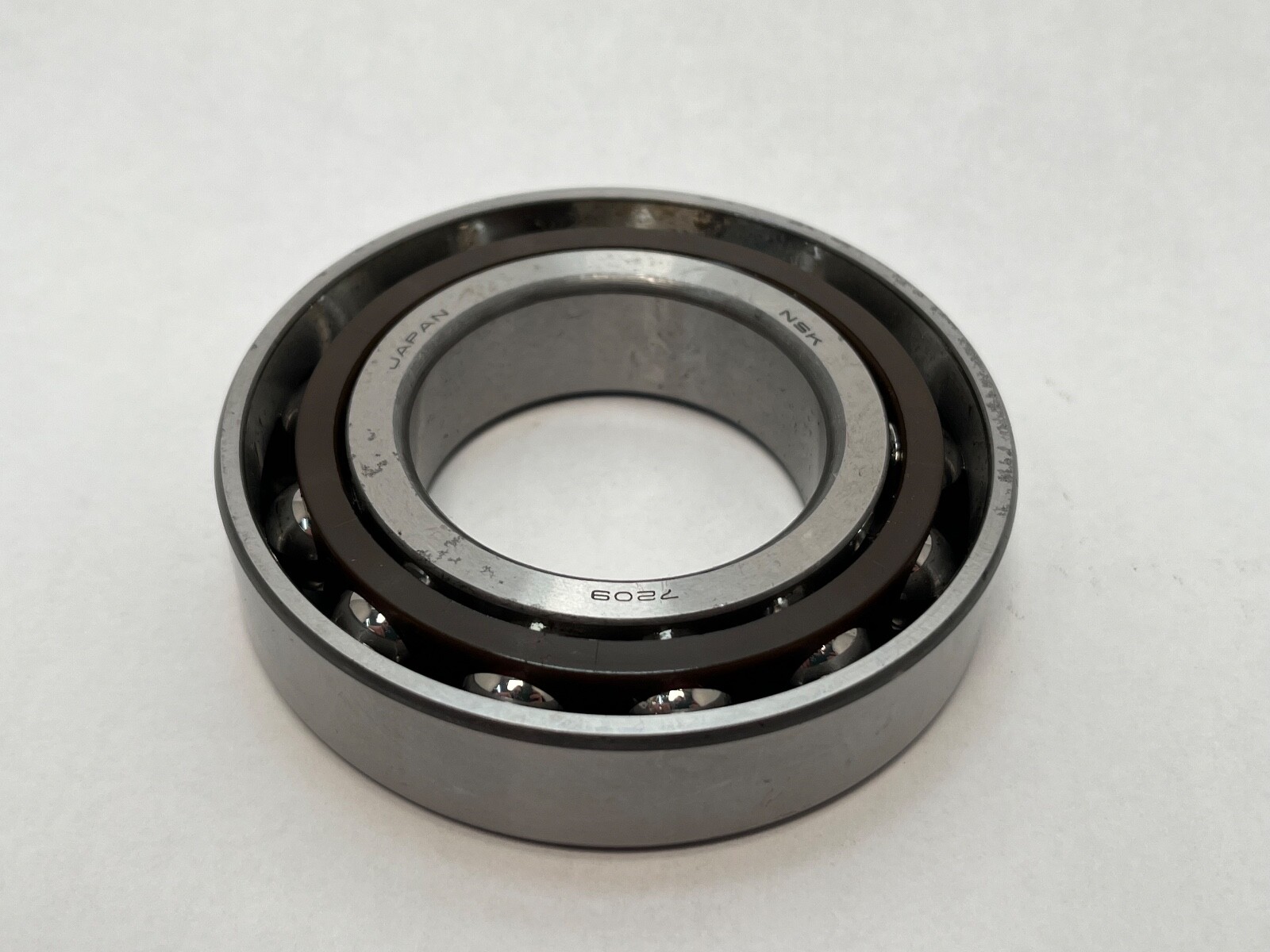

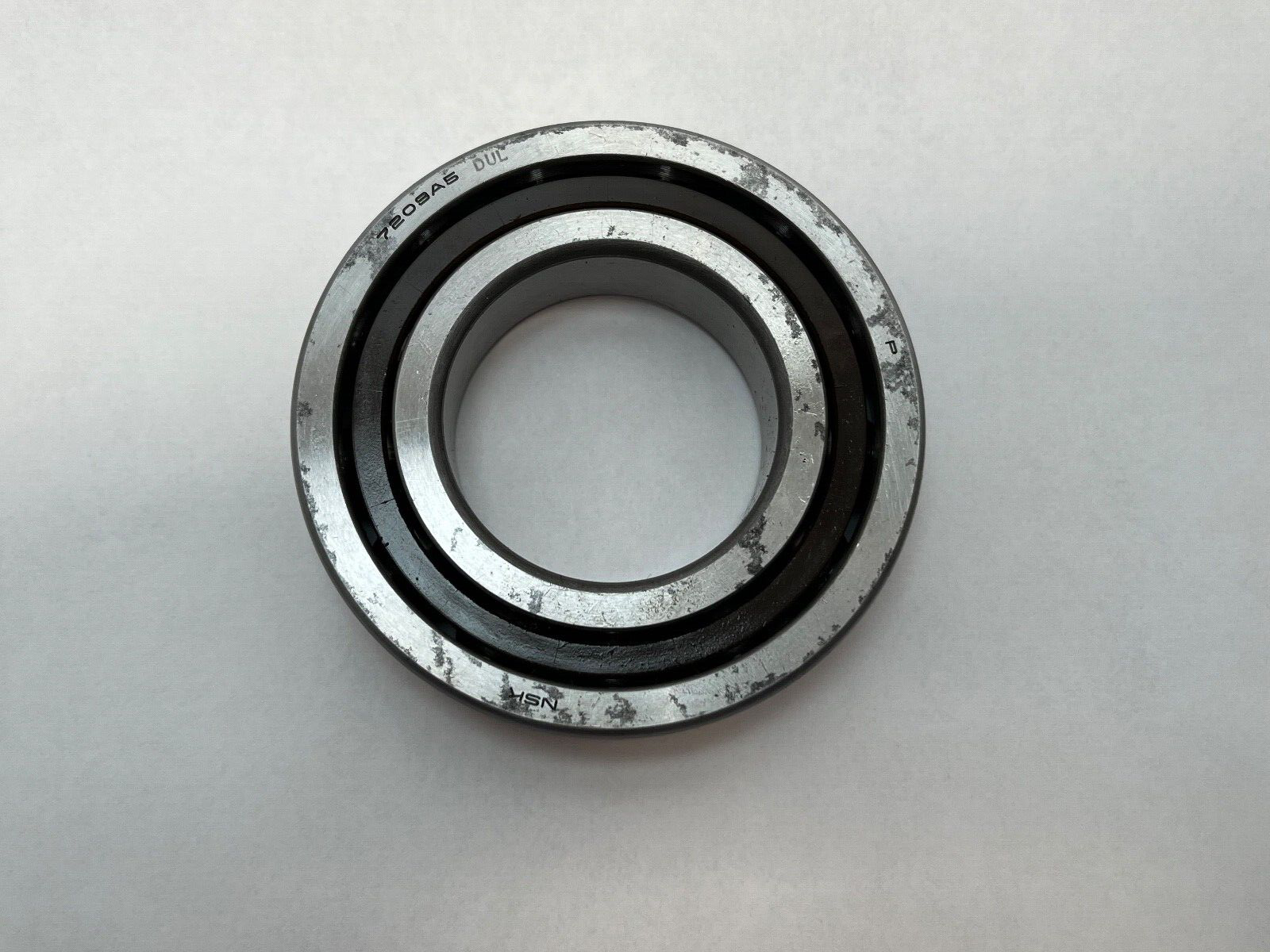

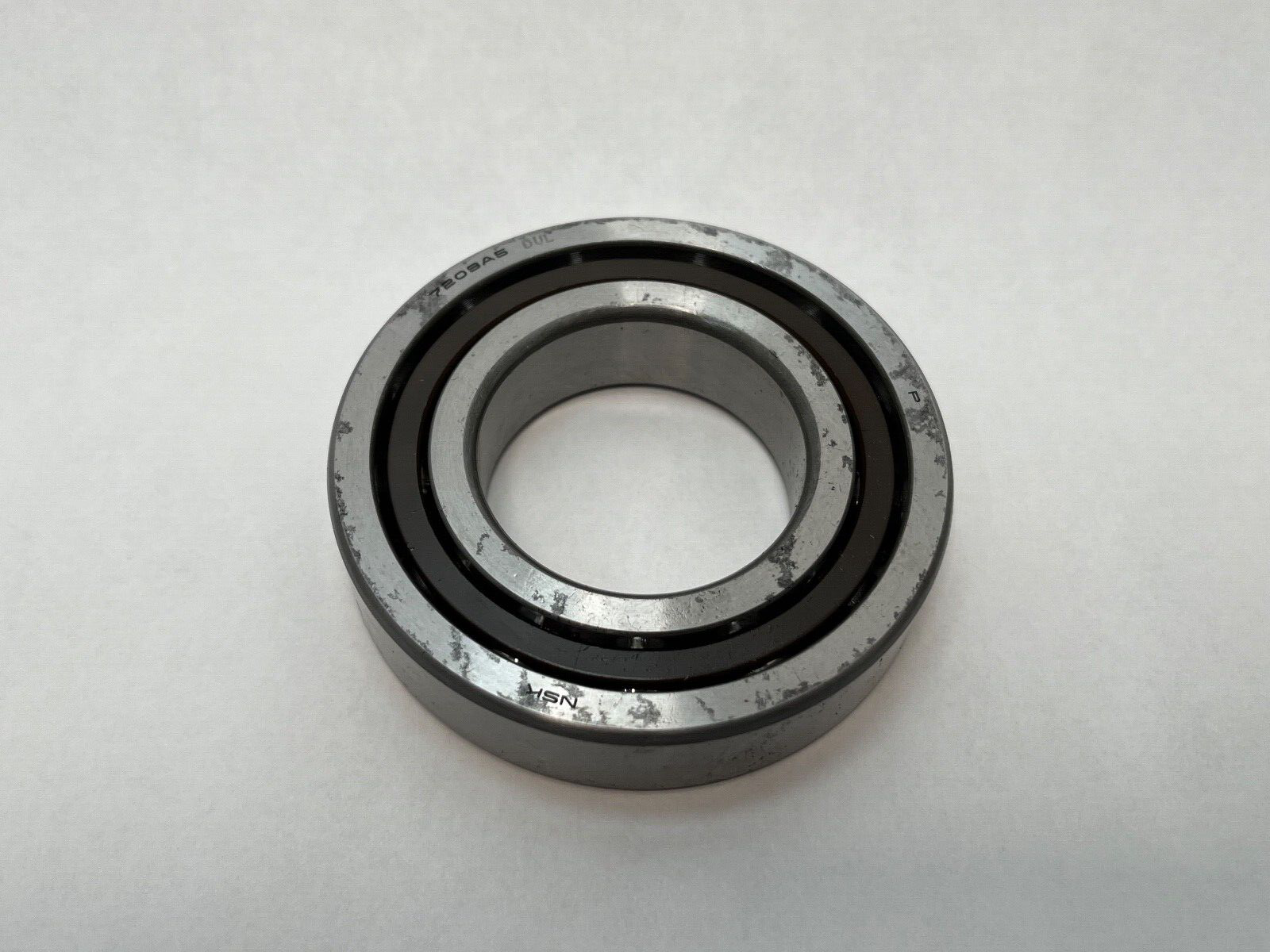

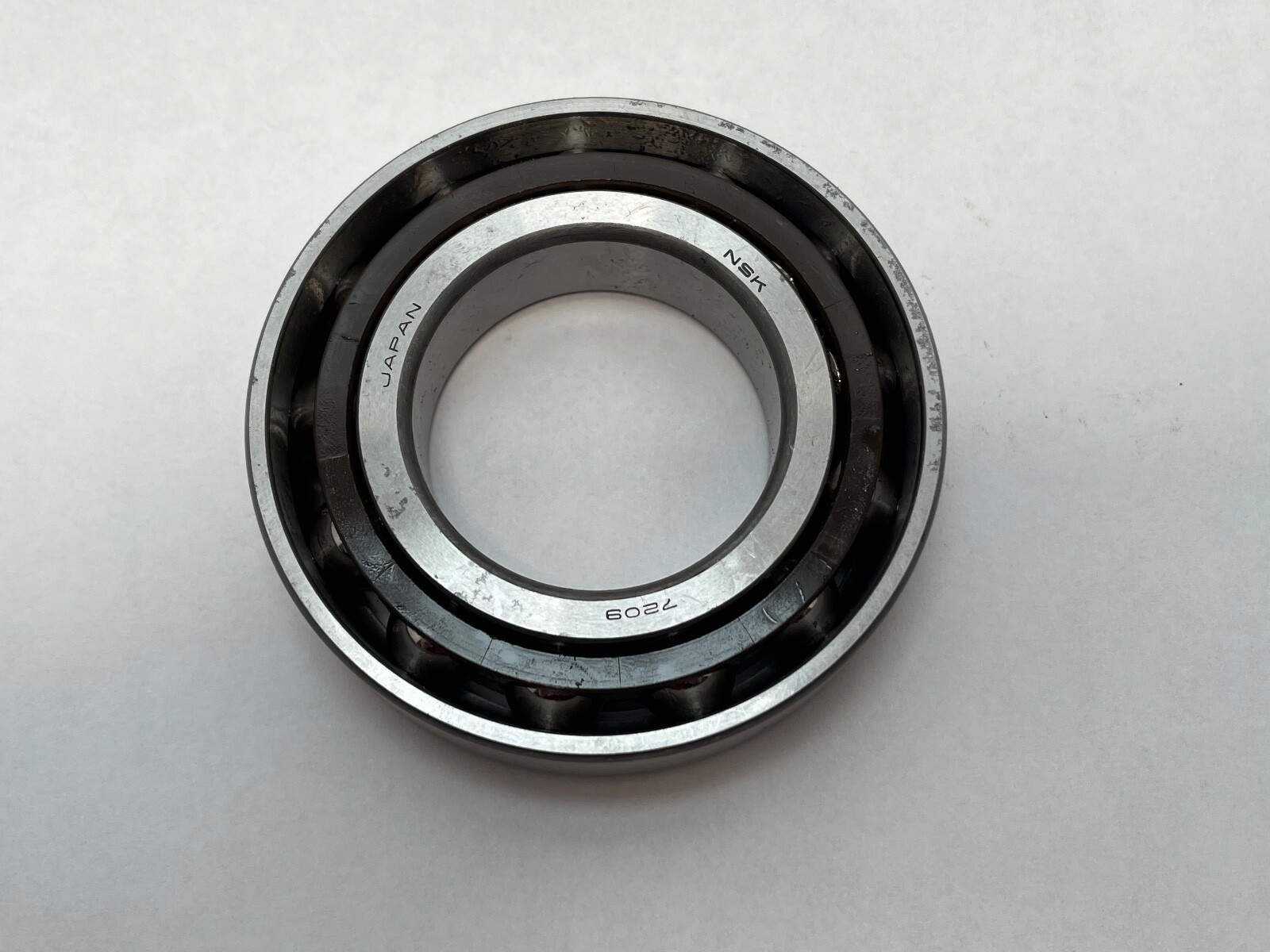

NSK 7209A5TYSULPA1 angular contact ball bearing, 45 x 85 x 19 mm, 25 deg contact angle, universally ground single, light preload, PA1 accuracy.
List Price
$83.76
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7209A5TYSULPA1 |
| Model | 7209 A5 TY DUL PA1 / 3MM209 WI CR DUL / B7209E |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Preload | Light |
|---|---|
| Material | Bearing Steel |
| Base Number | 7209 |
| Industry Terms | super precision spindle bearing, universally ground single |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7209A5TYSULPA1, 7209-A5-TY-SUL-PA1, 7209A5TYSUL, 7209A5TYDULPA1, 7209A5, 7209E, B7209E |
| Precision Class | PA1 (NSK special accuracy class) |
| Additional Attributes | Preload 333 N across a matched pair; axial rigidity 147 N/um; permissible axial load 23.3 kN; effective load centre 24.7 mm; da min 52 mm; Da max 78 mm |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 49,000 N |
| Static Load Rating | 27,600 N |
| Rolling Elements | Balls |
| Item Weight | 0.402 kg (0.89 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 15,400 rpm grease; 23,100 rpm oil-air |
| Contact Angle | 25° |
| Part Number | 7209A5TYSULPA1 |
| Common Misspellings | 7209A5TYSUL PA1; 7209 A5TY SUL PA1; NSK 7209A5TYSULPA-1; 7209ATYSULPA1 |
| Application Types | Machine tool spindles; precision grinding spindles; high-speed precision drives |
| Cross Reference 1 | Fafnir 3MM209WI - 25 deg |
|---|---|
| Cross Reference 2 | SKF 7209 ACD - 25 deg |
NSK 7209A5TYSULPA1, a super-precision angular contact ball bearing, universally ground single bearing. 45 mm bore, 85 mm outside diameter, 19 mm width, 25° contact angle, light preload class. Unit Quantity: 1 Pc.
7209 — single-row angular contact ball bearing, ISO 72 dimension series, 45 x 85 x 19 mm.
A5 — 25° contact angle.
TY — ball-guided cage.
SU — universally ground single bearing; any two pieces stack back-to-back, face-to-face or in tandem.
L — light preload class.
PA1 — NSK special accuracy class.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 19 mm. Series: 7200. Bore Type: Straight. Closure Type: Open. Contact Angle: 25°. Cage Type: Ball-guided. Precision Class: PA1 (NSK special accuracy class). Preload: Light (L), 333 N across a matched pair, axial rigidity 147 N/µm. Dynamic Load Rating: 49,000 N. Static Load Rating: 27,600 N. Limiting Speed: 15,400 rpm grease; 23,100 rpm oil-air. Permissible Axial Load: 23.3 kN. Effective Load Centre: 24.7 mm. Item Weight: 0.402 kg (0.89 lb). Unit Quantity: 1 Pc.
Shaft abutment diameter: 52 mm minimum. Housing abutment diameter: 78 mm maximum, 80 mm on the outer shoulder. Shaft fillet radius: 1 mm maximum. Housing fillet radius: 0.6 mm maximum. Universal grinding finishes the faces so pieces of the same designation reach the published preload on clamp-up in any arrangement, without a spacer.
SKF 7209 ACD and Fafnir 3MM209WI cover the same 45 x 85 x 19 mm envelope at 25°. 7209CTY (15°) and 7209ATY (30°) are related sizes with a different contact angle. Carton marking: 3MM209WI CR. Alternate written forms: 7209A5TYSULPA1, 7209-A5-TY-SUL-PA1, 7209A5TYSUL, 7209A5TYDULPA1, 7209A5, 7209E, B7209E.
25°, from the A5 code.
A universally ground single bearing that can be stacked back-to-back, face-to-face or in tandem.
Limiting Speed 15,400 rpm grease and 23,100 rpm oil-air. Dynamic Load Rating 49,000 N, Static Load Rating 27,600 N.
