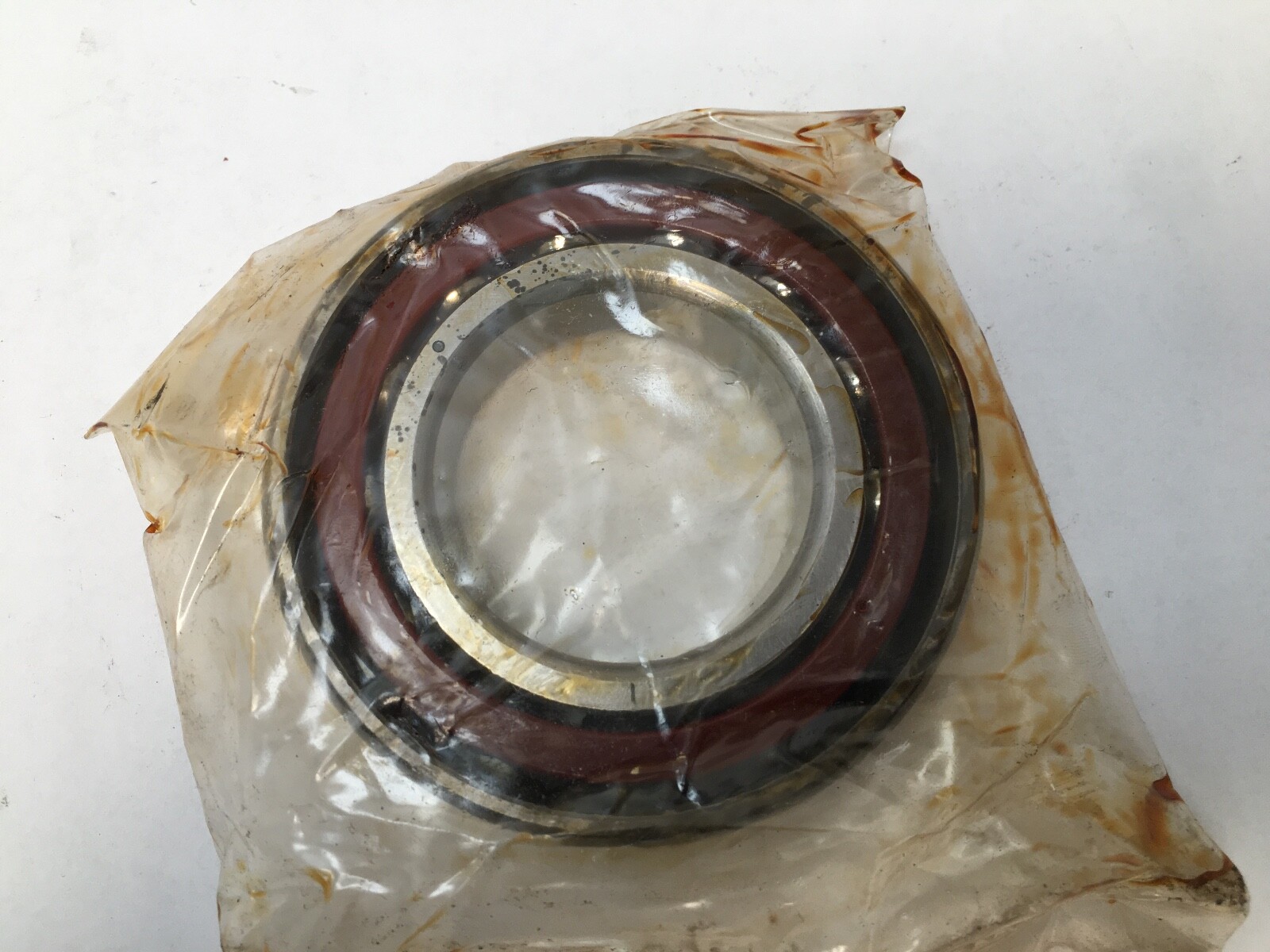

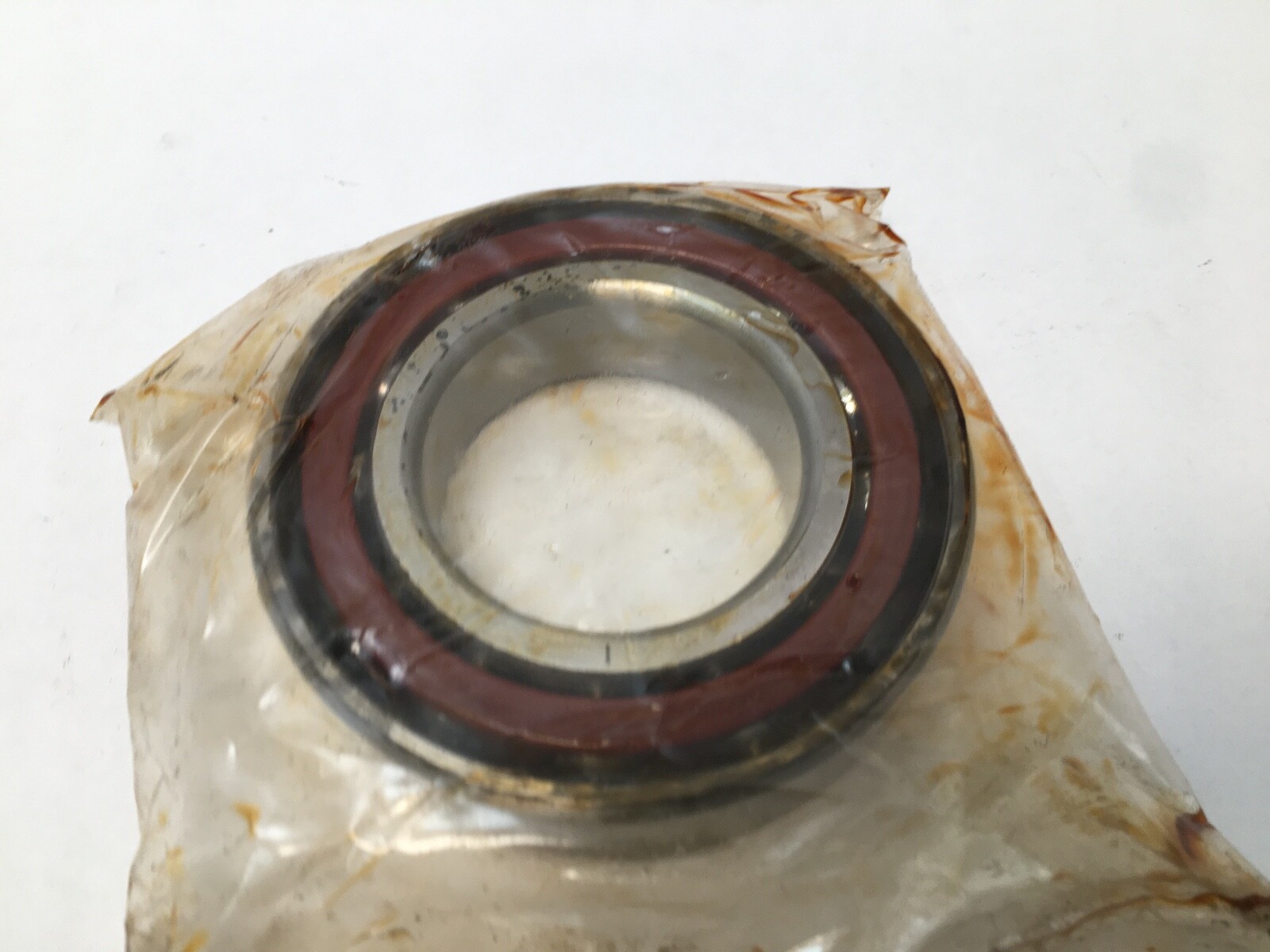

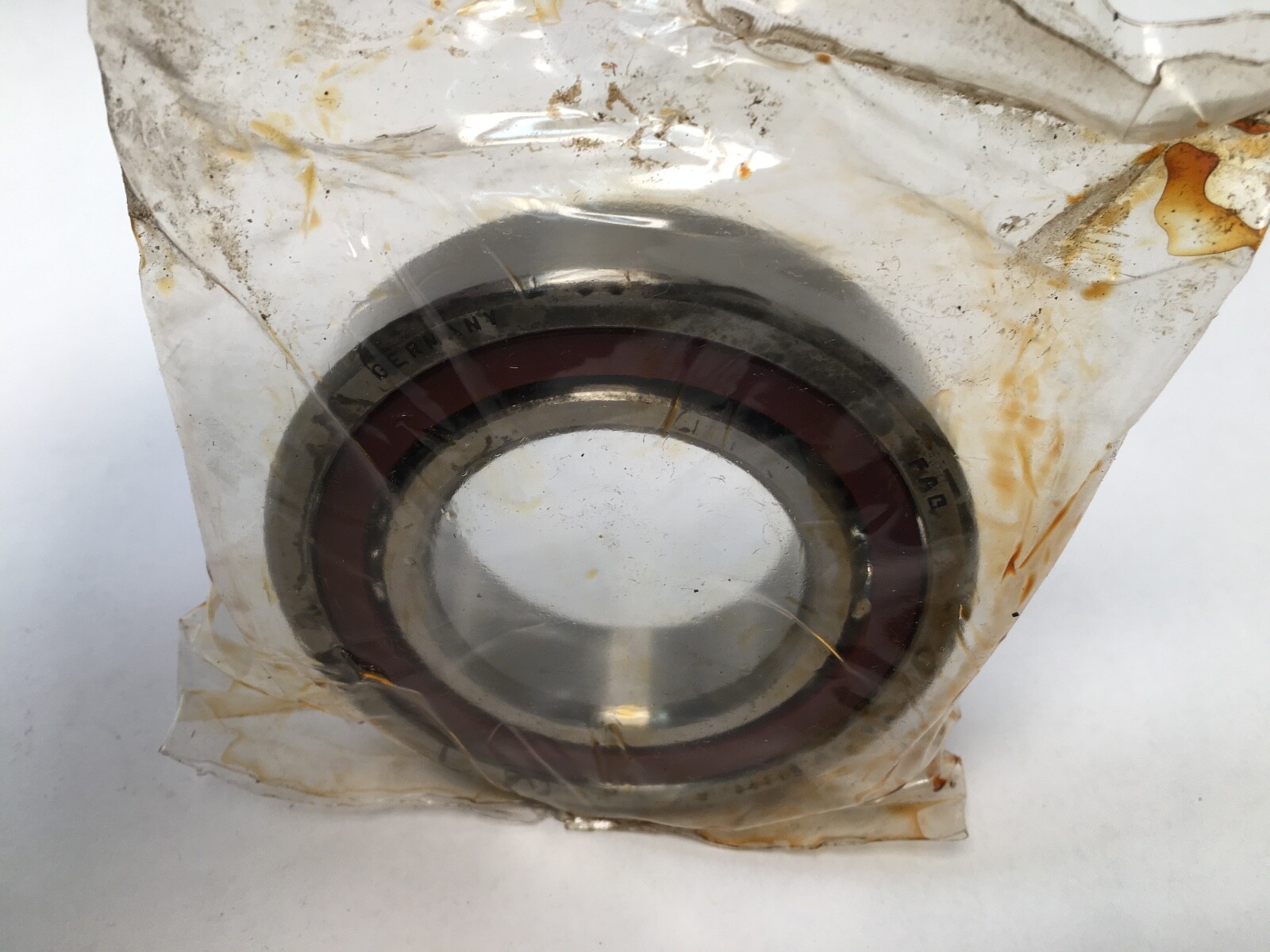

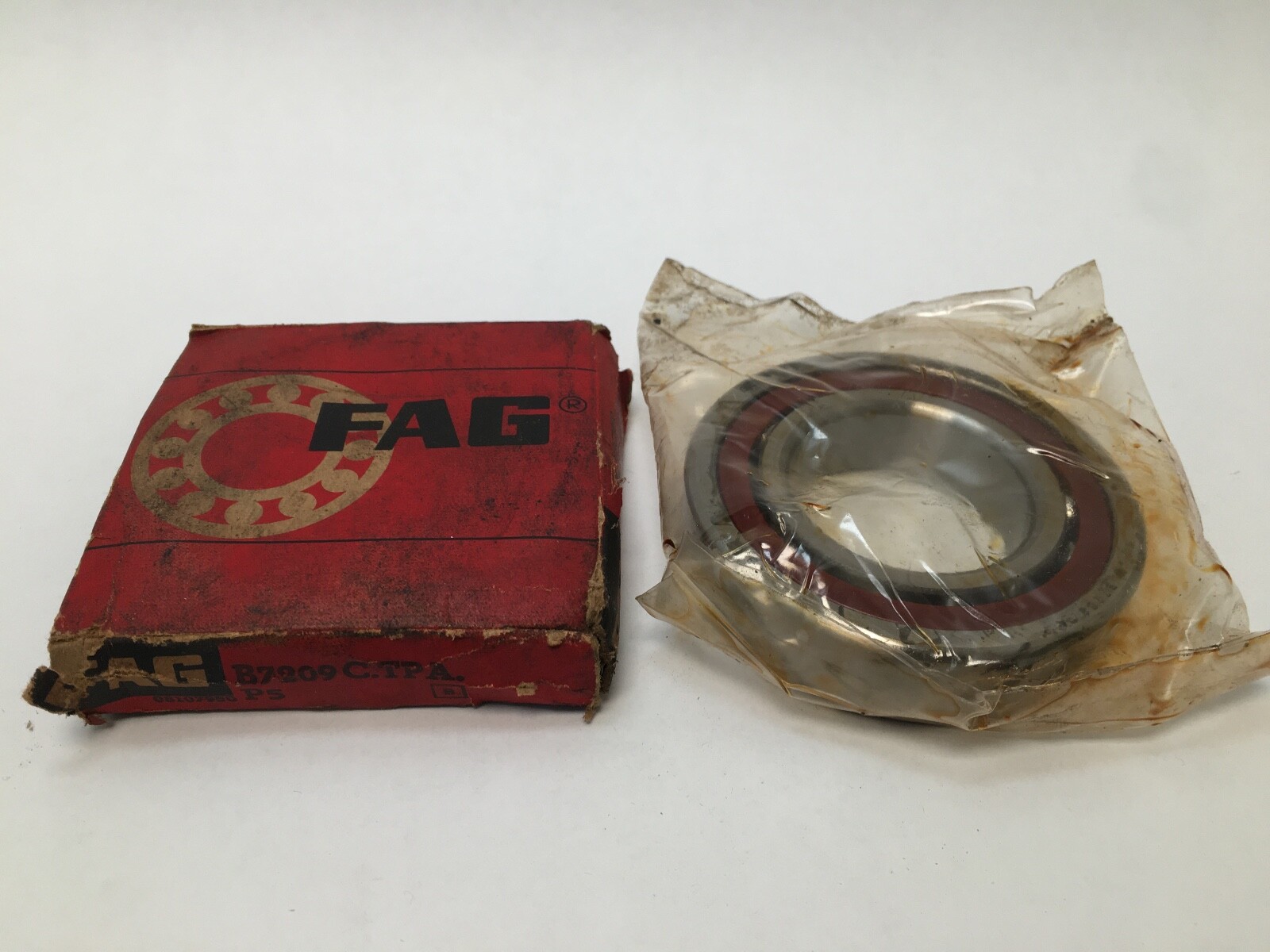

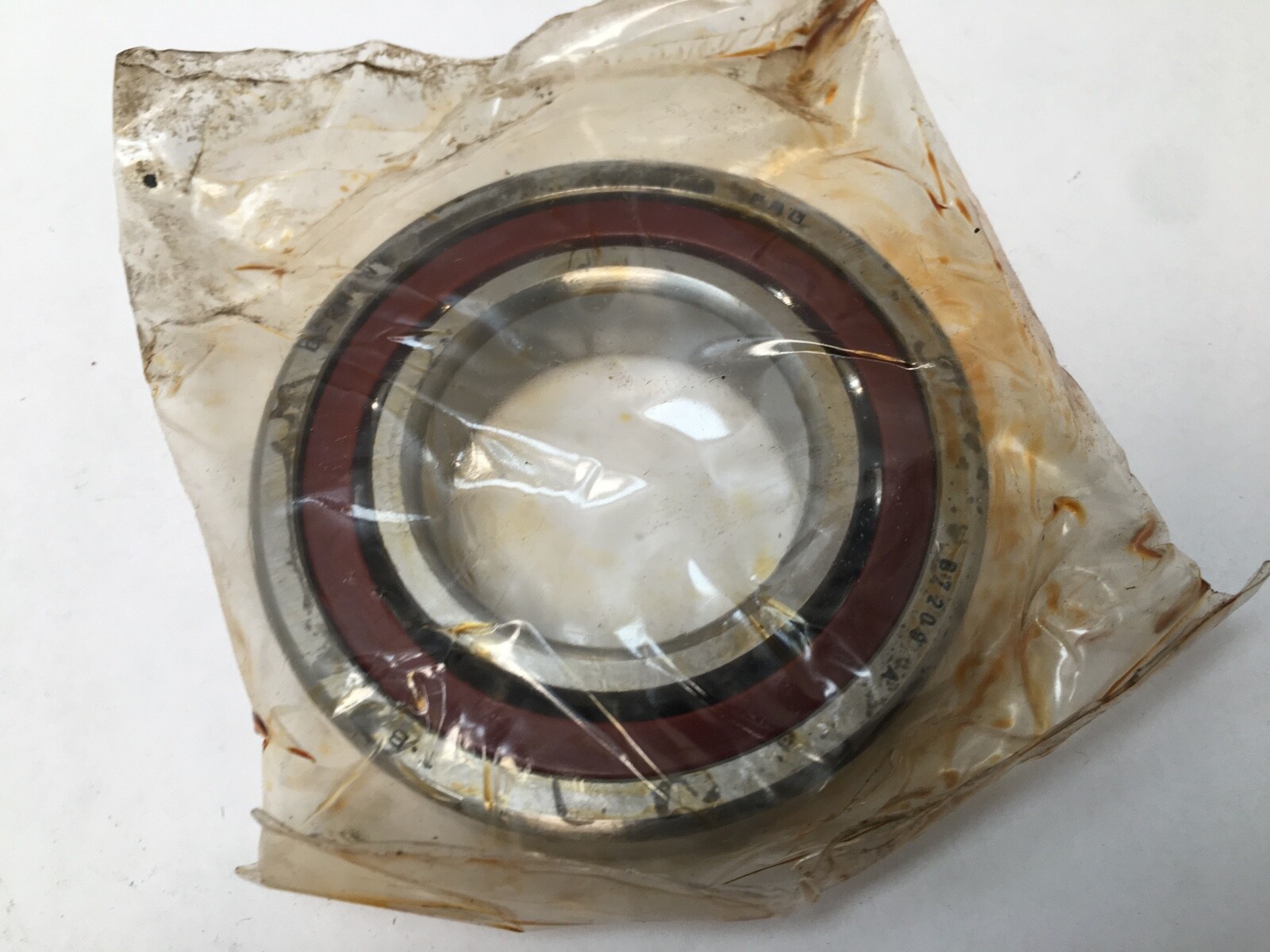

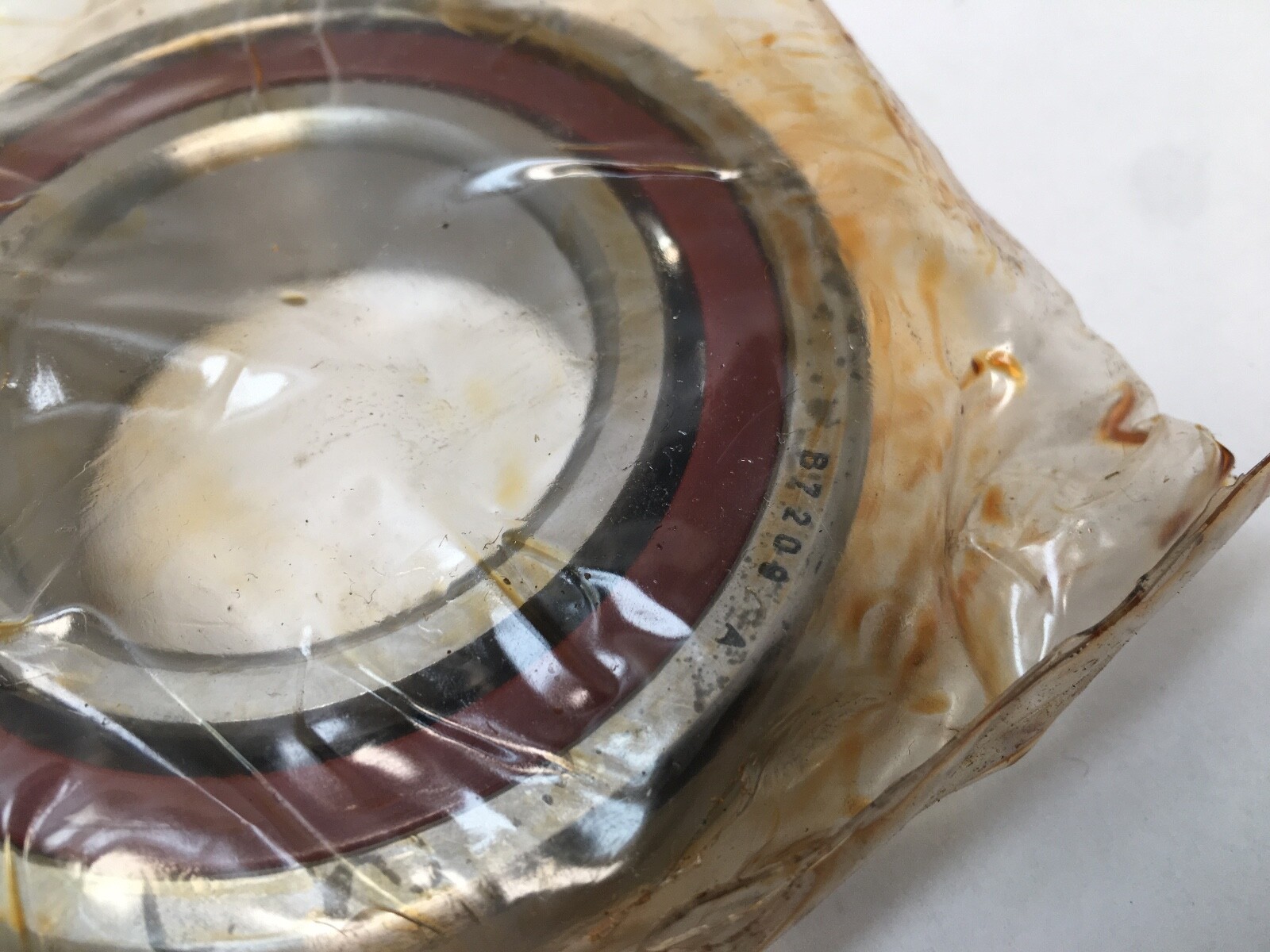

Angular contact spindle ball bearing, 45 mm bore, 85 mm OD, 19 mm wide, 15° contact angle, P5 (ABEC 5) precision. Open, laminated phenolic TPA cage.
List Price
$76.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7209-C-TPA-P5 |
| Model | B7209-C-TPA-P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Cage Type | Solid cage |
|---|---|
| Dynamic Load Rating | 34,000 N |
| Static Load Rating | 17,700 N |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Item Weight | 0.408 kg |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Part Number | B7209C.TPA.P5 |
| Limiting Speed | 17,000 rpm grease; 28,000 rpm oil |
| Base Number | 7209 |
| Overall Width | 19 mm |
| Mpn Variants | B7209-C-TPA-P5, B7209C.TPA.P5, B7209CTPAP5, 7209C, B-7209-C-TPA-P5, 2MM209 |
| Compatible With Replaces | Successor: FAG B7209-C-T-P4S-UL |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Successor B7209-C-T-P4S-UL data: operating temperature -30 to +100 °C; da 52.5 mm; Da 78 mm; r min 1.1 mm; ratings, speeds and mass are successor data |
| Series | B72 |
| Cage Material | Fabric-base laminated phenolic |
| Cross Reference 1 | SKF 7209 CD/P4A (P4 class) |
|---|---|
| Cross Reference 2 | Fafnir 2MM209WI (ABEC 7 class) |
FAG B7209-C-TPA-P5 is a single-row angular contact spindle ball bearing. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Contact Angle: 15°. Precision Class: ABEC 5 / P5. Closure Type: Open. Cage Material: Fabric-base laminated phenolic. Rolling Elements: Ball. Number Of Rows: 1.
B72 — FAG spindle bearing, ISO 02 dimension series.
09 — bore code, 45 mm bore.
C — 15° contact angle.
TPA — fabric-base laminated phenolic solid cage.
P5 — ISO P5 precision tolerance, equivalent to ABEC 5.
Series: B72. Base Number: 7209. Unit Quantity: 1 Pc. Successor B7209-C-T-P4S-UL data: Dynamic Load Rating: 34,000 N. Static Load Rating: 17,700 N. Limiting Speed: 17,000 rpm grease; 28,000 rpm oil. Item Weight: 0.408 kg. Operating Temperature: -30 °C to +100 °C.
45 x 85 x 19 mm. The 15° contact angle carries combined radial and axial load in one direction with high radial stiffness, suited to high-speed spindles. The laminated phenolic cage is light and runs at high speed. Successor B7209-C-T-P4S-UL data: Shaft abutment diameter da: 52.5 mm. Housing abutment diameter Da: 78 mm. Chamfer dimension r min: 1.1 mm.
Cross-references: SKF 7209 CD/P4A (P4 class) and Fafnir 2MM209WI (ABEC 7 class), both 45 x 85 x 19 mm with 15° contact angle. Current FAG family designation: B7209-C-T-P4S-UL.
45 mm bore, 85 mm outside diameter, 19 mm width.
15°, from the C in the designation.
A fabric-base laminated phenolic solid cage.
