FAGB7206-C-TPA-P4-ULAngular Contact Ball Bearing – 30 mm ID, 62 mm OD, 16 mm Width, Open, 15° Contact Angle, Light Preload.

Product Description

What this part is:

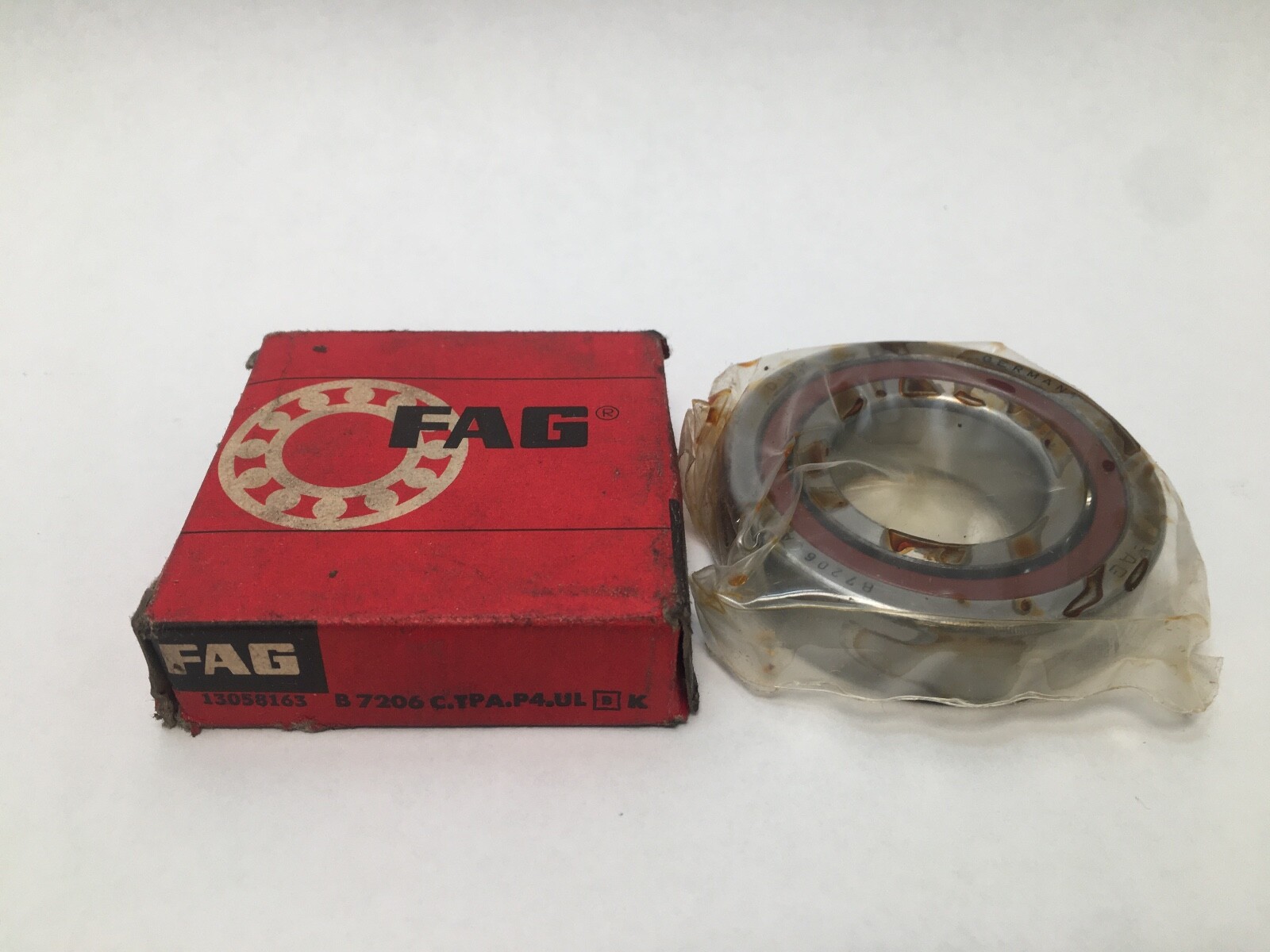

FAG B7206-C-TPA-P4-UL super-precision single-row angular contact ball bearing, 30 mm bore, 62 mm outside diameter, 16 mm wide, 15° contact angle, ABEC 7 / P4, universal design at light preload. Machine-tool spindle bearing, open both faces. Unit Quantity: 1 Pc.

Decoding the designation:

B7 — FAG super-precision spindle bearing series.

2 and 06 — ISO 72 medium dimension series and bore code 06, a 30 mm bore (five millimetres per unit).

C — 15° contact angle; an E in that position would be 25°.

P4 — ISO tolerance class 4, equivalent to ABEC 7.

UL — universal design at light preload.

Specifications:

Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm. Overall Width: 16 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Steel balls. Closure Type: Open. Bore Type: Straight. Series: B72 (FAG super-precision, ISO 72 medium series, B7206). Base Number: B7206. Precision Class: ABEC 7 / P4. Preload: Light (UL). Bearing Material: Bearing steel. A single-row angular contact bearing carries thrust in one direction only.

Dimensions and mounting:

Mounting Arrangement: single bearing, universal design. Ring faces are ground so any two bearings of this designation come together at light preload in a back-to-back (DB), face-to-face (DF) or tandem (DT) stack with no spacers or shims. DB gives the widest effective bearing spread and the best resistance to moment load, DF tolerates more misalignment, and DT doubles thrust capacity in one direction only.

Compatibility and replacement:

15° super-precision 30 x 62 x 16 mm cross-references at ABEC 7 with universal light preload: SKF 7206 CD/P4A and NSK 7206CTRDULP4. The FAG HCB7206-C-T-P4S-UL is the hybrid-ceramic variant. B7206-E-TPA-P4-UL is the 25° version and B7206-C-TPA-P4-UM the medium preload version. B7006-C-TPA-P4-UL is the 70 series at 30 x 55 x 13 mm. Searchable variants: B7206-C-TPA-P4-UL, B7206CTPAP4UL, B7206C.TPA.P4.UL, B-7206-C-TPA-P4-UL, B7206C.T.P4S.UL, 7206C, B7206.

Frequently asked questions:

What size and contact angle is the FAG B7206C.TPA.P4.UL?

30 mm bore, 62 mm outside diameter, 16 mm width, 15° contact angle.

What does UL mean?

Universal design at light preload, so any two bearings of this designation stack in DB, DF or DT without spacers or shims.

What precision class is it?

P4 (ISO tolerance class 4), equivalent to ABEC 7.
