RHP7206CTSUHP4Angular Contact Ball Bearing – 30 mm ID, 62 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7 / P4, Heavy Preload, Open.

Product Description

What this part is:

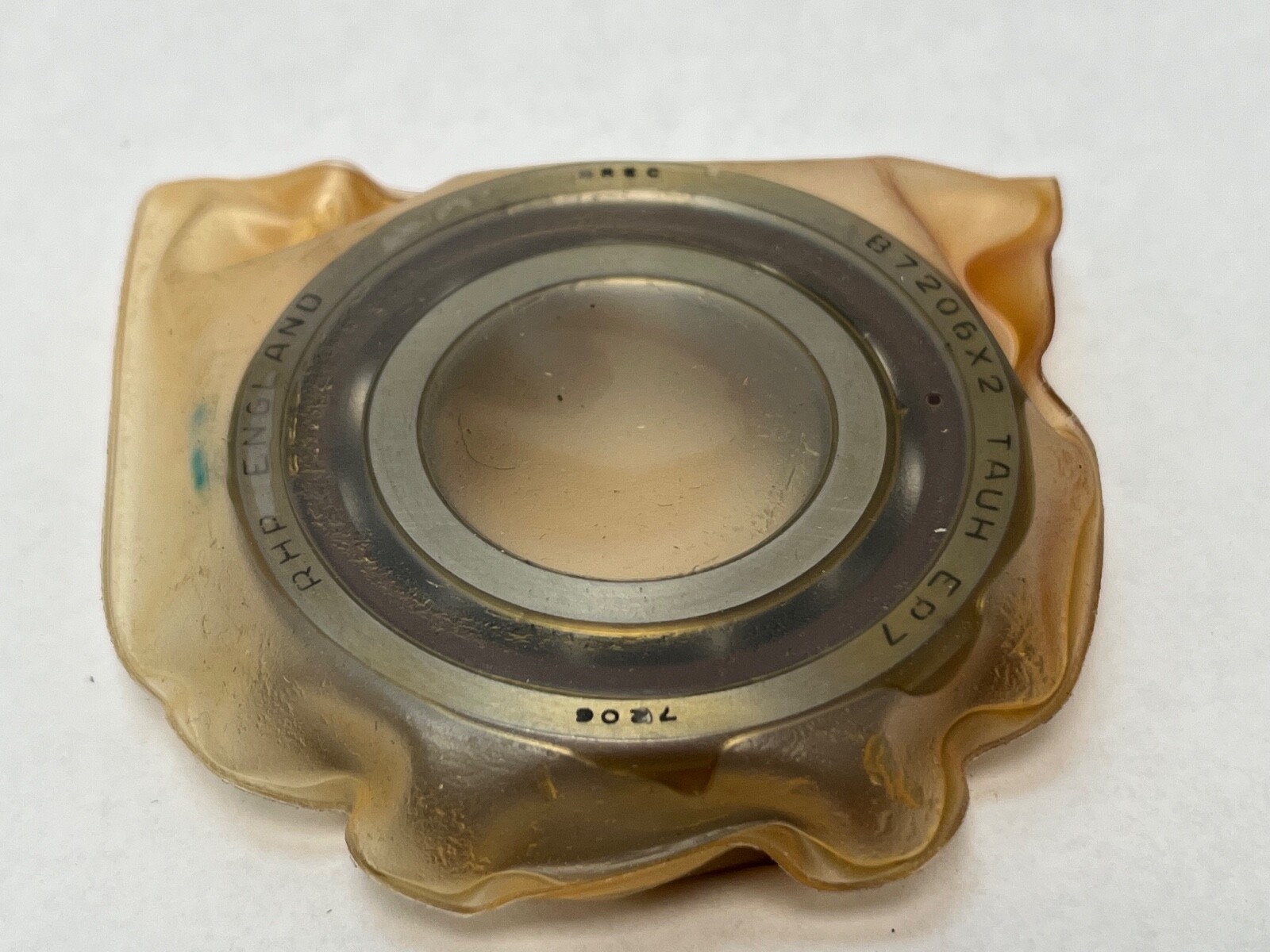

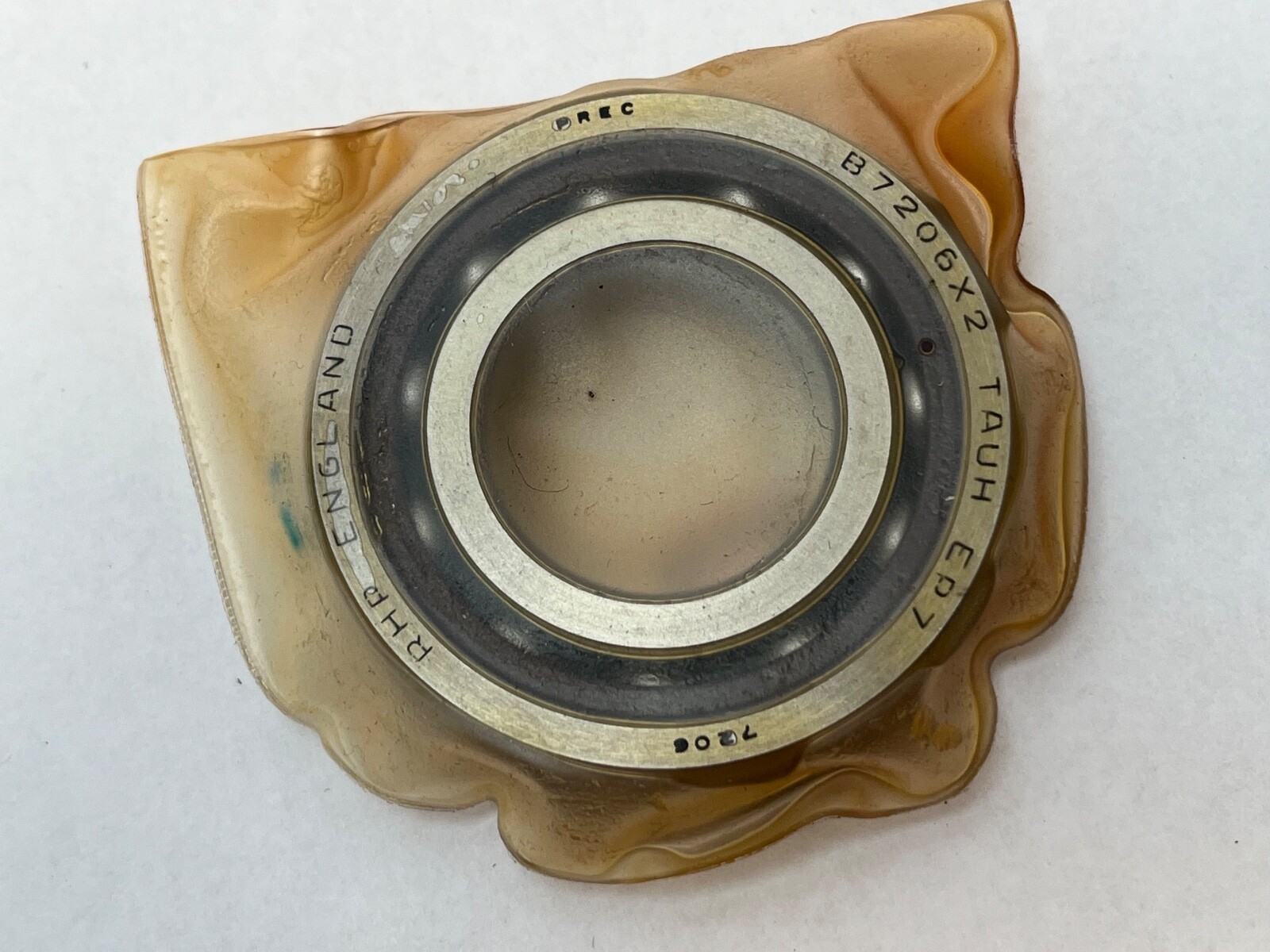

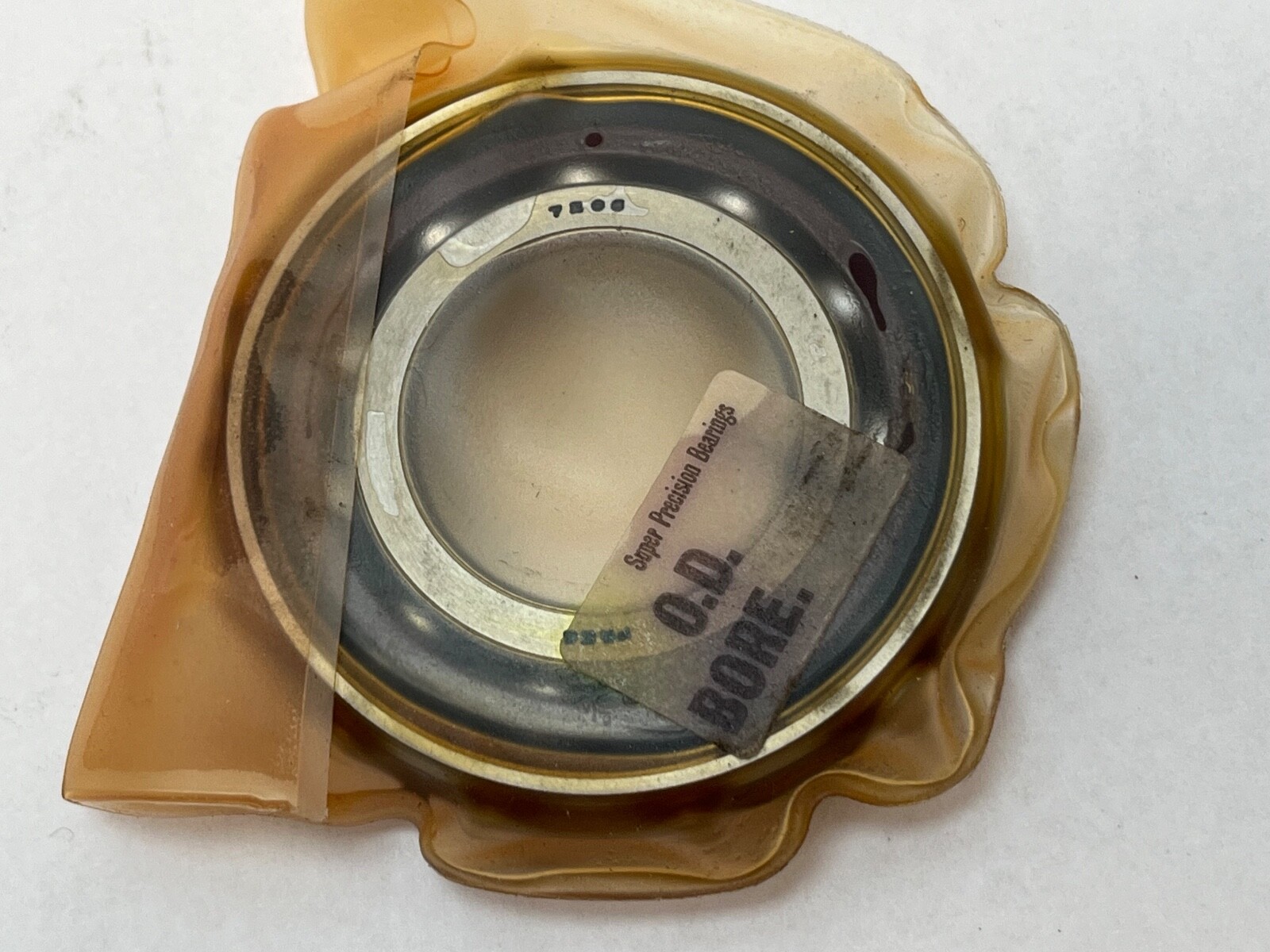

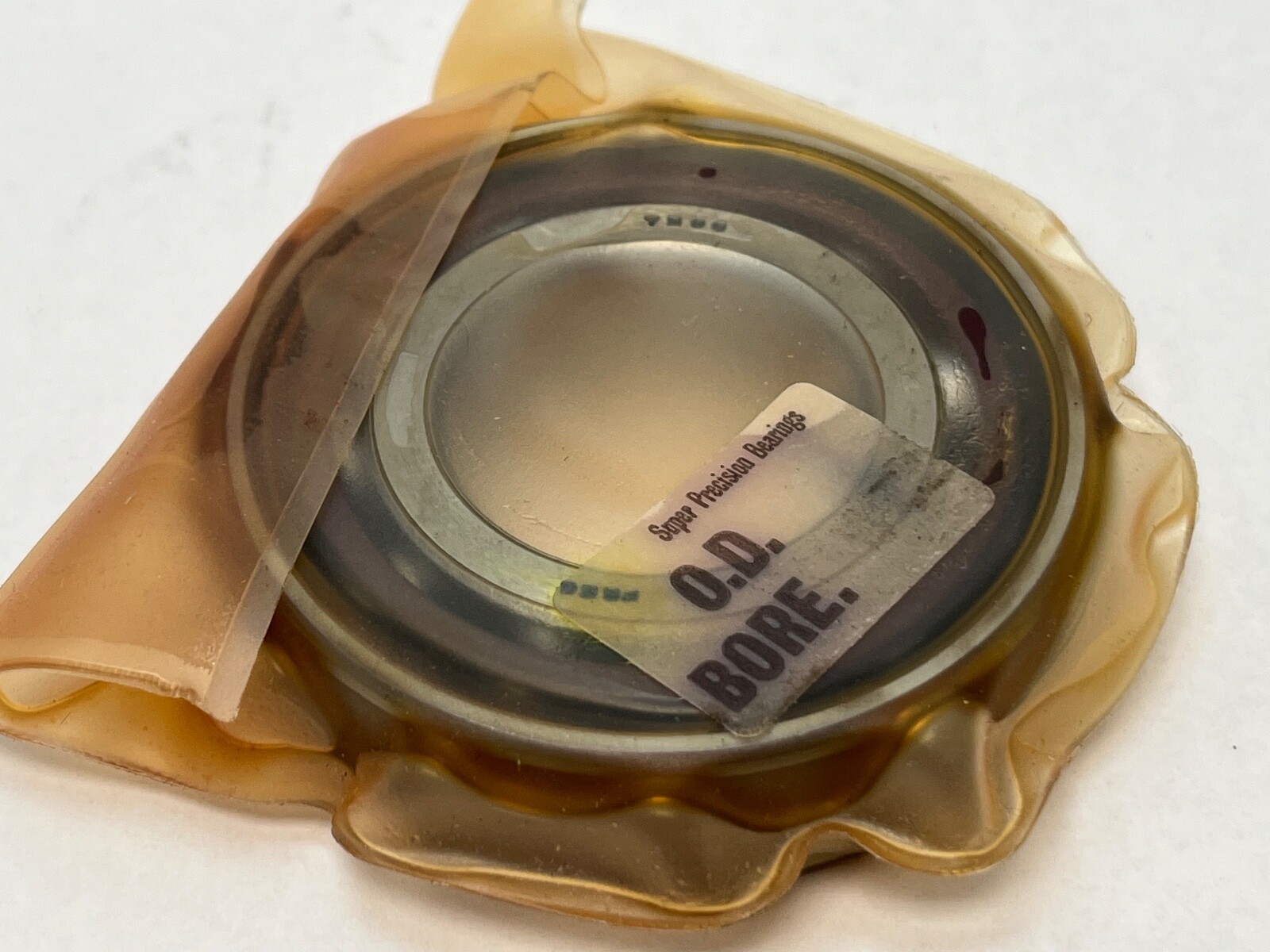

RHP 7206CTSUHP4 super precision single-row angular contact ball bearing, 30 x 62 x 16 mm, 15° contact angle, ABEC 7 / P4, heavy preload, universally face-ground. Unit Quantity: 1 Pc.

Decoding the designation:

7 — single-row angular contact ball bearing.

2 — RHP dimension series 2, ISO series 02.

06 — bore code 06, a 30 mm bore.

C — 15° contact angle. The carton’s B-series code X2 and the leading 2 of the Fafnir number 2MM206WI both state the same 15°.

T — machined cage in laminated phenolic resin, outer-ring guided. The Fafnir-scheme cage code CR on the same carton is the same laminated phenolic.

SU — single universal face control. Inner and outer rings are ground to equal width, so two bearings mount back-to-back, face-to-face or in tandem without custom-ground spacers.

H — heavy preload, the highest of RHP’s four standard levels. The B-series UH and the Fafnir SUH on the carton both state heavy preload.

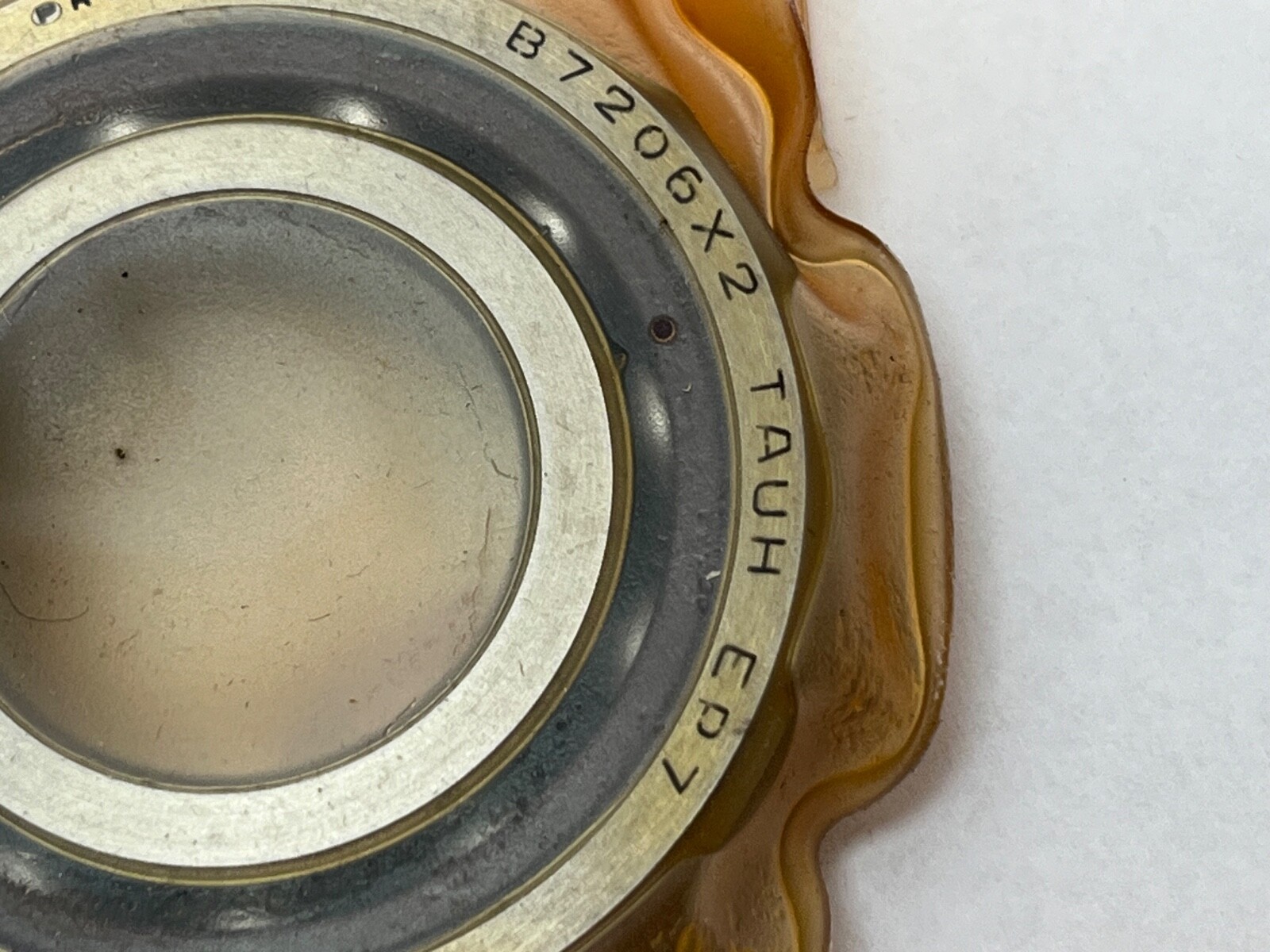

P4 — RHP precision grade P4, ABEC 7. The carton’s EP7 marking is the British Standards form of the same grade.

Specifications:

Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7200. Base Number: 7206. Precision Class: ABEC 7 / P4. Preload: Heavy (H). Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent. Lubricant: Grease or oil. Dynamic Load Rating: 23,000 N. Static Load Rating: 14,700 N. Limiting Speed: 24,200 rpm grease; 39,200 rpm oil. Max temp: 120 °C. Item Weight: 0.194 kg (0.43 lb). Running Accuracy: inner ring radial runout Kia 2.5 µm max; outer ring radial runout Kea 5 µm max.

Dimensions and mounting:

Shaft abutment diameter d1: 36 mm minimum. Abutment diameter D1: 56 mm maximum. Abutment diameter D2: 57 mm maximum. Chamfer dimension r: 1.0 mm minimum. Chamfer dimension r1: 0.6 mm minimum. Effective load centre a: 14.2 mm. Internal free volume: 8.8 cm³. Pitch circle diameter for lubrication jets: 42.4 mm. Mounting Arrangement: single bearing, universally face-ground for paired or multiple-set mounting. Paired axial preload at heavy setting: 590 N. Paired axial stiffness at heavy setting: 94 N/µm.

Compatibility and replacement:

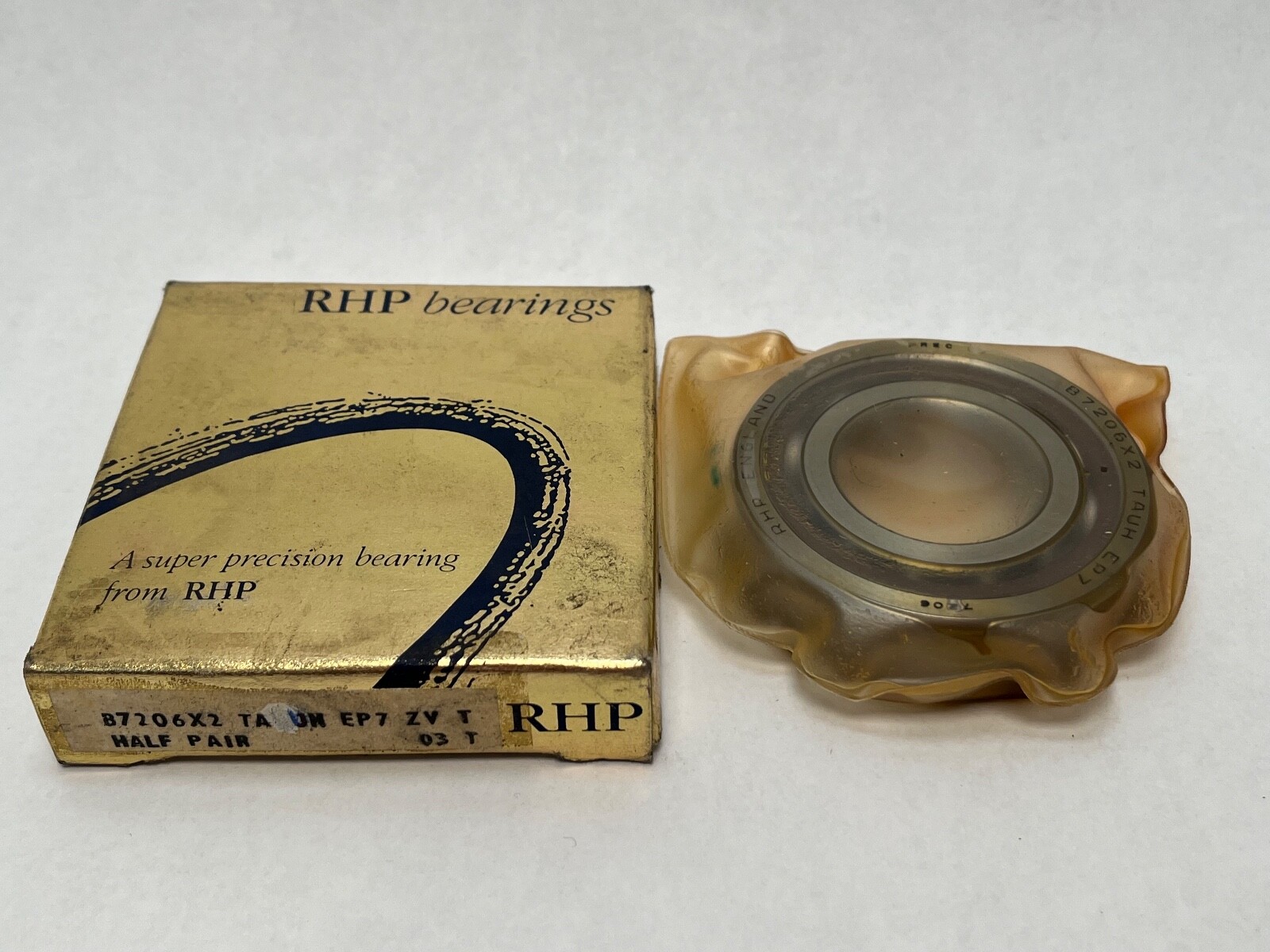

Cross-references at the heavy preload level: SKF 7206 CD/P4A, FAG B7206-C-T-P4S, NSK 7206CTRSUHP4, NTN 7206C/GNP4, Koyo 7206C/GNP4, Timken/Fafnir 2MM206WICRSUH, SNR 7206CVUJ84. The carton also carries the RHP B-series marking B7206X2TAUHEP7.

Frequently asked questions:

What are the size and contact angle?

Bore 30 mm, outside diameter 62 mm, width 16 mm, contact angle 15°.

What preload does it have?

Heavy preload (H), giving 590 N axial preload and 94 N/µm axial stiffness in a back-to-back pair.

What are the load ratings and limiting speed?

Dynamic Load Rating 23,000 N, Static Load Rating 14,700 N, Limiting Speed 24,200 rpm grease and 39,200 rpm oil.
