NHBBME-1206DLSuper-Precision Angular Contact Spindle Bearing – 30 mm ID, 62 mm OD, 16 mm Width, Open, 15° Contact Angle, Light Preload, ABEC 7

Product Description

What this part is:

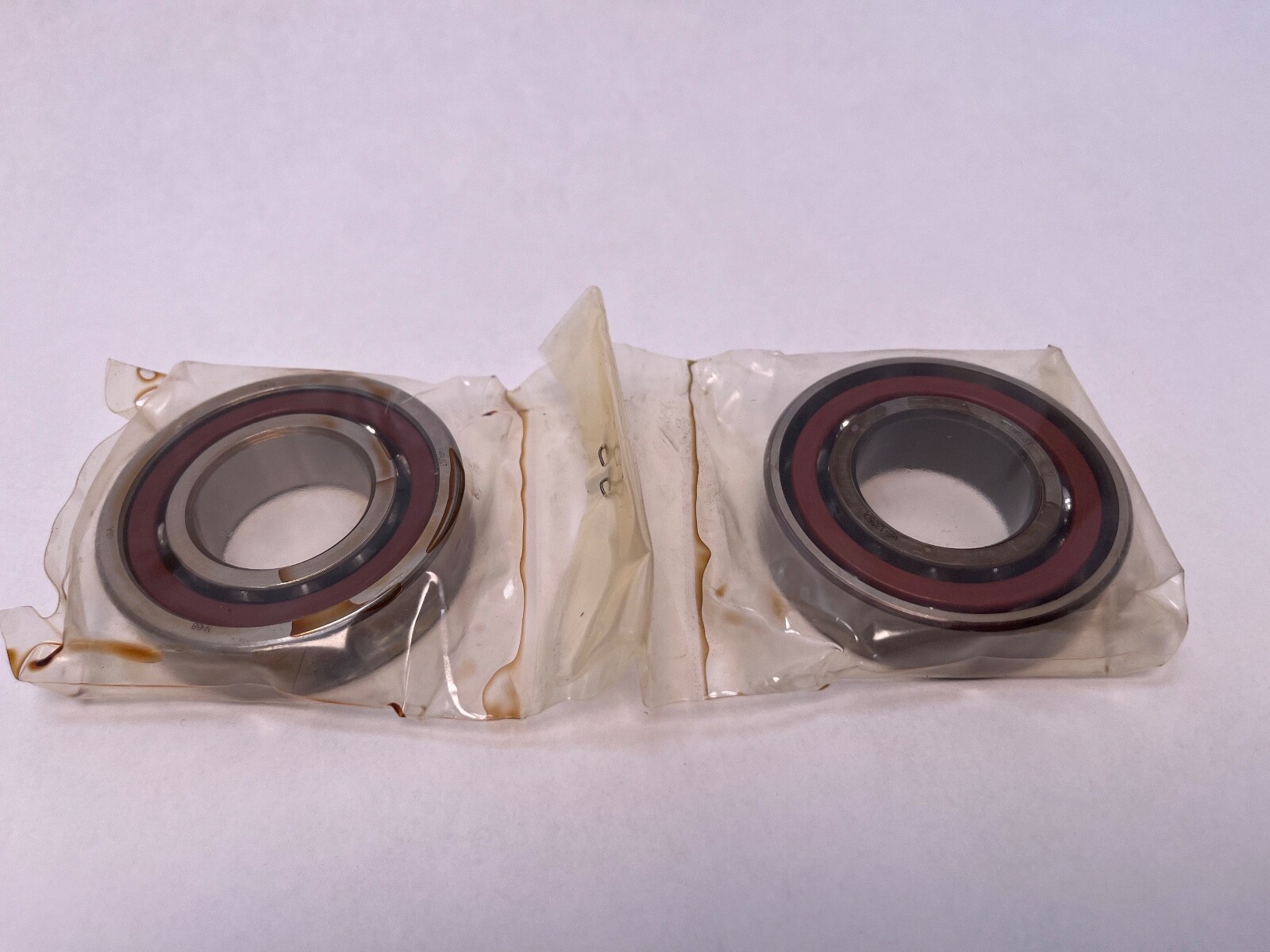

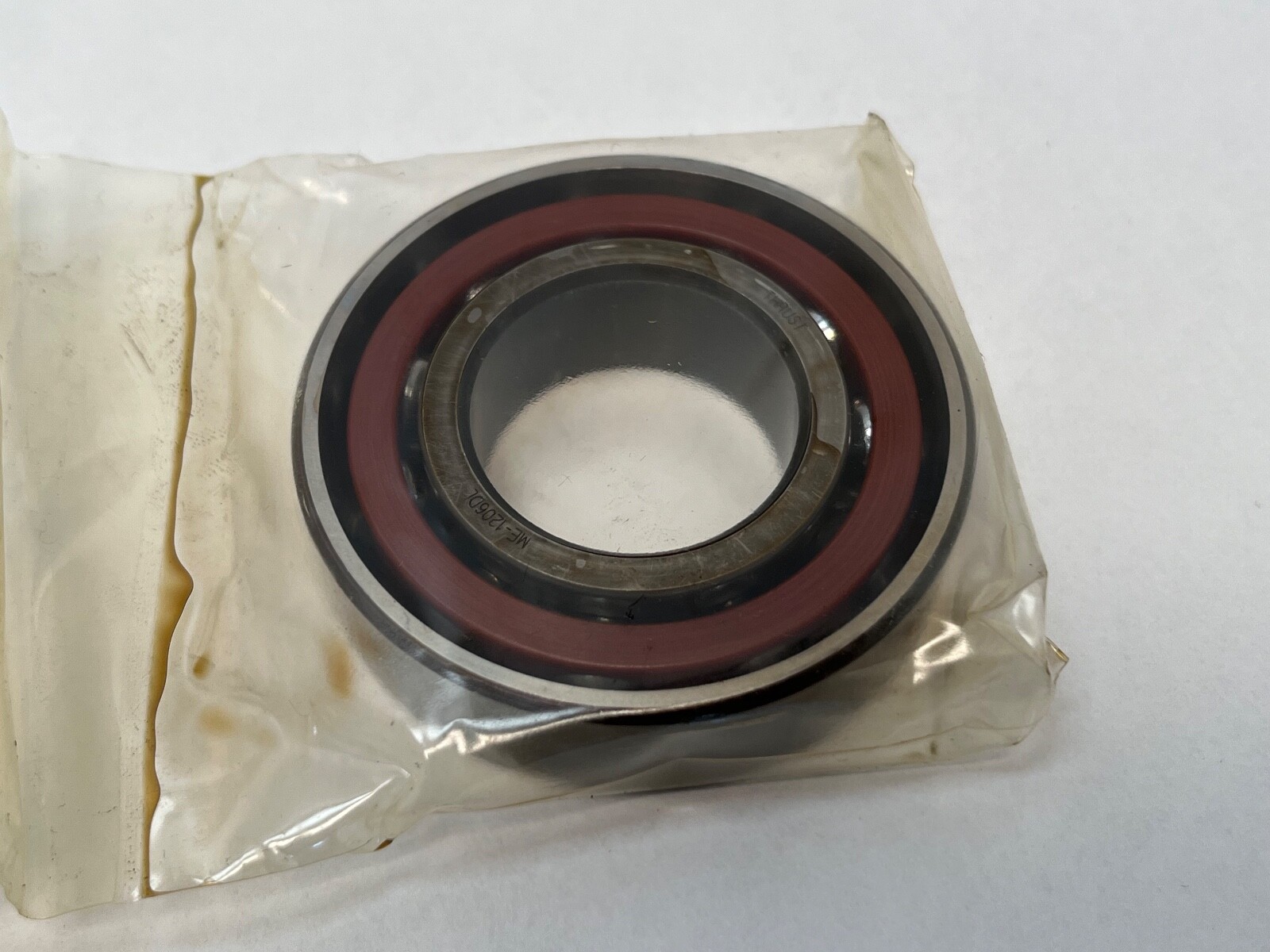

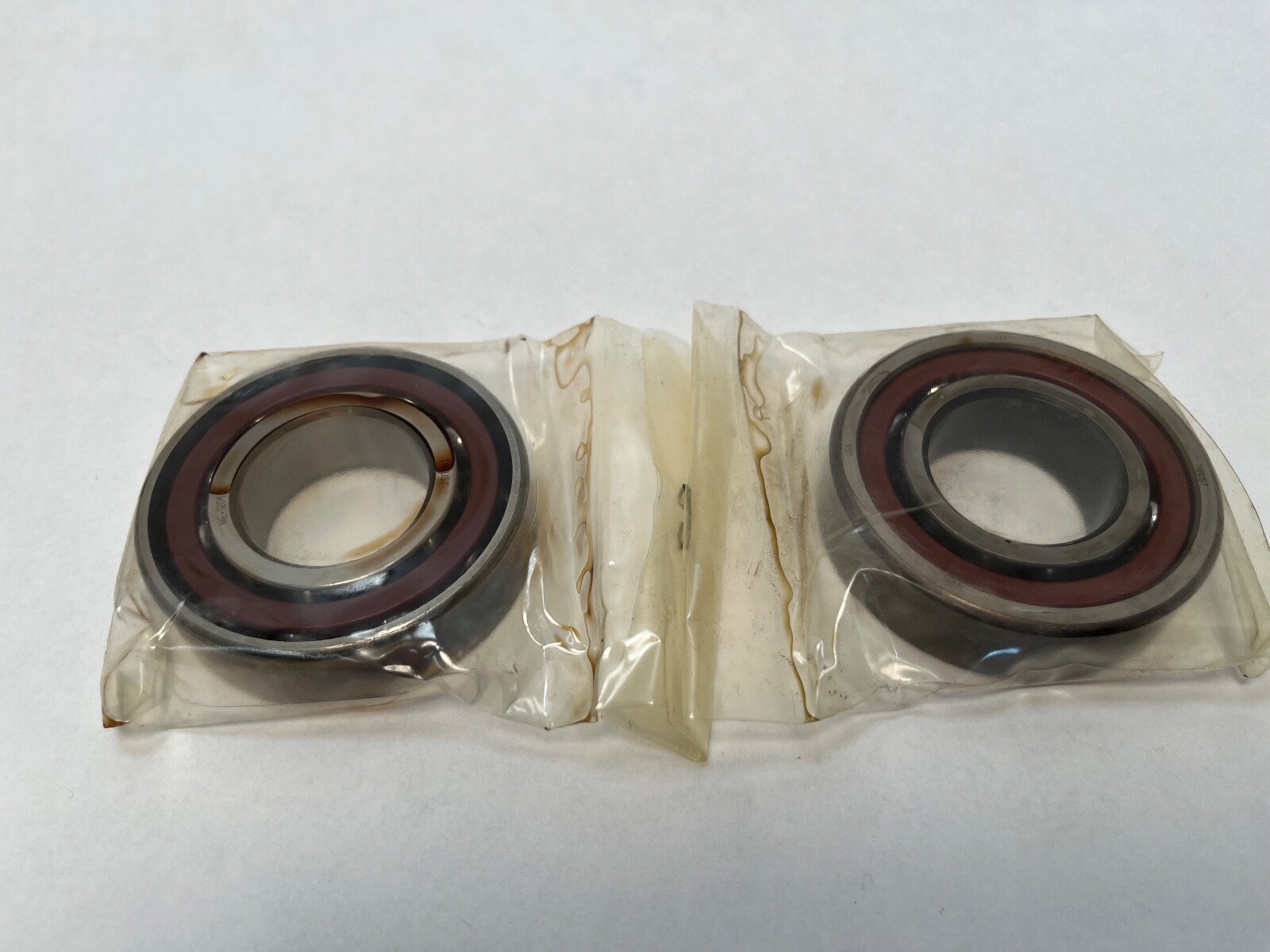

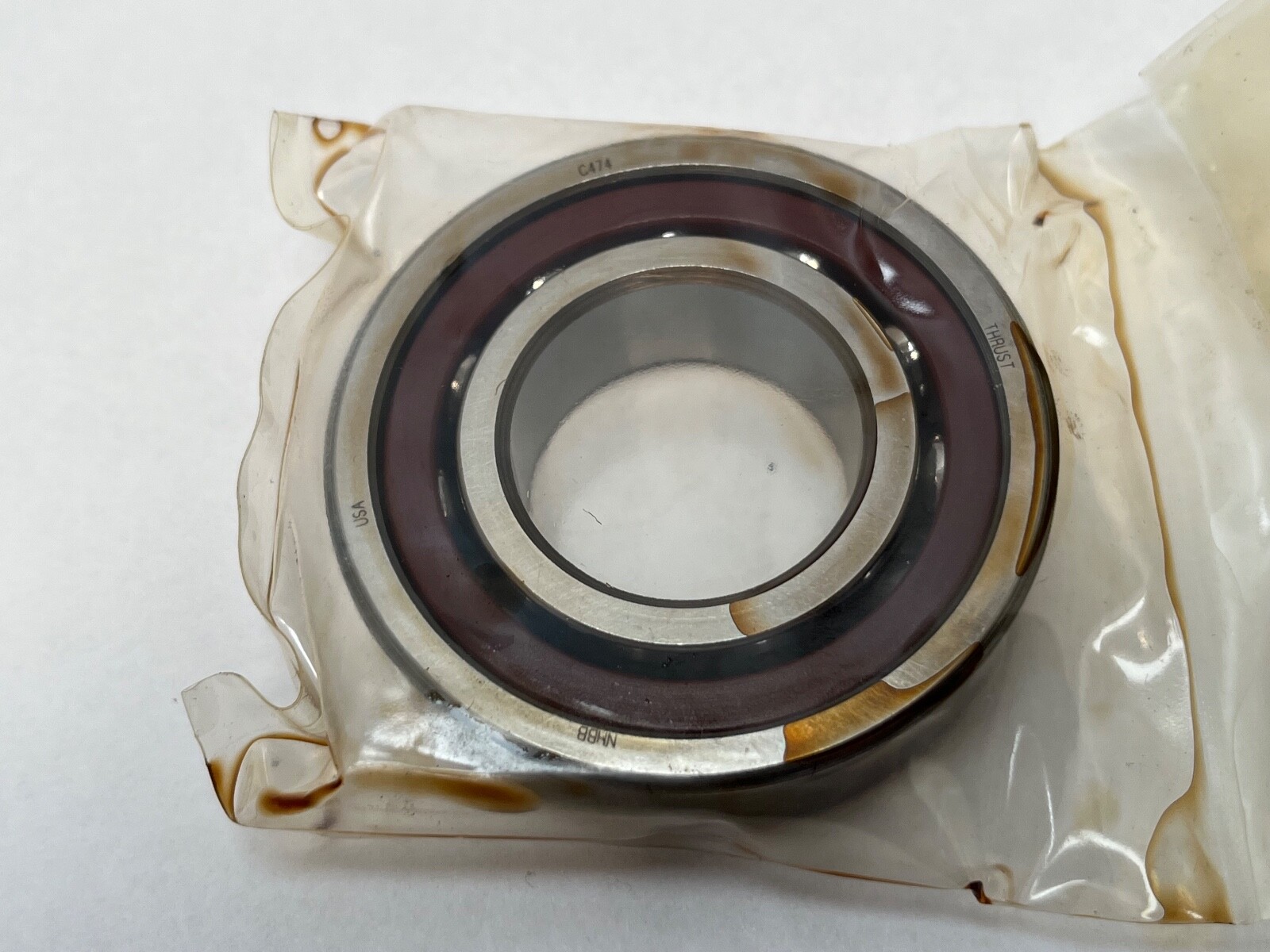

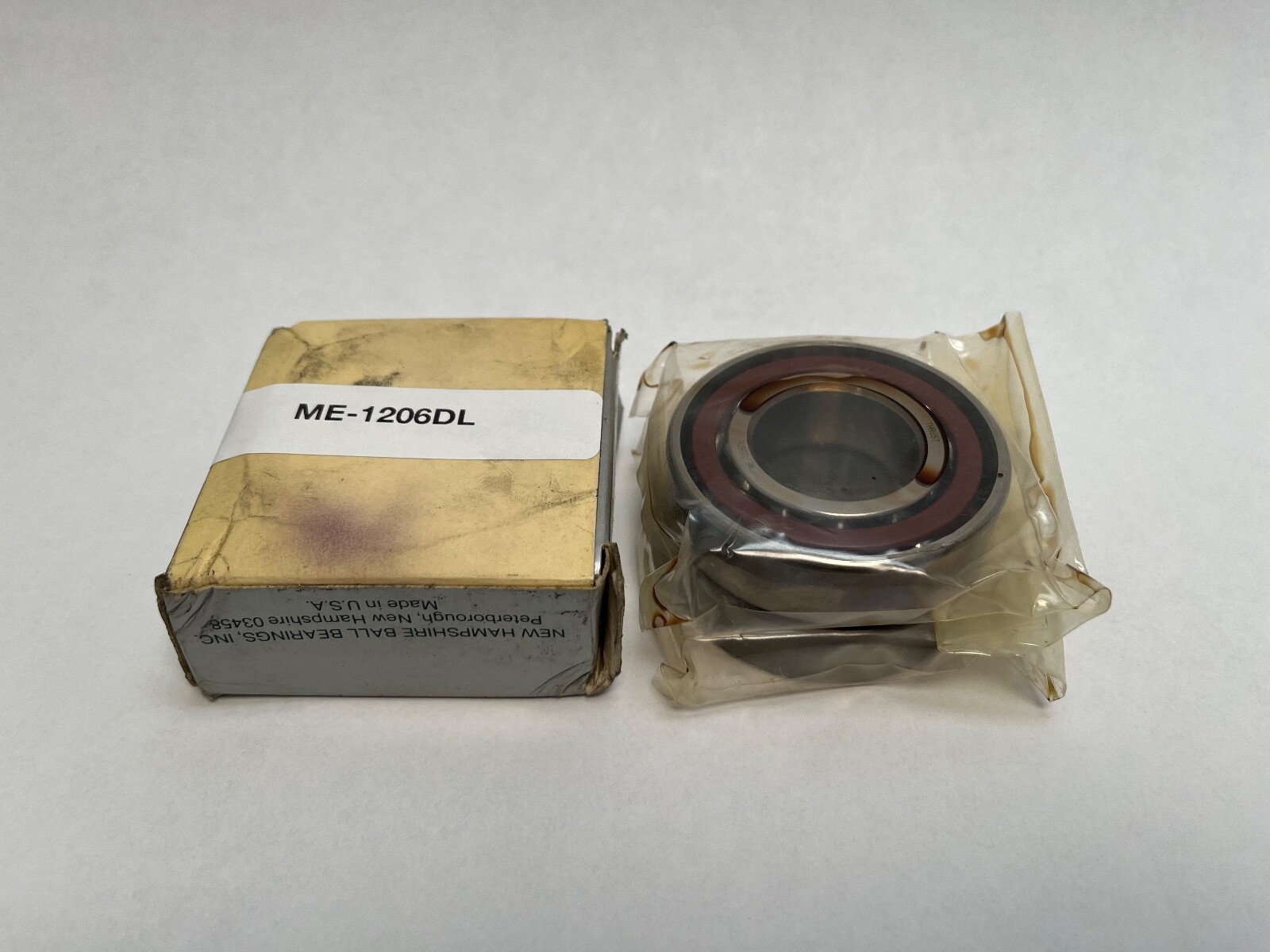

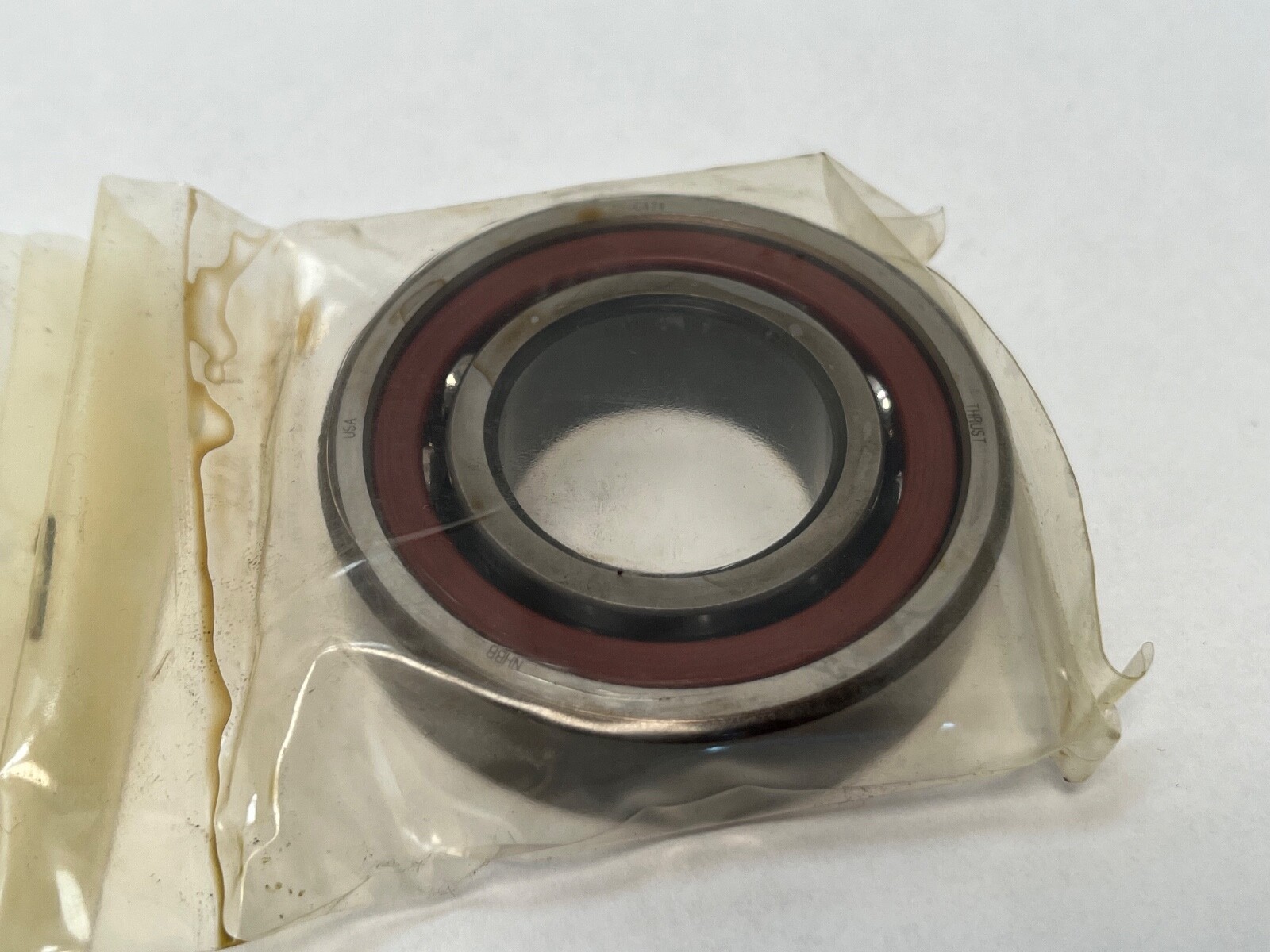

NHBB ME-1206DL matched duplex pair, 2 Pcs, of super-precision angular contact spindle bearings. Each bearing has a 30 mm bore, a 62 mm outside diameter and a 16 mm width, giving a 32 mm stack height for the pair. The ME-1206 size maps to the 7206 envelope. Open on both faces, steel balls.

Decoding the designation:

ME — NHBB metric spindle bearing series.

1206 — 7206 envelope: 30 mm bore, 62 mm OD, 16 mm width.

D — duplex, universally ground.

L — light preload.

Specifications:

Bore Diameter: 30 mm (1.1811 in). Outside Diameter: 62 mm (2.4409 in). Overall Width: 16 mm (0.6299 in) per bearing. Total Width: 32 mm (1.2598 in) as a pair. Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7 / P4. Number Of Rows: 1 per bearing. Rolling Elements: Steel balls. Closure Type: Open. Mounting Arrangement: Duplex, universally ground. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Envelope: 30 x 62 x 16 mm per bearing, 32 mm stacked as a pair. The pair mounts with the ground faces butted and the inner rings clamped, so the built-in ring-face offset develops the light preload. The two bearings are a matched set.

Compatibility and replacement:

15° ABEC 7 universally ground light-preload pairs in the 30x62x16 mm size: FAG 7206-C-TPA-P4-DUL, NSK 7206CTRDULP4, RHP 7206CTDULP4 and Fafnir 2MM206WI-DUL. SKF 7206 CD/P4ADGA is the SKF form at extra light preload. The 25° build of this size and medium or heavy preload versions are related sizes. Other written forms: ME1206DL, ME 1206 DL, ME-1206-DL, ME1206.

Frequently asked questions:

What contact angle and preload does the NHBB ME-1206DL have?

15° contact angle and light preload; the L in the designation is the light preload code.

How many bearings are in the NHBB ME-1206DL set?

2 Pcs, a matched duplex pair, each 30 mm bore, 62 mm outside diameter and 16 mm wide, 32 mm stacked.

What does the D in the NHBB ME-1206DL mean?

D is duplex, universally ground, so the two bearings are ground to be mounted together in a set.
