NHBBME-1201DMAngular Contact Ball Bearing – 12 mm ID, 32 mm OD, 10 mm Width, Open, 15° Contact Angle, Medium Preload, P4

Product Description

What this part is:

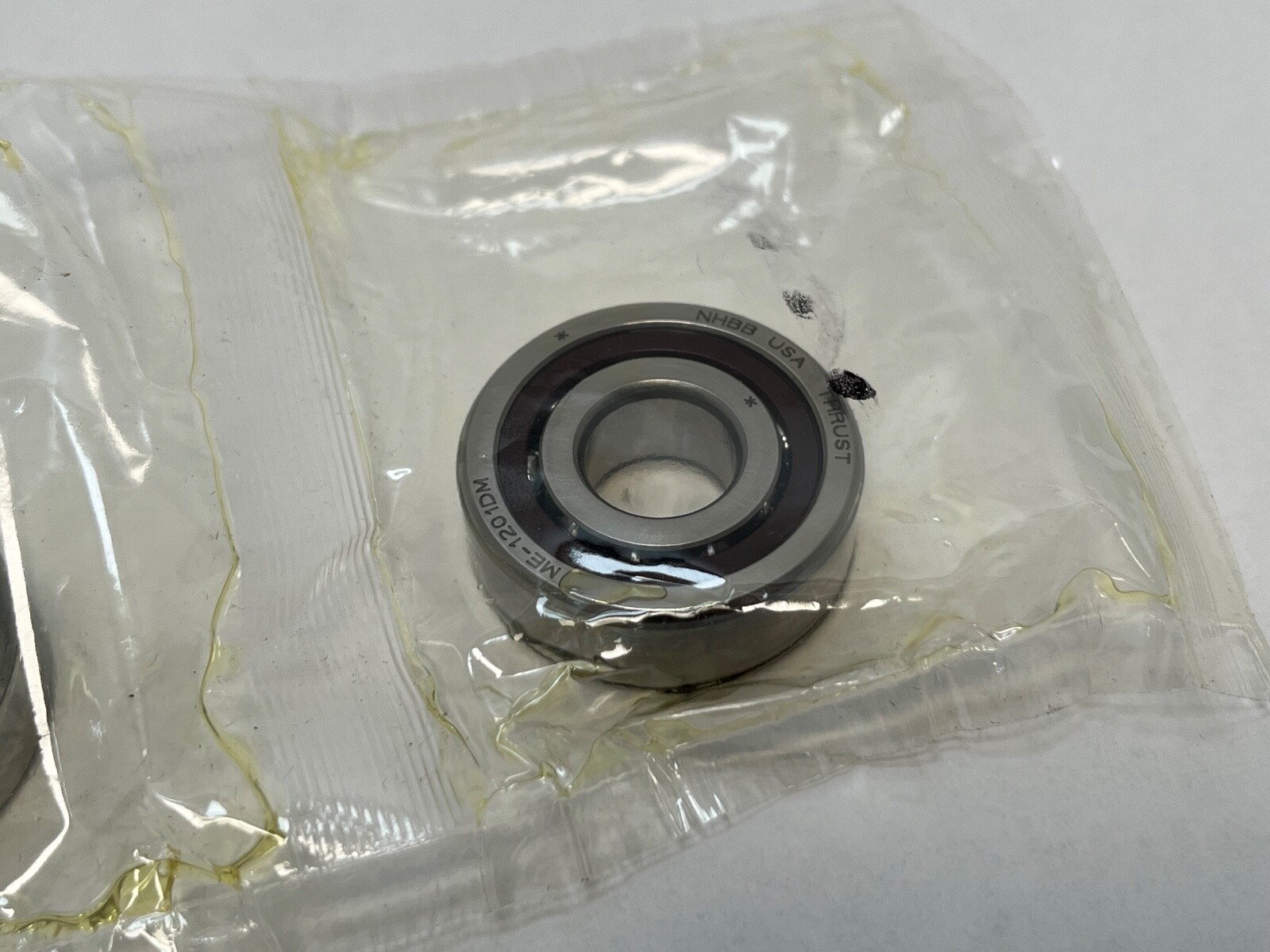

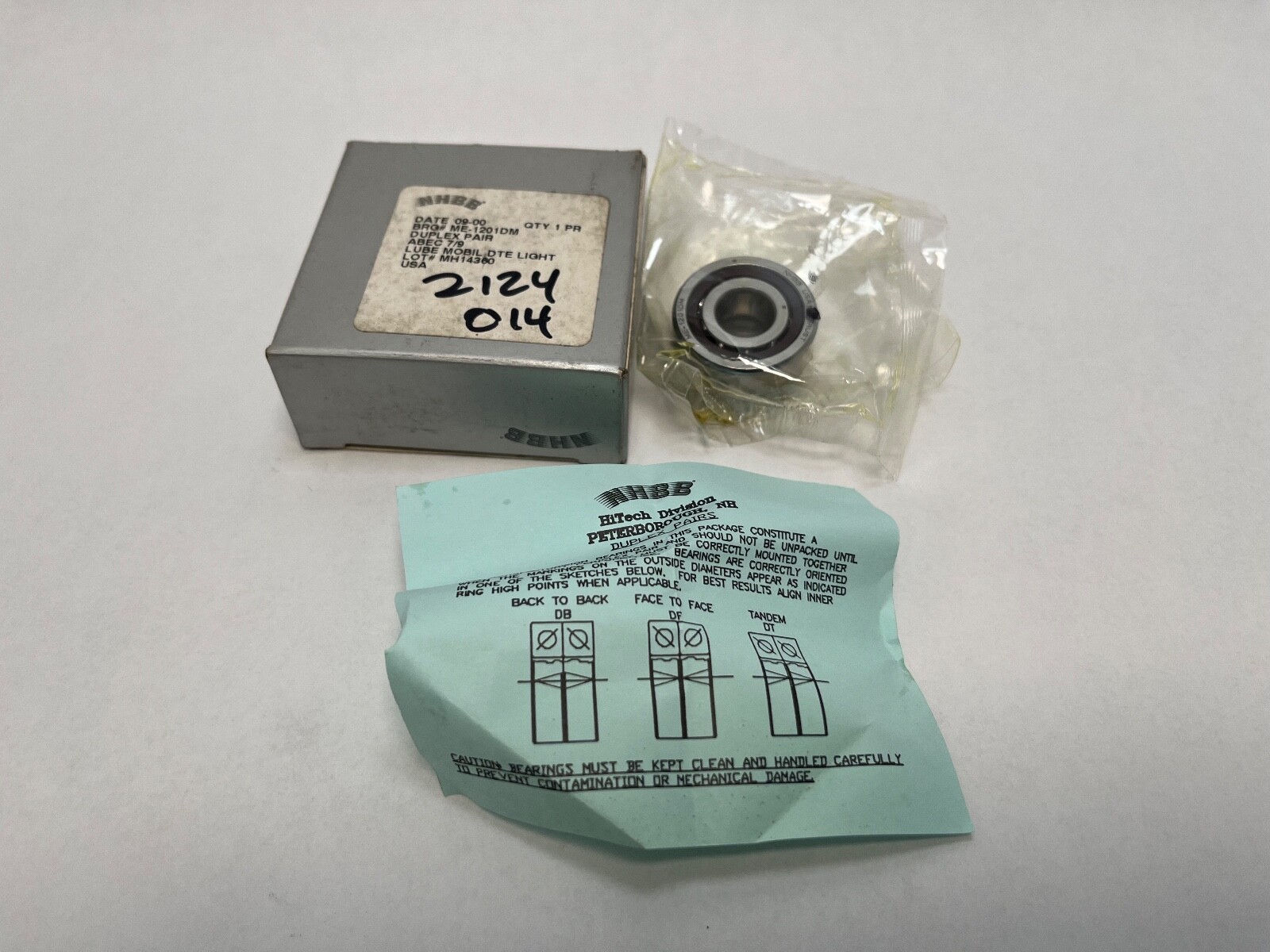

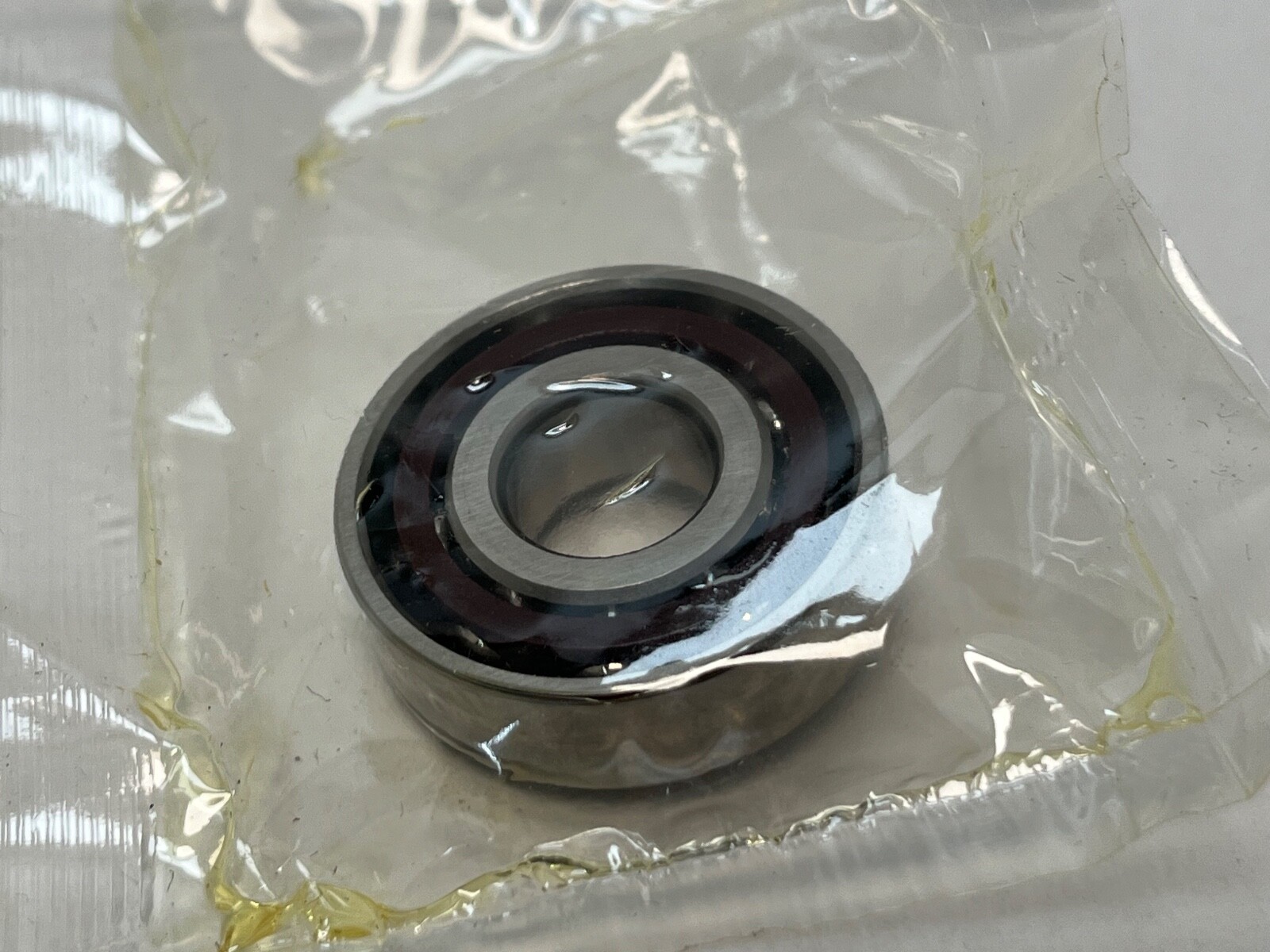

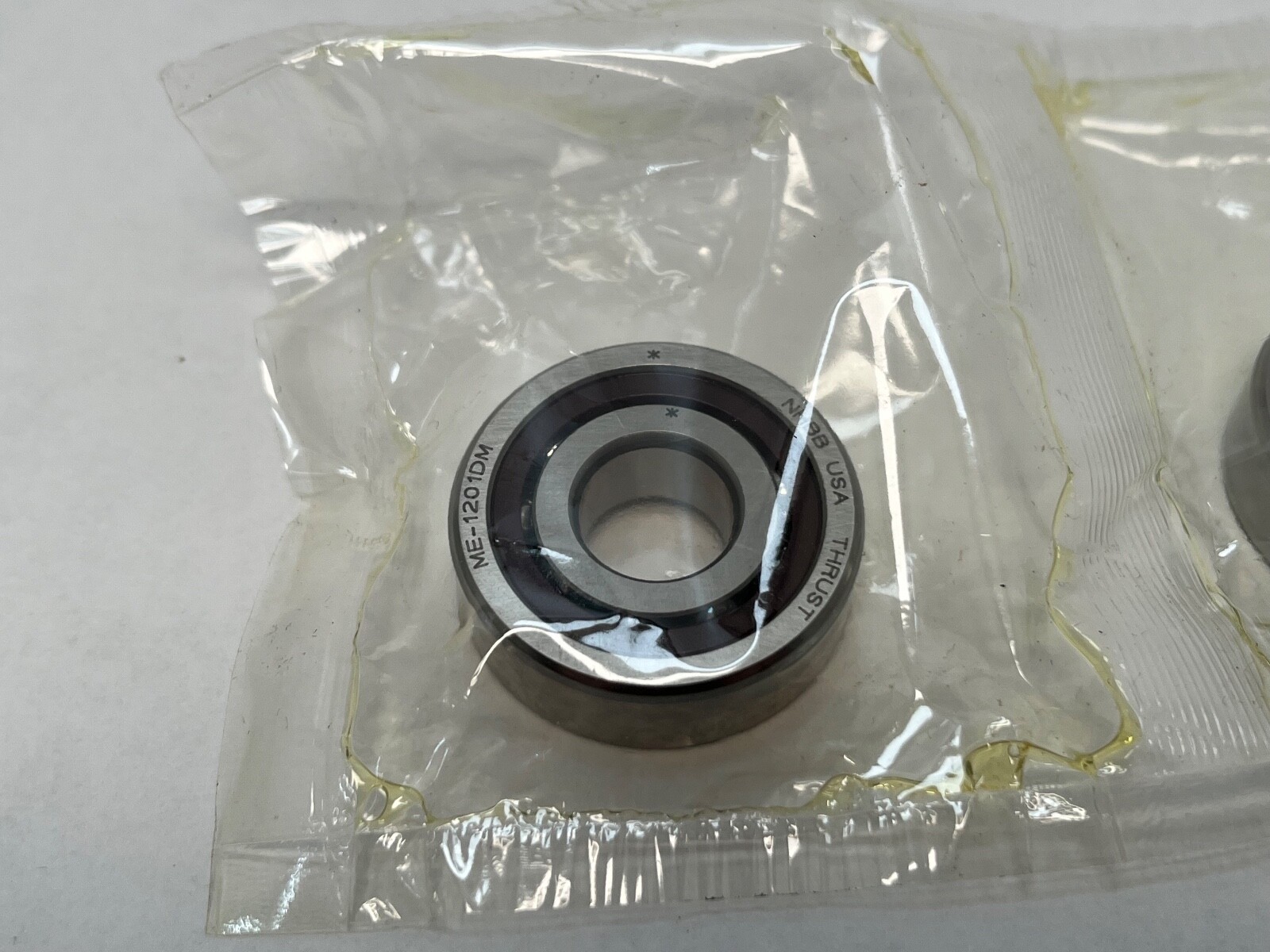

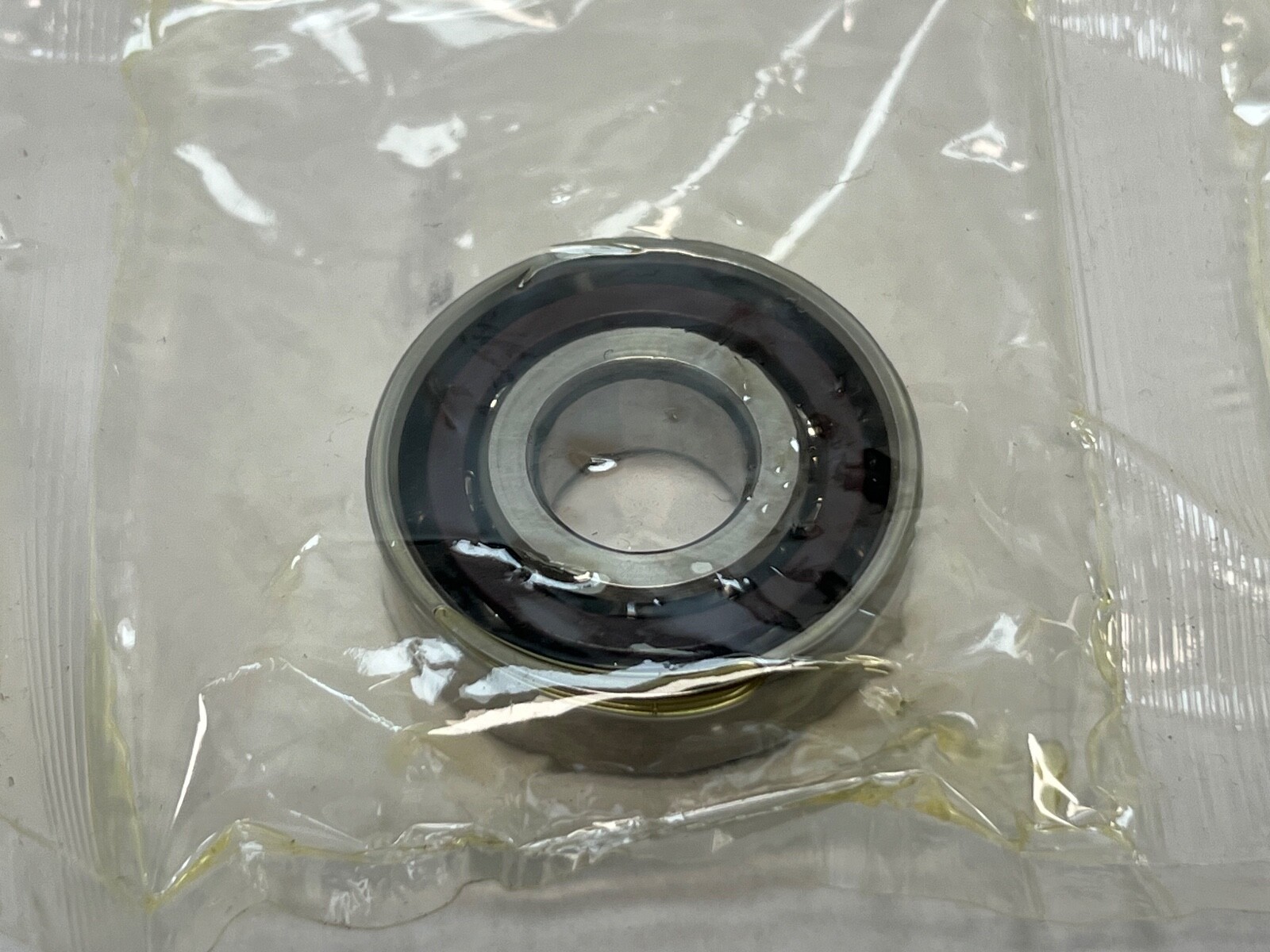

NHBB ME-1201DM is an angular contact ball bearing supplied as a duplex pair (Unit Quantity: 2 Pcs), cross-marked 7201-C-TPA-P4-DUM and 2MM201WI CR DUM. Bore Diameter: 12 mm. Outside Diameter: 32 mm. Width: 10 mm. Contact Angle: 15°. Closure Type: Open. Rolling Elements: Ball. Bearing Material: Chrome steel. Precision Class: P4.

Decoding the designation:

7201 — ISO 7201 size, 12 x 32 x 10 mm.

C — 15° contact angle. The Fafnir cross-mark 2MM201WI carries the same 15° angle in its 2MM prefix.

P4 — ISO Class 4 precision.

DUM — duplex, universally ground, medium preload.

Specifications:

Precision Class: P4. Preload: Medium. Series: 7200. Unit Quantity: 2 Pcs. Harmonization Code: 8482.10.50.

Dimensions and mounting:

Bore Diameter: 12 mm. Outside Diameter: 32 mm. Width: 10 mm.

Compatibility and replacement:

Cross-references: 7201-C-TPA-P4-DUM and Fafnir 2MM201WI CR DUM are the duplex medium-preload designations carried on the same carton markings.

Frequently asked questions:

What size is the NHBB ME-1201DM?

Bore 12 mm, outside diameter 32 mm and width 10 mm, the ISO 7201 size.

How many bearings are supplied?

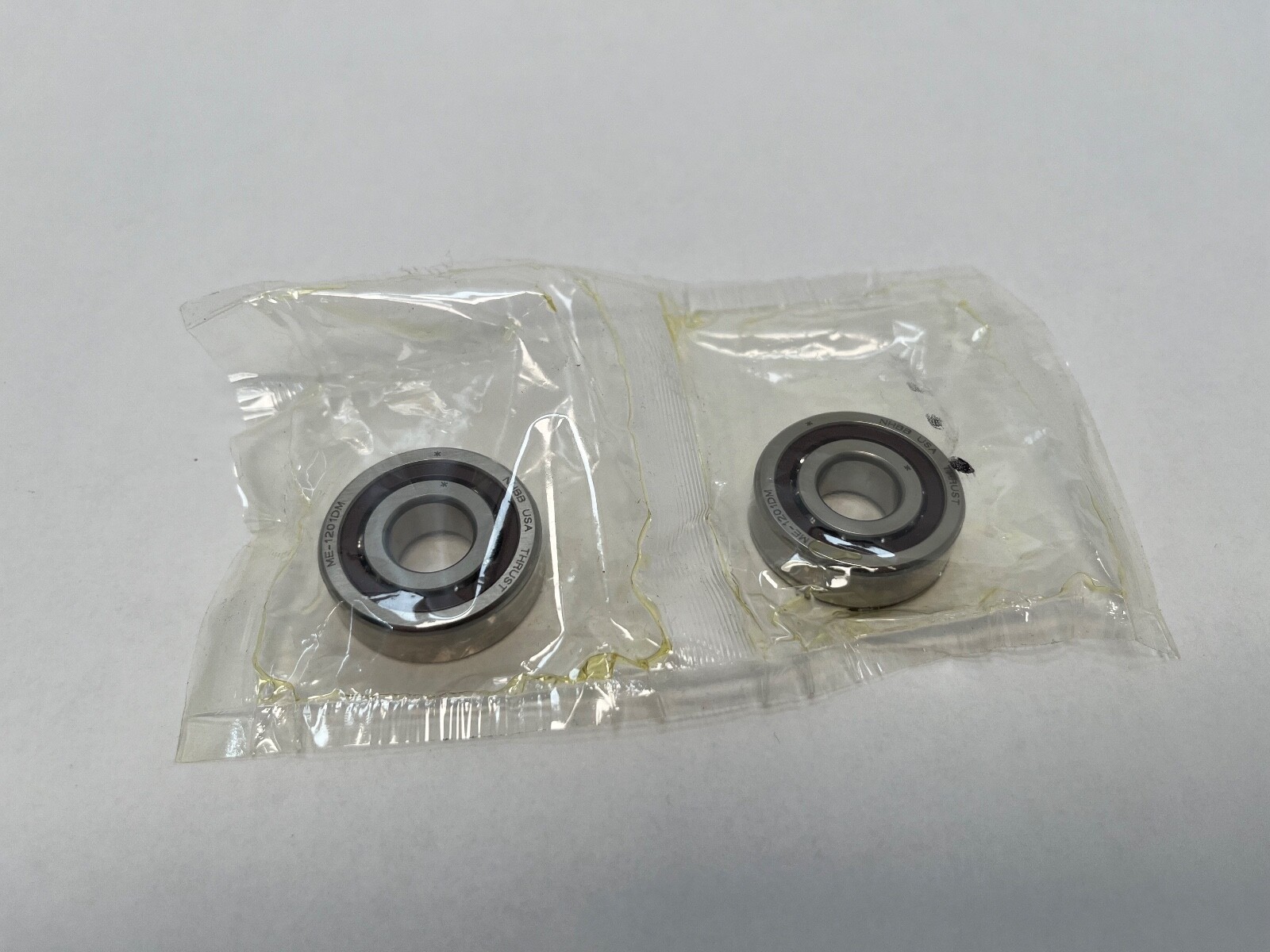

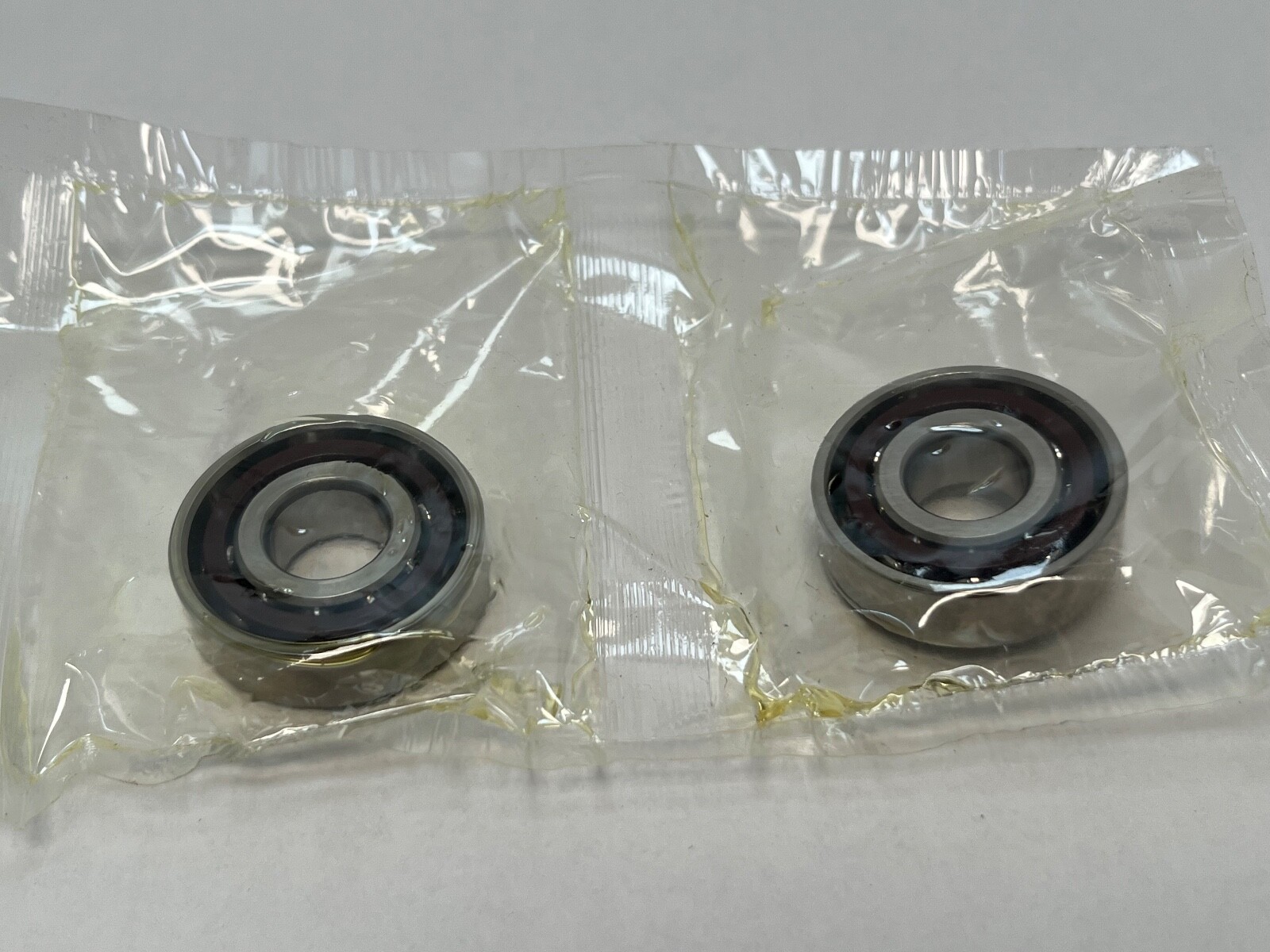

Two bearings, a duplex pair (Unit Quantity: 2 Pcs).

What contact angle and precision class does it have?

15° contact angle and P4 precision.
