Availability:
2 in stock
Flanged cup for through-bored housings, 3.996 in flange outside diameter, 0.1875 in flange width, 0.7018 in ring width, e factor 0.35, K factor 1.65.
List Price
$73.96
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 382B-0 |
| GTIN | 053893018560 |
| Model | 382 B 0 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.8125 in |
| Condition | New |
|---|---|
| Series | 380 |
| Base Number | 382 |
| Overall Width | 0.7018 in |
| Flange Outer Diameter | 4.0300 in |
| Cup Flange Width | 0.1250 in |
| Mpn Variants | 382B; 382-B; 382 B; 382B0 |
| Compatible With Replaces | Mating cones Timken 385A, 385AX |
| Precision Class | Not specified |
| Material | Case-Carburized Steel |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.80 kg (1.70 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 382-B |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 0.7018 in |
| Cup Backface To Clear Radius | 0.03 in |
| Cup Frontface Backing Diameter | 3.74 in |
| Cross Reference 1 | SKF 382B |
|---|---|
| Cross Reference 2 | NTN 4T-382B |
| Cross Reference 3 | Koyo 382B |
| Cross Reference 4 | Fersa 382B |
| Cross Reference 5 | BCA/Bower 382B |
| Cross Reference 6 | Timken 382 (related, unflanged) |

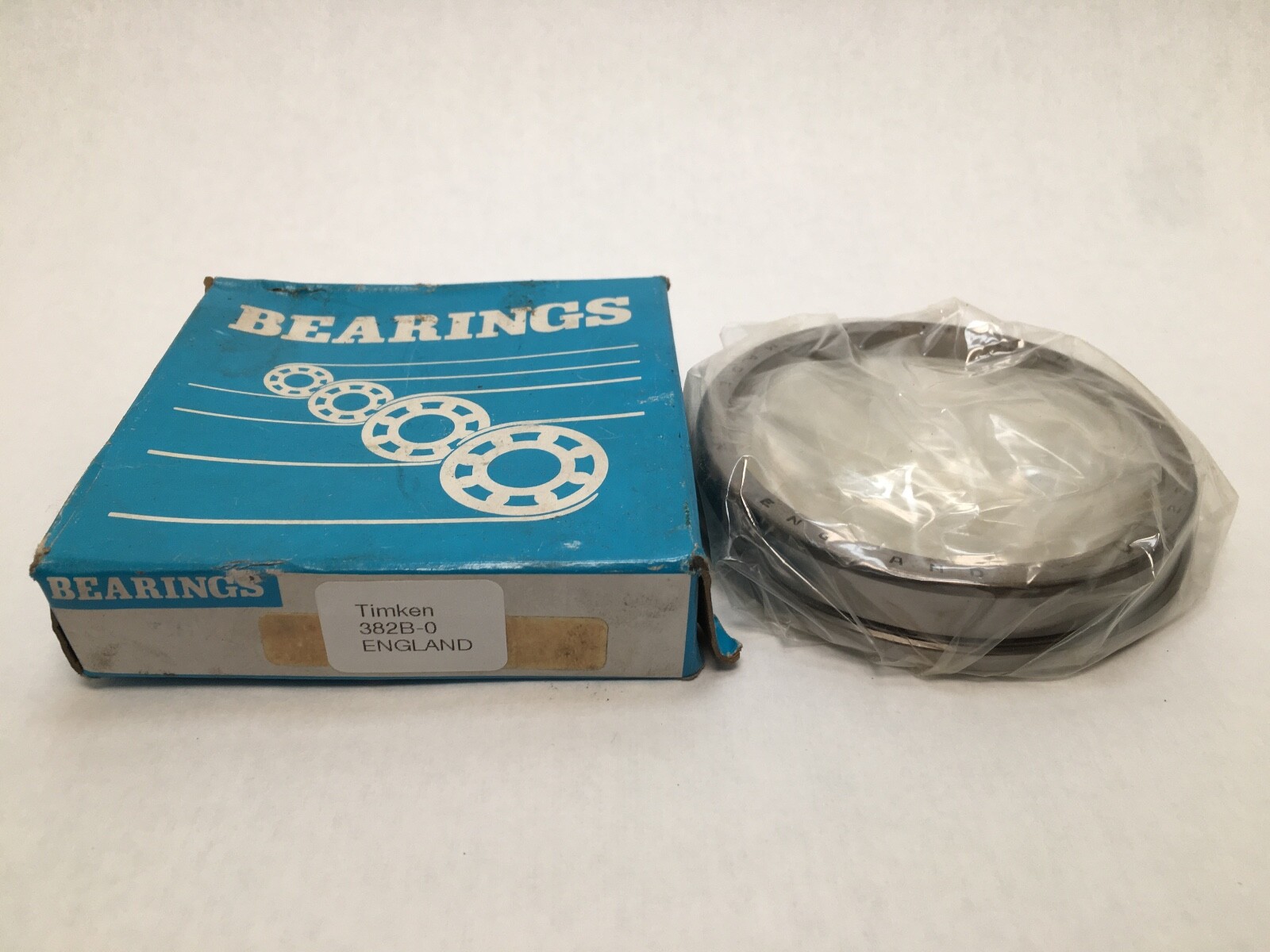

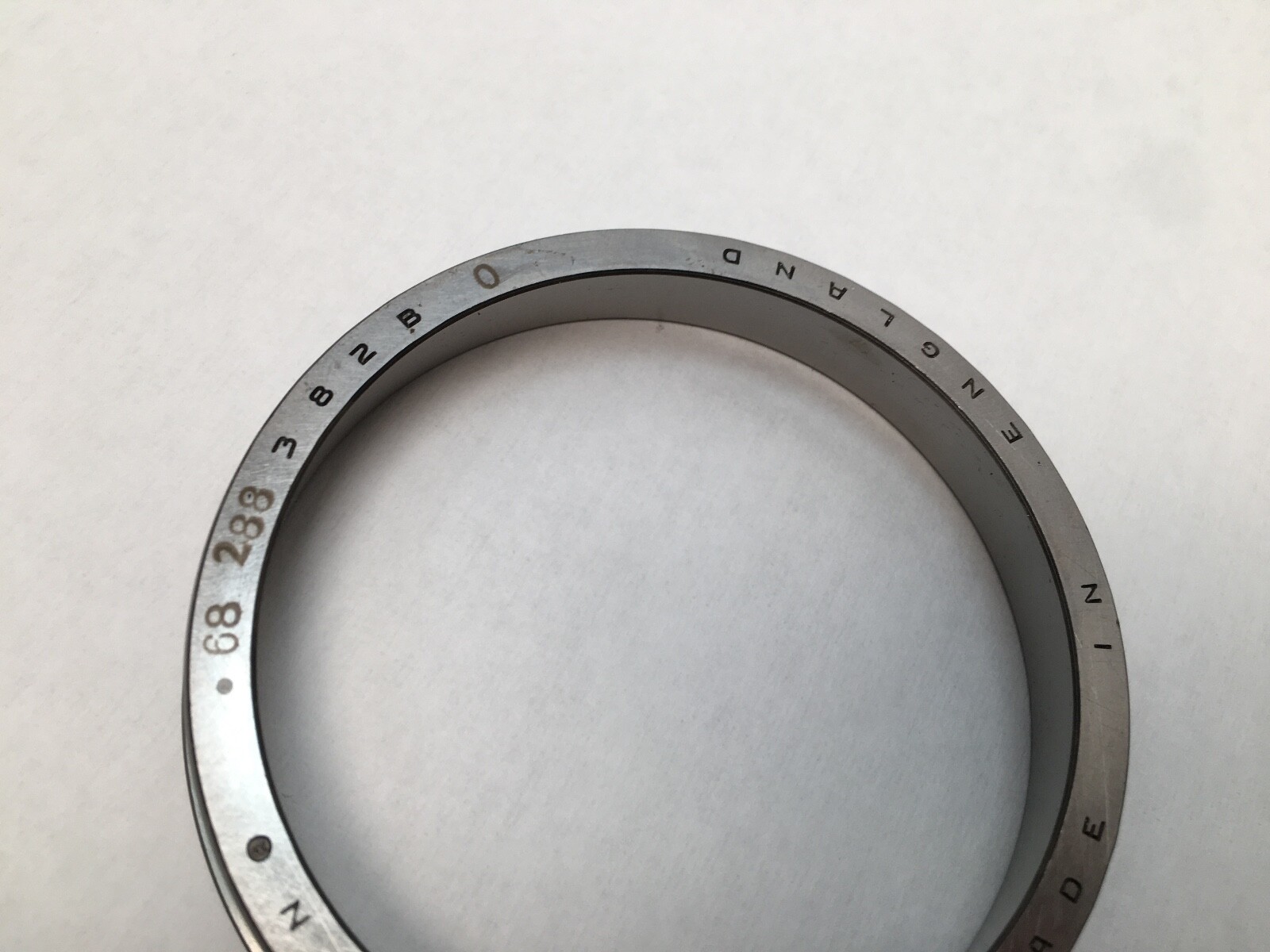

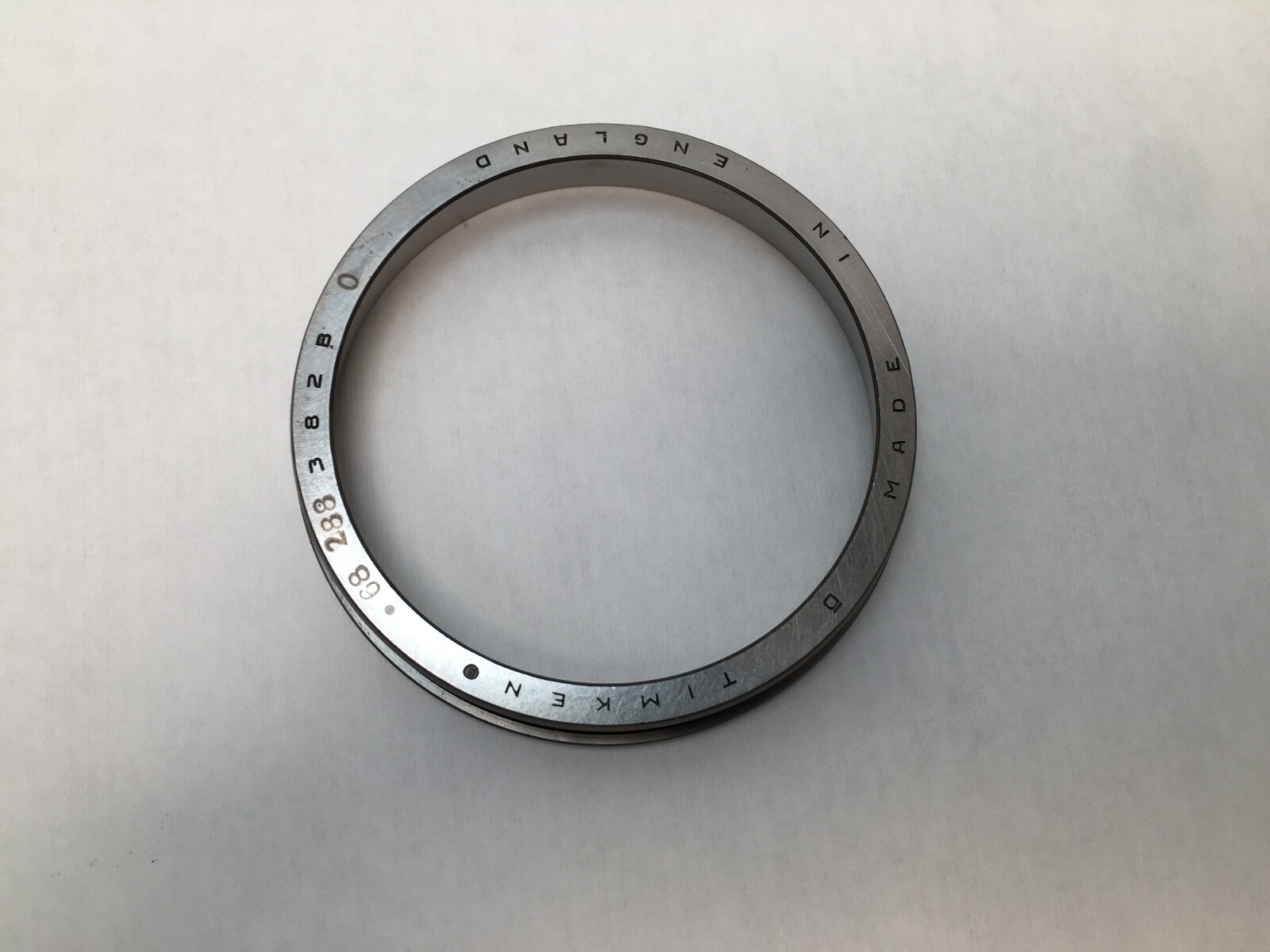

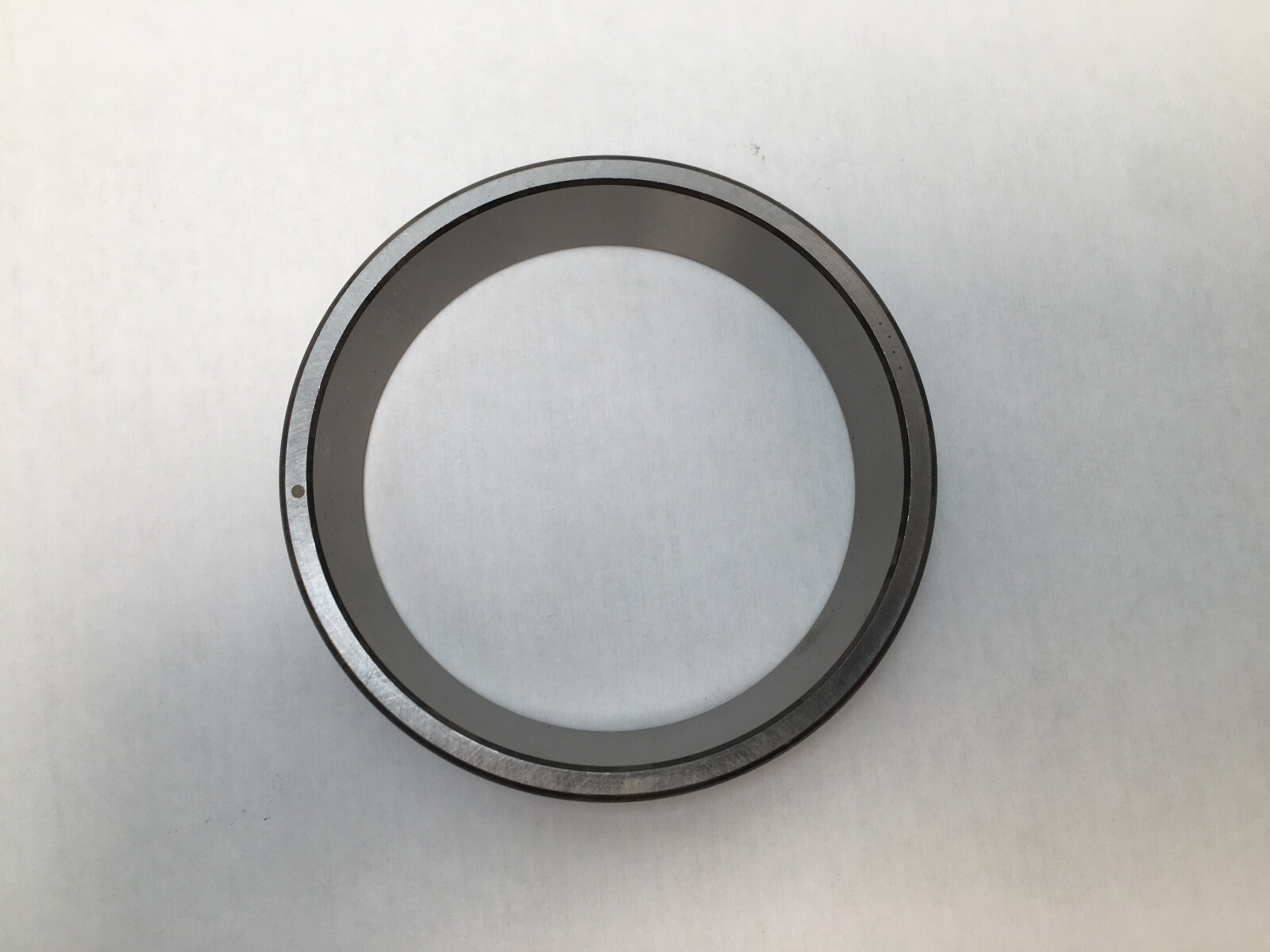

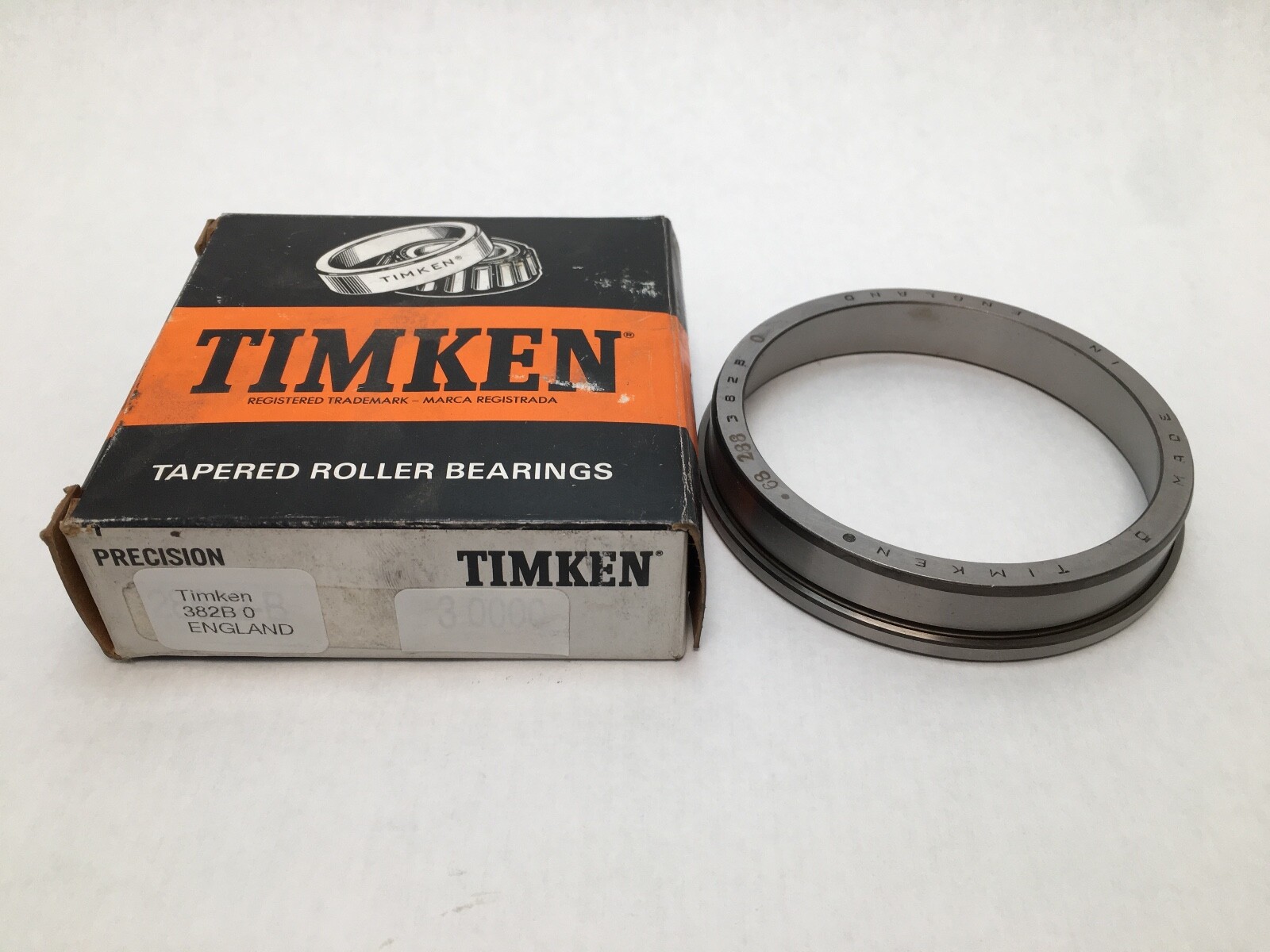

Timken 382-B inch tapered roller bearing single flanged cup, the outer race of a TSF single-row tapered set. Cup Part Number: 382-B. Base Number: 382. Series: 380. Design Units: Imperial. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bearing Material: Case-Carburized Steel. GTIN: 053893018560. The mating cones are the Timken 385A and 385AX.
382 — the cup number, fixing a 3.8125 in outside diameter and a 0.7018 in outer ring width.

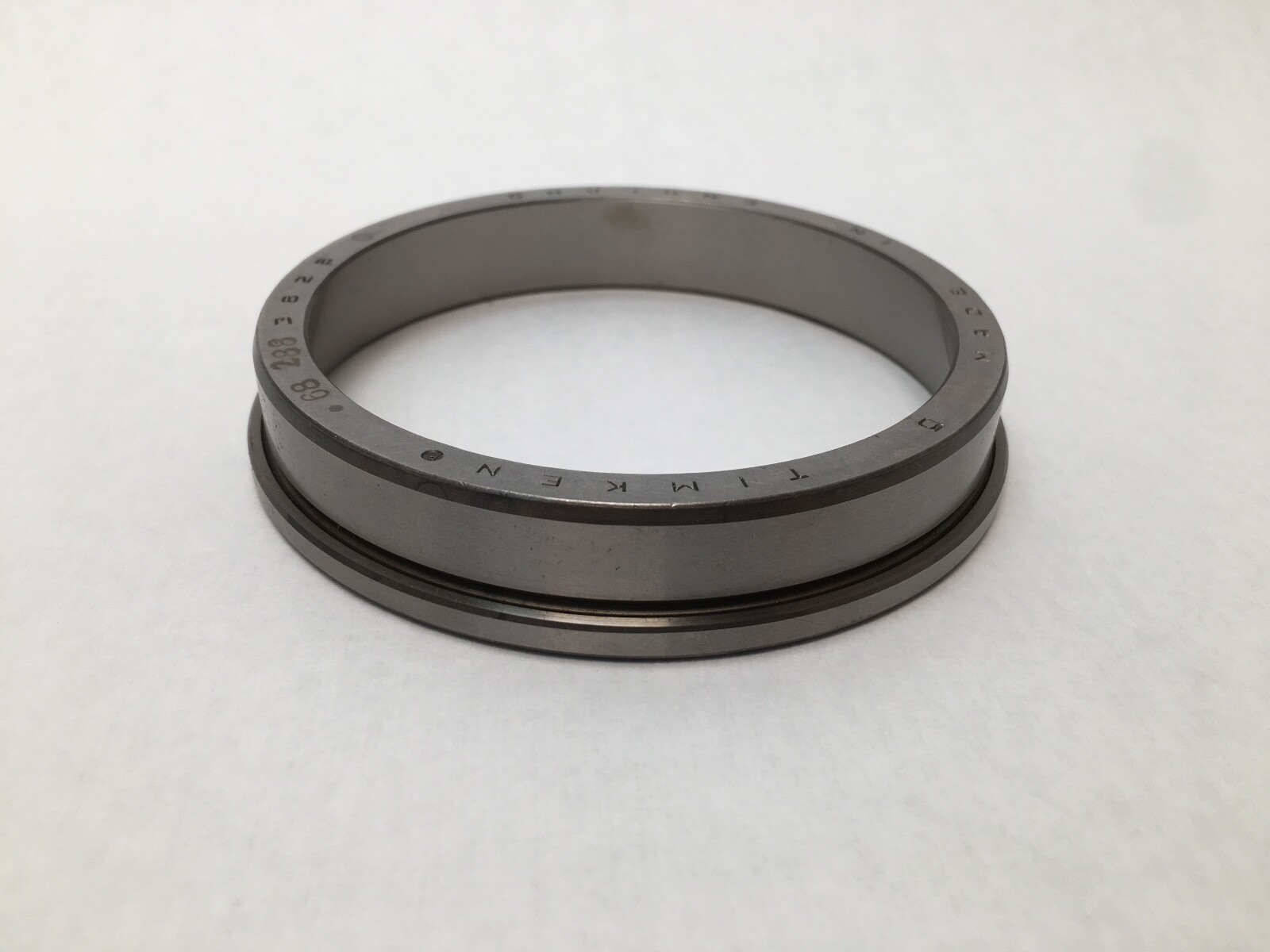

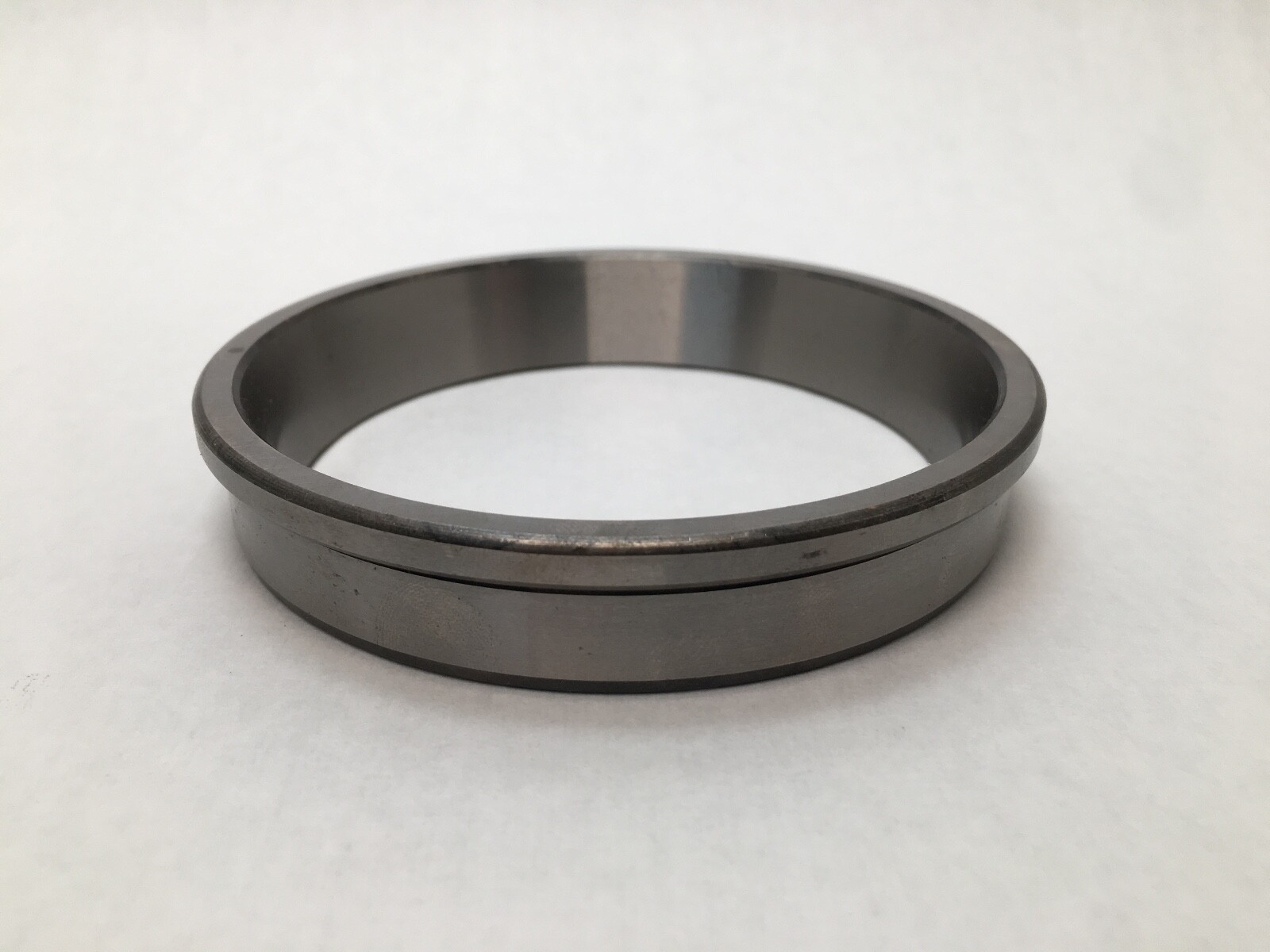

B — the flanged execution. An integral flange on the outer ring locates the cup axially against the housing face and squares a seal to the bore.
Precision Class: Not specified. The designation carries no precision suffix.
Outside Diameter: 3.8125 in (96.838 mm). Overall Width: 0.7018 in (17.826 mm). Outer Ring Flange Outside Diameter: 3.996 in (101.498 mm). Outer Ring Flange Width: 0.1875 in (4.763 mm). Item Weight: 0.80 kg (1.70 lb). Bearing Material: Case-Carburized Steel.
e Factor: 0.35. K Factor: 1.65. Y Factor: 1.69. Geometry Factor (Cg): 0.0859. A K factor of 1.65 puts this cup in the general-purpose range of the inch taper line, taking radial load with useful single-direction thrust capacity through the roller taper.
The TSF flange carries axial load into the housing face, so a plain through-bored housing locates the cup and gives a machined datum for a seal.
Maximum Housing Fillet Radius cleared by the bearing corner: 0.03 in (0.8 mm). Housing Backing Shoulder Diameter, frontface: 3.74 in (95 mm).
Unit Quantity: 1 Pc. Flanged cup. The mating cone is the Timken 385A or 385AX.
382B is an industry-standard inch flanged cup number, so the same designation carries across makers. SKF 382B. NTN 4T-382B. Koyo 382B. Fersa 382B. BCA/Bower 382B. The plain Timken 382 shares the raceway and the 3.8125 in outside diameter while locating without a flange, so it is a related size rather than an interchange.
Searchable designation variants: 382B, 382-B, 382 B, 382B0, flanged cup, TSF cup.
