Availability:
1 in stock

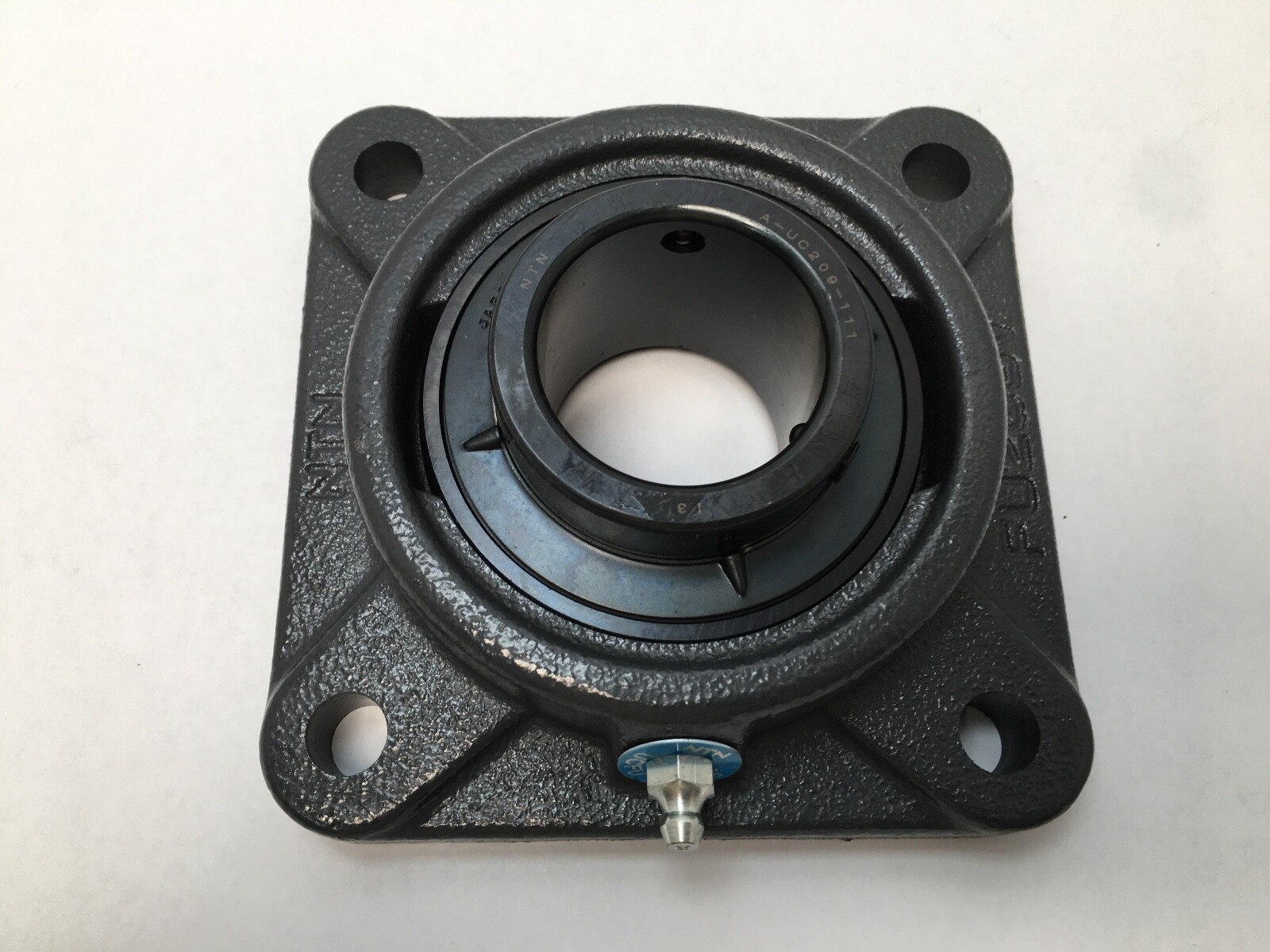

Four-bolt square flange ball bearing unit, 1-11/16 in bore, set screw, 32,500 N dynamic rating. NTN Ultra-Class UCFU-1-11/16, black oxide, 4.125 in bolt spacing.
List Price
$43.57
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | UCFU-1-11/16 |
| Model | UCFU-1-11/16M |
| ID | 1-11/16 in (42.863 mm) |
| Series | UCFU |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Material | Cast Iron |
| Bolt Center To Center | 4.125 in (104.8 mm) |
| Number Of Bolt Holes | 4 |
| Bolt Center To Center Length | 4.125 in (104.8 mm) |
| Number Of Bolt Holes For Fasteners | 4 |
| Mpn Variants | UCFU-1-11/16, UCFU-1-11/16M, UCFU1-11/16 M, UCFU-1.11/16M |
| Dynamic Load Rating | 32,500 N |
| Static Load Rating | 20,400 N |
| Rolling Elements | Ball |
| Bearing Type | 4-Bolt Flange Unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 3,500 rpm |
| Duty Type | Light Duty |
| Locking Device | Set Screw |
| Relubrication Feature | Relubricatable |
| Harmonization Code | 84832040 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | Dodge F4B-SC-111 |
|---|---|
| Cross Reference 2 | SealMaster SF-27 |

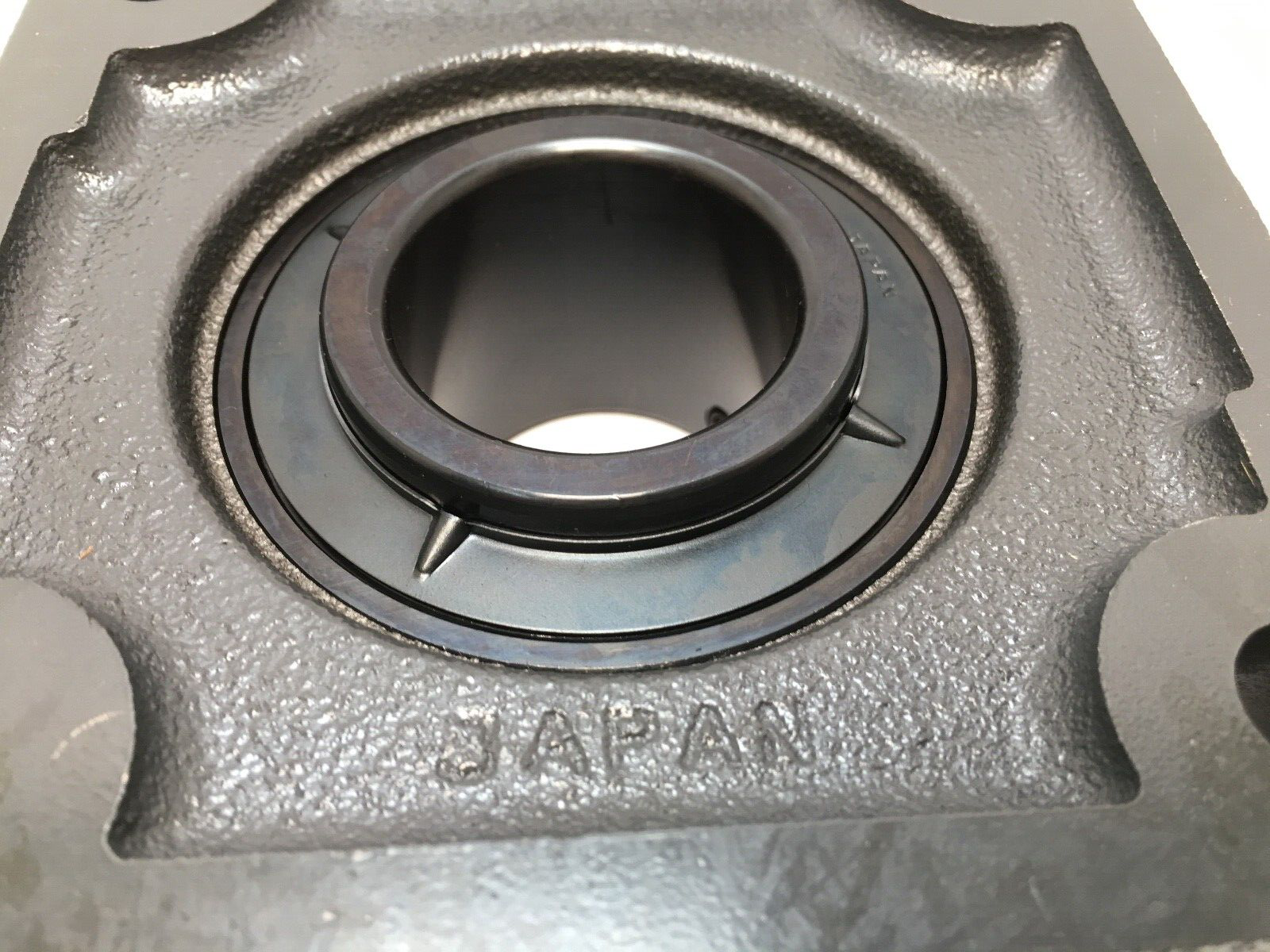

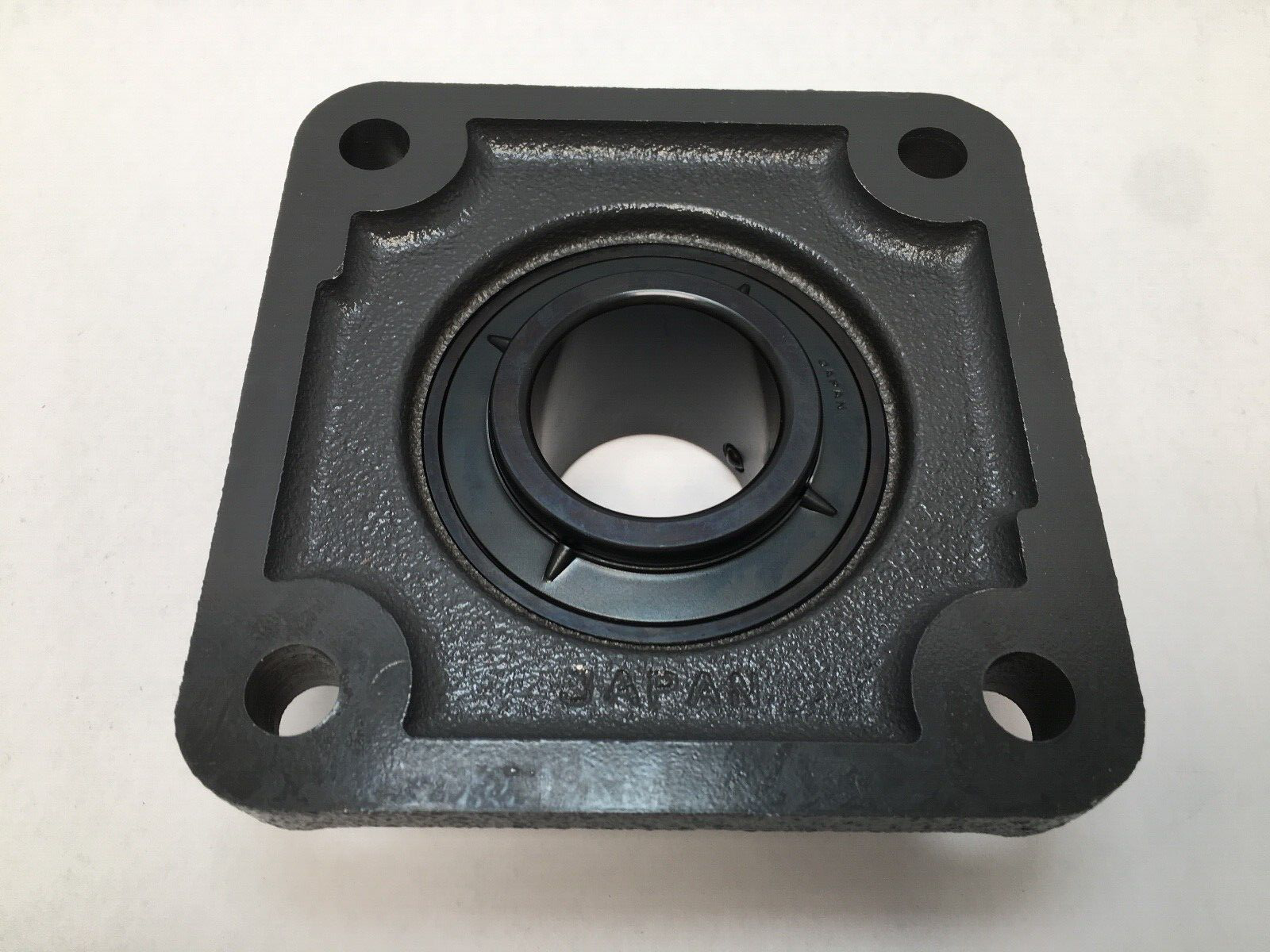

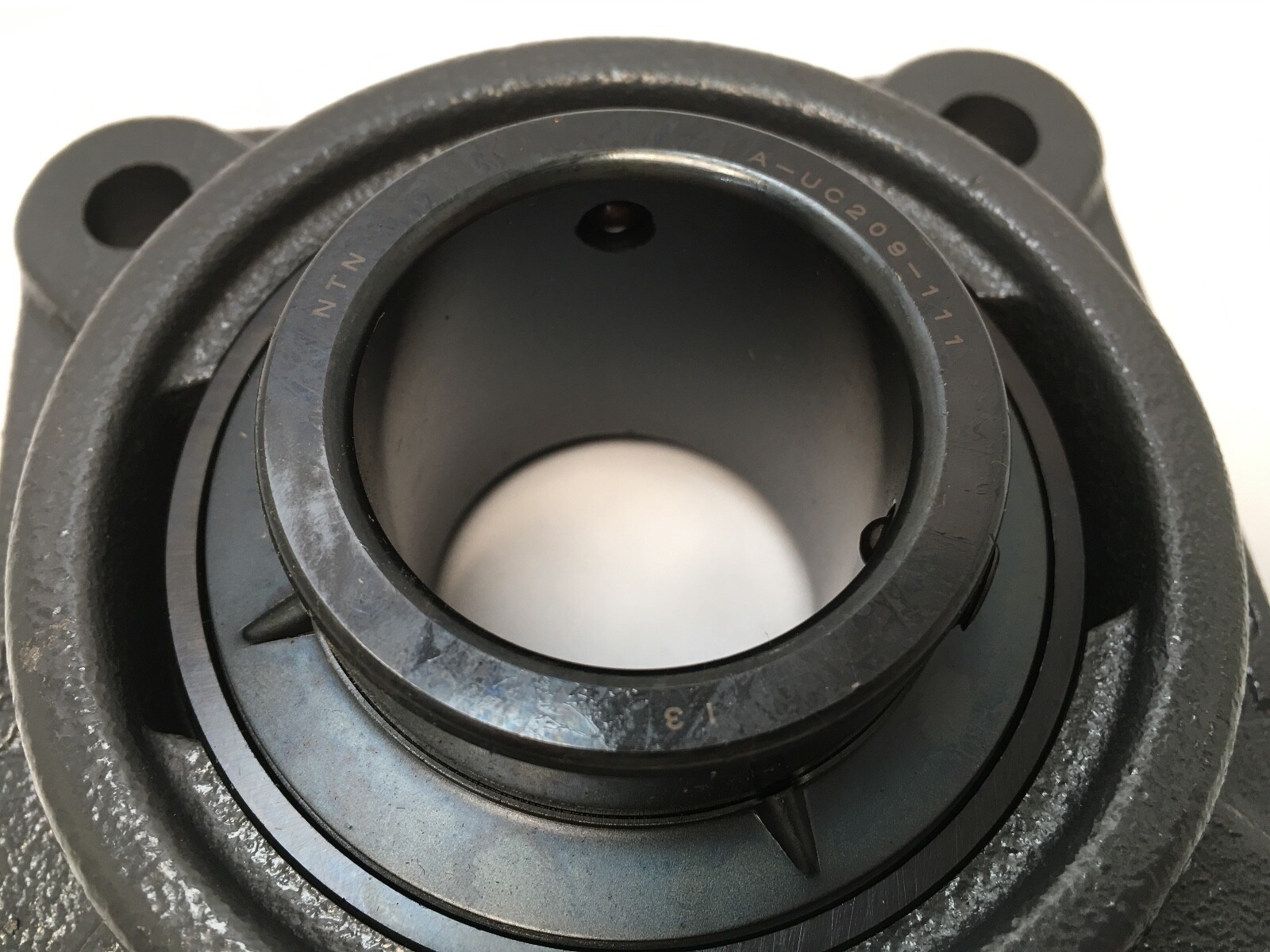

NTN UCFU-1-11/16 Ultra-Class four-bolt square flanged ball bearing unit: an A-UC209-111D1 set-screw insert in a one-piece cast iron FU209D1V50 housing with black oxide finish. Bore Diameter: 1-11/16 in (42.863 mm). Housing Style: 4-bolt square flange. Locking Method: Set screw.
UC — wide inner ring insert bearing with set screw locking and flinger.
FU — four-bolt square flange housing, Ultra-Class range.
1-11/16 — inch bore, 1-11/16 in.
M — black oxide coating.

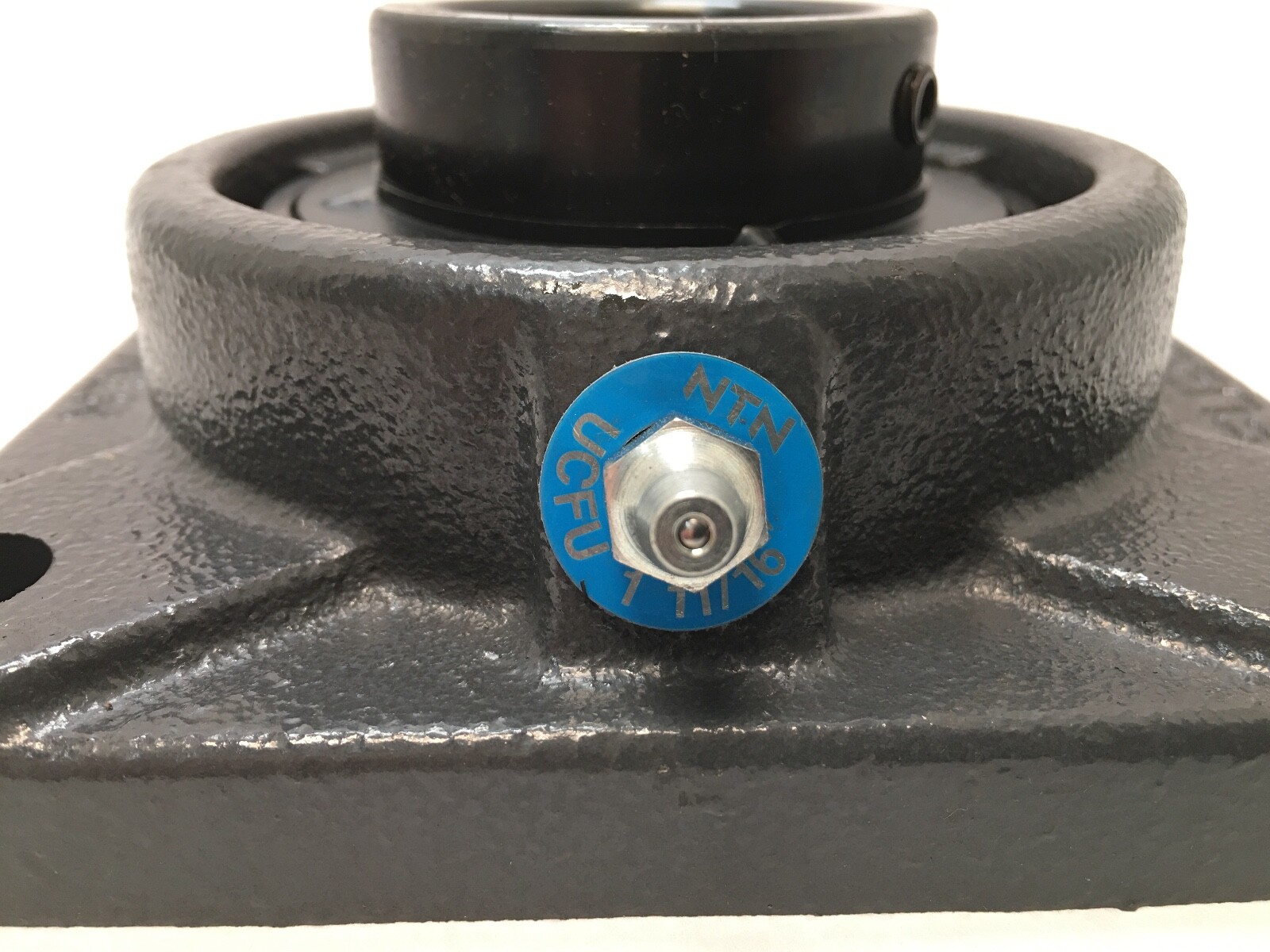

Dynamic Load Rating: 32,500 N. Static Load Rating: 20,400 N. Rotational Speed (max): 3,500 rpm. Seal Type: Contact seals, nitrile rubber. Housing Material: Cast iron. Finish: Black oxide. Relubrication: Relubricatable. Duty: Light duty. Set Screw Max Tightening Torque: 69 lb·in.
Bolt Center To Center: 4.125 in (104.8 mm). Housing Square L: 5.406 in (137.3 mm). Housing Width A: 1.5625 in (39.7 mm). Flange Thickness A1: 0.719 in (18.3 mm). Bolt Hole N: 0.516 in (13.1 mm). Insert Inner Ring Width B: 1.937 in (49.2 mm). Set Screw to Face S: 0.748 in (19.0 mm).

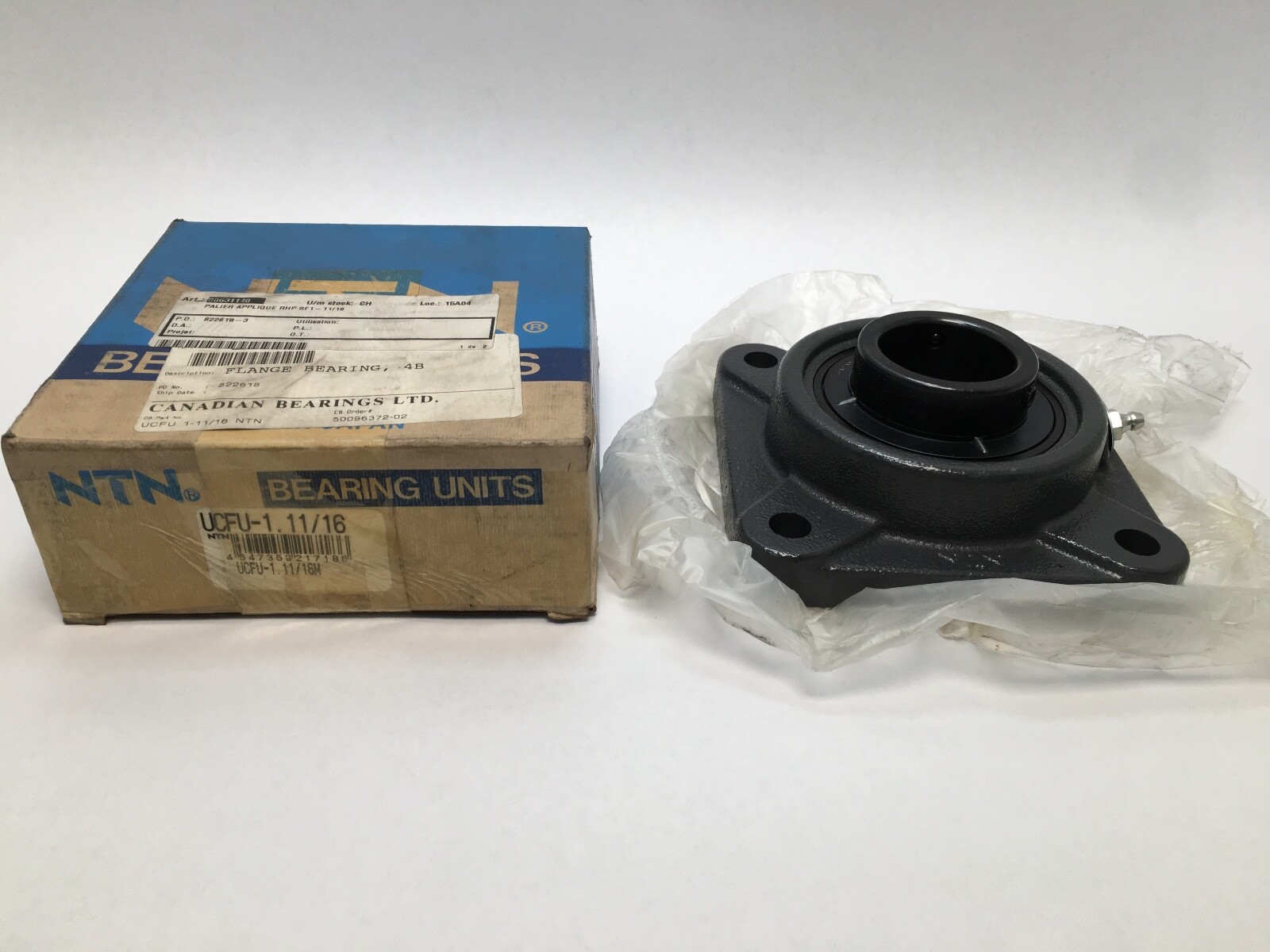

Unit Quantity: 1 Pc. Housing FU209D1V50 with insert A-UC209-111D1.
Same 1-11/16 in bore, four-bolt set-screw flange unit: Dodge F4B-SC-111, SealMaster SF-27.
