FAG NU240-E-M1A-C3 single-row cylindrical roller bearing, 200x360x58 mm, non-locating NU design, reinforced E design, machined brass cage, C3 clearance.
List Price
$1,446.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NU240-E-M1A-C3 |
| GTIN | 4012801339483 |
| Model | NU 240E M1A C3 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 200 mm |
| OD | 360 mm |
| Width | 58 mm |
| Material | Steel |
|---|---|
| Series | NU2200 |
| Base Number | NU240 |
| Industry Terms | cylindrical roller bearing; non-locating roller bearing; NU type roller bearing; straight roller bearing; brass cage cylindrical roller; 200mm bore roller bearing |
| Common Misspellings | NU240EM1AC3; NU240 EM1A; NU024E; NU420E; NU240-E-MIA-C3; cylindrical rolller bearing; cylindricle roller bearing |
| Application Types | Rolling mill drives; large industrial gearboxes; electric motors; pump and compressor shafts; fan and blower shafts; crane gearing |
| Bore Shaft Size | 200 mm |
| Mpn Variants | NU240-E-M1A-C3; NU240EM1AC3; NU 240 E M1A C3; NU240E; NU240; NU240-E-M1-C3; NU240EM1A |
| Compatible With Replaces | ISO base NU240. Same-spec: SKF NU 240 ECMA, NSK NU240EM, NTN NU240EM, Koyo NU240. Related sizes: NU240-E-TVP2 (polyamide cage), NJ240-E-M1A (locates one direction), NUP240-E-M1A (locates both), NU240-M1A (base design) |
| Rolling Elements | Cylindrical Rollers |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.50.00 |
| Internal Clearance | C3 |
| Part Number | NU240-E-M1A-C3 |
| Closure Type | Open |
| Cross Reference 1 | SKF NU 240 ECMA |
|---|---|
| Cross Reference 2 | NSK NU240EM |
| Cross Reference 3 | NTN NU240EM |
| Cross Reference 4 | Koyo NU240 |
| Cross Reference 5 | FAG NU240-E-TVP2 - polyamide cage |

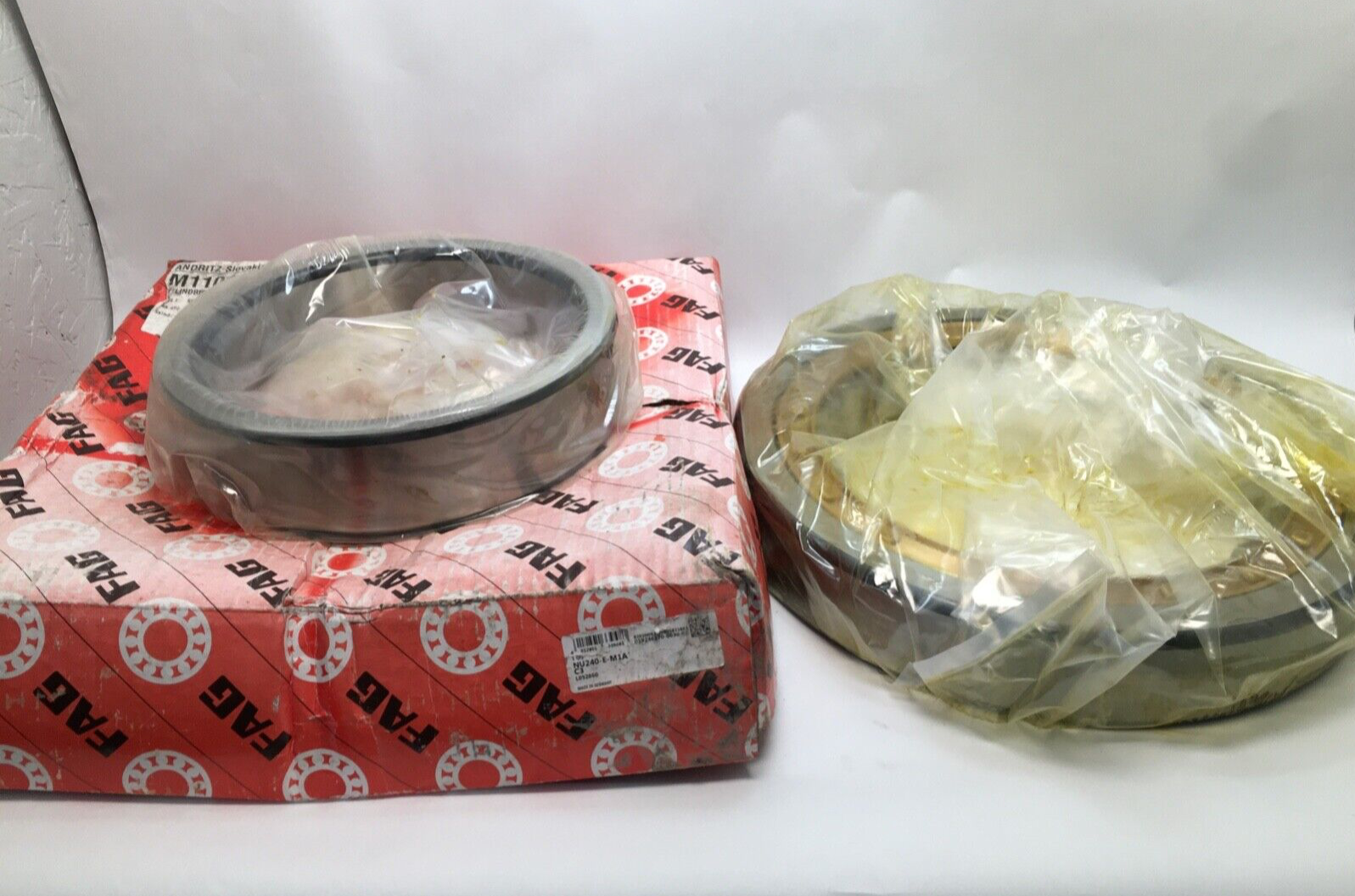

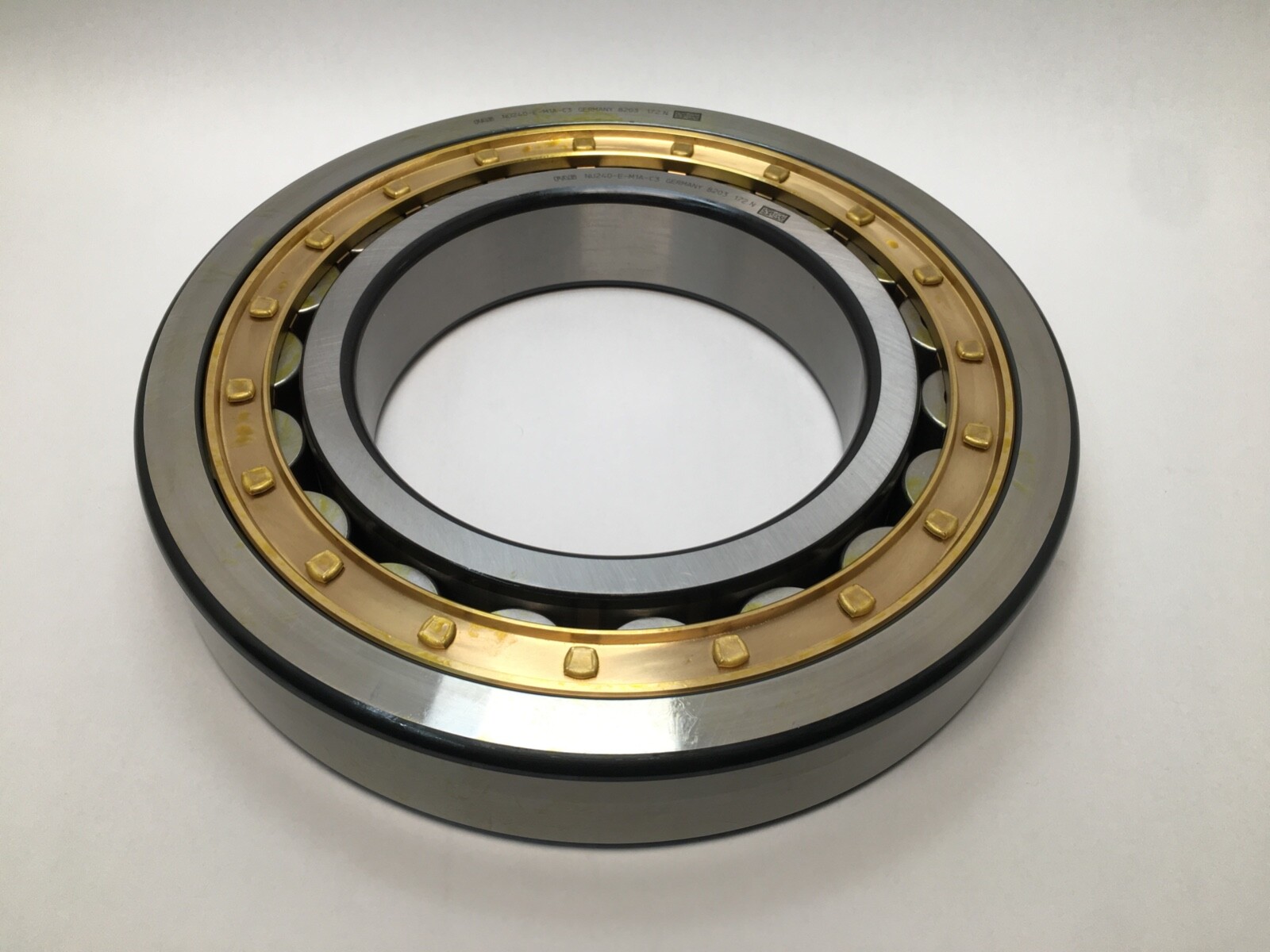

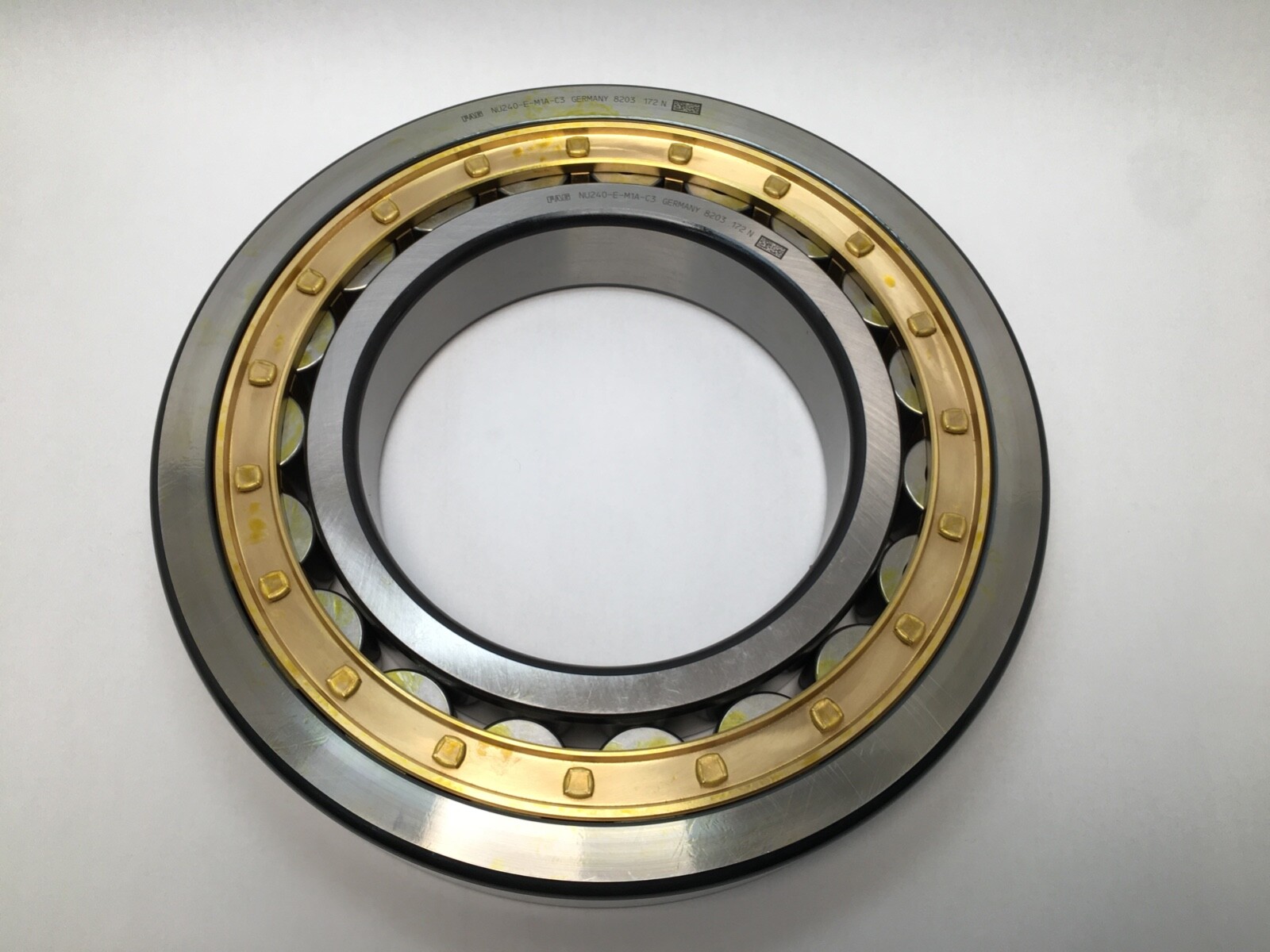

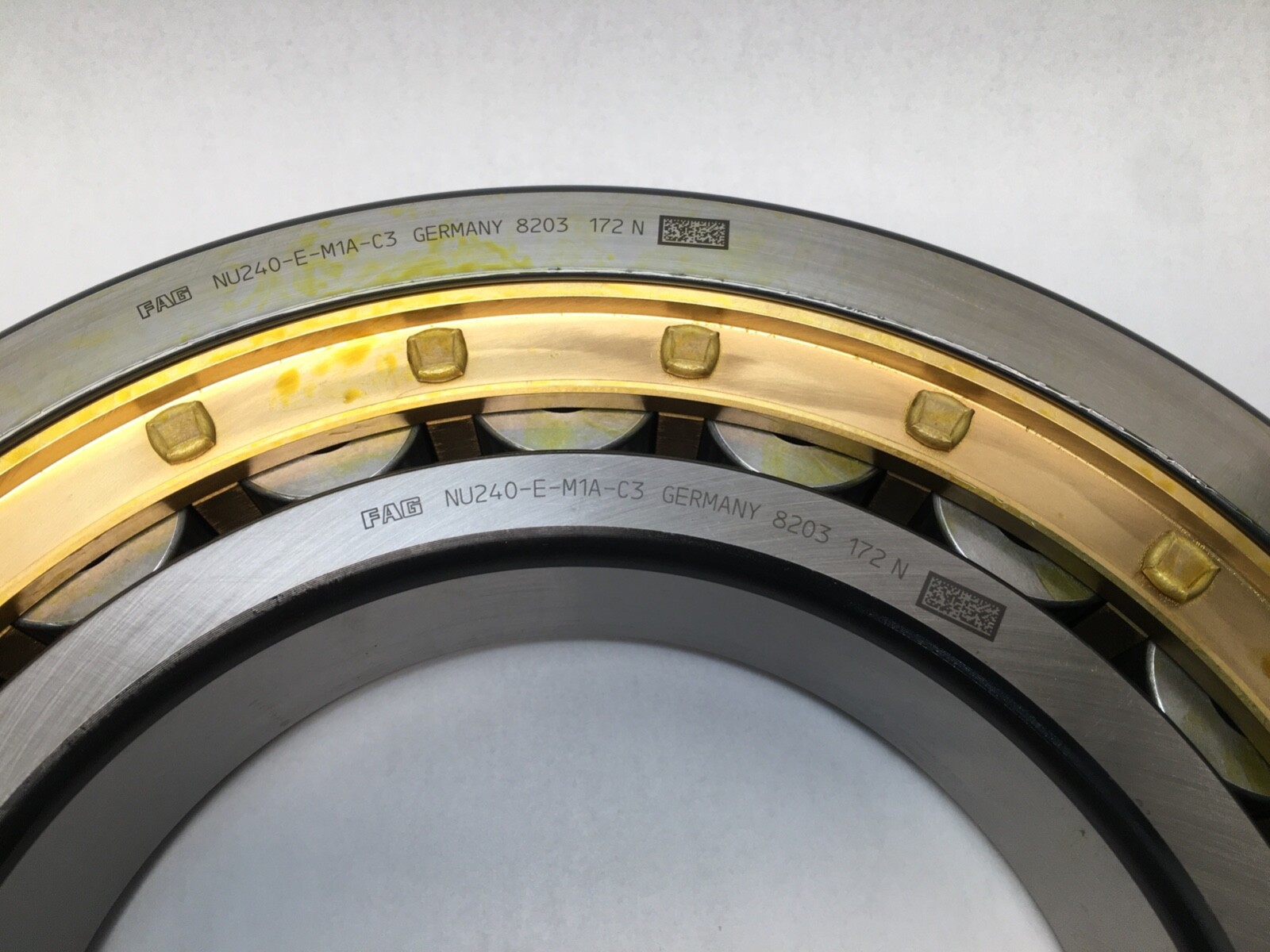

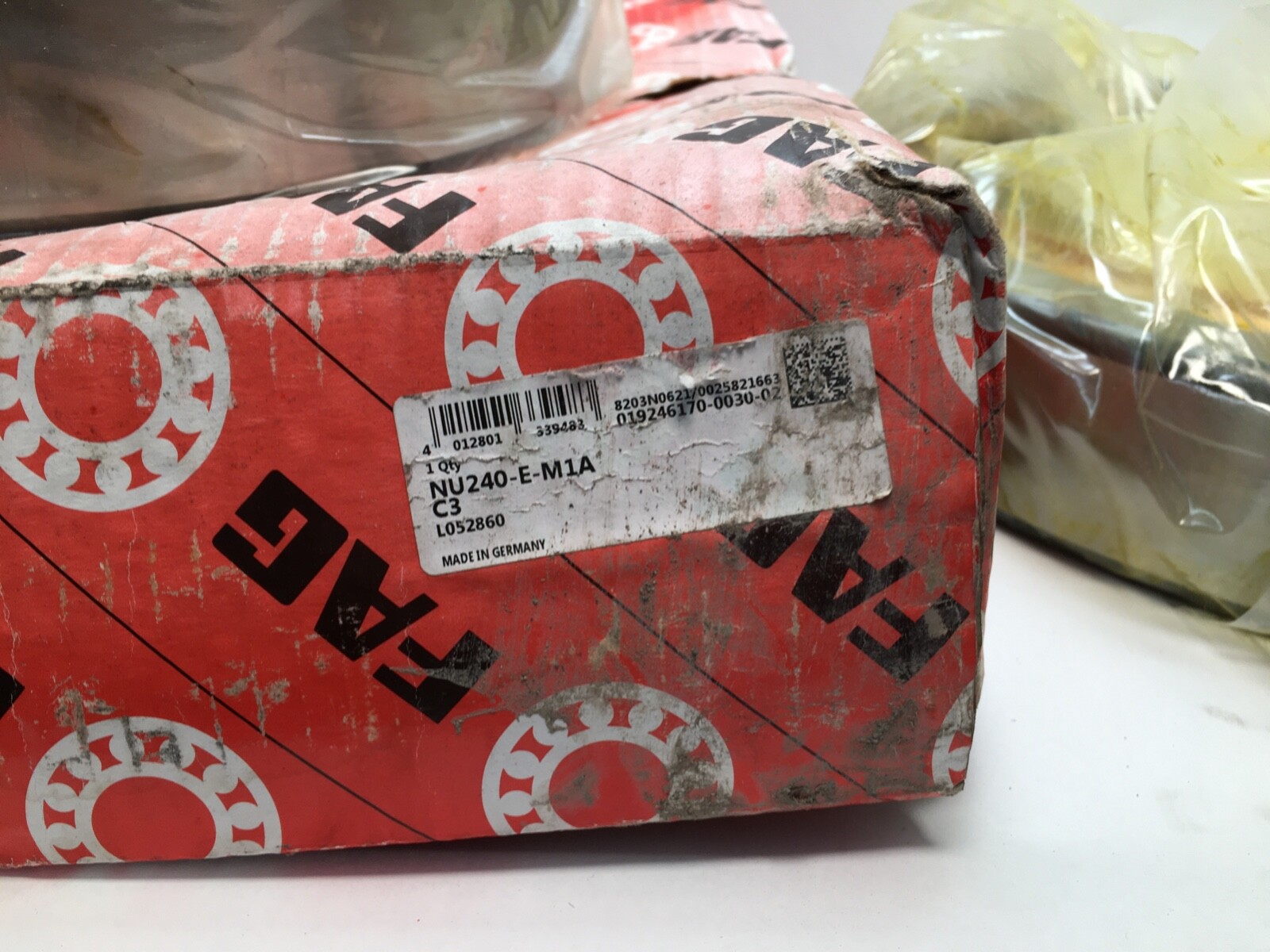

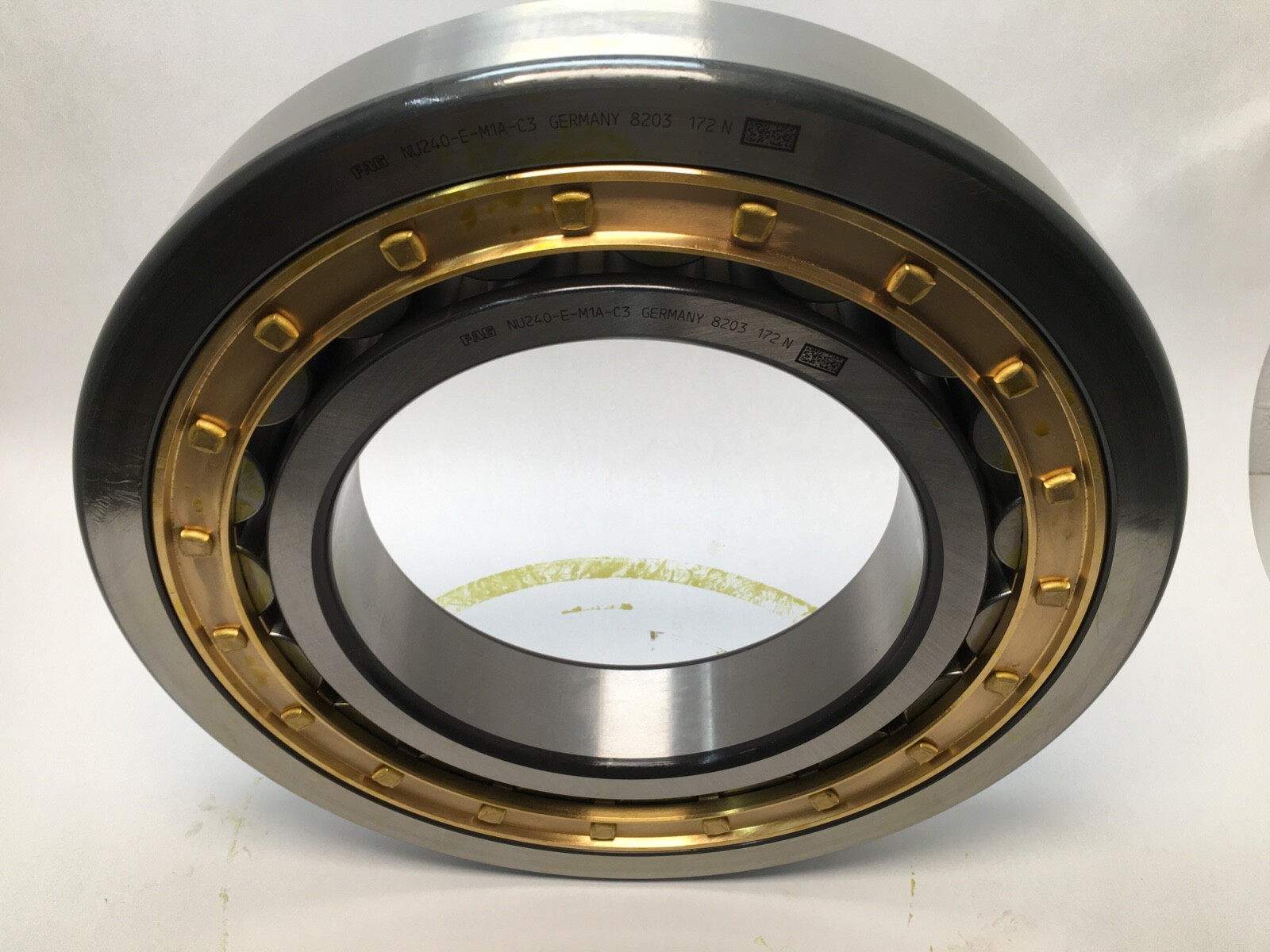

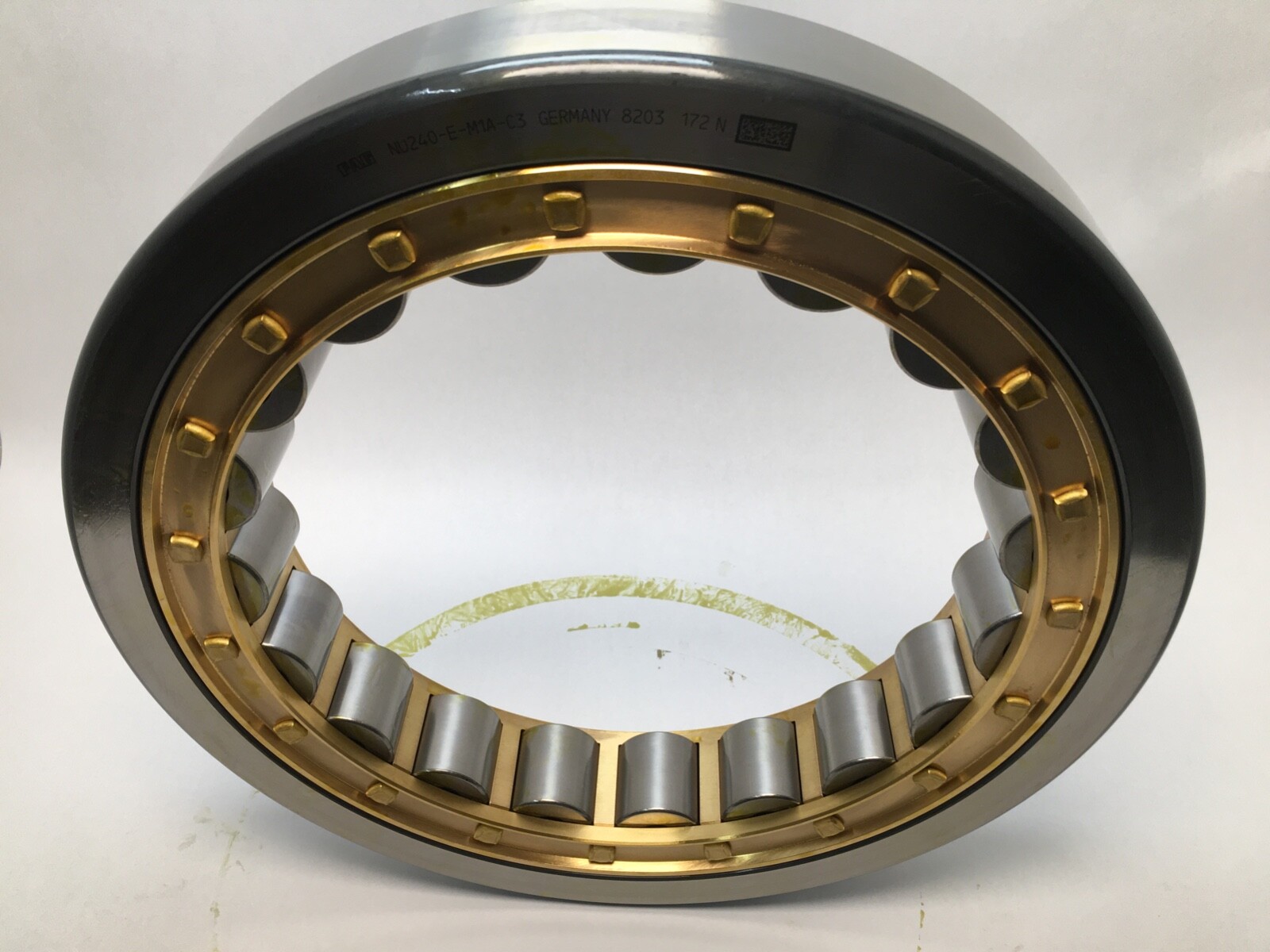

FAG NU240-E-M1A-C3 is a single-row cylindrical roller bearing, 200 mm bore, 360 mm outside diameter, 58 mm wide, in the non-locating NU design with the reinforced E internal design, a machined brass cage and C3 internal clearance. Supplied as 1 Pc, a complete bearing: outer ring with ribs, roller complement in the cage and ribless inner ring.
NU — ribless inner ring, non-locating design with free axial movement of the shaft through the bearing.
240 — NU2 dimension series, bore code 40, 200 mm bore.
E — FAG reinforced internal design with a larger roller complement and higher dynamic capacity than the base NU240.

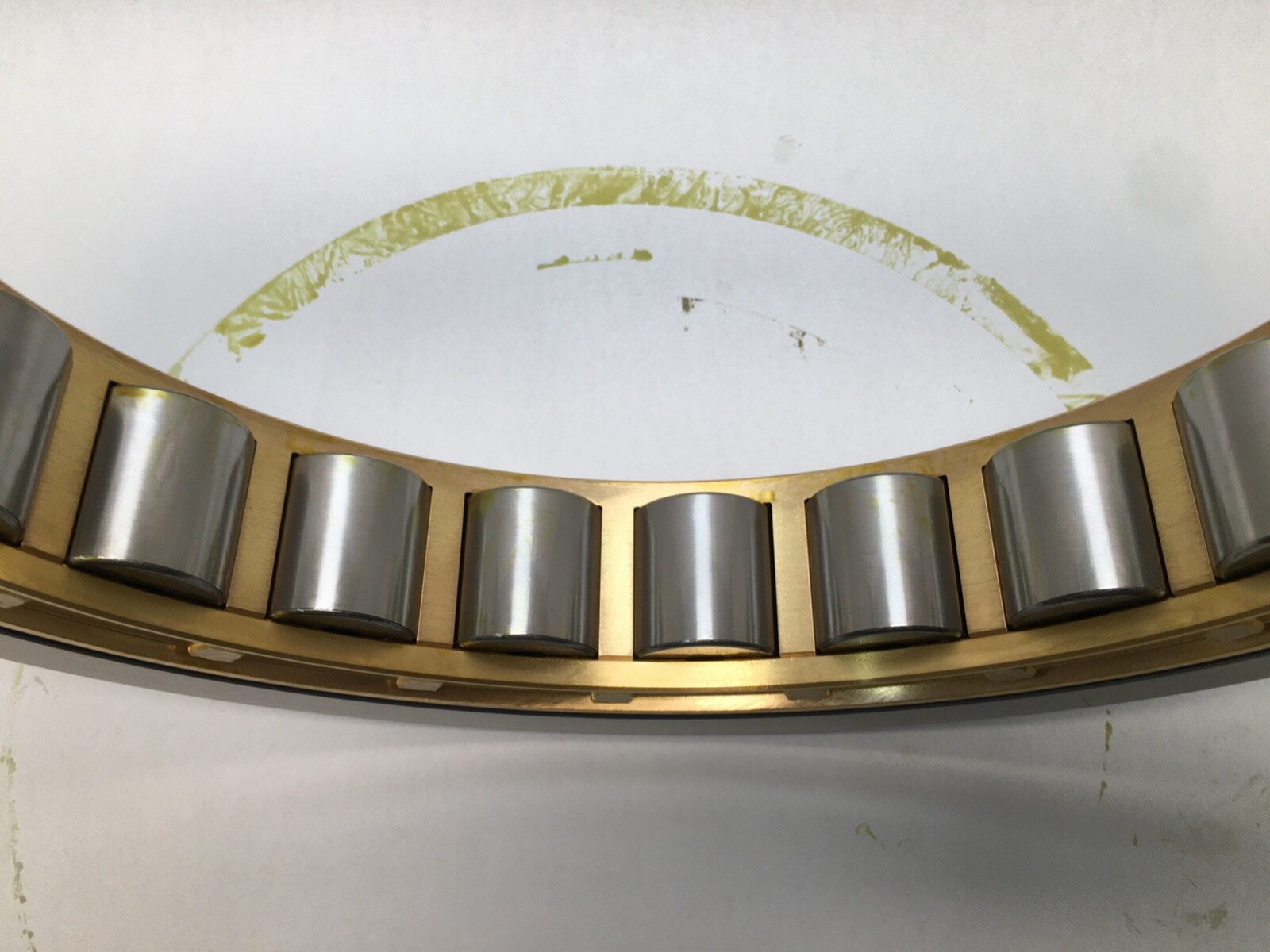

M1A — machined brass cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 200 mm. Outside Diameter: 360 mm. Width: 58 mm. Number Of Rows: 1. Rolling Elements: Cylindrical roller. Cage Material: Machined brass. Internal Clearance: C3. Closure Type: Open. Bore Type: Straight. Unit Quantity: 1 Pc. GTIN: 4012801339483.

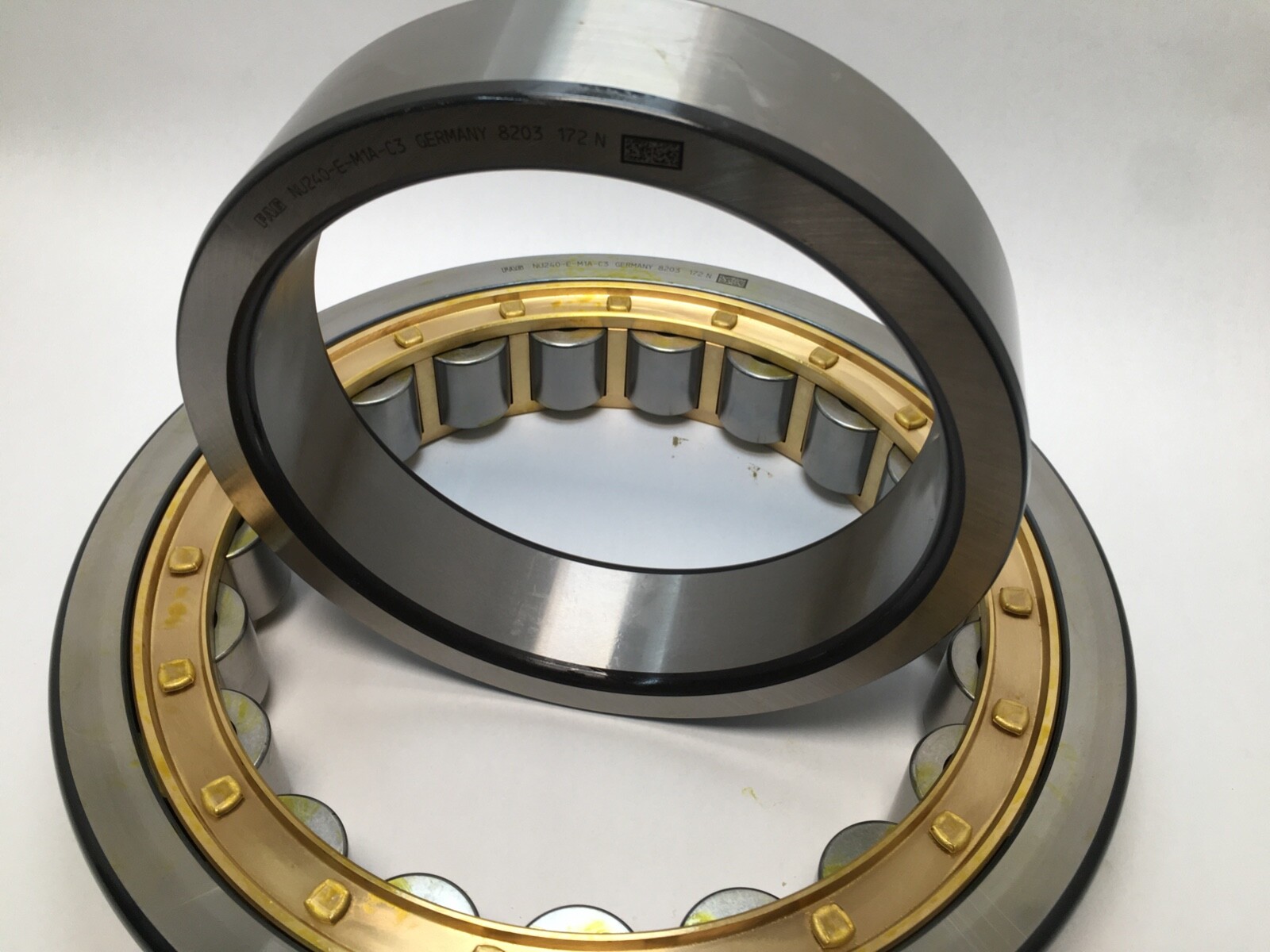

Axial location: non-locating, radial load only. Separable: the ribless inner ring lifts out of the roller-and-outer-ring assembly. Base Number: NU240.
ISO base NU240 in the same 200 x 360 x 58 mm non-locating size: SKF NU 240 ECMA, NSK NU240EM, NTN NU240EM, Koyo NU240. FAG NU240-E-TVP2 is the polyamide-cage variant. FAG NJ240-E-M1A locates in one direction and FAG NUP240-E-M1A in both directions. FAG NU240-M1A is the base internal design without the E.
Bore Diameter 200 mm, Outside Diameter 360 mm, Width 58 mm.
NU is a single-row cylindrical roller bearing with a ribless inner ring. It is non-locating, so the shaft moves freely in the axial direction through the bearing.
The M1A cage is machined brass and C3 is radial internal clearance greater than normal.
