Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

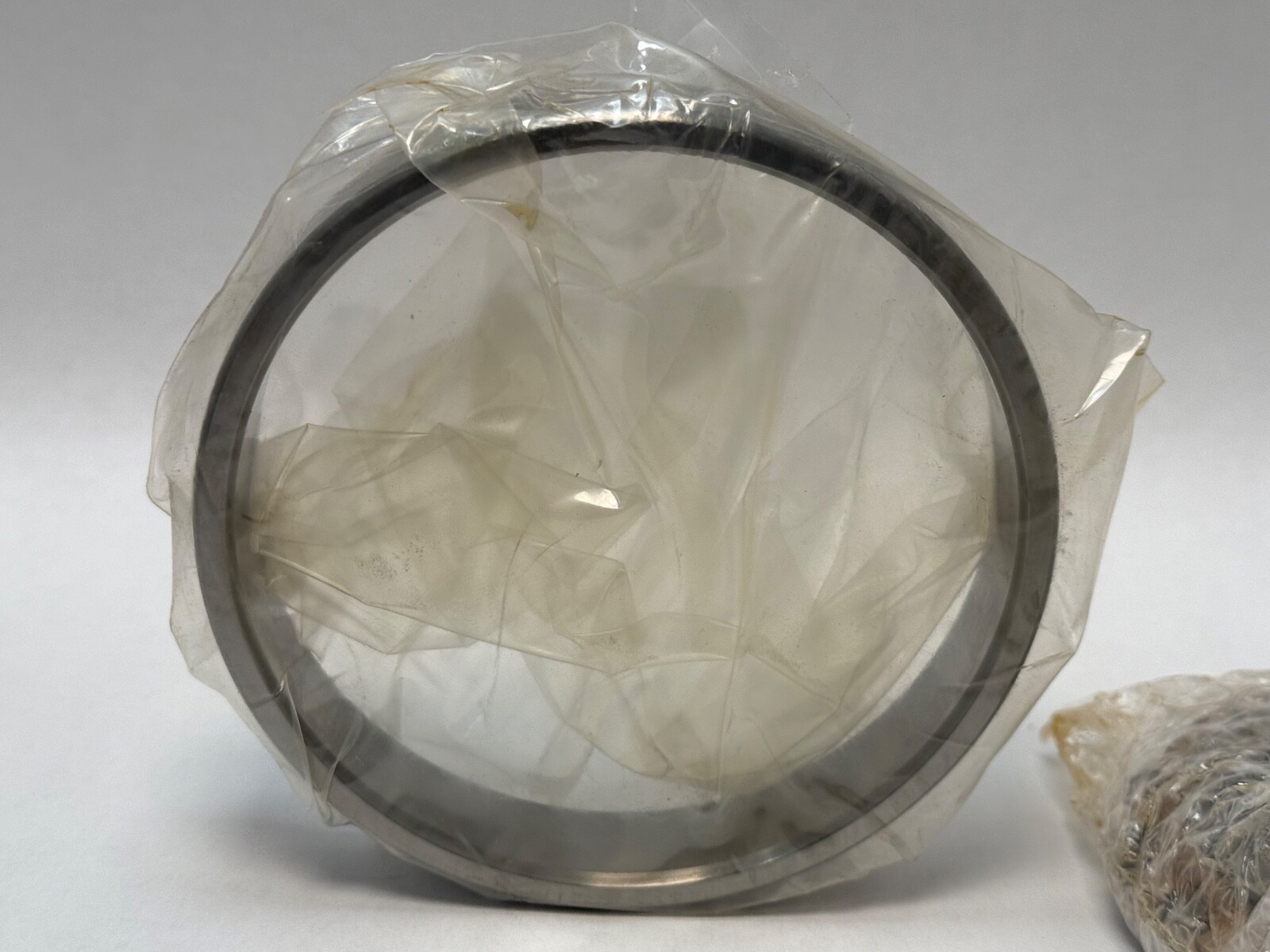

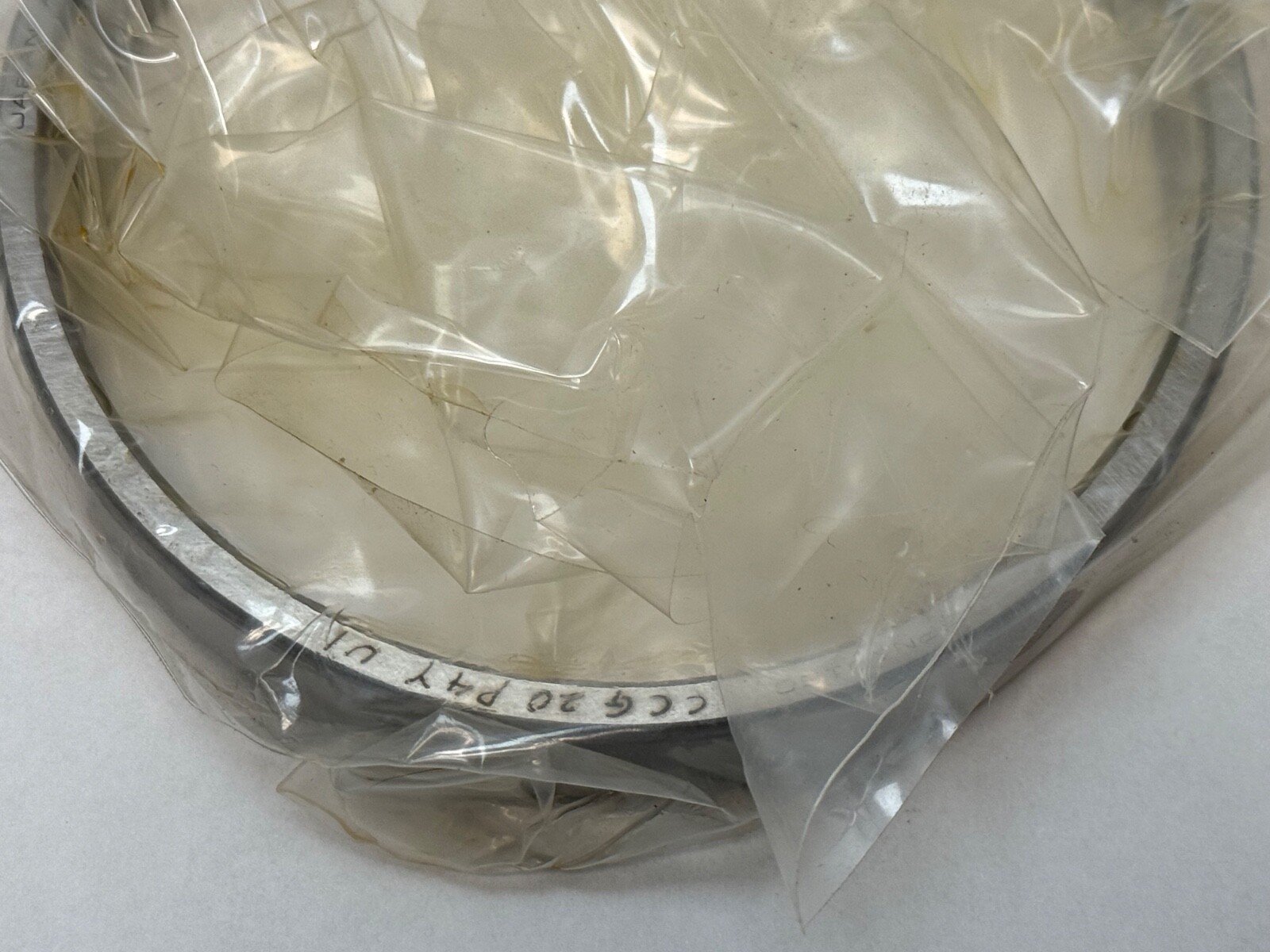

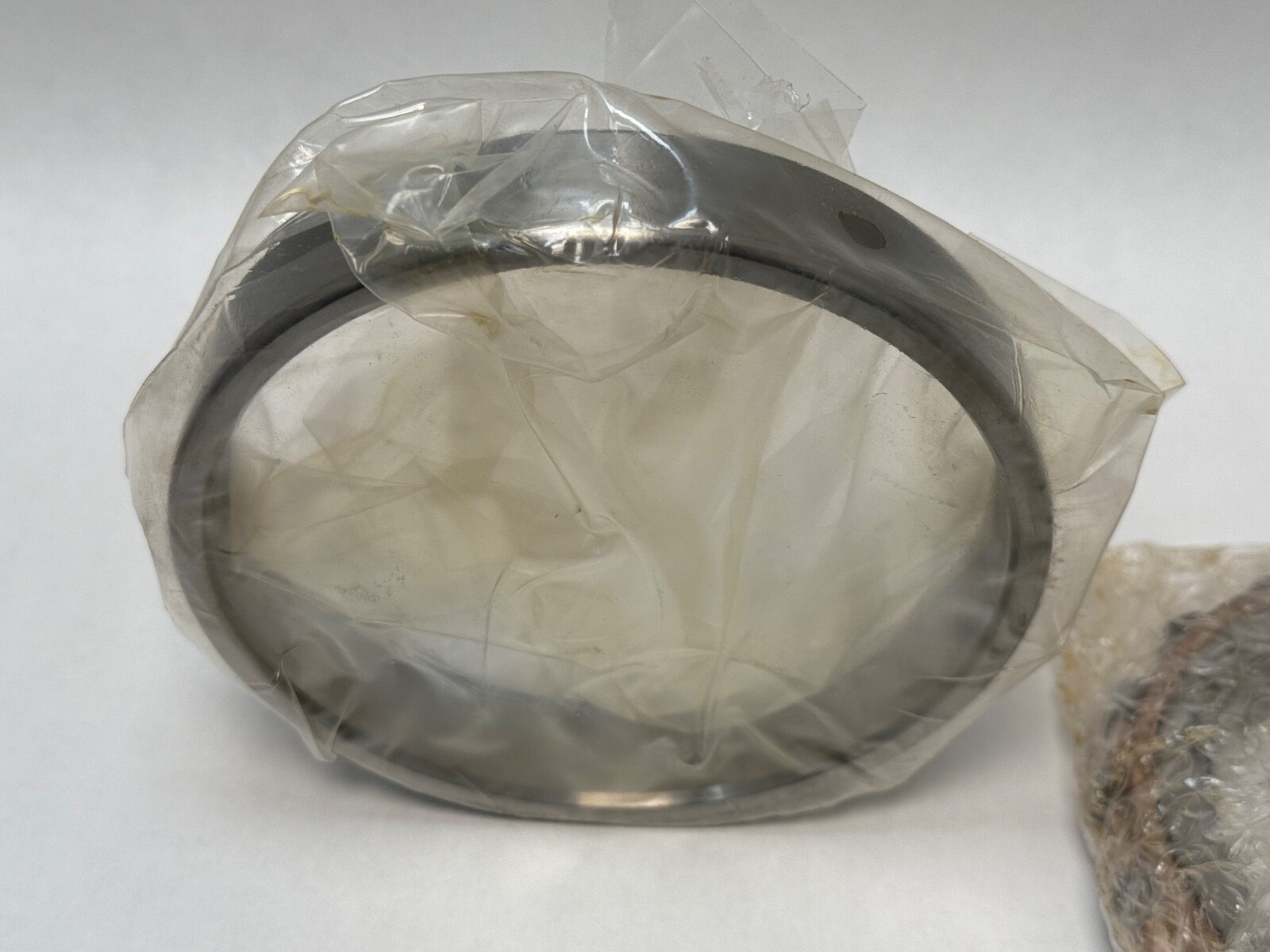

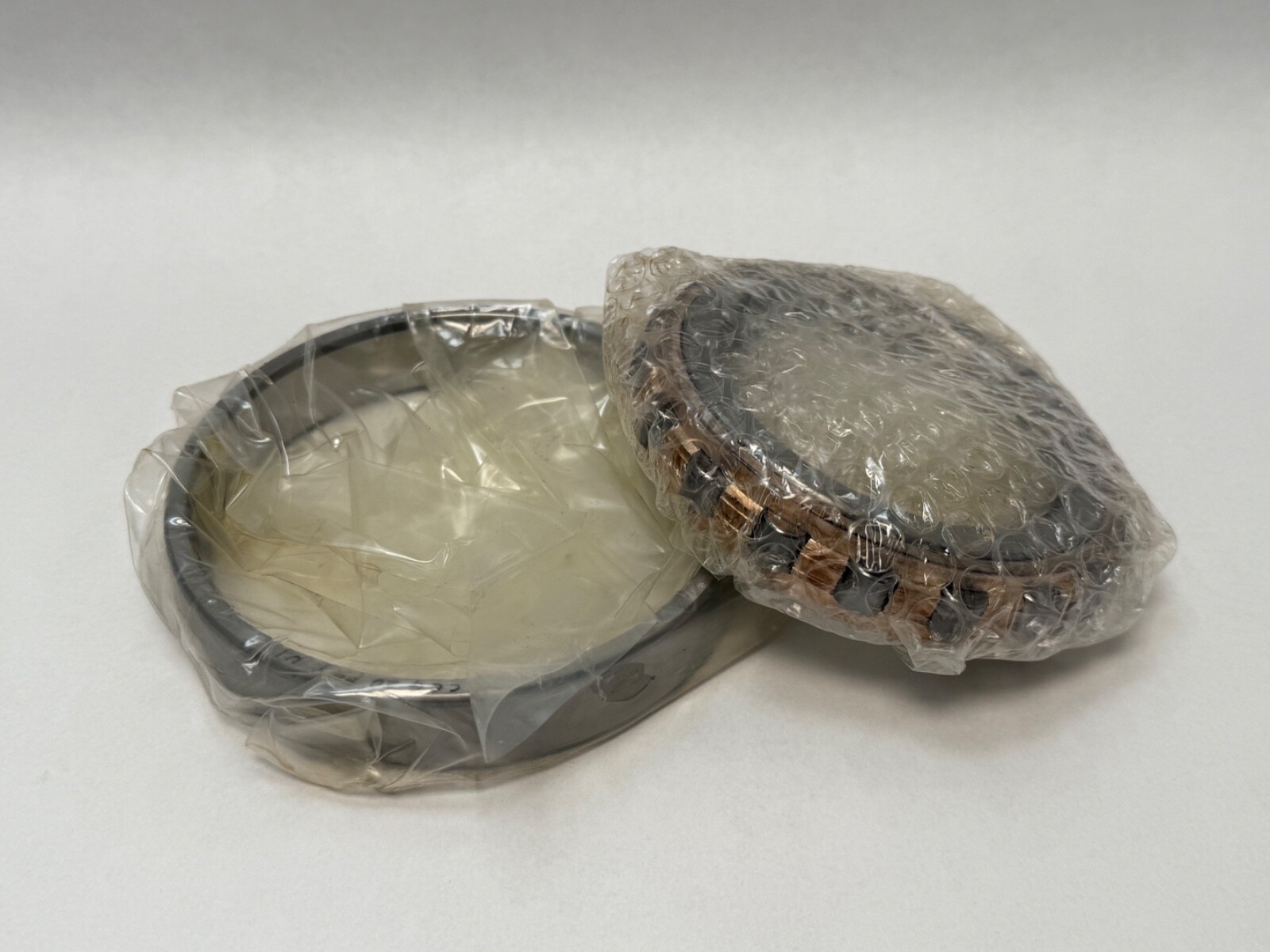

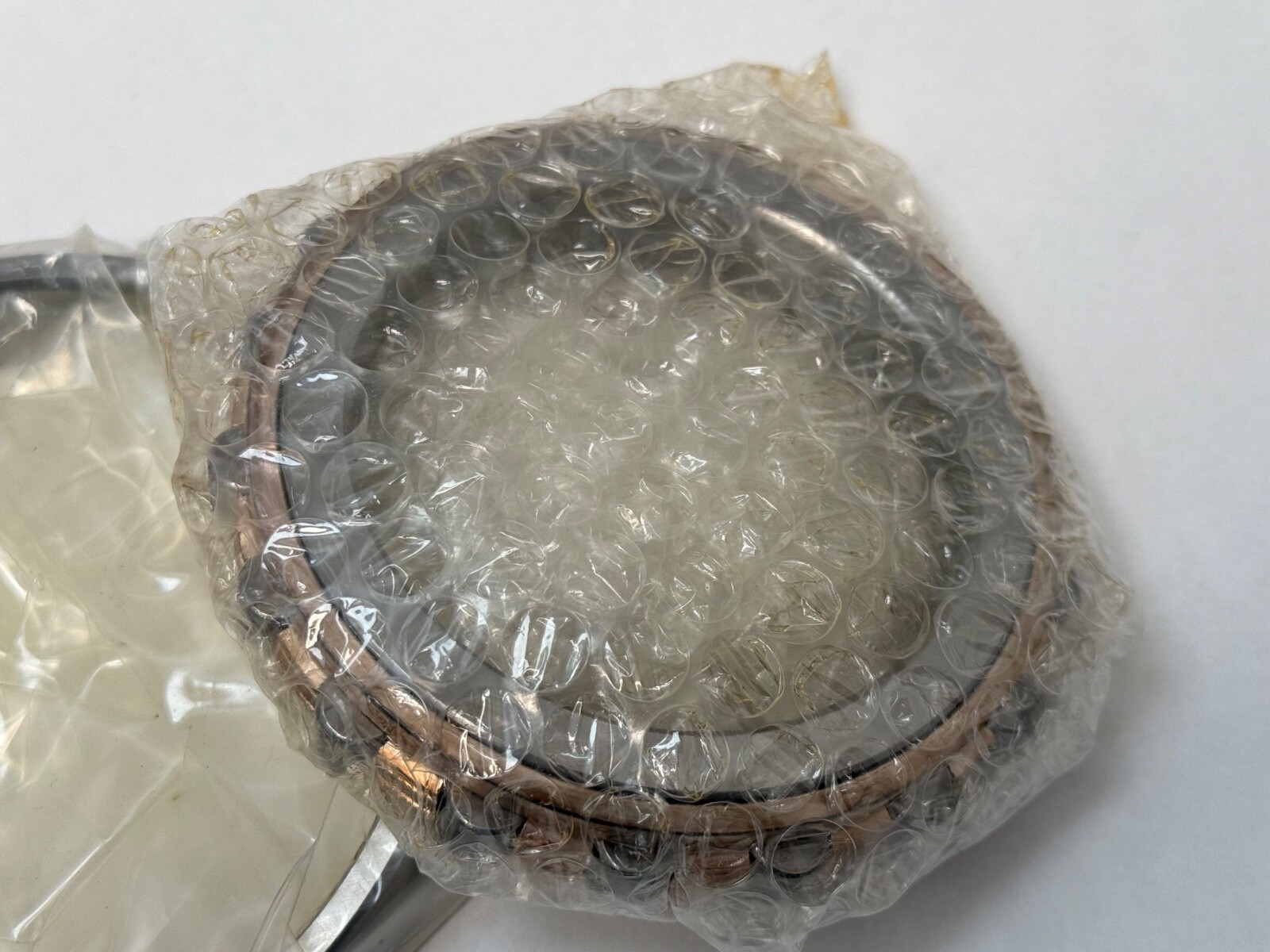

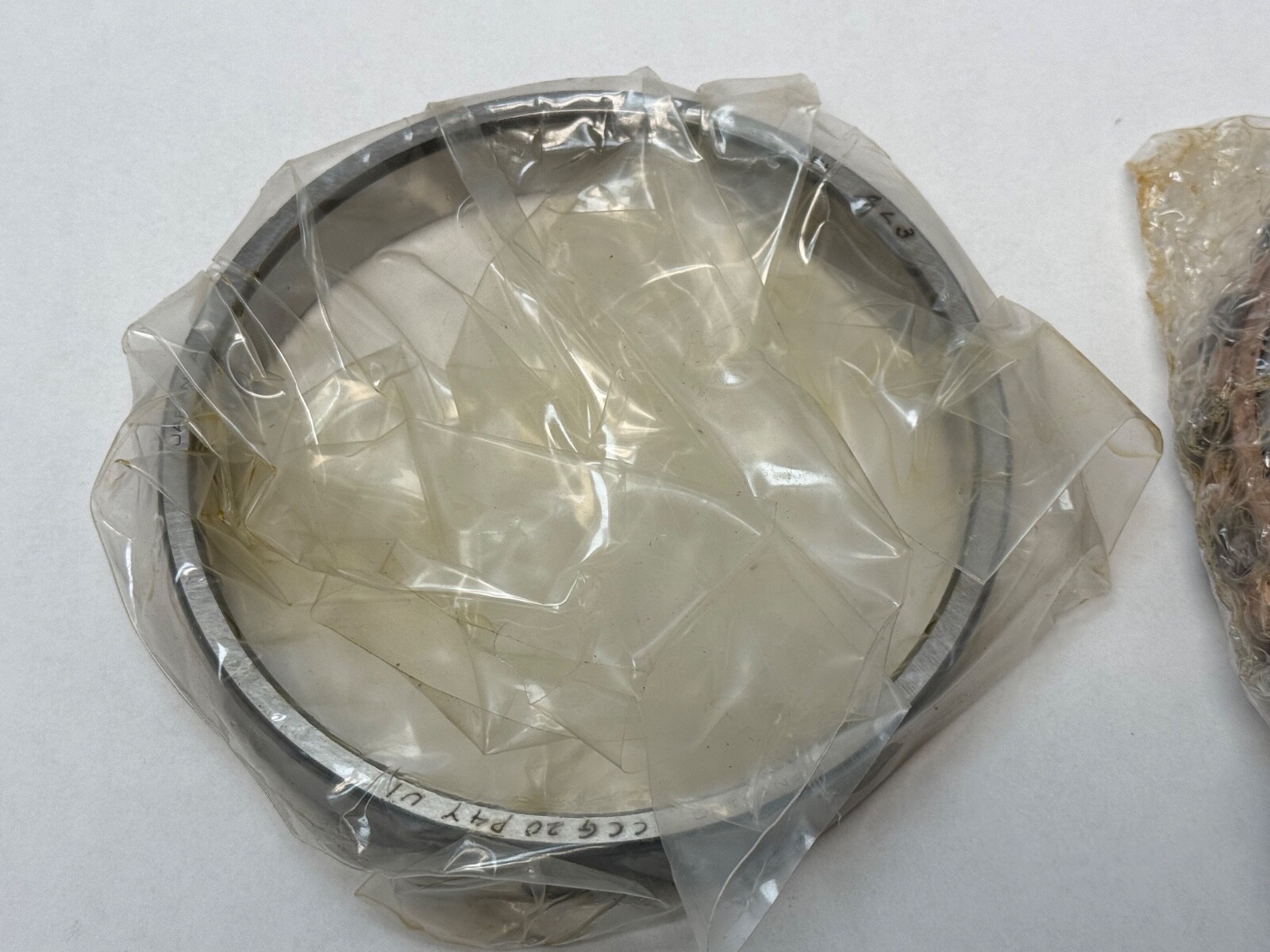

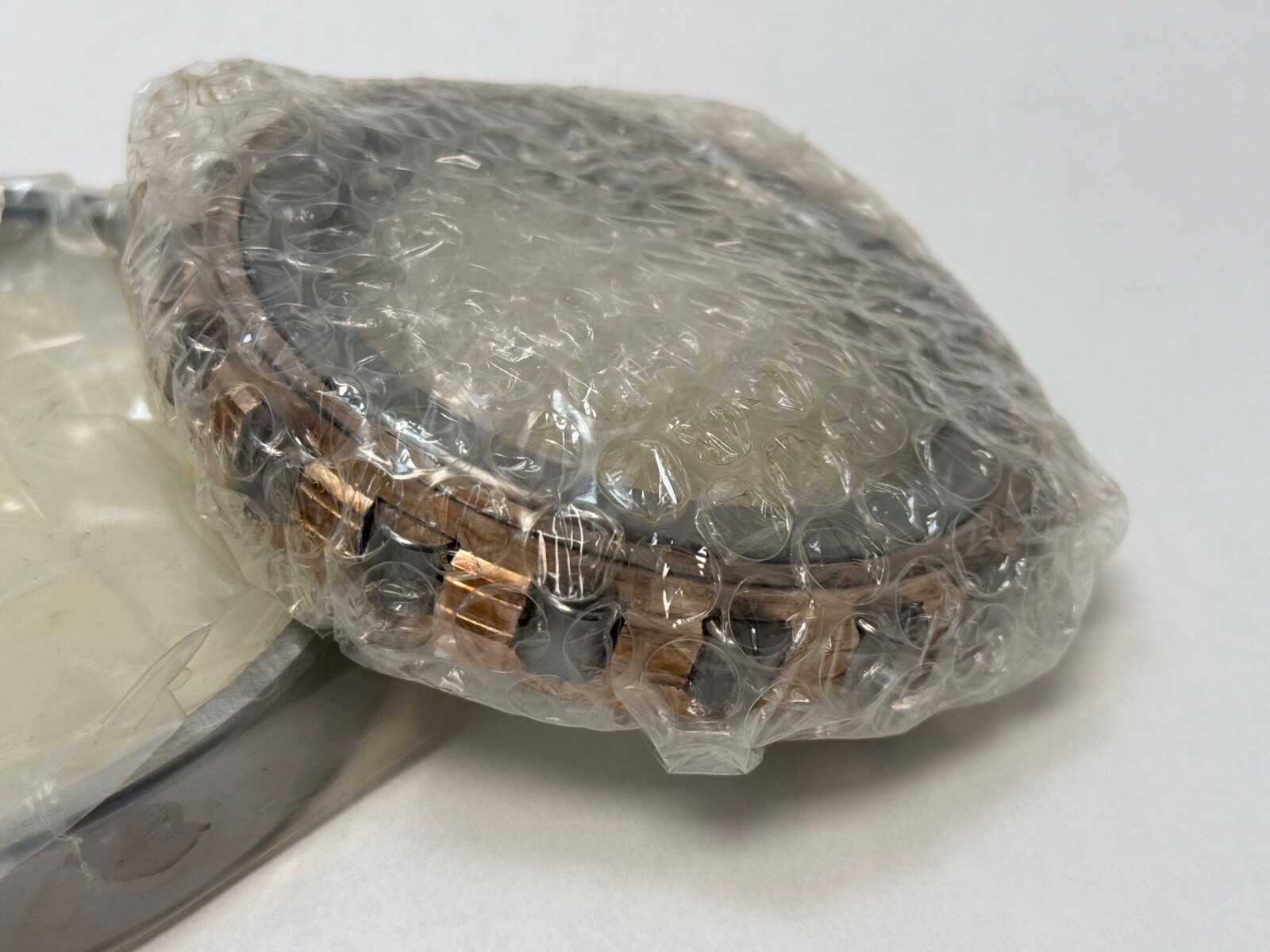

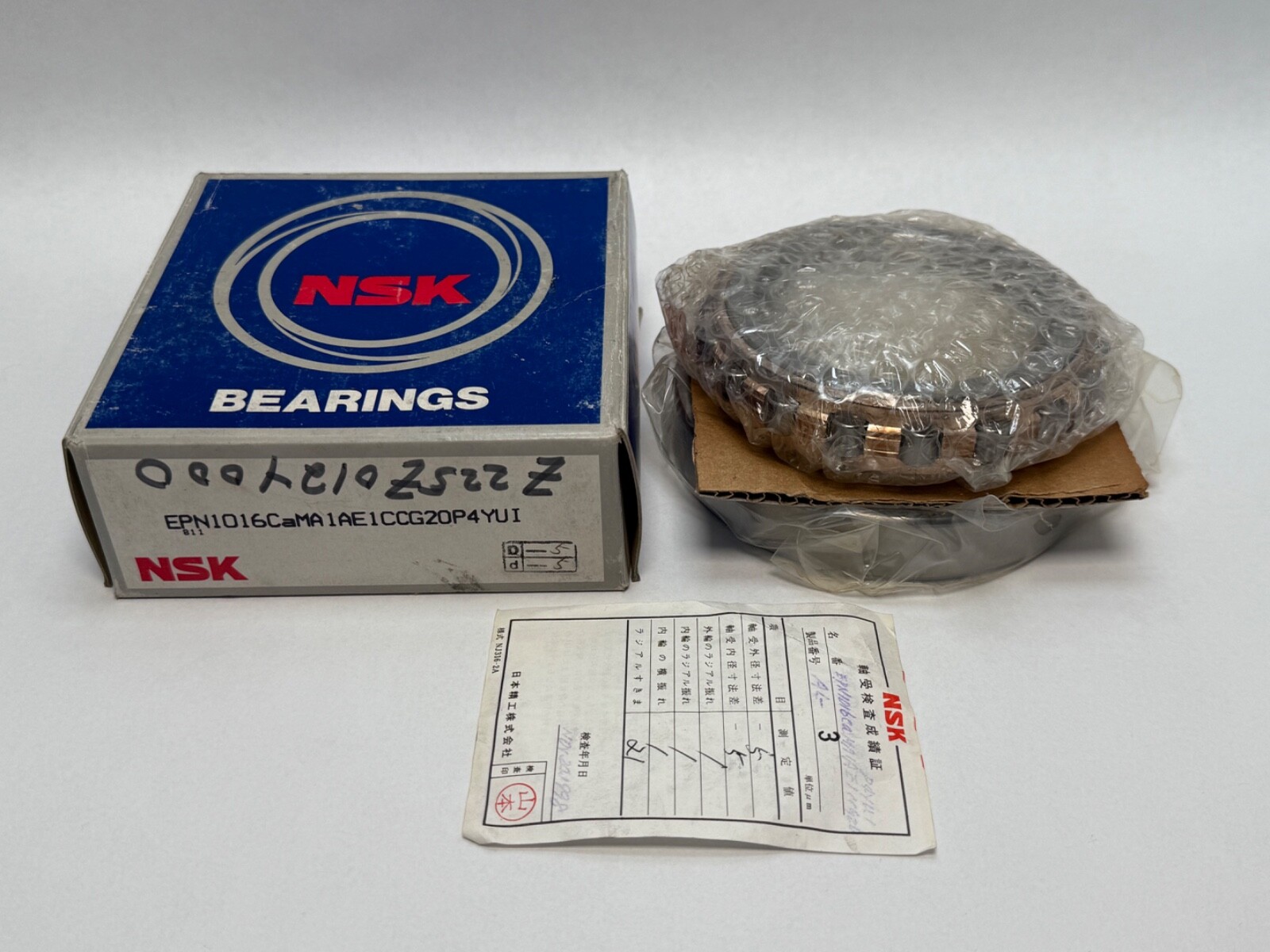

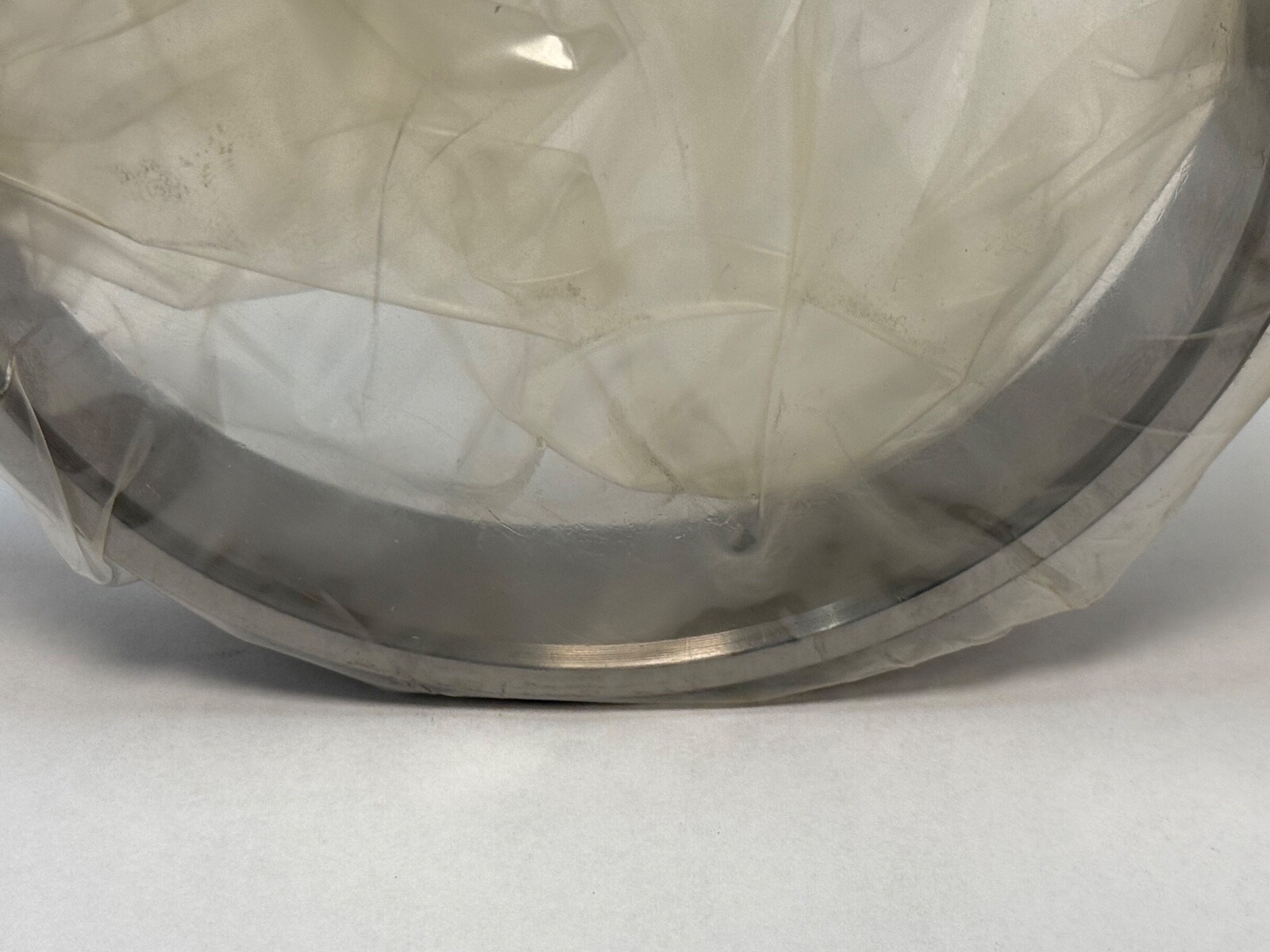

Cylindrical roller bearing, 80x125x22 mm, ISO N1016 envelope, P4Y precision, straight bore, single row, non-locating. Separable plain outer ring.
List Price
$259.54
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| Model | EP N 1016 CA MA1A E1 CC G20 P4Y UI |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Steel |
|---|---|
| Base Number | N1016 |
| Industry Terms | Cylindrical roller bearing; single row roller bearing; non-locating spindle bearing; N-type roller bearing |
| Common Misspellings | EPN1O16; EPN1016CAMA1AEICCG20P4YUI; EP N1016 CAMA1AE1 CCG20 P4Y U1; NI016 |
| Application Types | Machine tool spindles; gearboxes; electric motors; heavy radial-load rotating equipment |
| Overall Width | 22 mm |
| Mpn Variants | EPN1016CAMA1AE1CCG20P4YUI; EP-N1016-CAMA1AE1CCG20-P4Y-UI; EP N 1016 CA MA1A E1 CC G20 P4Y UI; EPN1016; N1016 |
| Precision Class | ISO class 4 / P4Y |
| Series | N1000 |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.50.00 |
| Expansion Type | Non-locating |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF N 1016 – standard class, not P4Y |
|---|---|
| Cross Reference 2 | FAG N1016 – standard class, not P4Y |
| Cross Reference 3 | NTN N1016 – standard class, not P4Y |
| Cross Reference 4 | Koyo N1016 – standard class, not P4Y |
NSK single-row cylindrical roller bearing on the N1016 envelope. Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Precision Class: ISO class 4 / P4Y. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel.

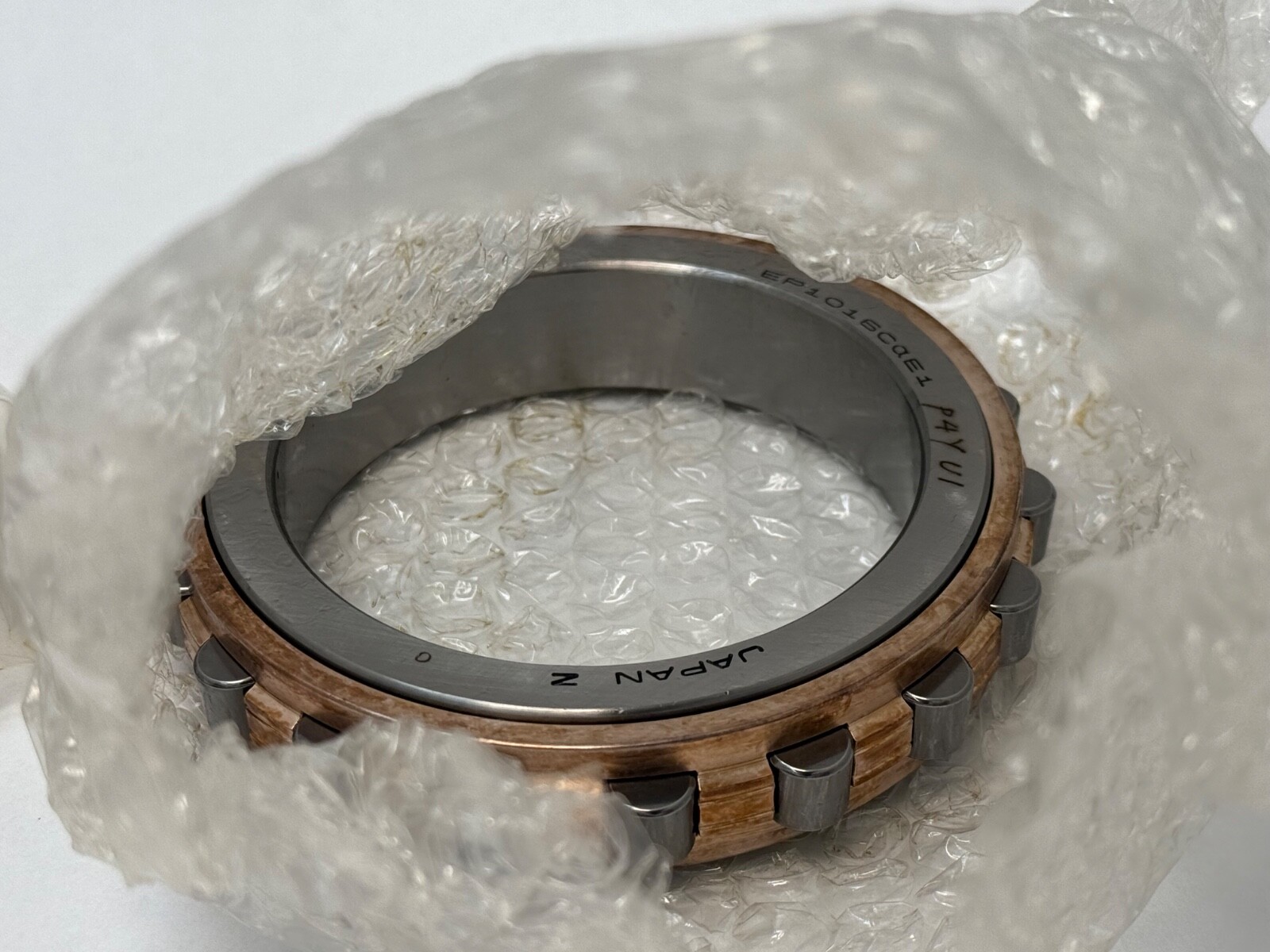

N1016 — ISO N-type single-row cylindrical roller bearing, 80 x 125 x 22 mm. The N type carries two guide ribs on the inner ring and a plain outer ring, so the outer ring separates and the bearing floats axially.
P4Y — special dimensional accuracy with ISO class 4 running accuracy.
A cylindrical roller bearing carries radial load through line contact rather than point contact, so radial capacity and stiffness are high for the envelope. Cylindrical roller bearings have no contact angle.
The separable plain outer ring lets the bearing take thermal shaft growth without transmitting axial load, which is the reason N-type bearings sit at the non-locating end of a machine tool spindle.
Precision Class: ISO class 4 / P4Y covers both dimensional and running accuracy. Lubricant: grease or oil.
Unit Quantity: 1 Pc.
Standard-class N1016 bearings from other makers: SKF N 1016, FAG N1016, NTN N1016 and Koyo N1016. These are not the P4Y precision execution.
