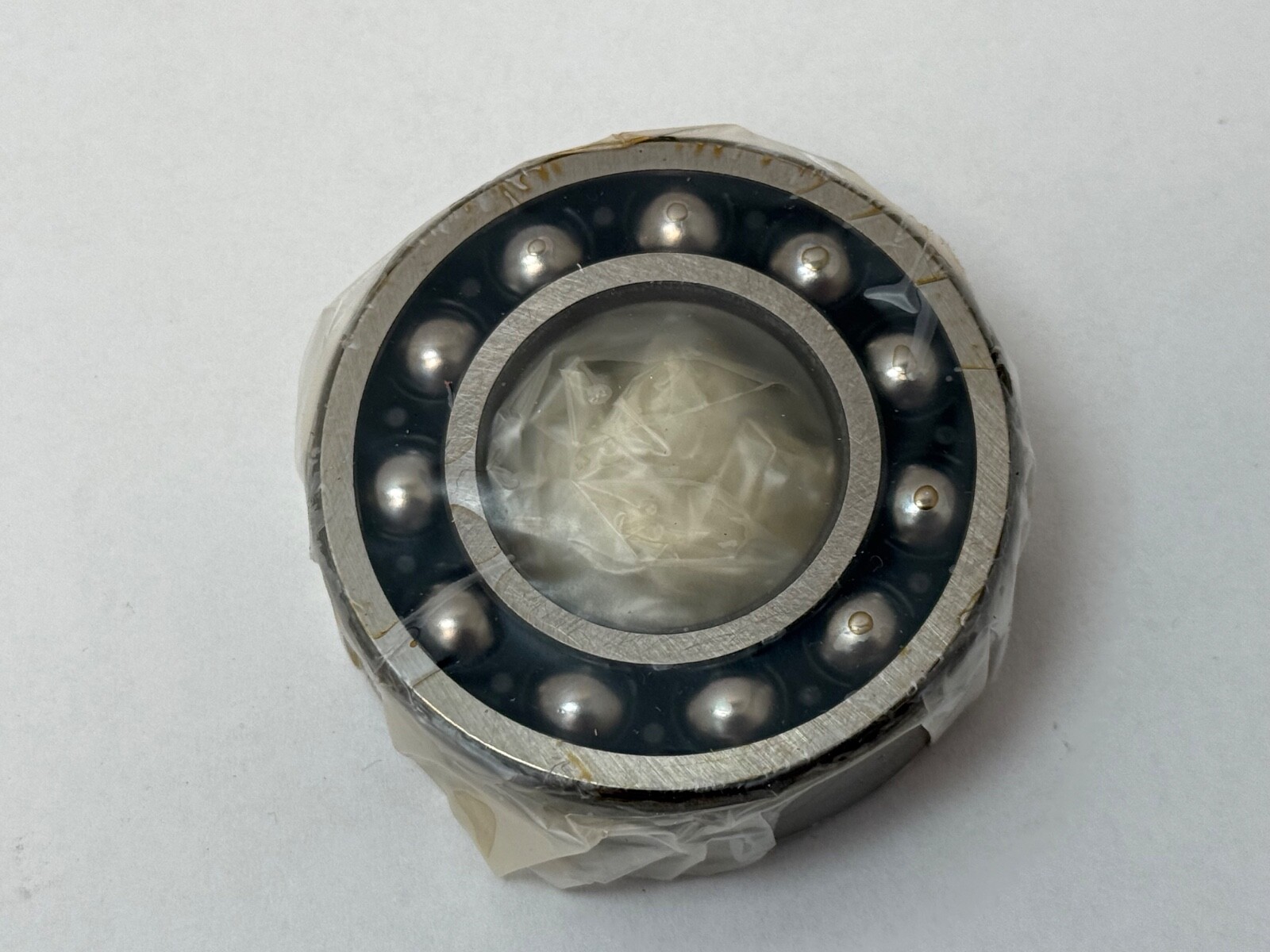

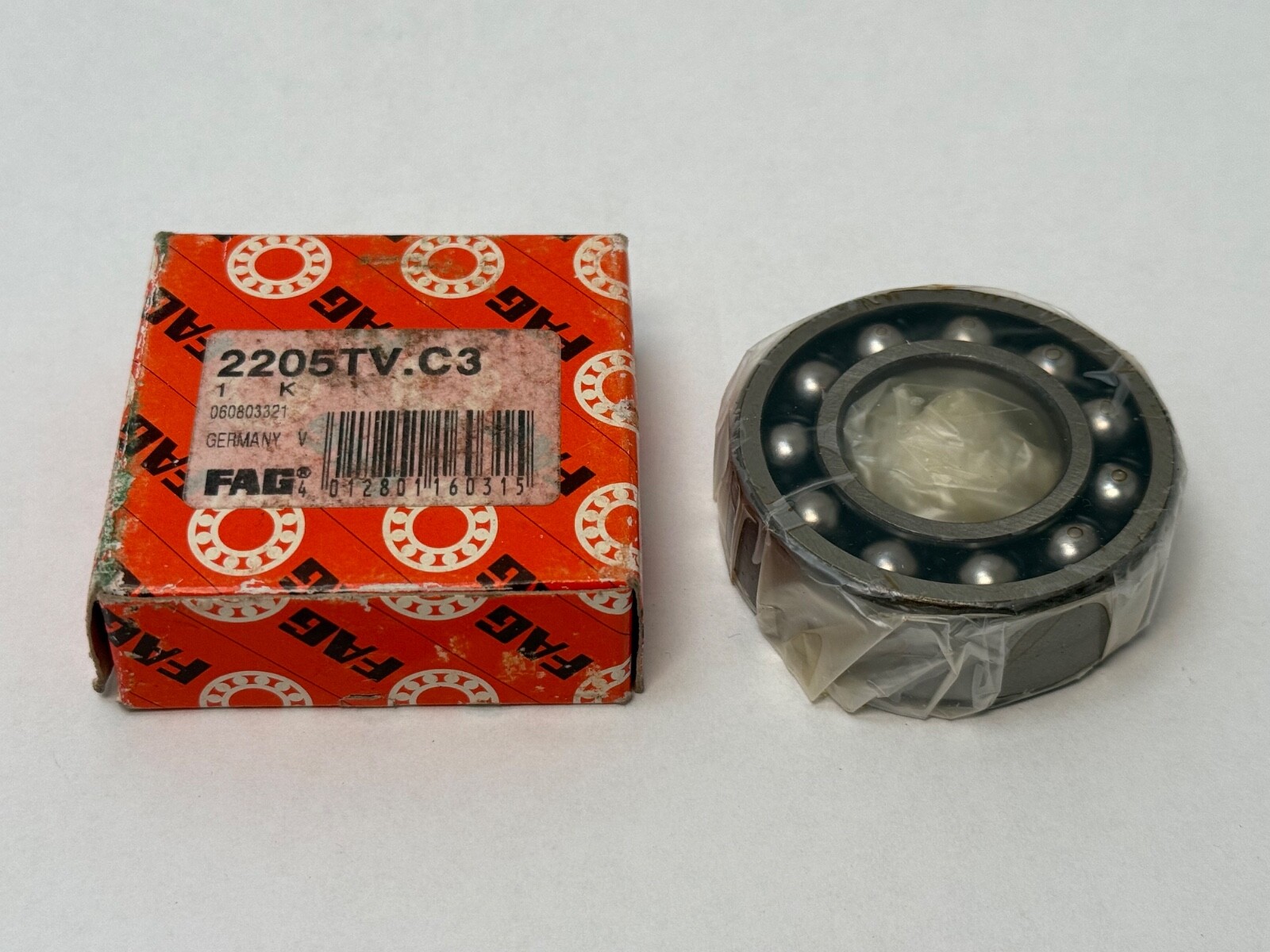

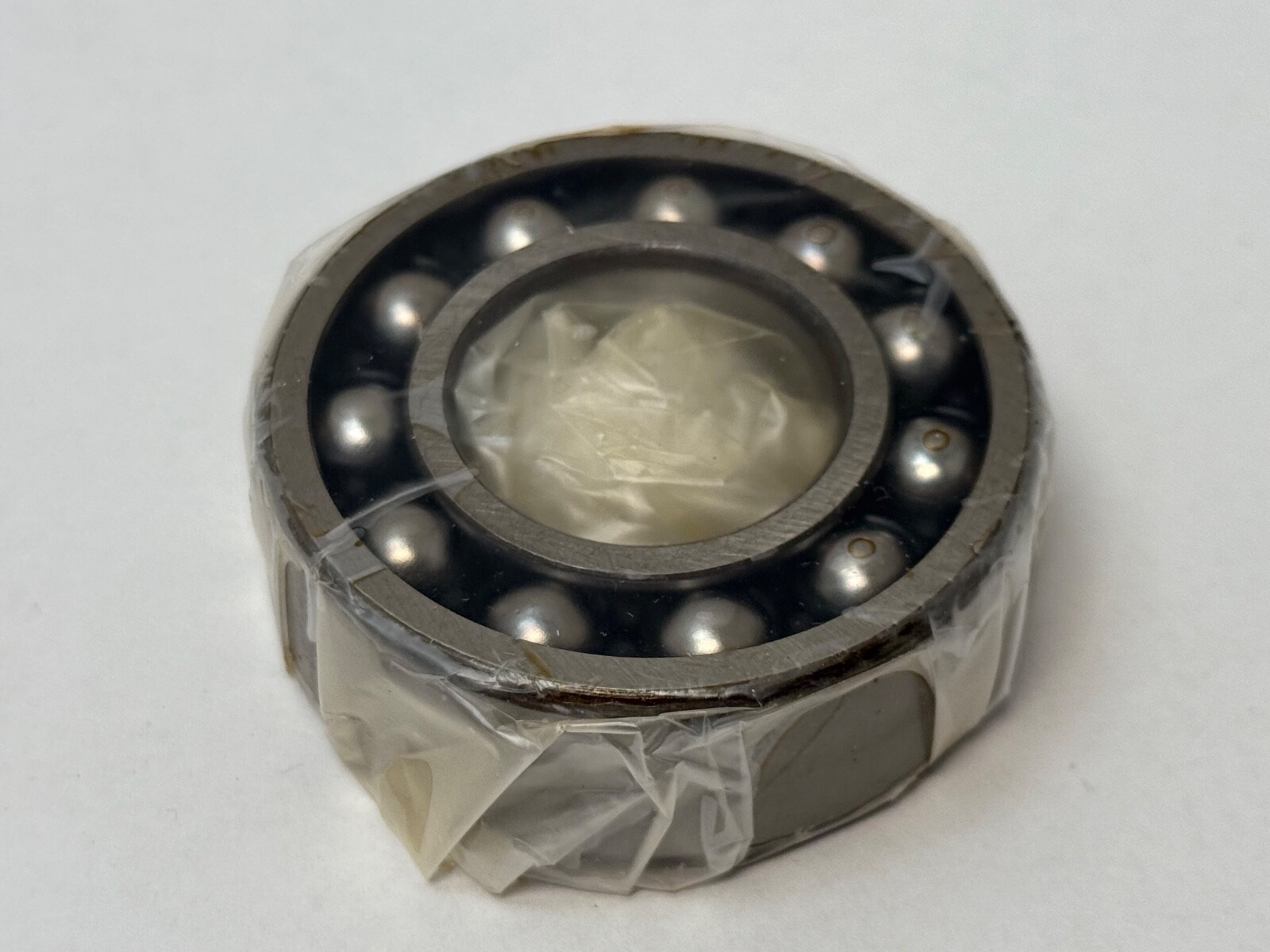

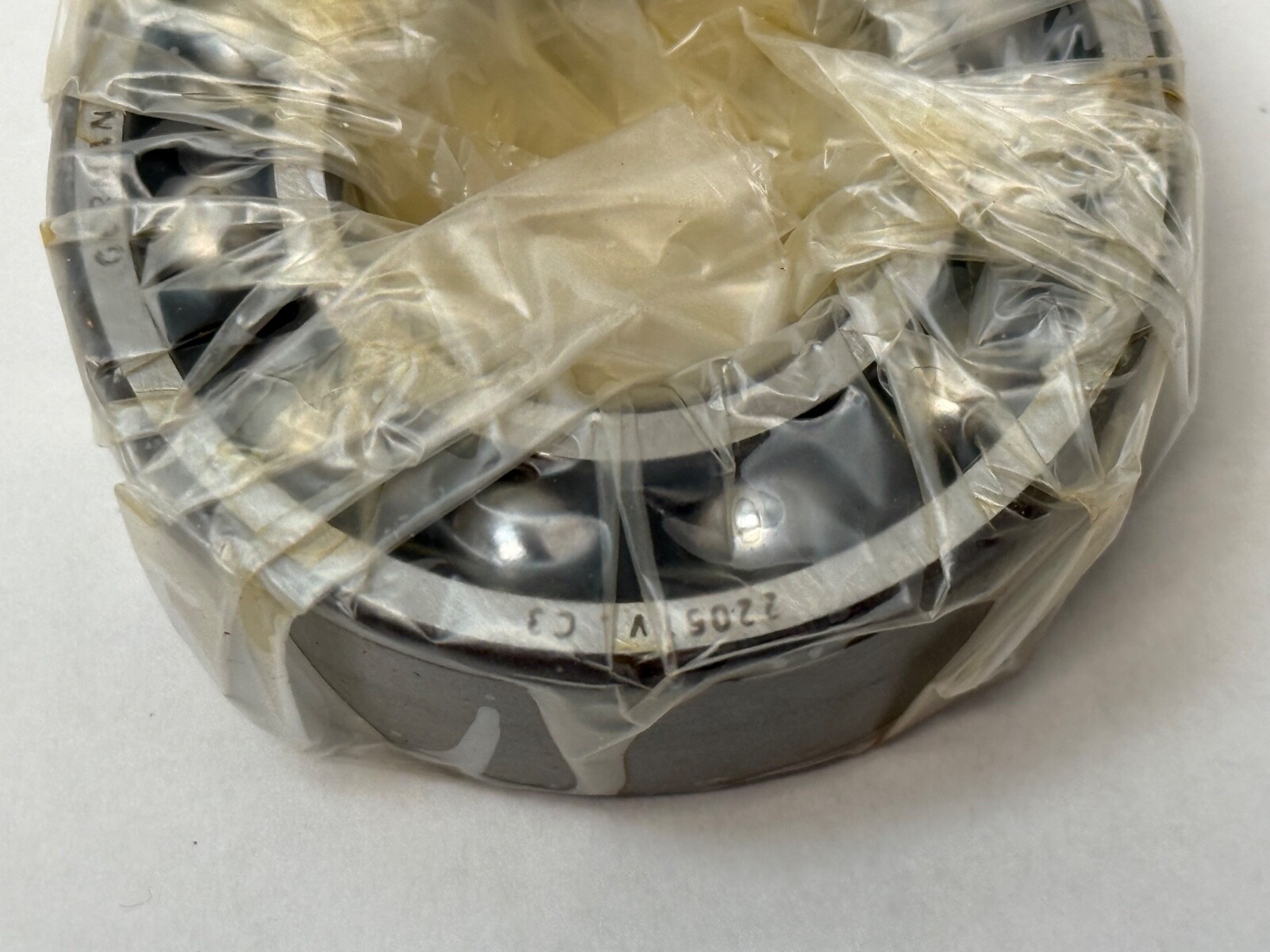

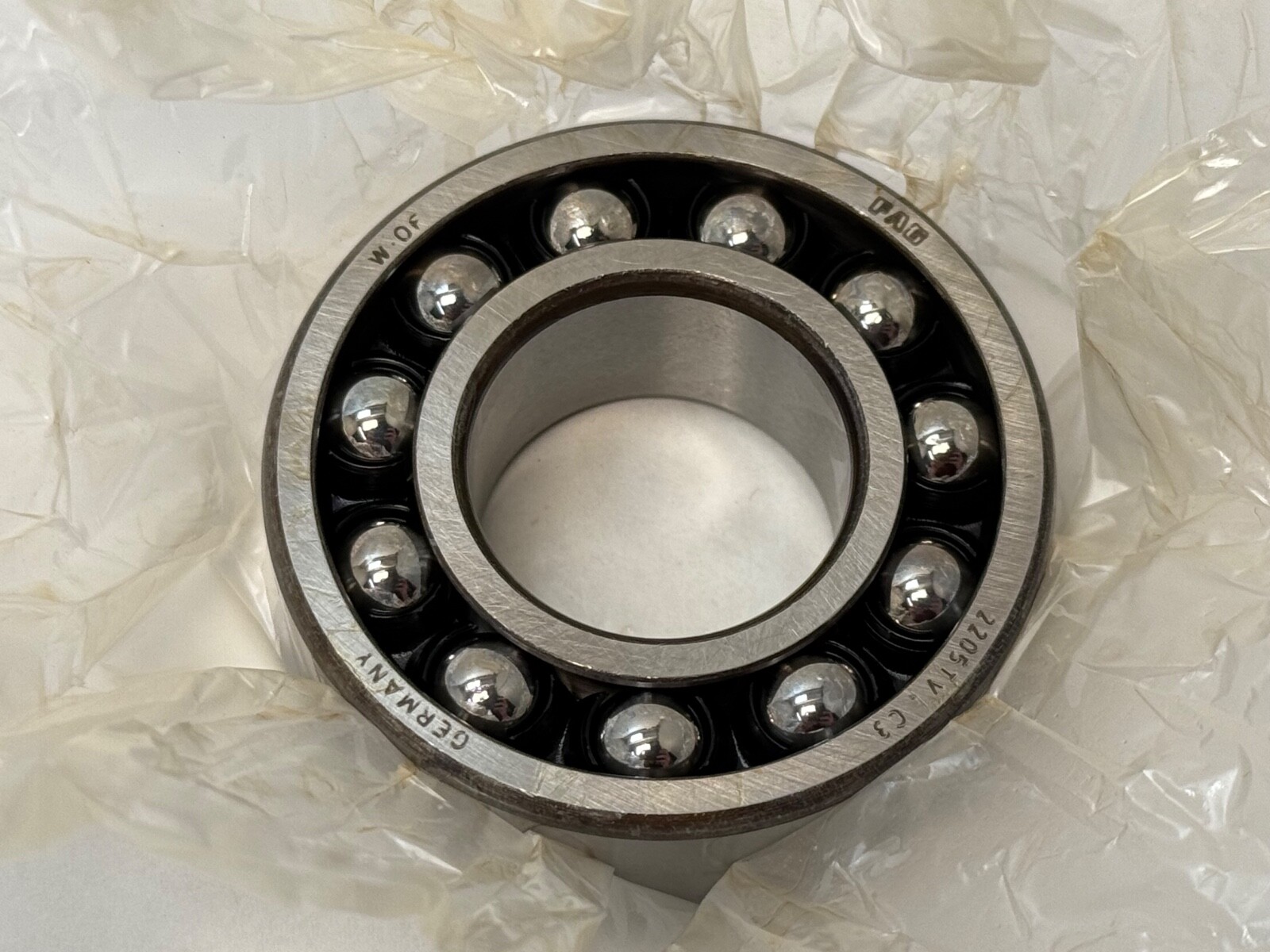

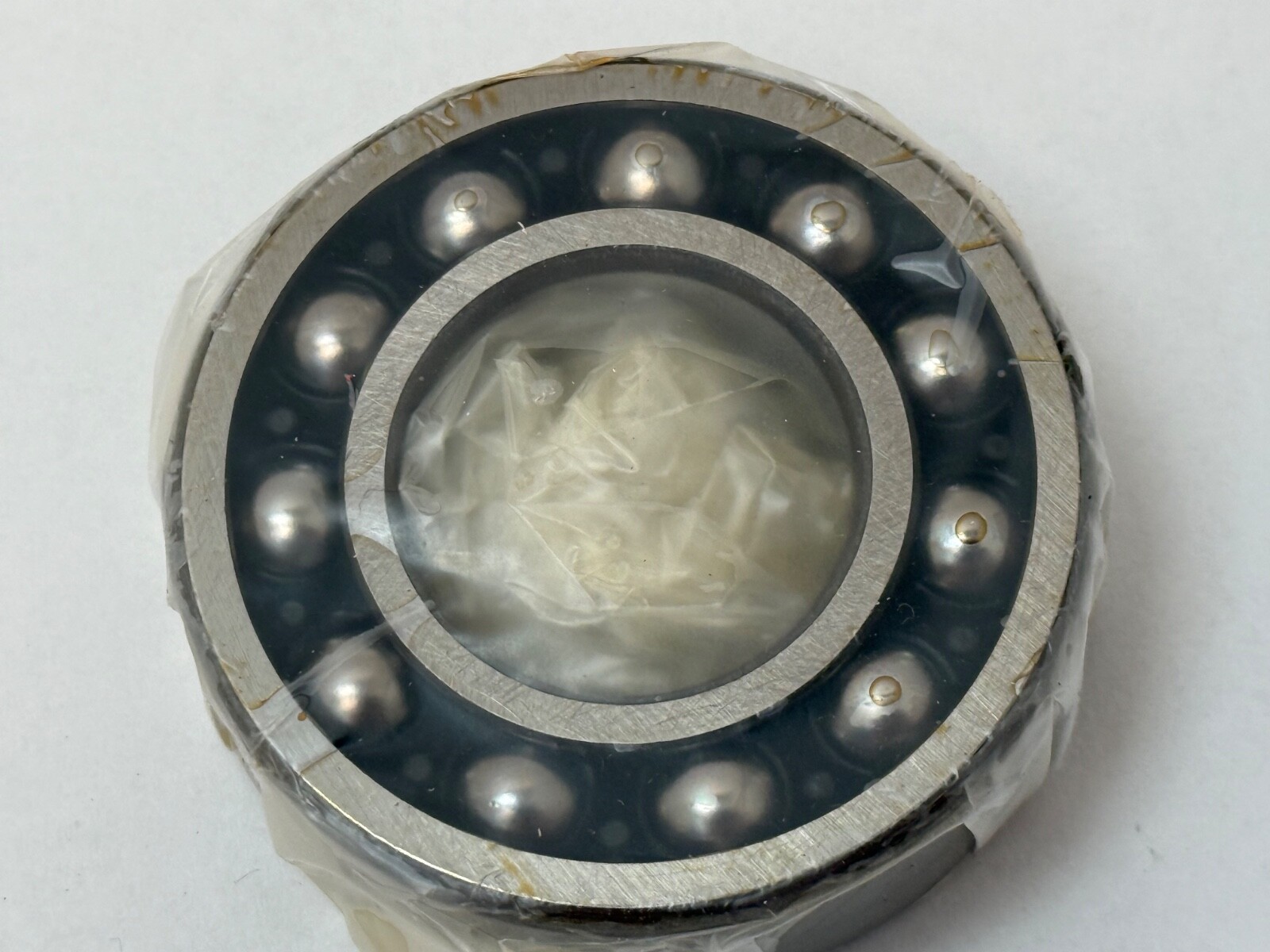

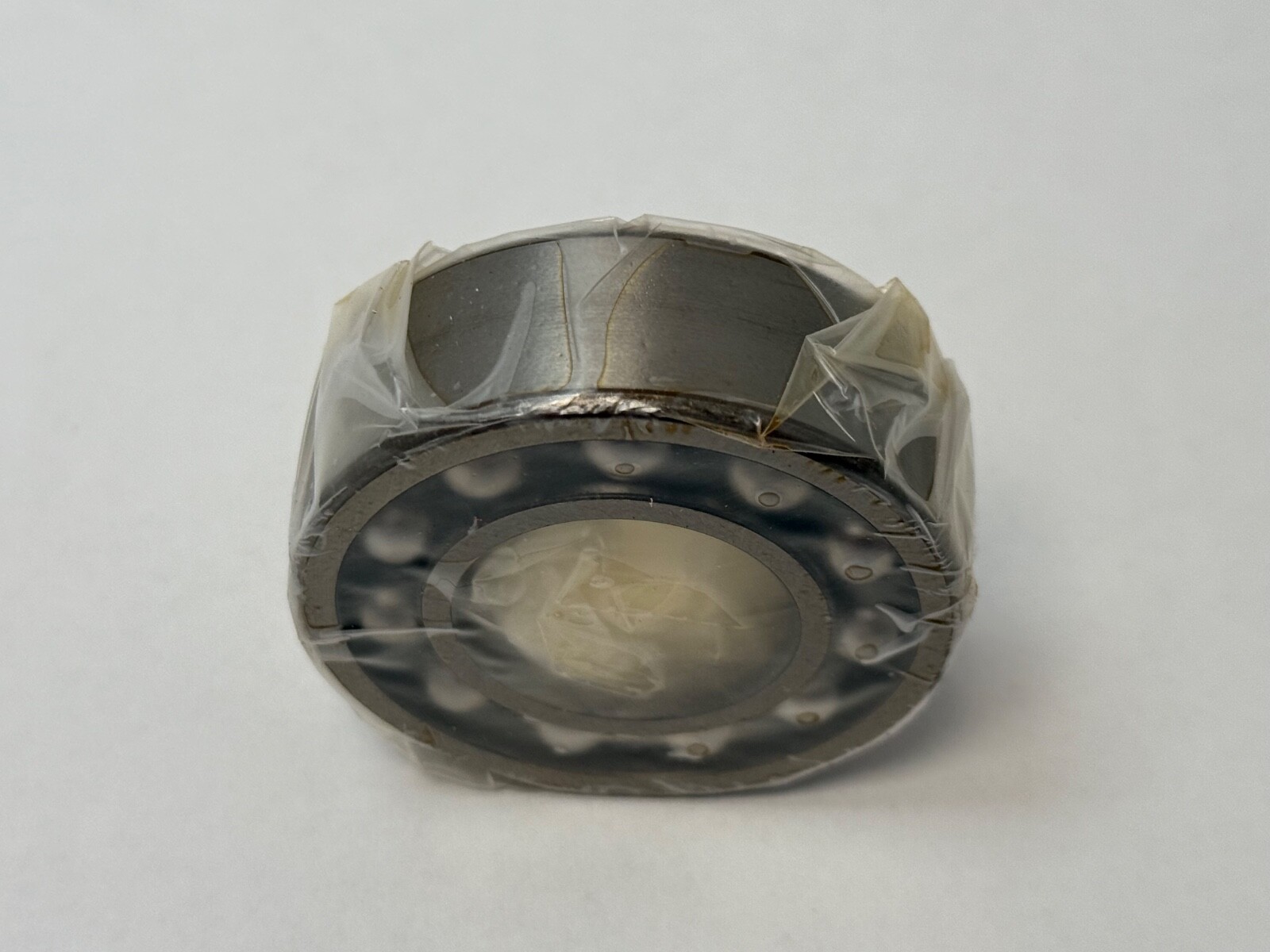

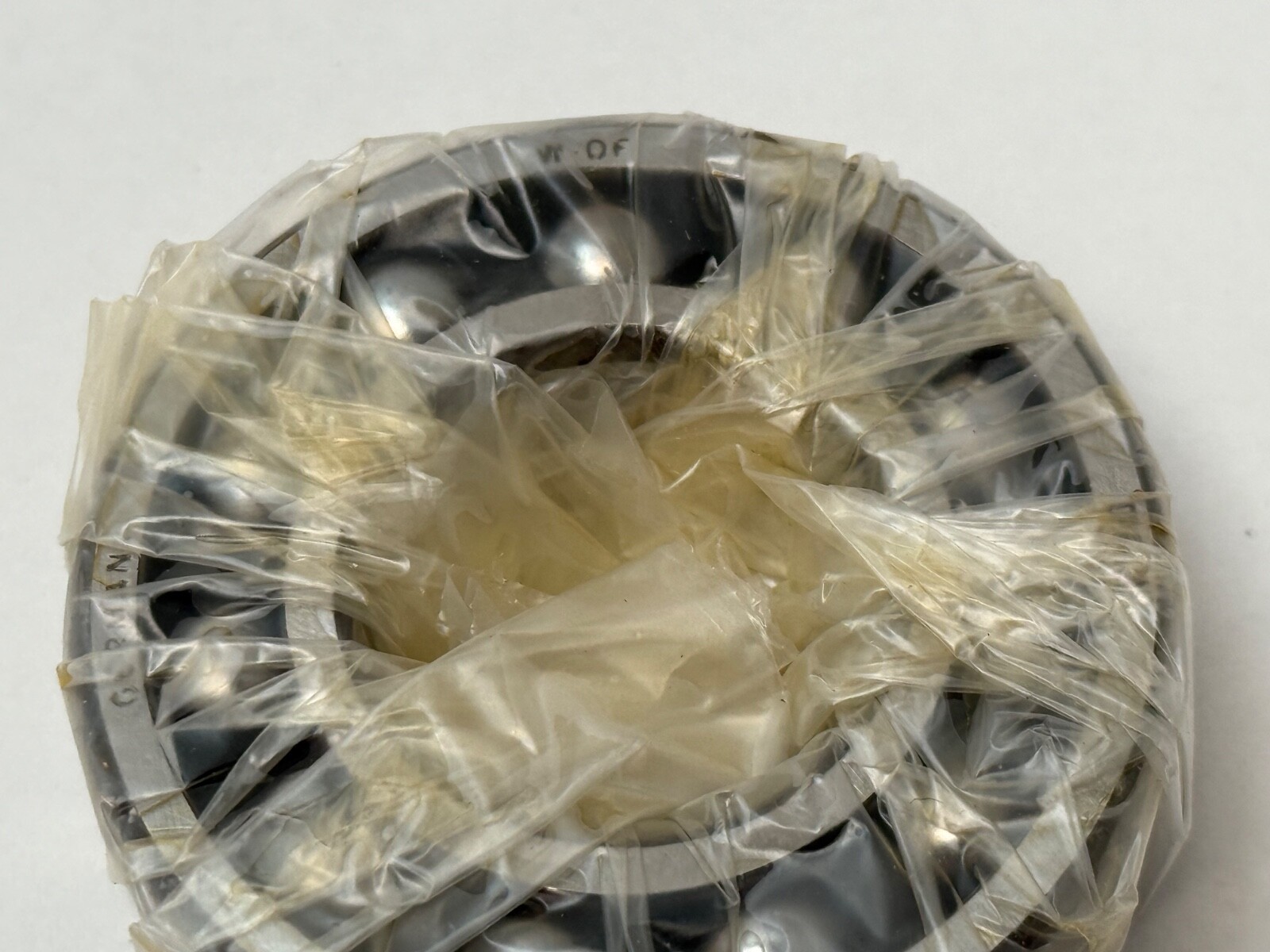

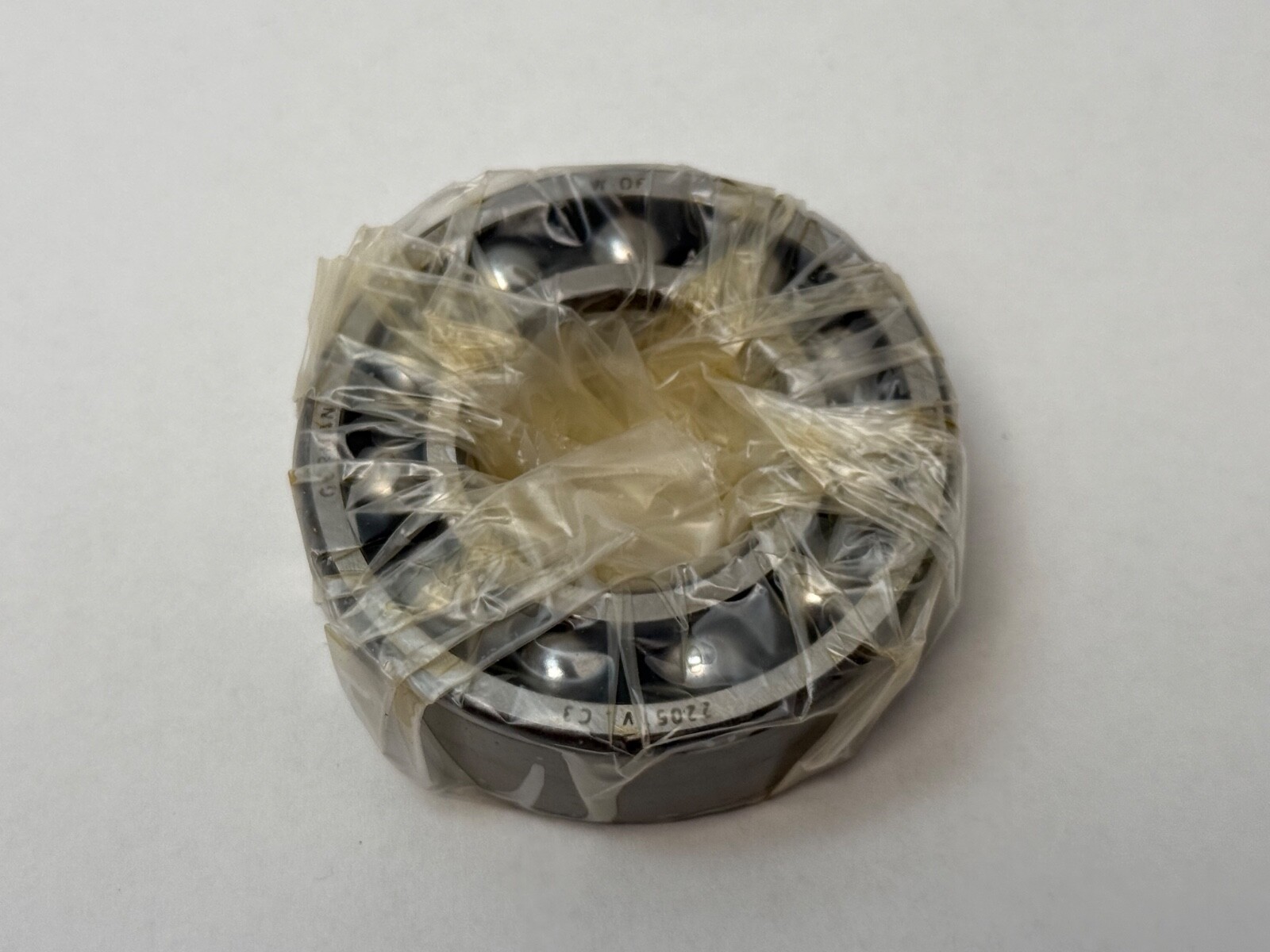

FAG2205TV.C3Double Row Self-Aligning Ball Bearing 25x52x18 mm, Straight Bore, Polyamide Cage, C3 Clearance

Condition: New

Availability:

2 in stock

FAG 2205TV.C3 double-row self-aligning ball bearing, 25 x 52 x 18 mm, straight bore, glass-fibre polyamide cage, C3 clearance. Unit Quantity: 1 Pc.

Same day shipment

List Price

$35.08

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN2205TV.C3
GTIN4012801160315
Model2205 TV C3
Bearing TypeSelf Aligning Ball Bearing
ID25 mm
OD52 mm (2.0472 in)
Width18 mm

Technical Specifications

Base Number2205
Industry Termsself aligning ball bearing, double row ball bearing, 2205 bearing, misalignment bearing, straight bore self aligning bearing
Common MisspellingsFAG 2205TVC3, 2205 TV.C3, 2205TVH C3, FAG 2205 TV, 2205-TVC3, FAG 2205TU
Application TypesLong shafts, fabricated frames, conveyors, agricultural machinery, fans, woodworking equipment, textile machinery
Total Width18 mm (0.7087 in)
Overall Width18 mm (0.7087 in)
Bore Shaft Size25 mm (0.9843 in), straight cylindrical bore
Mpn Variants2205TV.C3, 2205-TV-C3, 2205TVC3, 2205 TV C3, 2205TVH, 2205-TVH-C3, 2205TVHC3, 2205
Arrangement ConfigurationDouble row, straight bore, open both faces
Max Temp120 °C continuous (cage)
Cage MaterialGlass-fibre reinforced polyamide
Number Of Rows2
Bore TypeStraight cylindrical
Internal ClearanceC3 (greater than normal)
Part Number2205TV.C3
Closure TypeOpen both faces

Cross-References

Cross Reference 1SKF 2205 ETN9/C3
Cross Reference 2NSK 2205TN
Cross Reference 3NTN 2205
Cross Reference 4Koyo 2205
Seller Part Number: B-AD1B5#7GCPAS

Product Description

What this part is:

A FAG 2205TV.C3 double-row self-aligning ball bearing — 25 mm bore, 52 mm outside diameter, 18 mm width, straight cylindrical bore. Two rows of balls run in a common spherical outer raceway, so the inner ring and ball set swivel inside the outer ring and accept angular misalignment between shaft and housing. Unit Quantity: 1 Pc, open on both faces.

Decoding the designation:

2205 — double-row self-aligning ball bearing, 25 mm bore, 52 mm OD, 18 mm width, straight bore.

TV / TVH — glass-fibre reinforced polyamide cage.

C3 — internal clearance greater than normal.

No K suffix — cylindrical bore.

Specifications:

Bore Diameter: 25 mm (0.9843 in). Outside Diameter: 52 mm (2.0472 in). Overall Width: 18 mm (0.7087 in). Number Of Rows: 2. Rolling Elements: Balls. Closure Type: Open both faces. Cage Material: Glass-fibre reinforced polyamide. Max Temp: 120 °C continuous (cage). Internal Clearance: C3 (greater than normal).

Dimensions and mounting:

Bore Type: Straight cylindrical. Self-aligning: yes, spherical outer raceway.

Compatibility and replacement:

Cross-references in the 25 x 52 x 18 mm straight-bore self-aligning envelope: SKF 2205 ETN9/C3, NSK 2205TN, NTN 2205, Koyo 2205. The 2205-K variant has a 1:12 tapered bore. Sealed versions such as 2205-2RS close the faces.

Frequently asked questions:

What are the dimensions of the FAG 2205TV.C3?

25 mm bore, 52 mm outside diameter, 18 mm width.

Does it have a straight or tapered bore?

Straight cylindrical bore.

What does C3 mean?

Internal clearance greater than normal.
