A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock
Self-aligning ball bearing, 60 x 110 x 22 mm, 1:12 tapered bore, C3 clearance, 30,500 N dynamic rating. Double row, pressed steel cage. Mounts on H212 sleeve.
List Price
$42.05
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 1212KC3 |
| Model | 1212C3 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 1200 |
| Compatible With Replaces | Adapter sleeve H212 |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Y1 3.40; Y2 5.30; Y0 3.60; chamfer r min 1.5 mm; da min 68 mm; Da max 102 mm; ras max 1.5 mm |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 30,500 N |
| Static Load Rating | 11,500 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.869 kg (1.916 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Limiting Speed | 5,300 rpm grease; 6,300 rpm oil |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00.80 |
| Bearing Material | High carbon chrome steel |
| Industry Terms | self-aligning ball bearing; tapered bore double row ball bearing; adapter sleeve bearing |
| Common Misspellings | 1212 KC3; 1212KC-3; NTN 1212 K C3; 1212K-C3 |
| Application Types | General industrial shafting; fans and blowers; conveyors; agricultural machinery |
| Mpn Variants | 1212KC3; 1212K C3; 1212 K C3; 1212K; 1212-K-C3 |
| Cross Reference 1 | NSK 1212KC3 |
|---|---|
| Cross Reference 2 | Koyo 1212KC3 |
| Cross Reference 3 | FAG 1212-K-TVH-C3 - polyamide cage |
| Cross Reference 4 | SKF 1212 EKTN9/C3 - E design, polyamide cage |

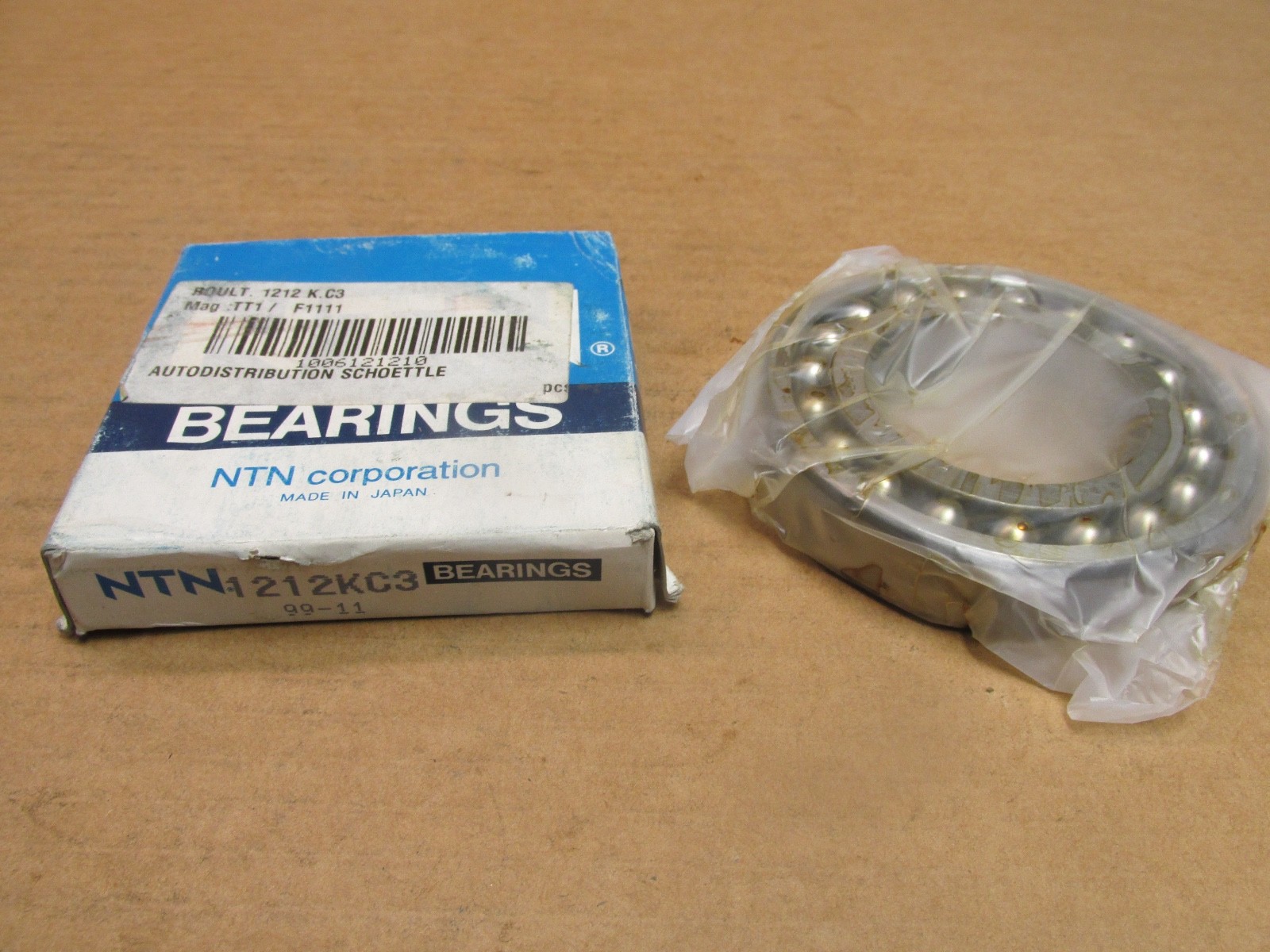

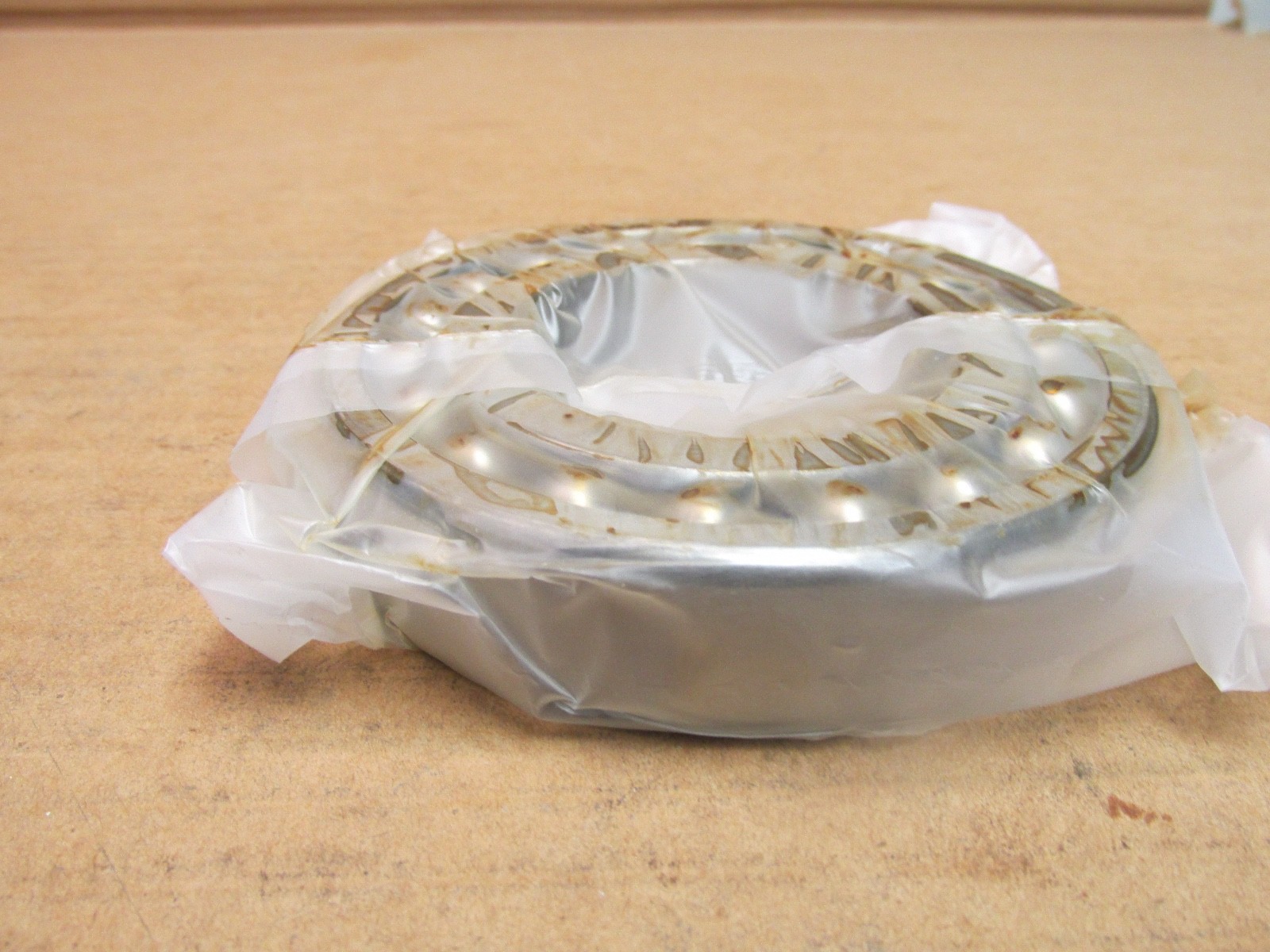

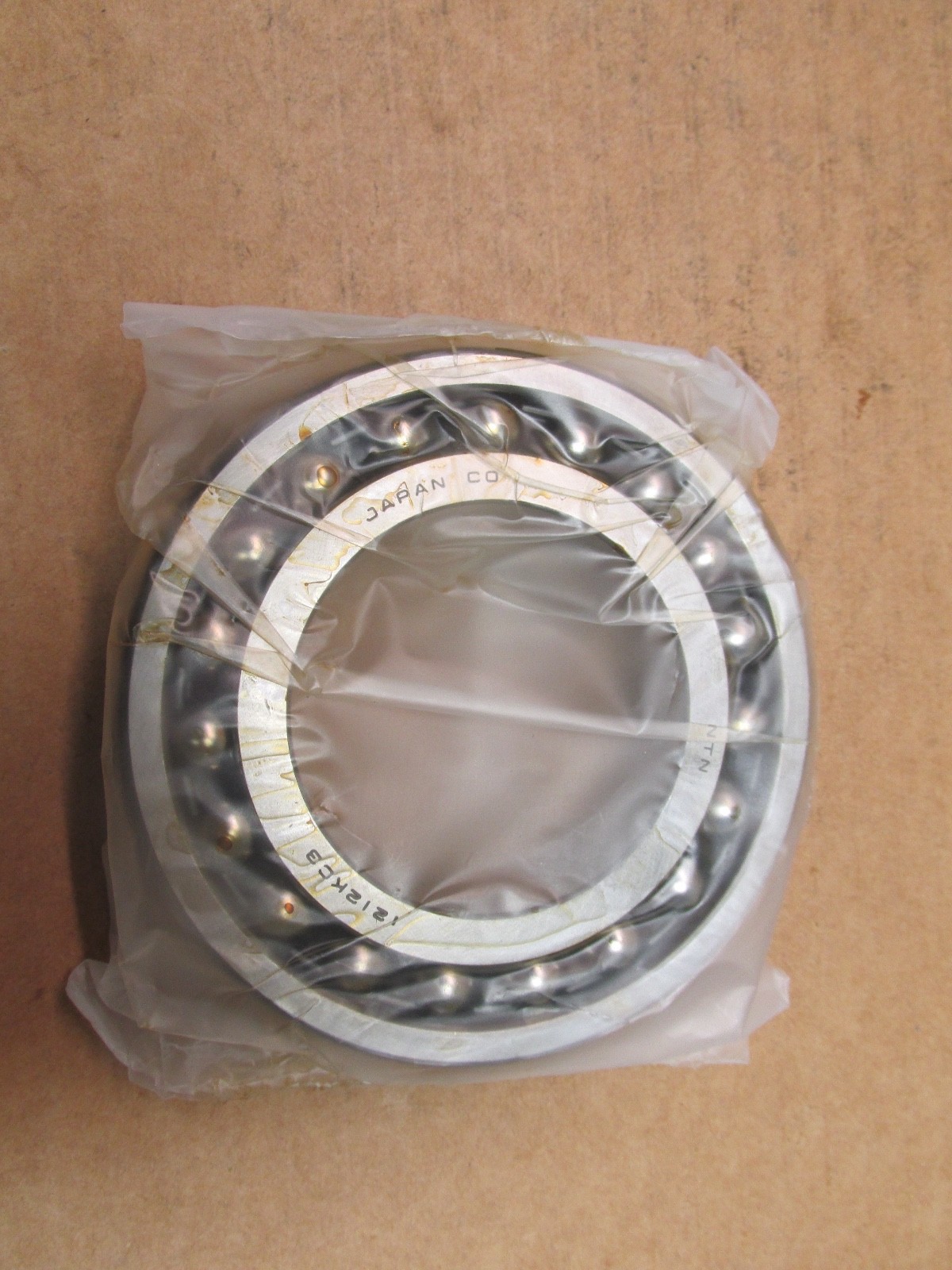

NTN 1212KC3, a double-row self-aligning ball bearing with 1:12 tapered bore and C3 internal clearance, 60 x 110 x 22 mm. Unit Quantity: 1 Pc.
1 — self-aligning ball bearing, standard width.
212 — 02 diameter series, 60 mm bore, 60 x 110 x 22 mm.
K — 1:12 tapered bore.
C3 — radial internal clearance greater than normal.
Bore Diameter: 60 mm (large end of taper). Outside Diameter: 110 mm. Overall Width: 22 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Closure Type: Open. Rolling Elements: Ball. Dynamic Load Rating: 30,500 N. Static Load Rating: 11,500 N. Limiting Speed: 5,300 rpm grease; 6,300 rpm oil. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Cage Material: Pressed steel. Bearing Material: High carbon chrome steel. Axial load factors: Y1 3.40, Y2 5.30, Y0 3.60. Operating temperature range: -40 to 120 °C. Item Weight: 0.869 kg (1.916 lb). Unit Quantity: 1 Pc.
Chamfer r min: 1.5 mm. Shaft abutment da min: 68 mm. Housing abutment Da max: 102 mm. Fillet radius ras max: 1.5 mm. The sphered outer raceway accommodates angular misalignment between shaft and housing. Mounts on an H212 adapter sleeve (55 mm shaft).
Same 60 x 110 x 22 mm envelope, 1:12 tapered bore, C3 clearance: NSK 1212KC3, Koyo 1212KC3, FAG 1212-K-TVH-C3 (polyamide cage), SKF 1212 EKTN9/C3 (E design, polyamide cage, different ratings).
A 1:12 tapered bore, 60 mm at the large end of the taper.
Dynamic Load Rating 30,500 N and Static Load Rating 11,500 N.
An H212 adapter sleeve, 55 mm shaft.
