Availability:
10 in stock

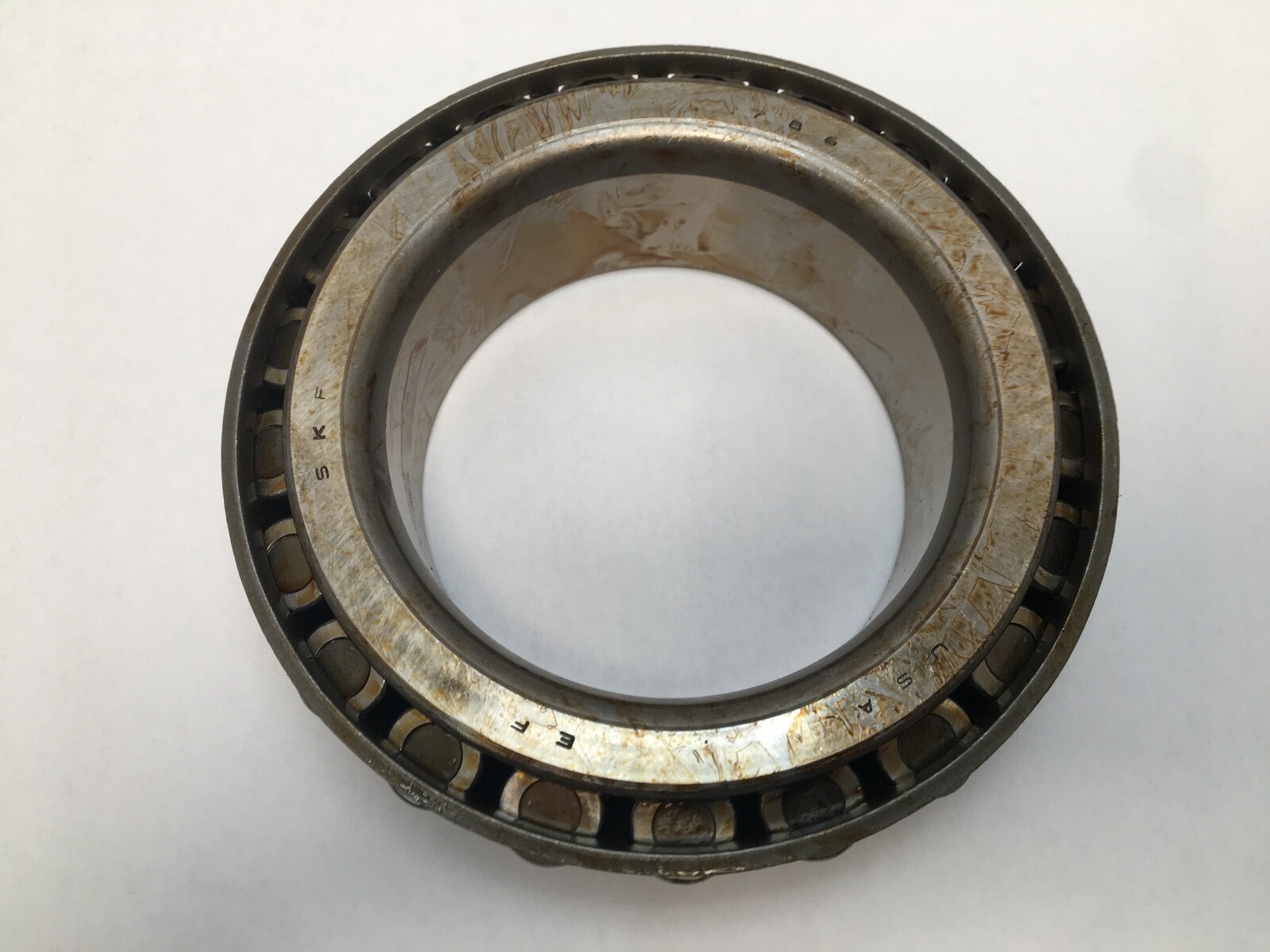

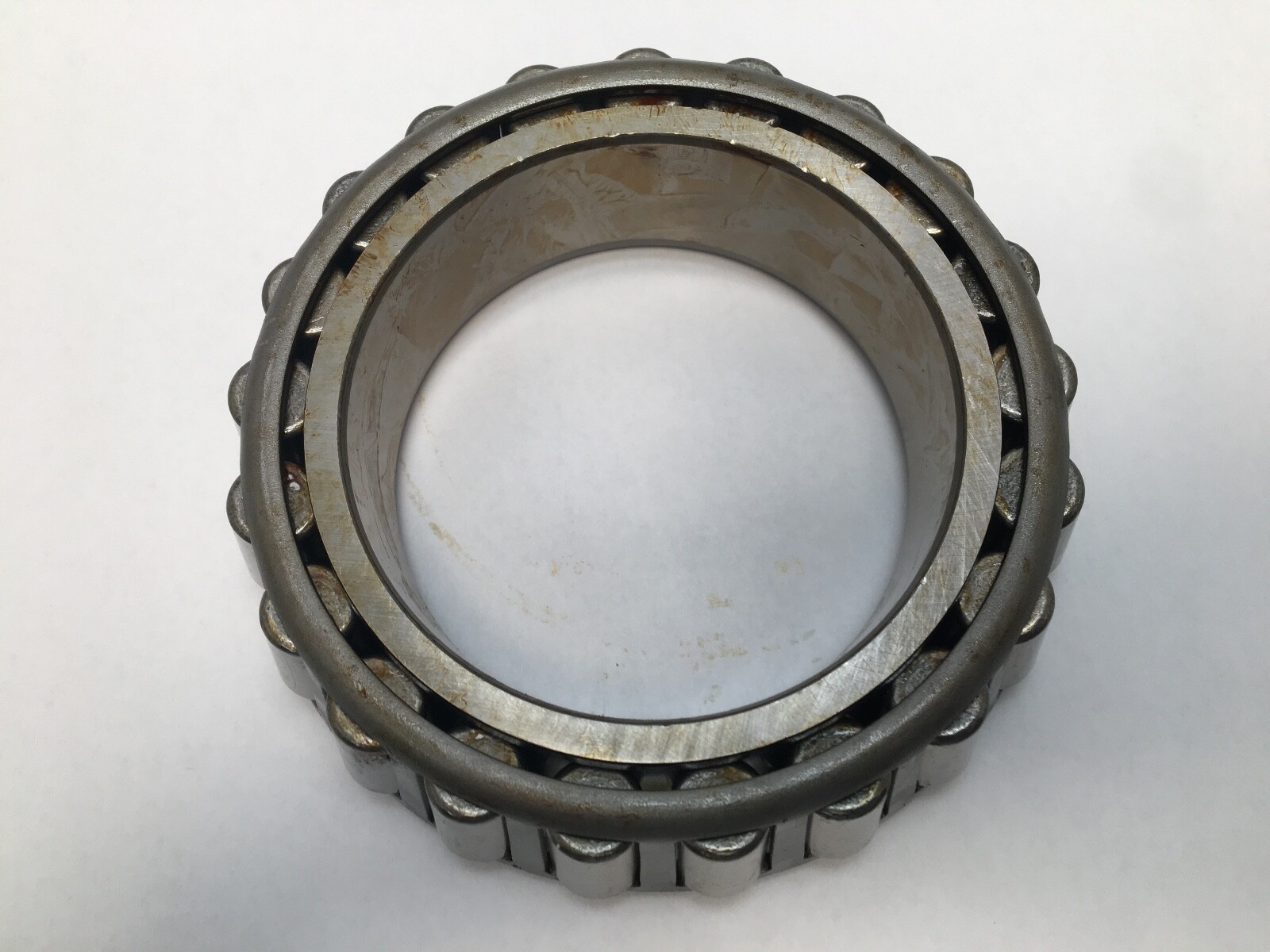

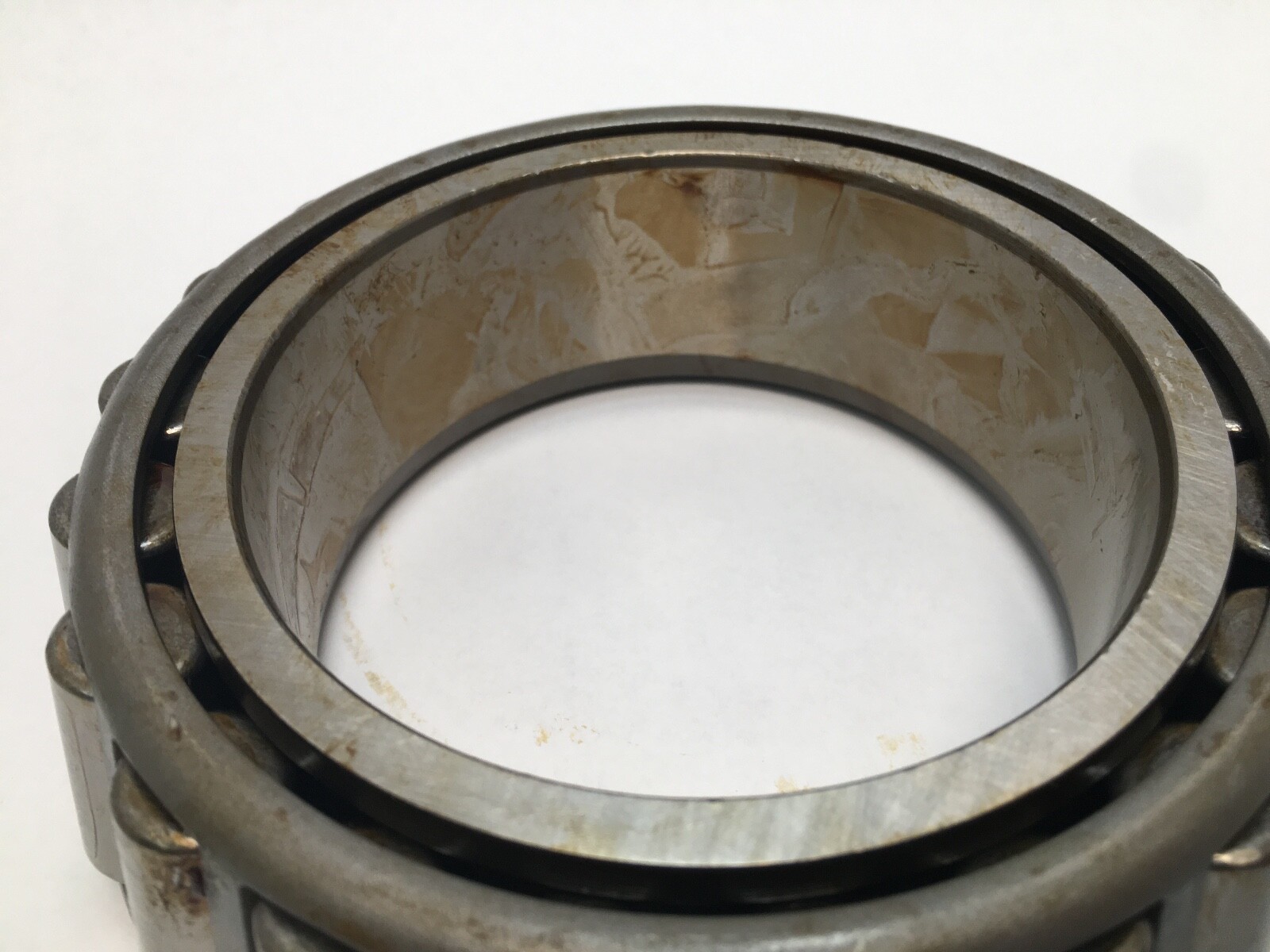

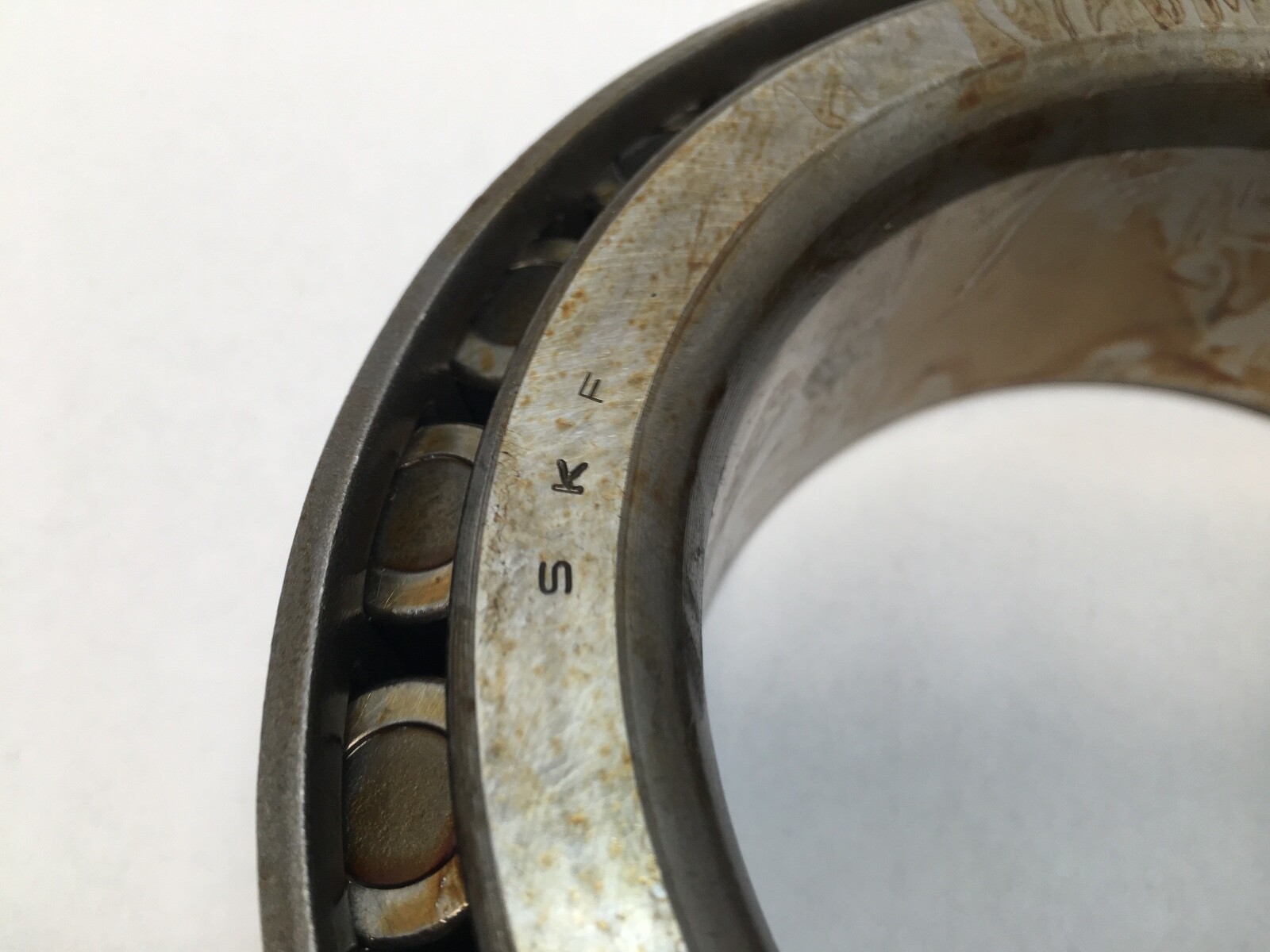

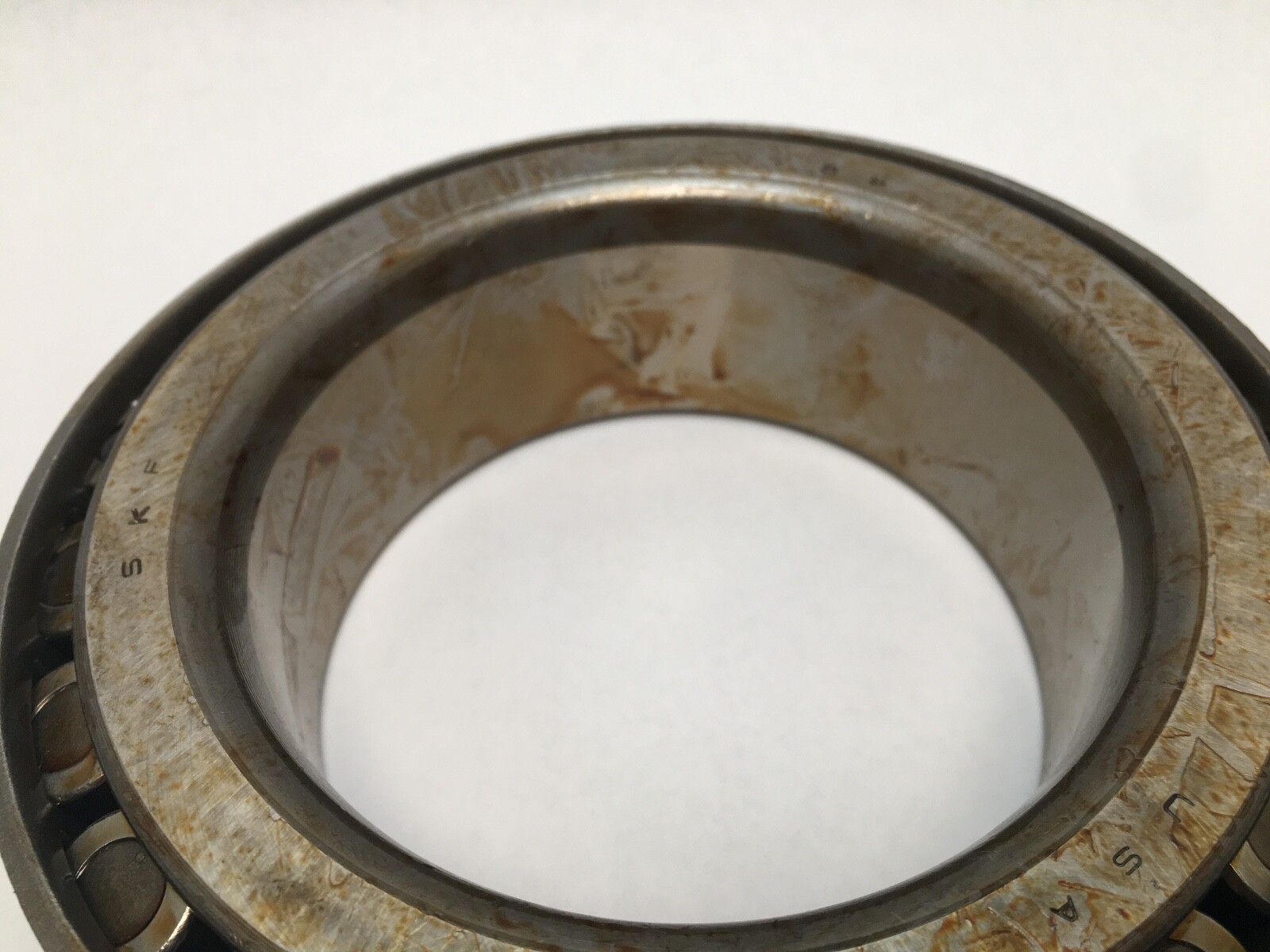

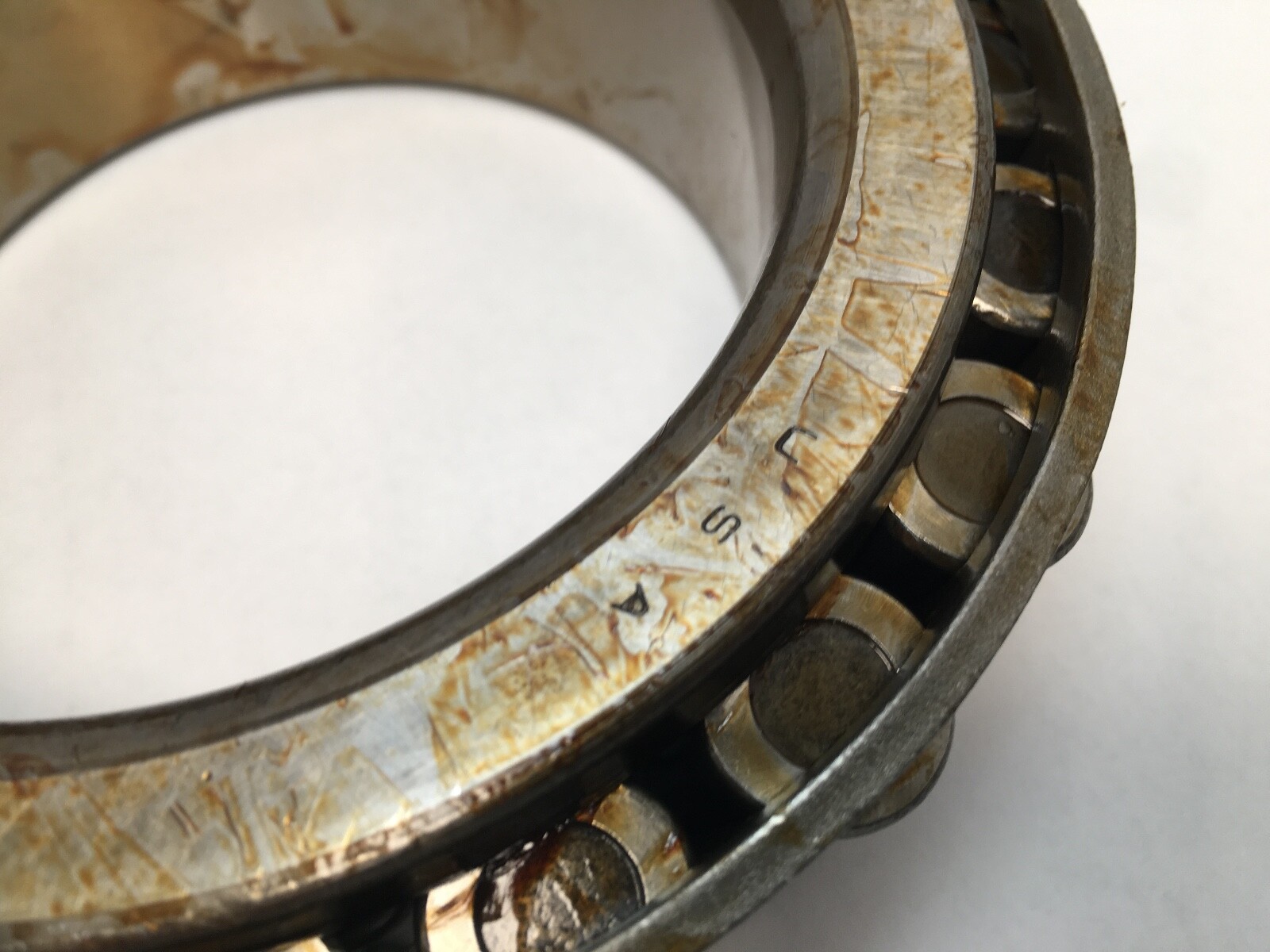

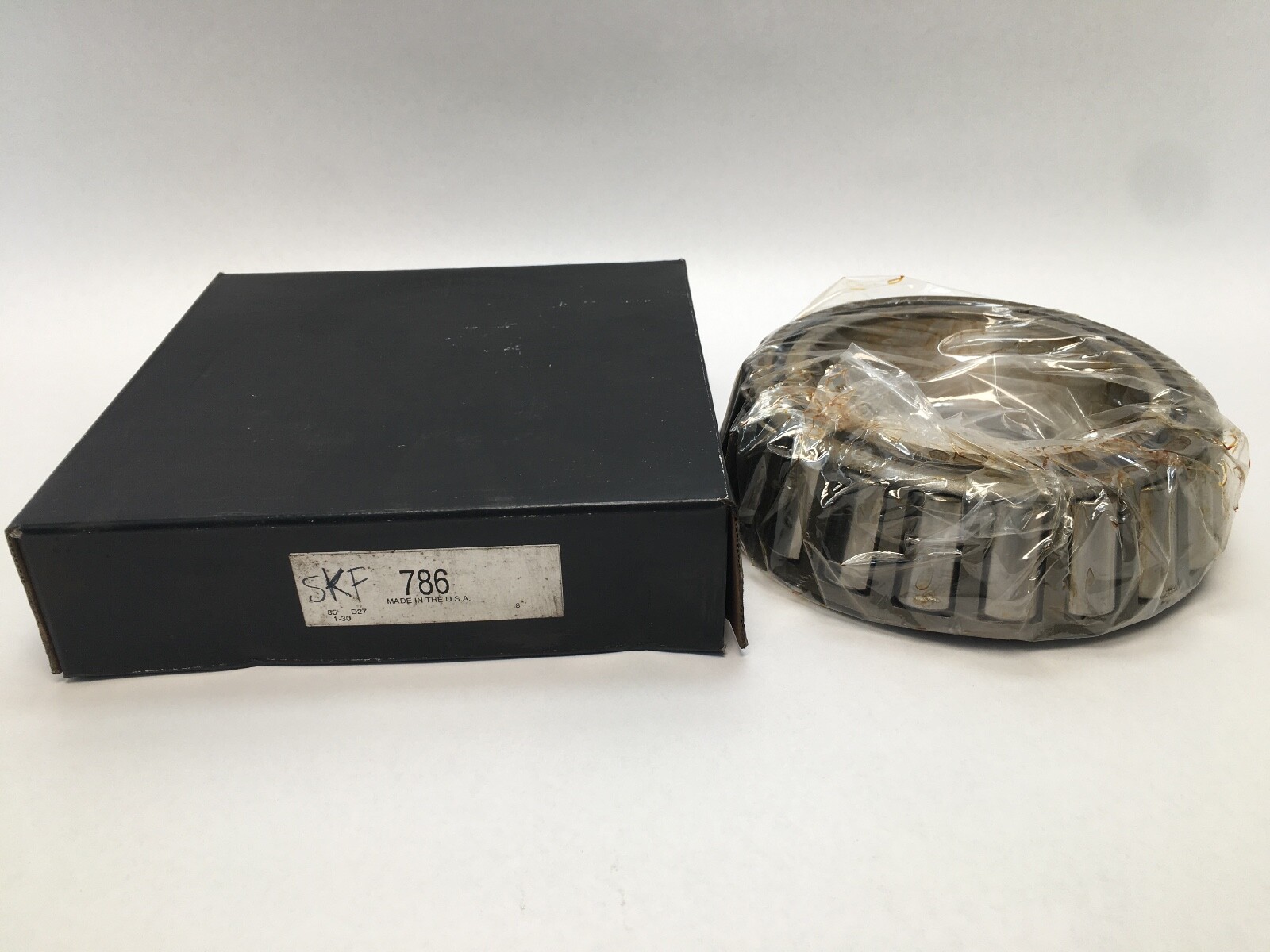

Single-row tapered roller bearing cone, 4.1250 in (104.775 mm) bore, 1.8900 in inner ring width. Mates a 772 or 772A cup. SKF USA-built, new old stock.
List Price
$71.89
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 786 |
| Model | 786 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 4.1250 in (104.775 mm) |
| Width | 1.8900 in (48.006 mm) |
| Base Number | 786 |
|---|---|
| Industry Terms | Taper cone; tapered roller bearing cone; inner ring assembly; inch taper bearing; single cone; TS bearing cone |
| Common Misspellings | 768; 786A; 7 86 cone; 786 taper cone; 786 bearing cone |
| Application Types | Heavy truck wheel ends; trailer axles; gearboxes; agricultural drives; construction equipment; industrial gear reducers |
| Overall Width | 1.8900 in (48.006 mm) |
| Mpn Variants | 786; 786 cone; 786/772; 786-772; 786/772A; SKF 786 |
| Compatible With Replaces | Mates 772 or 772A cup; assembly 786/772 measures 4.1250 in bore x 7.1250 in OD x 1.8750 in |
| Material | Bearing steel |
| Rolling Elements | Tapered Roller |
| Item Weight | 10.269 kg (22.64 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken 786 |
|---|---|
| Cross Reference 2 | Koyo 786 |
| Cross Reference 3 | NTN 786 |
| Cross Reference 4 | BCA/Bower 786 |

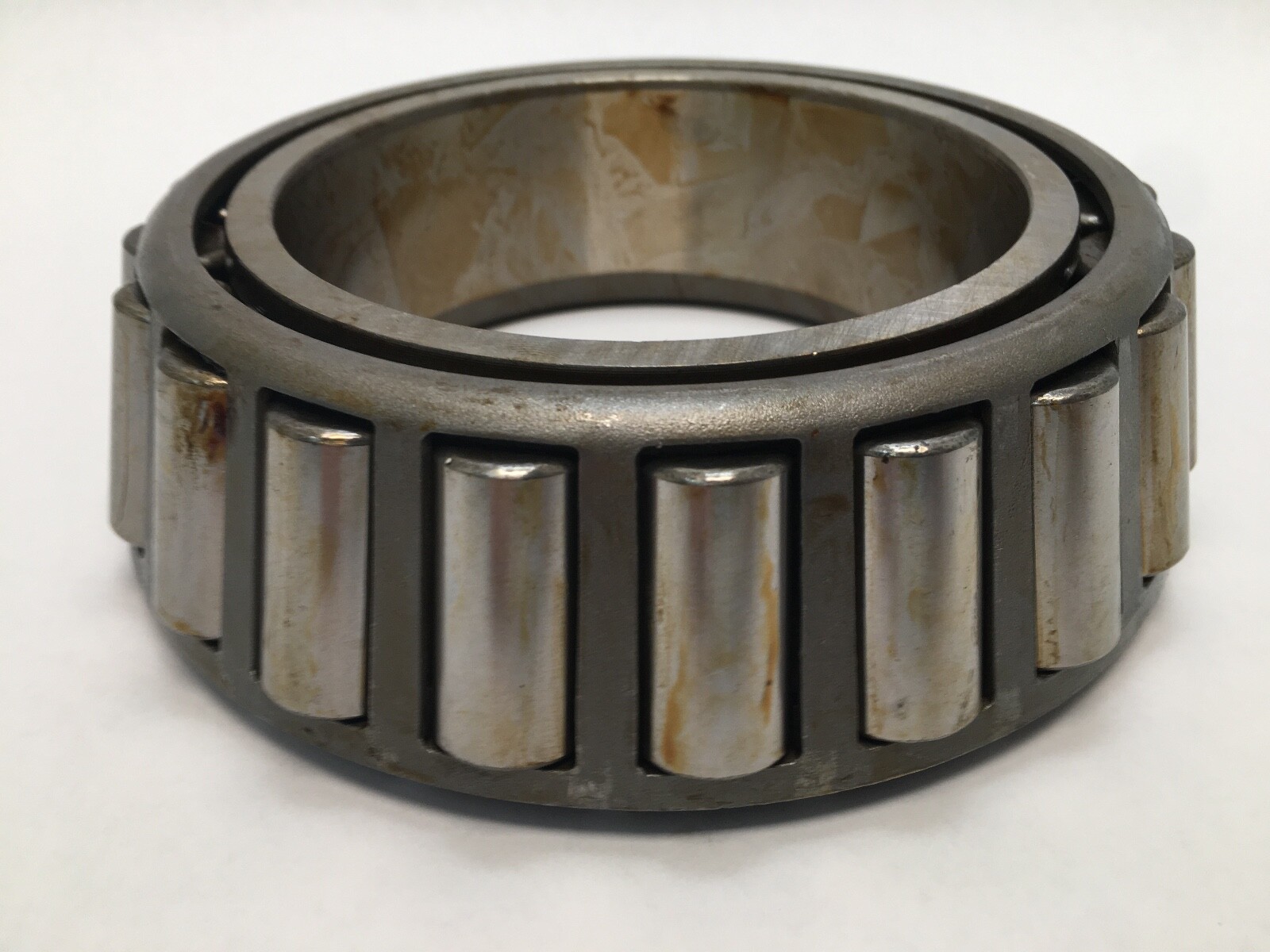

SKF 786 single-row tapered roller bearing cone — the inner ring, roller set and cage of a two-piece tapered roller bearing. Bore Diameter: 4.1250 in (104.775 mm). Overall Width: 1.8900 in (48.006 mm) through the bore. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Item Weight: 10.269 kg (22.64 lb). Unit Quantity: 1 Pc.

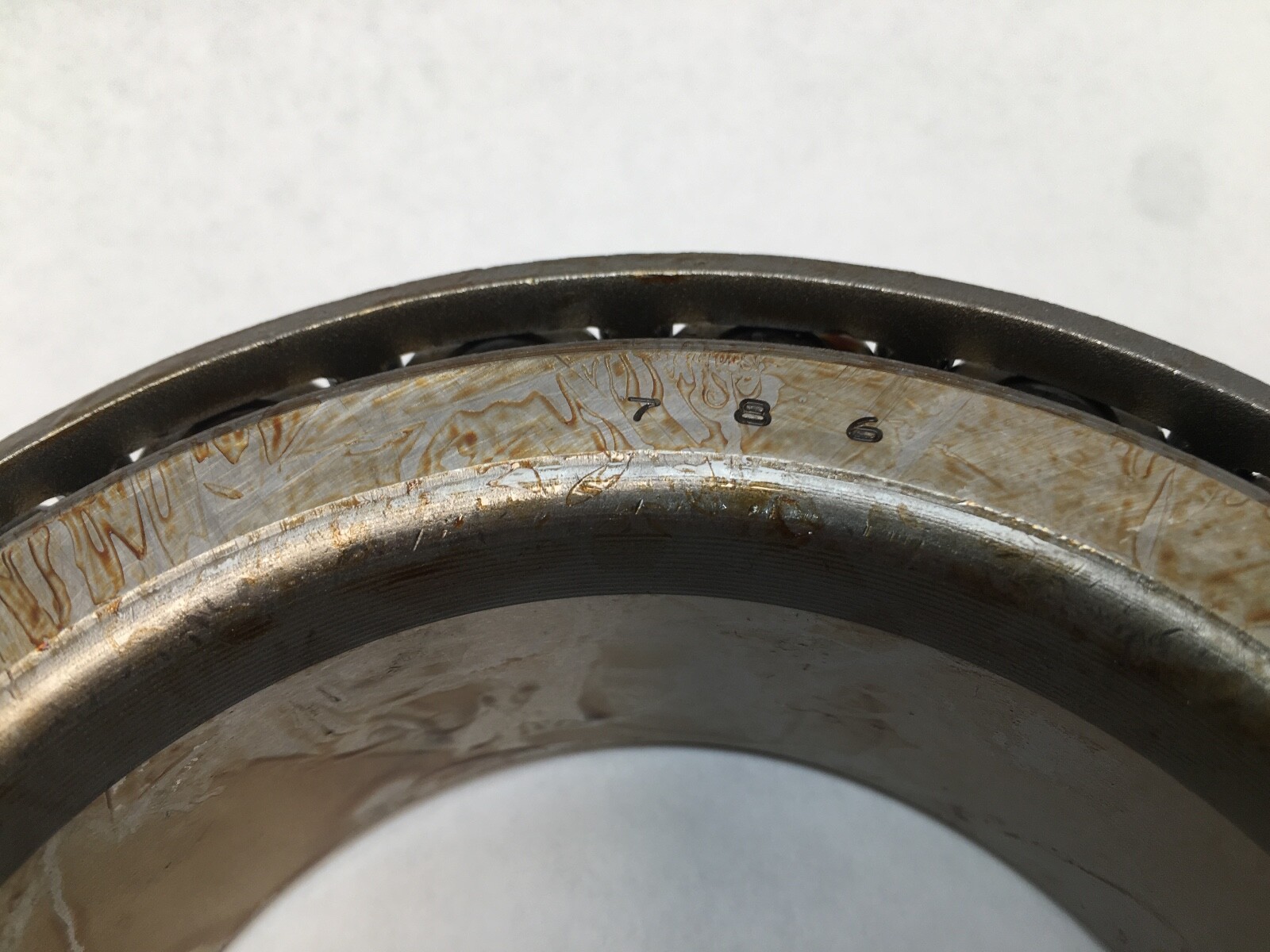

786 — the ANSI/ABMA inch-series cone number. The number fixes the boundary dimensions, so any maker’s 786 mounts in the same housing and on the same shaft.

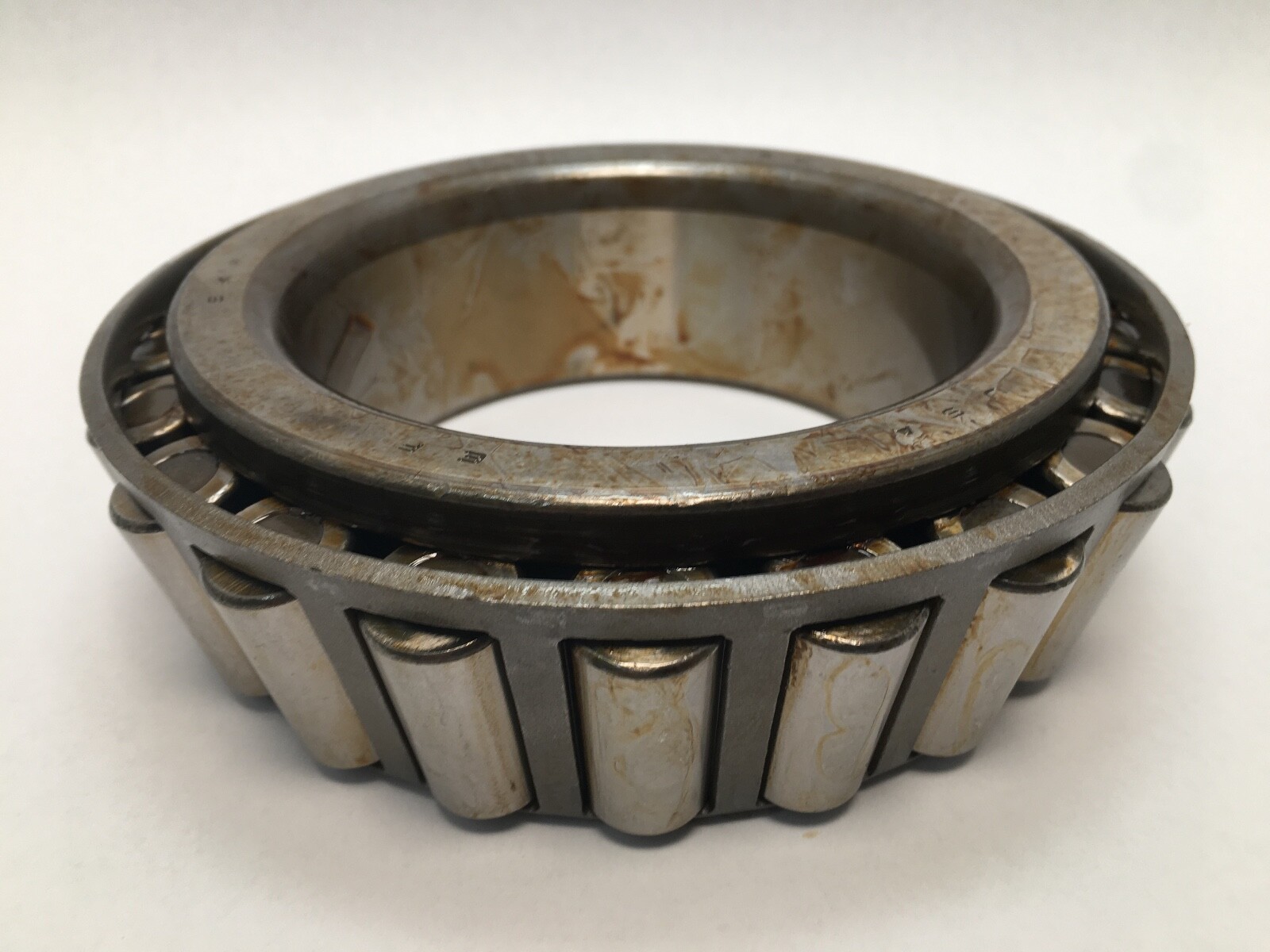

A tapered roller bearing separates into two parts that are bought and stocked independently. This listing is the cone: inner ring, tapered rollers and cage as a single non-separable assembly. The matching outer ring is the cup, ordered by its own number.
Tapered geometry carries radial and axial load together, with the axial component acting in one direction. Two bearings mounted in opposition carry thrust both ways and set the running clearance between them at assembly.
Bore Diameter: 4.1250 in (104.775 mm), a straight bore mounted with an interference fit on the shaft journal.
Shaft Backing Shoulder Diameter, backface: 5.04 in (128 mm). Shaft Backing Shoulder Diameter, frontface: 4.57 in (116 mm). Maximum shaft fillet radius cleared by the bearing corner: 0.25 in (6.4 mm). Effective centre location: −0.32 in (−8.1 mm), measured inside the cone backface. Overall Width: 1.8900 in (48.006 mm). Item Weight: 10.269 kg (22.64 lb). Harmonization Code: 8482.20.00.
Unit Quantity: 1 Pc. One cone. The mating cup is a separate part number.
Matching cups: 772, and 772A. Mounted on a 772 the assembly measures 4.1250 in bore, 7.1250 in outside diameter and 1.8750 in overall assembly width.
786 is an industry-standard inch cone number carried by every major tapered roller manufacturer, so Timken 786, Koyo 786, NTN 786 and BCA/Bower 786 share these boundary dimensions. Load ratings are set by each maker’s own roller complement and are quoted per brand, so confirm the rating against the maker whose part is fitted.
