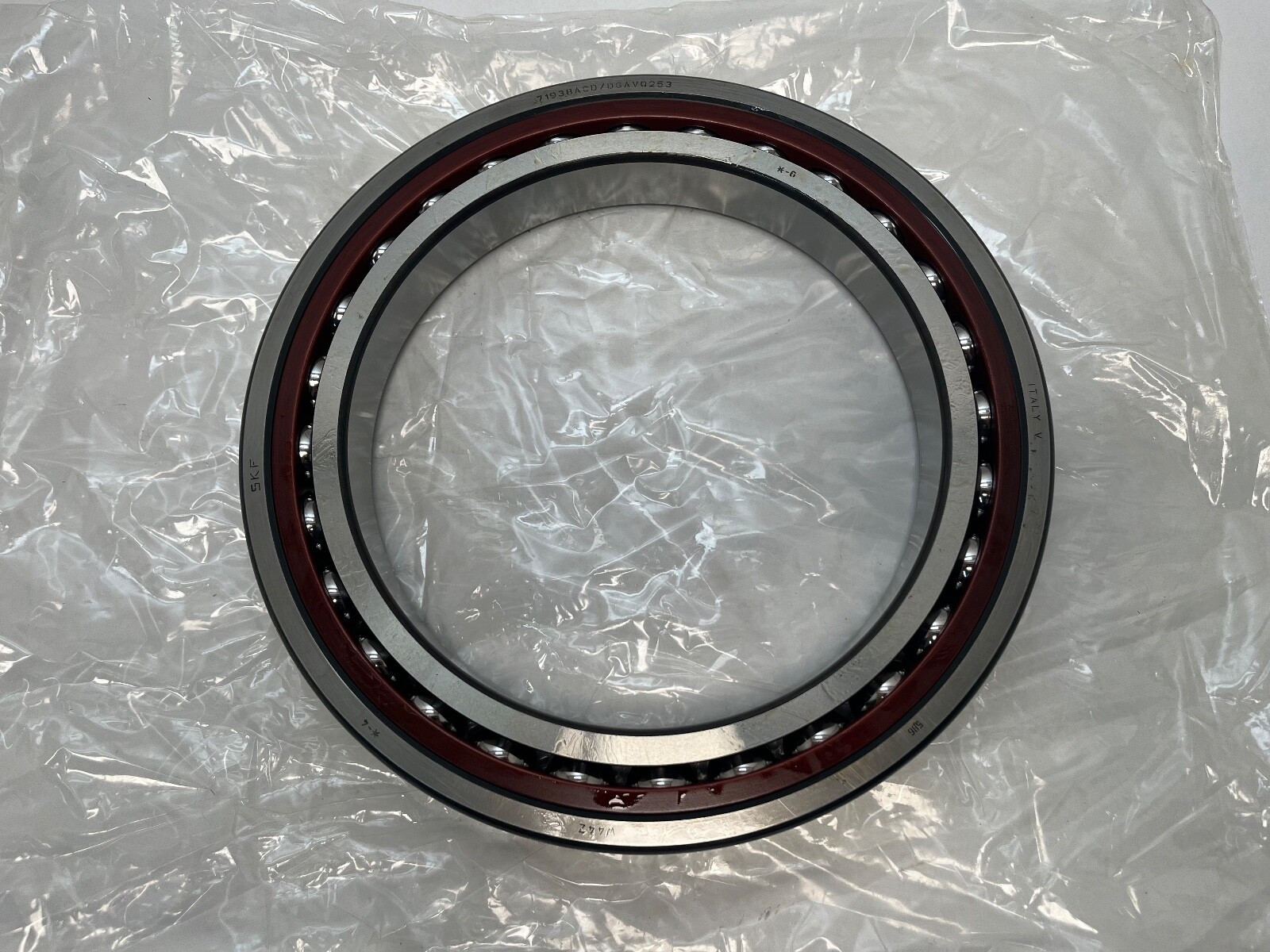

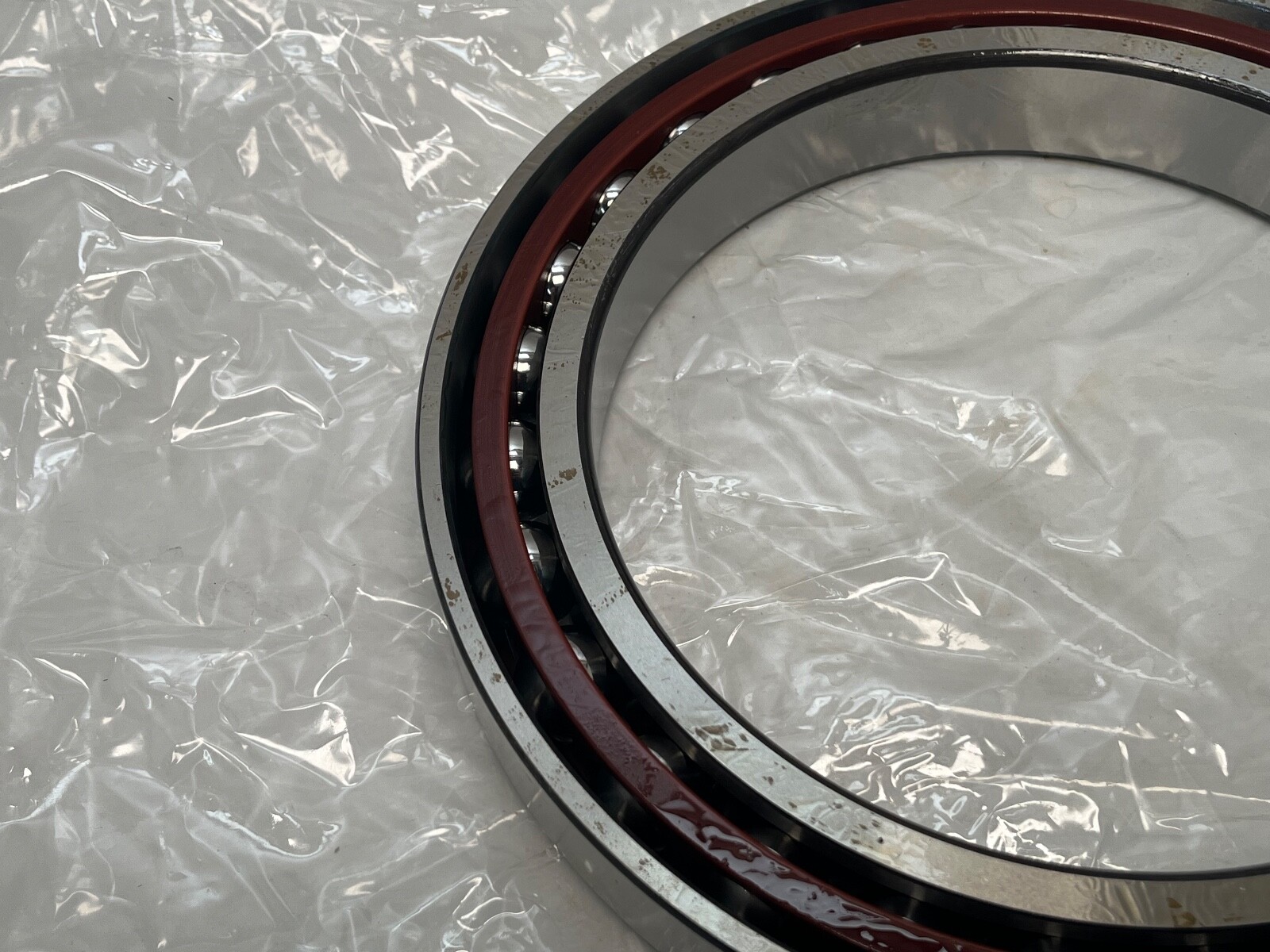

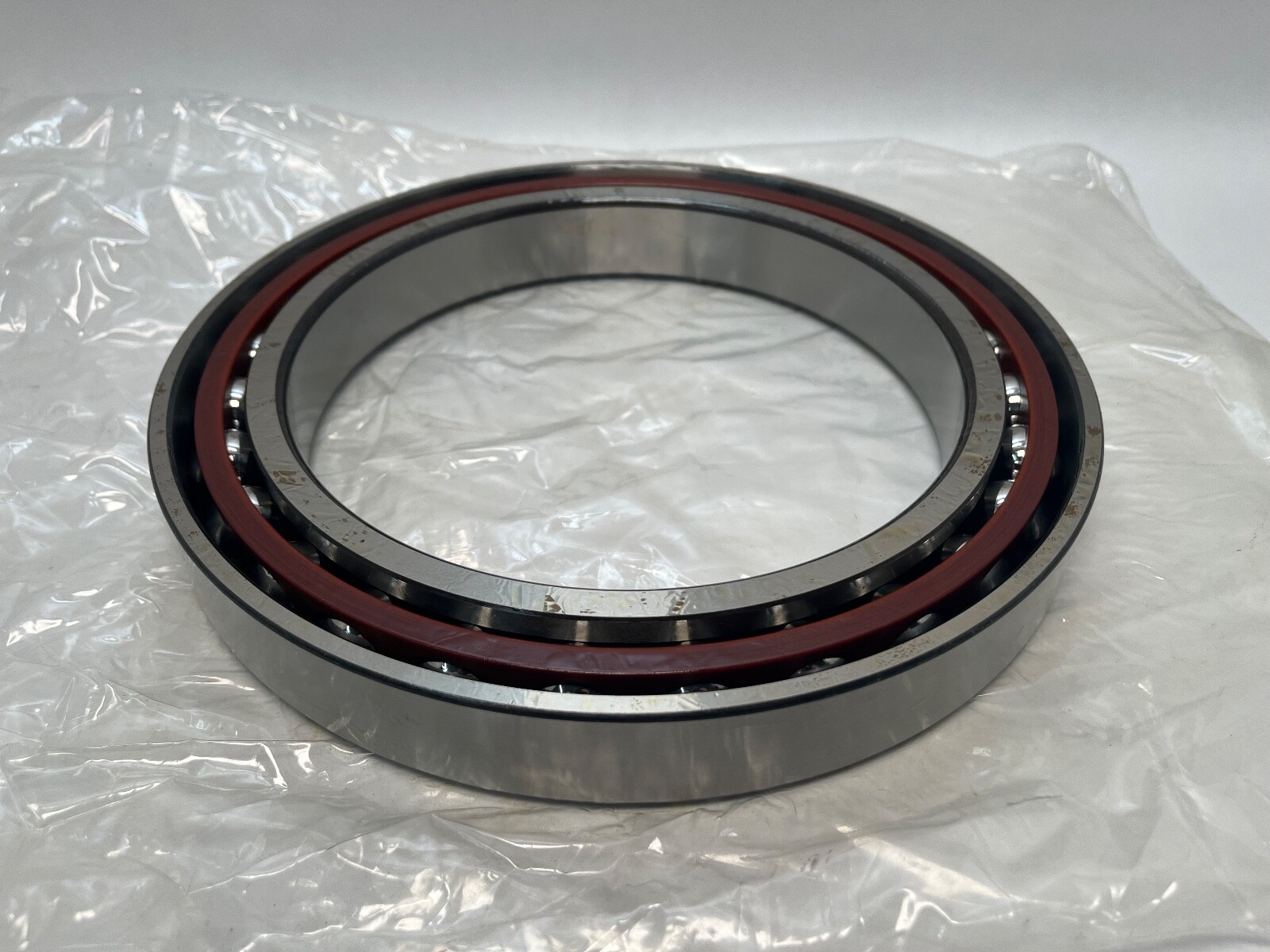

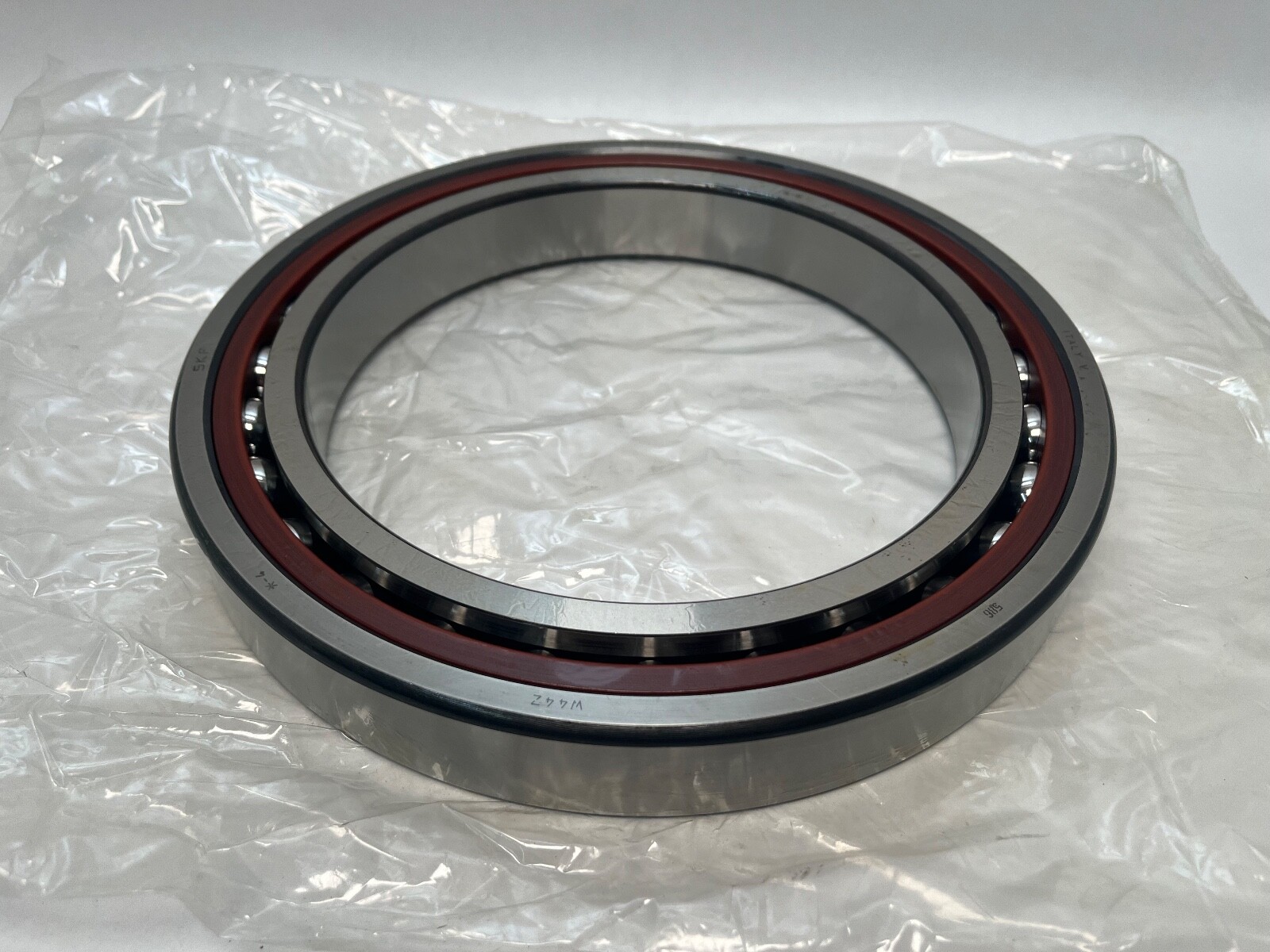

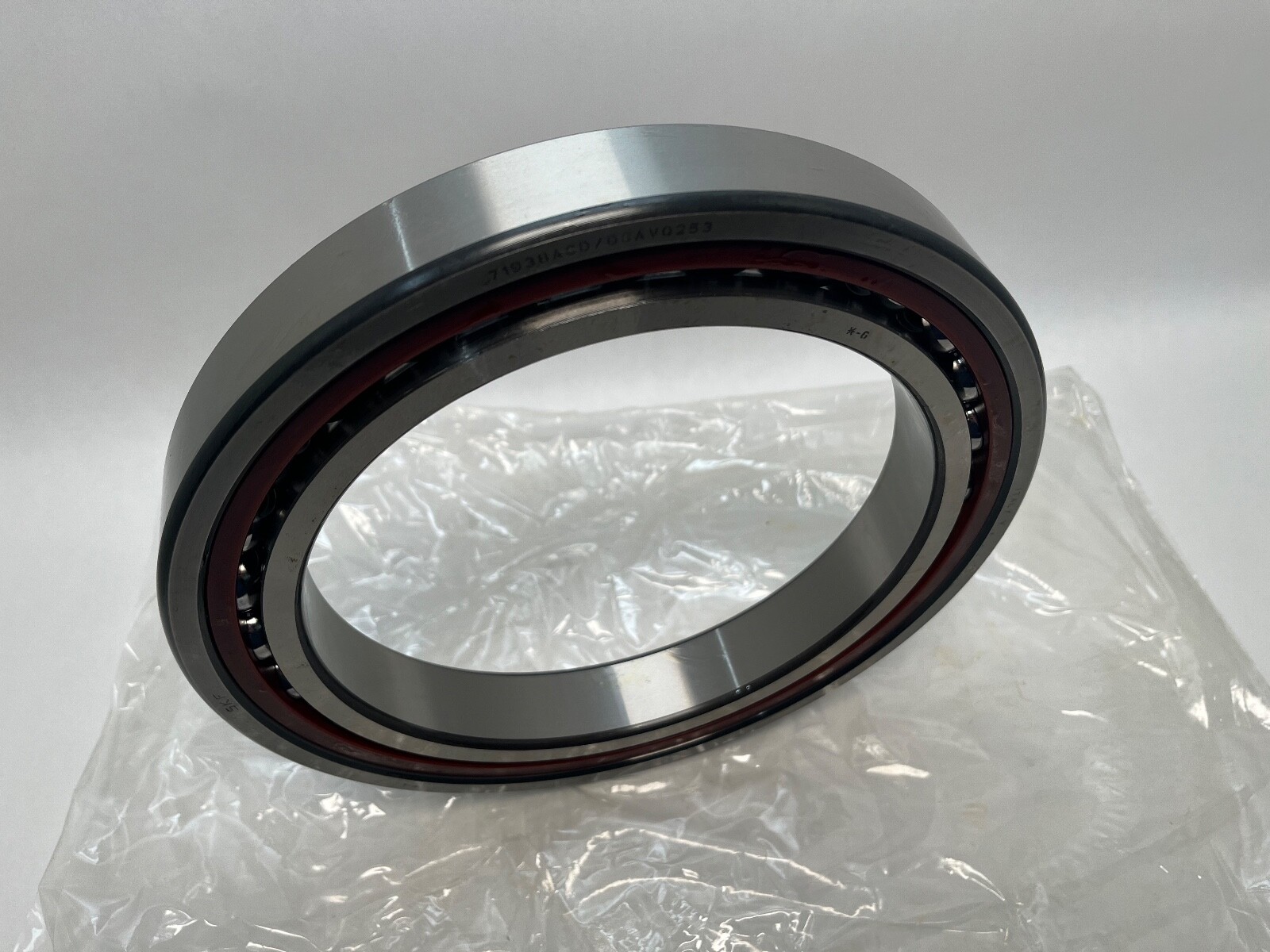

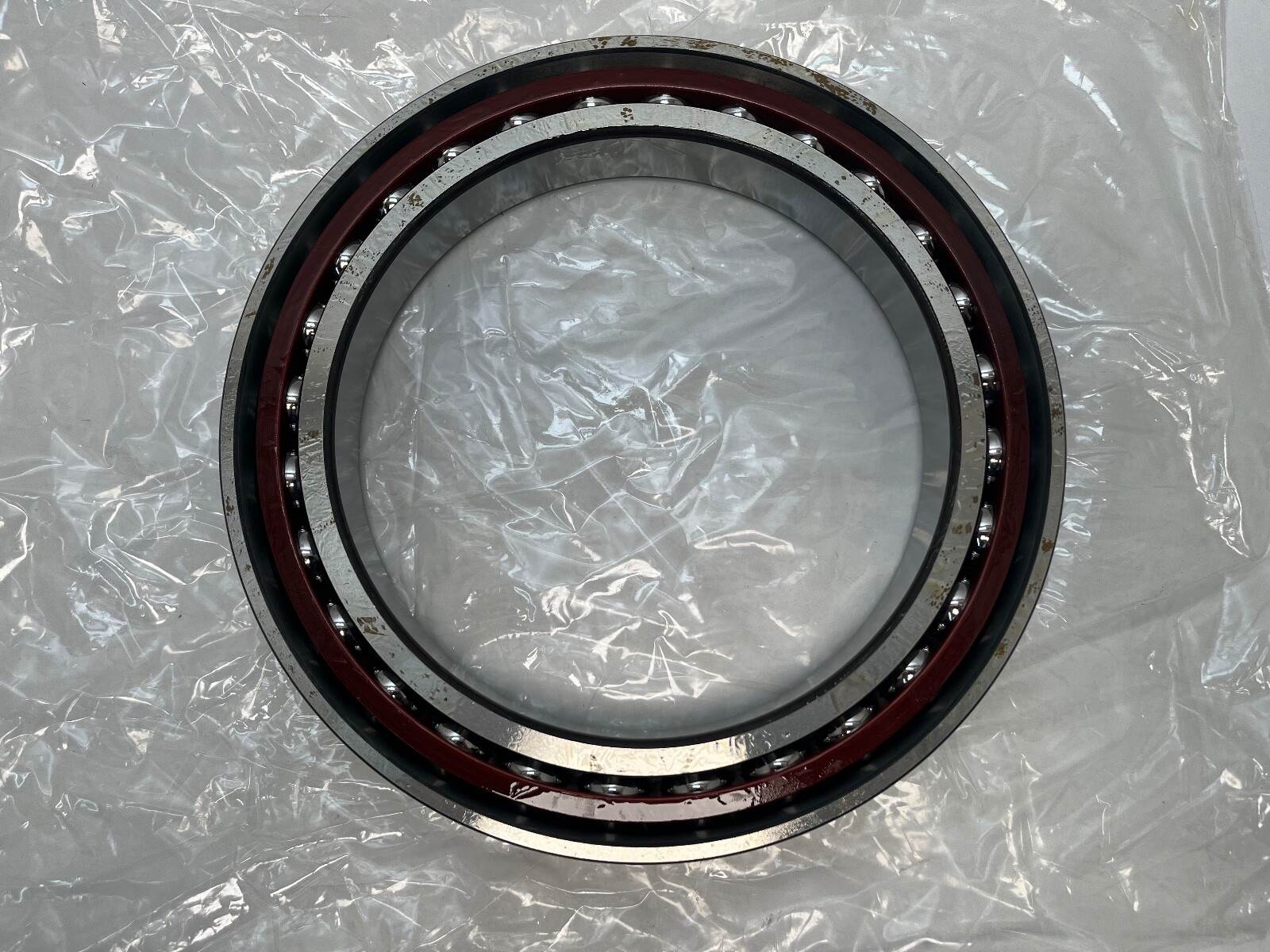

SKF71938 ACDGA/P4AAngular Contact Ball Bearing — Super-Precision P4A, 190 mm ID, 260 mm OD, 33 mm Width, 25° Contact Angle, Universally Matchable, Extra Light Preload

Condition: New – Open box

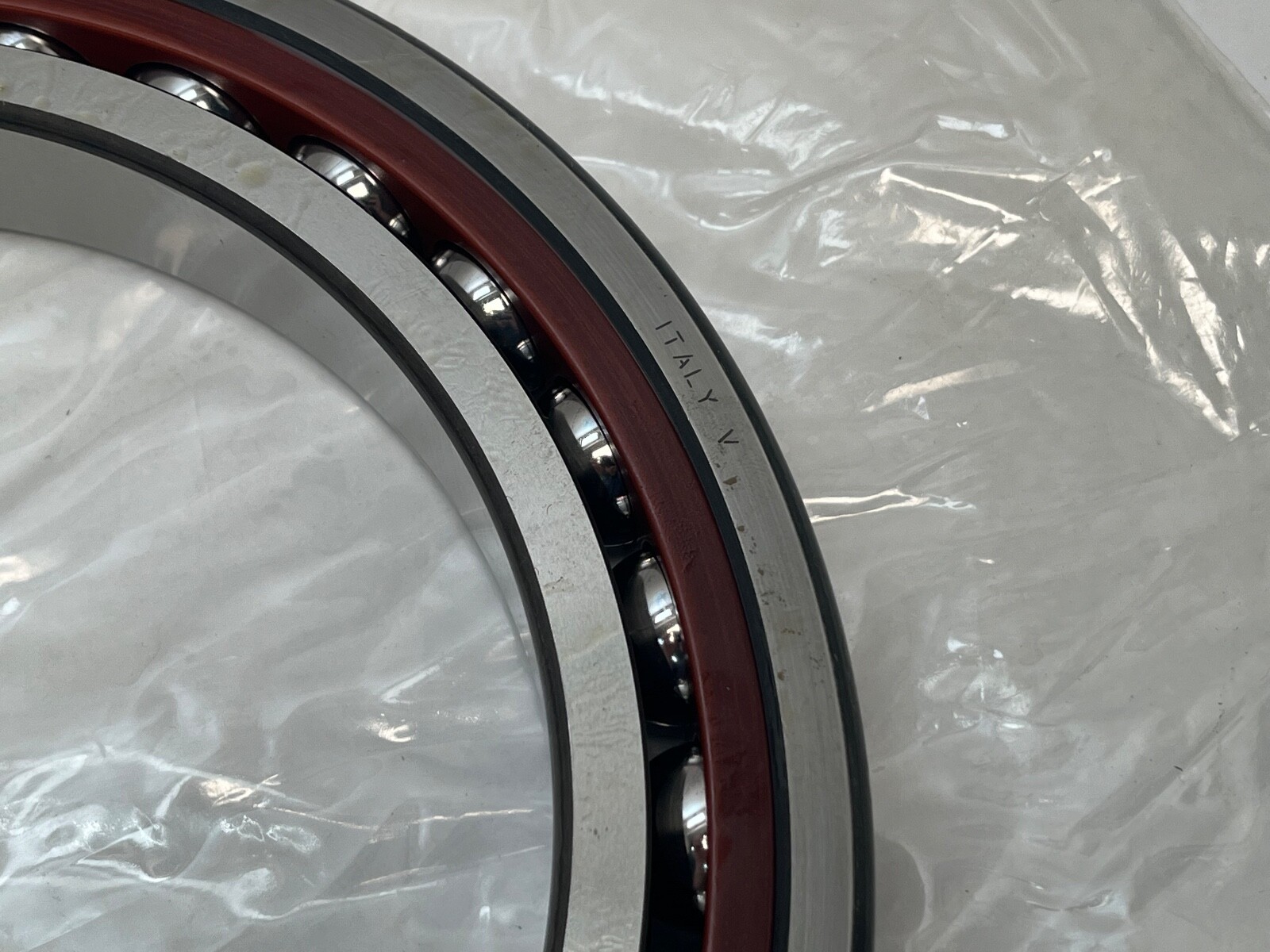

Condition Note: Made In Italy, New Old Stock

Availability:

1 in stock

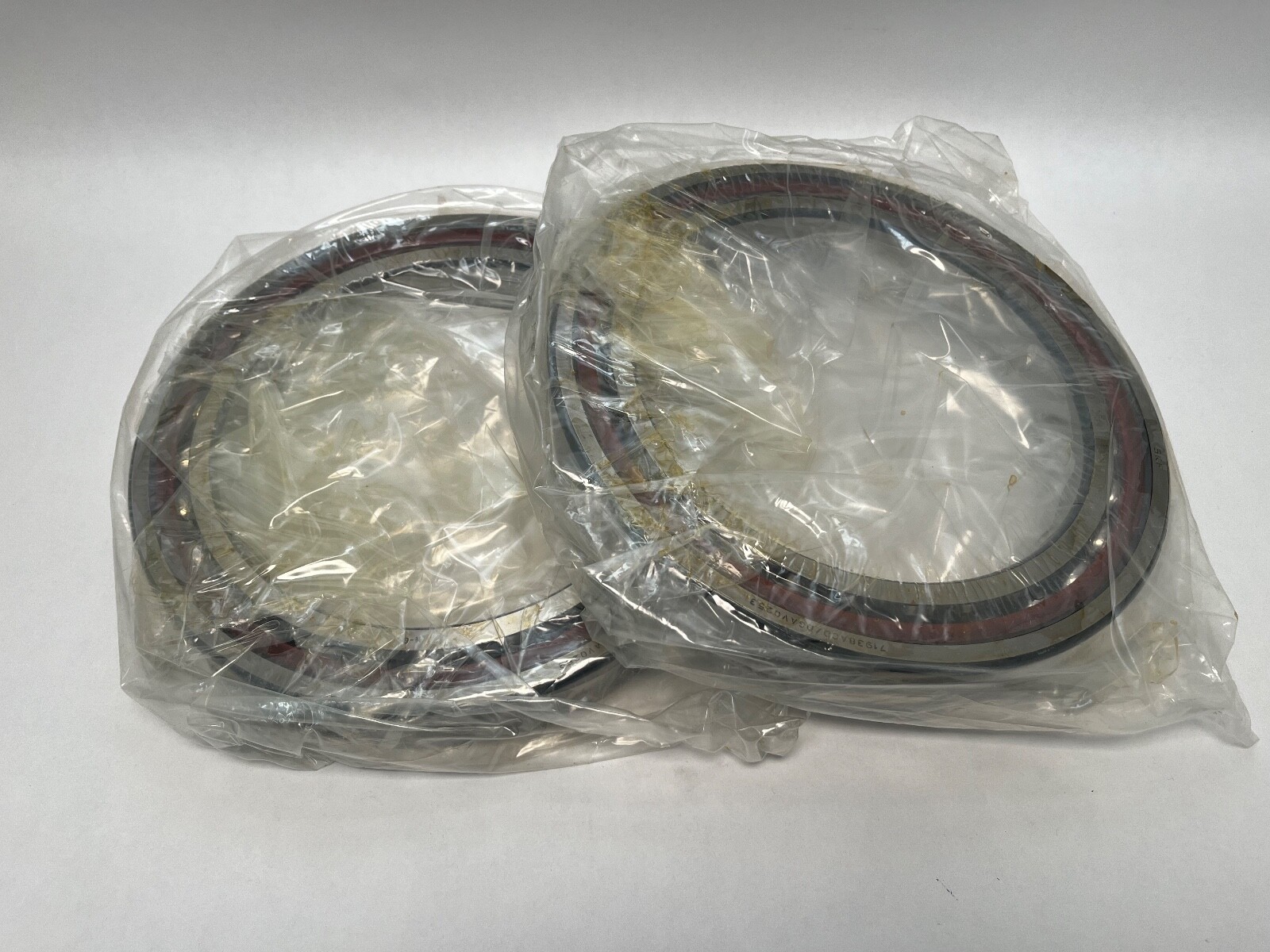

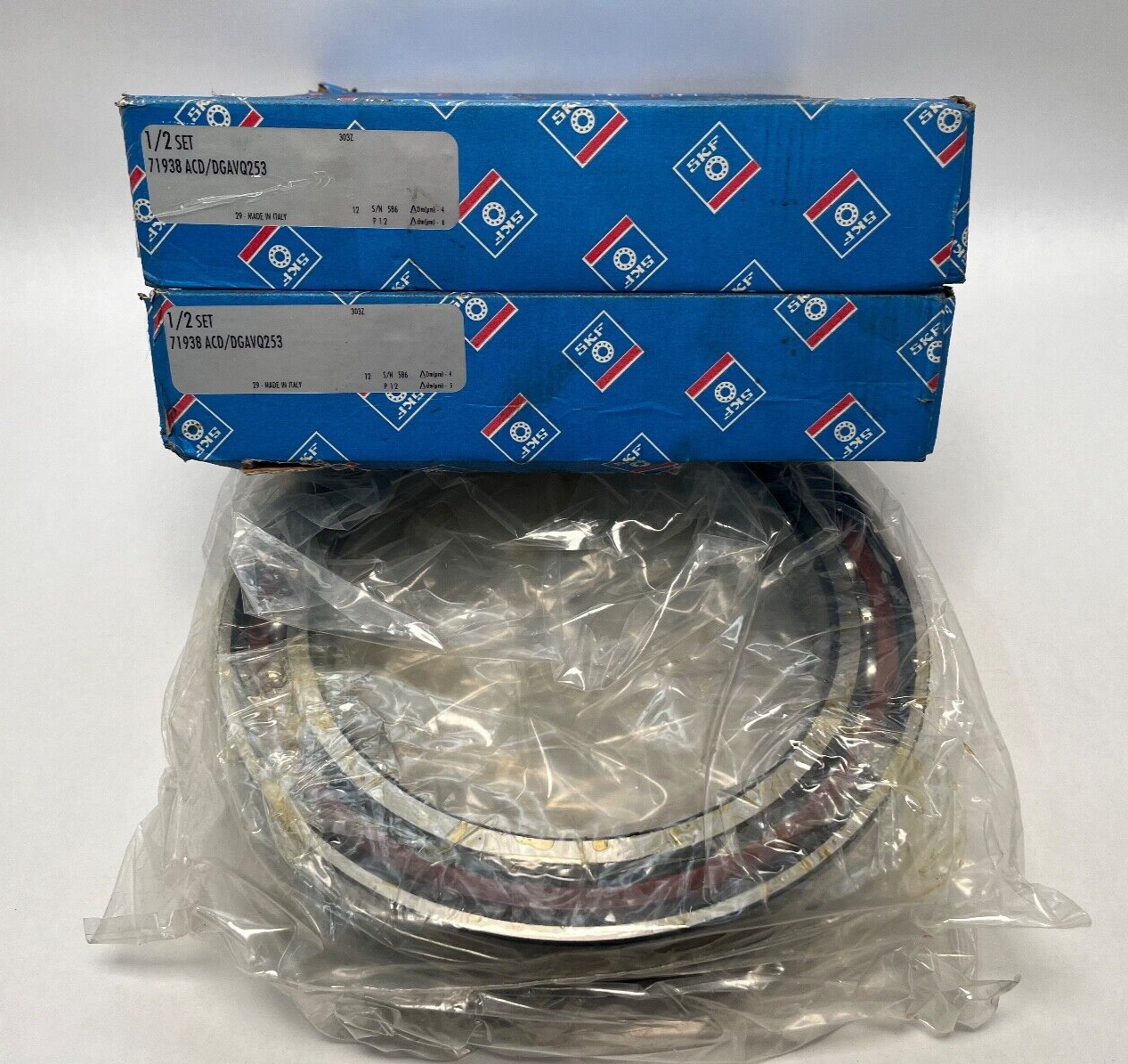

Super-precision angular contact ball bearing, 190 x 260 x 33 mm, 25° contact angle, class P4A. Two-piece set, universally matchable, extra light preload GA.

Same day shipment

List Price

$2,579.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN71938 ACDGA/P4A

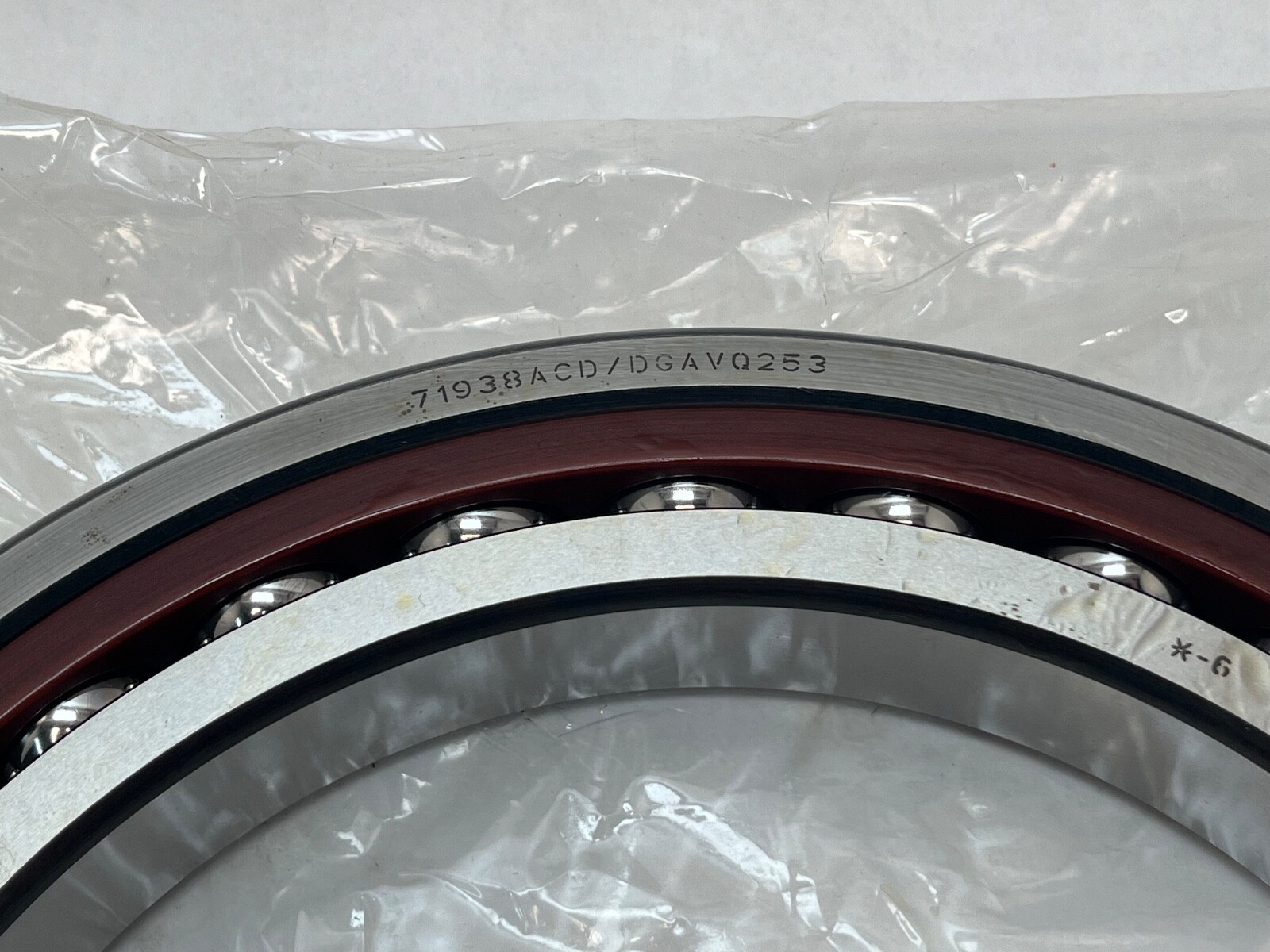

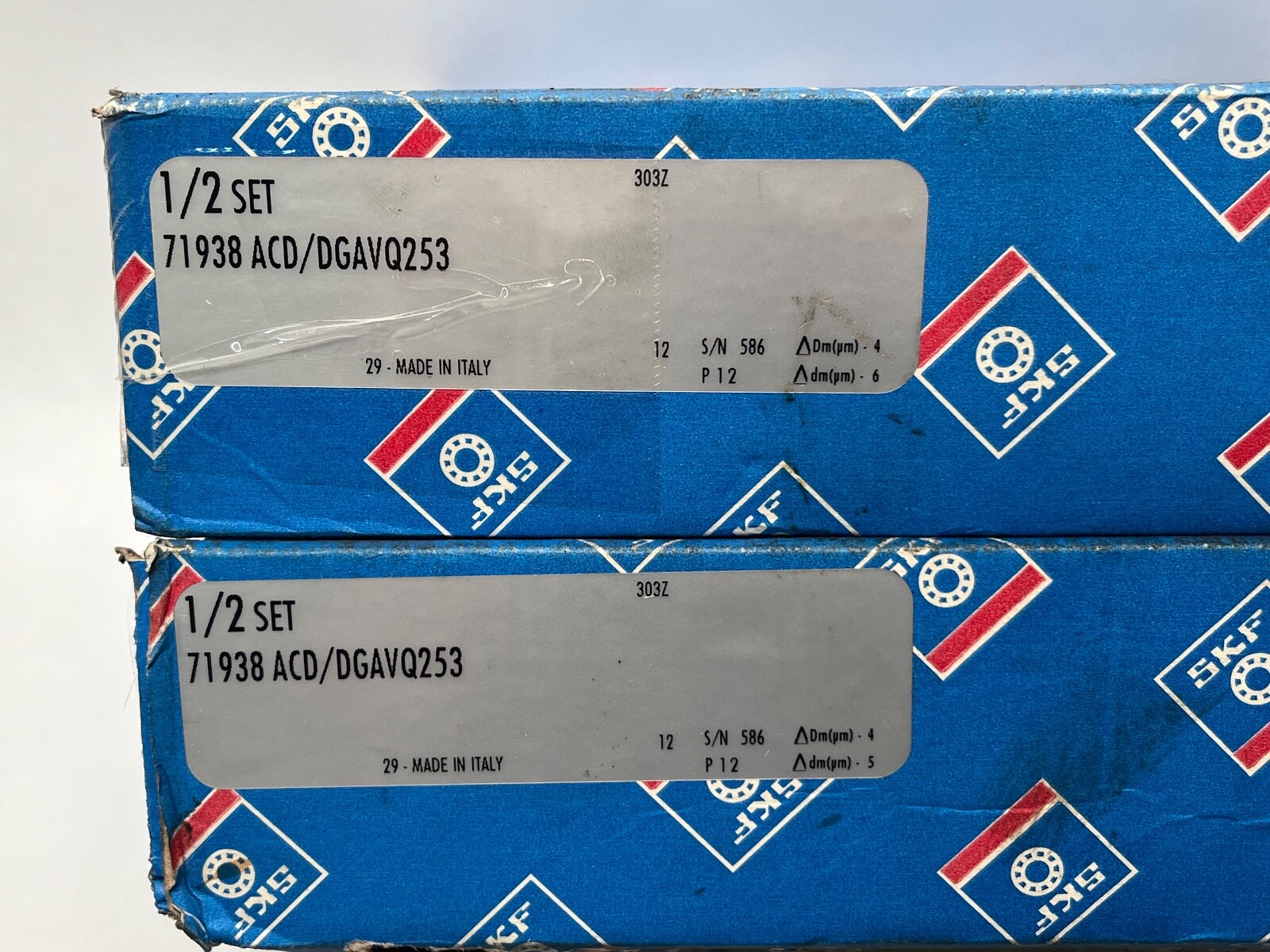

Model71938ACDDGA 71938 ACD DGA VQ253
Bearing TypeAngular Contact Ball Bearing, Open
ID190 mm
OD260 mm
Width33 mm

Technical Specifications

Series71900
PreloadExtra light (GA)
MaterialBearing Steel
Base Number71938
Industry TermsSpindle bearing; super-precision bearing; precision angular contact bearing; machine tool bearing; large-bore spindle bearing
Common Misspellings71938 ACDGA P4A; 71938ACGDA/P4A; 719 38 ACDGA; 71938ADCDGA; 71938 ACD DAG
Application TypesMachine tool spindles; grinding spindles; high-speed motor spindles; precision rotary tables
Overall Width33 mm
Mpn Variants71938 ACDGA/P4A; 71938-ACD/DGA; 71938-ACD-DGA-VQ253; 71938ACDP4ADGA; 7938A; 71938AC
Arrangement ConfigurationUniversally matchable, two-piece set
Precision ClassP4A
Cage TypeOuter-ring shoulder-guided
Dynamic Load Rating163,000 N
Static Load Rating208,000 N
Precision RatingP4A
Rolling ElementsBall
Item Weight4.33 kg (9.55 lb)
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Contact Angle25°
Mounting ArrangementUniversally matchable — back-to-back, face-to-face or tandem
Bearing MaterialBearing steel
Part Number71938-ACD/DGA

Cross-References

Cross Reference 1Timken/Fafnir 3MM9338WICRSUL (UL light preload vs GA)
Cross Reference 2FAG B71938-E-T-P4S-UL (P4S, UL light preload vs GA)
Cross Reference 3NSK 7938A5TRSULP4 (SUL light preload vs GA)
Cross Reference 4RHP 71938X3TRSULP4 (SUL light preload vs GA)
Seller Part Number: BH6#N4BAYO

Product Description

What this part is:

SKF 71938 ACDGA/P4A super-precision single-row angular contact ball bearing, high-capacity design, universally matchable, extra light preload GA. Unit Quantity: 2 Pcs. Bore Diameter: 190 mm. Outside Diameter: 260 mm. Overall Width: 33 mm. Contact Angle: 25°. Precision Class: P4A.

Decoding the designation:

719 — ISO extra-light dimension series. A 190 mm bore carries a 260 mm outside diameter in a 33 mm section.

38 — bore code. 38 × 5 = 190 mm.

AC — 25° contact angle.

D — high-capacity internal design.

GA — universally matchable, extra light preload.

P4A — SKF super-precision tolerance class: P4 dimensional accuracy with running accuracy held tighter still.

Specifications:

Bore Diameter: 190 mm. Outside Diameter: 260 mm. Overall Width: 33 mm. Contact Angle: 25°. Dynamic Load Rating: 163,000 N. Static Load Rating: 208,000 N. Both ratings are per bearing; static above dynamic is normal for the extra-light 719 series. Precision Class: P4A. Preload: extra light (GA). Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Cage Type: Outer-ring shoulder-guided. Bore Type: Straight. Bearing Material: Bearing steel. Item Weight: 4.33 kg (9.55 lb) per bearing.

Dimensions and mounting:

Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem. Both rings are one piece. Harmonization Code: 8482.10.50.

Compatibility and replacement:

Same envelope and 25° angle, with a different preload or class: Timken/Fafnir 3MM9338WICRSUL (UL light preload vs GA), FAG B71938-E-T-P4S-UL (P4S, UL light preload vs GA), NSK 7938A5TRSULP4 (SUL light preload vs GA), RHP 71938X3TRSULP4 (SUL light preload vs GA). Preload class is part of the identity: GB (light) and GC (medium) are different parts on the same envelope.

Frequently asked questions:

What is the contact angle of the SKF 71938 ACDGA/P4A?

25°. The AC code in the designation denotes a 25° contact angle.

What are the load ratings of the SKF 71938 ACDGA/P4A?

Dynamic Load Rating 163,000 N and Static Load Rating 208,000 N, per bearing.

What does the GA code mean?

GA marks a universally matchable bearing with extra light preload.
