Availability:
2 in stock

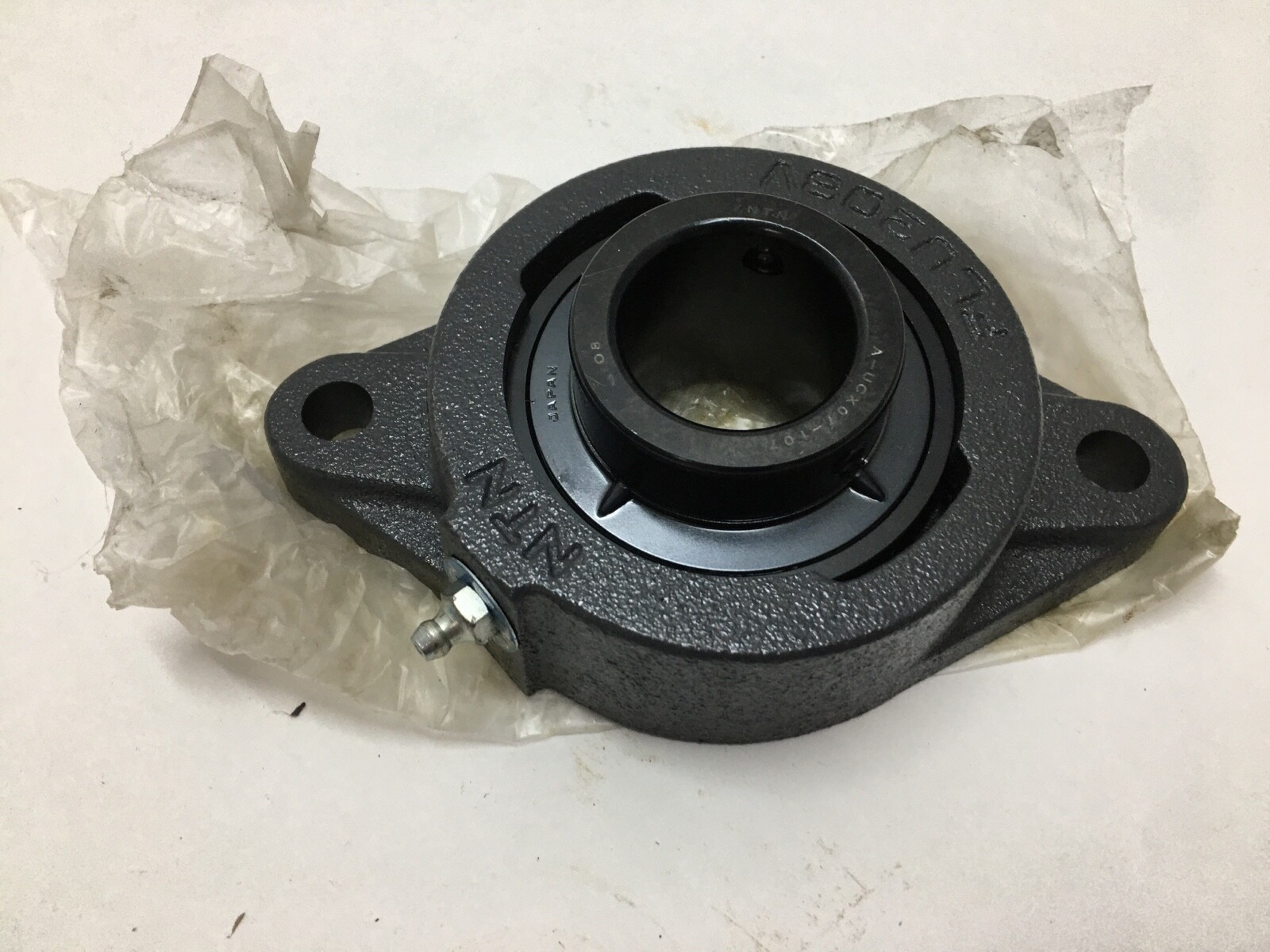

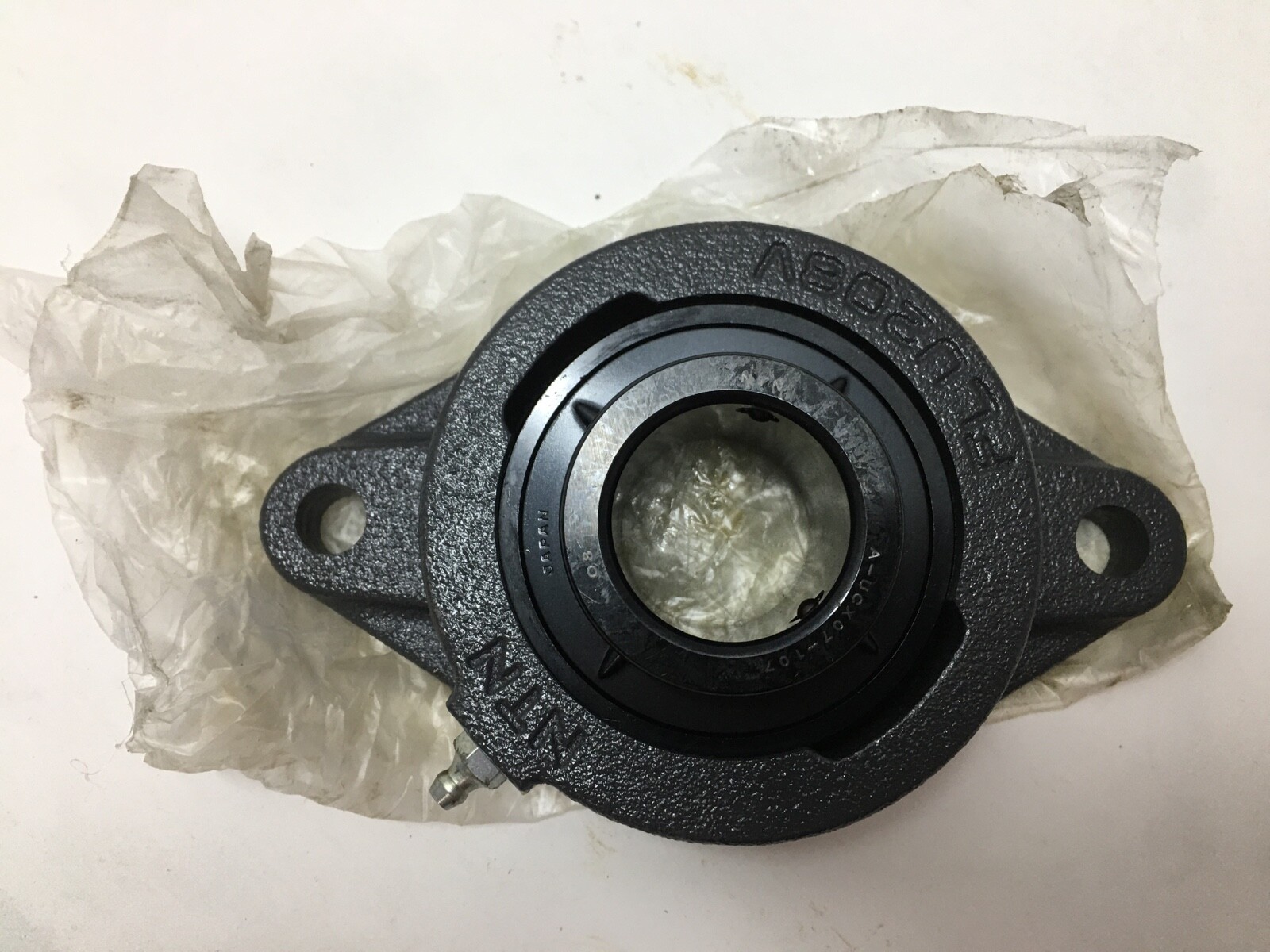

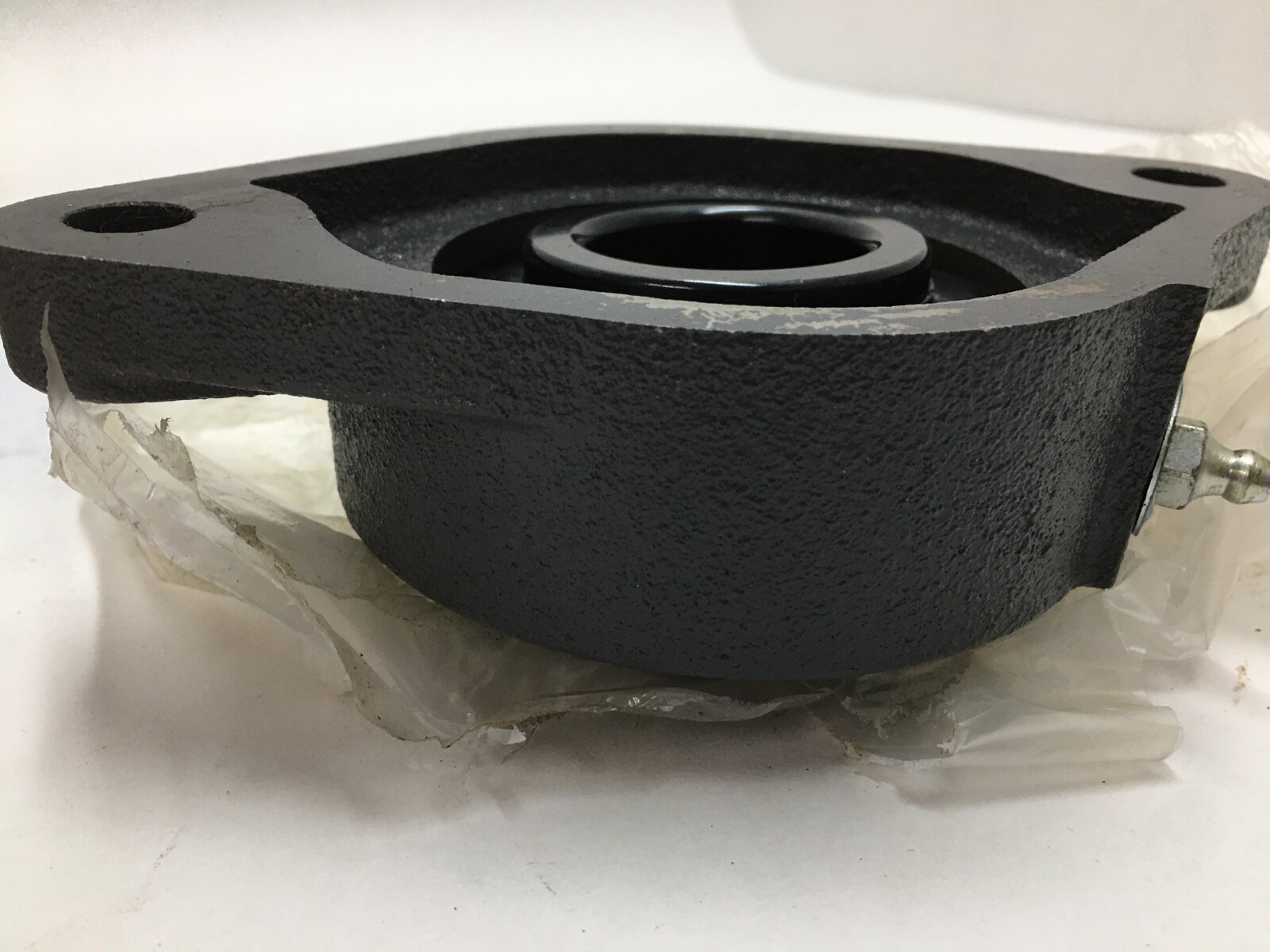

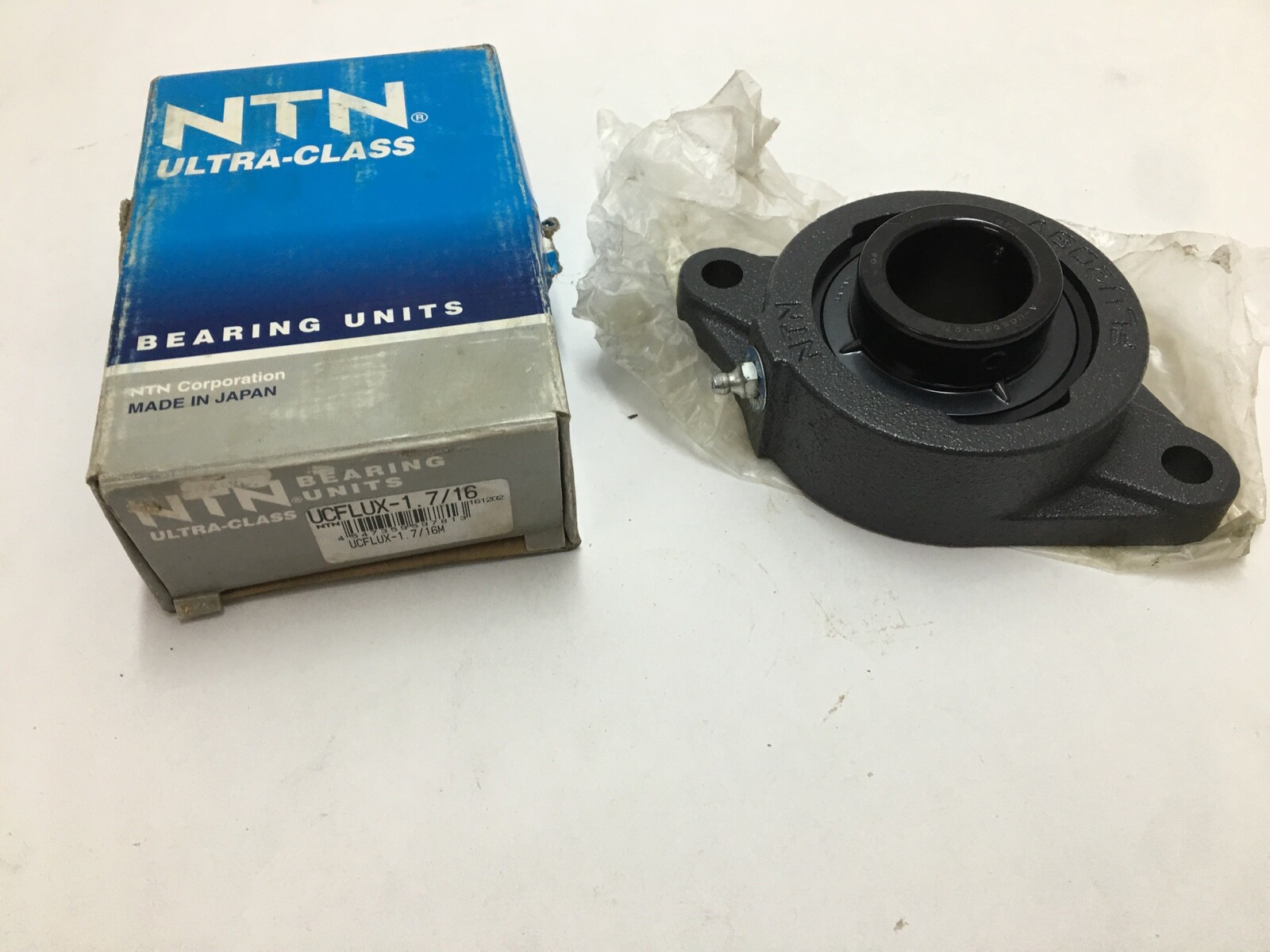

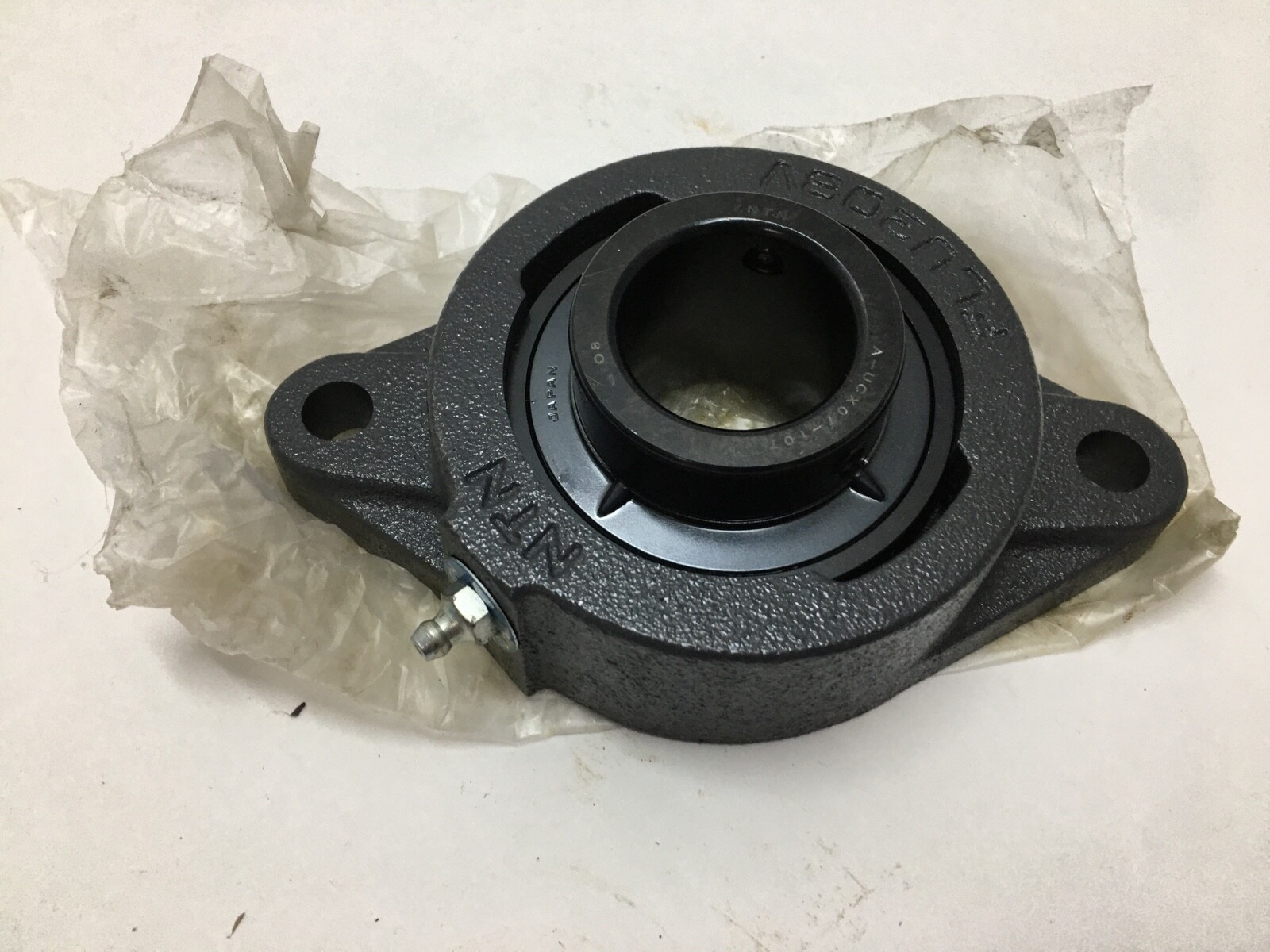

NTN UCFLUX-1.7/16 two-bolt cast flange bearing unit, 1-7/16 in bore, medium duty, setscrew locking, contact seal with flinger, self-aligning insert.
List Price
$44.14
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | UCFLUX-1.7/16 |
| GTIN | 4547359597813 |
| Model | UCF LUX 1 7/16 |
| ID | 1.4375 in |
| Material | Cast Iron |
|---|---|
| Series | UCFL |
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Base Number | UCFLUX-1.7/16 |
| Industry Terms | 2-bolt flange bearing, flange block, flanged unit, mounted unit, medium duty flange bearing, UCFL flange |
| Common Misspellings | NTN UCFLUX 1 7/16, UCFLUX117/16, UCFLX1-7/16, UCLFUX-1.7/16, UCFLUX-1-7/16 |
| Application Types | Screw conveyors, material handling, agricultural equipment, shock-loaded drives, fans |
| Number Of Flanges | 2 |
| Bolt Center To Center | 5.6563 in |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1-7/16 in (36.51 mm) |
| Housing Style | 2-bolt flanged unit, cast housing |
| Locking Method | Set screws in extended inner ring |
| Mpn Variants | UCFLUX-1.7/16, UCFLUX1-7/16, UCFLUX 1-7/16, UCFLUX1.7/16, UCFLUX-107, UCFLX-1.7/16 |
| Rolling Elements | Ball |
| Bearing Type | Mounted ball bearing unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Medium Duty |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |
| Part Number | UCFLUX1-7/16 |
| Cross Reference 1 | SKF FYM 1.7/16 TF (similar two-bolt flange unit, not identical) |
|---|---|
| Cross Reference 2 | NTN UCFUX-1.7/16 (same insert, four-bolt square flange) |
| Cross Reference 3 | NTN UCFLU-1.7/16 (standard duty, smaller housing) |
NTN UCFLUX-1.7/16 mounted ball bearing unit — a two-bolt cast flange housing for a 1-7/16 inch shaft, in the medium-duty size. The insert is a wide inner ring ball bearing with setscrew locking and a flinger behind the contact seal on each side, seating spherically in the housing. Unit Quantity: 1 Pc, one complete unit with the insert and setscrews fitted.
UC — NTN wide inner ring insert, setscrew locking, with flinger.
FLU — flanged unit, cast housing, two bolt. NTN’s four-bolt square flange is FU and its cast rhombus flange is FA.
X — medium duty: the X series has larger balls and a heavier insert than the standard 2 series.
1.7/16 — 1-7/16 inch shaft diameter.
Housing Style: 2-bolt flanged unit, cast housing. Bore / Shaft Size: 1-7/16 in (36.51 mm). Duty Type: Medium Duty. Insert Outer Ring: Spherical, self-aligning. Locking Device: Set Screw, in the extended inner ring. Seal Type: Contact Seal with flinger, both sides. Rolling Elements: Ball. Number Of Rows: 1. Number Of Flanges: 2. Housing Material: Cast Iron. Expansion Type: Non-Expanding. Lubricant: Grease. Series: UCFL, X (medium duty). Harmonization Code: 8483.20.40.40.
Bore Diameter: 1.4375 in. Number Of Bolt Holes: 2. Bolt Center To Center: 5.6563 in.
Related NTN units at 1-7/16 in bore: UCFLU-1.7/16 is the standard-duty version in a smaller housing, and UCFUX-1.7/16 is the same medium-duty insert in a four-bolt square flange. SKF FYM 1.7/16 TF is a two-bolt flange unit from another maker.
MPN Variants: UCFLUX-1.7/16, UCFLUX1-7/16, UCFLUX 1-7/16, UCFLUX1.7/16, UCFLUX-107, UCFLX-1.7/16.
What does the X in UCFLUX mean?X is the medium-duty series, with larger balls and a heavier insert than the standard 2 series.
How many bolts mount the housing?Two bolts; FLU is a two-bolt cast flange with Bolt Center To Center: 5.6563 in.
What shaft size does it fit?Bore / Shaft Size: 1-7/16 in (36.51 mm), held by set screws in the extended inner ring.
