Tapered roller bearing cone, 2.2500 in bore x 1.1542 in wide, Class 3 precision, 161,000 N dynamic rating. Timken 462-3; mates with 453X and 452 cups.
List Price
$45.71
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 462-3 |
| Model | 462 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.2500 in (57.150 mm) |
| Series | 455 |
|---|---|
| Mpn Variants | 462-3, 462 *3, 462 #3, 4623, 462 |
| Compatible With Replaces | Timken 453X cup, Timken 452 cup |
| Precision Class | Class 3 |
| Additional Attributes | C90: 41,700 N; Ca90: 23,900 N; K 1.74; db 67 mm |
| Dynamic Load Rating | 161,000 N |
| Static Load Rating | 166,000 N |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.846 kg (6.27 lb) |
| Harmonization Code | 8482.20.00 |
| Bearing Class | Class 3 |
| Cone Part Number | 462 |
| Cone Width | 1.1542 in (29.317 mm) |
| Cone Backface To Clear Radius | 0.09 in (2.3 mm) |
| Cone Frontface Backing Diameter | 2.48 in (63 mm) |
| Cage Cone Frontface Clearance | 0.08 in (2 mm) |
| Cage Cone Backface Clearance | 0.07 in (1.8 mm) |
| Effective Center Location | -0.28 in (-7.1 mm) |
| Cross Reference 1 | Koyo 462 – standard class, not Class 3 |
|---|---|
| Cross Reference 2 | NTN 4T-462 – standard class, not Class 3 |
| Cross Reference 3 | SKF 462 – standard class, not Class 3 |

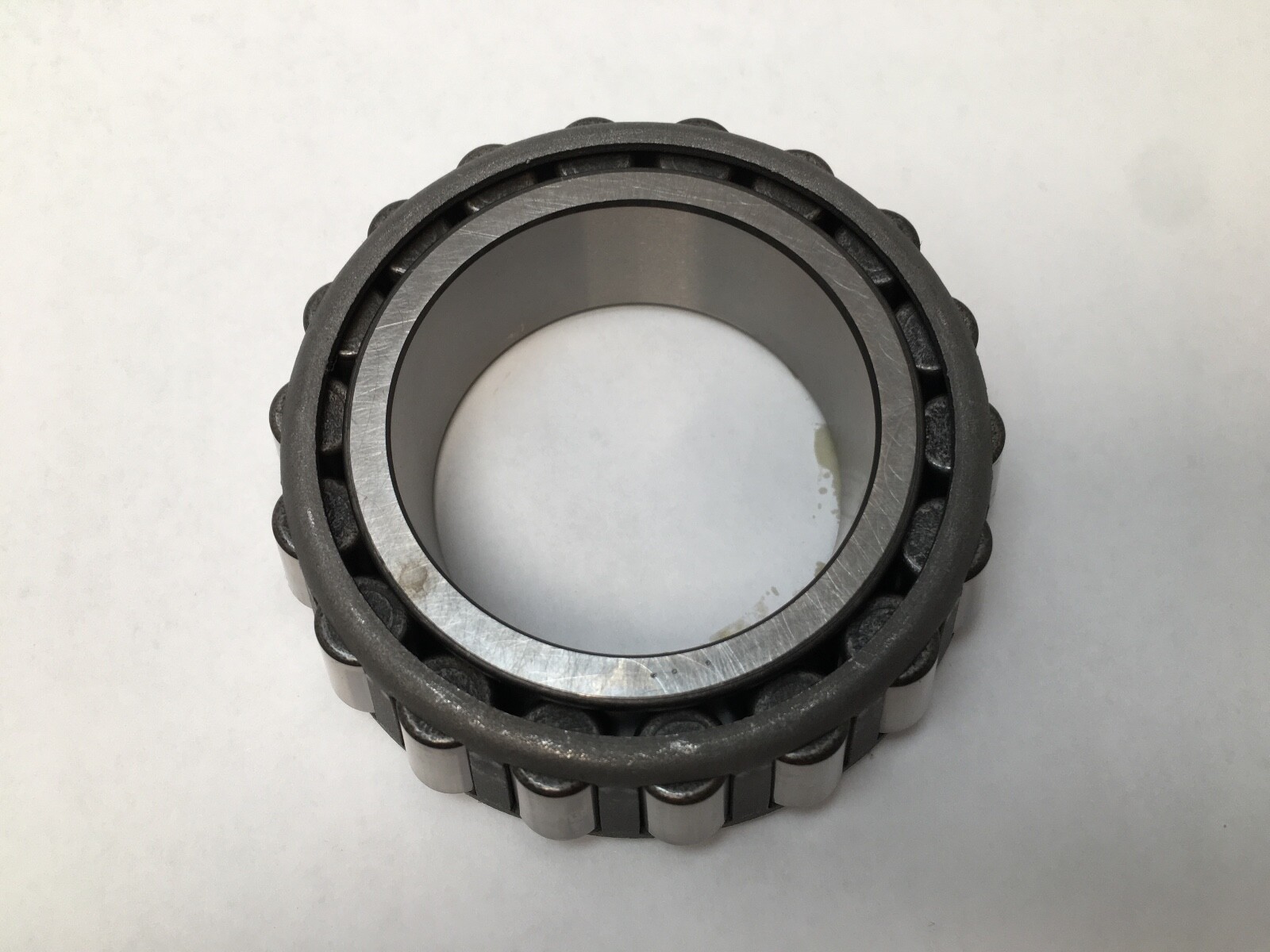

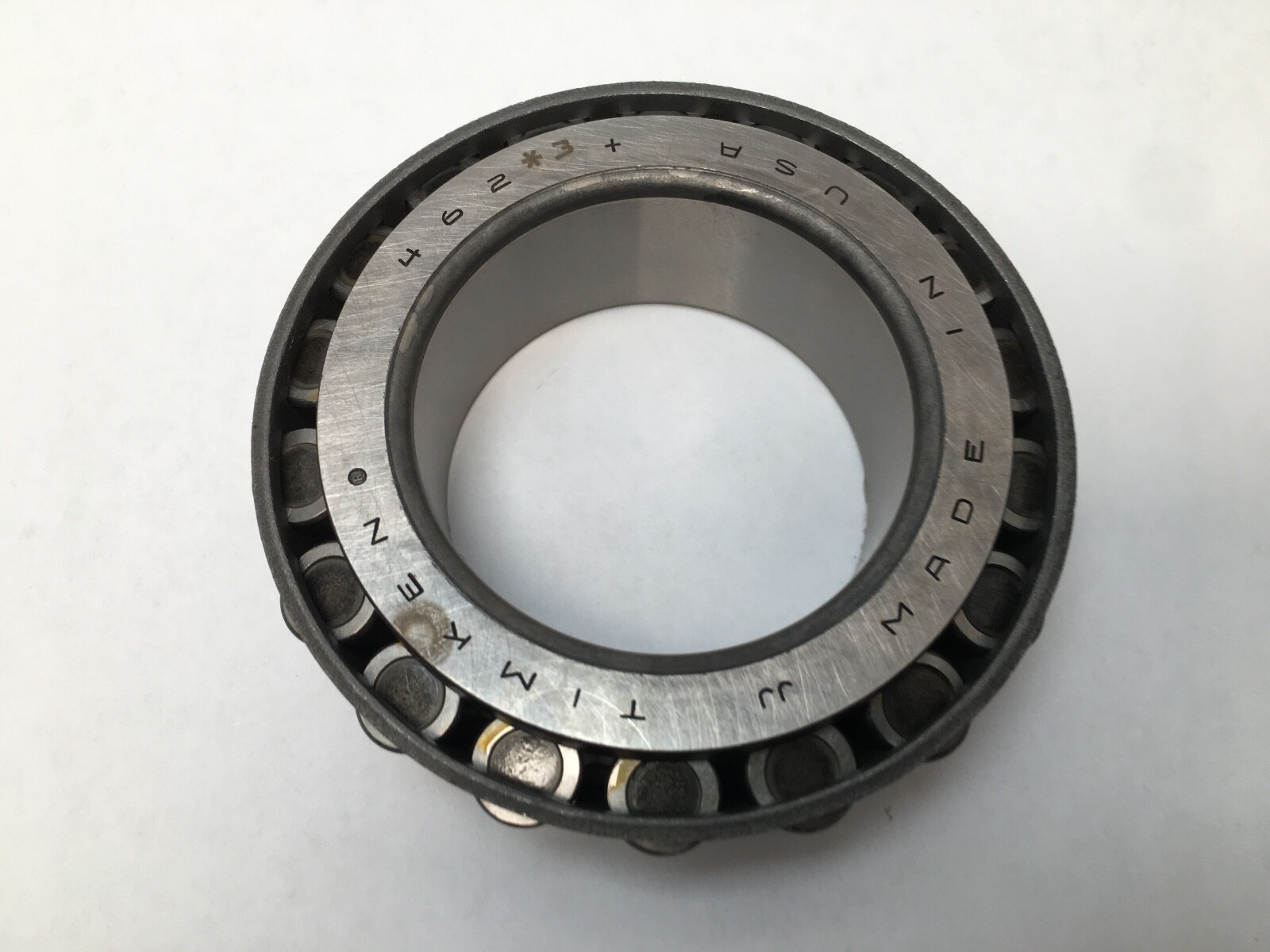

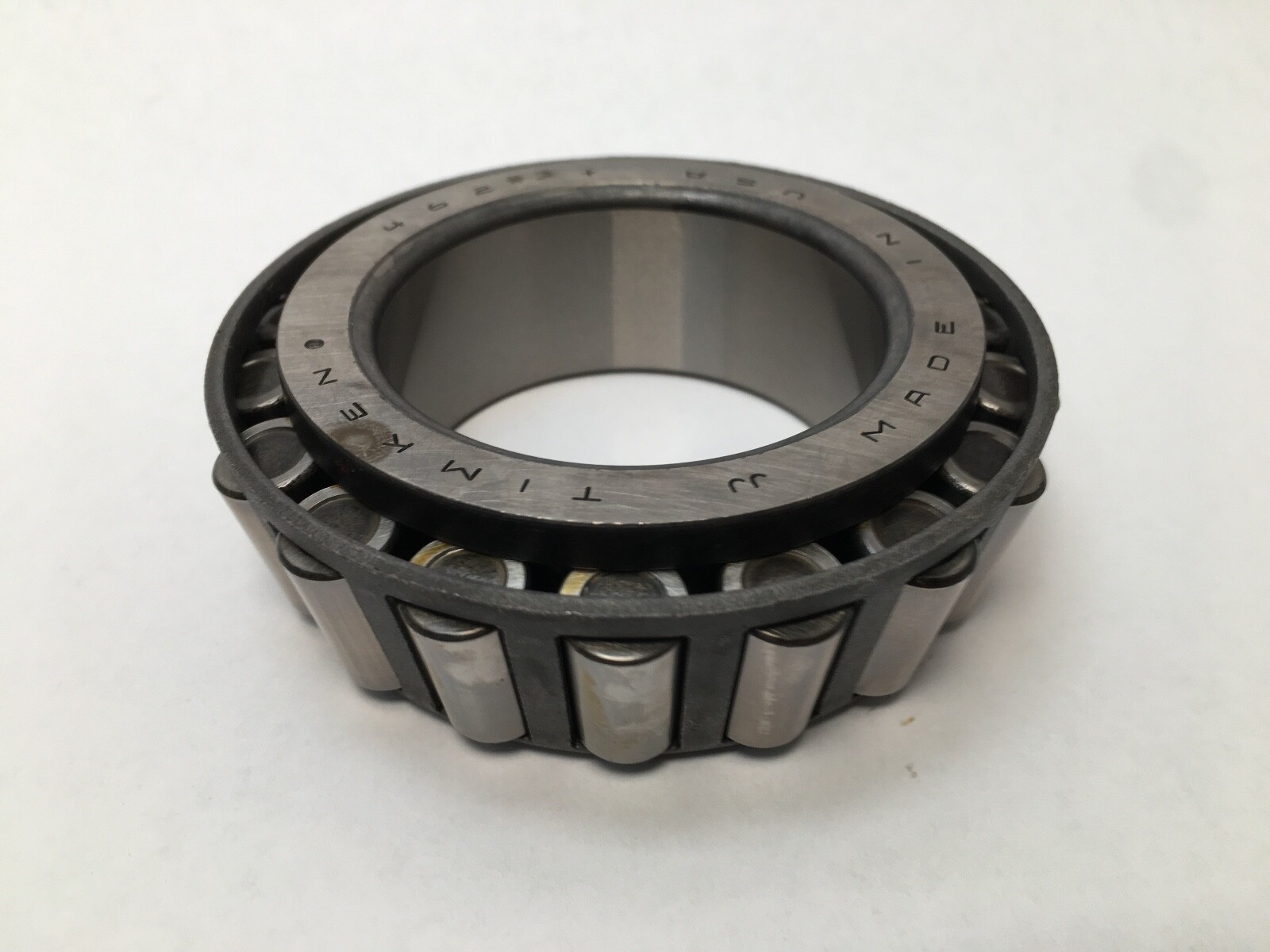

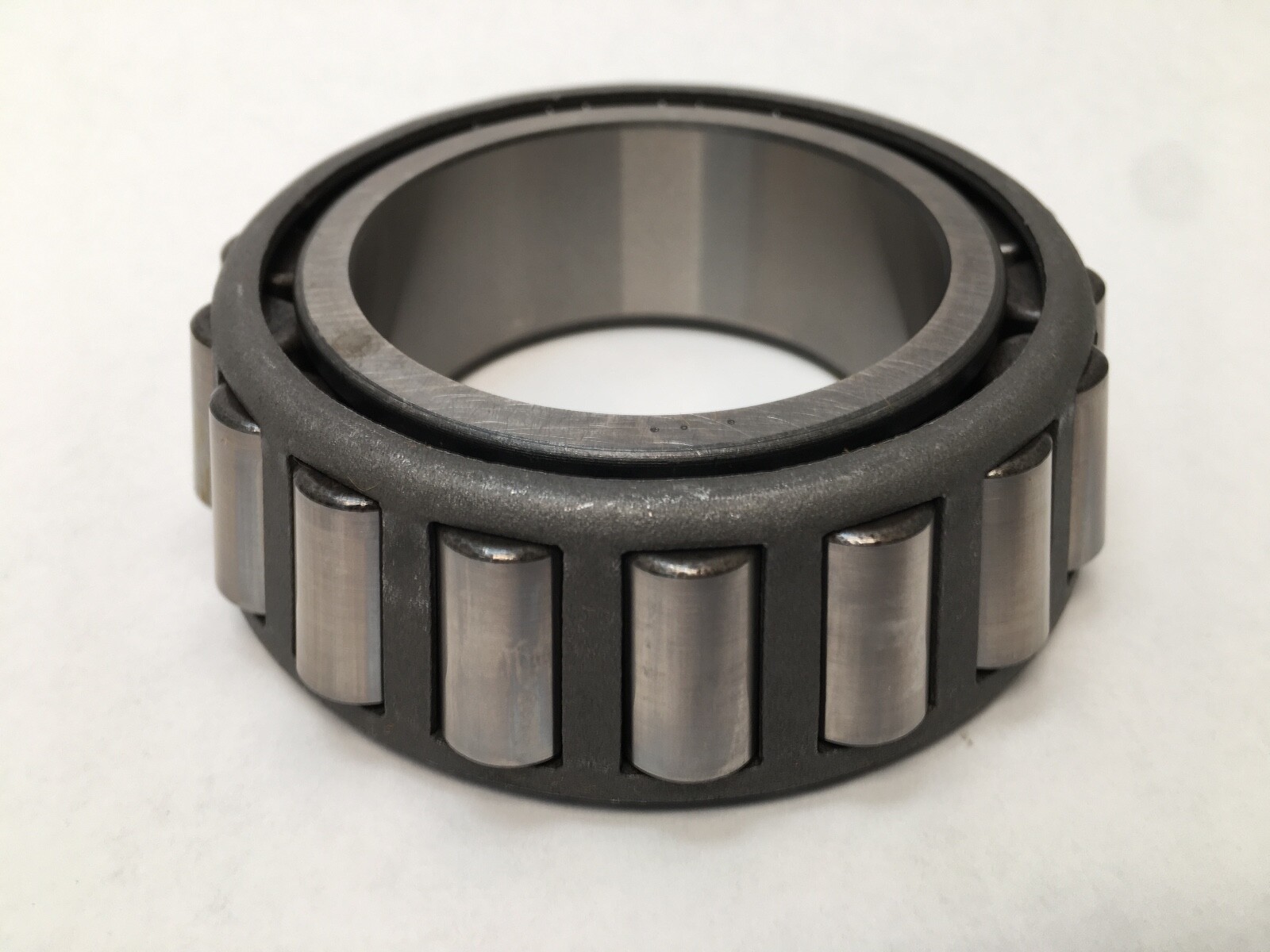

Timken 462-3 is a Class 3 single cone (inner ring, tapered rollers and cage) for a single-row TS tapered roller bearing. Bore Diameter: 2.2500 in (57.150 mm). Cone Width: 1.1542 in (29.317 mm). Rolling Elements: Tapered Roller. Series: 455. Item Weight: 2.846 kg (6.27 lb).
462 — Timken single cone, 2.2500 in bore, 455 series.

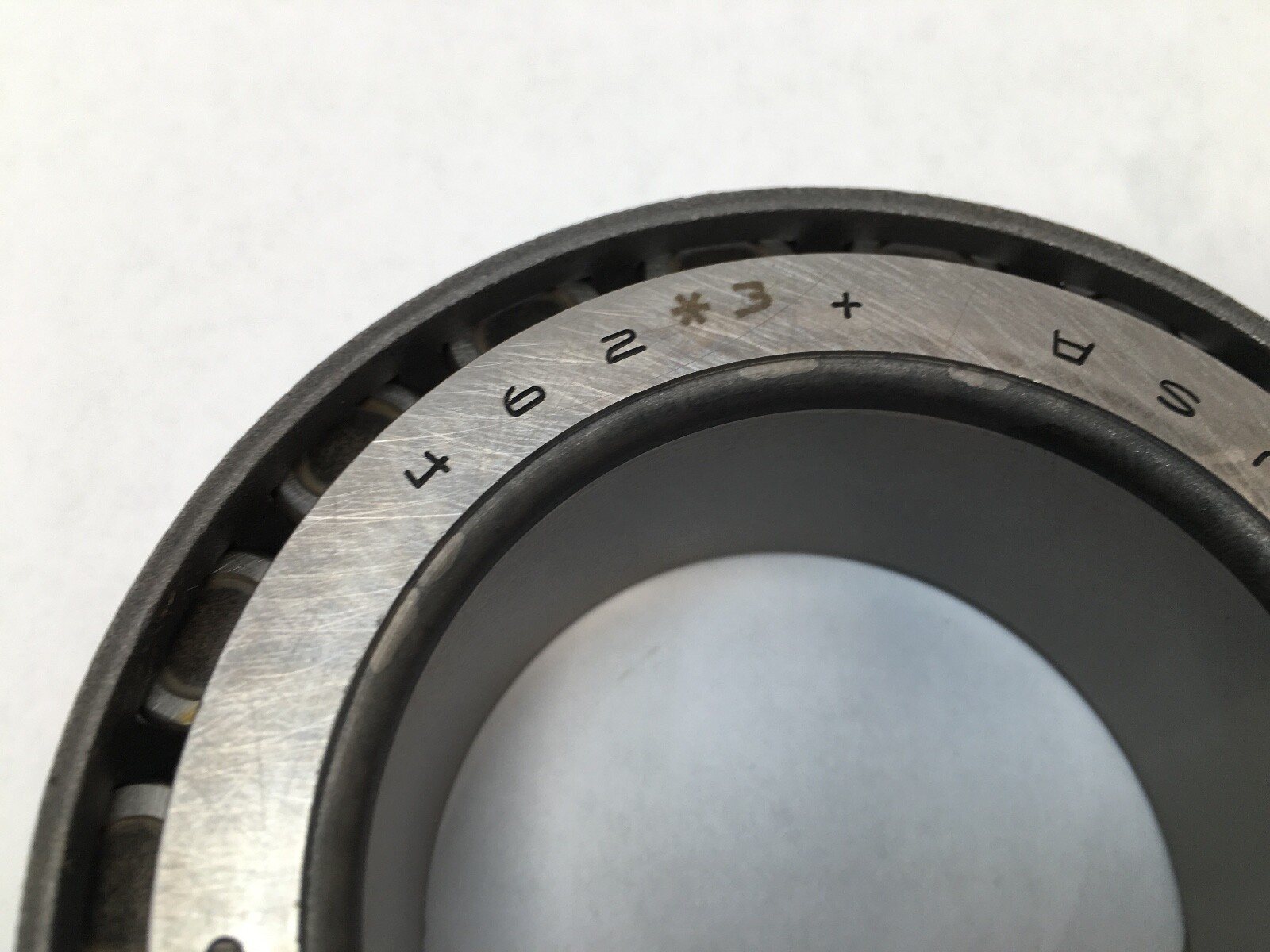

-3 / *3 — Timken Class 3 precision: tighter tolerance and lower running runout than standard Class 2.
Dynamic Load Rating (C1): 161,000 N (36,100 lbf), ISO 1 million revolutions. Dynamic Radial Load Rating (C90): 41,700 N (9,370 lbf), Timken 90 million revolutions. Dynamic Axial Rating (Ca90): 23,900 N (5,380 lbf). Static Load Rating: 166,000 N (37,200 lbf). K Factor: 1.74. Precision Class: Class 3.
Effective Load Center: -0.28 in (-7.1 mm), inside the cone backface. Max Shaft Fillet Radius: 0.09 in (2.3 mm). Shaft Backing Shoulder Diameter: 2.48 in (63 mm) frontface, 2.64 in (67 mm) backface. Cage Location relative to backface (Aa): 0.07 in (1.8 mm). Cage Location relative to frontface (Ab): 0.08 in (2 mm).
Unit Quantity: 1 Pc. Cone only. Matching cups: Timken 453X and Timken 452.
462 is an ABMA inch cone number also built as Koyo 462, NTN 4T-462 and SKF 462, matching the bore and width. The Class 3 grade is specific to this Timken cone.
