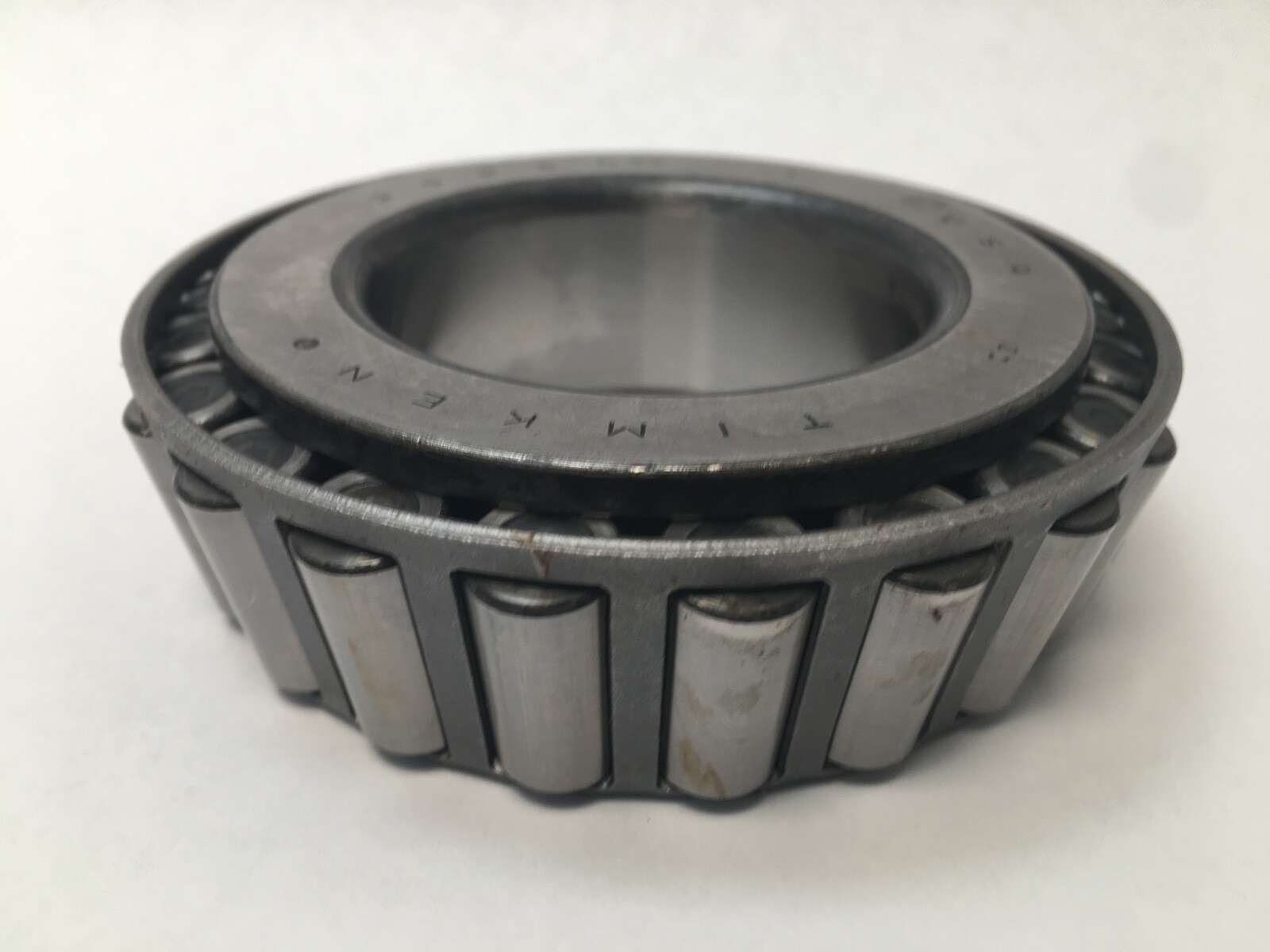

Timken 39580-3 tapered roller bearing cone – image 1

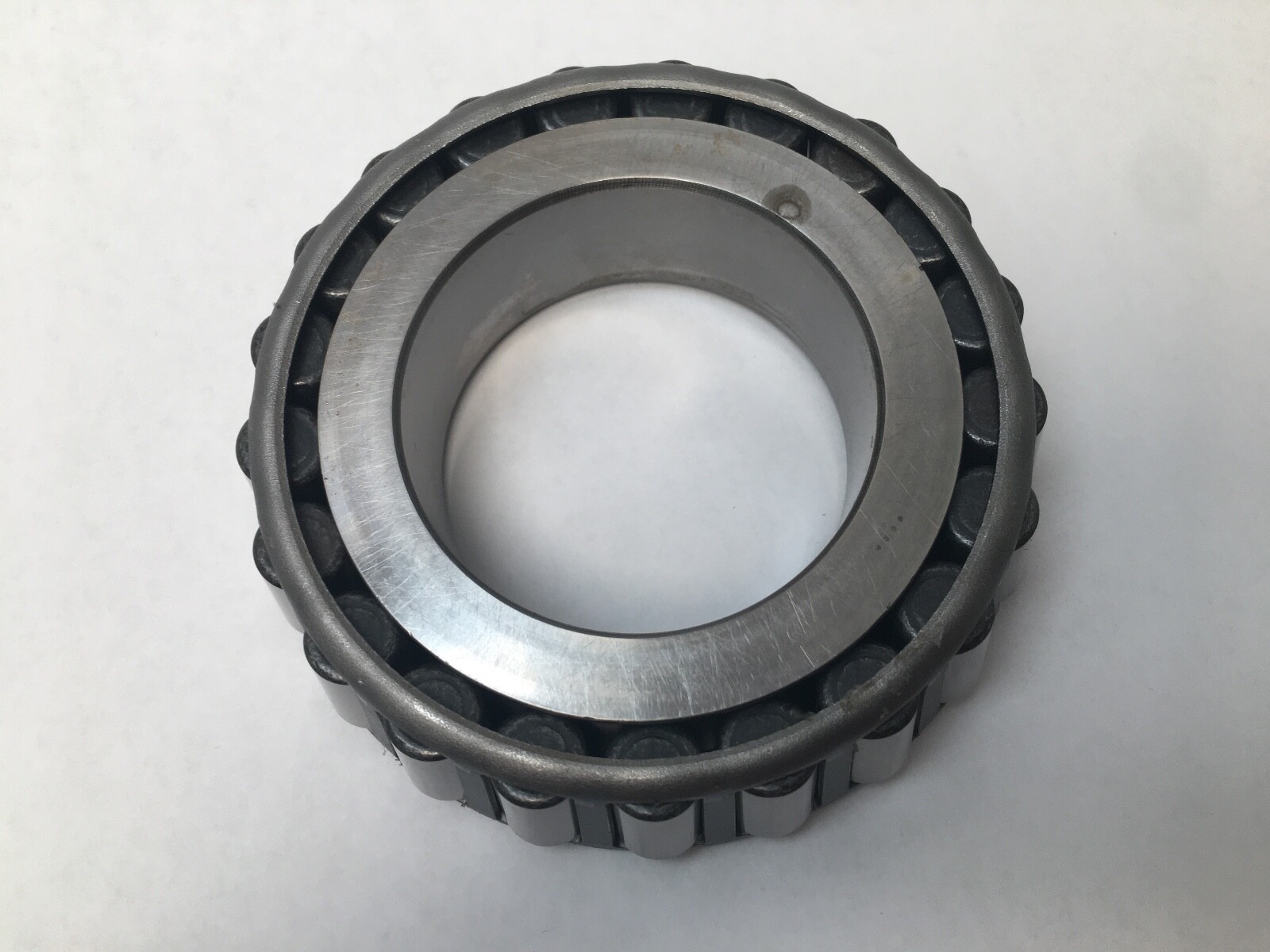

Timken 39580-3 tapered roller bearing cone – image 2

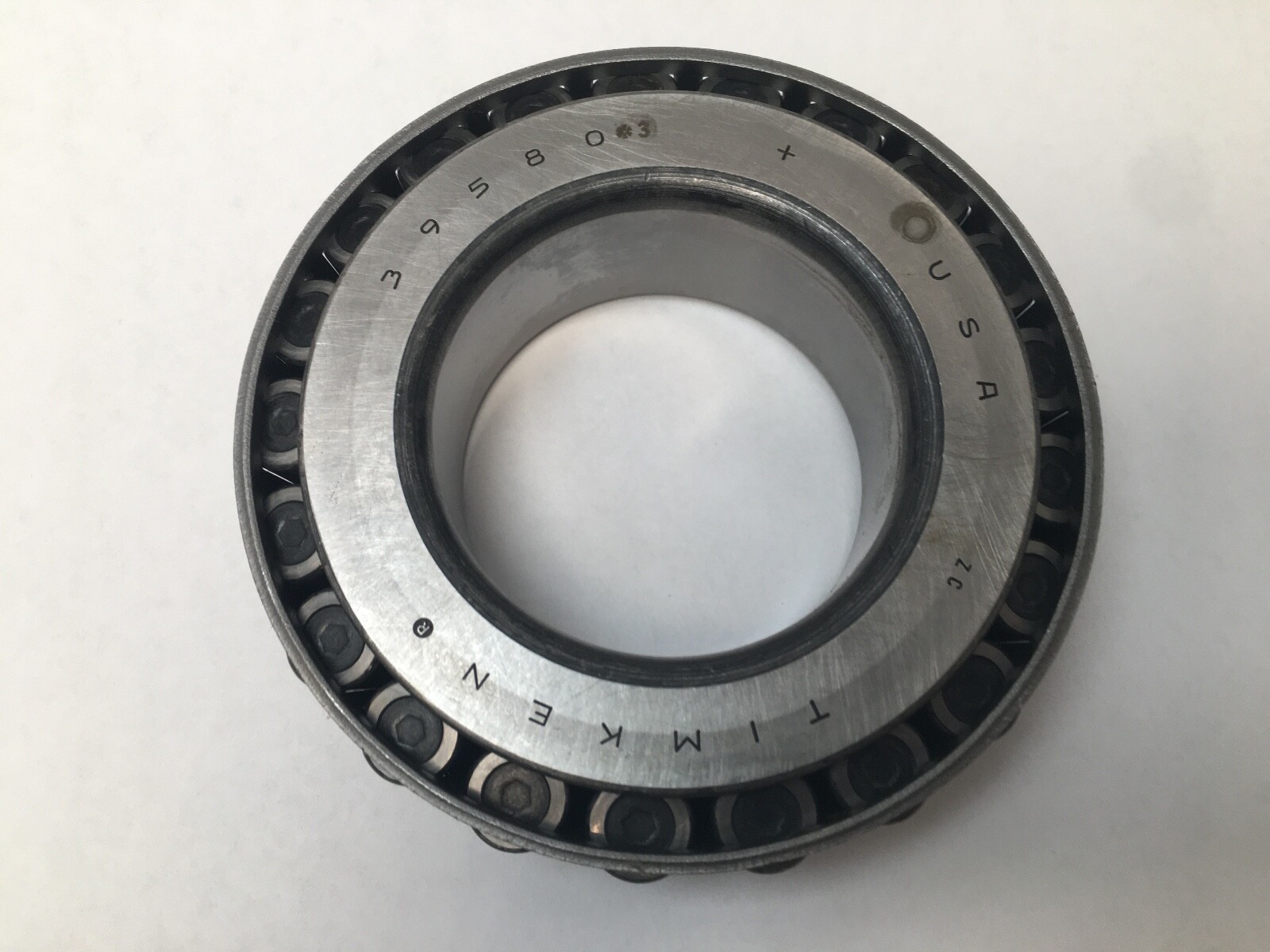

Timken 39580-3 tapered roller bearing cone – image 3

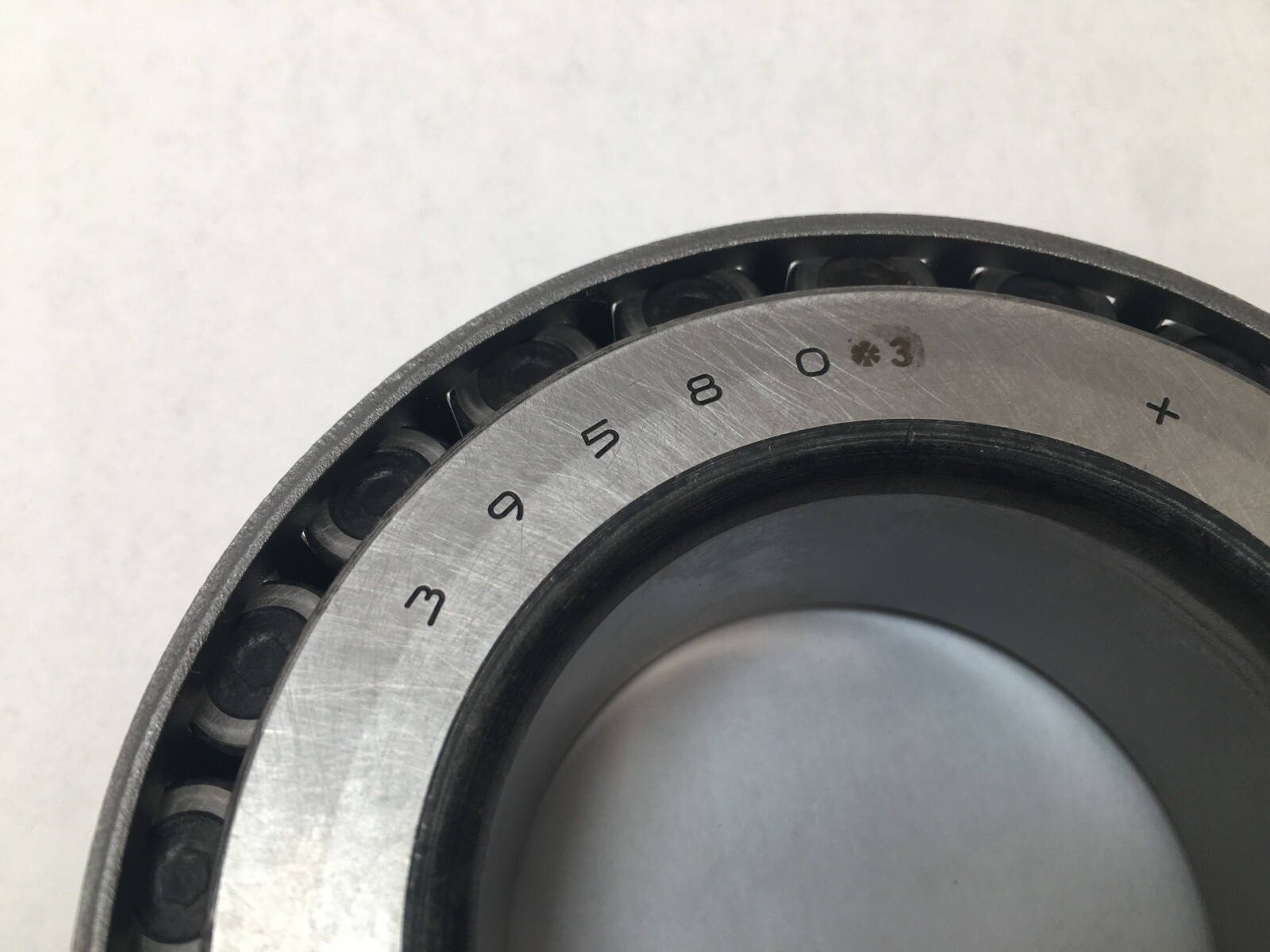

Timken 39580-3 tapered roller bearing cone – image 4

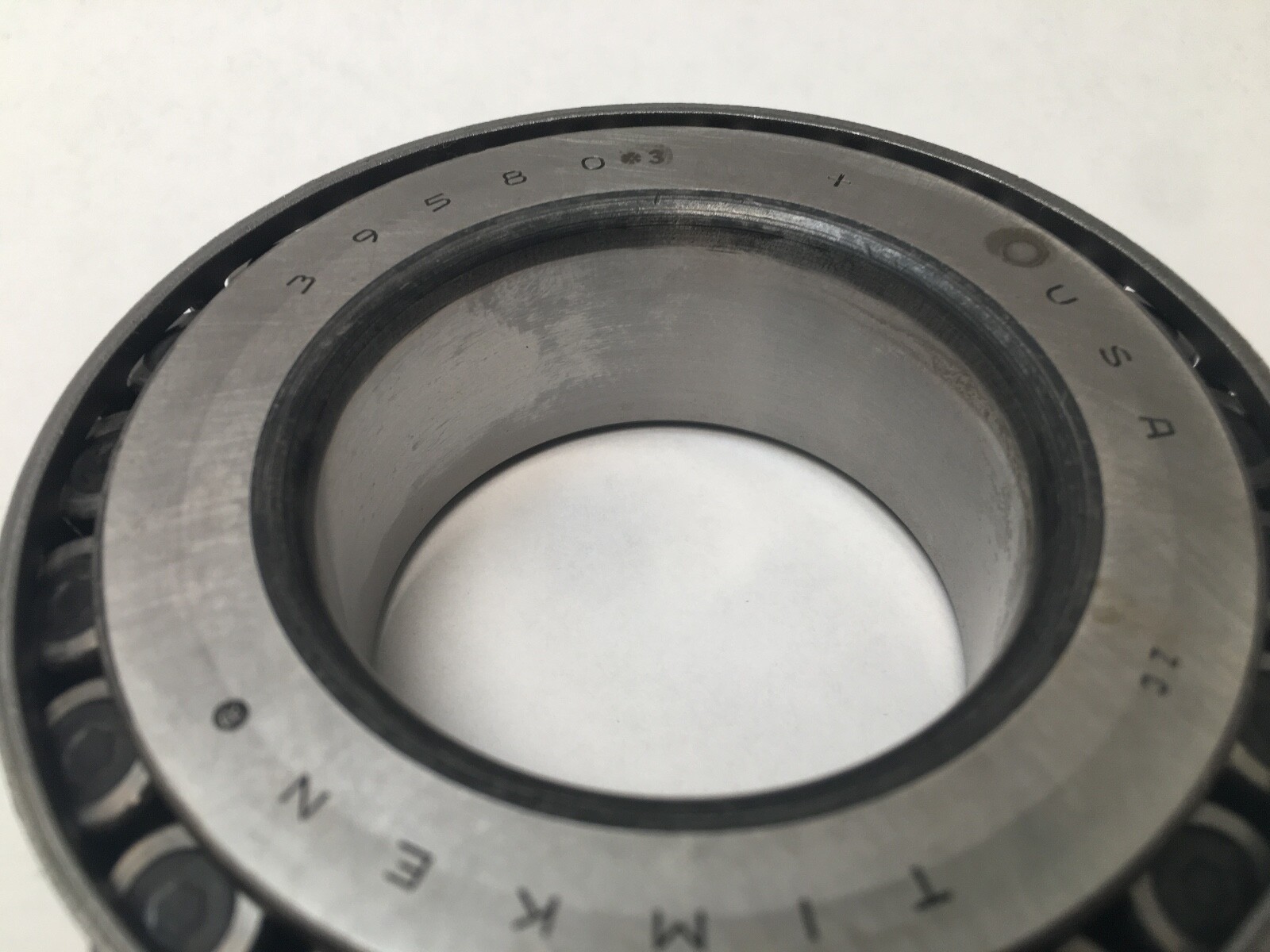

Timken 39580-3 tapered roller bearing cone – image 5

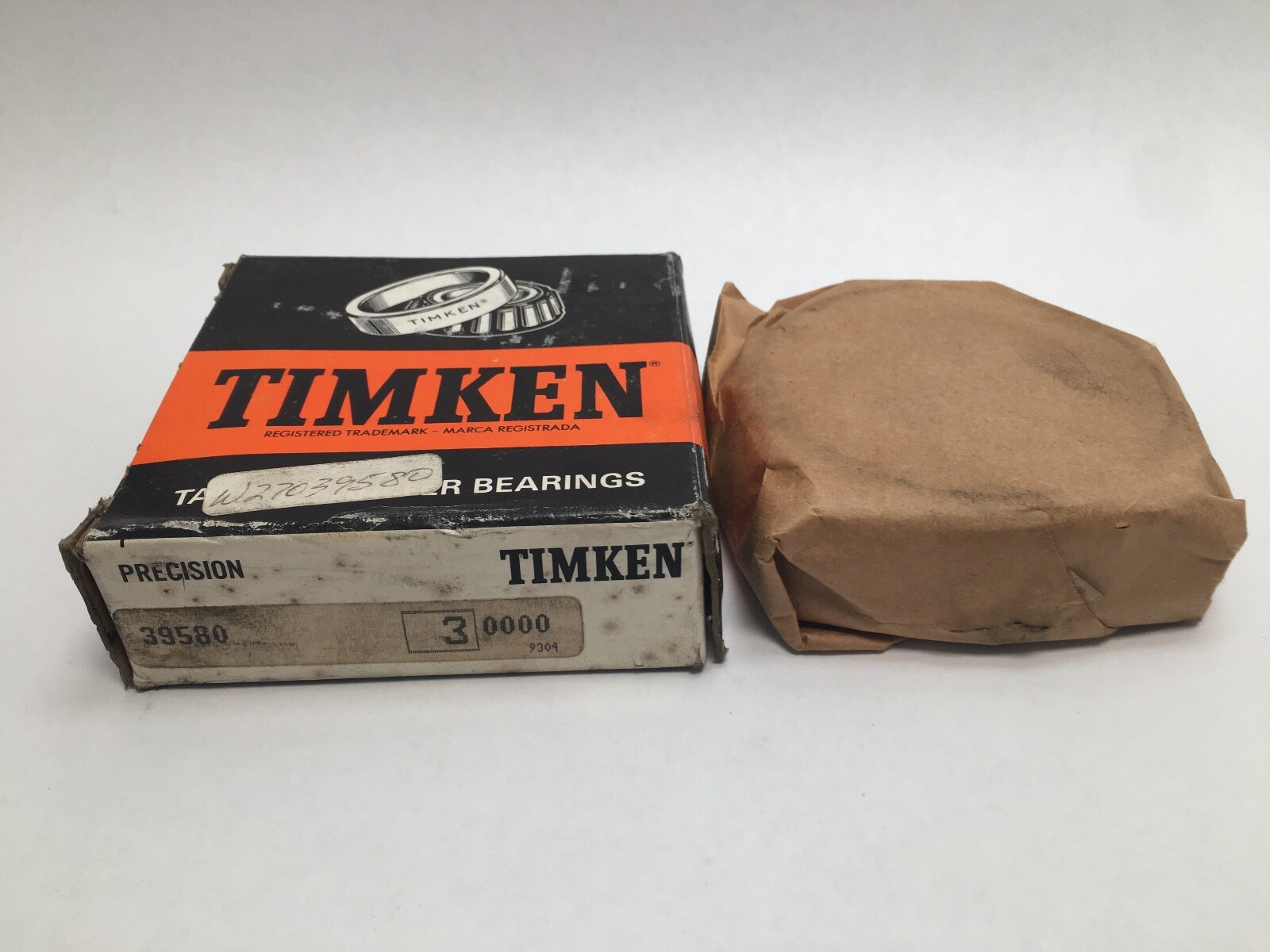

Timken 39580-3 tapered roller bearing cone – image 6

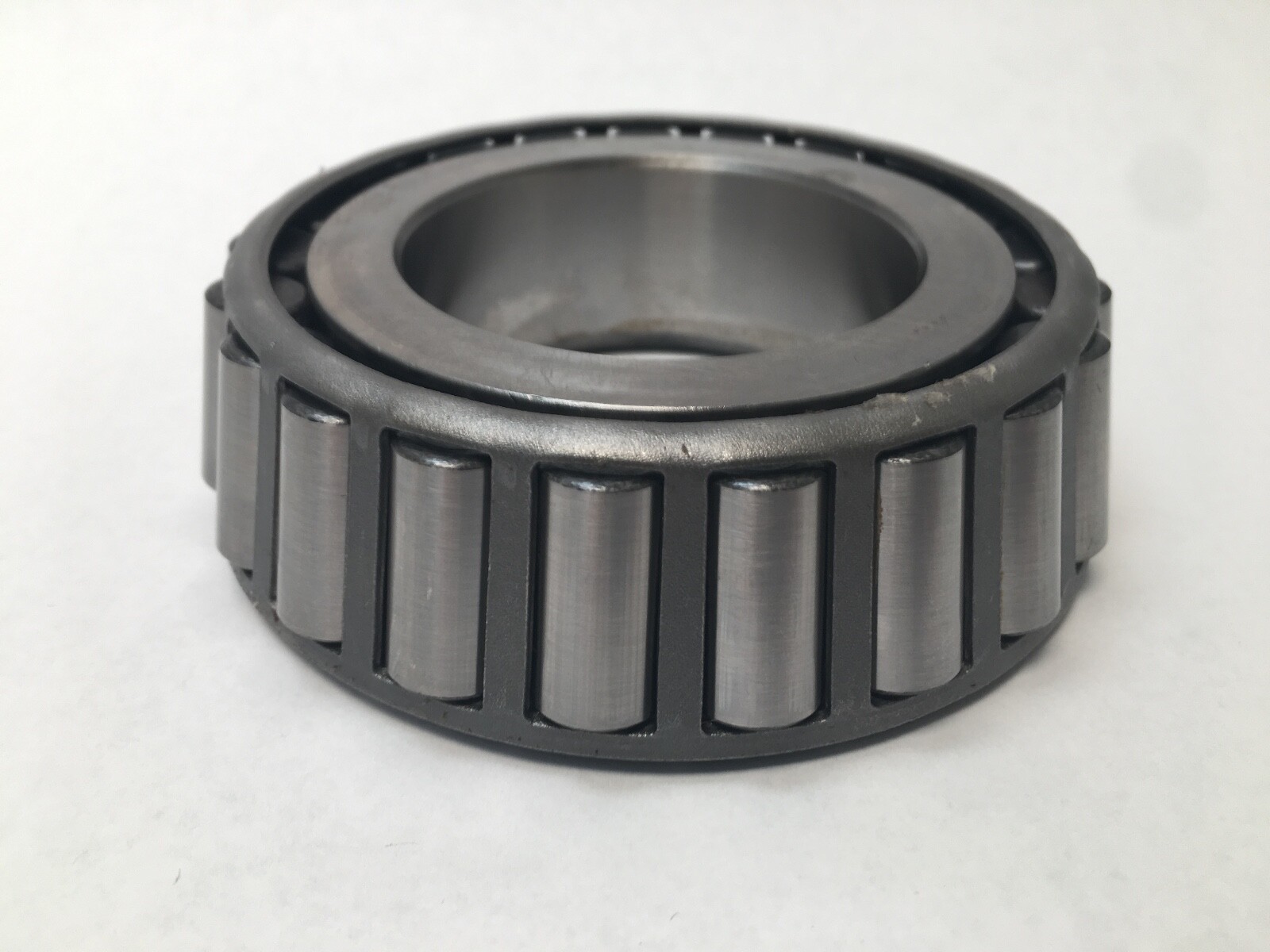

Timken 39580-3 tapered roller bearing cone – image 7

13k+ reviews

See our eBay reviews

Timken39580-3Tapered Roller Bearing Cone – 2.2500 in Bore, 1.1875 in Width, 167,000 N Dynamic Rating, Class 3 Precision, Carburized Steel

Name: Timken 39580-3 Tapered Roller Bearing Cone – 2.2500 in Bore, 1.1875 in Width, 167,000 N Dynamic Rating, Class 3 Precision, Carburized Steel
Brand: Timken
SKU: D6#EYHR2O
Price: 51.52 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In USA, Class 3 Precision, New Old Stock

Availability:

1 in stock

Categories: Bearings, Tapered Roller Bearing Cone

Timken 39580-3 Class 3 inch tapered roller bearing cone, 2.2500 in bore, 1.1875 in wide, 167,000 N dynamic rating. Mating cups: Timken 39520, 39521.

Same day shipment

List Price

$51.52

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Timken
MPN	39580-3
Model	39580 #3
Bearing Type	Tapered Roller Bearing Cone
ID	2.2500 in
Width	1.1875 in

Technical Specifications

Series	39500
Material	Carburized Steel
Base Number	39580
Overall Width	1.1875 in
Mpn Variants	39580-3, 39580 *3, 39580#3, 39580 #3, 395803
Compatible With Replaces	Mating cups: Timken 39520, 39521
Precision Class	Class 3
Additional Attributes	K factor 1.72; Ca90 25,100 N; C90 43,300 N; G1 84.3; G2 23.7; Cg 0.107; Aa 0.05 in; Ab 0.13 in; da 68 mm; db 74 mm
Dynamic Load Rating	167,000 N
Static Load Rating	224,000 N
Rolling Elements	Tapered Roller
Item Weight	2.93 kg (6.45 lb)
Number Of Rows	1
Bore Type	Straight
Harmonization Code	8482.20.00
Design Units	Imperial
Bearing Material	Carburized Steel
Cone Part Number	39580
Cone Width	1.1875 in
Cone Backface To Clear Radius	0.140 in
Cone Frontface Backing Diameter	2.68 in
Cage Cone Frontface Clearance	0.13 in
Cage Cone Backface Clearance	0.05 in
Effective Center Location	-0.26 in
Industry Terms	tapered roller bearing cone; inch taper cone; single cone; Class 3 tapered cone; 2-1/4 in bore taper bearing cone; 39580 cone
Common Misspellings	Timkin 39580-3; Timken 39580 3; Timken 395803; Timken 39580*3; Timken 39580 class 3
Application Types	wheel hubs; gearboxes; axle and differential assemblies; industrial machinery shafts; agricultural and construction equipment

Cross-References

Cross Reference 1	SKF 39580
Cross Reference 2	FAG K-39580
Cross Reference 3	NSK 39580
Cross Reference 4	NTN 4T-39580
Cross Reference 5	Koyo 39580
Cross Reference 6	Fersa 39580
Cross Reference 7	BCA/Bower 39580
Cross Reference 8	PEER 39580

Seller Part Number: D6#EYHR2O

Product Description

What this part is:

Timken 39580-3 inch-series single tapered roller bearing cone: inner ring, tapered rollers and cage as one assembly. Class 3 precision. Cone only; matching cups are Timken 39520 and 39521. Unit Quantity: 1 Pc.

Decoding the designation:

39580 — cone number in Timken’s 39500 inch tapered roller series.

*3 — Precision Class 3. The same marking appears as 39580-3, 39580 *3 and 39580#3.

Specifications:

Bore Diameter: 2.2500 in (57.150 mm). Overall Width: 1.1875 in (30.163 mm). Item Weight: 2.93 kg (6.45 lb). Dynamic Load Rating: 167,000 N. Static Load Rating: 224,000 N. Material: Carburized Steel. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Precision Class: Class 3.

K Factor: 1.72. Dynamic Axial Rating (Ca90): 25,100 N. Dynamic Radial Rating at 90 million revolutions (C90): 43,300 N. G1 Factor: 84.3. G2 Factor: 23.7. Geometry Factor (Cg): 0.107.

Dimensions and mounting:

Effective Center Location: –0.26 in (–6.6 mm). Maximum Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft Backing Shoulder Diameter, Frontface (da): 2.68 in (68 mm). Shaft Backing Shoulder Diameter, Backface (db): 2.91 in (74 mm). Cage Location relative to back face (Aa): 0.05 in. Cage Location relative to front face (Ab): 0.13 in.

Compatibility and replacement:

Mating cups: Timken 39520, 39521. The 39580 cone number is also carried by SKF 39580, FAG K-39580, NSK 39580, NTN 4T-39580, Koyo 39580, Fersa 39580, BCA/Bower 39580 and PEER 39580. CAD model and data sheet: available from Timken (cad.timken.com).
