Availability:
1 in stock

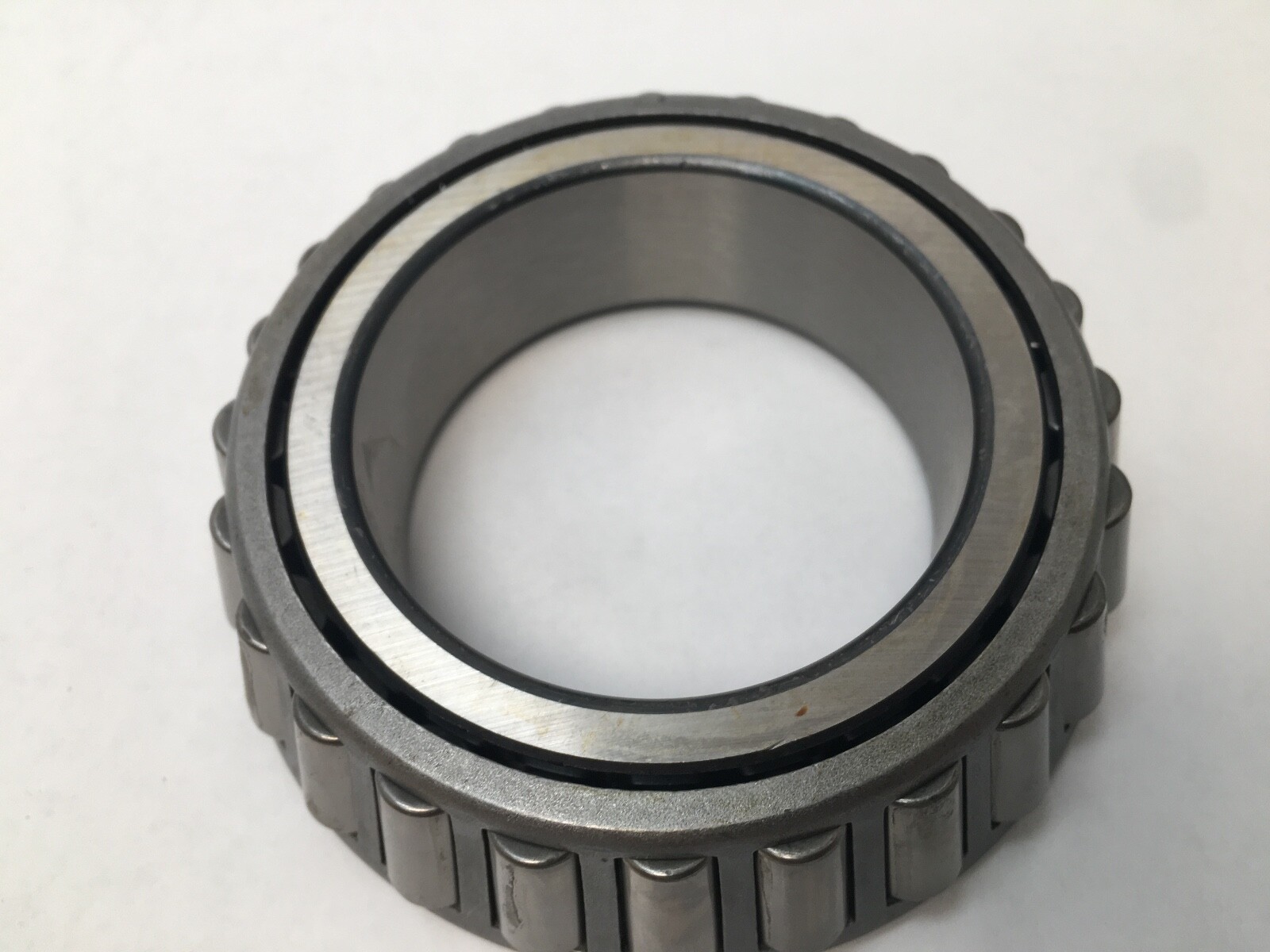

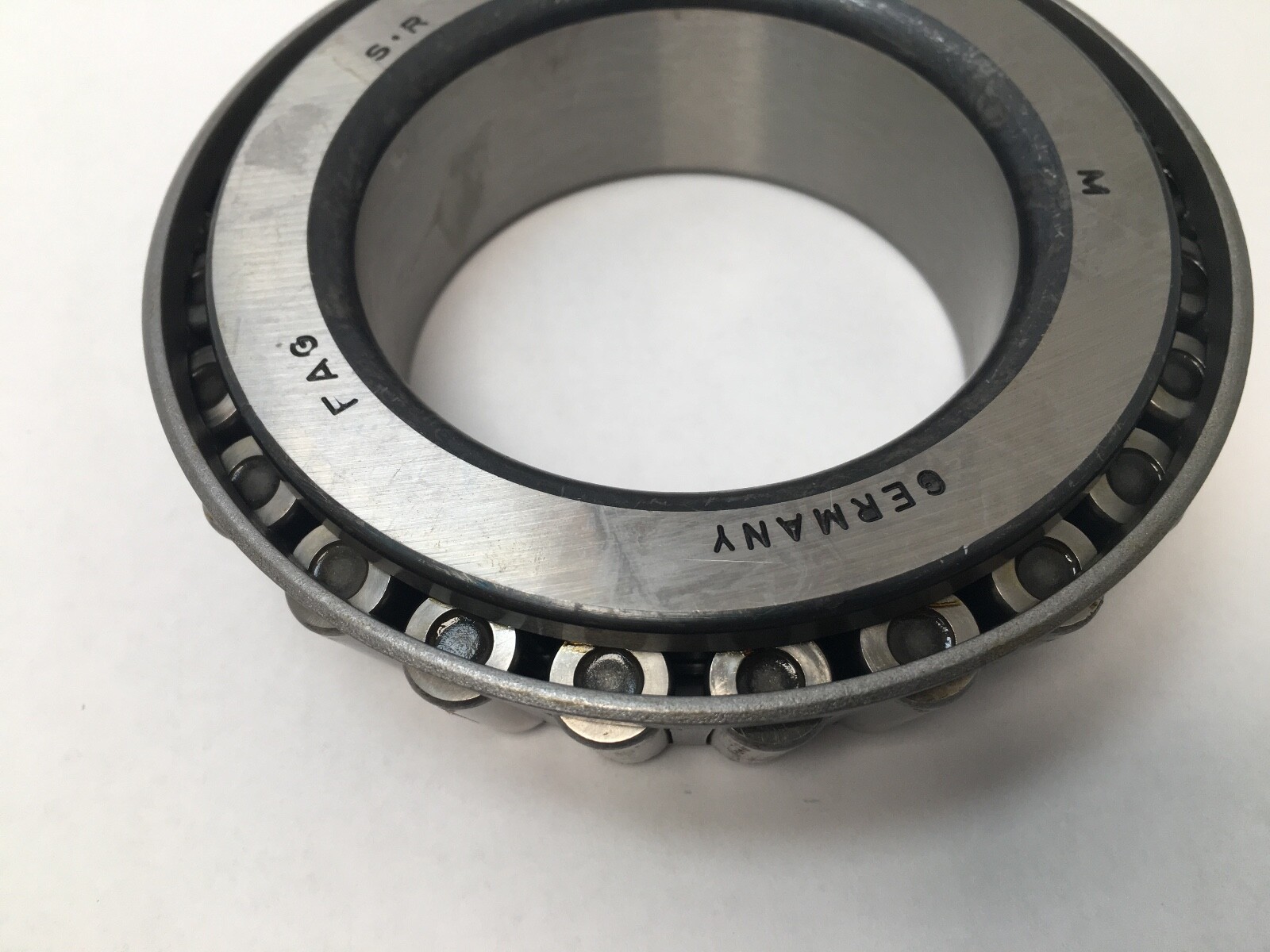

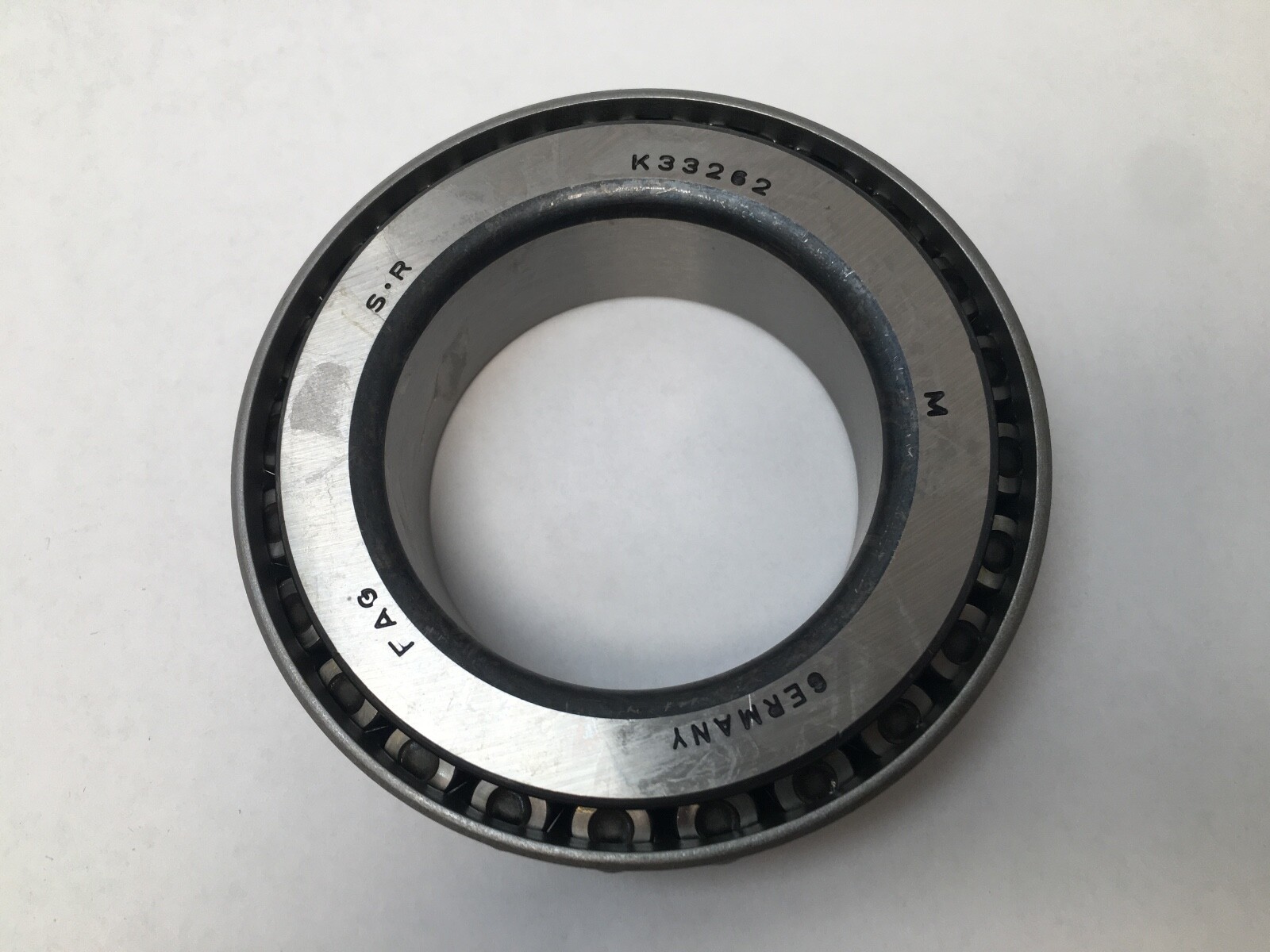

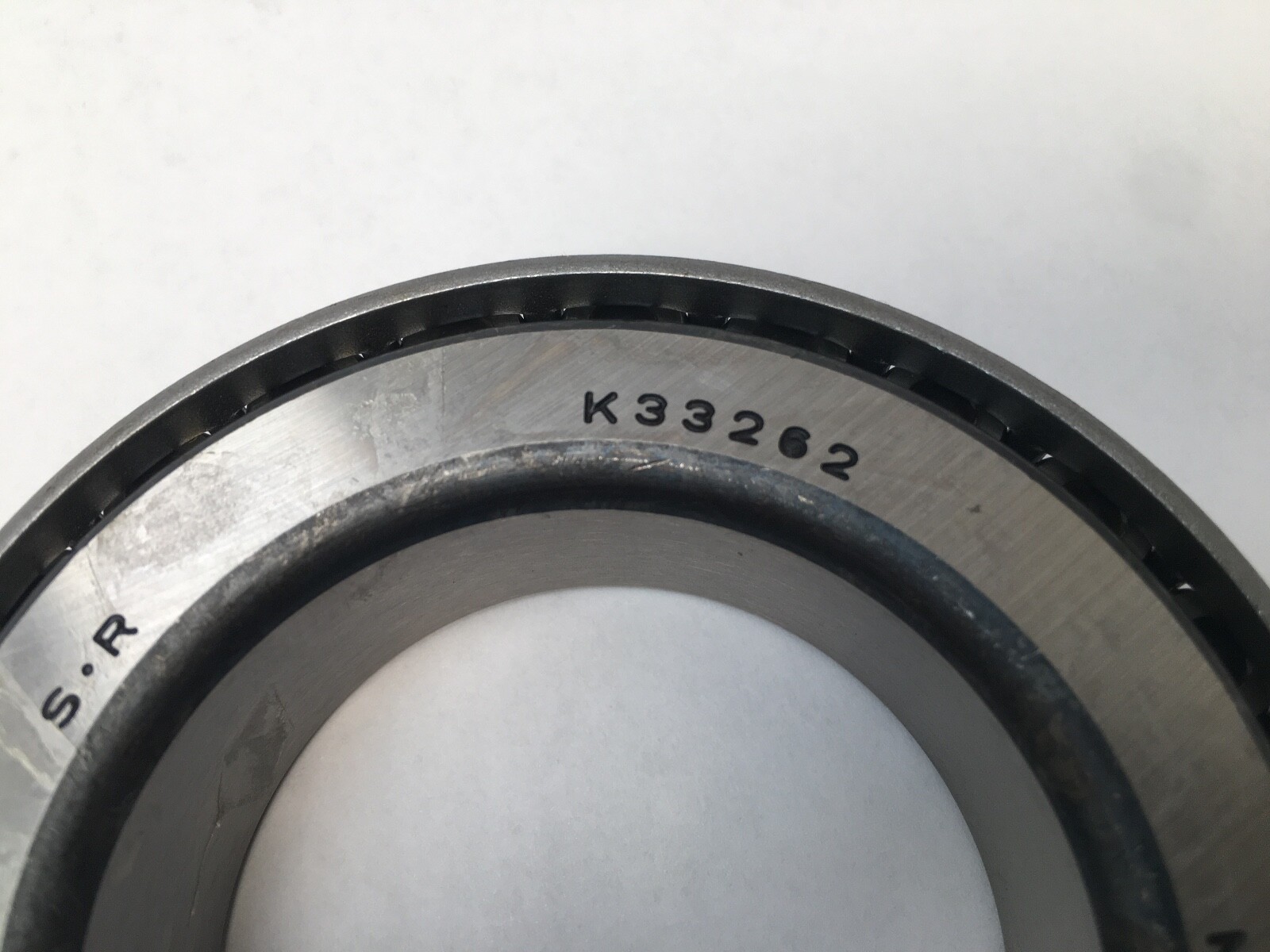

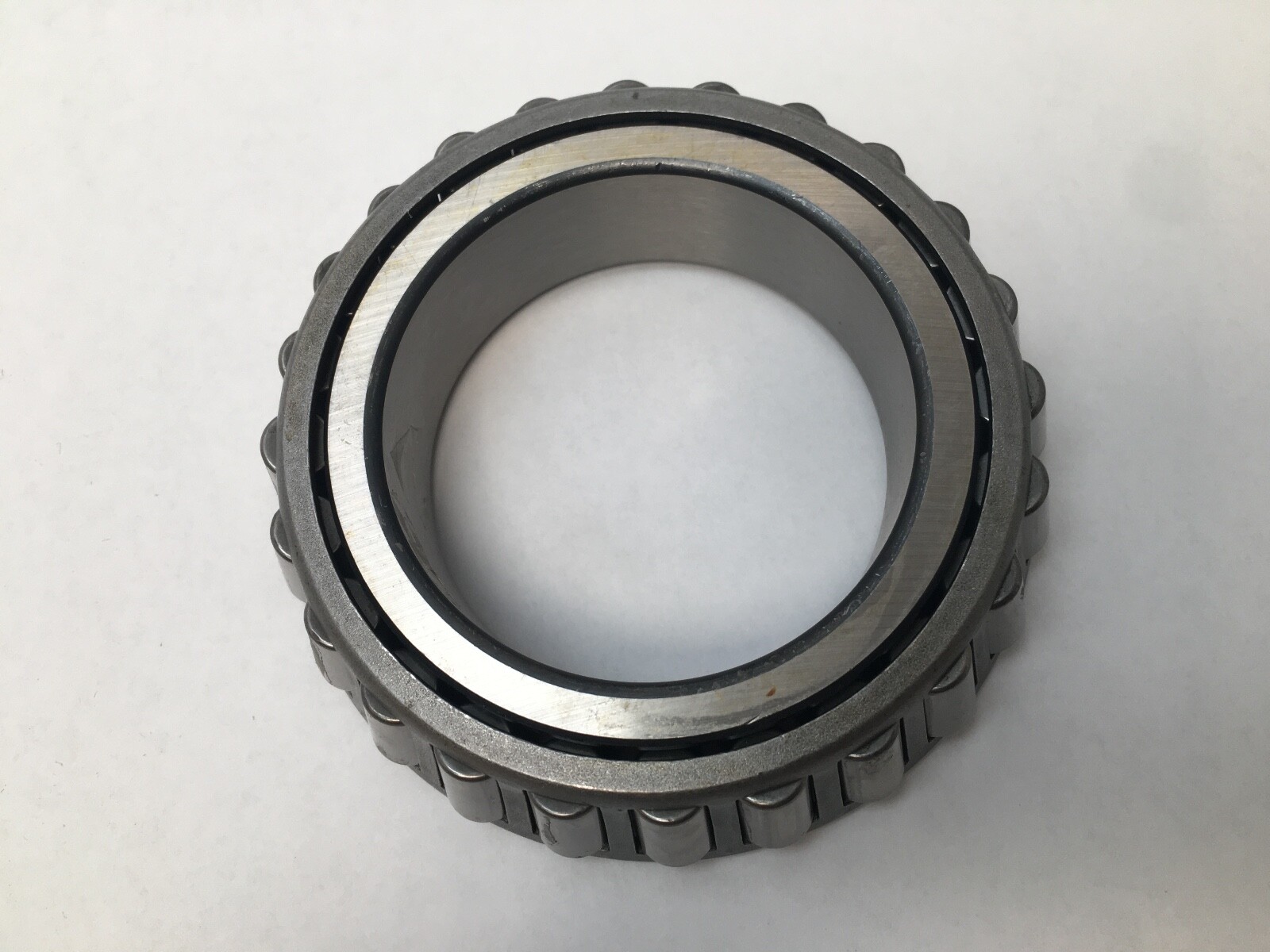

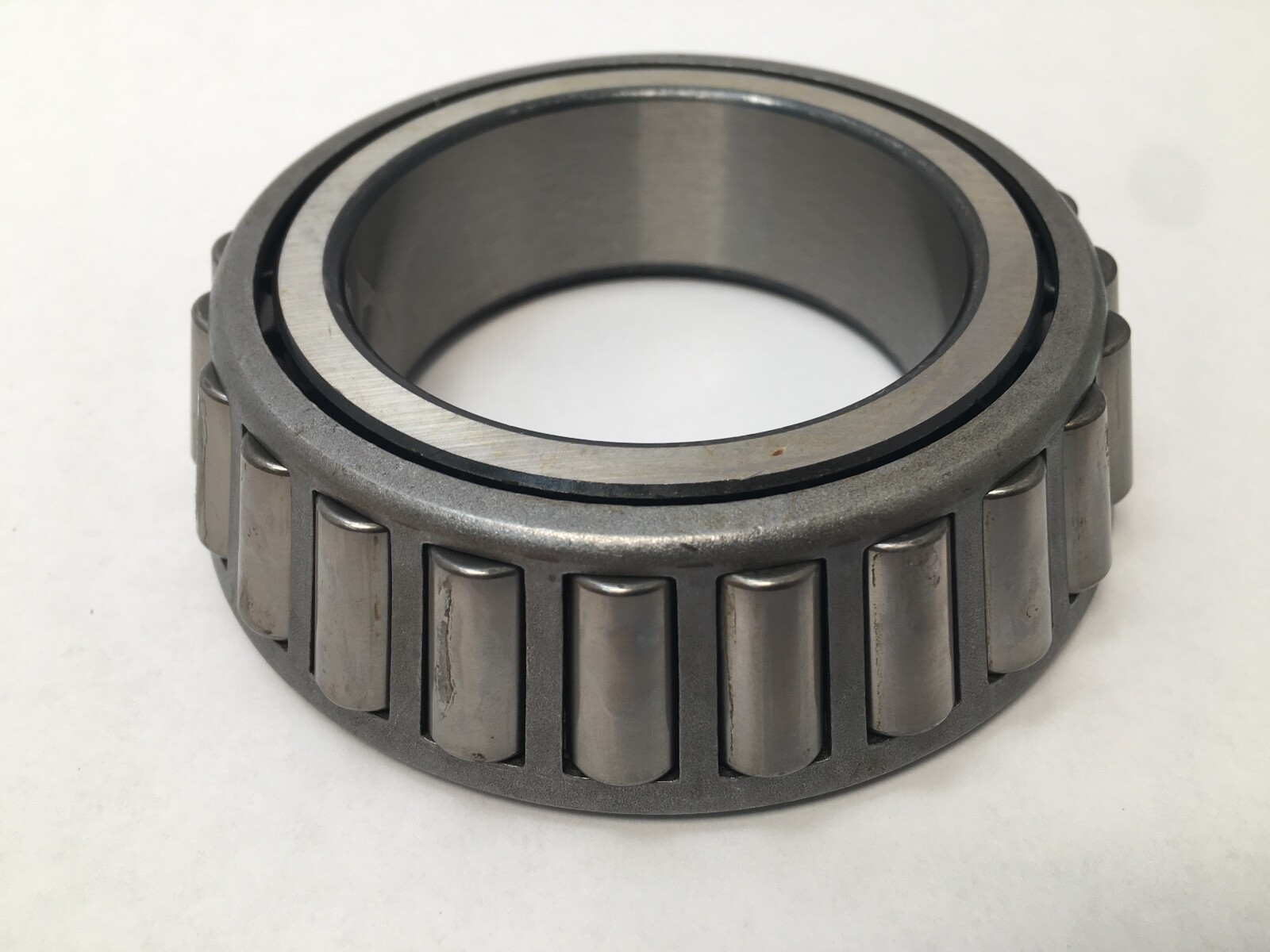

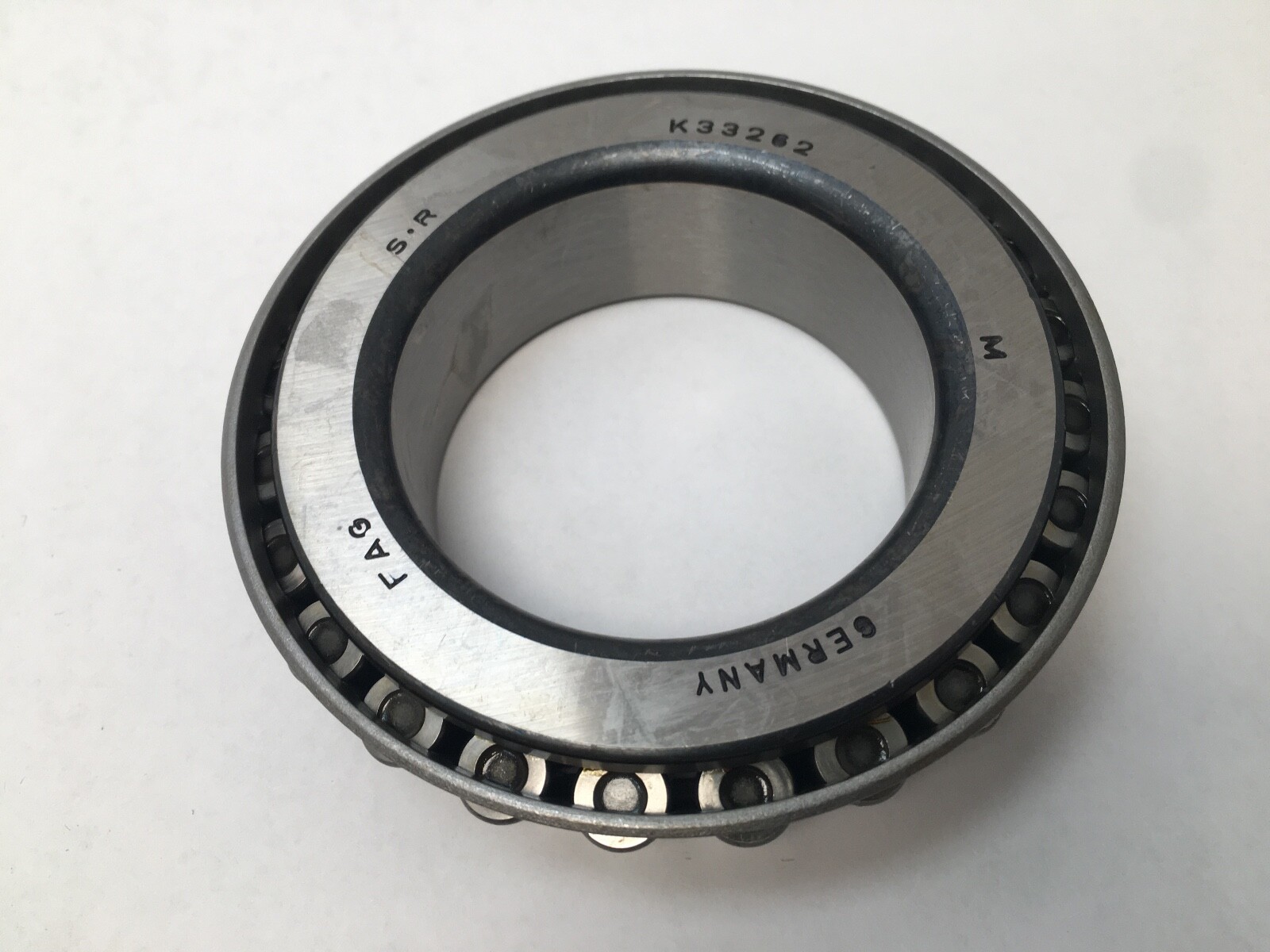

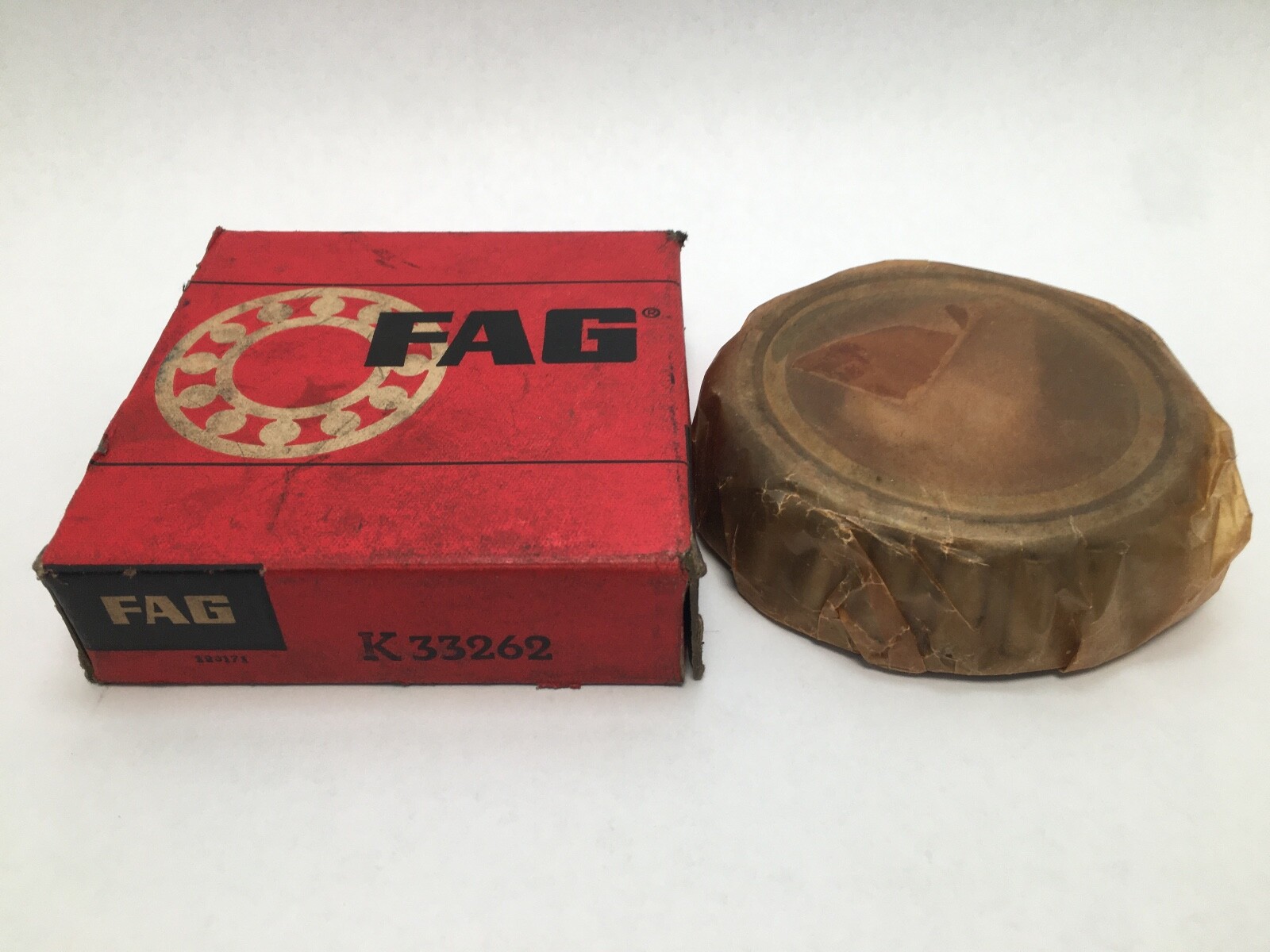

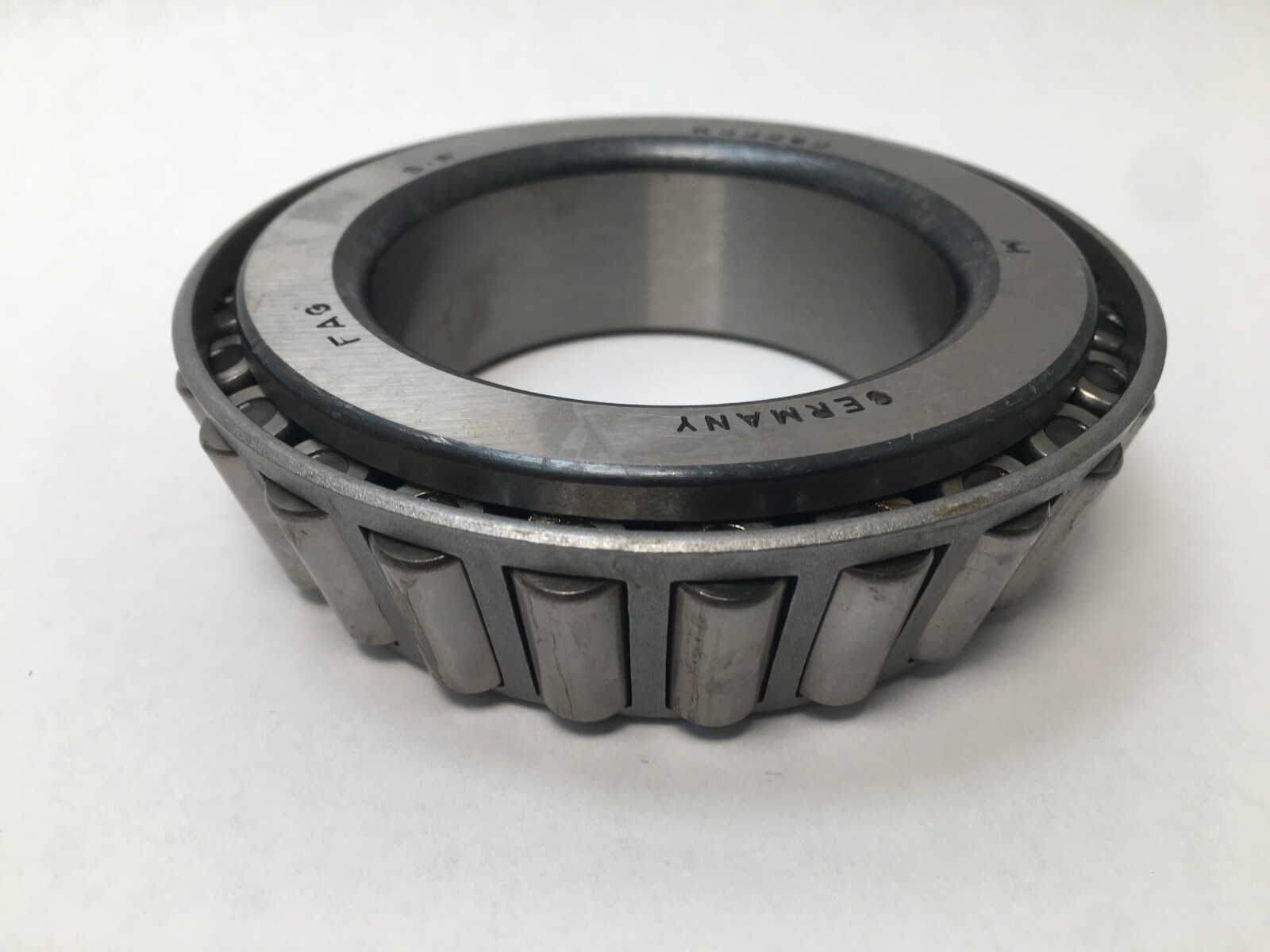

FAG K33262 tapered roller bearing cone, 2.6250 in (66.675 mm) bore, 1.1875 in cone width, 33200 series. Mates with cup K33461 as assembly K33262-33461.
List Price
$51.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | K33262 |
| Model | K33262 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 2.6250 in (66.675 mm) |
| Width | 1.1875 in (30.162 mm) |
| Series | 33200 |
|---|---|
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.20.00 |
| Industry Terms | tapered roller bearing cone, inch taper cone, TRB cone, bearing inner ring assembly |
| Overall Width | 1.1875 in (30.162 mm) |
| Mpn Variants | K33262, K-33262, 33262 |
| Compatible With Replaces | Cup FAG K33461; assembly FAG K33262-33461 |
| Additional Attributes | Cone backface chamfer r1,2 min: 3.5 mm; Shaft abutment da max: 75 mm; Shaft abutment db min: 81 mm; Mating cup: K33461 |
| Cross Reference 1 | Timken 33262 |
|---|---|
| Cross Reference 2 | NTN 4T-33262 |
| Cross Reference 3 | Koyo 33262 |
| Cross Reference 4 | Bower 33262 |
FAG K33262 is the cone (inner ring with roller and cage assembly) of a single-row inch tapered roller bearing, K-Series. Bore Diameter: 2.6250 in (66.675 mm). Cone Width: 1.1875 in (30.162 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight.
K — Schaeffler prefix for inch-dimensioned tapered roller bearing components to ABMA numbering.
33262 — ABMA cone number in the 33200 series, 2-5/8 in bore.
The cone takes combined radial and one-direction axial load when paired with its cup. FAG pairs this cone with cup K33461 as assembly K33262-33461.
Cone Backface Chamfer r1,2 min: 3.5 mm. Shaft Abutment da max: 75 mm. Shaft Abutment db min: 81 mm.
Unit Quantity: 1 Pc. Cone only. Matching cup: FAG K33461.
The 33262 ABMA number interchanges with Timken 33262, NTN 4T-33262, Koyo 33262 and Bower 33262 cones of the same envelope.
