Inch tapered roller bearing cone, 3.7500 in bore, 1.4219 in width, 223,000 N dynamic and 343,000 N static rating. Mates with Timken 52618 or 52618P cups.
List Price
$50.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 52375 |
| GTIN | 053893320731 |
| Model | 52375 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 3.7500 in (95.250 mm) |
| Base Number | 52375 |
|---|---|
| Overall Width | 1.4219 in (36.116 mm) |
| Mpn Variants | 52375; 52375-20026; 52375 20026; 52-375 |
| Compatible With Replaces | Mating cups: Timken 52618, Timken 52618P |
| Precision Class | Not specified |
| Dynamic Load Rating | 223,000 N |
| Static Load Rating | 343,000 N |
| Series | 523 |
| Rolling Elements | Tapered Roller |
| Item Weight | 7.587 kg (16.73 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Part Number | 52375 |
| Common Misspellings | Timkin 52375; Timken 52-375; Timken 52375 cone |
| Cross Reference 1 | Koyo 52375 |
|---|---|
| Cross Reference 2 | NTN 4T-52375 |
| Cross Reference 3 | NSK 52375 |
| Cross Reference 4 | SKF 52375 |
| Cross Reference 5 | BCA / Bower 52375 |

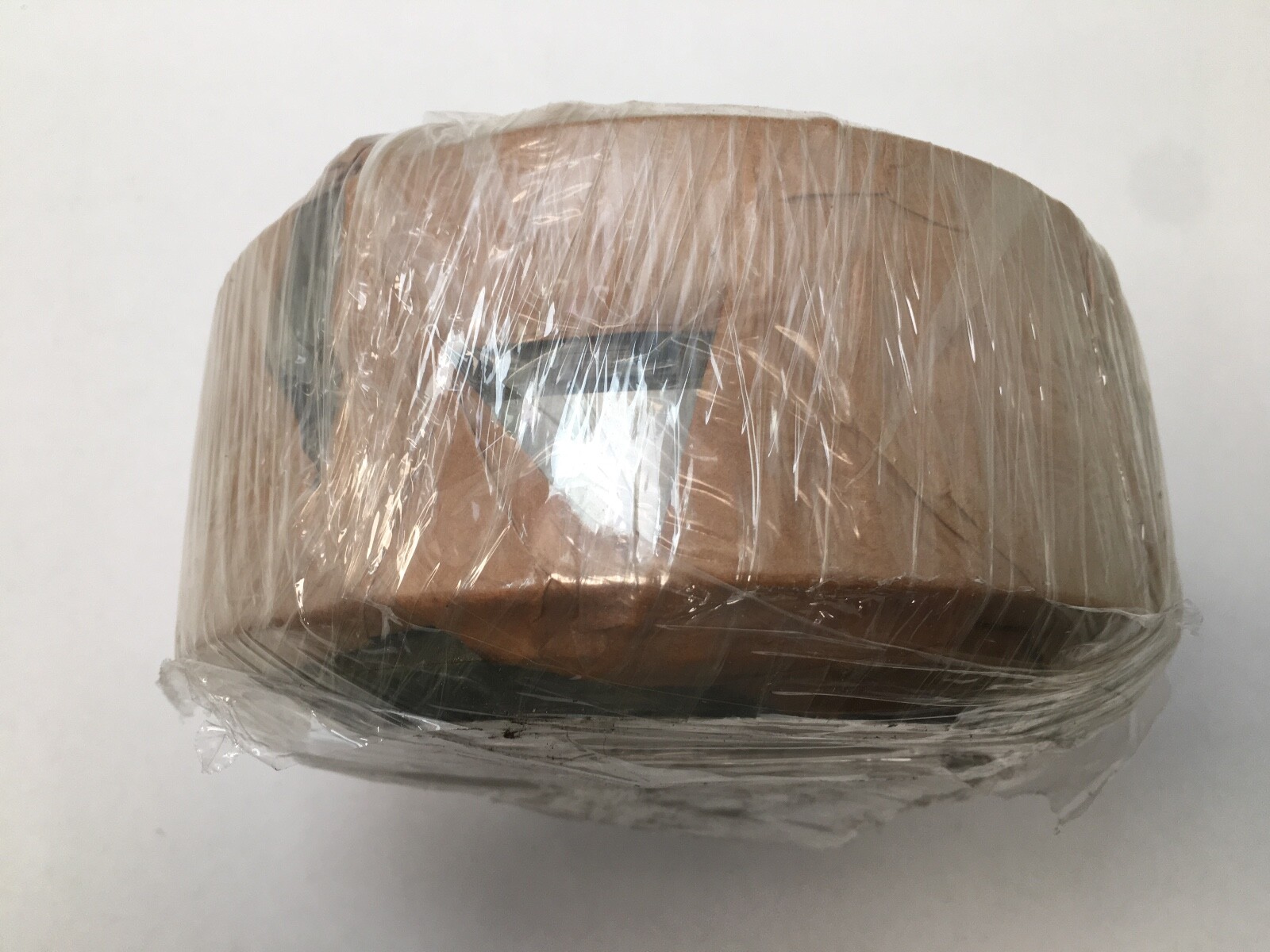

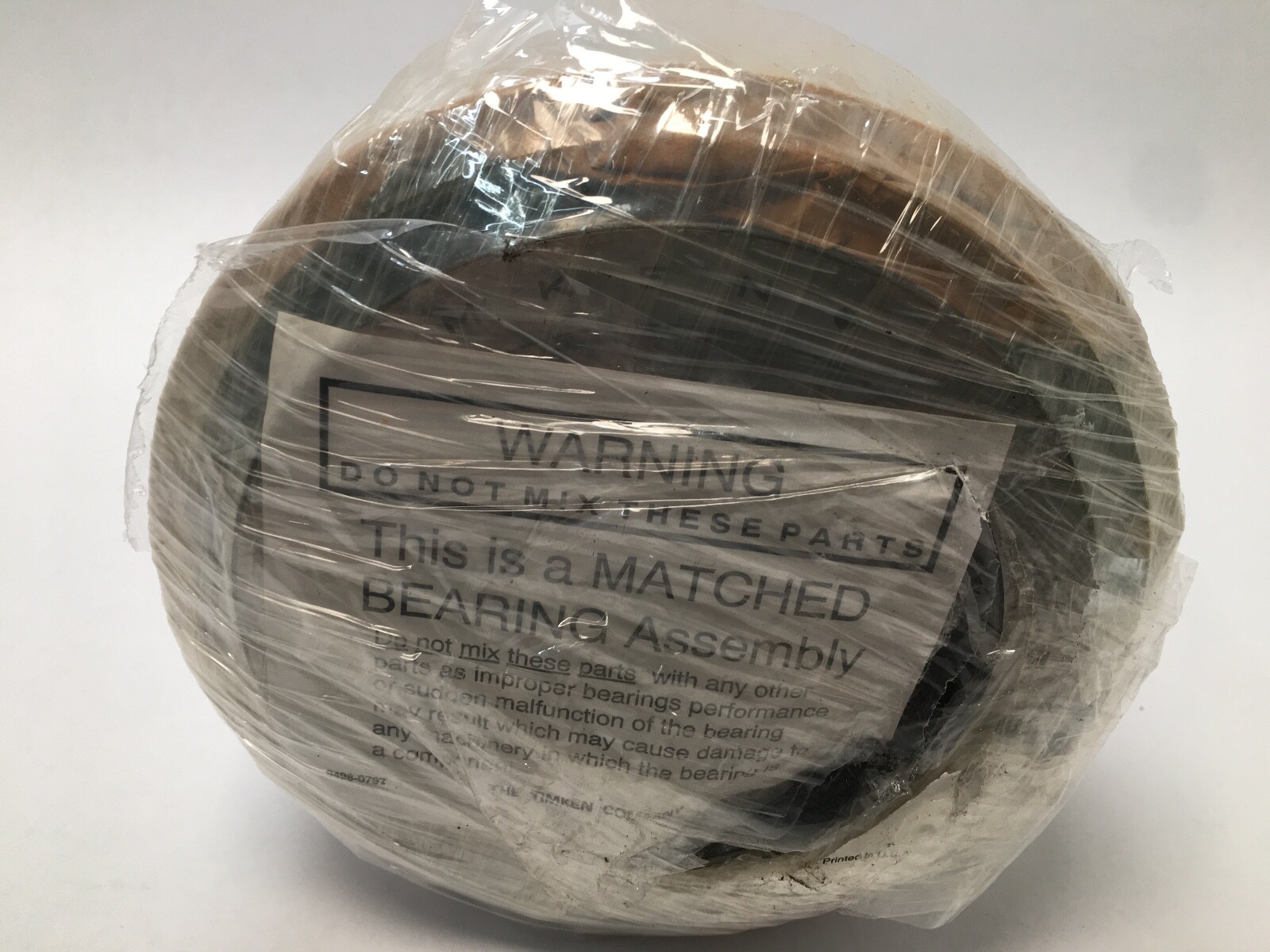

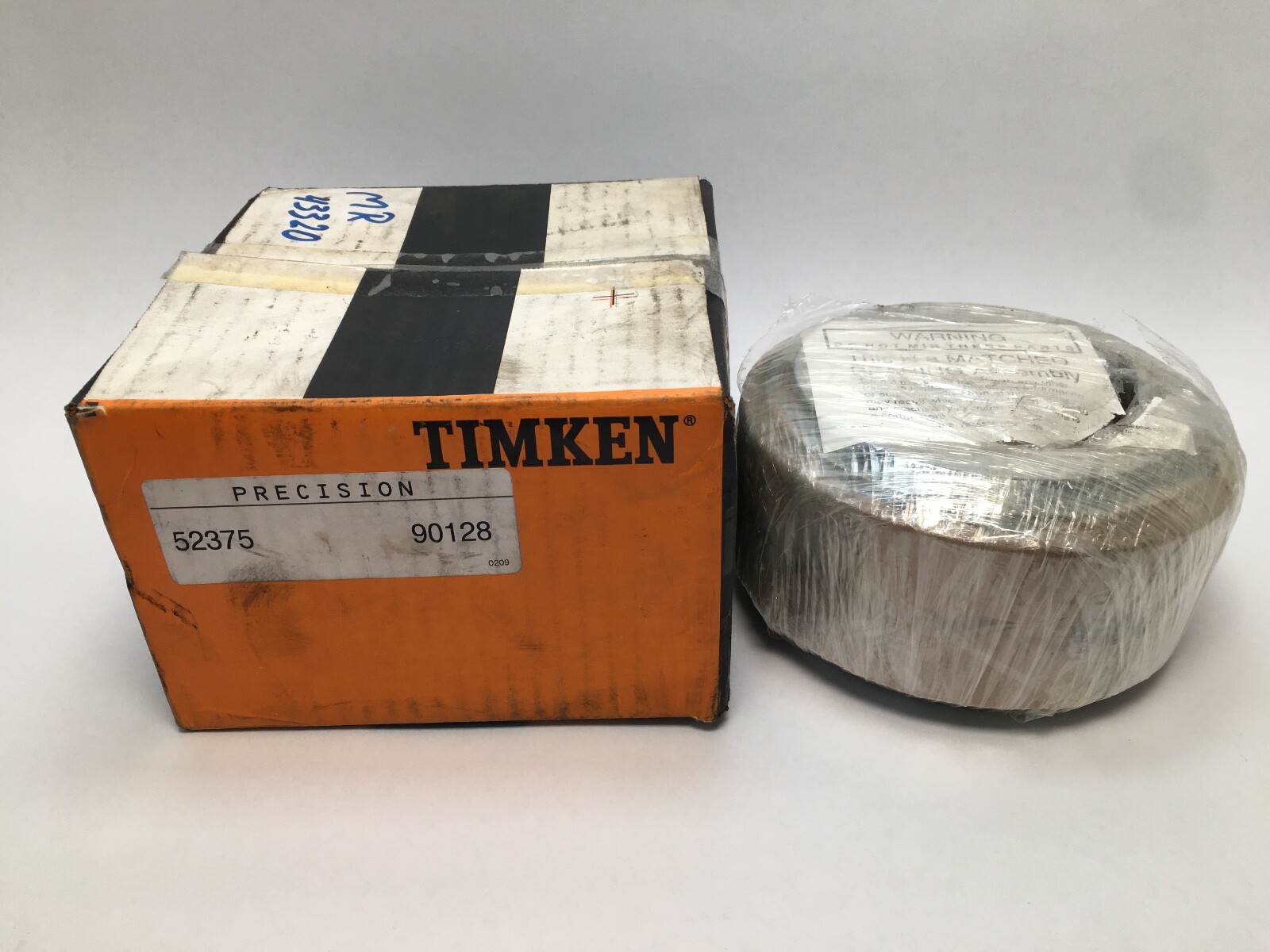

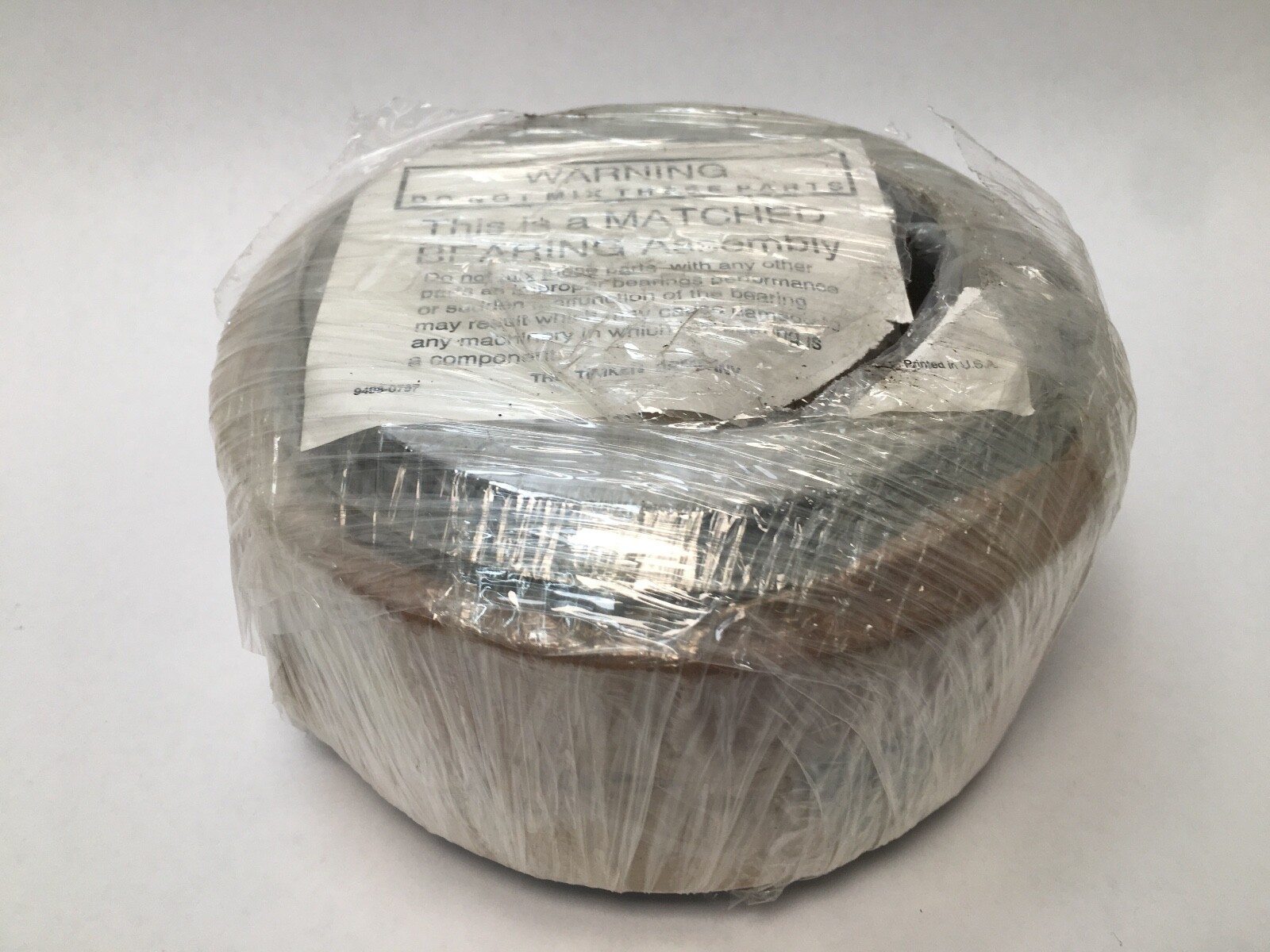

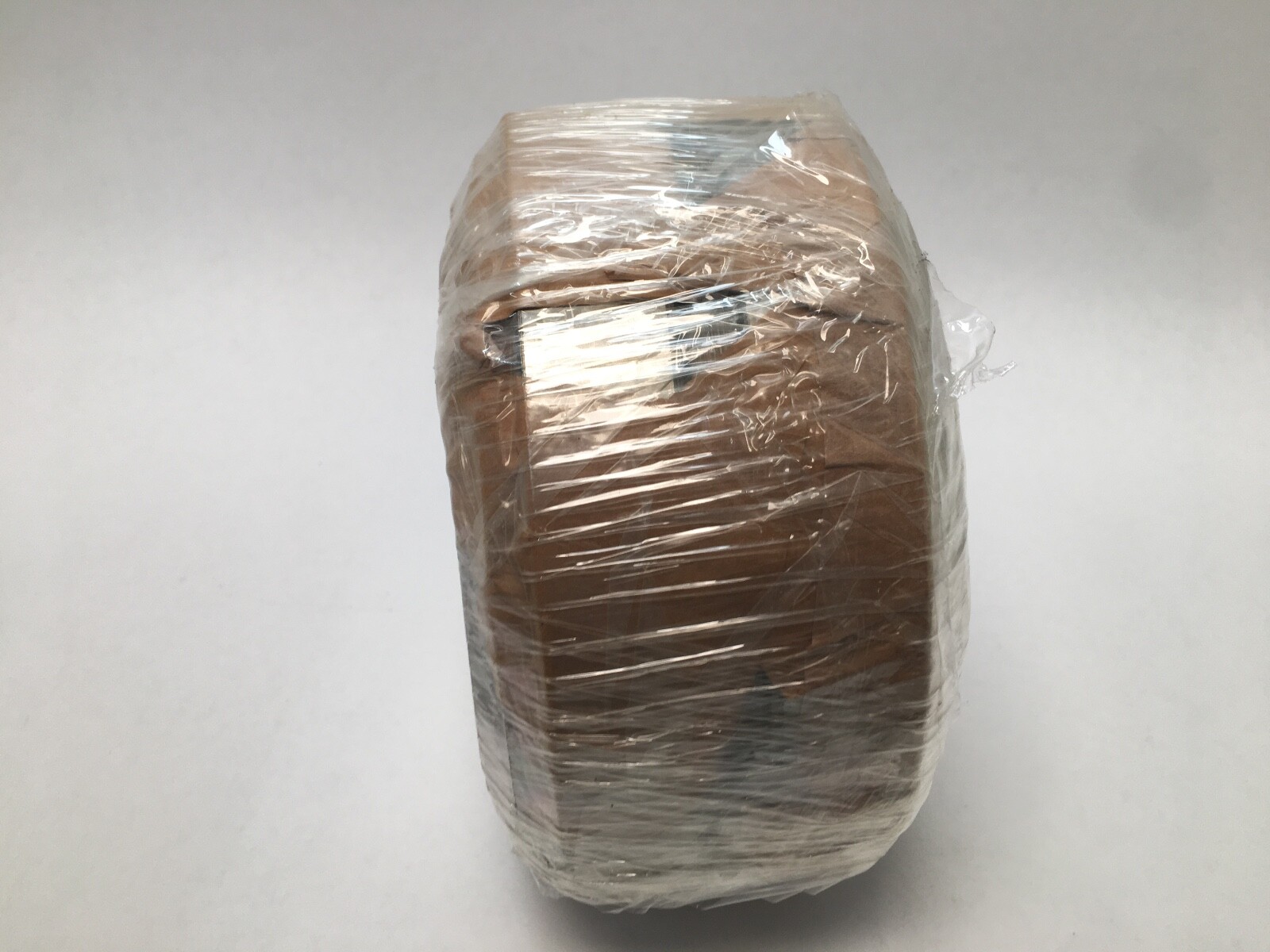

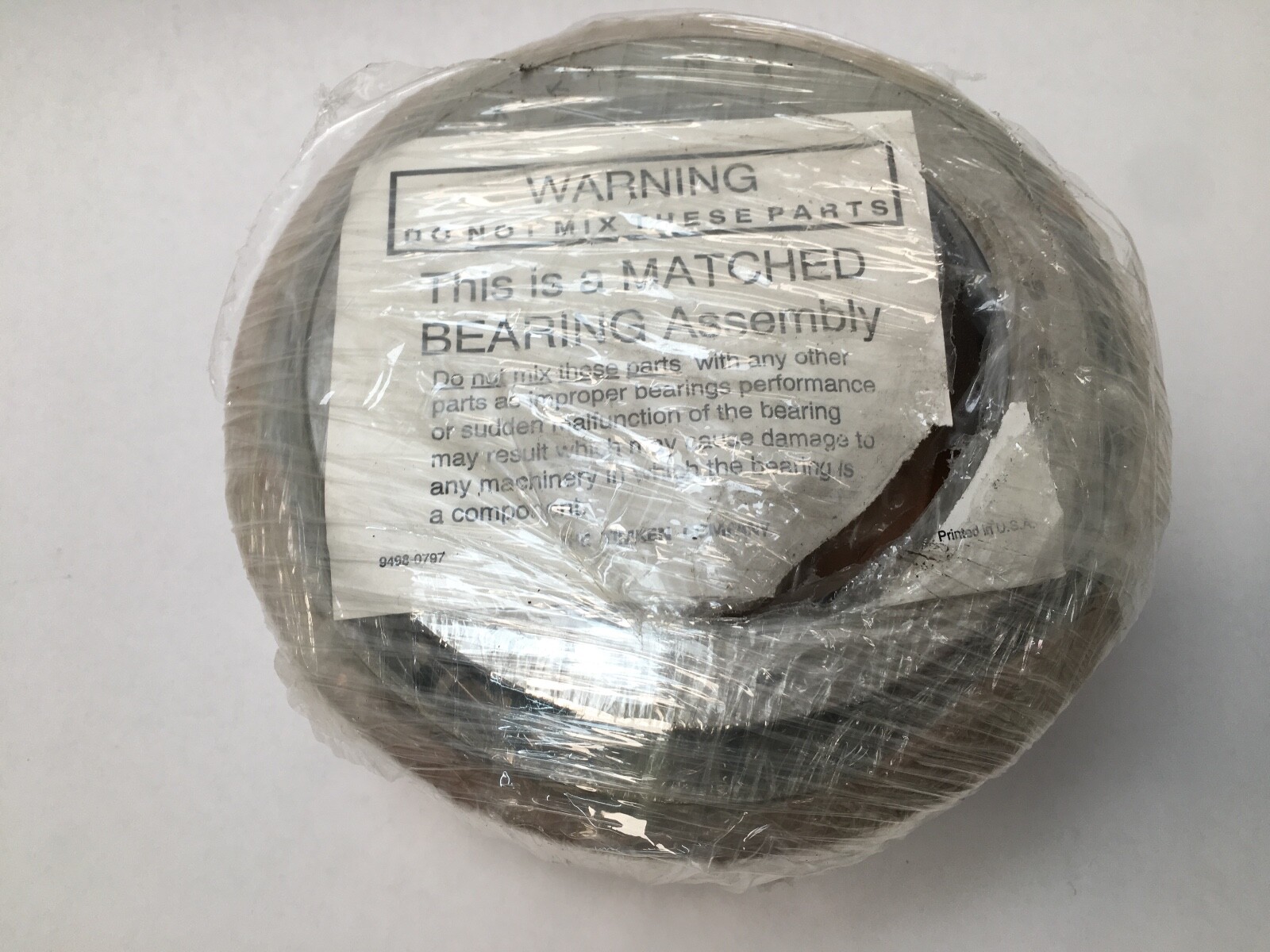

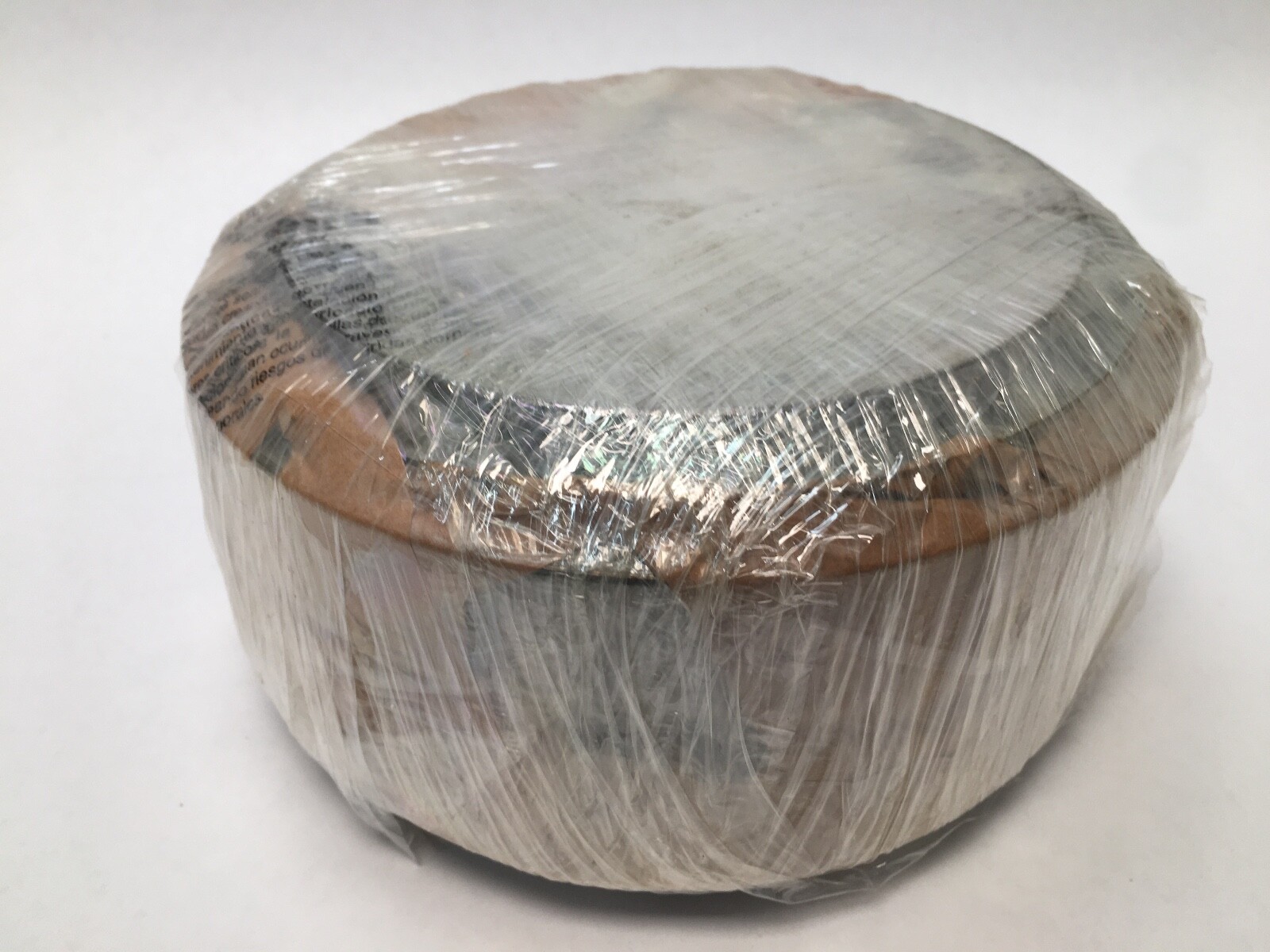

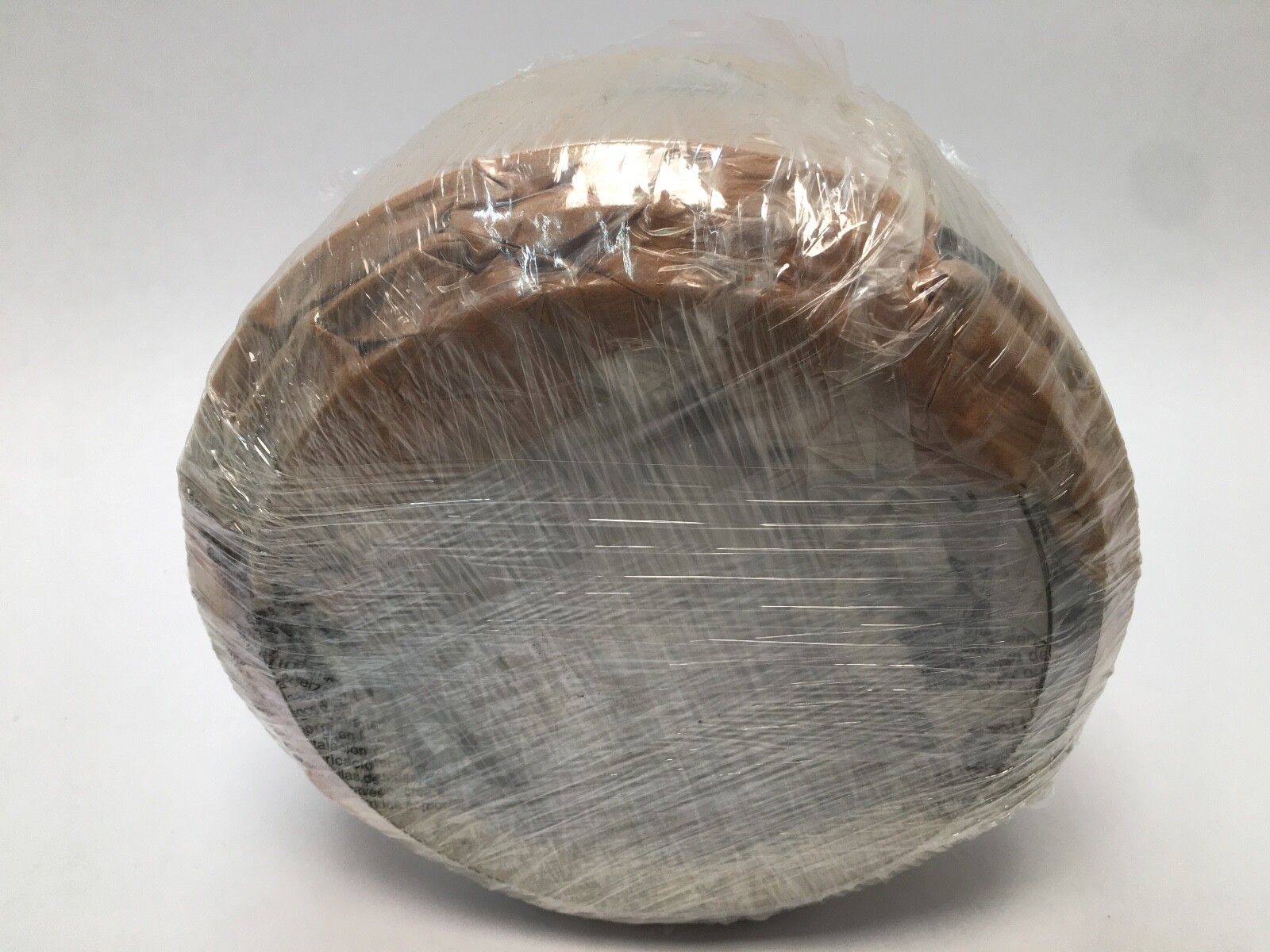

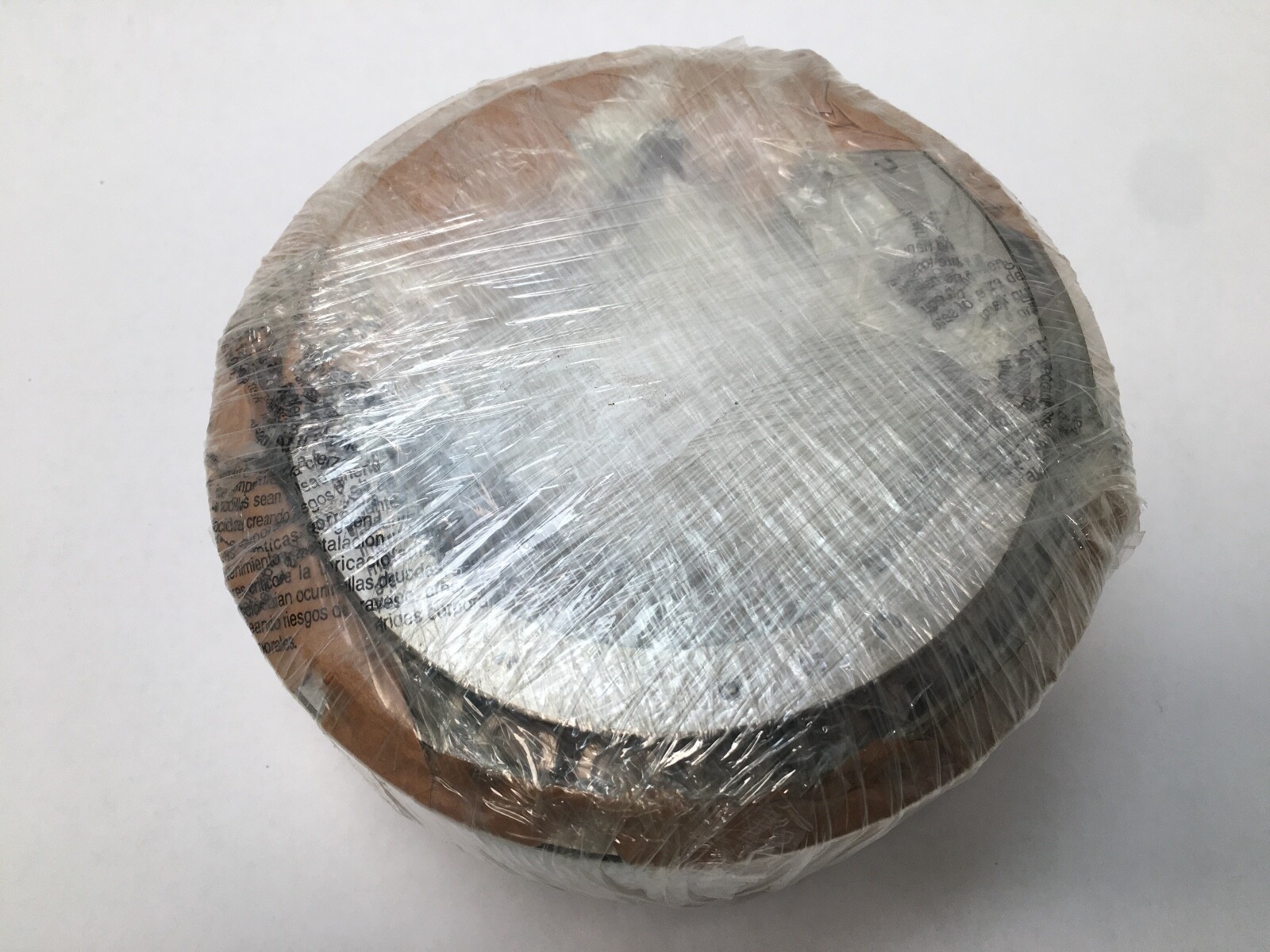

Timken 52375 inch tapered roller bearing cone. The cone is the inner ring carrying the tapered rollers and cage as one assembly. Cone only. Unit Quantity: 1 Pc.
52375 — Timken base cone number in the 523 inch series, 3.7500 in bore.
-20026 — the Timken order-code form of the same cone, used as a search term by several distributors.
Bearing Type: Tapered roller bearing cone. Series: 523. Base Number: 52375. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Dynamic Load Rating: 223,000 N (C1, one million revolutions). Static Load Rating: 343,000 N. Dynamic radial rating at 90 million revolutions (C90): 57,900 N. Dynamic axial rating at 90 million revolutions (Ca90): 47,100 N. K Factor: 1.23. Item Weight: 7.587 kg (16.73 lb). GTIN: 053893320731.
Bore Diameter: 3.7500 in (95.250 mm). Overall Width: 1.4219 in (36.116 mm). Effective Load Centre: -0.5 mm. Maximum fillet radius on the mating shaft: 3.600 mm (0.140 in). Shaft Backing Shoulder Diameter, frontface (da): 105 mm (4.13 in). Shaft Backing Shoulder Diameter, backface (db): 112 mm (4.41 in). Cage location relative to backface (Aa): 4.1 mm. Cage location relative to frontface (Ab): 3 mm. G1 Factor: 175.4. G2 Factor: 41.7. Geometry Factor (Cg): 0.152.
Matching cups: Timken 52618 and 52618P. Cones with the 52375 number from other makers: Koyo 52375, NTN 4T-52375, NSK 52375, SKF 52375, BCA / Bower 52375. MPN Variants: 52375, 52375-20026, 52375 20026, 52-375.
3.7500 in (95.250 mm).
Timken 52618 and 52618P.
Dynamic 223,000 N and static 343,000 N.
