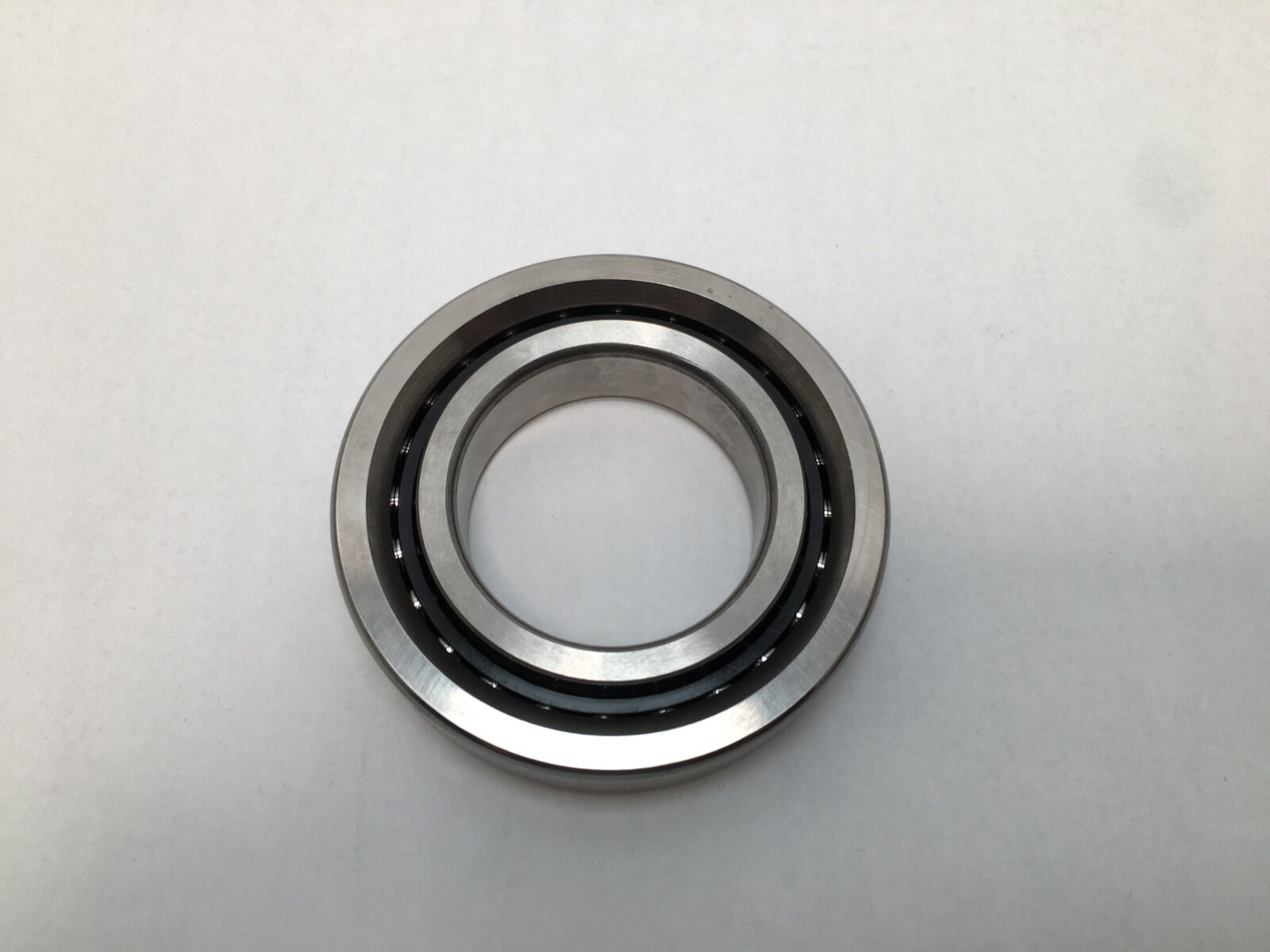

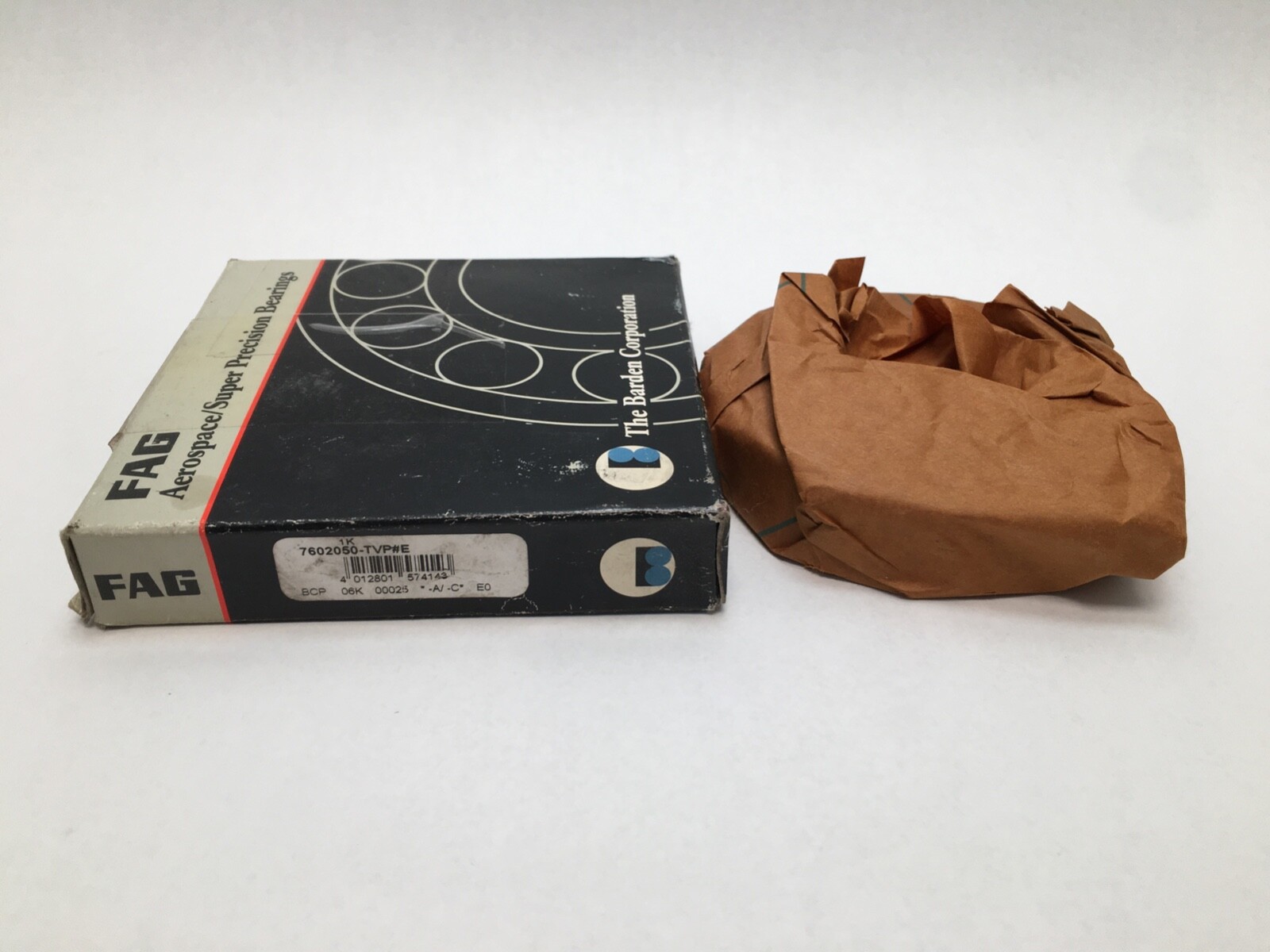

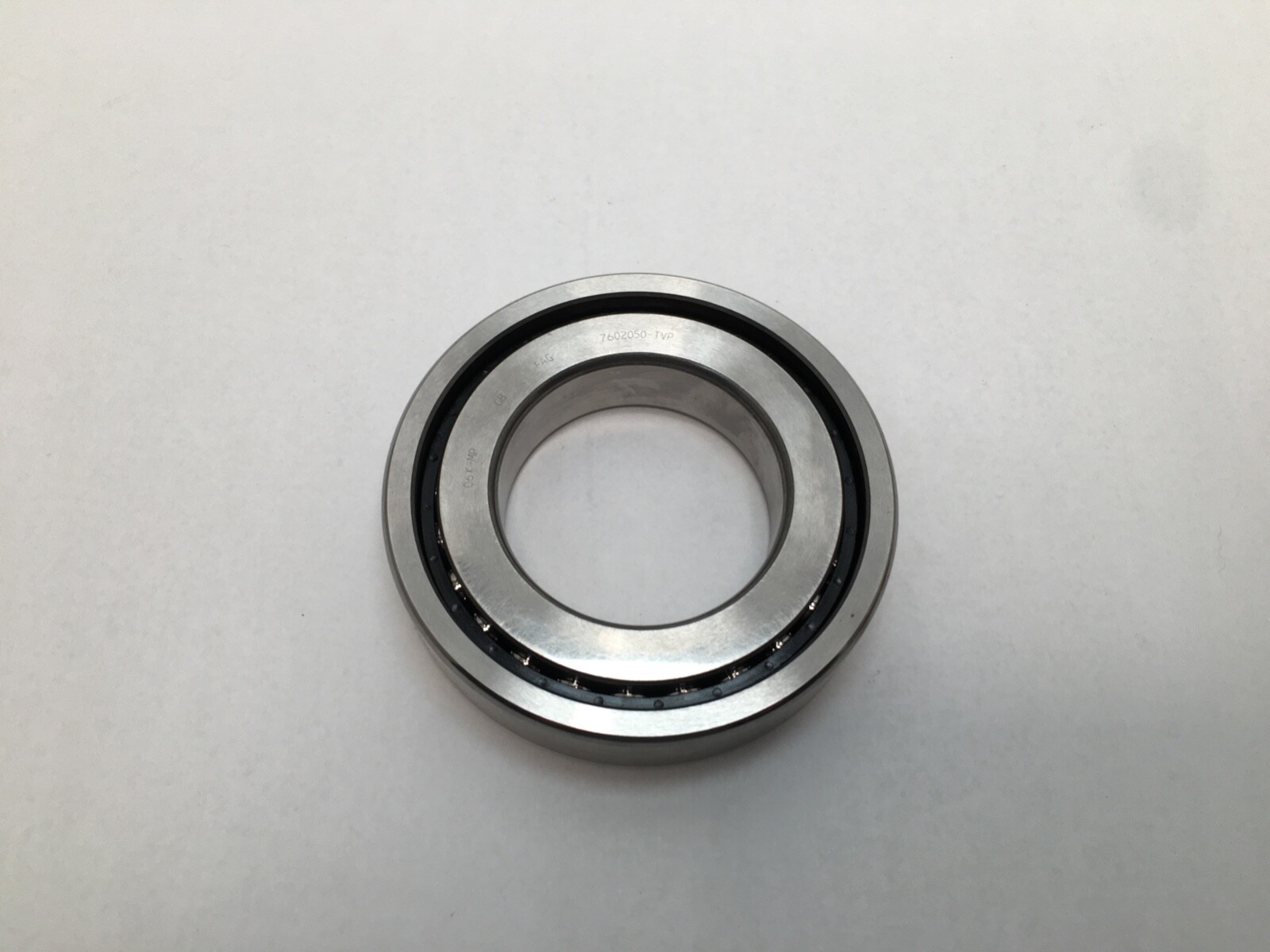

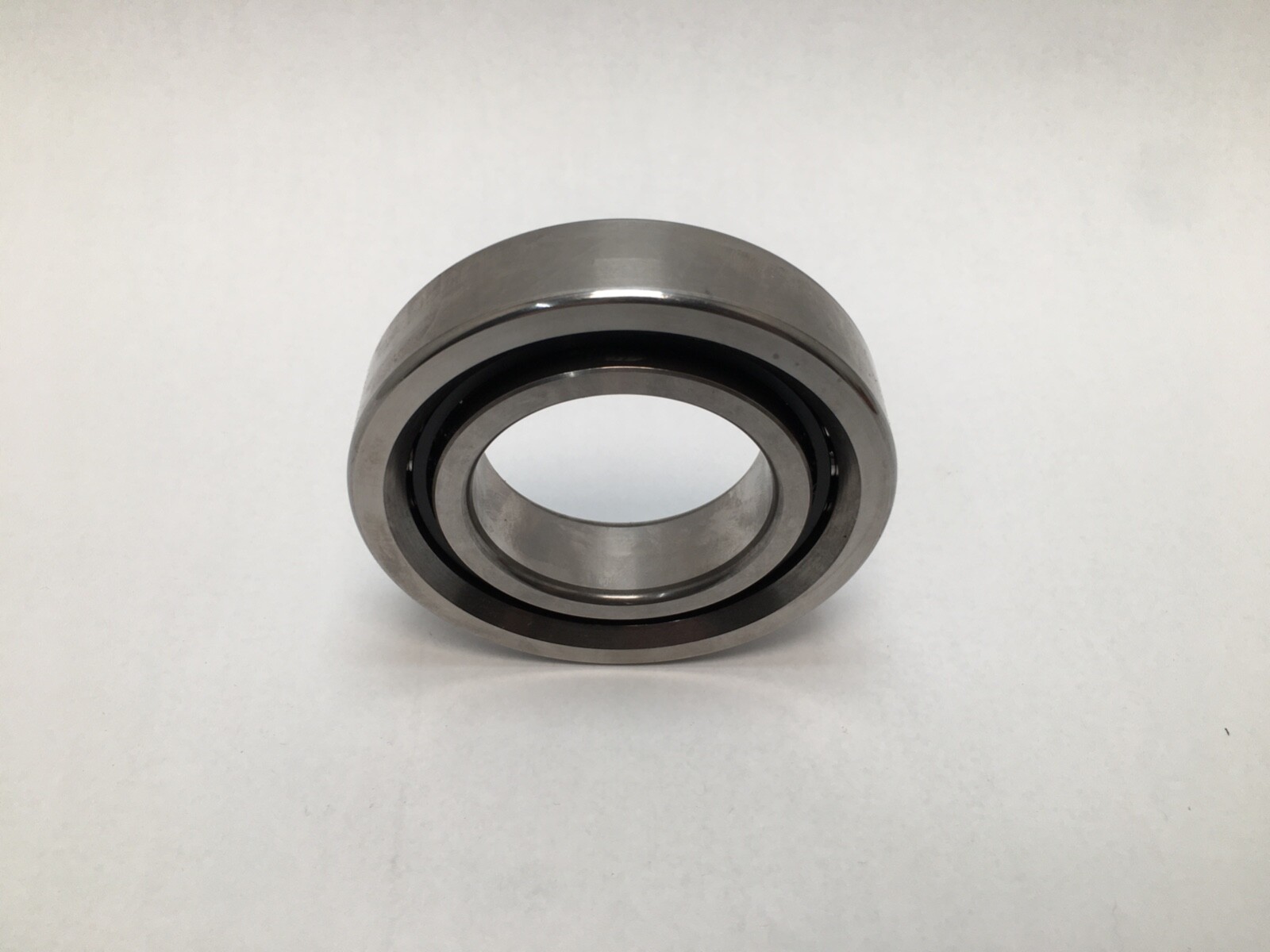

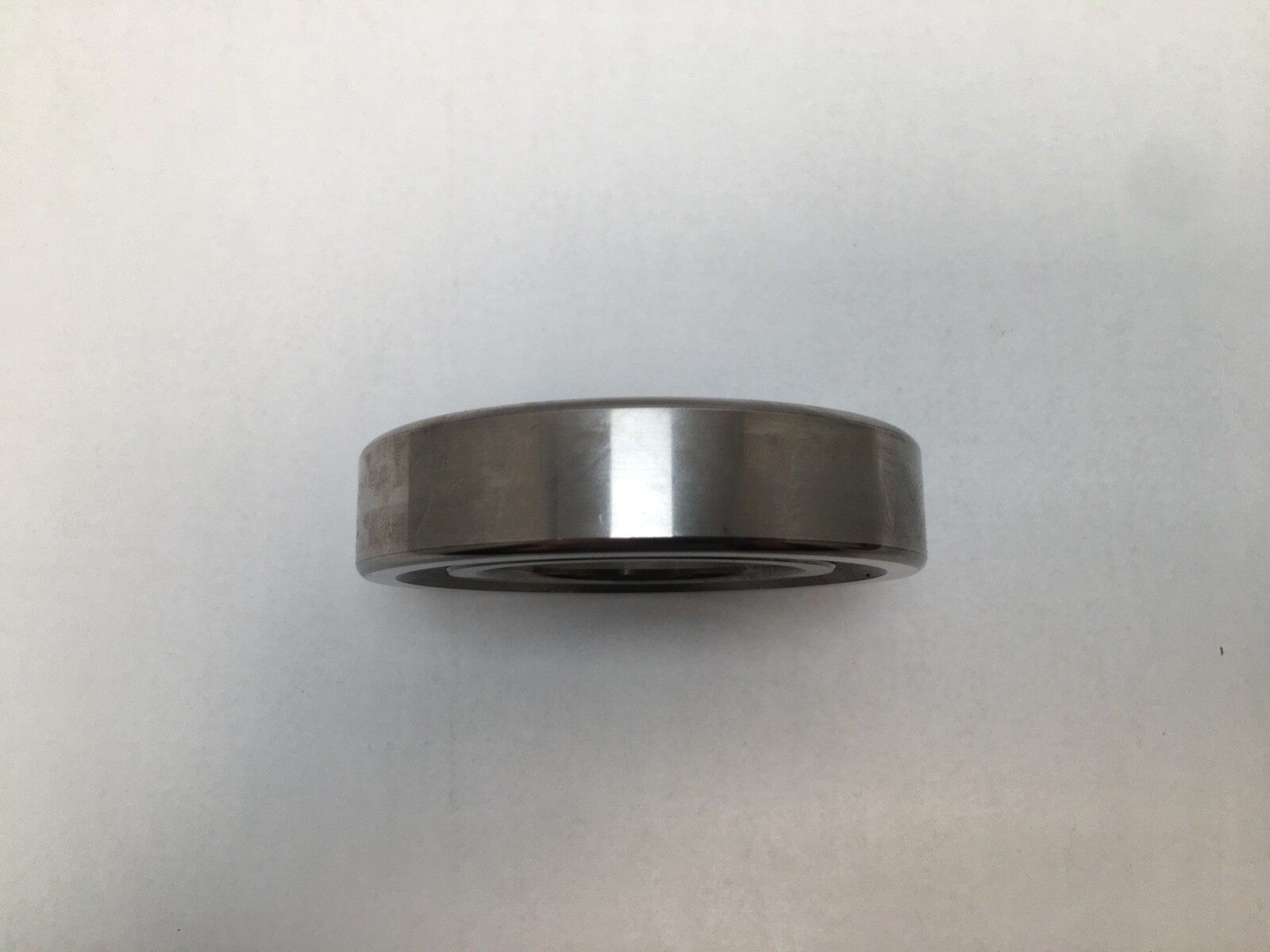

FAG 7602050-TVP axial angular contact ball bearing, 50 x 90 x 20 mm, 60° contact angle for ball screw support. Polyamide cage, 41 kN axial dynamic rating.
List Price
$200.00
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7602050-TVP |
| GTIN | 4012801574143 |
| Model | 7602050TVP |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7600 |
| Base Number | 7602050 |
| Industry Terms | ball screw support bearing, BSB, axial angular contact thrust bearing, screw drive bearing |
| Common Misspellings | 7602050-TPV, 7602050TPV, 760250-TVP, 7602500-TVP |
| Application Types | Ball screw drives, machine tool feed axes, linear actuators |
| Overall Width | 20 mm |
| Mpn Variants | 7602050-TVP, 7602050TVP, 7602050.TVP, 7602 050 TVP |
| Arrangement Configuration | Single bearing |
| Additional Attributes | Fatigue load limit axial: 5,600 N; Thermally safe operating speed: 2,400 rpm; Axial rigidity: 1,360 N/µm; Axial runout: 2 µm; Bearing frictional torque: 0.23 Nm; Bore tolerance: 0/-0.006 mm; OD tolerance: 0/-0.008 mm; Width tolerance: 0/-0.12 mm; Minimum chamfer: 1.1 mm; Shaft abutment diameter: 63 mm h12; Housing abutment diameter: 79 mm H12; Pressure cone apex distance: 71.5 mm; Recommended locknut: INA AM50 (axial) / ZM50 (radial); Locknut tightening torque: 85 Nm; Required locknut axial force: 16,810 N; Operating temperature: -30 to 120 °C; Lubricant as supplied: not greased; Direction: single direction |
| Dynamic Load Rating | 41,000 N (axial) |
| Static Load Rating | 122,000 N (axial) |
| Rolling Elements | Ball |
| Item Weight | 0.575 kg (1.27 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 4,300 rpm grease |
| Harmonization Code | 8482.10 |
| Contact Angle | 60° |
| Cross Reference 1 | NSK 50TAC90B |
|---|---|
| Cross Reference 2 | Timken MM50BS90 |
| Cross Reference 3 | NTN BST50X90-1B |
| Cross Reference 4 | SKF BSA 210 C – 62° vs 60° |

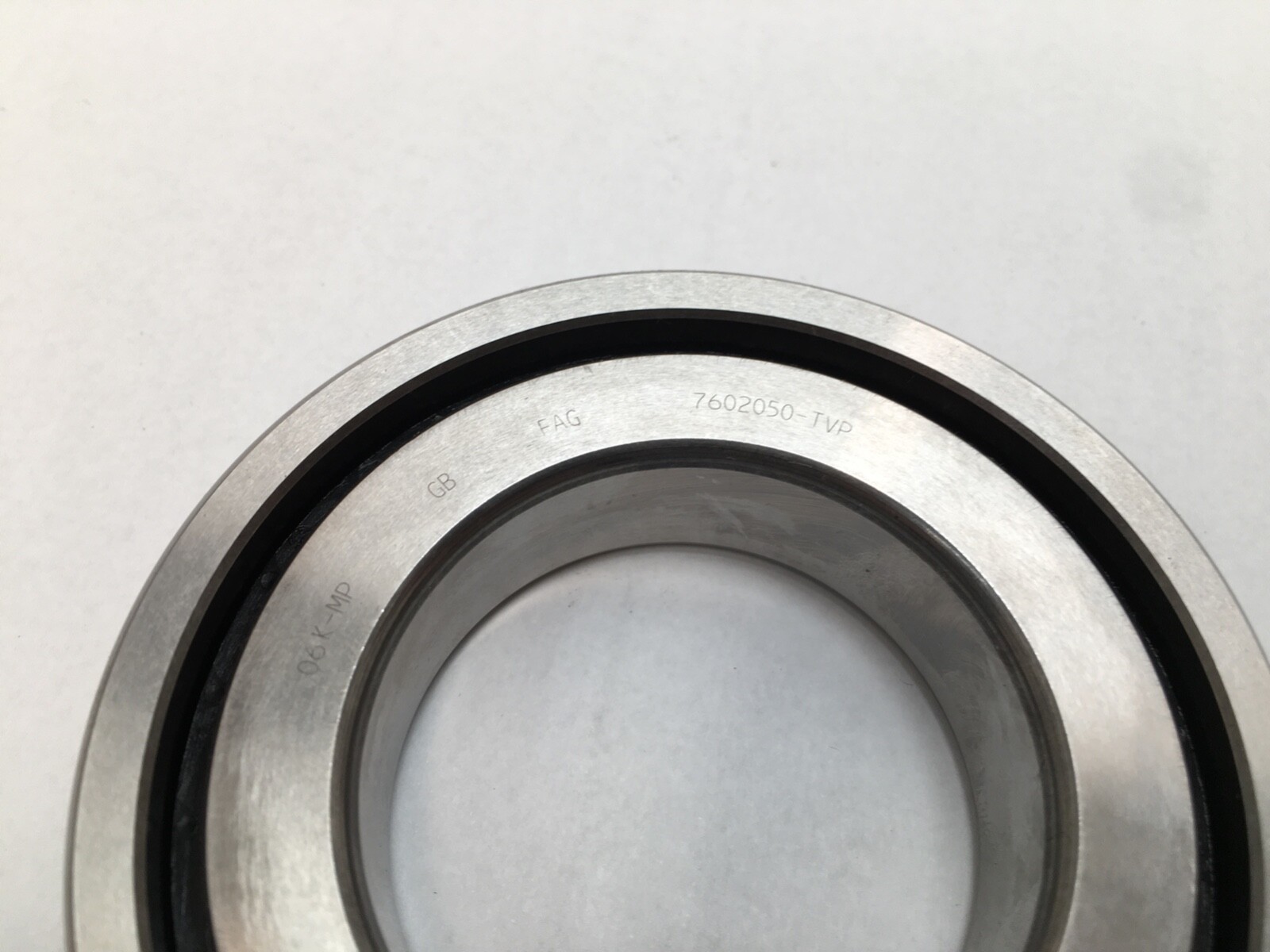

FAG 7602050-TVP is a single-direction axial angular contact ball bearing from the Schaeffler 7602 series, built for ball screw support in machine tool feed axes. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 20 mm. Contact Angle: 60°. GTIN: 4012801574143.
7602 — Schaeffler series for axial angular contact ball bearings for screw drives, 60° contact angle, single direction.
050 — 50 mm bore.
TVP — glass-fibre reinforced polyamide cage.
Dynamic load rating: 41,000 N axial. Static load rating: 122,000 N axial. Fatigue load limit: 5,600 N axial. Limiting Speed: 4,300 rpm grease. Thermally safe operating speed: 2,400 rpm. Axial rigidity: 1,360 N/µm. Axial runout: 2 µm. Bearing frictional torque: 0.23 Nm. Cage Material: Polyamide. Seal type: Open. Closure Type: Open. Lubricant as supplied: not greased. Operating temperature: −30 °C to 120 °C. Item weight: 0.575 kg (1.27 lb).
Bore tolerance: 0 / −0.006 mm. Outside diameter tolerance: 0 / −0.008 mm. Width tolerance: 0 / −0.12 mm. Minimum chamfer: 1.1 mm. Shaft abutment diameter: 63 mm (h12). Housing abutment diameter: 79 mm (H12). Distance between pressure cone apexes: 71.5 mm. Recommended INA precision locknut: AM50 (axial locking) or ZM50 (radial locking), tightening torque 85 Nm, required locknut axial force 16,810 N.
Arrangement / Configuration: Single bearing. Number Of Rows: 1.
Same 50 x 90 x 20 mm size and 60° contact angle: NSK 50TAC90B, Timken MM50BS90, NTN BST50X90-1B. SKF BSA 210 C is the same size with a 62° contact angle. A 7210 radial angular contact bearing shares the 50 x 90 x 20 size but is a different part.
