Tapered roller bearing cone, 1.5000 in (38.1 mm) bore, 1.2500 in (31.75 mm) width. Timken 46150 inch-series inner ring with rollers and cage, mates 46368 cup.
List Price
$32.21
15 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 46150 |
| GTIN | 053893298276 |
| Model | 46150 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.5000 in (38.100 mm) |
| Condition | New – Open box |
|---|---|
| Series | 46100 |
| Material | Case-Hardened Steel |
| Condition Note | Made In USA, New Old Stock |
| Mpn Variants | 46150, 46-150 |
| Compatible With Replaces | Mates with Timken 46368 cup |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Cone Part Number | 46150 |
| Cone Width | 1.2500 in (31.750 mm) |
| Effective Center Location | -0.31 in (-7.9 mm) |
| Cross Reference 1 | SKF 46150 |
|---|---|
| Cross Reference 2 | NTN 4T-46150 |
| Cross Reference 3 | Koyo 46150 |

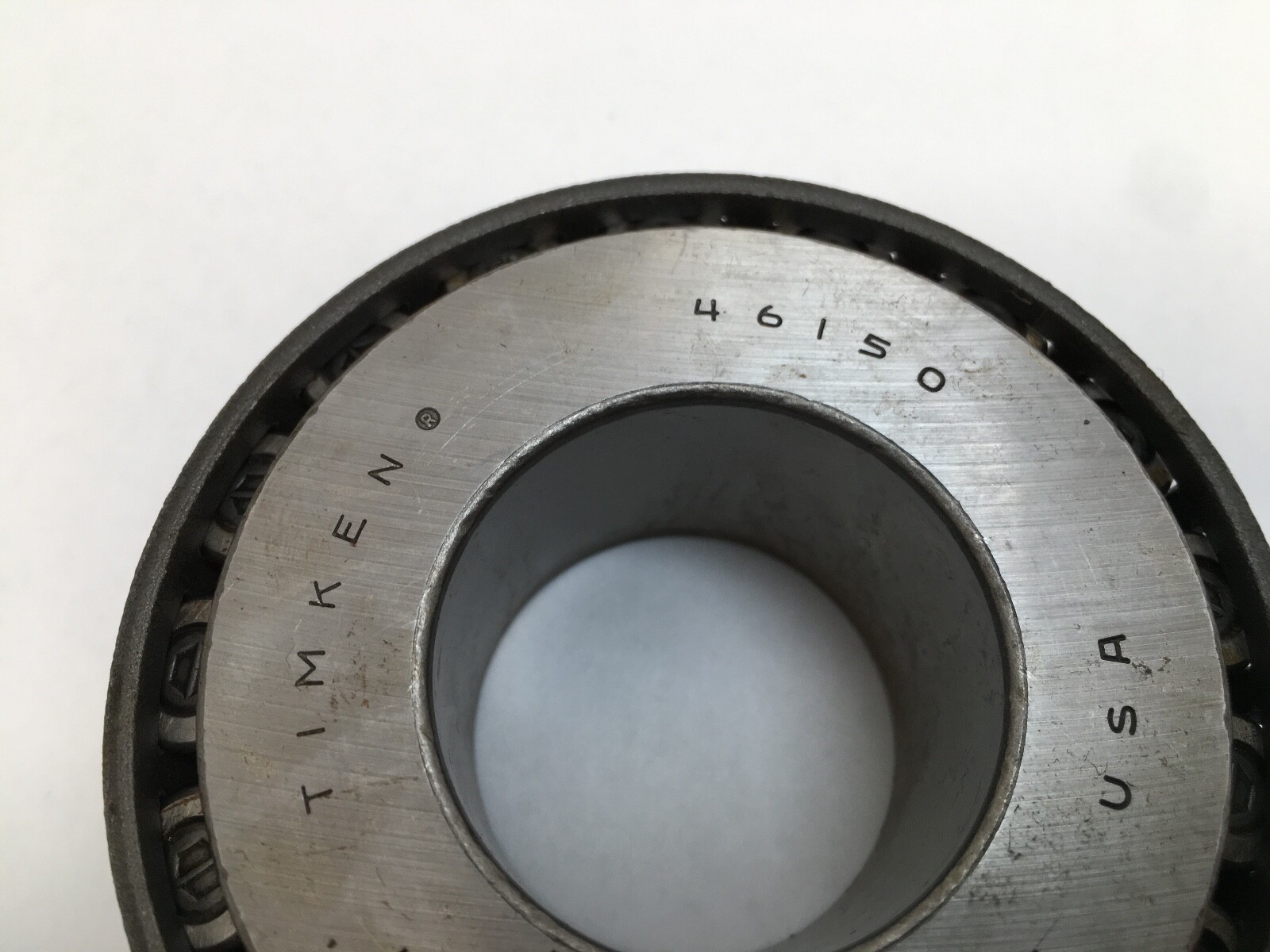

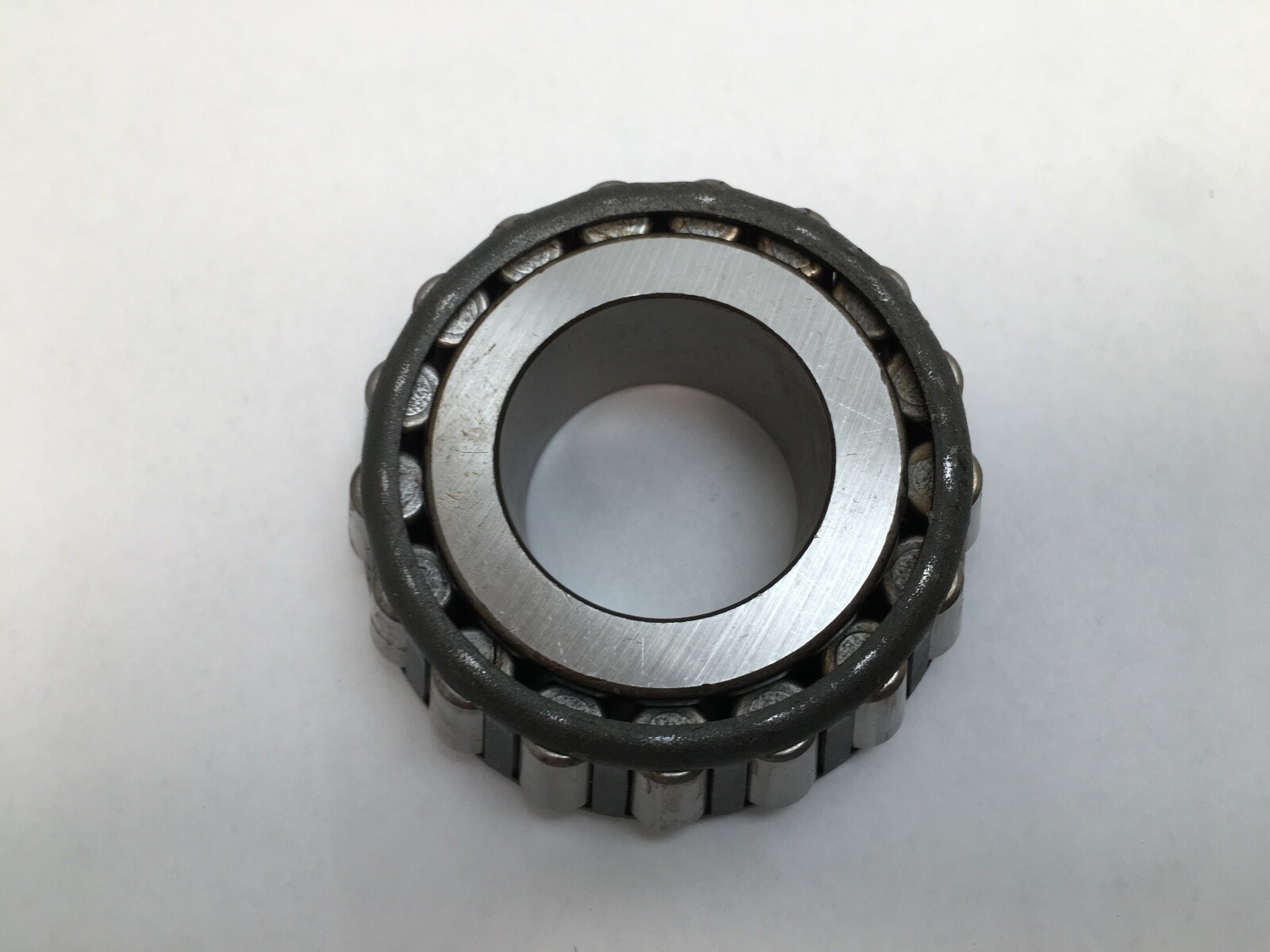

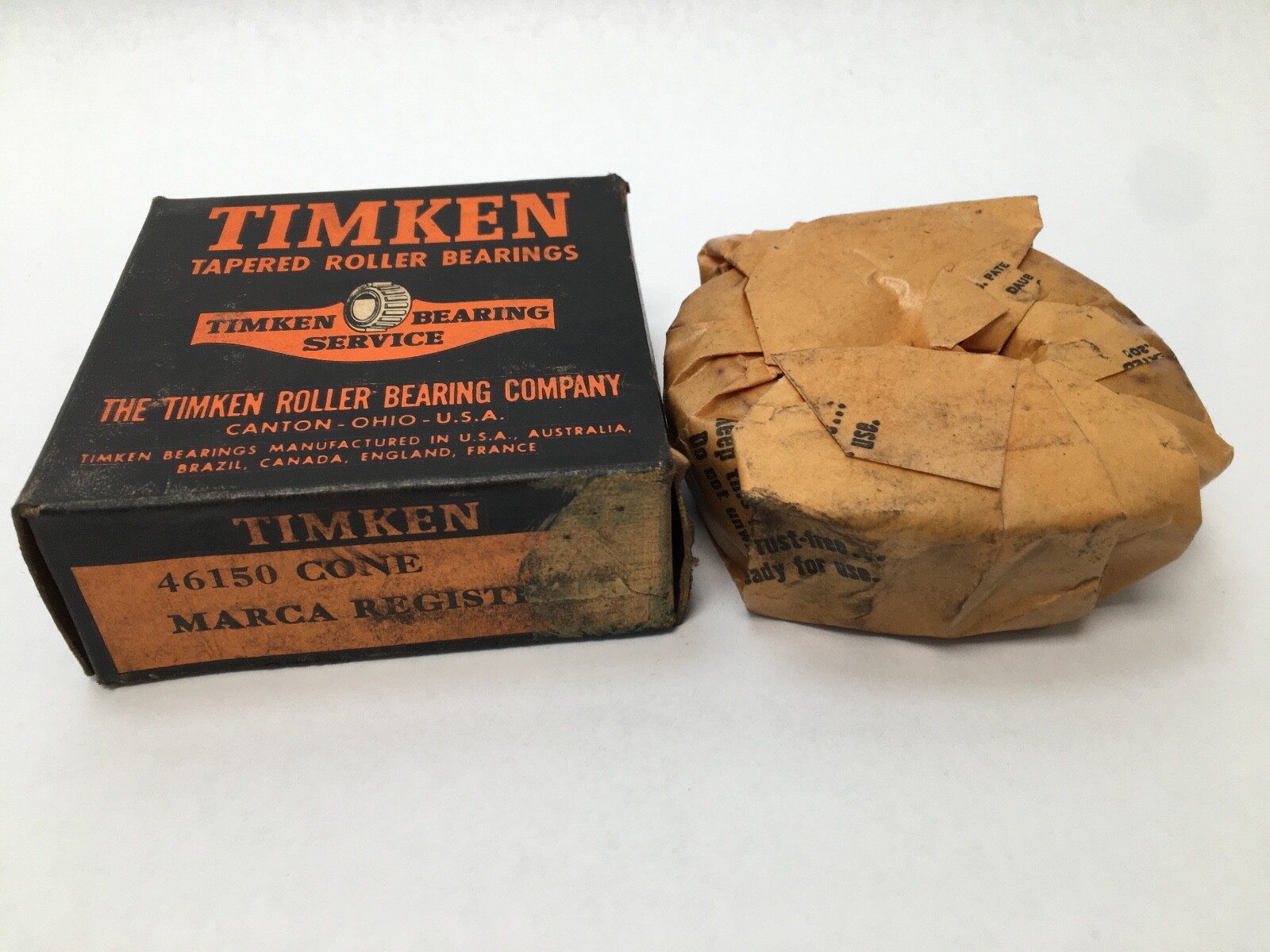

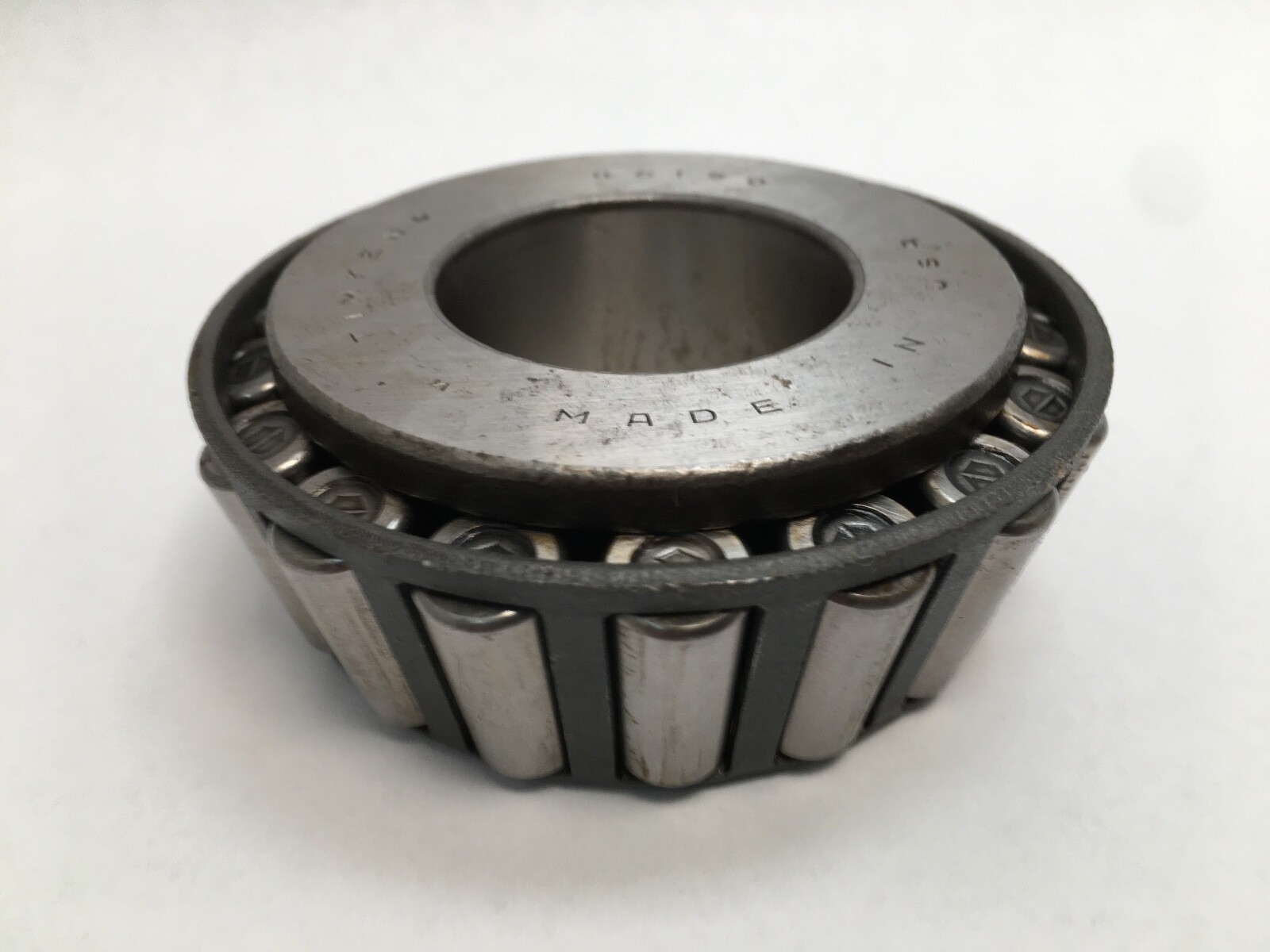

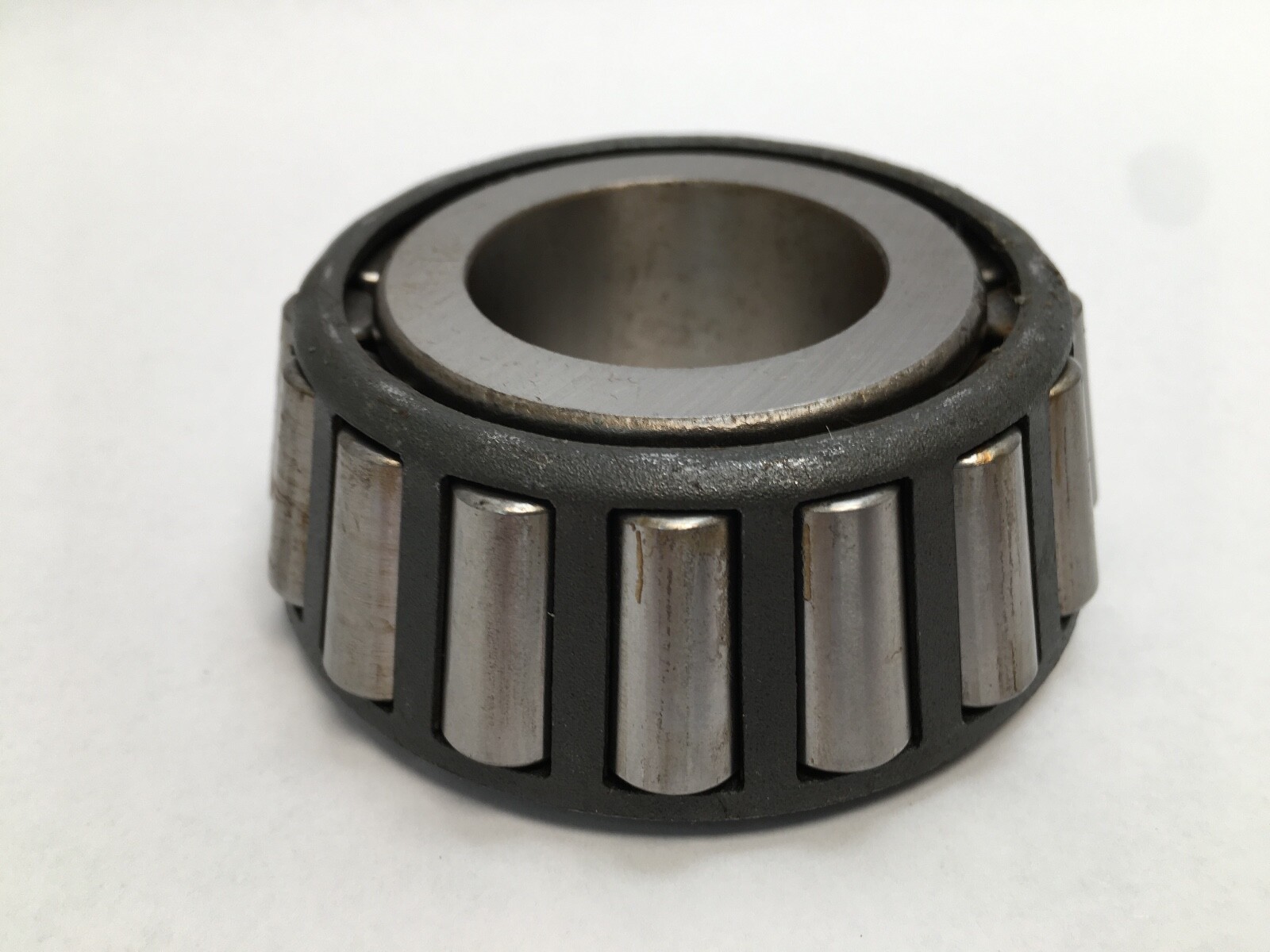

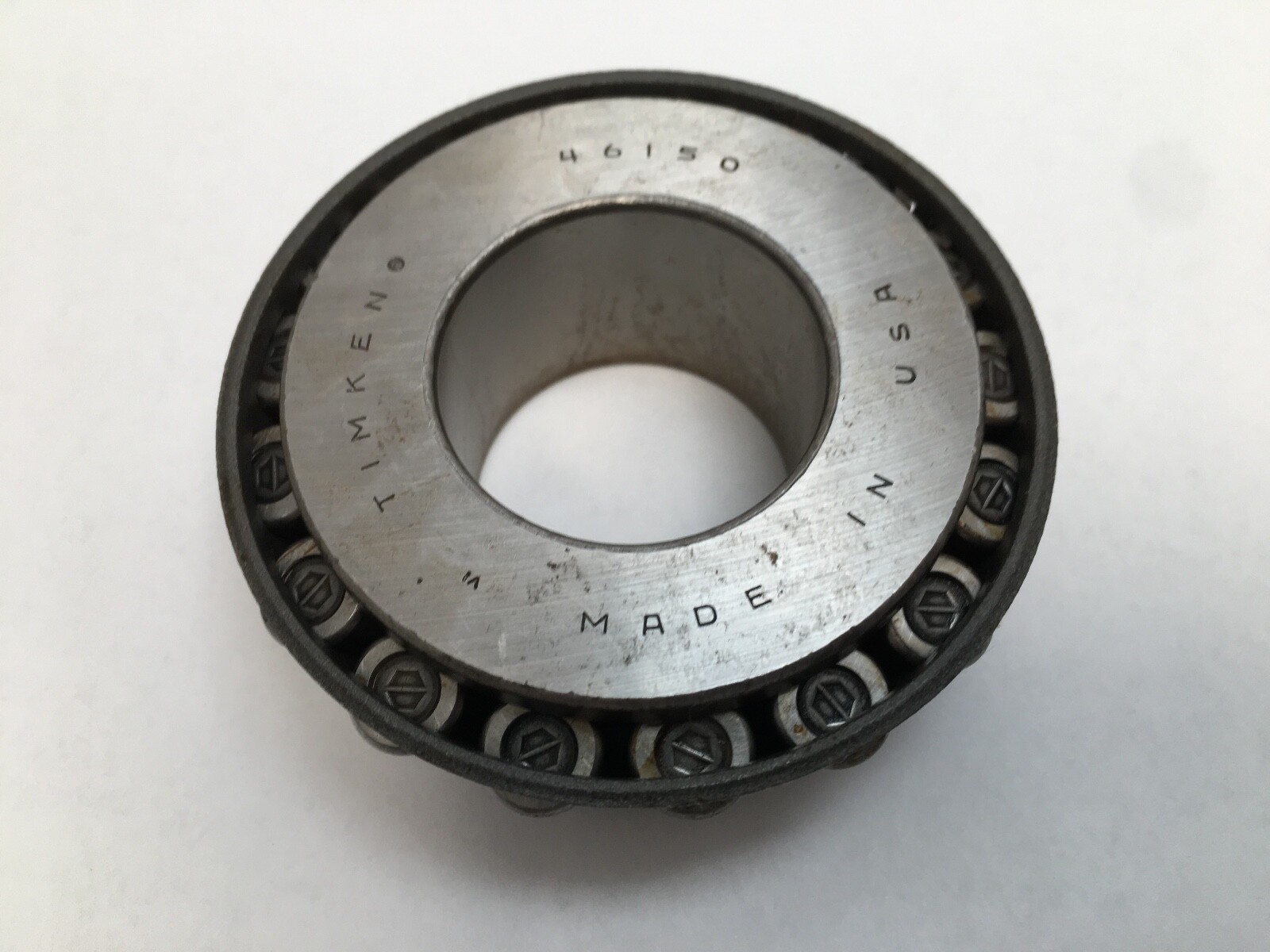

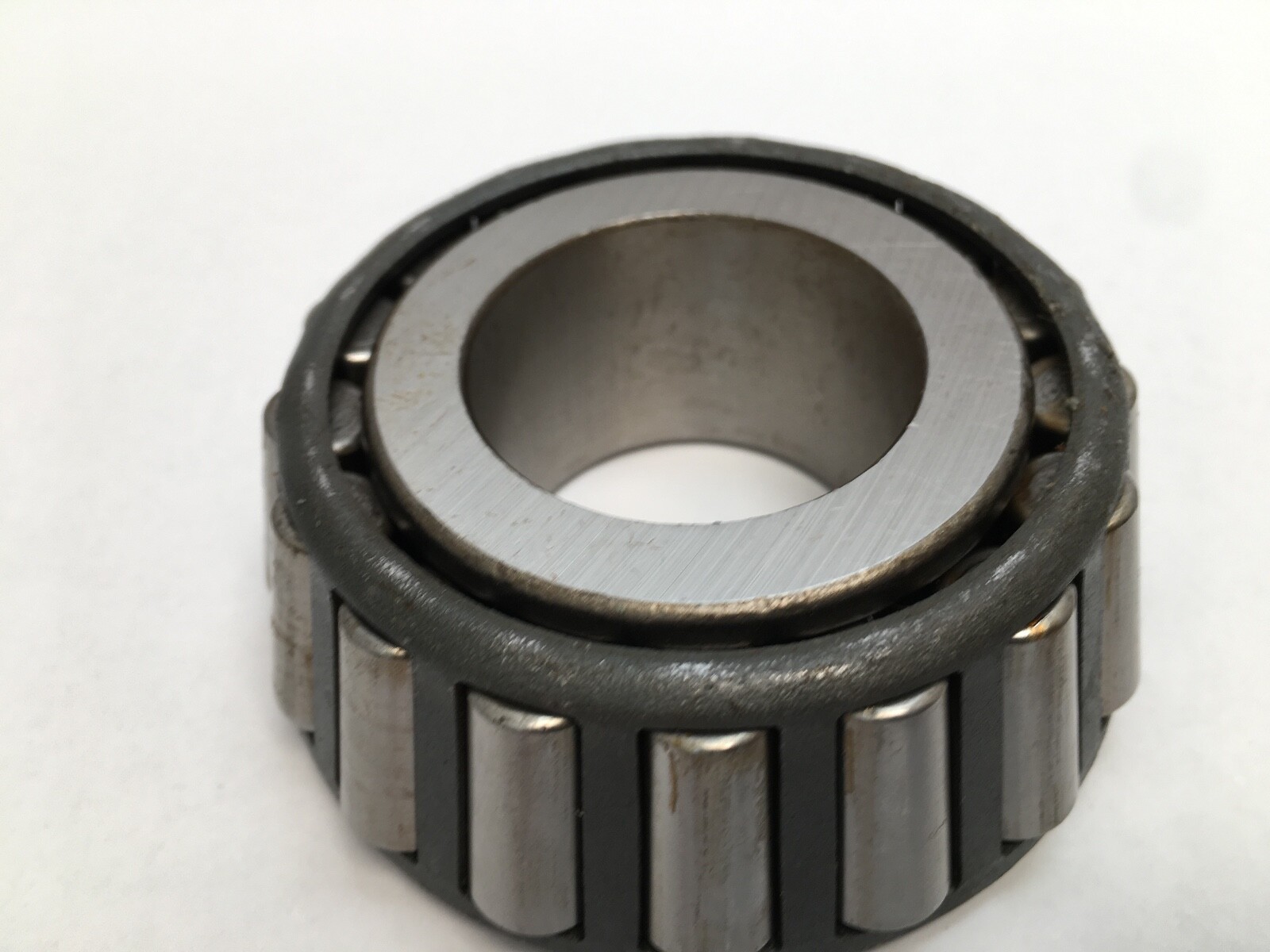

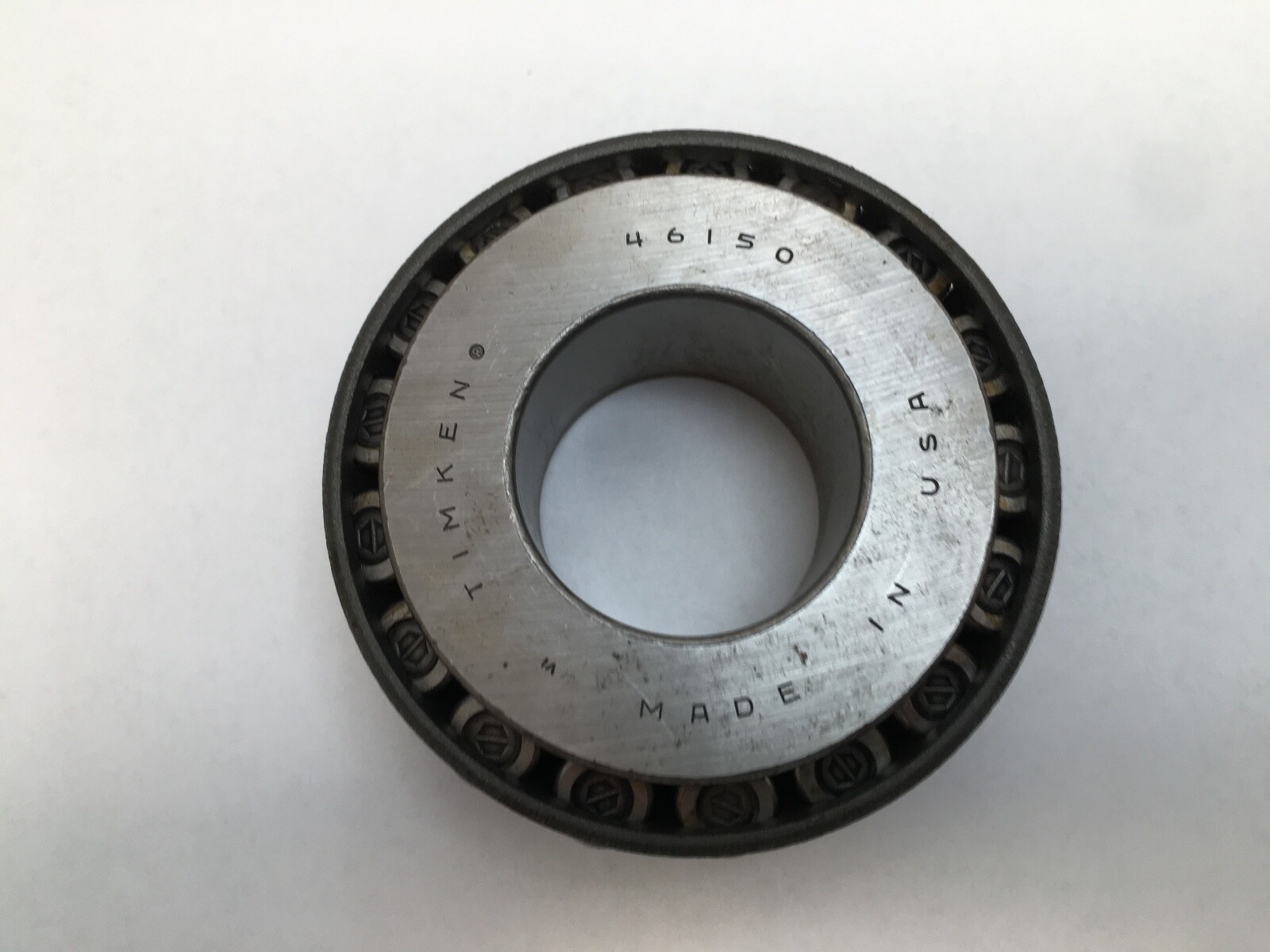

Timken 46150 is an inch-series tapered roller bearing cone: the inner ring with its rollers and cage. Bore Diameter: 1.5000 in (38.100 mm). Inner Ring Width: 1.2500 in (31.750 mm). Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Tapered Roller.
46150 — Timken inch-series cone in the 46100 series, 1.5000 in bore.
Max Shaft Fillet Radius: 0.030 in (0.760 mm). Shaft Backing Shoulder Diameter, Frontface (da): 1.93 in (49 mm). Shaft Backing Shoulder Diameter, Backface (db): 1.97 in (50 mm). Effective Center Location: -0.31 in (-7.9 mm).
Unit Quantity: 1 Pc. Cone only. Matching cup: Timken 46368, 3.6875 in (93.663 mm) OD. GTIN: 0053893298276.
46150 is an ABMA standard inch cone size also produced by SKF, NTN (4T-46150), Koyo and Bower.
