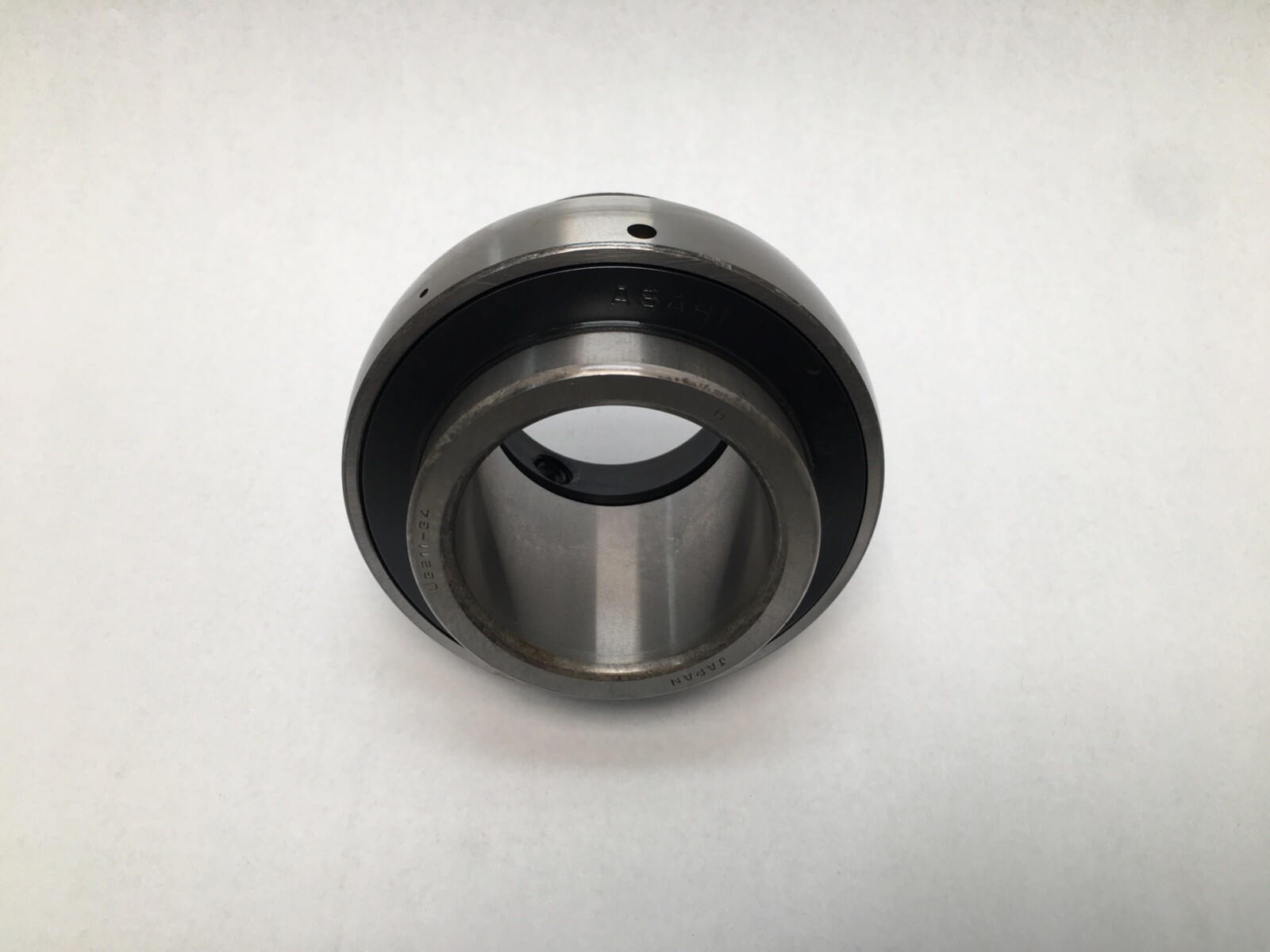

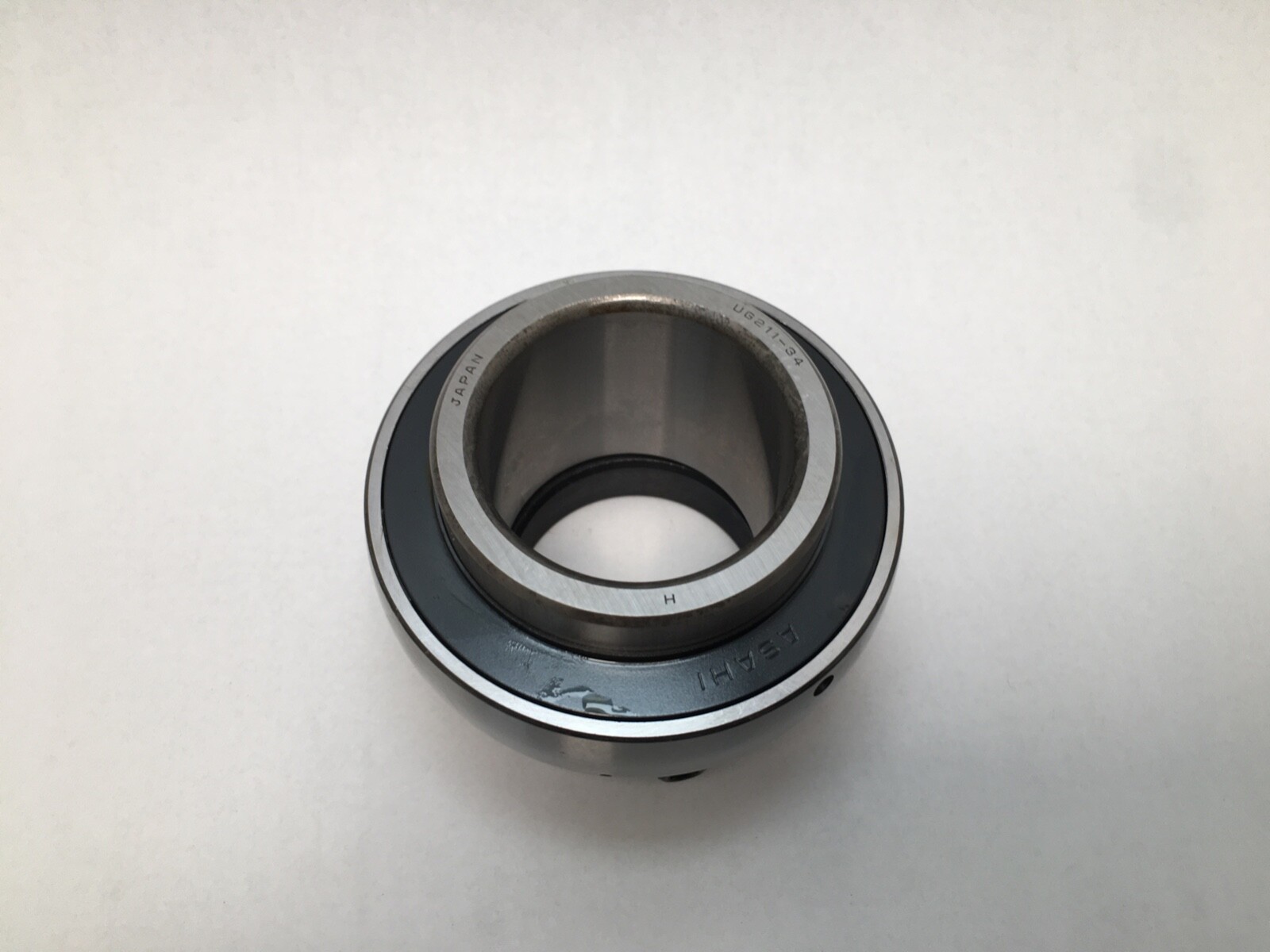

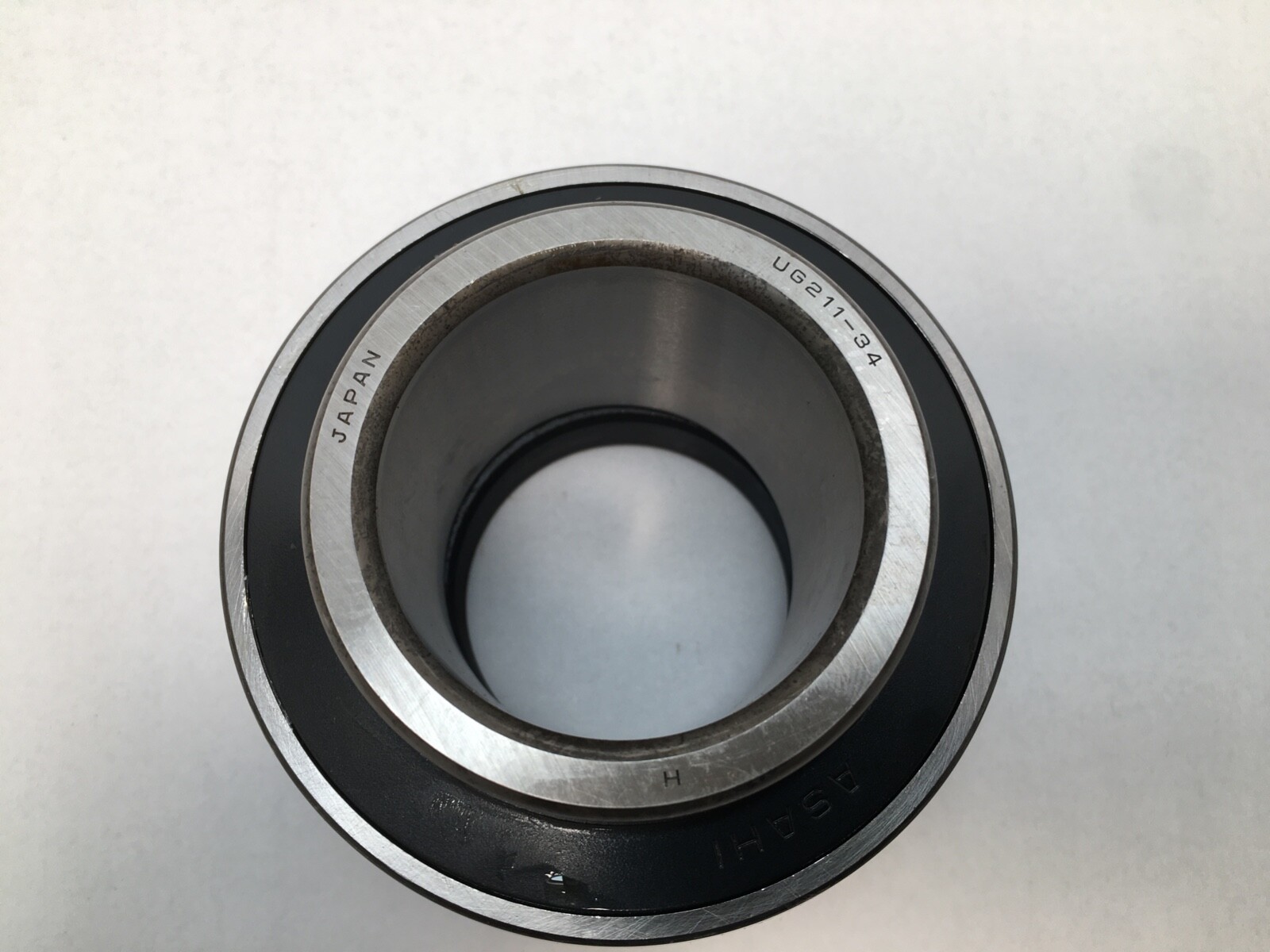

Wide inner ring insert ball bearing, 2-1/8 in bore, 3.9370 in spherical OD, eccentric collar locking, contact seals with slingers, relubricatable.
List Price
$51.62
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | AMI |
|---|---|
| MPN | UG211-34 |
| GTIN | 0808250141289 |
| Model | UG21134 |
| ID | 2-1/8 in (53.975 mm) |
| OD | 3.9370 in (100.00 mm) |
| Width | 2.189 in |
| Material | Chrome Steel |
|---|---|
| Series | UG200 |
| Condition | New |
| Type | Insert Bearing |
| Lubricant | Grease |
| Base Number | UG211 |
| Industry Terms | Insert bearing, wide inner ring bearing, eccentric collar bearing, relube insert, spherical OD insert |
| Application Types | Conveyors, fans, agricultural drives, material handling |
| Total Width | 2-13/16 in (2.8125 in) insert |
| Overall Width | 3 in with collar |
| Bore Shaft Size | 2-1/8 in (53.975 mm) |
| Locking Method | Eccentric Locking Collar |
| Relubrication | Prelubricated, Relubricatable |
| Mpn Variants | UG211-34, UG 211 34, UG21134, UGW211-34 |
| Closure Type | Double Rubber Seal |
| Min Temp | 0 °F (-18 °C) |
| Cage Type | Steel Retainer |
| Dynamic Load Rating | 9,700 lbf (43.1 kN) |
| Static Load Rating | 6,610 lbf (29.4 kN) |
| Precision Rating | ABEC 1 / ISO Class 0 |
| Rolling Elements | Balls |
| Max Temp | 212 °F (100 °C) |
| Bearing Type | Insert Ball Bearing |
| Item Weight | 2.78 lb (1.26 kg) |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 4,300 rpm |
| Internal Clearance | CN |
| Duty Type | Normal Duty |
| Locking Device | Eccentric Locking Collar |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.40.40 |
| Design Units | Inch |
| Bearing Material | AISI 52100 Chrome Bearing Steel |
| Part Number | UG211-34 |
| Cross Reference 1 | SKF YAR 211-202 |
|---|---|
| Cross Reference 2 | Not specified |

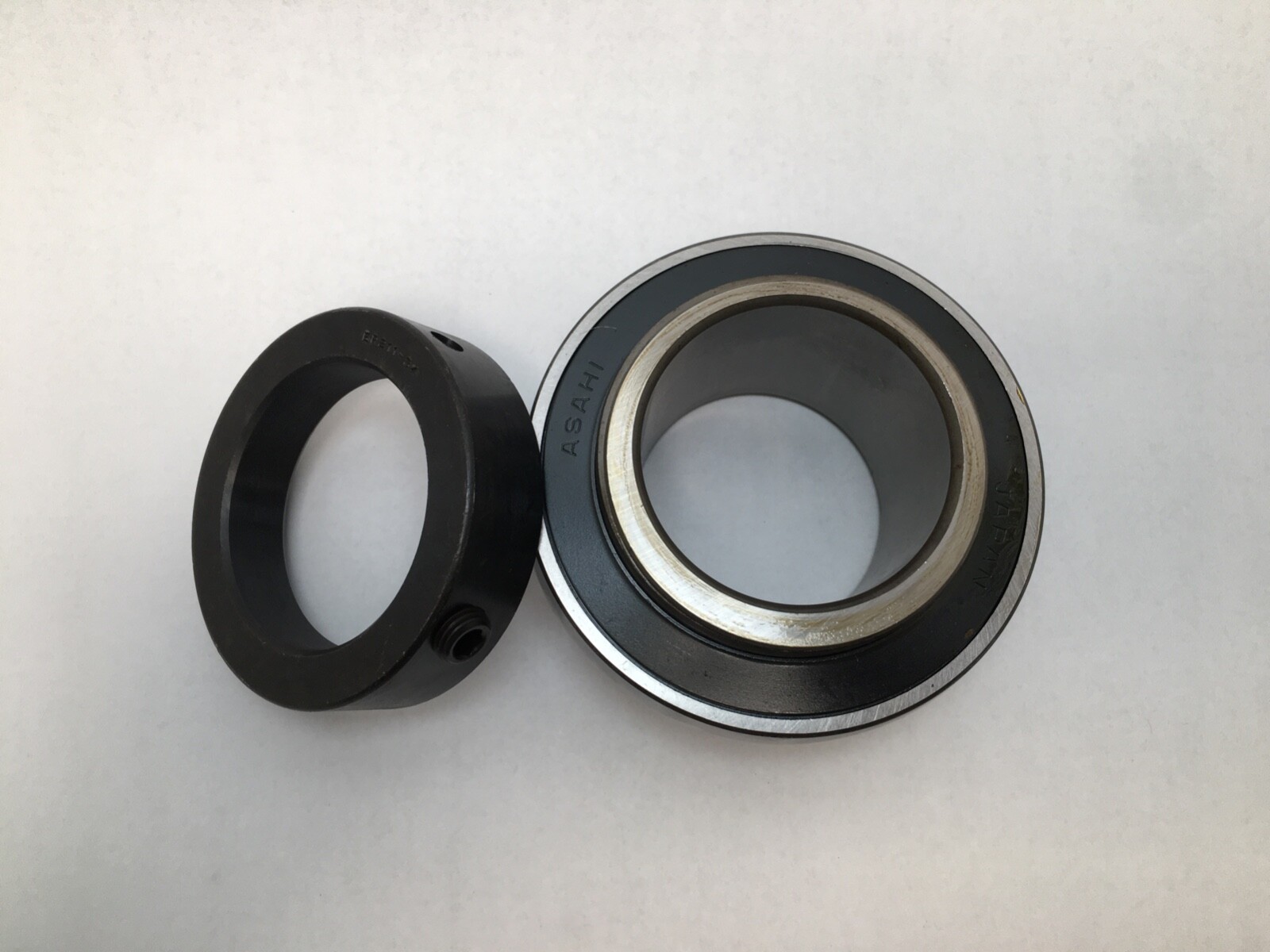

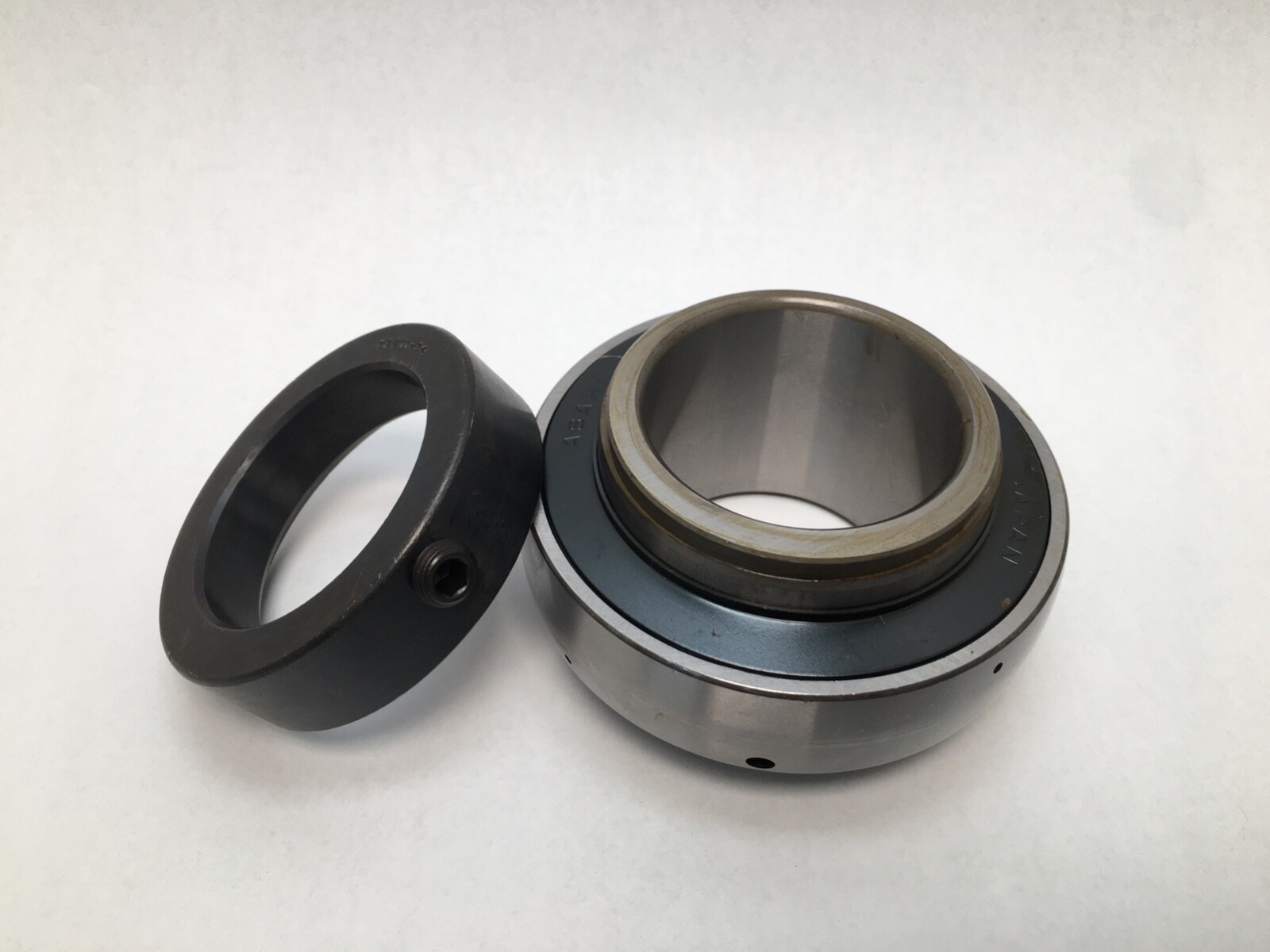

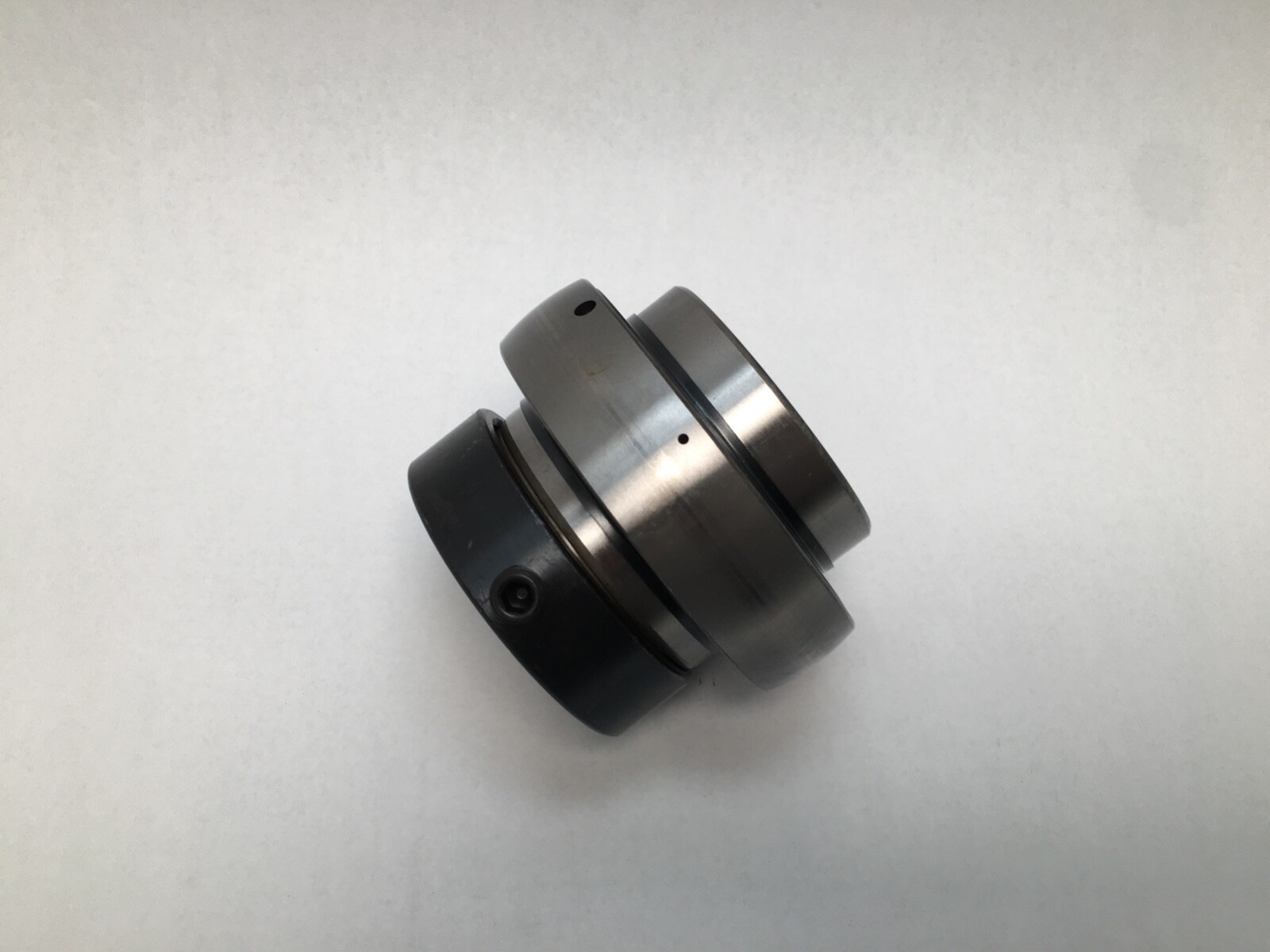

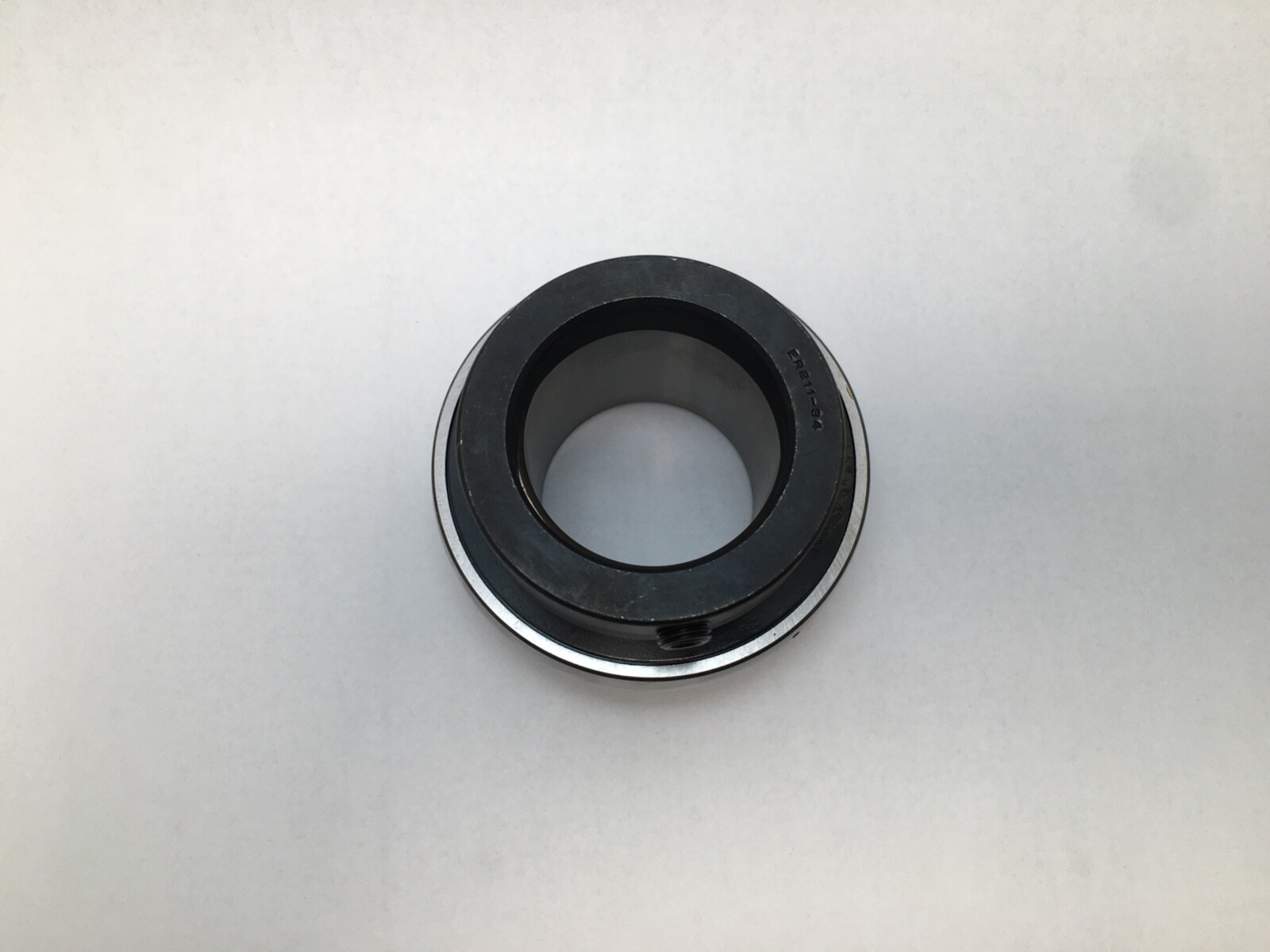

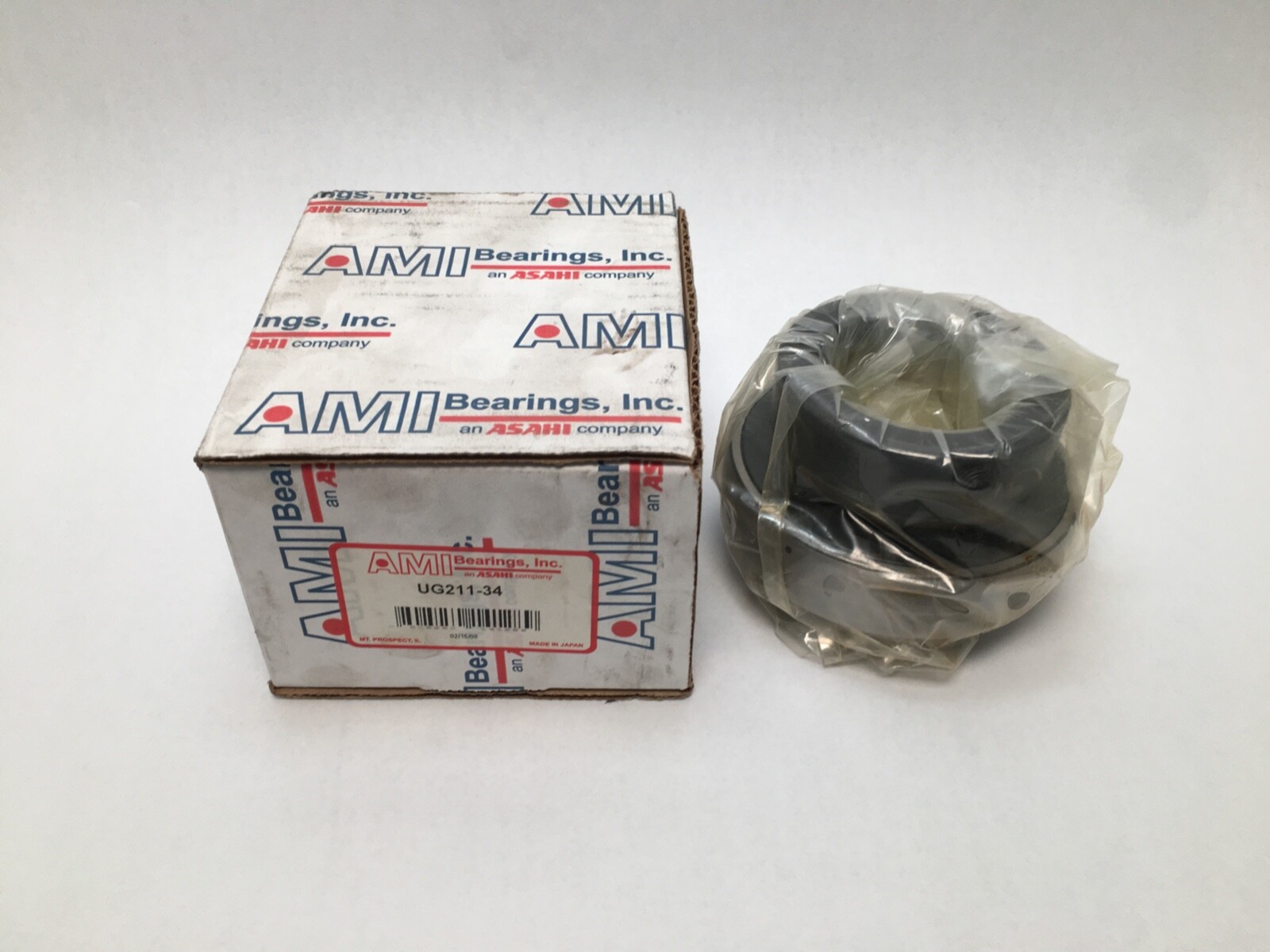

AMI UG211-34 insert ball bearing with eccentric locking collar. Bearing insert and collar. Bore / Shaft Size: 2-1/8 in (53.975 mm). Bore Type: Straight. Design Units: Inch. Outside Diameter: 3.9370 in (100.00 mm), spherical. Locking Method: Eccentric Locking Collar. Series: UG200 / UGW200. Duty: Normal duty. Number Of Rows: 1. Unit Quantity: 1 Pc.
Bore: 2-1/8 in. Outside Diameter: 3.9370 in. Total Insert Width: 2-13/16 in (2.8125 in). Inner Ring Width: 2-3/16 in (2.1875 in). Collar Width: 0.945 in. Overall Width with Collar: 3 in. Outer Ring Corner Radius: 0.098 in. Outer Ring Width: 1-3/32 in. Slinger Thickness: 0.287 in. Collar Height: 13/16 in. Collar Set Screw Thread: 7/16-20 UNF. Item Weight: 2.78 lb (1.26 kg).
Bearing Material: AISI 52100 chrome bearing steel. Cage Material: Steel. Cage Type: Steel retainer. Rolling Elements: Balls. Insert Outer Ring: Spherical, self-aligning. Seal Type: Contact seal with slinger, both sides. Internal Clearance: CN. Precision Rating: ABEC 1 / ISO Class 0. Lubricant: Grease. Relubrication: Prelubricated and relubricatable.

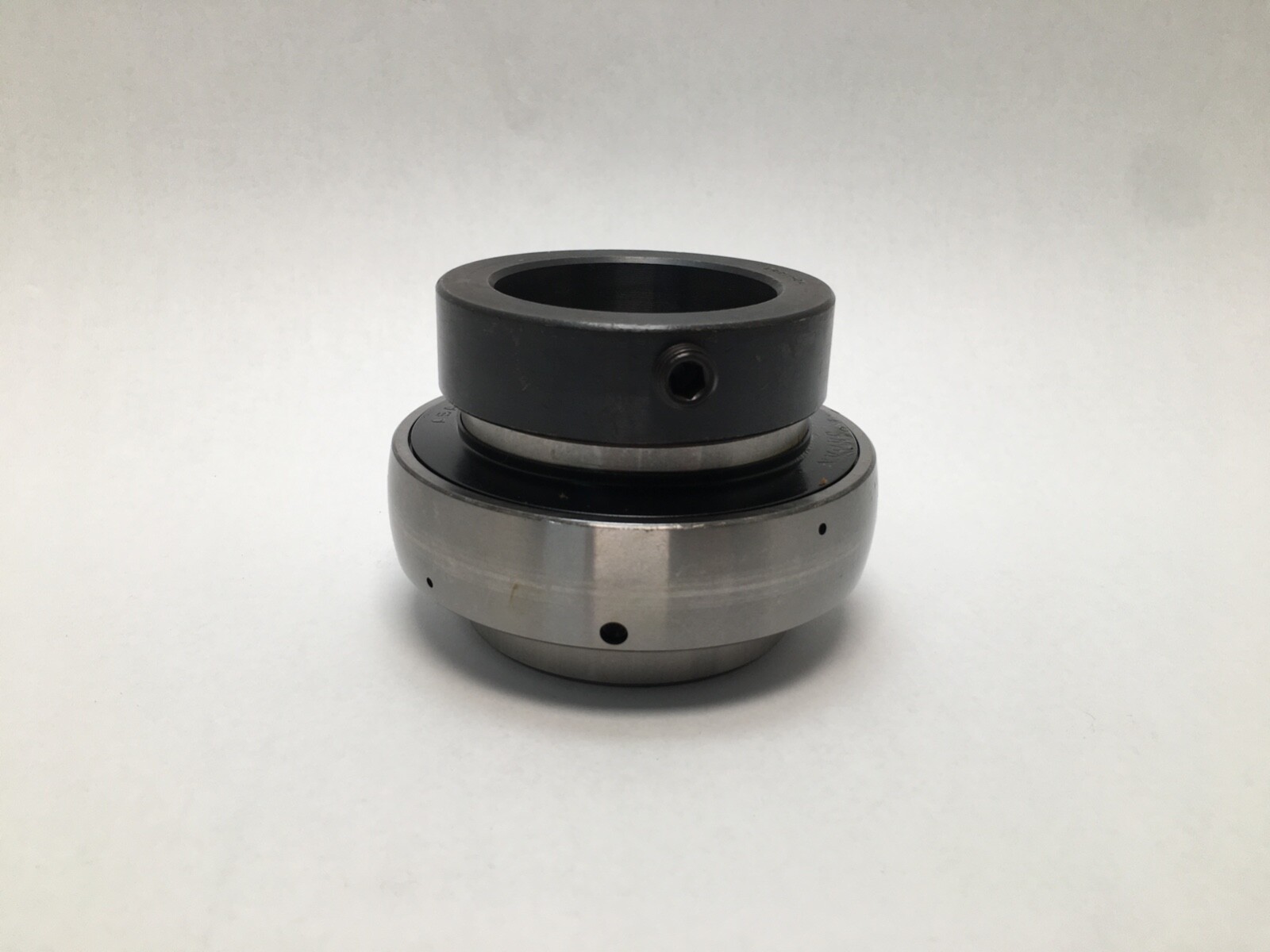

Dynamic Load Rating: 9,700 lbf (43.1 kN). Static Load Rating: 6,610 lbf (29.4 kN). Operating Temperature Range: 0 to 212 °F (−18 to 100 °C). Limiting Speed: 4,300 rpm. The eccentric collar has an offset bore that engages a matching offset step on the extended inner ring; rotating the collar against the shaft direction wedges the two eccentrics together and the collar set screw holds the position. Locking is by friction across the full collar bore, so the shaft surface is left unmarked. The spherical outer ring seats in a matching spherical housing bore and takes up initial shaft misalignment.
Cross-Reference: SKF YAR 211-202. The SKF YAR family is the equivalent eccentric-collar insert and the -202 suffix is the same 2-1/8 in bore. The set-screw counterpart on this envelope is the UC211-34, which locks on two set screws rather than a collar.
GTIN: 0808250141289. Part Number: UG211-34. MPN Variants: UG211-34, UG 211 34, UG21134, UGW211-34. Harmonization Code: 8483.20.40.40. Country of Origin: Japan.
