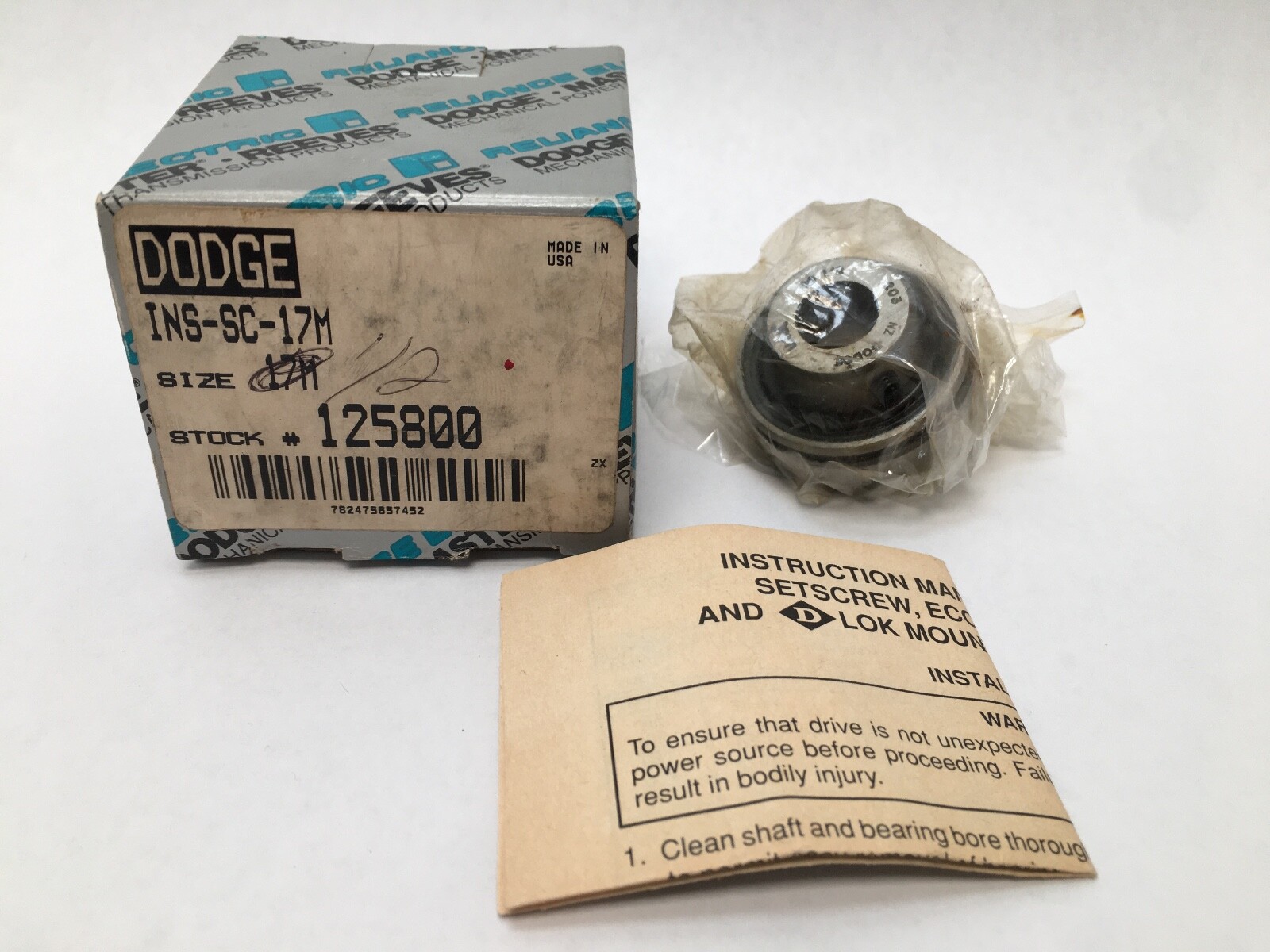

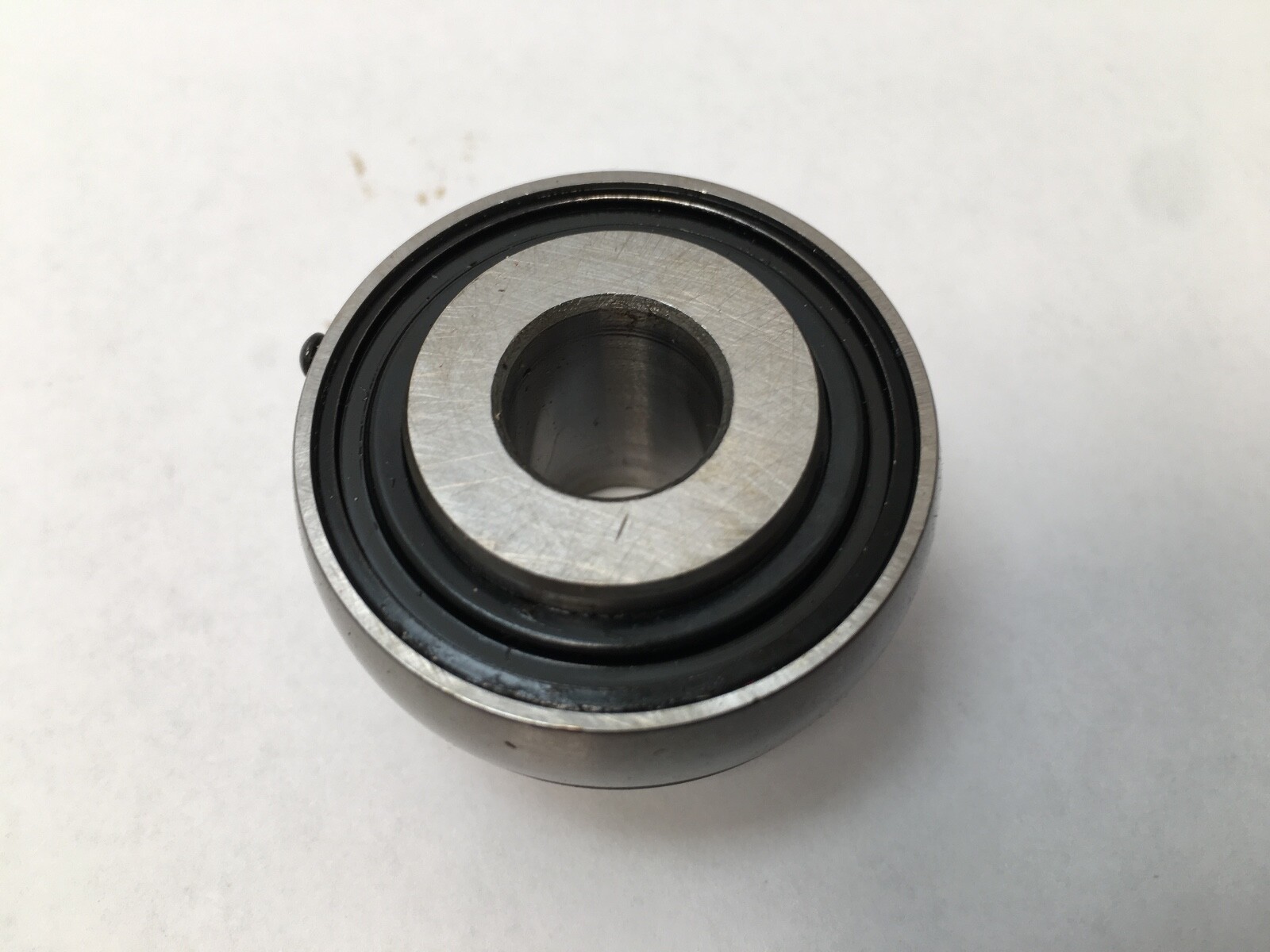

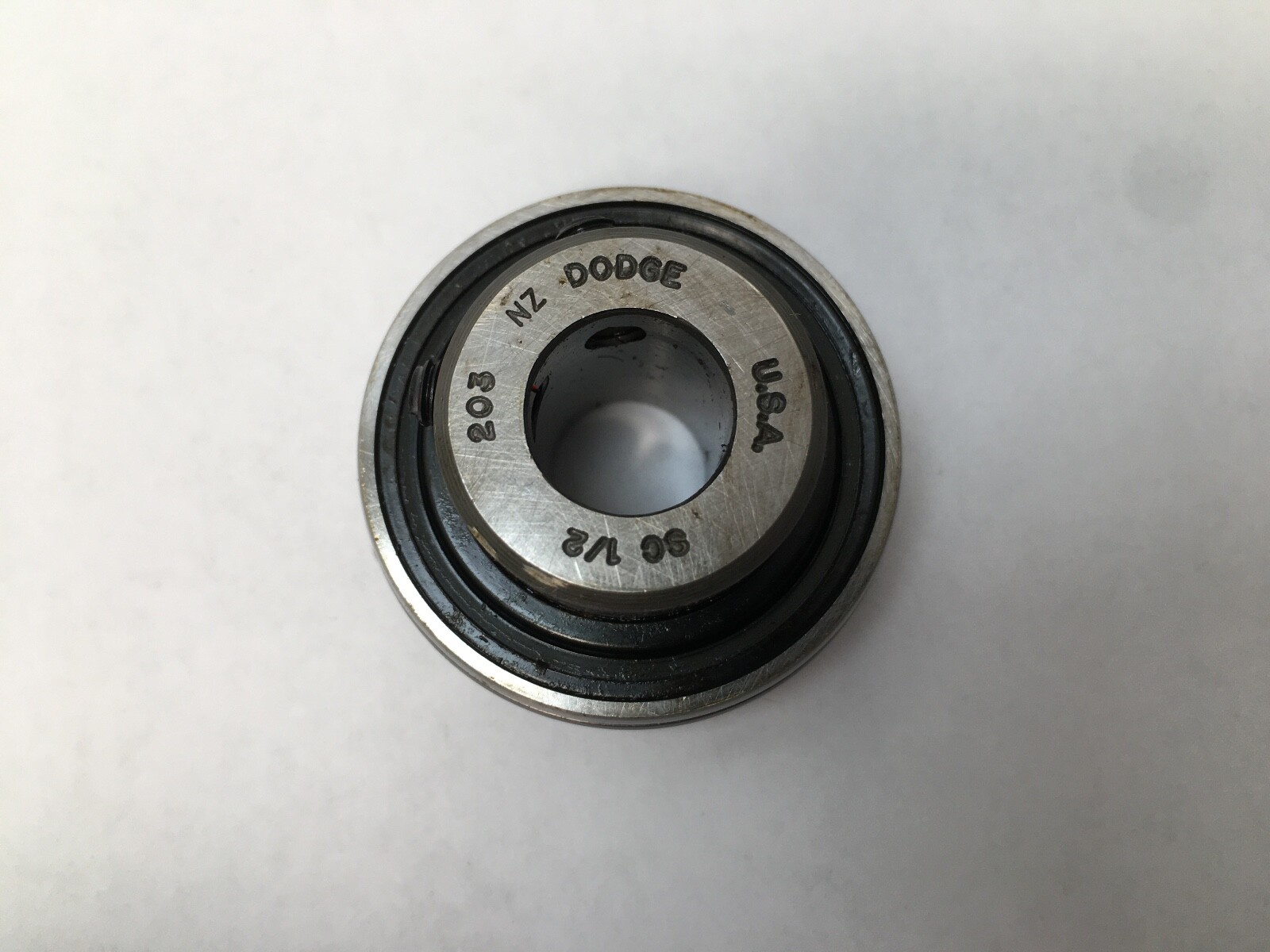

DodgeINS-SC-17MSet Screw Ball Bearing Insert — 17 mm Bore, 40 mm OD, 1 in Wide, 203 Series

Condition: New

Availability:

1 in stock

Categories: ,

Dodge INS-SC-17M set screw ball bearing insert, 17 mm bore, 40 mm (1.5748 in) OD, 1 in wide, 203 series, 2,158 lbf dynamic rating, catalog 125800.

Same day shipment

List Price

$35.12

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPNINS-SC-17M
GTIN782475657452
ModelINS-SC-17M
ID17 mm
OD40 mm (1.5748 in)

Technical Specifications

TypeInsert Bearing
Industry Termsinsert bearing, mounted bearing insert, set screw insert, replacement bearing insert
Common MisspellingsINS SC 17M, INSSC-17M
Bore Shaft Size17 mm

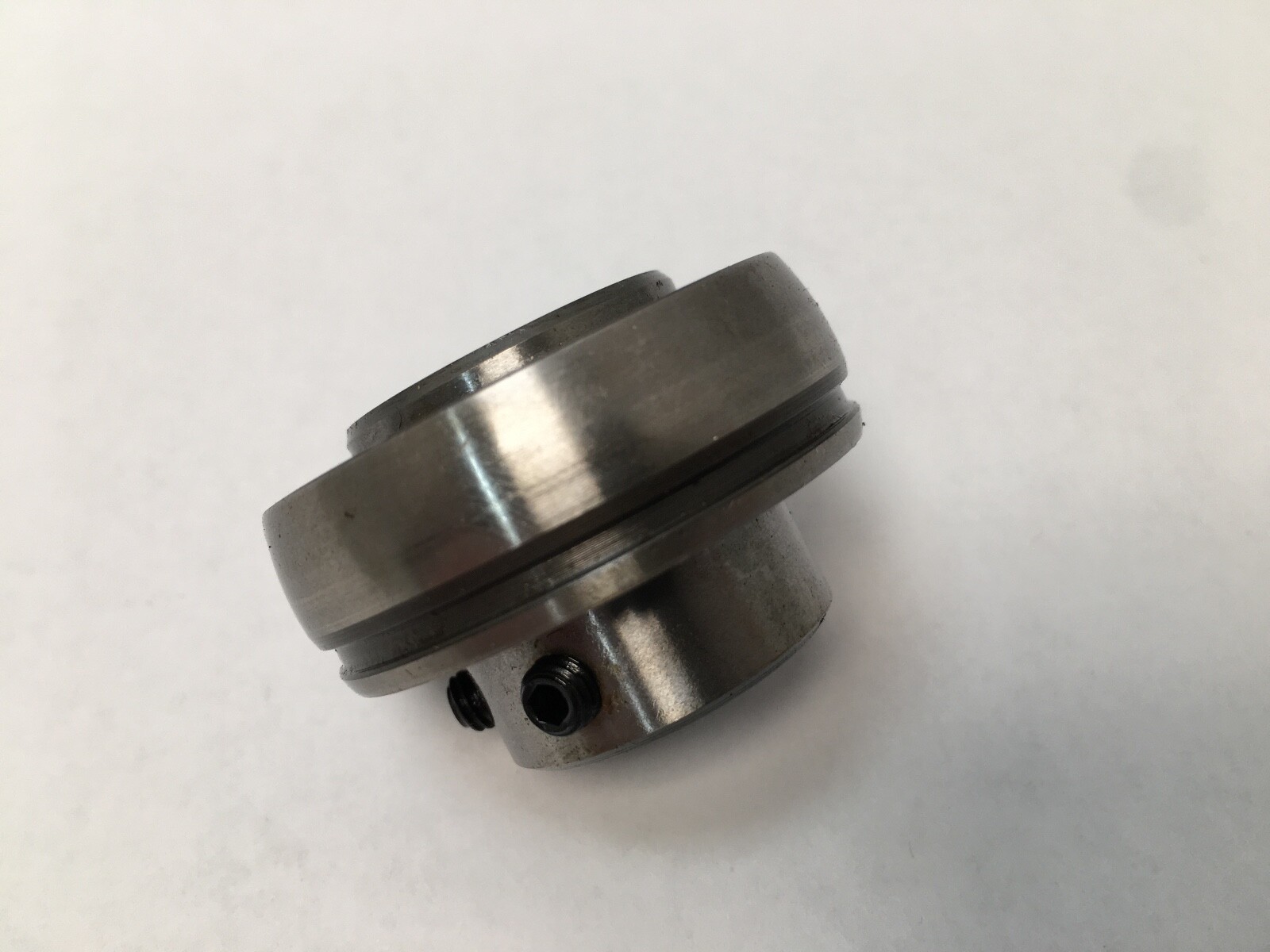

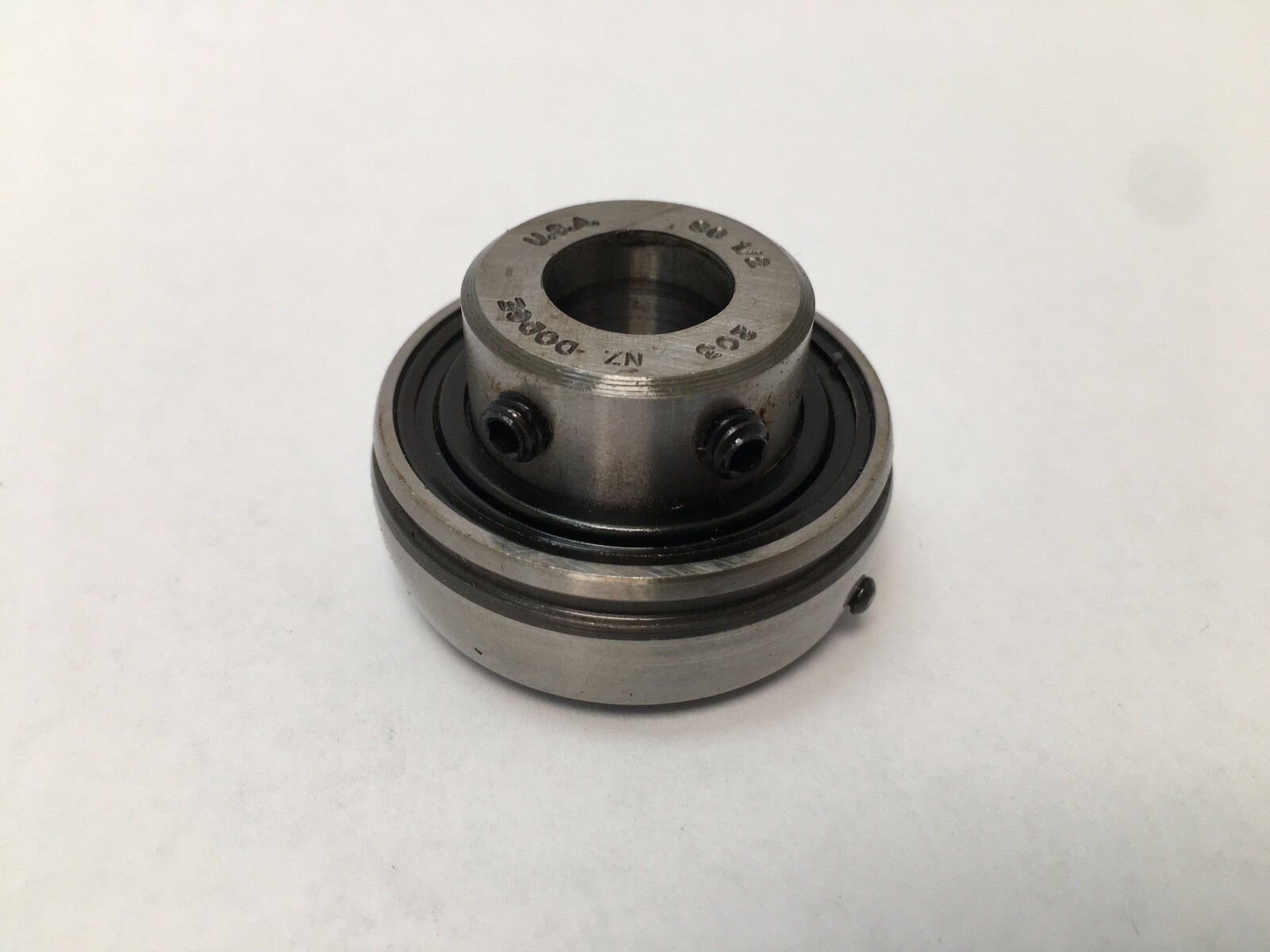

Locking MethodSet screw
Mpn Variants125800, INSSC17M, INS-SC-17M, INSSC17M/125800
Additional AttributesOutside Diameter: 40 mm (1.5748 in); Width: 1 in; Bearing Series: 203; Finish: Uncoated
Dynamic Load Rating2,158 lbf (9,599 N)
Static Load Rating1,079 lbf (4,800 N)
Bearing TypeBall bearing insert
Limiting Speed5,000 rpm
Relubrication FeatureYes
Overall Width1 in (25.4 mm)
Series203
Seller Part Number: B-AM5B1#UO1CXT

Product Description

What this part is:

The Dodge INS-SC-17M, catalog number 125800, is a normal duty set screw ball bearing insert for a 17 mm shaft. Insert only, supplied without housing. Unit Quantity: 1 Pc. Bearing Series: 203.

Decoding the designation:

INS — Dodge insert only, supplied without housing.

SC — Dodge set screw ball bearing line.

17M — 17 mm metric bore.

Specifications:

Bore / Shaft Size: 17 mm. Outside Diameter: 40 mm (1.5748 in). Overall Width: 1 in (25.4 mm). Locking Method: Set screw. Dynamic Load Rating: 2,158 lbf (9,599 N). Static Load Rating: 1,079 lbf (4,800 N). Limiting Speed: 5,000 rpm. Lubricant: Grease (Unirex N2). Relubrication Feature: Yes. Series: 203. Finish: Uncoated. GTIN: 782475657452.

Dimensions and mounting:

Insert for Dodge SC set screw 203-series mounted units. Bore: 17 mm. Outside diameter: 40 mm (1.5748 in). Width: 1 in.

Compatibility and replacement:

Dodge catalog number 125800 and engineering number INS-SC-17M identify the same part. MPN Variants: 125800, INSSC17M, INS-SC-17M, INSSC17M/125800.

Frequently asked questions:

What is the bore of the Dodge INS-SC-17M?

Bore / Shaft Size: 17 mm.

What is the Dodge catalog number for the INS-SC-17M?

125800.

How is the Dodge INS-SC-17M locked to the shaft?

Locking Method: Set screw.
