Availability:
1 in stock

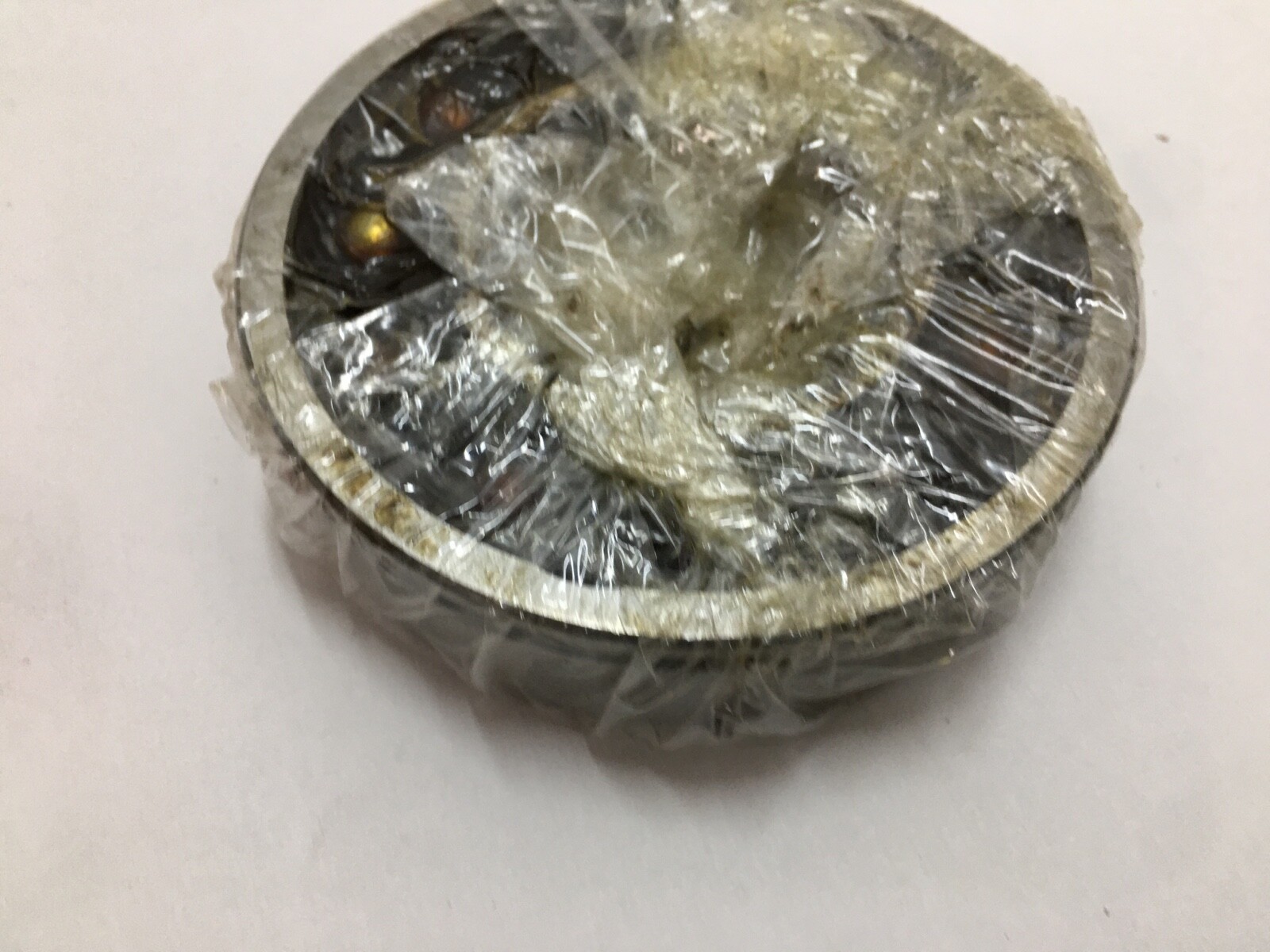

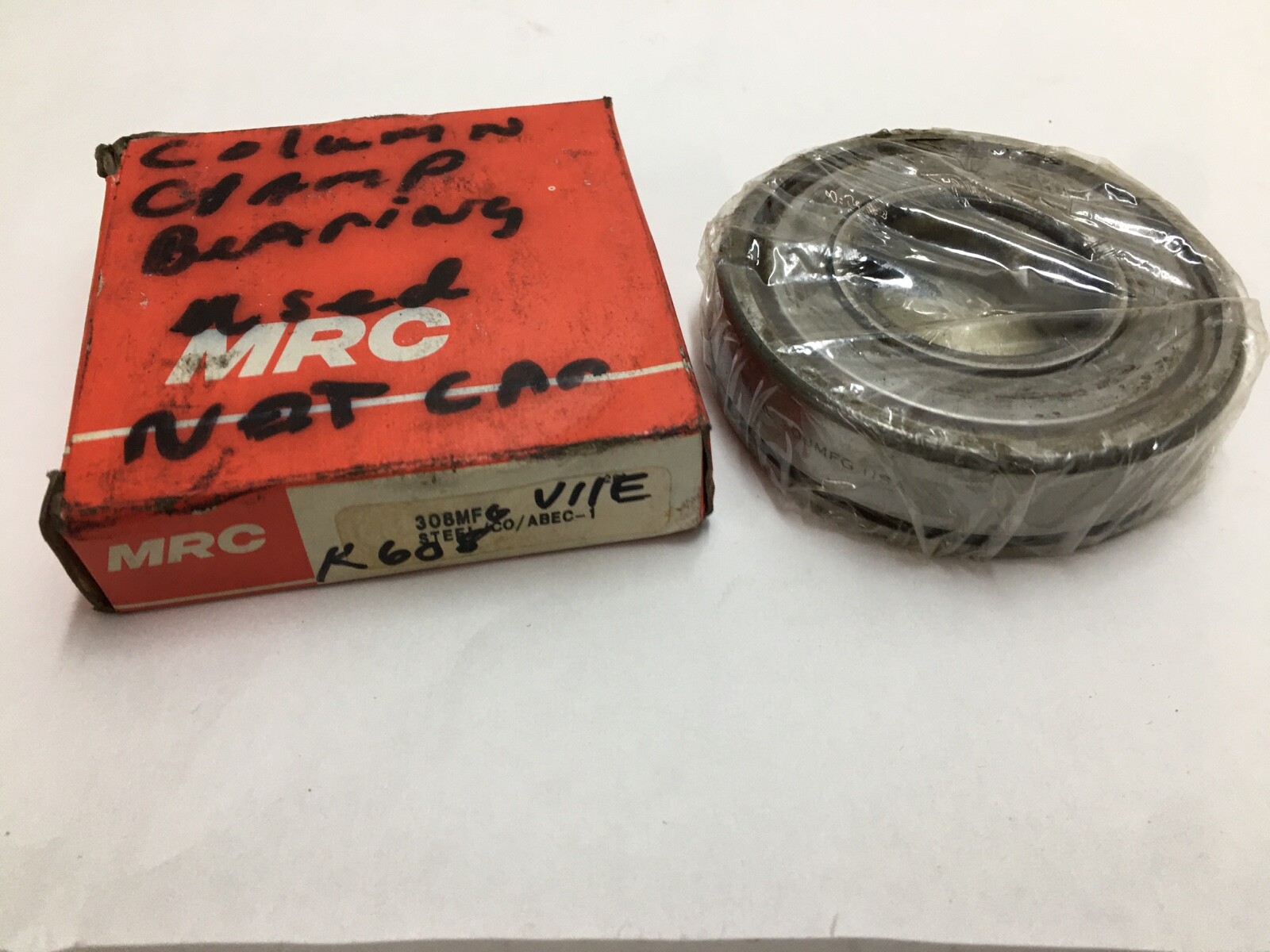

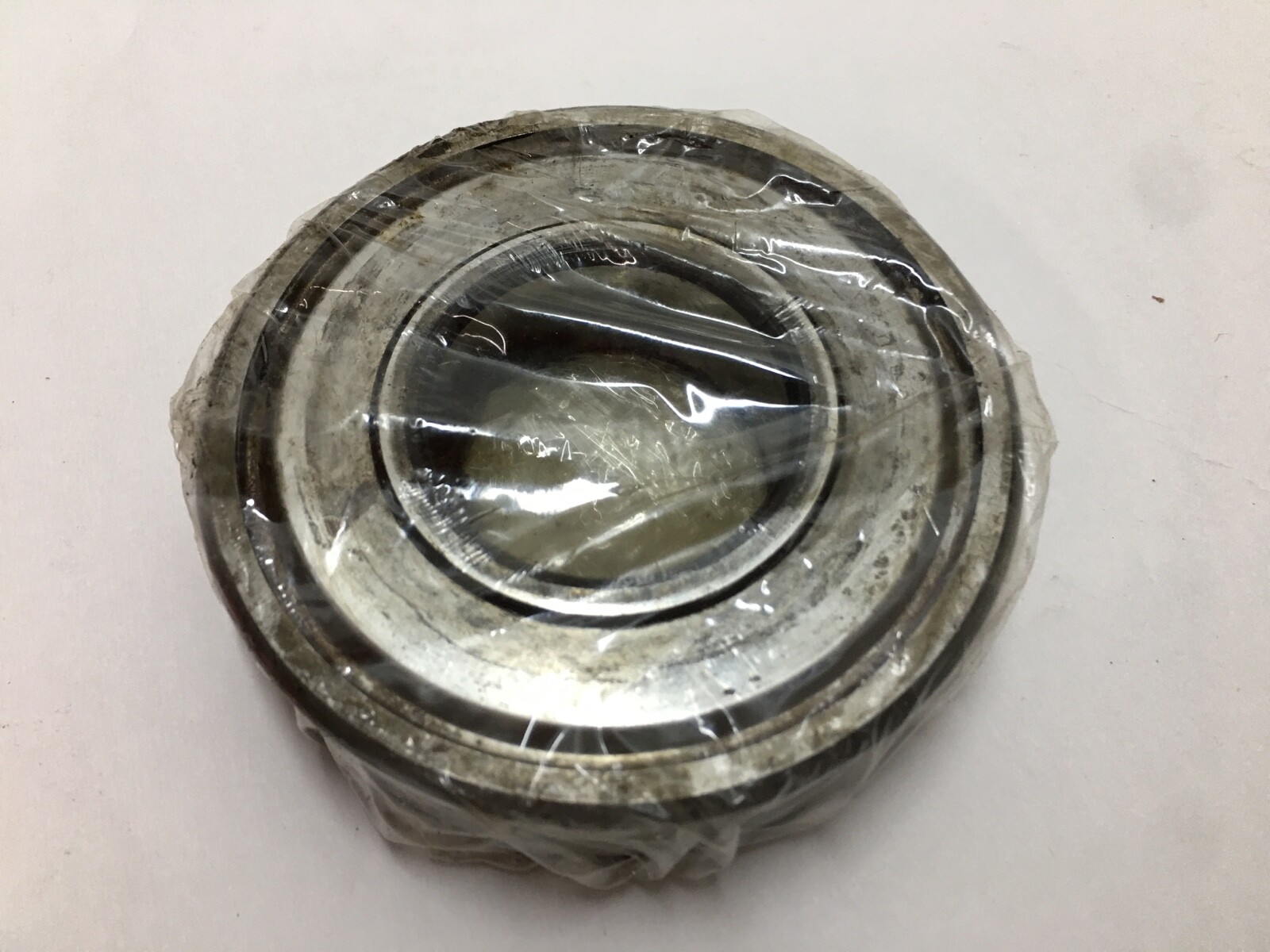

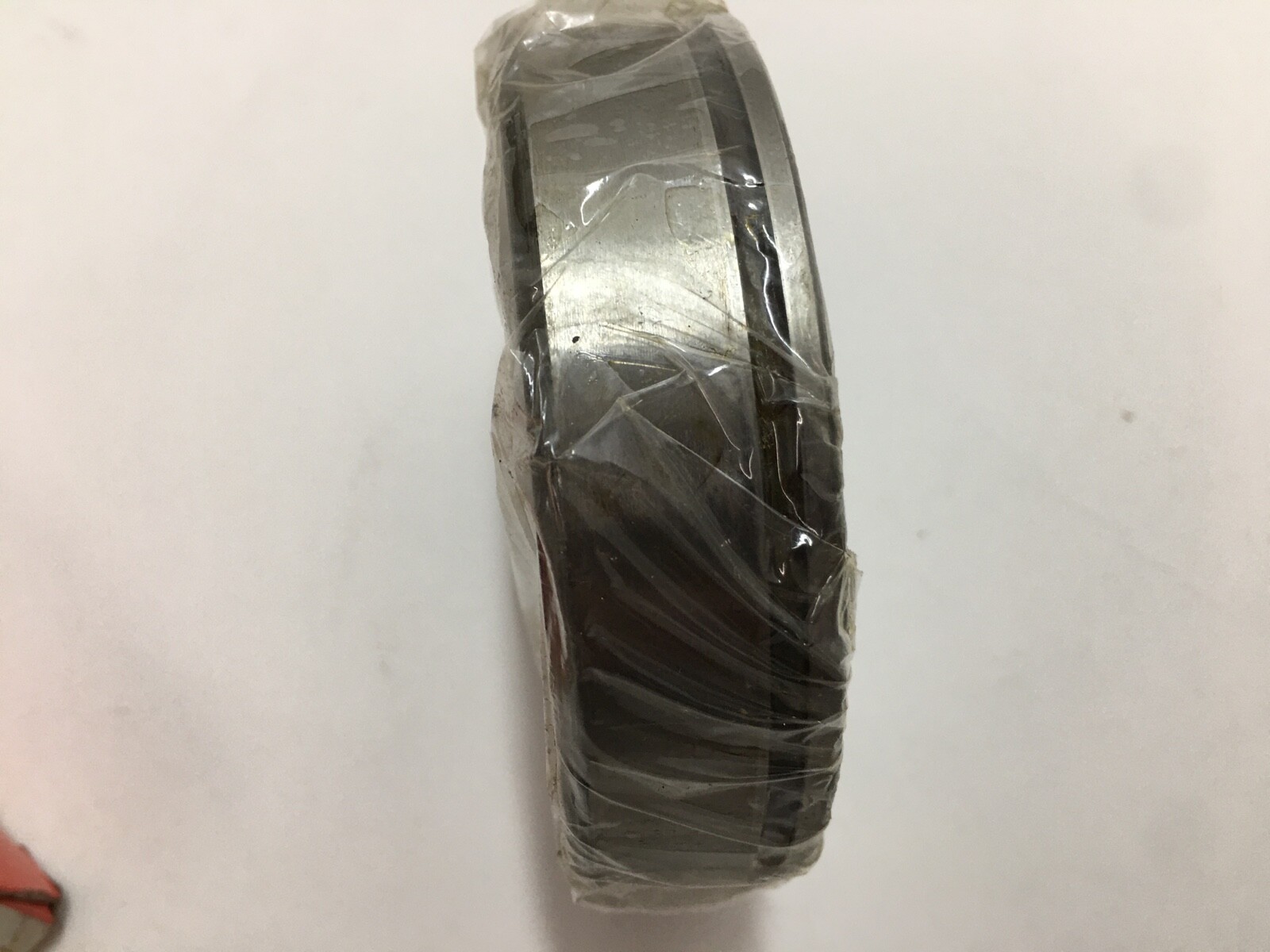

MRC 308MFG filling-notch deep groove ball bearing, 40 x 90 x 23 mm, one shield, snap-ring groove, 46,800 N dynamic rating. Max type, NSK BL308ZNR equivalent.
List Price
$30.24
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | MRC |
|---|---|
| MPN | 308MFG |
| Model | 308MFG |
| Bearing Type | Ball Bearing, One shield |
| ID | 40 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | MRC 300-M Medium Series |
|---|---|
| Dynamic Load Rating | 46,800 N |
| Static Load Rating | 36,000 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 6,200 rpm grease; 7,500 rpm oil |
| Duty Type | Max Capacity |
| Harmonization Code | 8482.1 |
| Mpn Variants | 308MFG, 308-MFG, 308 MFG |
| Compatible With Replaces | NSK BL308ZNR |
| Additional Attributes | Max Fillet Radius: 1.5 mm; Construction: maximum-capacity filling-notch (Max type) |
| Cross Reference 1 | NSK BL308ZNR |
|---|---|
| Cross Reference 2 | 6308-Z/NR (related, Conrad type) |
The MRC 308MFG is a single-row, maximum-capacity filling-notch deep groove ball bearing from the MRC 300-M Medium Series, with one shield and a snap-ring groove in the outer ring. Bore Diameter: 40 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. The filling notch admits a larger ball complement than a Conrad bearing of the same envelope, raising radial capacity.
308 — 300 medium series, 40 mm bore.
M — maximum-capacity filling-notch (Max type) construction.
F — one shield; the opposite face is open.
G — snap-ring execution, with a groove in the outer ring for axial location in the housing.
Dynamic Load Rating: 46,800 N. Static Load Rating: 36,000 N. Limiting Speed: 6,200 rpm grease; 7,500 rpm oil. Closure Type: Shield one side. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. The Max type suits very heavy radial loads, or combined radial and thrust loads where the radial load predominates.
Max Fillet Radius: 1.5 mm (maximum shaft or housing fillet the bearing corner clears).
Unit Quantity: 1 Pc. This piece is supplied without the snap ring fitted.
Filling-slot equivalent: NSK BL308ZNR. The Conrad-type 6308-Z/NR shares the 40 x 90 x 23 mm envelope with a smaller ball complement and lower load ratings.
