MRCDeep Groove Ball Bearing – 45 x 85 x 19 mm, Two Rubber Contact Seals, Snap Ring Groove and Ring, CN Clearance

Product Description

What this part is

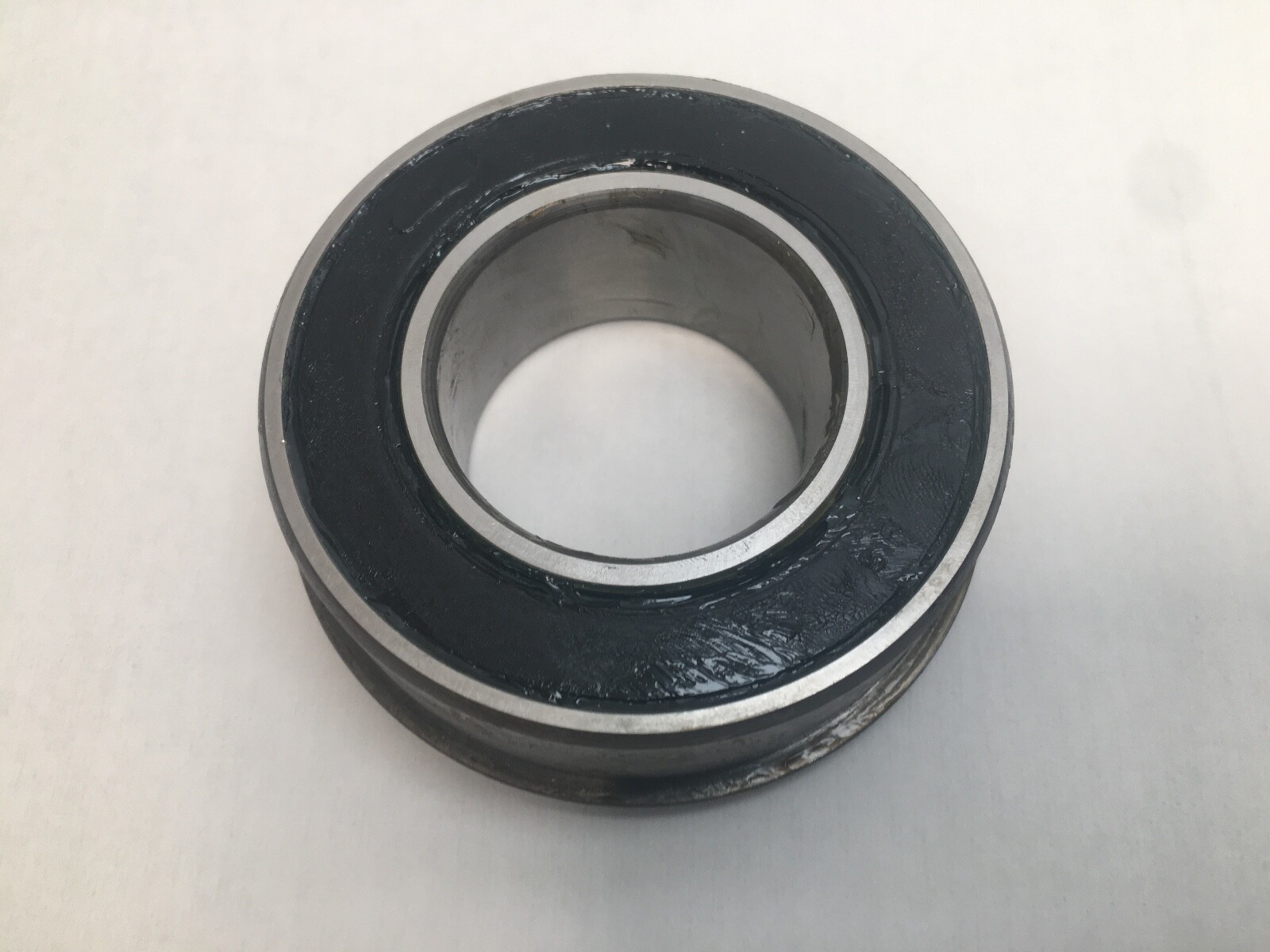

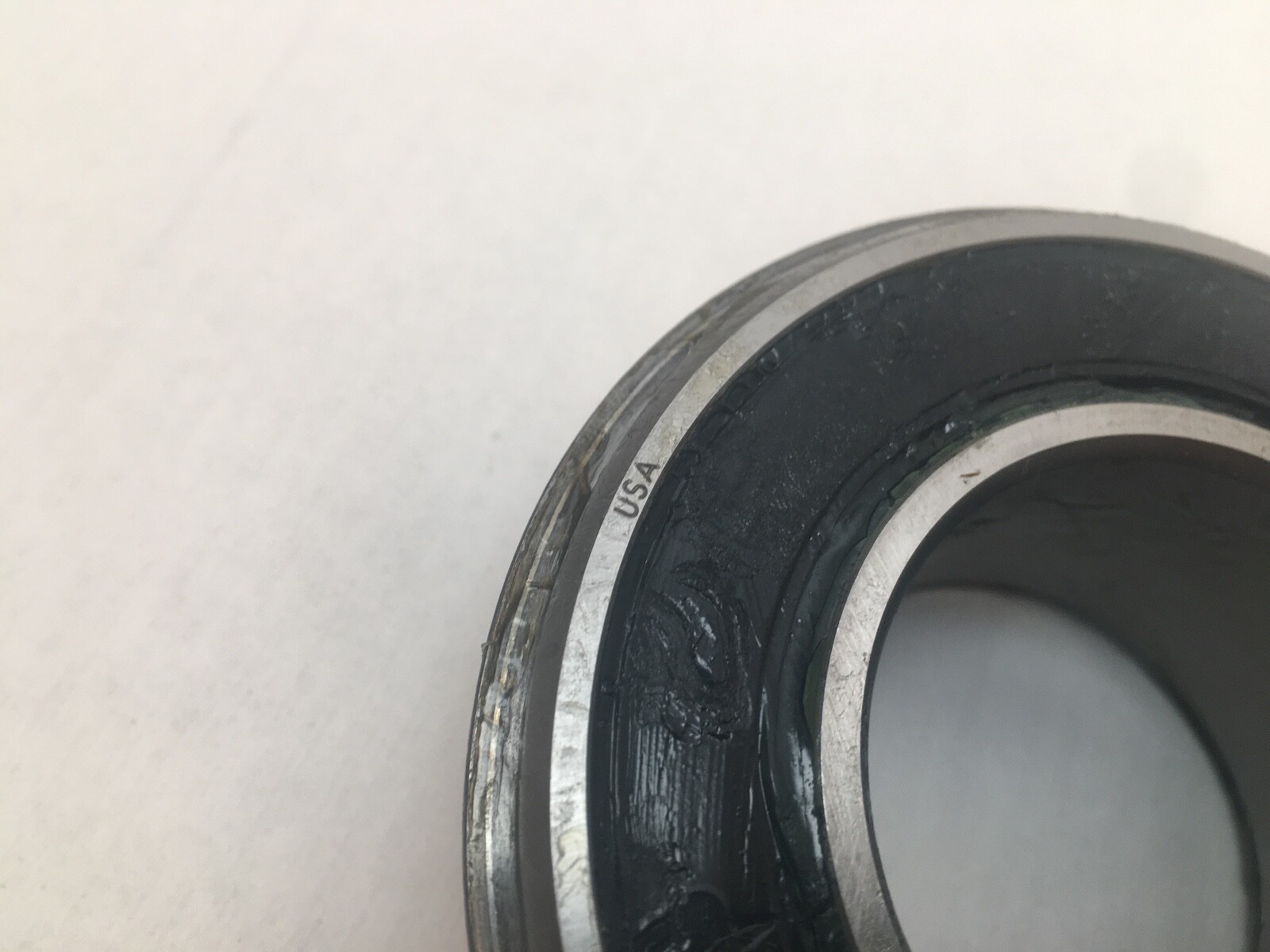

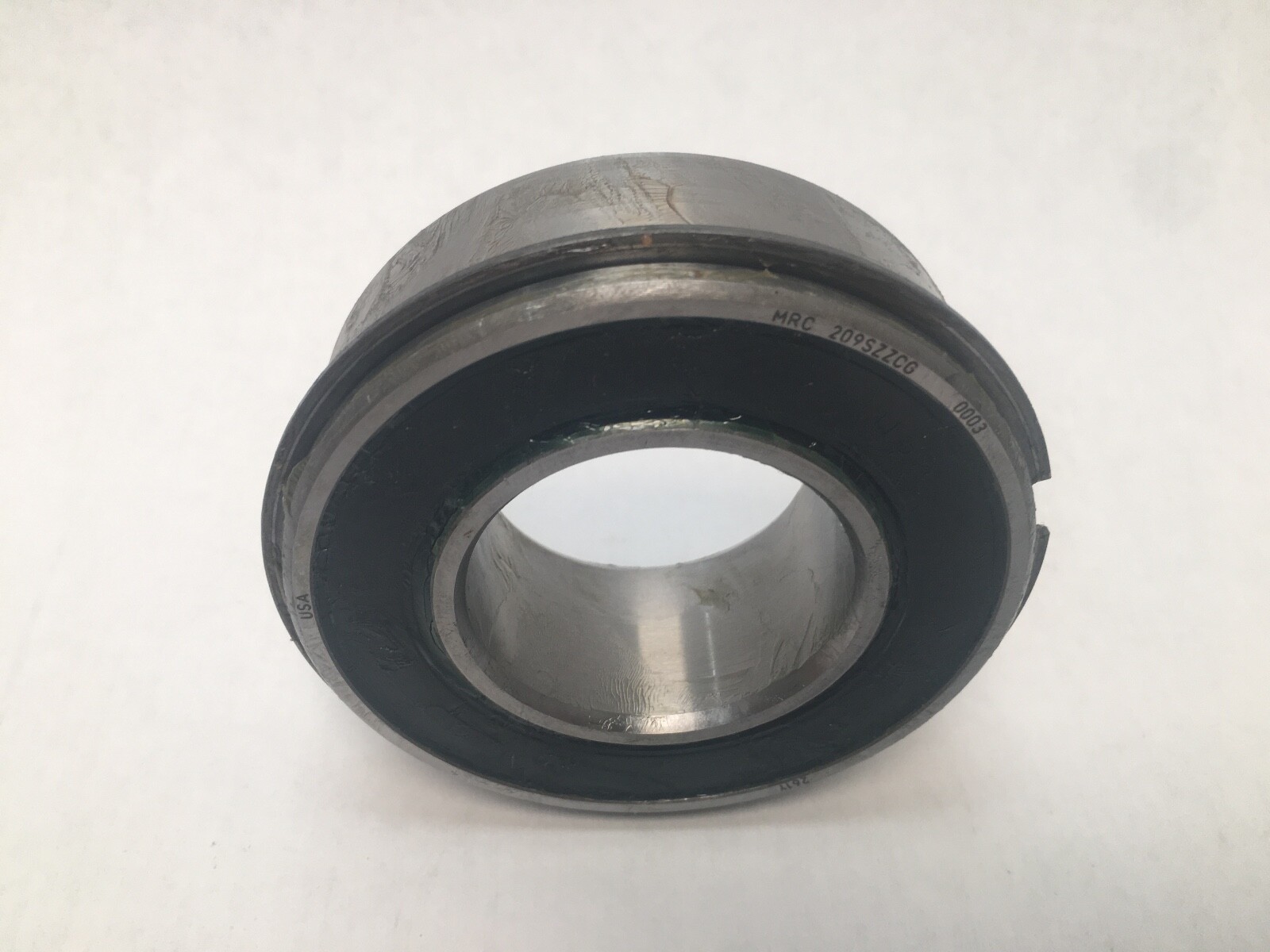

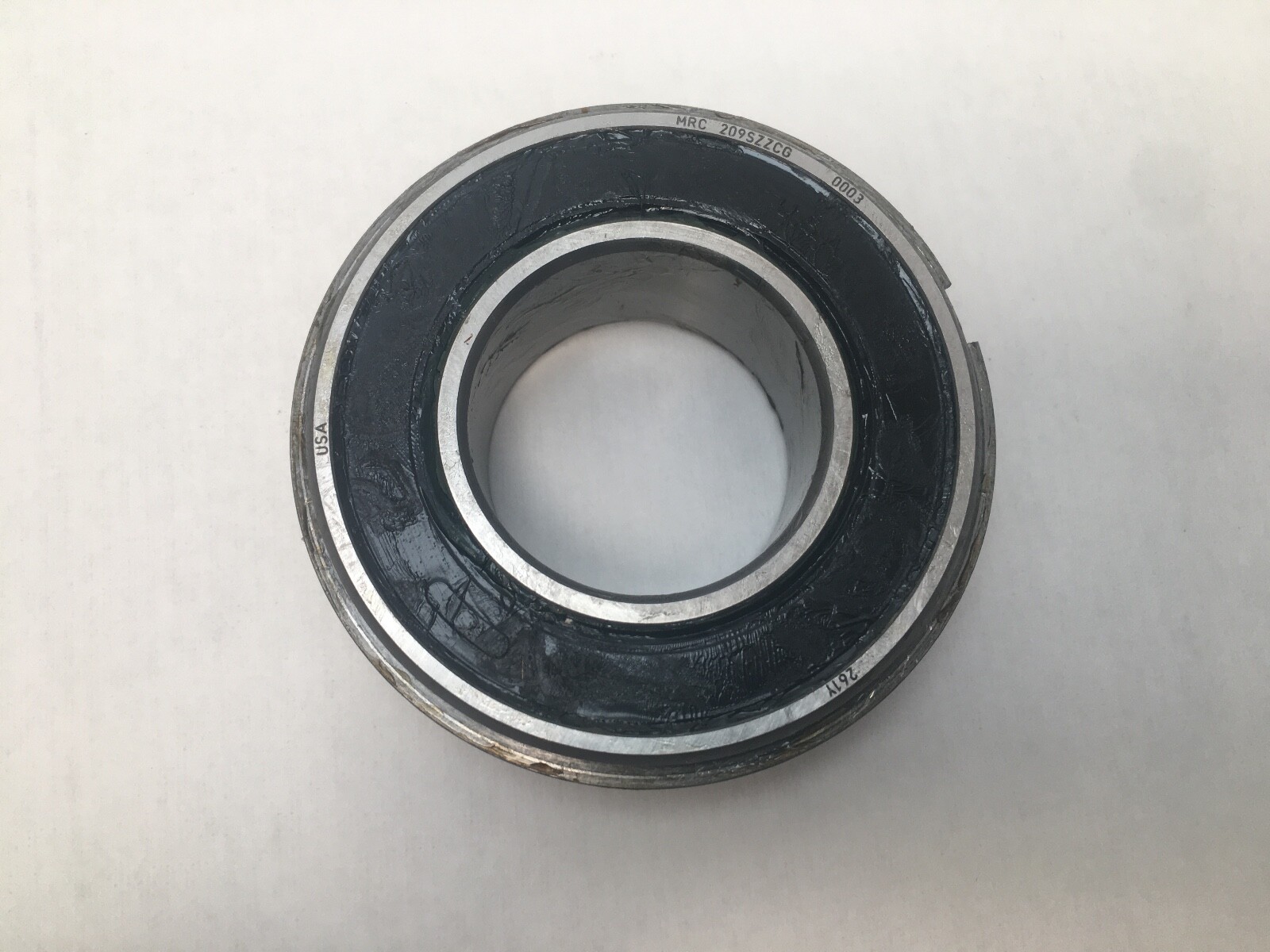

MRC 209SZZCG single-row deep groove ball bearing, sealed both faces, with a snap ring groove in the outer ring. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm. Total Width: 19 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Two rubber contact seals. Snap Ring Included: Yes. Internal Clearance: CN. Bearing Material: Chrome steel. Design Units: Metric. Series: 200S. Base Number: 6209. Part Number: 209SZZCG. Unit Quantity: 1 Pc.

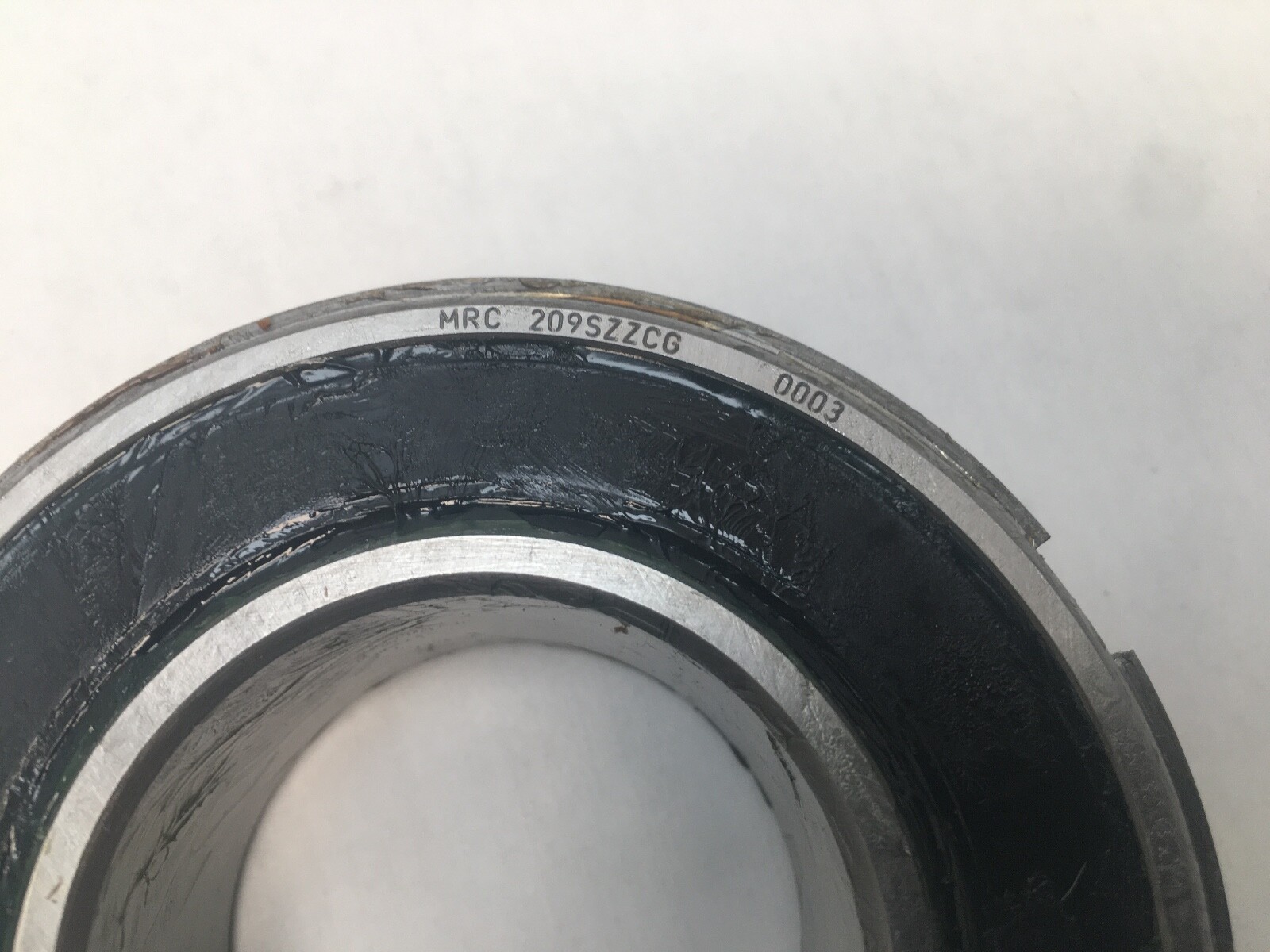

Decoding the designation

209 — bore code in the MRC 200 medium series, giving a 45 mm bore.

S — Conrad-assembly single-row deep groove construction.

ZZ — two rubber seals, one on each face. On MRC this code is elastomer, not metal.

G — snap ring groove machined into the outer ring, with the retaining ring supplied.

What these specs mean in practice

Closure Type: Two rubber contact seals. A lip riding on the inner ring holds the factory grease charge in and keeps dirt and moisture out, which suits shafts in wash-down, dusty or splash conditions where the housing offers no sealing of its own.

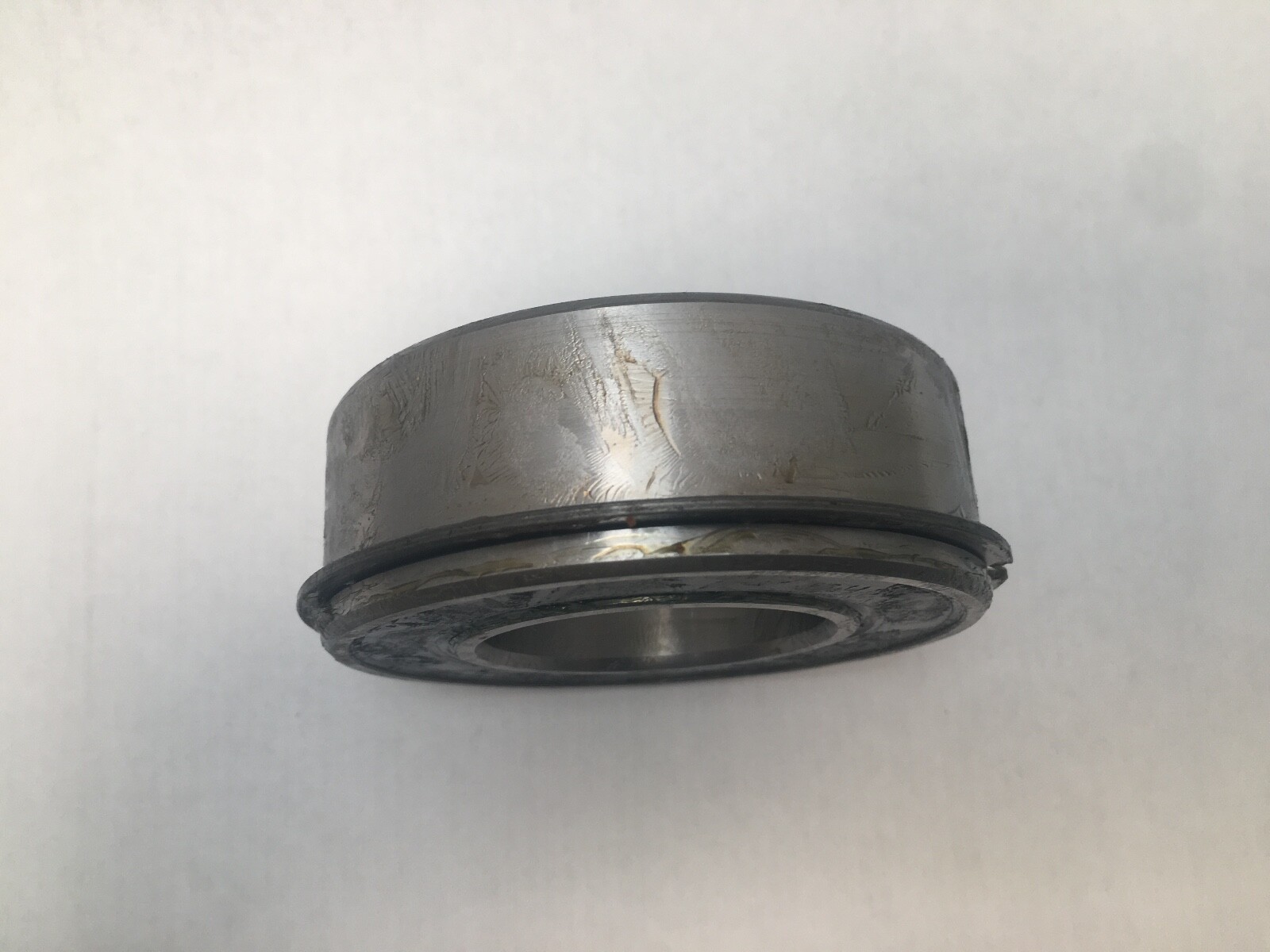

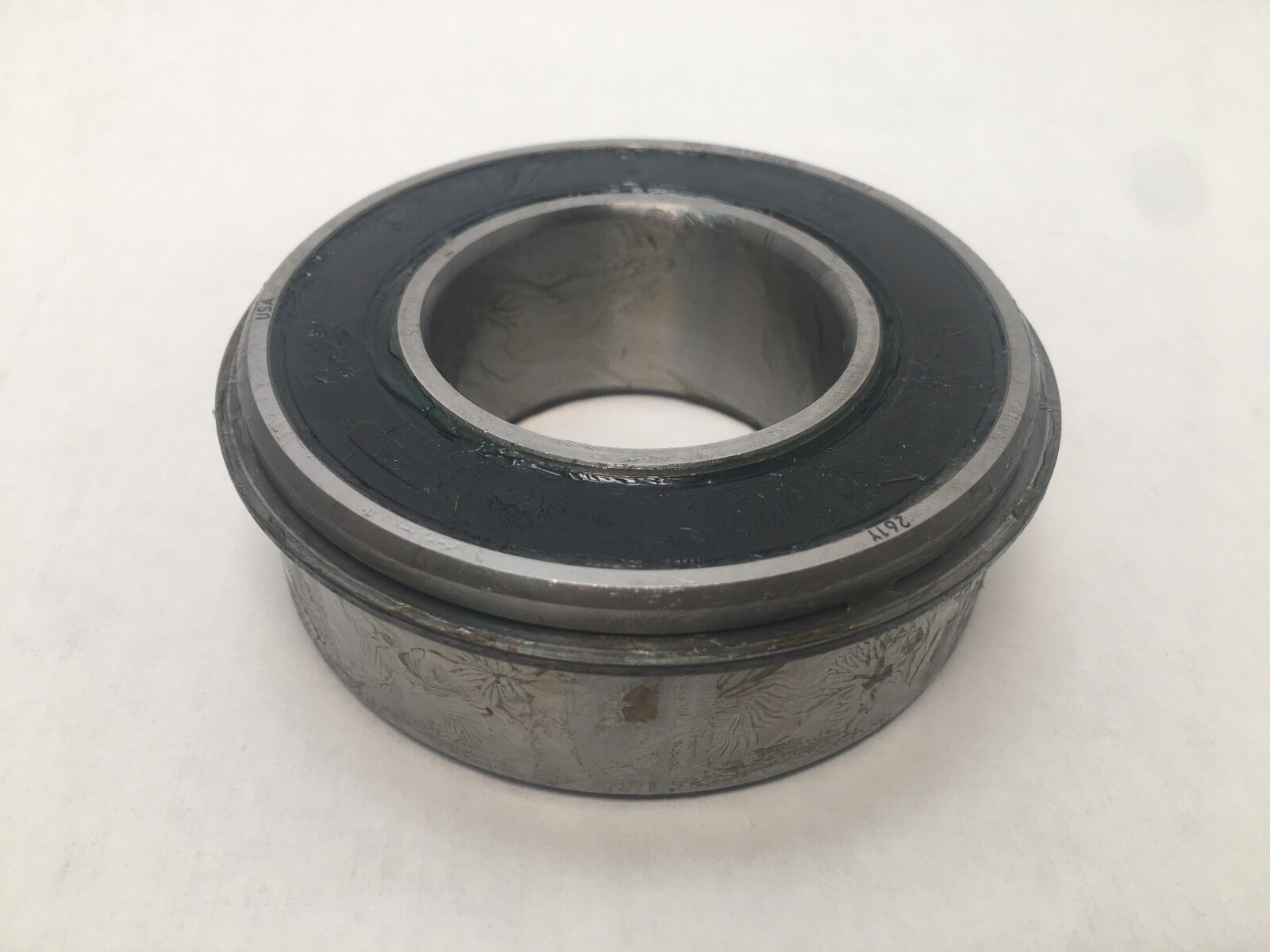

Snap Ring Included: Yes. The groove and ring locate the outer ring axially against a plain housing bore, so the bearing is held in position without a shoulder or an end cap machined into the housing.

Internal Clearance: CN. That is the standard radial clearance band, matched to a normal interference fit on the shaft at ambient running temperature.

Mounting data

Shaft seat 45 mm, straight bore. Housing bore 85 mm. Ring width 19 mm. Total Width: 19 mm. That is the standard ISO 62-series medium section for a 45 mm shaft, so the bearing seats in any housing bored for a 6209.

Quantity and configuration

Unit Quantity: 1 Pc. One sealed bearing with its snap ring.

Interchange guidance

Cross-Reference 1: SKF 6209-2RS1NR. Cross-Reference 2: FAG 6209-2RSR-NR. Cross-Reference 3: NSK 6209DDUNR. Cross-Reference 4: NTN 6209LLUNR. Cross-Reference 5: Timken 6209-2RS-NR. Cross-Reference 6: RHP 6209-2RSNR. Cross-Reference 7: Koyo 6209-2RSNR. Cross-Reference 8: 6209-2RSNR. Each carries the 45 x 85 x 19 mm envelope, two contact seals and a snap ring groove in the outer ring; a plain 6209-2RS carries no groove. Searchable variants of the number: 209SZZCG, 209 SZZ CG, 209SZZ-CG, 209SZZCGC3, 6209RS.
