MRC120KRExtra-Light Angular Contact Ball Bearing – 100 mm Bore x 150 mm OD x 24 mm Width, 15°, Counterbored Outer Ring

Product Description

What this part is

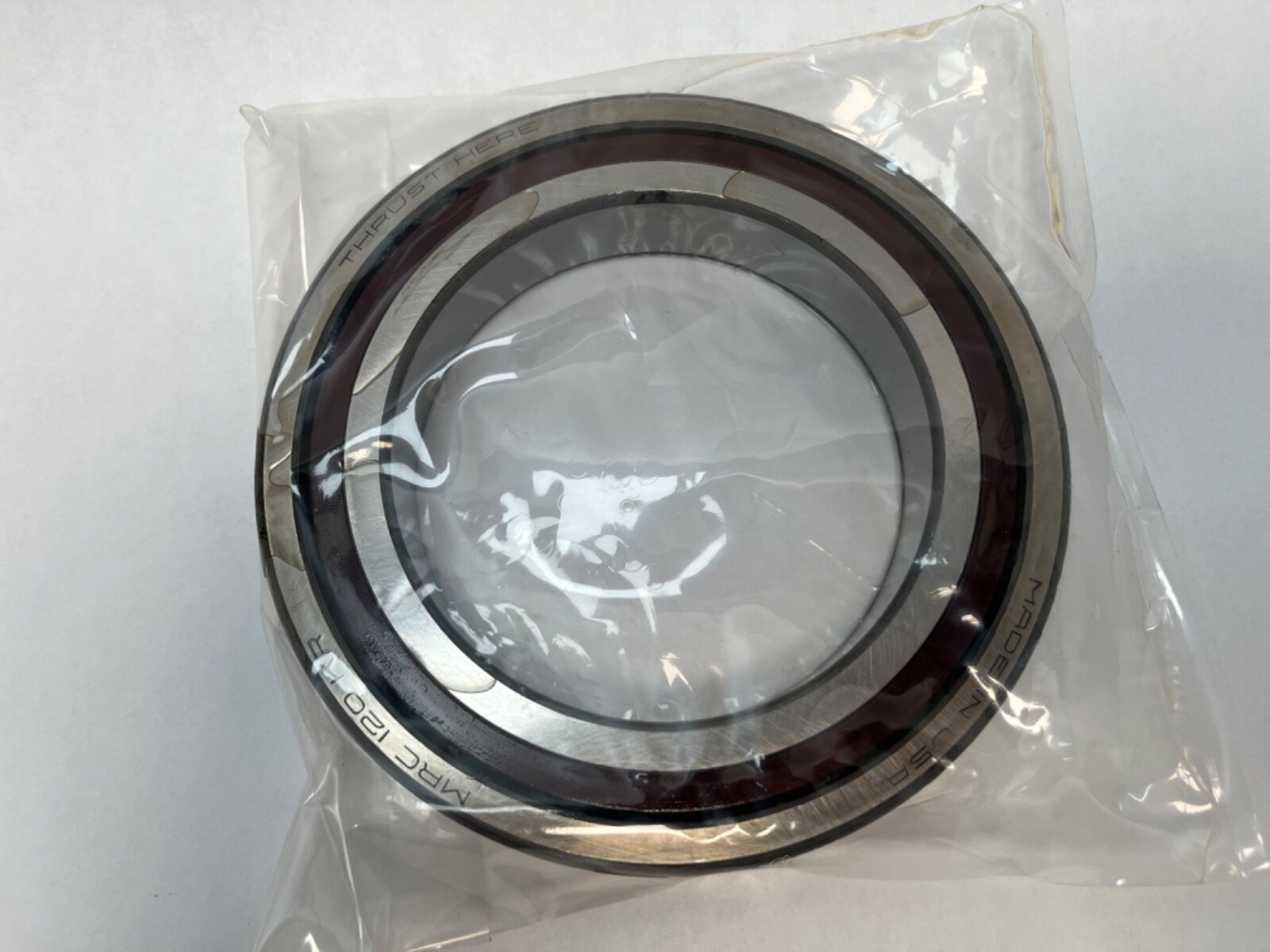

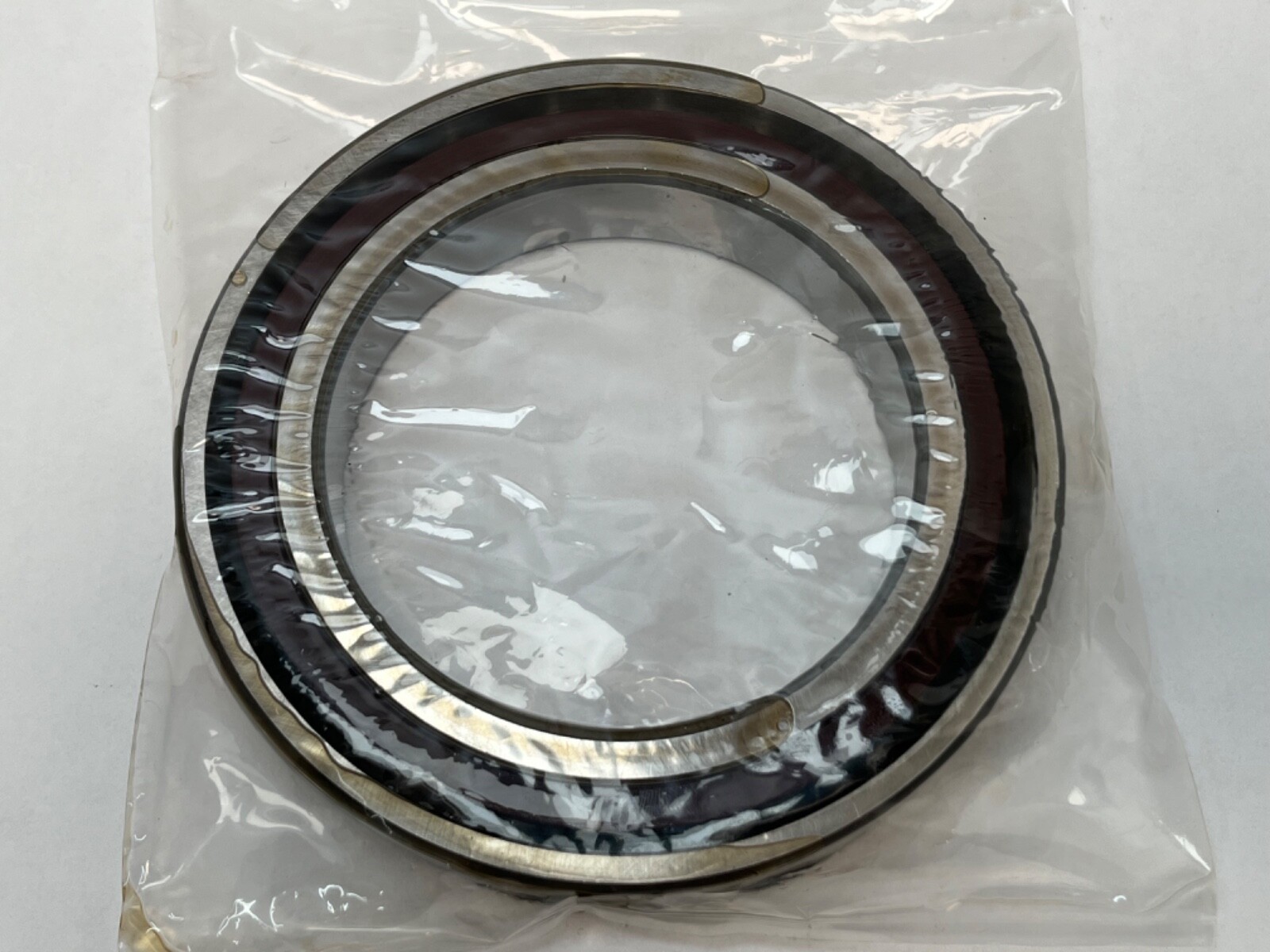

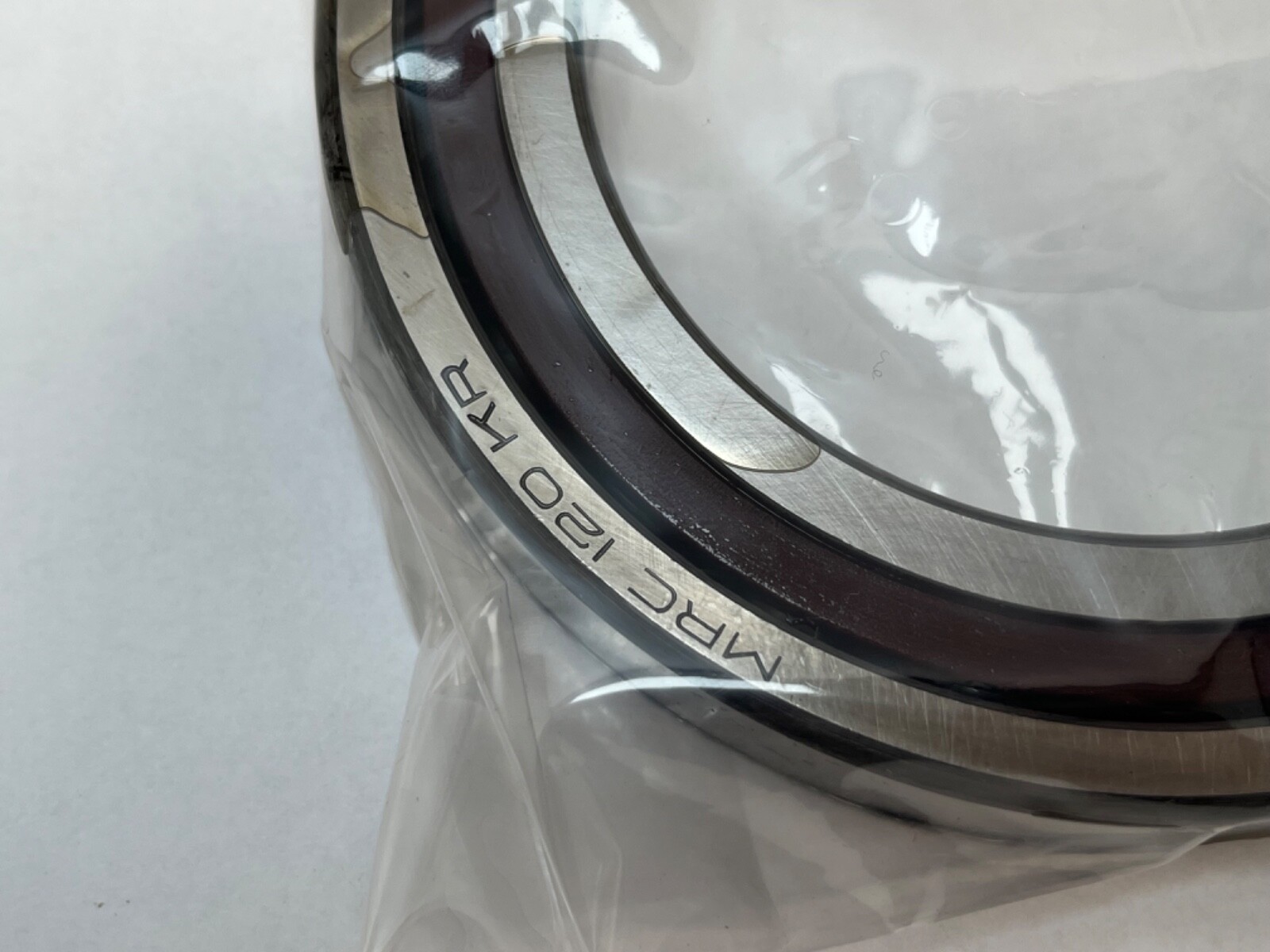

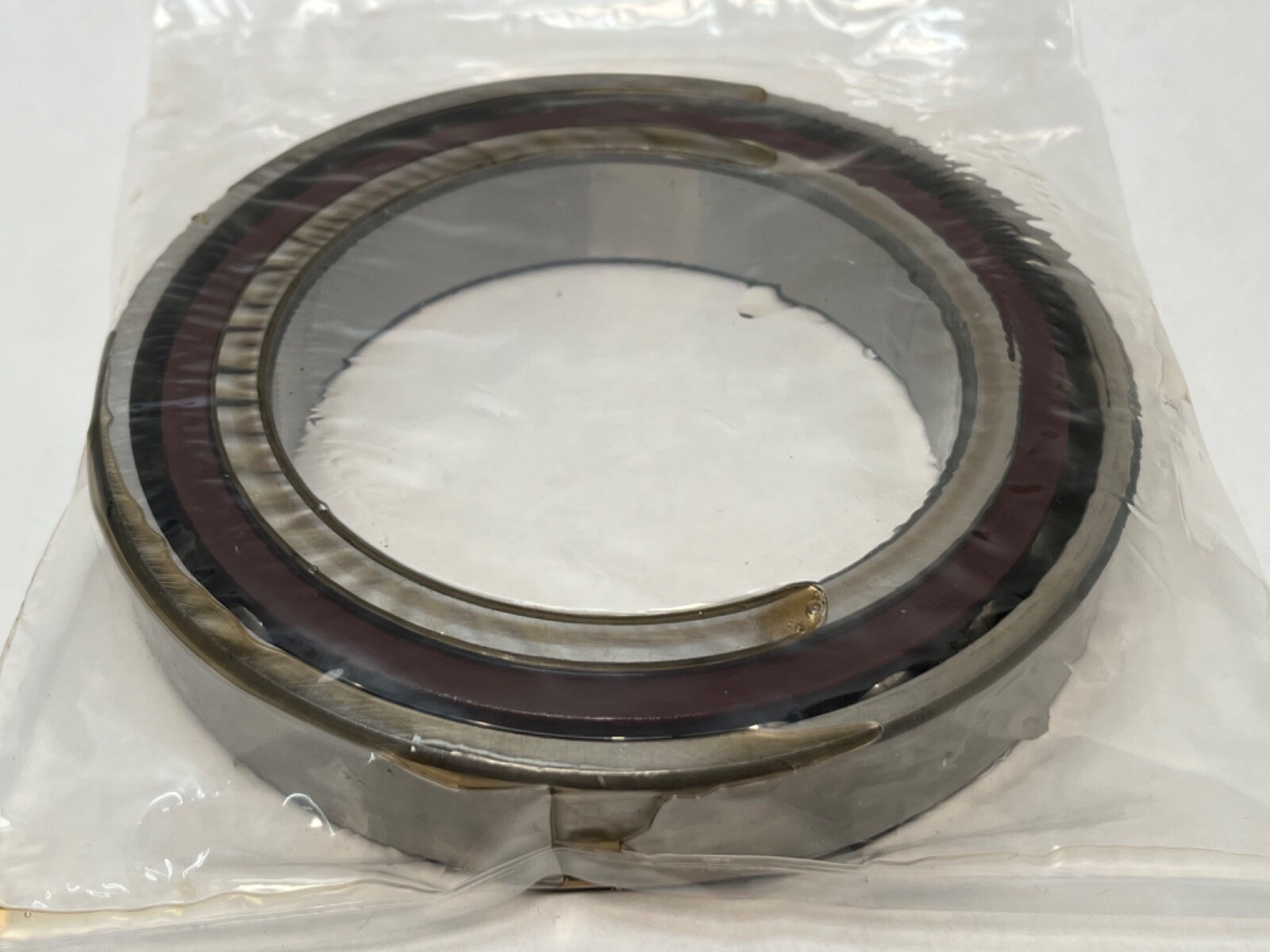

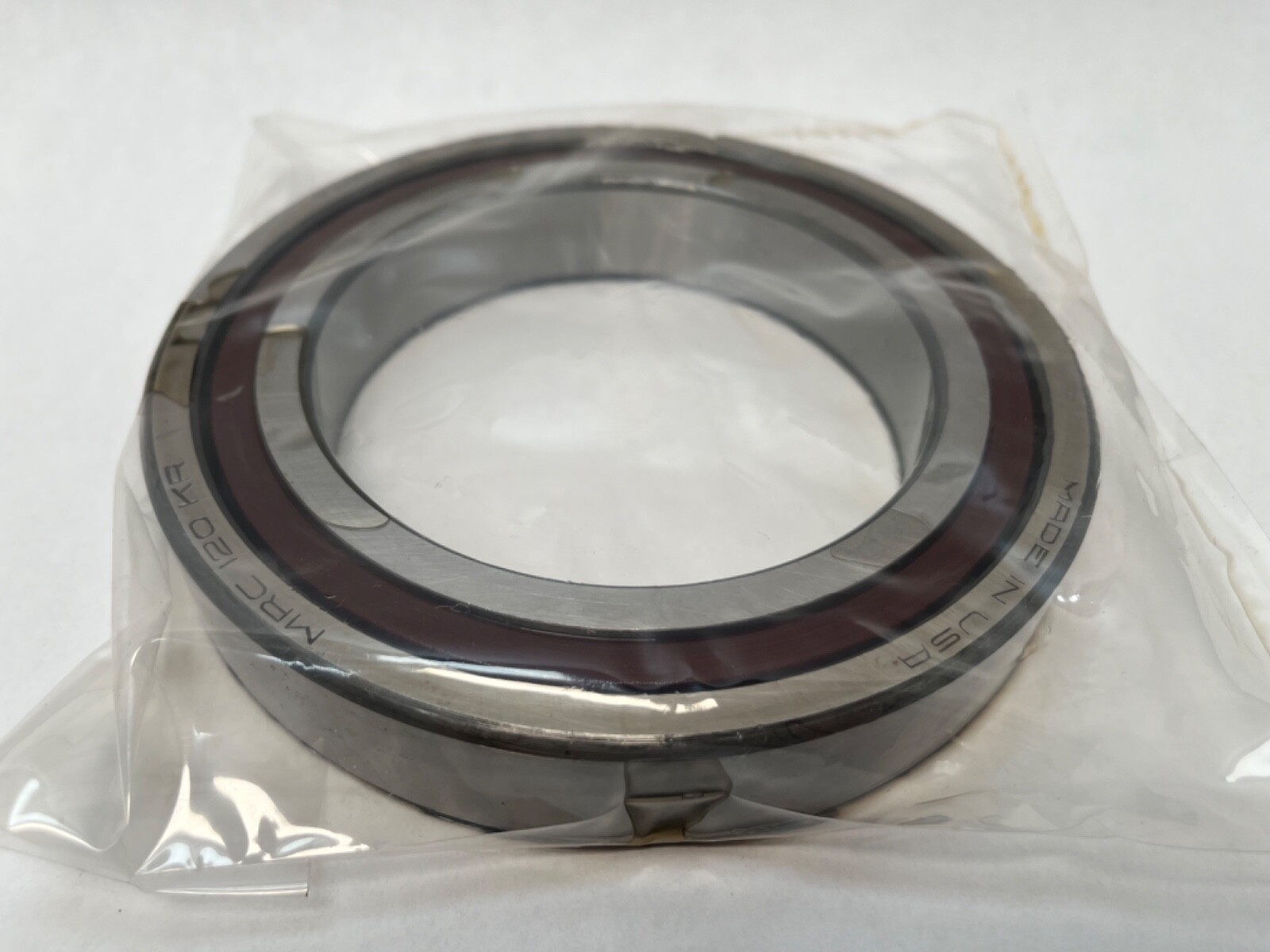

MRC 120KR single-row angular contact ball bearing, extra-light series, with a counterbored outer ring. Bore: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open both faces. Material: Chrome steel. Unit Quantity: 1 Pc.

Decoding the designation

100K — MRC’s extra-light series. Only 25 mm of radial section separates a 100 mm shaft from a 150 mm housing bore, which is what puts a large-diameter shaft inside a compact head.

20 — the bore code. Multiplied by five it gives Bore: 100 mm.

R — Contact Angle: 15°, with a counterbored outer ring. The counterbore admits a full ball complement past a low shoulder, and the high shoulder opposite carries the thrust.

What these specs mean in practice

Contact Angle: 15° is the shallow end of the angular contact range. It gives the highest speed capability of the family and the lowest heat generation, and it suits moderate one-direction thrust with a substantial radial load alongside it. On a 100 mm bore that combination is what a large machine-tool or turntable spindle wants: surface speed is high at that diameter, so the shallow angle is what keeps the heat down. The counterbored outer ring makes the bearing directional, and it is normally run against a second bearing facing the opposite way. Bore: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm.

Quantity and configuration

Unit Quantity: 1 Pc. One single-row bearing, straight bore, open on both faces, counterbored outer ring.

Fitting notes

The high-shoulder side of the outer ring faces the thrust load, so the bearing is fitted with the counterbore turned away from the direction the axial force arrives from. A 100 mm bore is normally mounted with heat, taking the inner ring to around 80 °C above ambient and dropping it onto the journal. Mounting force is applied through the ring being fitted and is never transmitted across the balls. On a light section the ring takes the shape of the seat it sits in, so shaft and housing roundness matter.

Interchange guidance

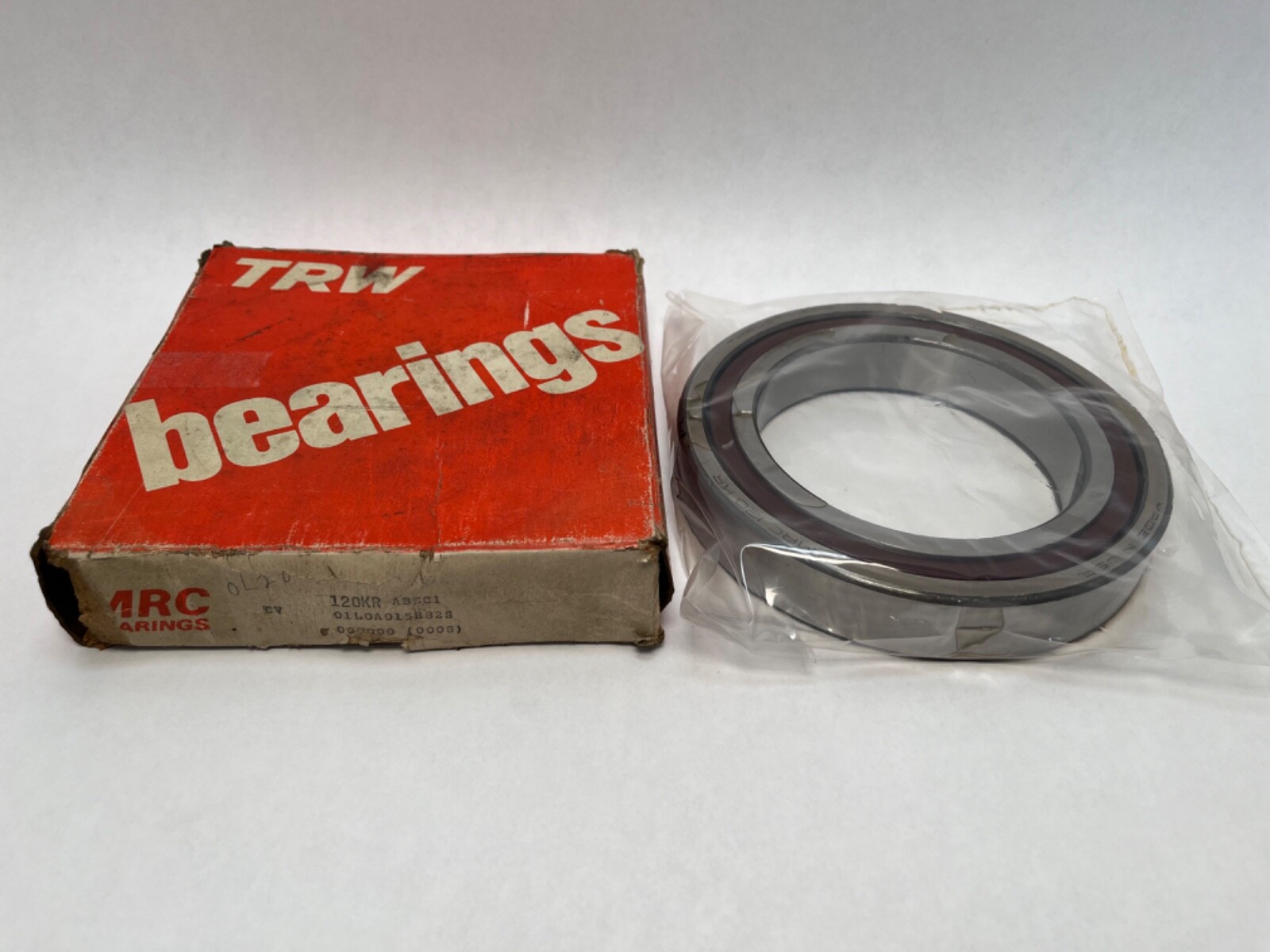

100 x 150 x 24 mm is the 7020 envelope and the carton carries the 7020-C cross itself. A 7020 C is the 15° execution and matches on both angle and envelope, so it is a genuine interchange. A 7020 at 25° or 40° carries different thrust capacity and stiffness on the same envelope and is a related size.

Searchable variants

120KR, 120-KR, 120 KR, 120 K R, 7020-C, 7020C, MRC 120KR.
