MRCGE336C654P7Angular Contact Ball Bearing – Split Inner Ring, 150 mm ID, 225 mm OD, 35 mm Width, 29 Degree Contact Angle, Open, ABEC 7

Product Description

What this part is

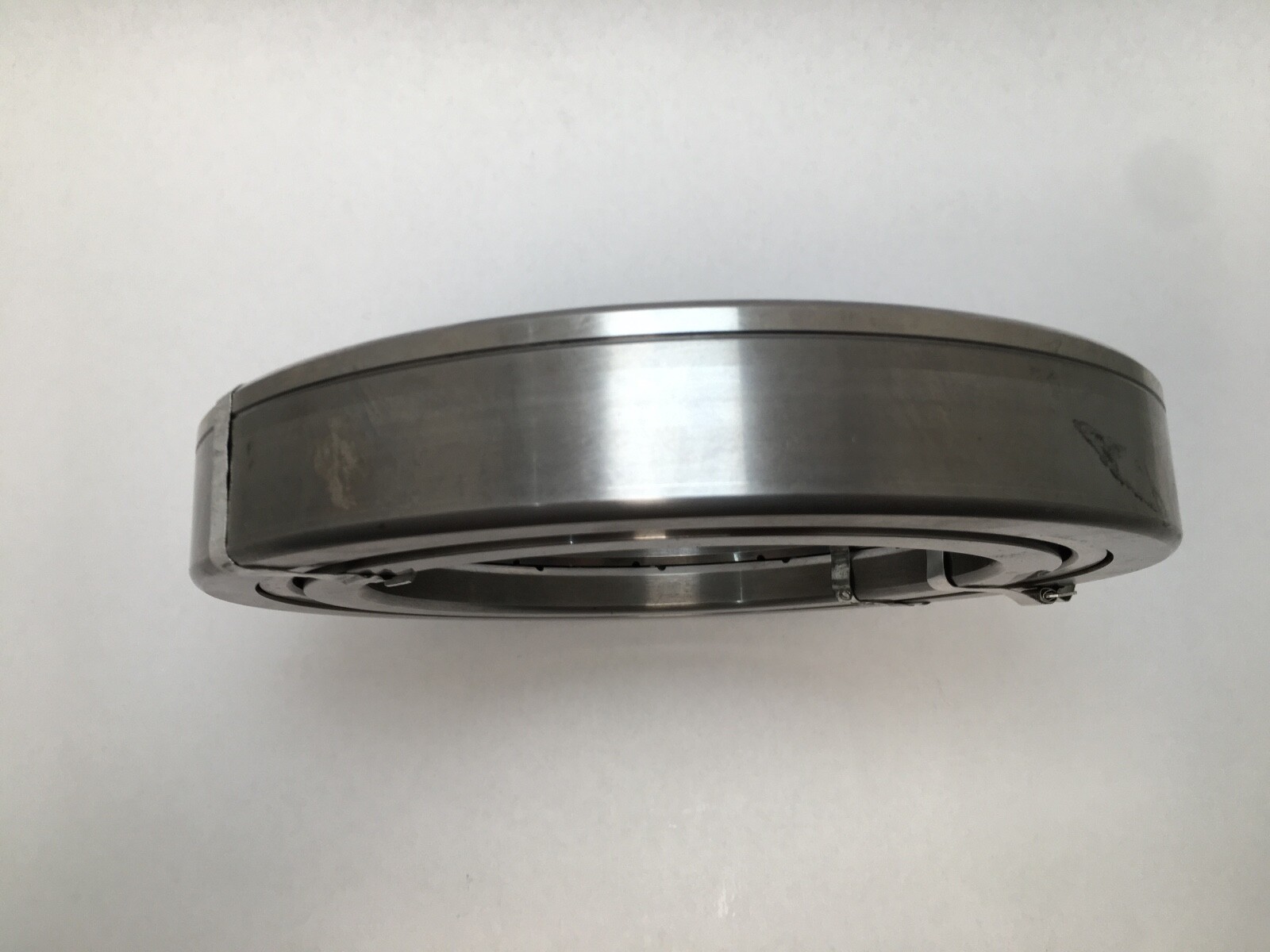

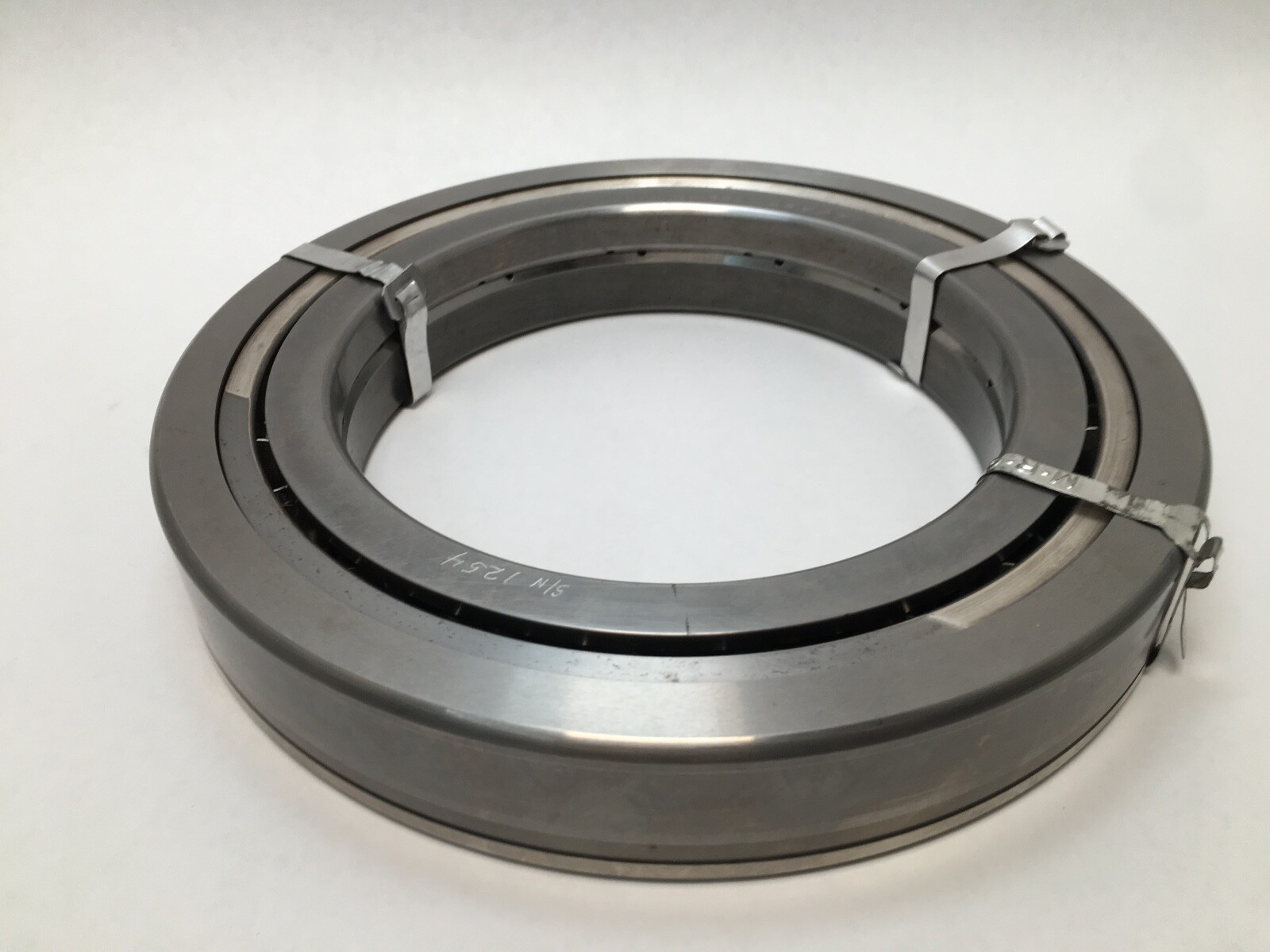

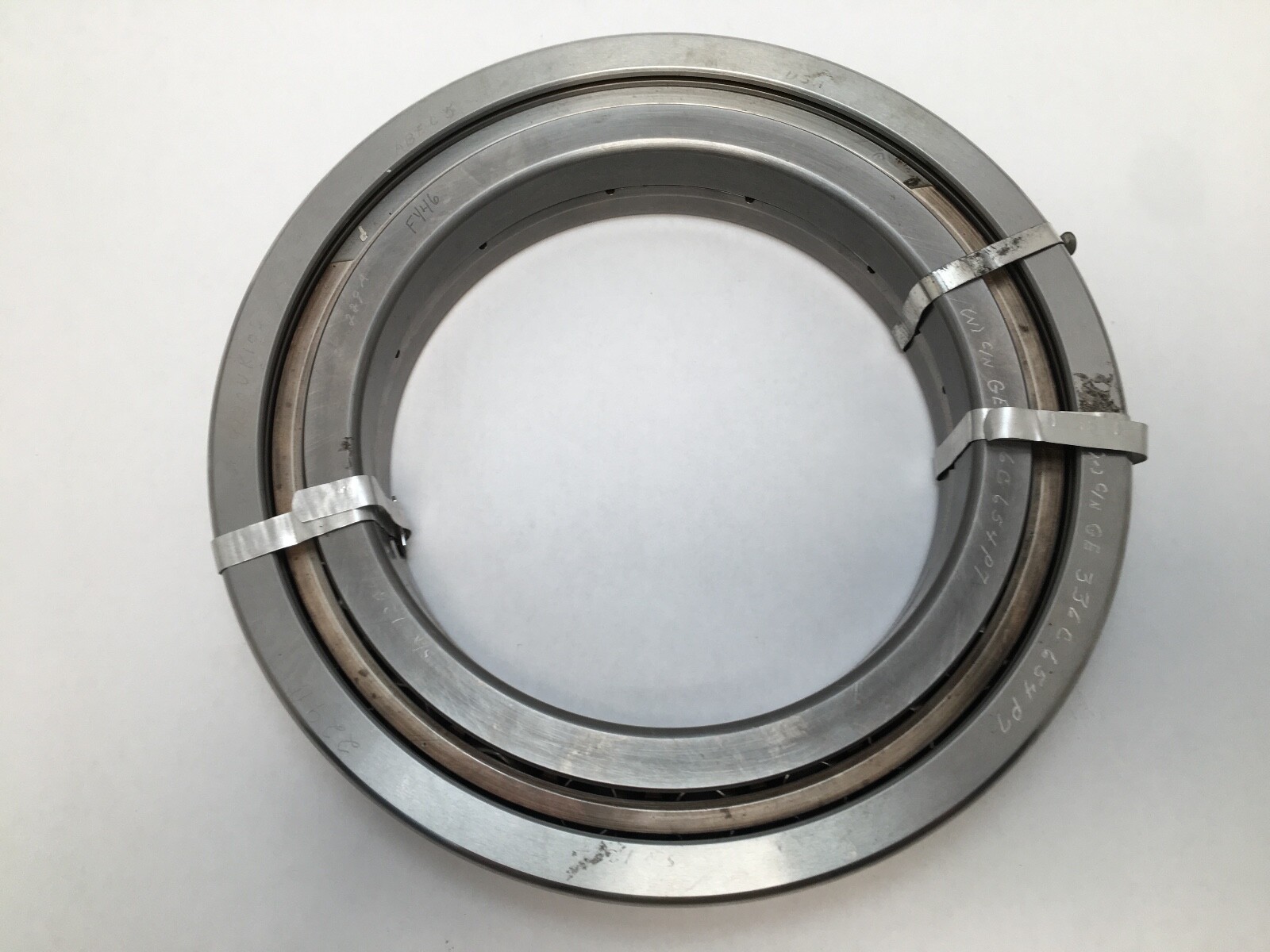

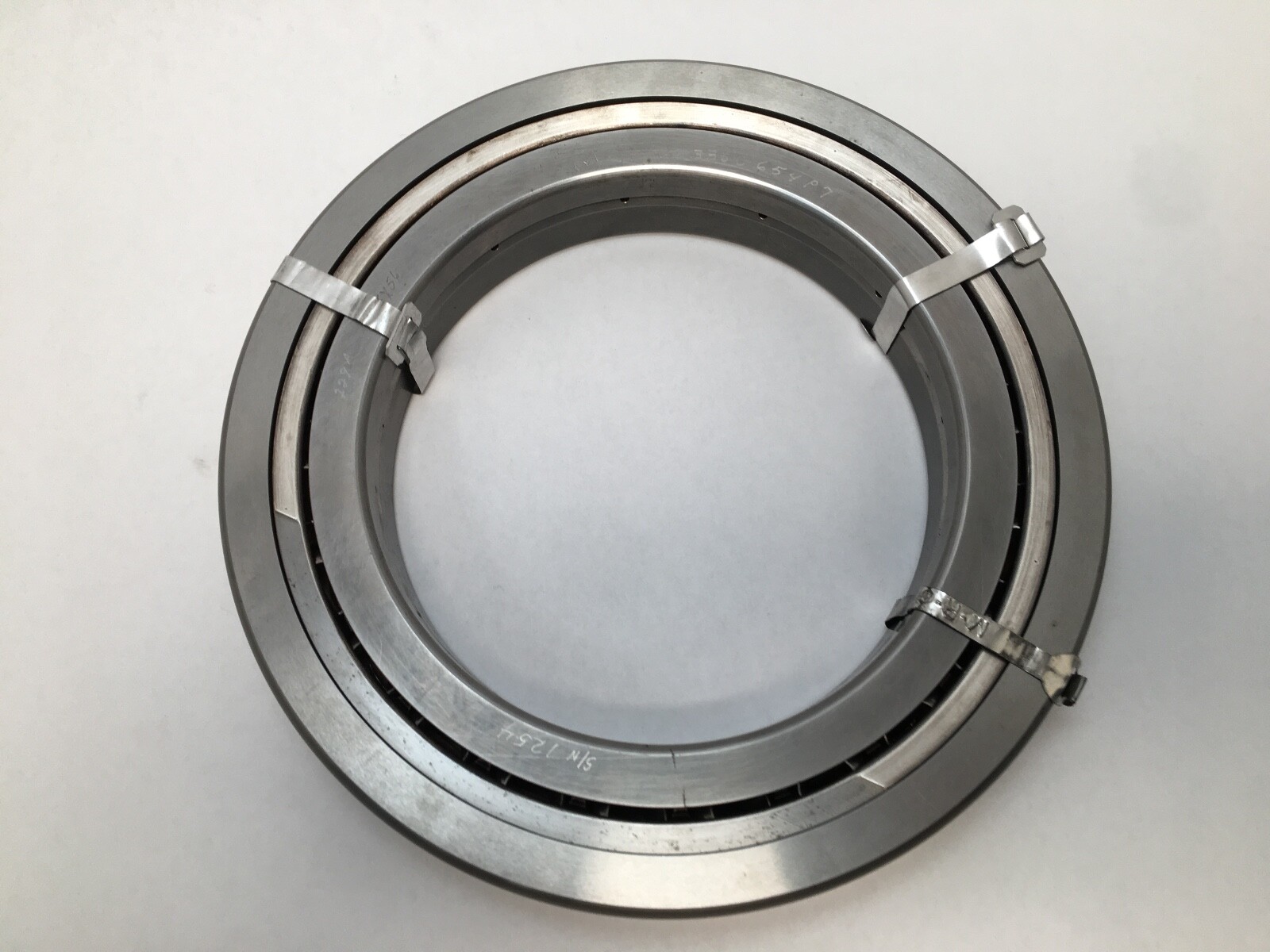

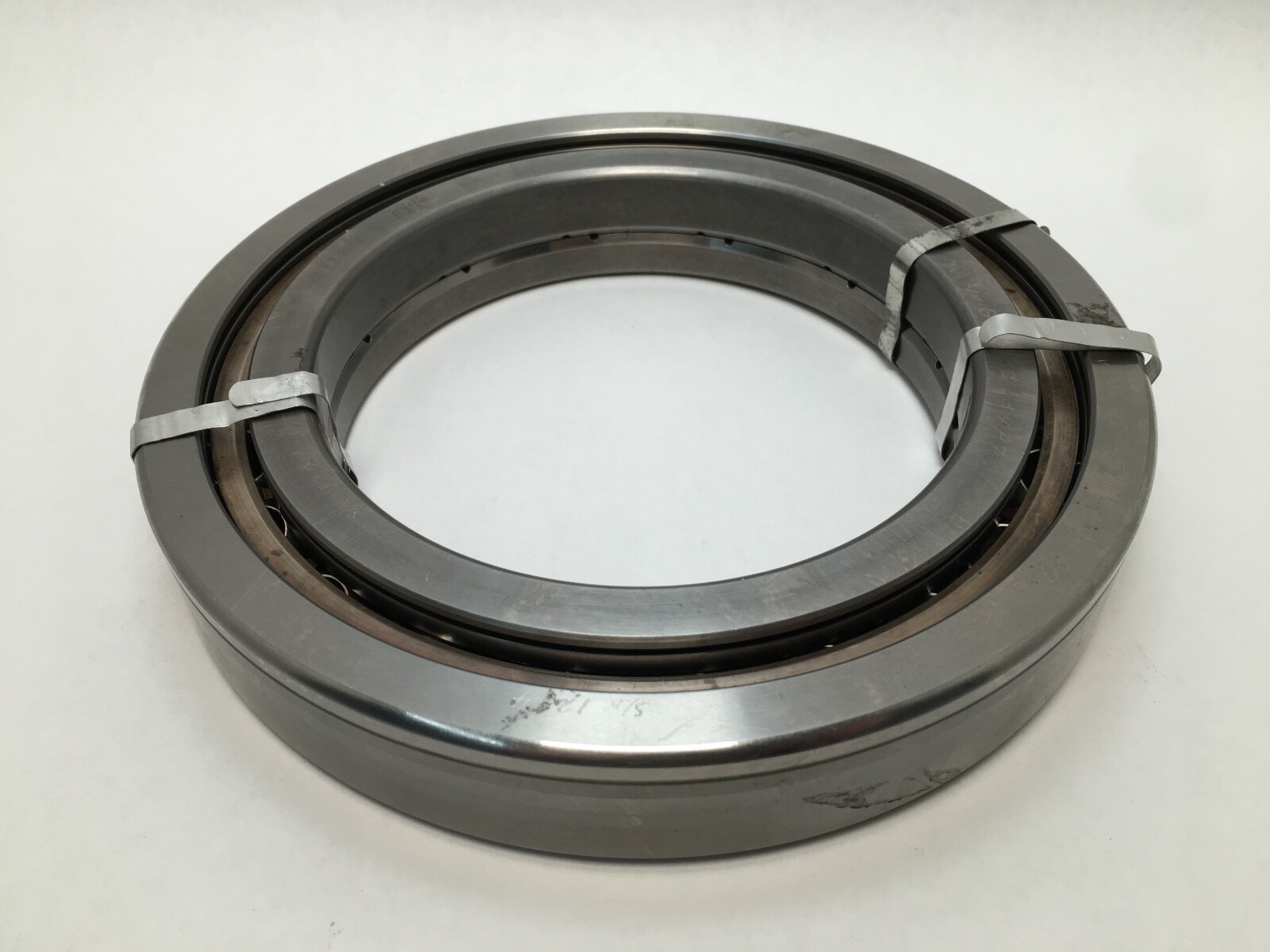

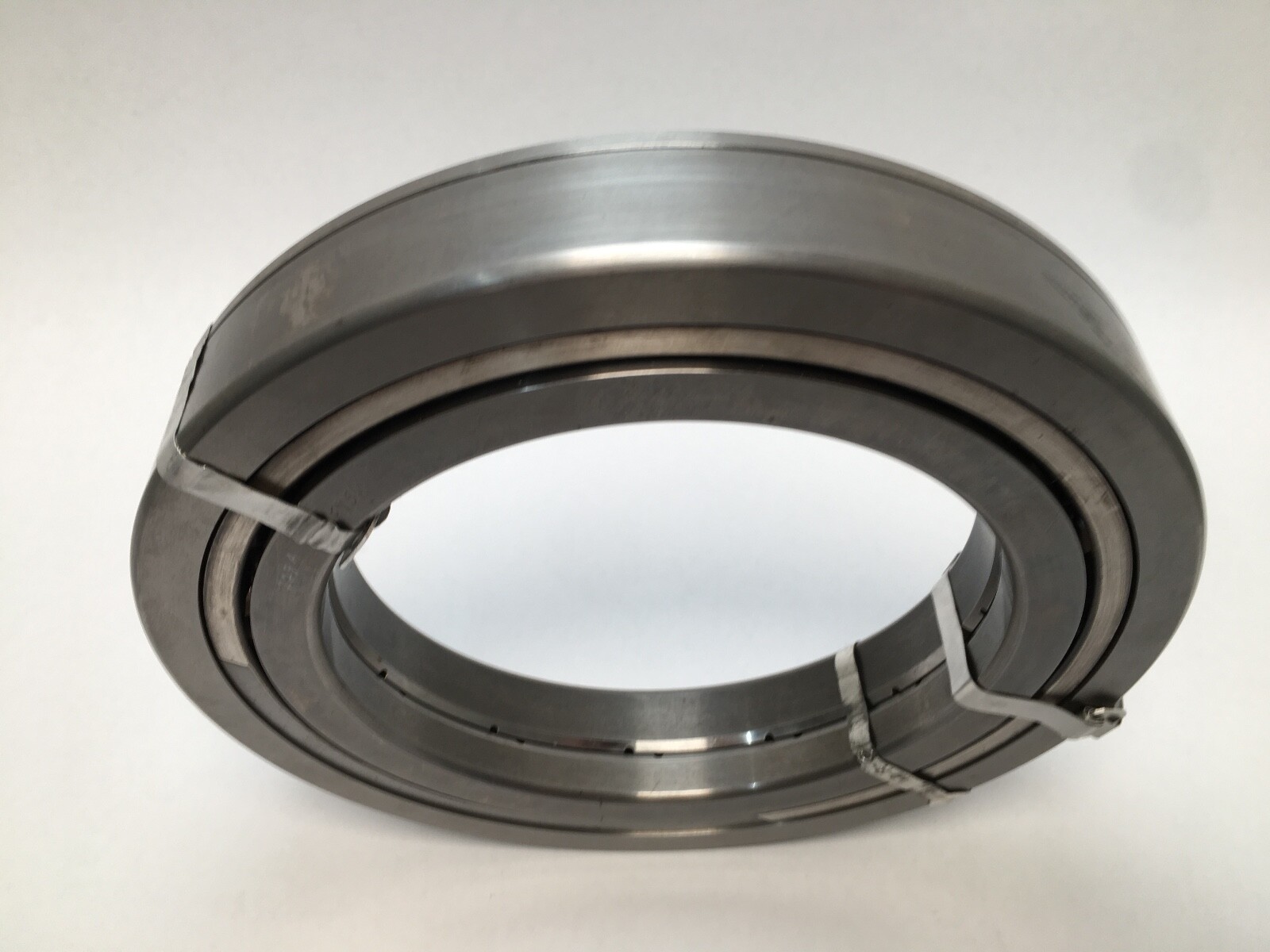

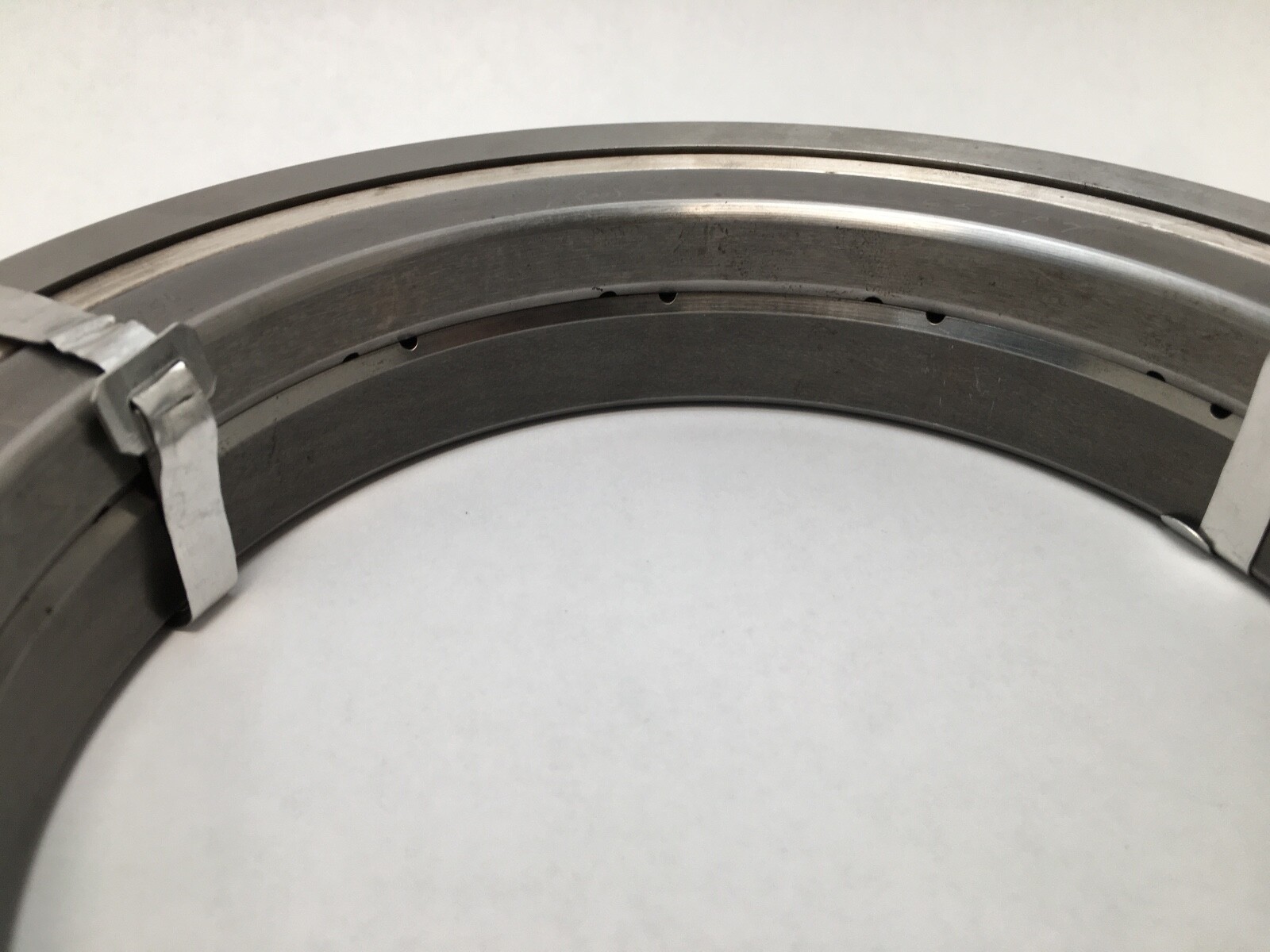

MRC GE336C654P7 angular contact ball bearing on the 9000 Series extra-light section, 150 x 225 x 35 mm. Bore Diameter: 150 mm. Outside Diameter: 225 mm. Overall Width: 35 mm. Contact Angle: 29°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Precision Class: ABEC 7 / P4. Series: 9100. Base Number: 9130UK. Bearing Material: Chrome steel. Unit Quantity: 1 Pc. MRC also carries this execution as 9130UK105 and 229A.

Decoding the designation

9100 — MRC 9000 Series extra-light angular contact section.

UK — split inner ring, 29° contact angle.

105 — MRC execution number for this build.

P7 — ABEC 7 precision: tighter running accuracy, lower running vibration and closer shaft location.

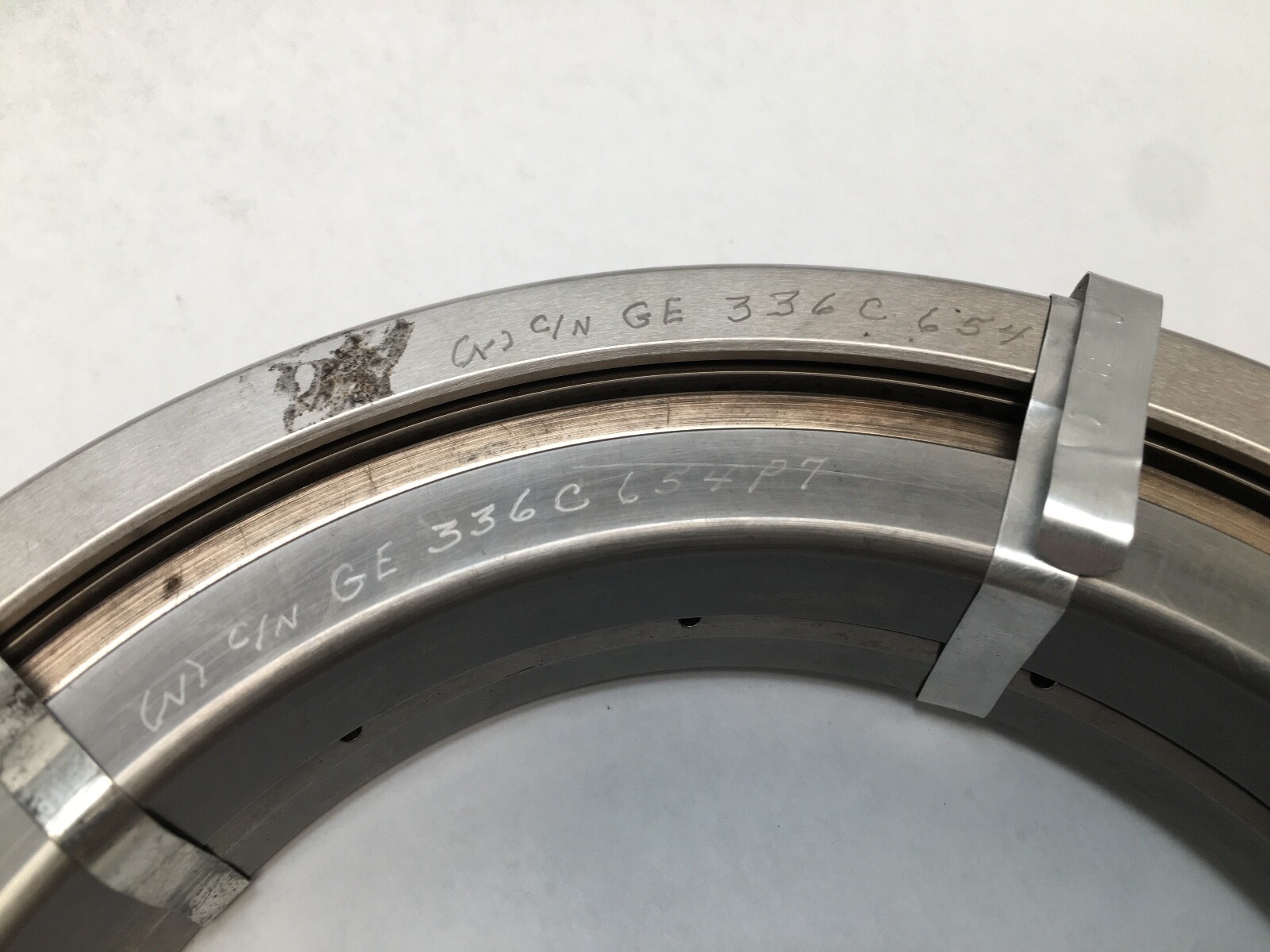

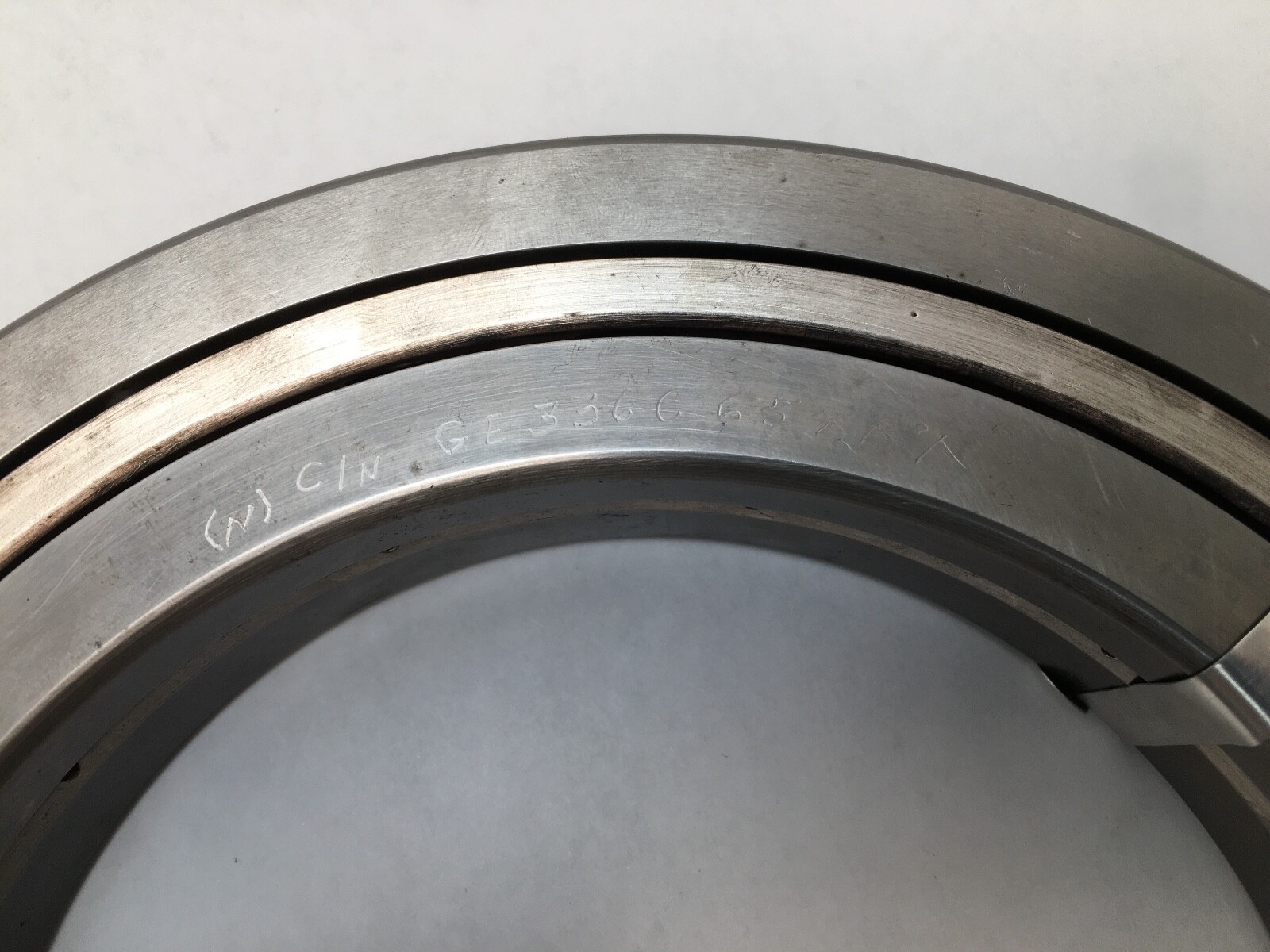

GE336C654P7 — the General Electric drawing number this bearing is built to.

What these specs mean in practice

A 29° contact angle sets the load path well off radial, so the bearing carries heavy thrust in one direction alongside its radial load. The split inner ring allows a full ball complement to be assembled into the raceway, which raises capacity over a Conrad-filled ring on the same envelope. The extra-light 9100 section keeps outside diameter and width down for a 150 mm shaft, suiting large motor and generator end housings where radial space is fixed. ABEC 7 holds bore, outside diameter and running accuracy to super-precision limits.

Quantity and configuration

Unit Quantity: 1 Pc. One bearing, open on both faces, straight bore.

Mounting data

Shaft seat 150 mm. Housing bore 225 mm. Ring width 35 mm. The 9100 extra-light section gives a 37.5 mm radial cross-section between shaft and housing.

Interchange guidance

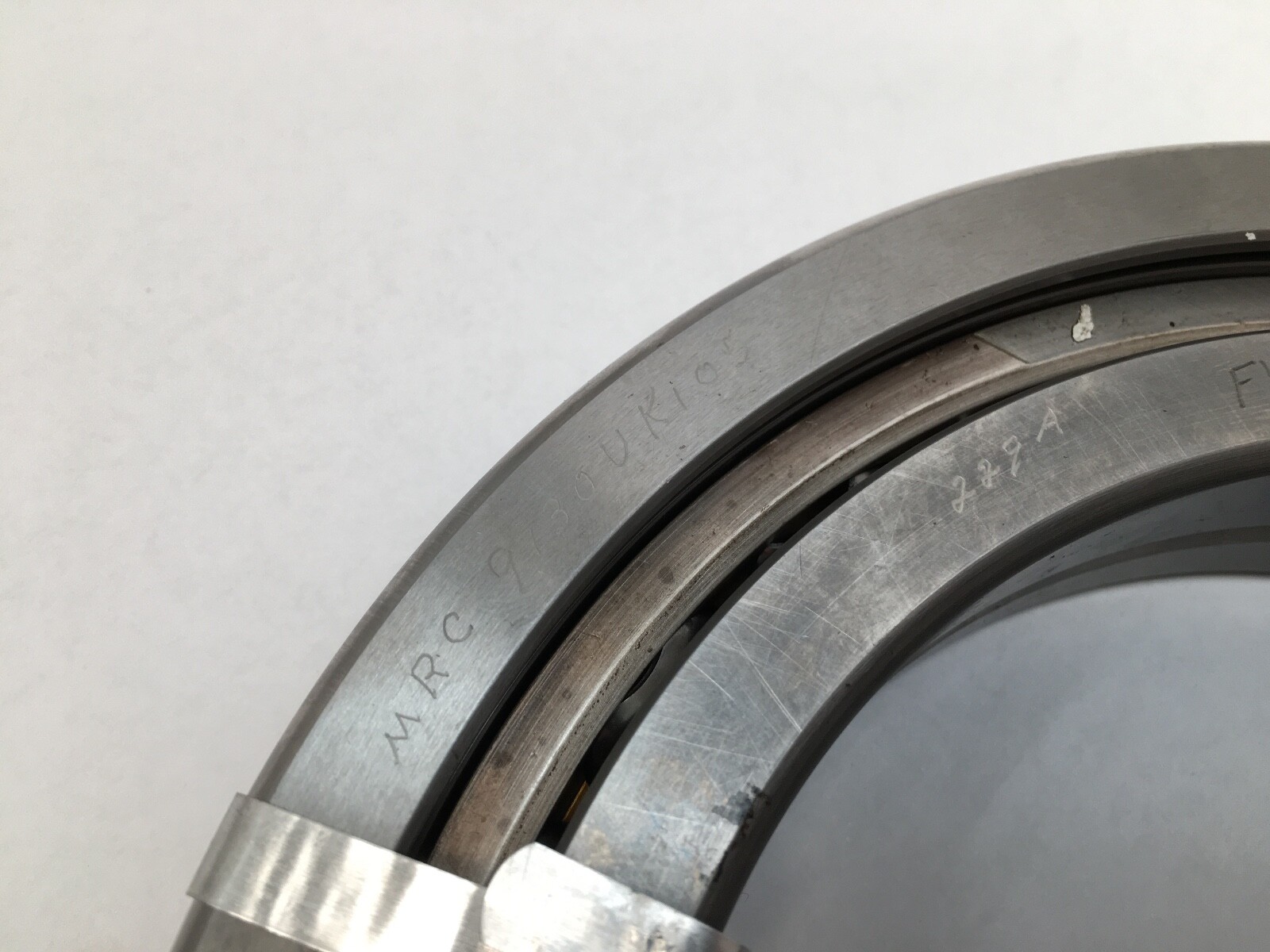

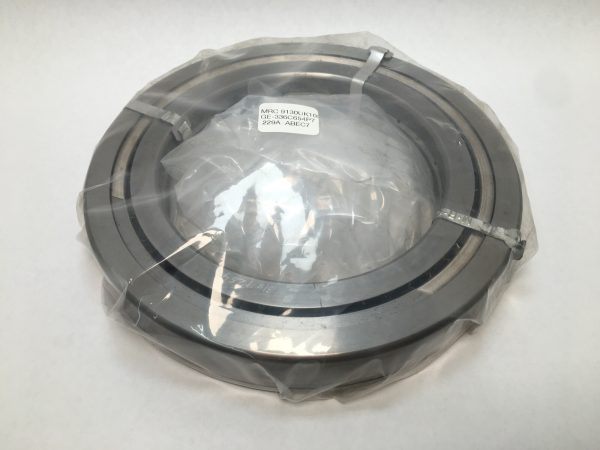

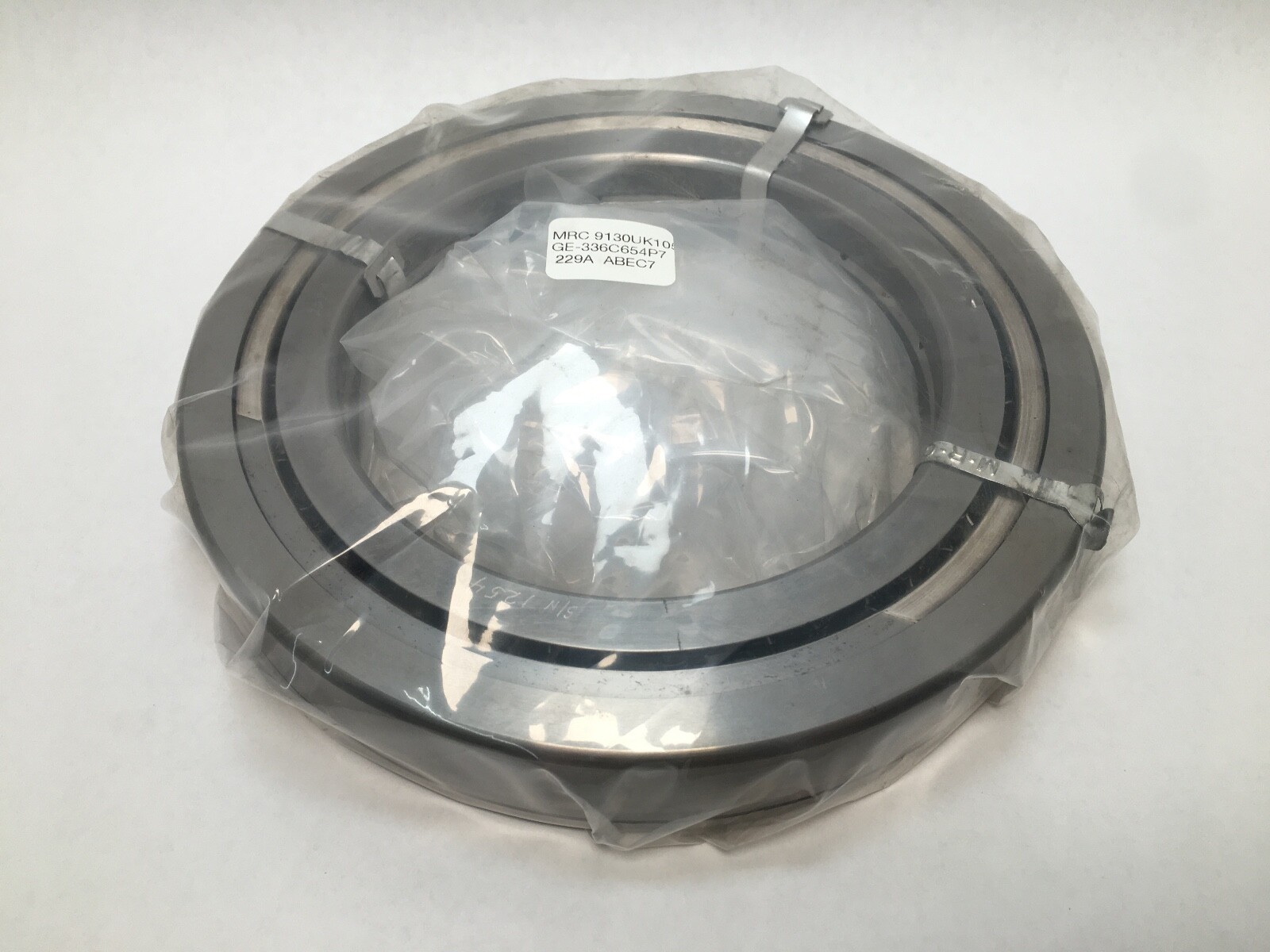

Cross-Reference 1: MRC 9130UK105. Cross-Reference 2: MRC 229A. Searchable variants of the drawing number: GE336C654P7, GE-336C654-P7, GE 336C654 P7.
