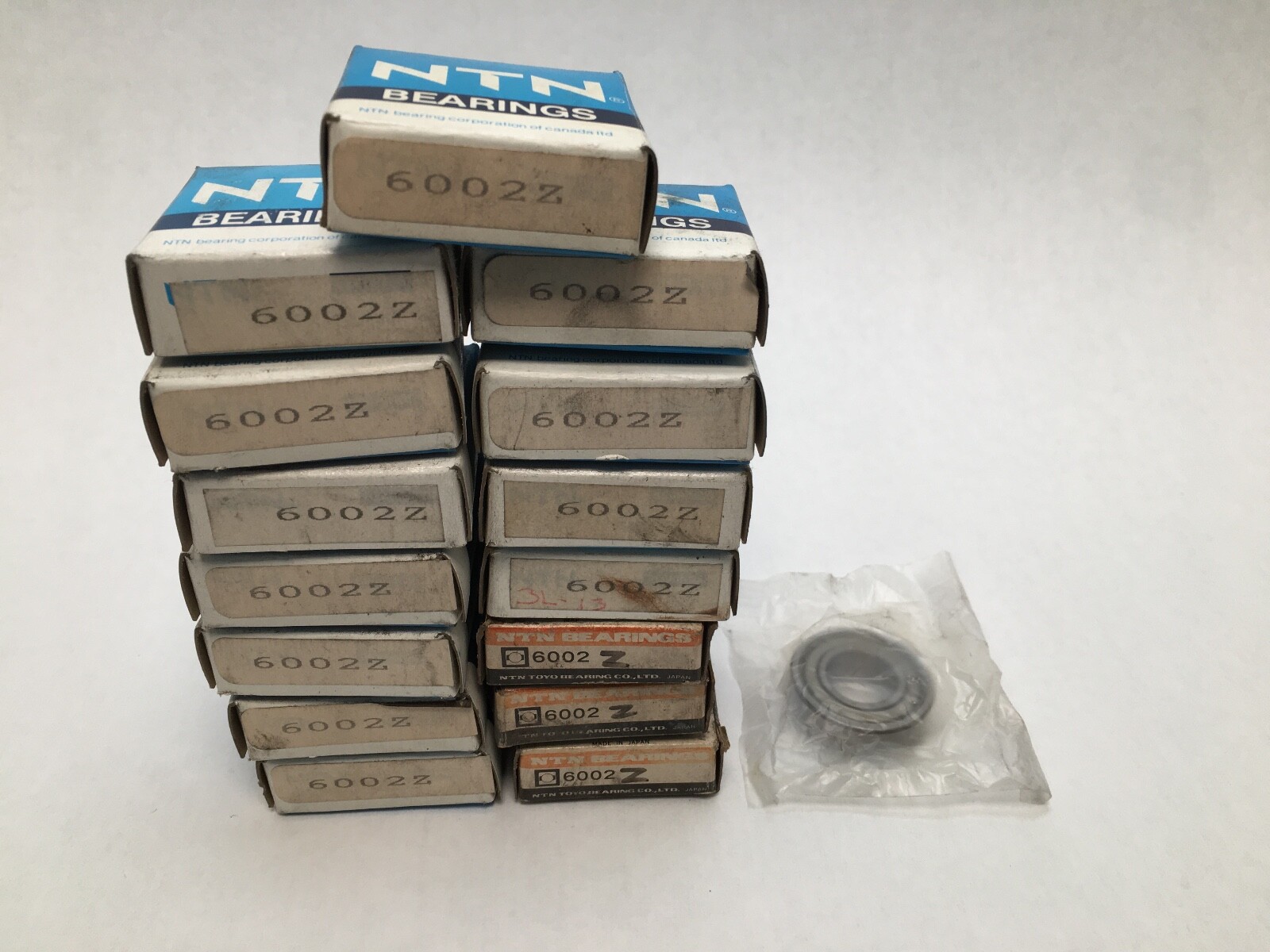

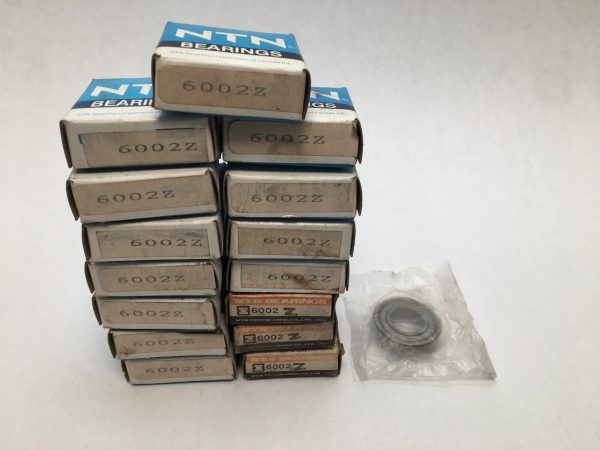

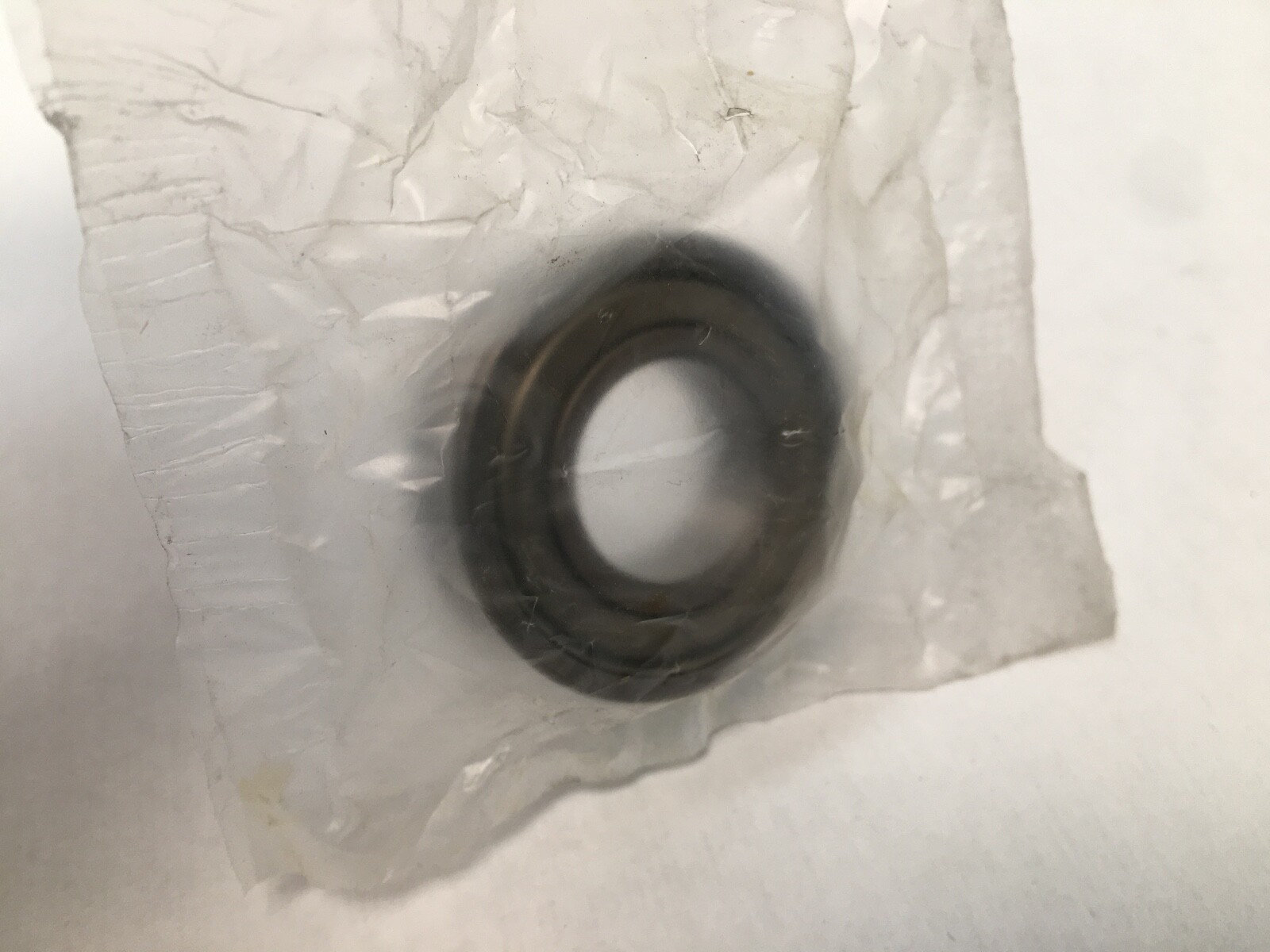

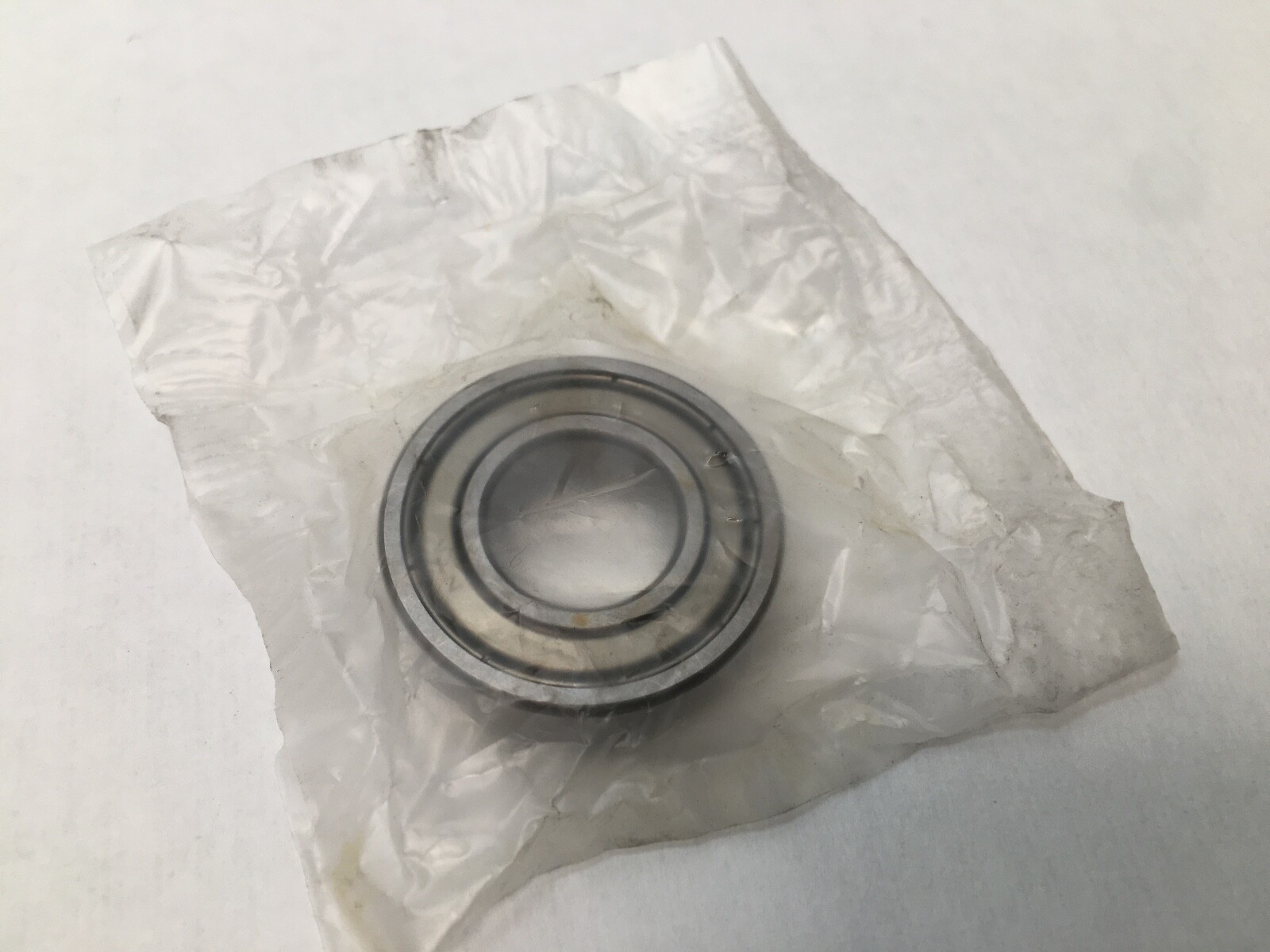

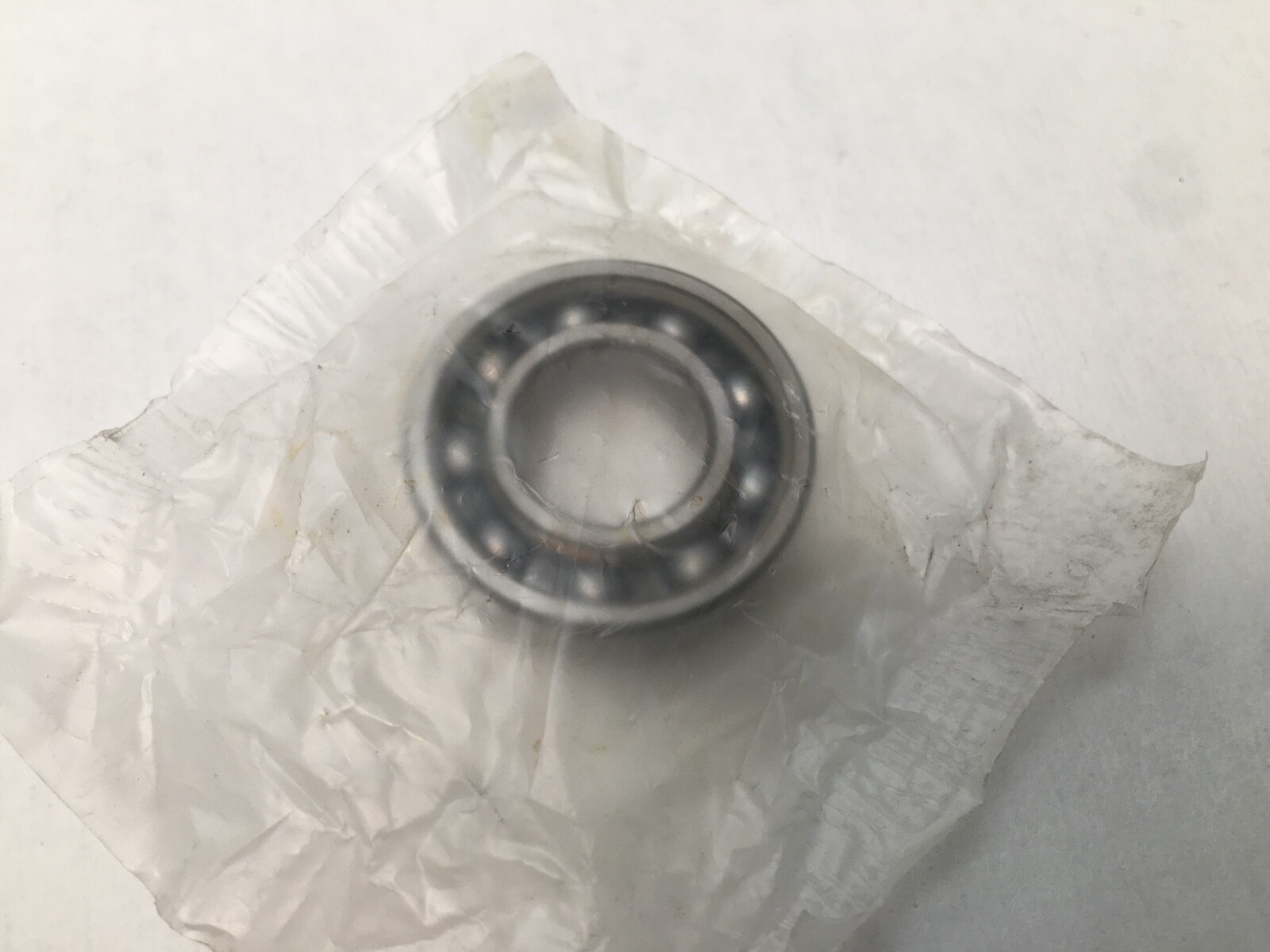

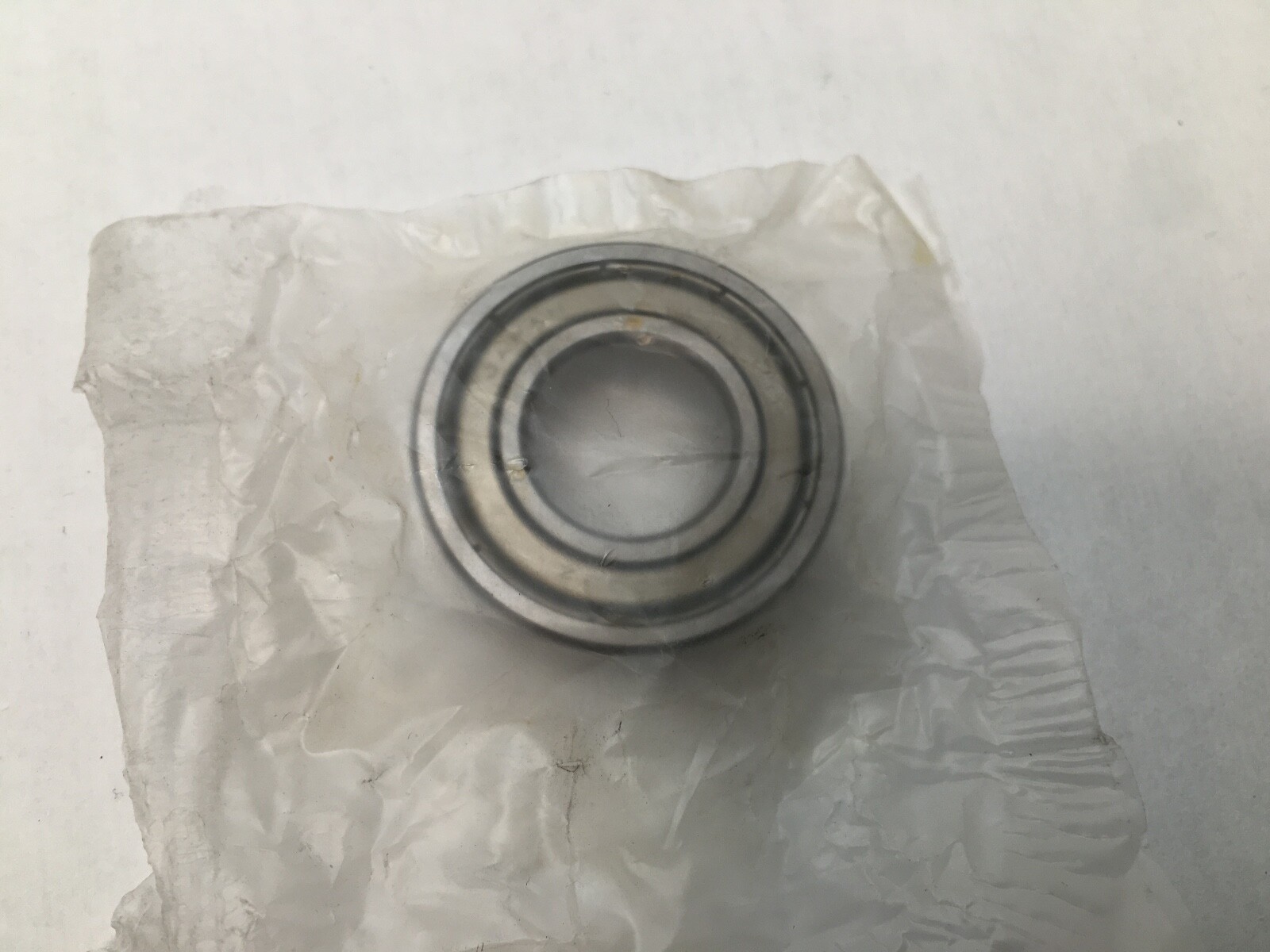

Deep groove ball bearing, 15 x 32 x 9 mm, one steel shield, 6,200 N dynamic rating. NTN 6002Z, CN clearance, pressed steel cage. Sold as 15 pieces.
List Price
$96.36
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6002Z |
| Model | 6002-Z |
| Bearing Type | Ball Bearing, Shield one side |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6000 |
| Precision Class | ABEC 1 / P0 |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 6,200 N |
| Static Load Rating | 2,840 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.029 kg (0.064 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 22,000 rpm grease; 26,000 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Bearing Material | High carbon chrome steel |
| Cross Reference 1 | SKF 6002-Z |
|---|---|
| Cross Reference 2 | FAG 6002-Z |
| Cross Reference 3 | NSK 6002Z |
| Cross Reference 4 | Koyo 6002Z |
NTN 6002Z is a single-row deep groove ball bearing with one steel shield. Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Closure Type: Shield one side. Rolling Elements: Ball. Bore Type: Straight.
6002 — ISO 60-series extra-light deep groove ball bearing, 15 mm bore, 15 x 32 x 9 mm.
Z — one steel shield. The opposite face is open.
Dynamic Load Rating: 6,200 N. Static Load Rating: 2,840 N. Limiting Speed: 22,000 rpm grease; 26,000 rpm oil. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Cage Material: Pressed steel. Bearing Material: High carbon chrome steel. Operating temperature range: -40 to 120 °C. Item Weight: 0.029 kg (0.064 lb).
Chamfer r min: 0.3 mm. Shaft abutment da: 17 mm min, 19 mm max. Housing abutment Da max: 30 mm. Fillet radius ras max: 0.3 mm.
Unit Quantity: 15 Pcs. Fifteen single bearings, each a complete unit.
Same 15 x 32 x 9 mm envelope with one shield: SKF 6002-Z, FAG 6002-Z, NSK 6002Z, Koyo 6002Z.
$40.76
9 in stock
