Spherical roller bearing, 90 mm tapered bore x 160 mm OD x 40 mm, C3 clearance, pressed steel cage, W33 lube groove. Mounts on an H318 adapter sleeve.
List Price
$116.42
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ASKJC3W33 |
| Model | 22218 A S K J C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Base Number | 22218 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; W33 roller bearing |
| Application Types | Conveyor pulleys; gearboxes and reducers; fans and blowers; vibrating screens; paper machine rolls |
| Mpn Variants | 22218ASKJC3W33; 22218-AS-K-J-C3-W33; 22218ASKJ.C3; 22218 A S K J C3 W33; 22218KC3 |
| Compatible With Replaces | Adapter sleeve FAG H318 (80 mm shaft seat), KM18 locknut, MB18 lock washer |
| Cage Type | Pressed |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | grease or oil |
| Relubrication Feature | W33 groove and three radial holes |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22218 EK/C3 |
|---|---|
| Cross Reference 2 | NSK 22218EAKE4C3 |
| Cross Reference 3 | NTN 22218EAKD1C3 |
| Cross Reference 4 | Timken 22218KEJW33C3 |
| Cross Reference 6 | FAG 22218-E1-XL-K-C3 (current FAG design, same envelope) |

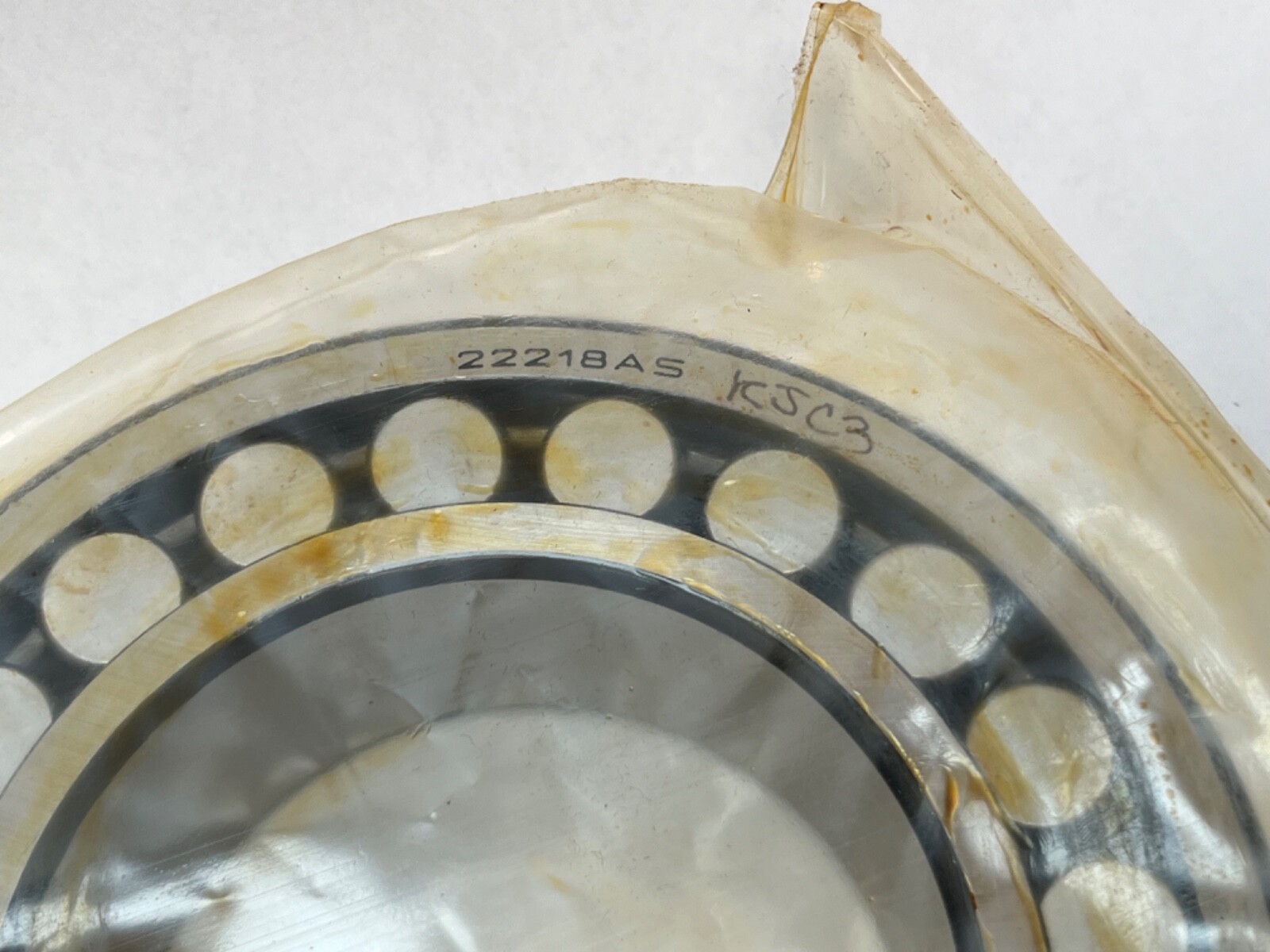

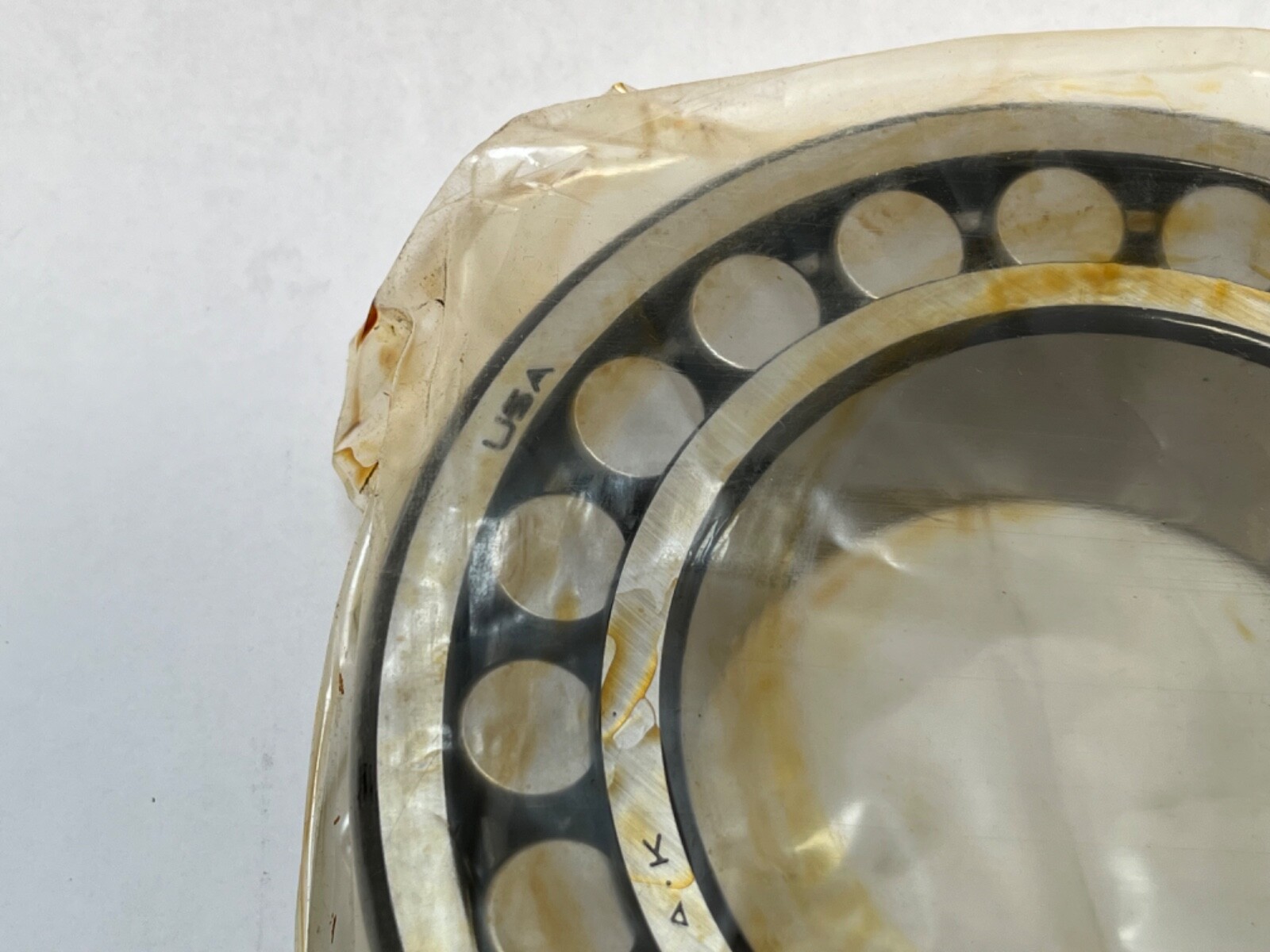

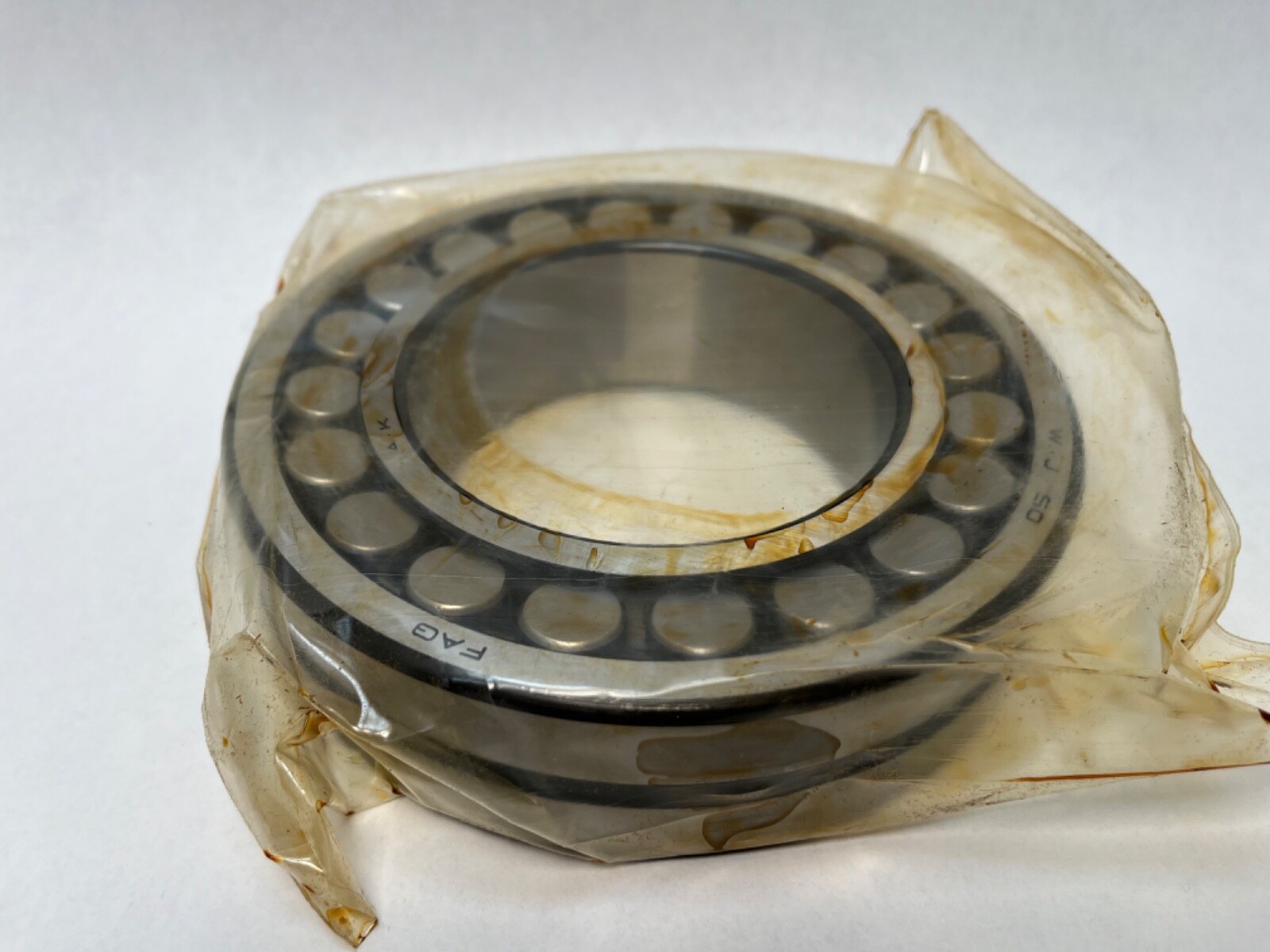

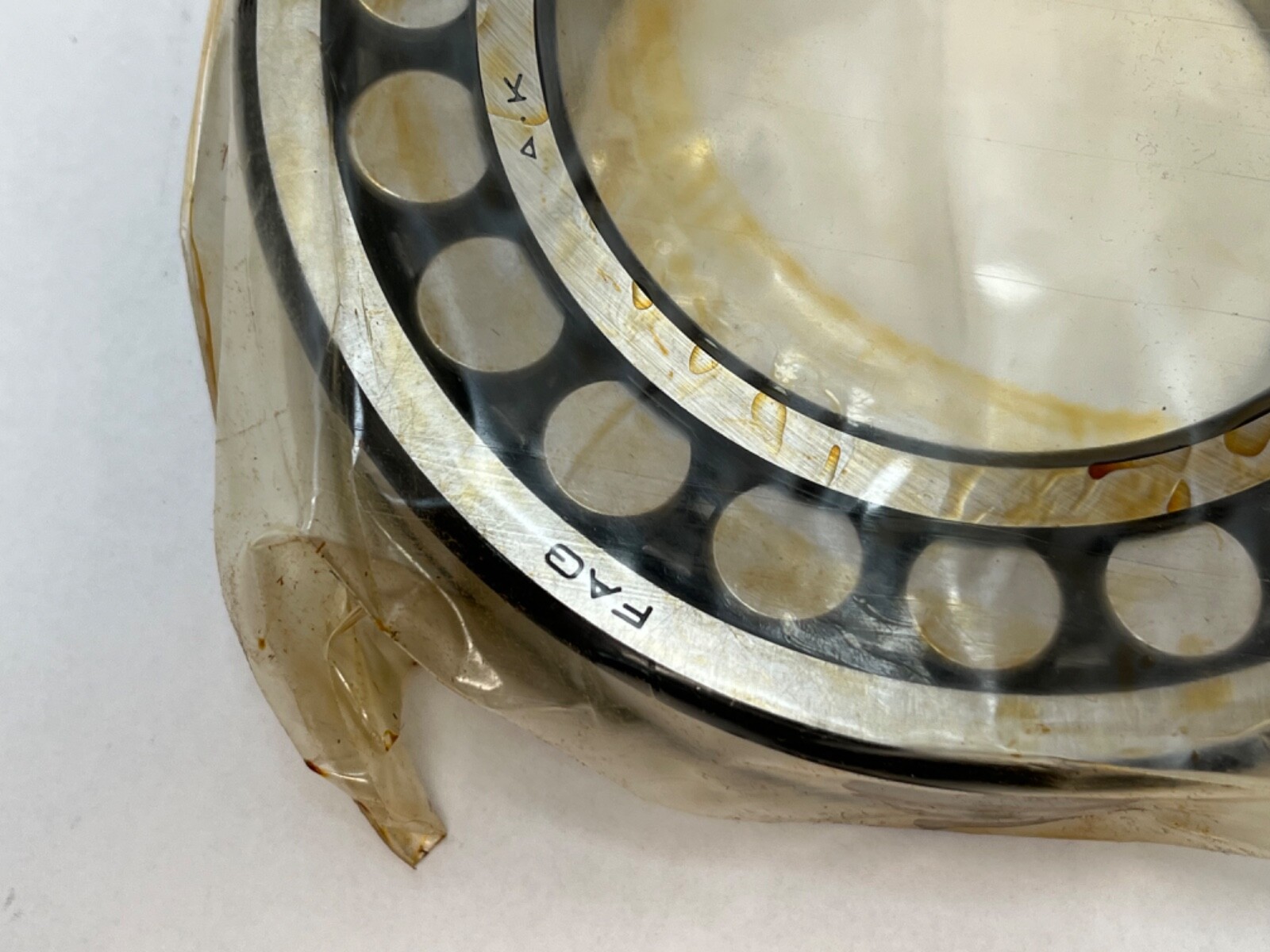

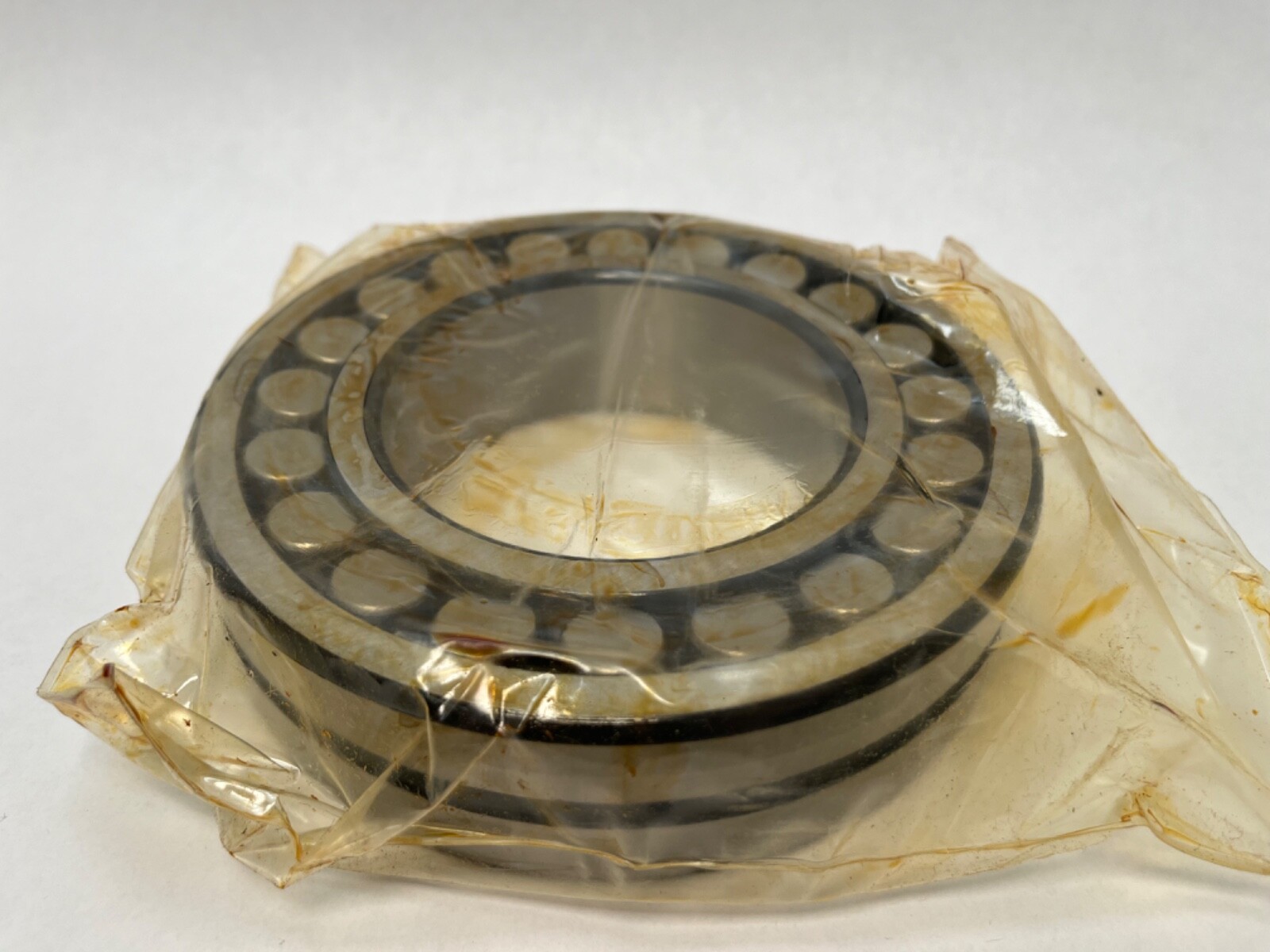

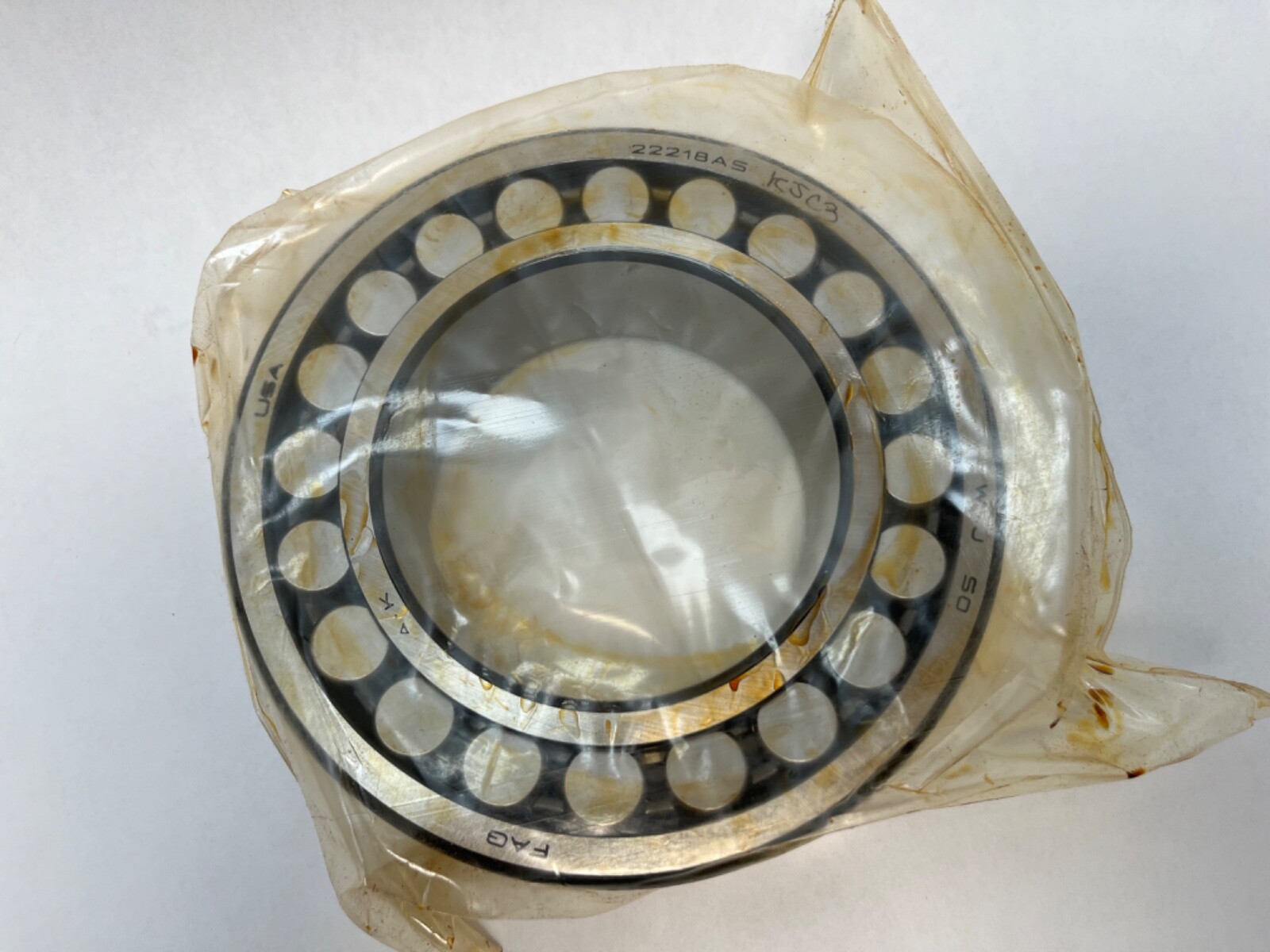

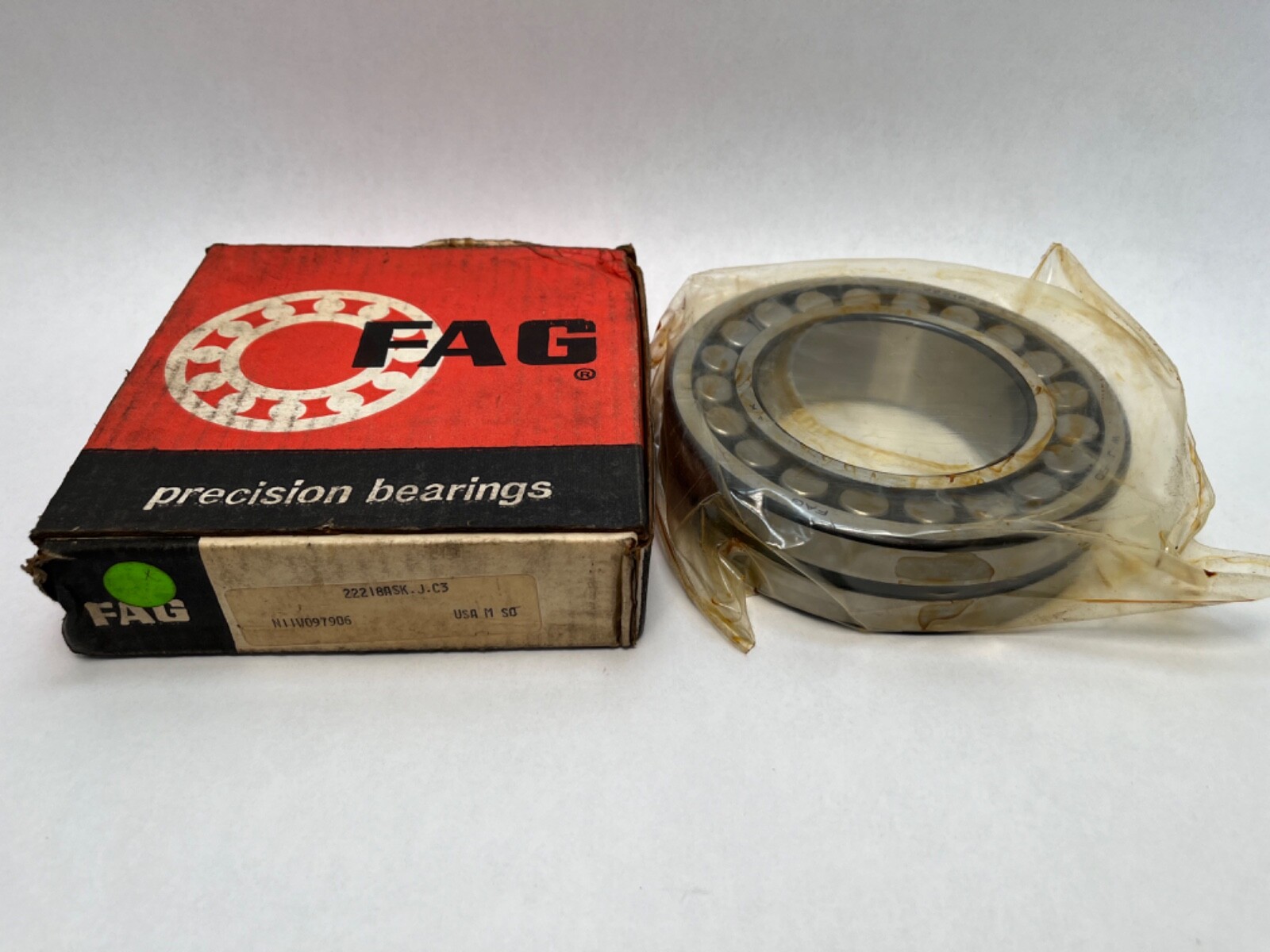

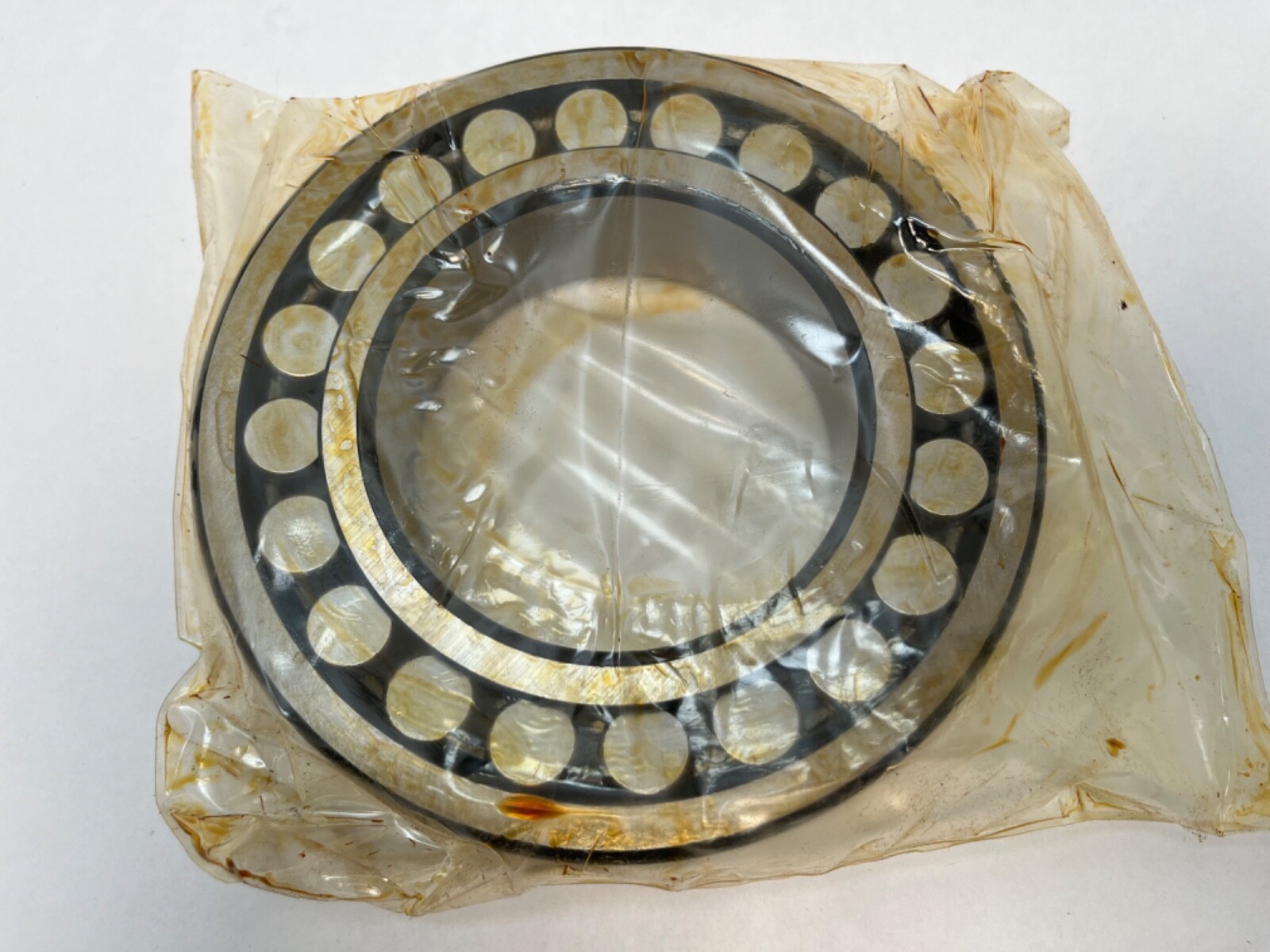

FAG 22218ASKJC3W33 double-row spherical roller bearing with a 1:12 tapered bore. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Width: 40 mm. Number Of Rows: 2. Seal Type: Open.
222 — double-row spherical roller bearing, 22 dimension series.
18 — bore code, 18 × 5 = 90 mm.
S / W33 — lubrication groove and three radial holes in the outer ring.
K — 1:12 tapered bore.
J — pressed steel cage.
C3 — radial internal clearance greater than normal.
The spherical outer raceway lets the bearing align itself to shaft deflection and housing misalignment while carrying heavy radial load and thrust in both directions. Cage Material: Pressed steel. Internal Clearance: C3, for interference fits and shafts running warmer than the housing. Lubricant: grease or oil, fed through the outer-ring groove and holes.
Bore Type: Tapered 1:12. Adapter sleeve for a cylindrical shaft: FAG H318, 80 mm shaft seat, with KM18 locknut and MB18 lock washer.
Unit Quantity: 1 Pc. Bearing only.
Cross-Reference: SKF 22218 EK/C3, NSK 22218EAKE4C3, Timken 22218KEJW33C3, NTN 22218EAKD1C3 — same envelope, tapered bore and C3 clearance, with each maker’s own cage. Current FAG design of the same size: 22218-E1-XL-K-C3.
