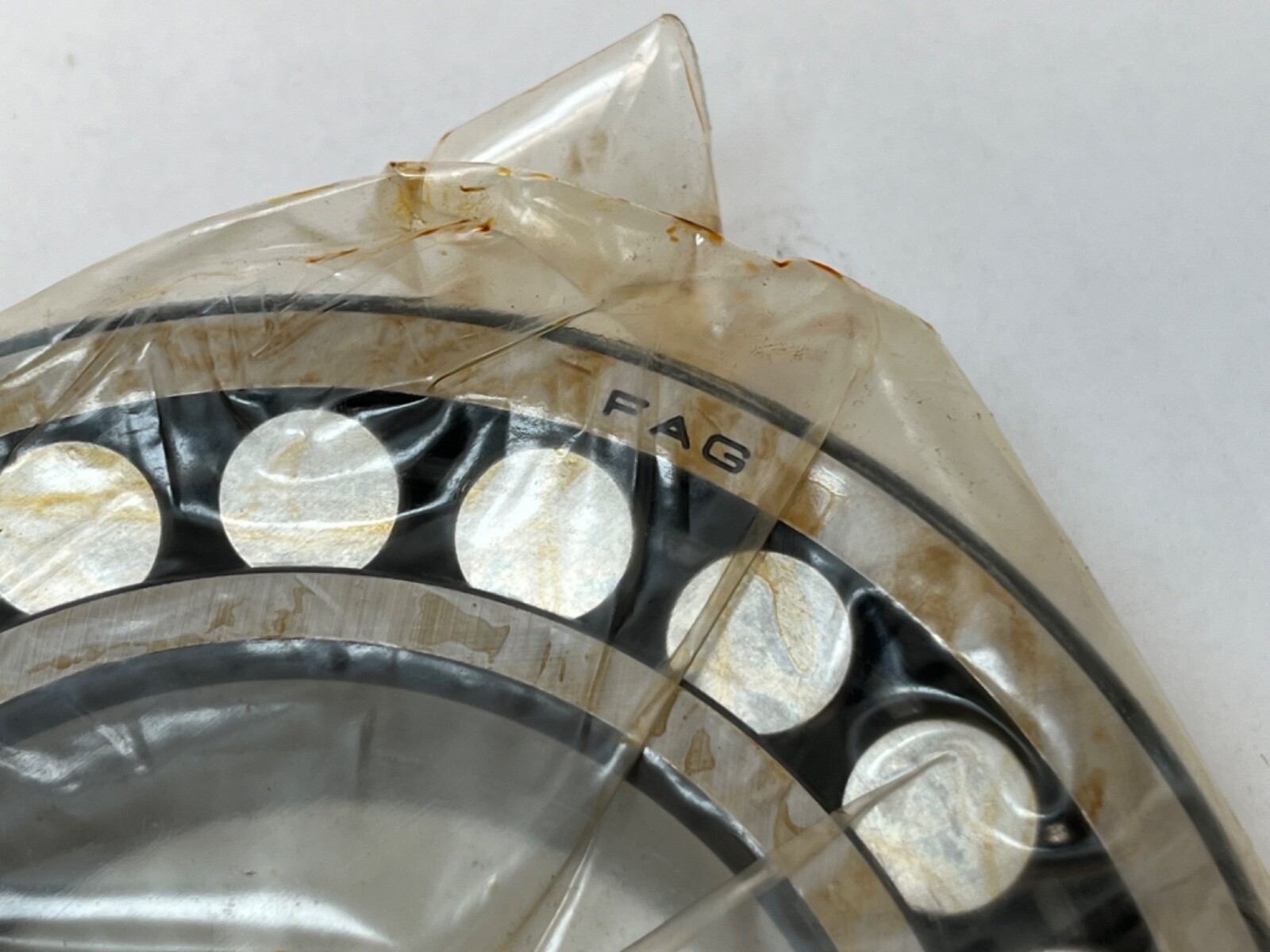

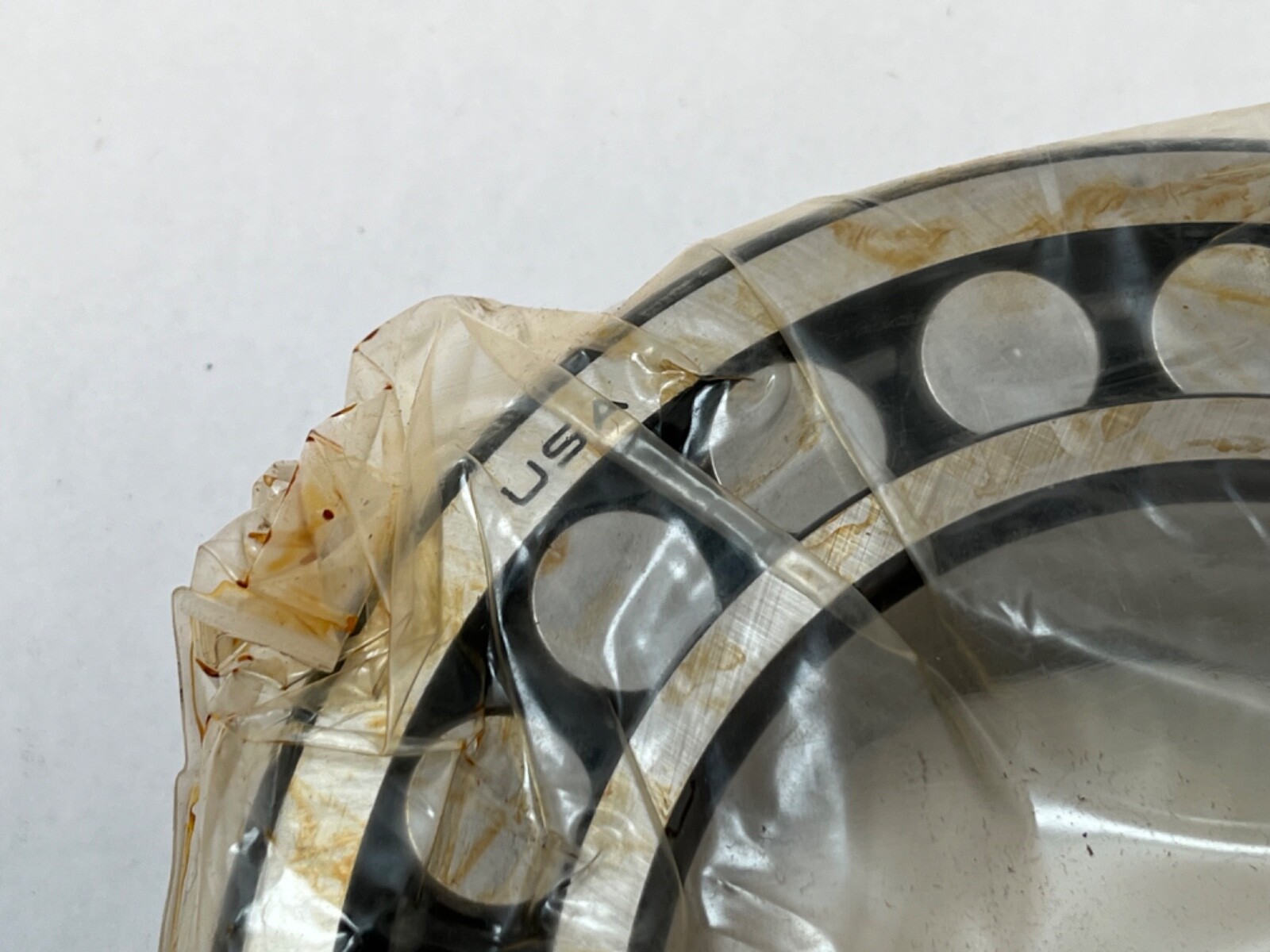

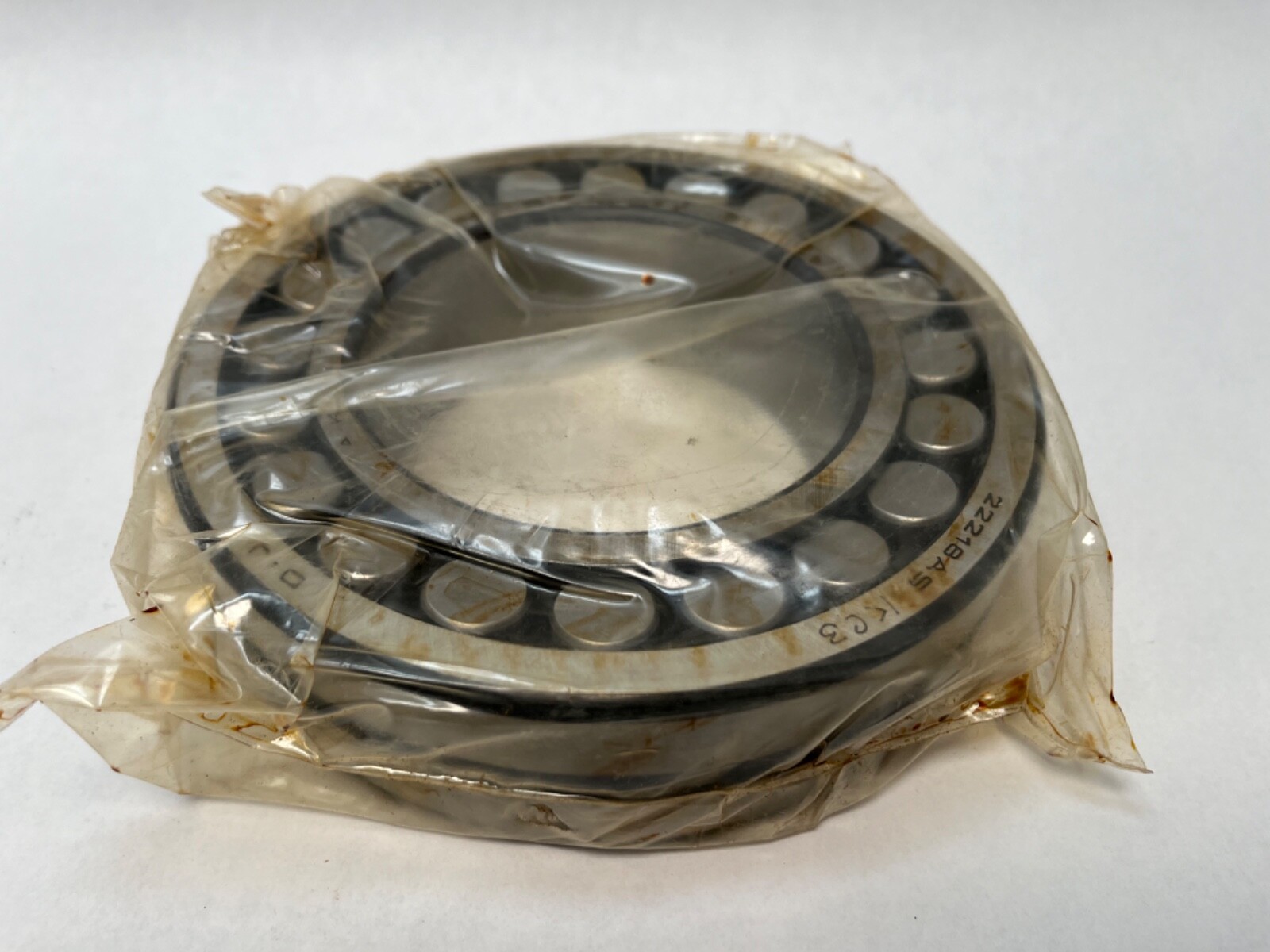

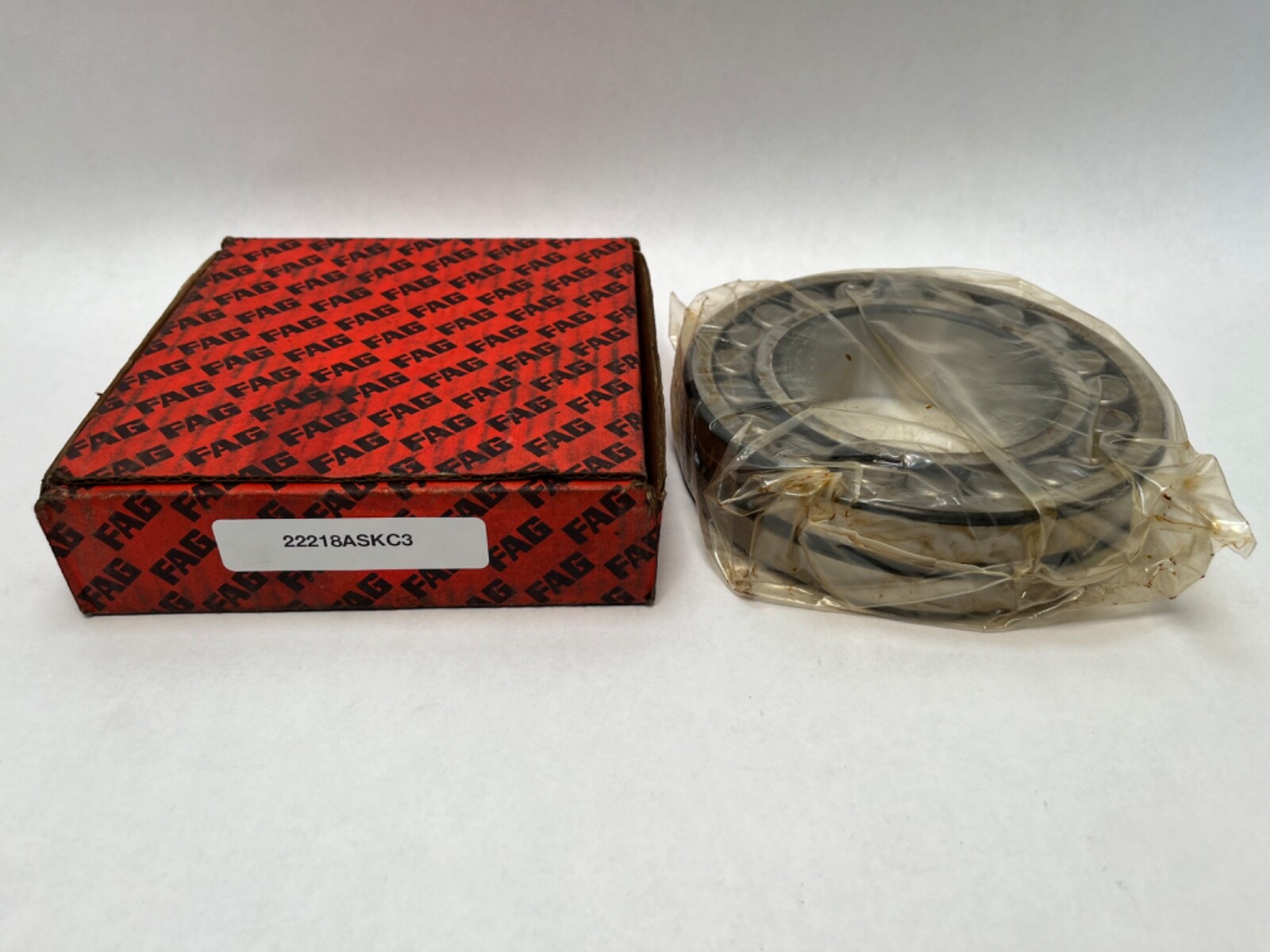

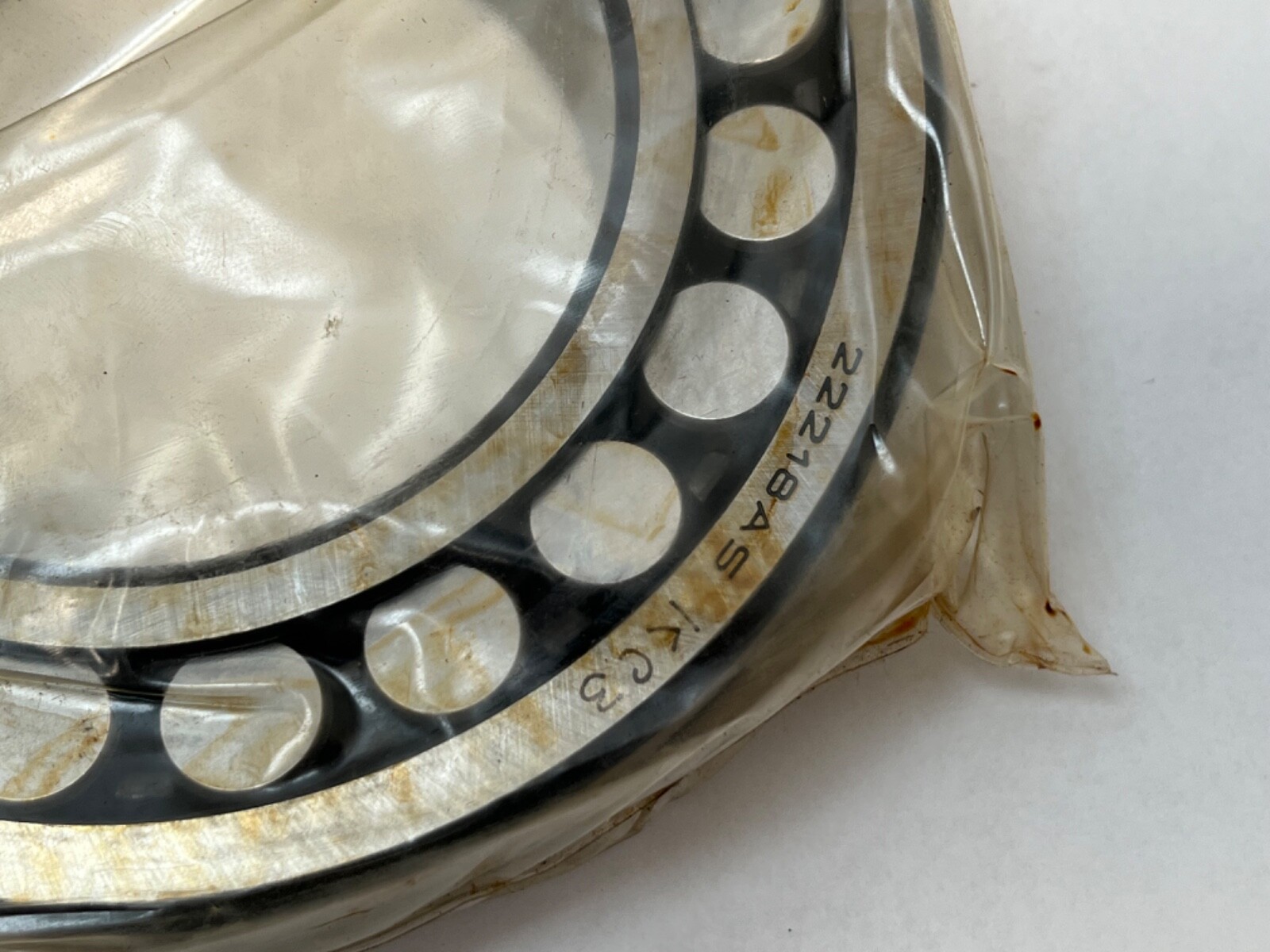

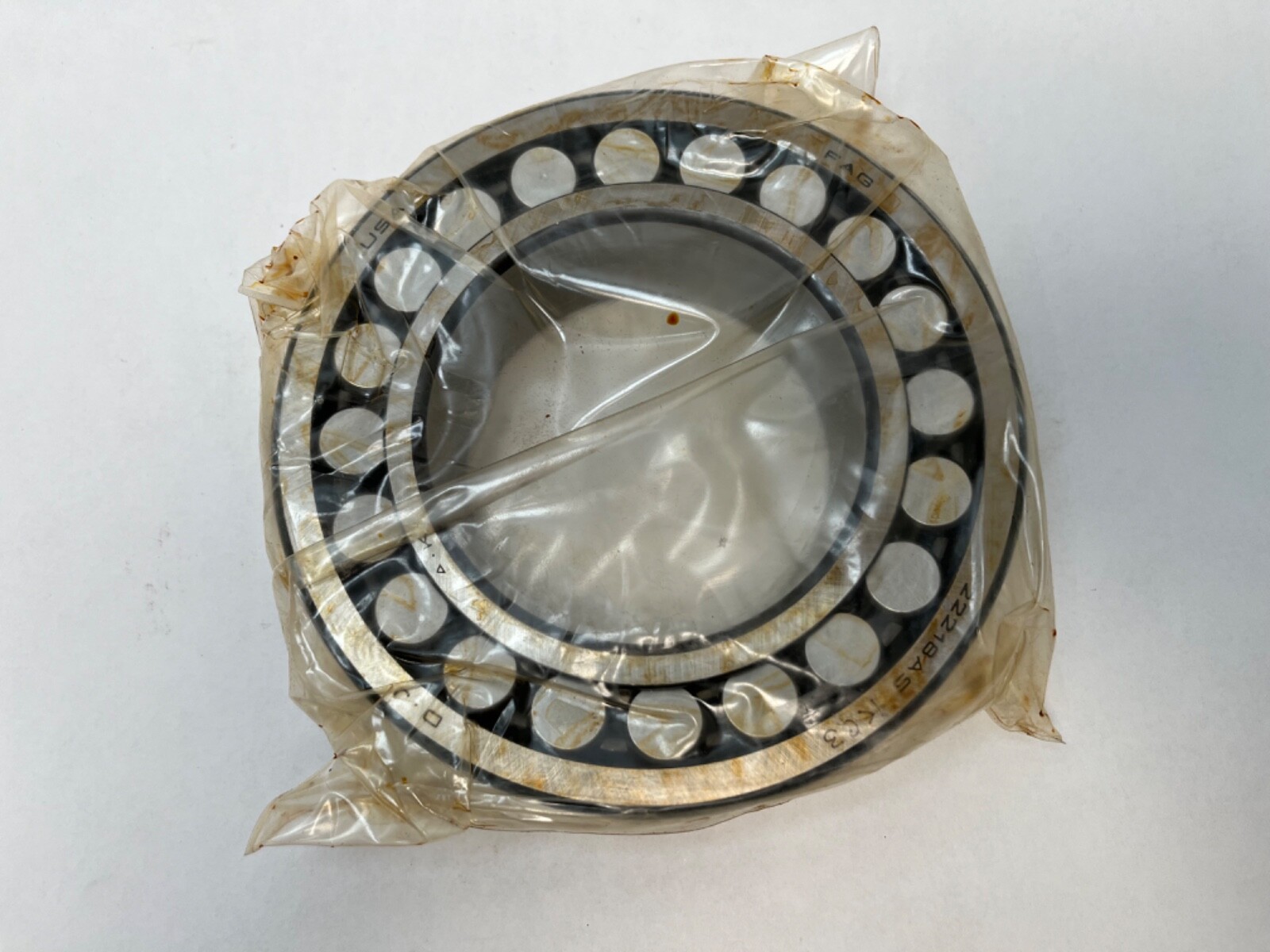

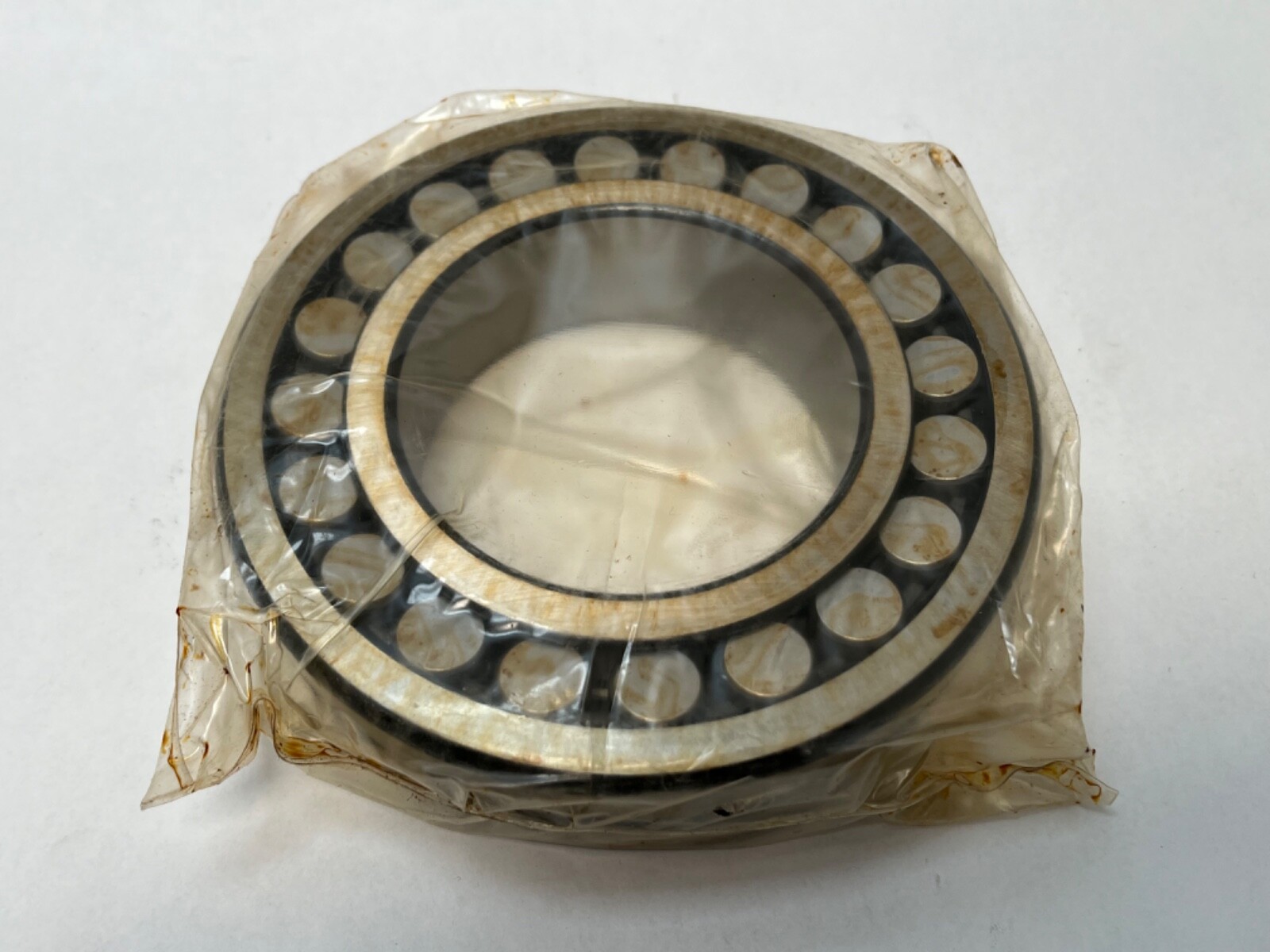

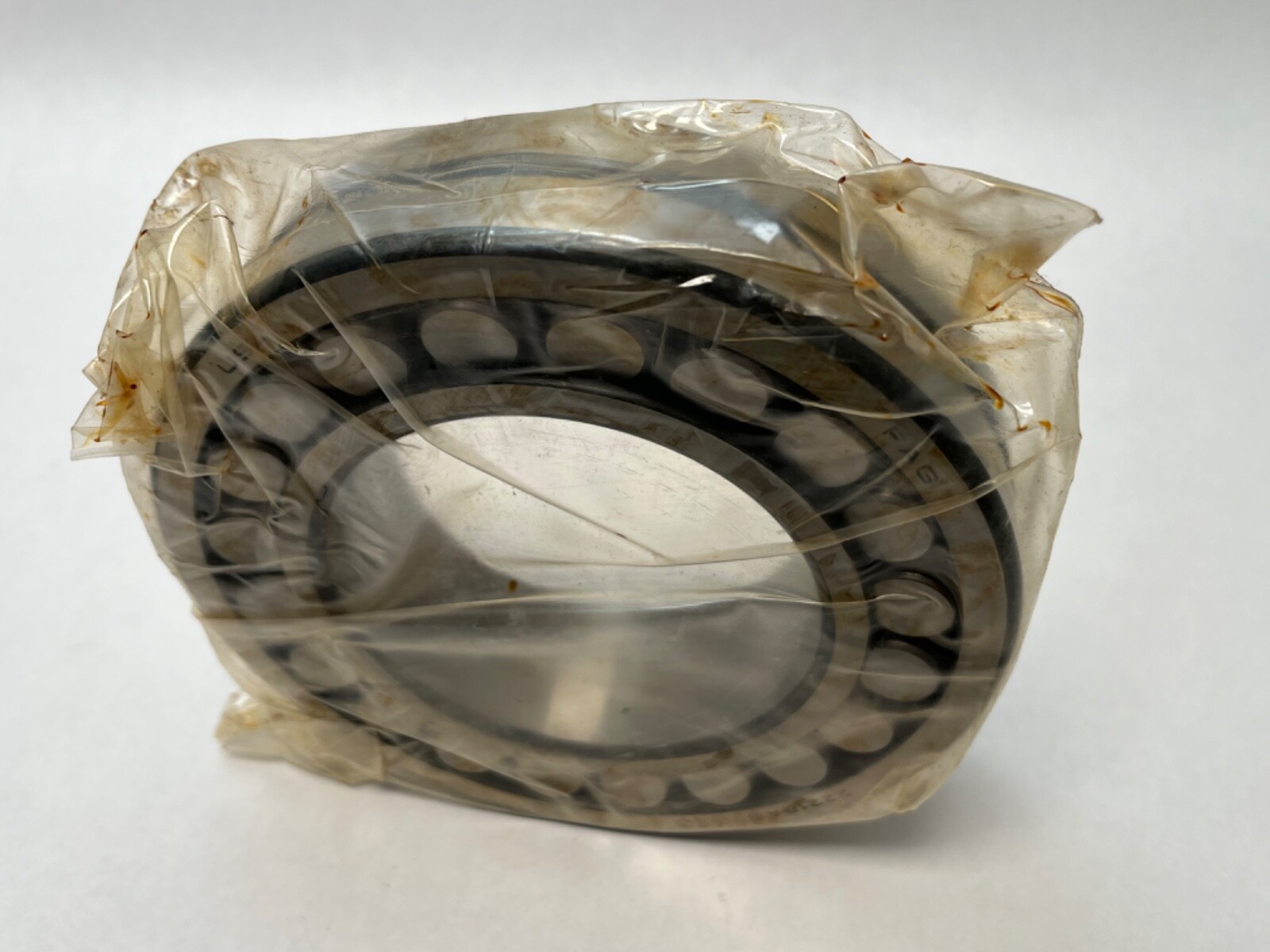

Double-row spherical roller bearing, 90 x 160 x 40 mm, 1:12 tapered bore, outer-ring lube groove with three holes, C3 radial clearance. 1 Pc.
List Price
$116.42
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ASK.C3 |
| Model | 22218-AS-K-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Base Number | 22218K |
| Industry Terms | Spherical roller bearing, self-aligning roller bearing, taper bore bearing, adapter sleeve bearing, W33 lube groove bearing |
| Common Misspellings | 22218ASKC3, 22218 ASK C3, 22218-ASK-C3, 2221 8ASK.C3 |
| Application Types | Conveyors, crushers, vibrating screens, fans, gearboxes, mining and quarry machinery, paper machinery |
| Bore Shaft Size | 90 mm (3.5433 in) tapered bore, taper 1:12 |
| Locking Method | Drive-up on 1:12 taper; H318 adapter sleeve or tapered shaft journal |
| Mpn Variants | 22218ASK.C3, 22218-AS-K-C3, 22218 AS K C3, 22218ASKC3, 22218ASK, 22218K, 22218 |
| Compatible With Replaces | H318 adapter sleeve (80 mm shaft seat); AHX318 withdrawal sleeve |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Part Number | 22218ASK.C3 |
| Relubrication Feature | Outer ring groove and three radial holes |
| Closure Type | Open |
| Cross Reference 1 | SKF 22218 EK/C3 |
|---|---|
| Cross Reference 2 | Timken 22218KEJW33C3 |
| Cross Reference 3 | FAG 22218-E1-XL-K-C3 – current Schaeffler form |
| Cross Reference 4 | FAG 22218-AS-C3 – straight bore, not tapered |
FAG 22218ASK.C3 double-row spherical roller bearing, 1 Pc. Bore Diameter: 90 mm, 1:12 tapered. Outside Diameter: 160 mm. Overall Width: 40 mm. Main dimensions to DIN 635-2. Open on both faces, outer-ring lubrication groove with three radial holes, C3 internal clearance.
222 — spherical roller bearing, 222 dimension series.
18 — bore code for a 90 mm bore.
AS — FAG code for an annular lubrication groove in the outer ring outside diameter with three radial lubrication holes, the feature other schemes label W33.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered. Internal Clearance: C3. Closure Type: Open. Relubrication Feature: outer ring groove and three radial holes. Material: Chrome steel. Series: 222. Unit Quantity: 1 Pc.
Bore d: 90 mm, tapered 1:12. Outside diameter D: 160 mm. Width B: 40 mm. Shaft shoulder diameter da: 101 mm minimum, 106 mm maximum. Housing shoulder diameter Da: 149 mm maximum. Minimum chamfer dimension r: 2 mm. Maximum recess radius ra: 2 mm. Sleeve cavity diameter db: 96 mm minimum. Sleeve cavity width Ba: 10 mm minimum. Matching adapter sleeve: H318. Matching withdrawal sleeve: AHX318.
SKF 22218 EK/C3 has the W33 groove as standard. Timken 22218KEJW33C3 and FAG 22218-E1-XL-K-C3 (current Schaeffler form) are listed in the same 90 x 160 x 40 mm tapered-bore size. FAG 22218-AS-C3 is the straight-bore version.
90 mm tapered bore, 160 mm outside diameter, 40 mm width.
AS is an annular lubrication groove in the outer ring with three radial lubrication holes.
The H318 adapter sleeve and the AHX318 withdrawal sleeve.
