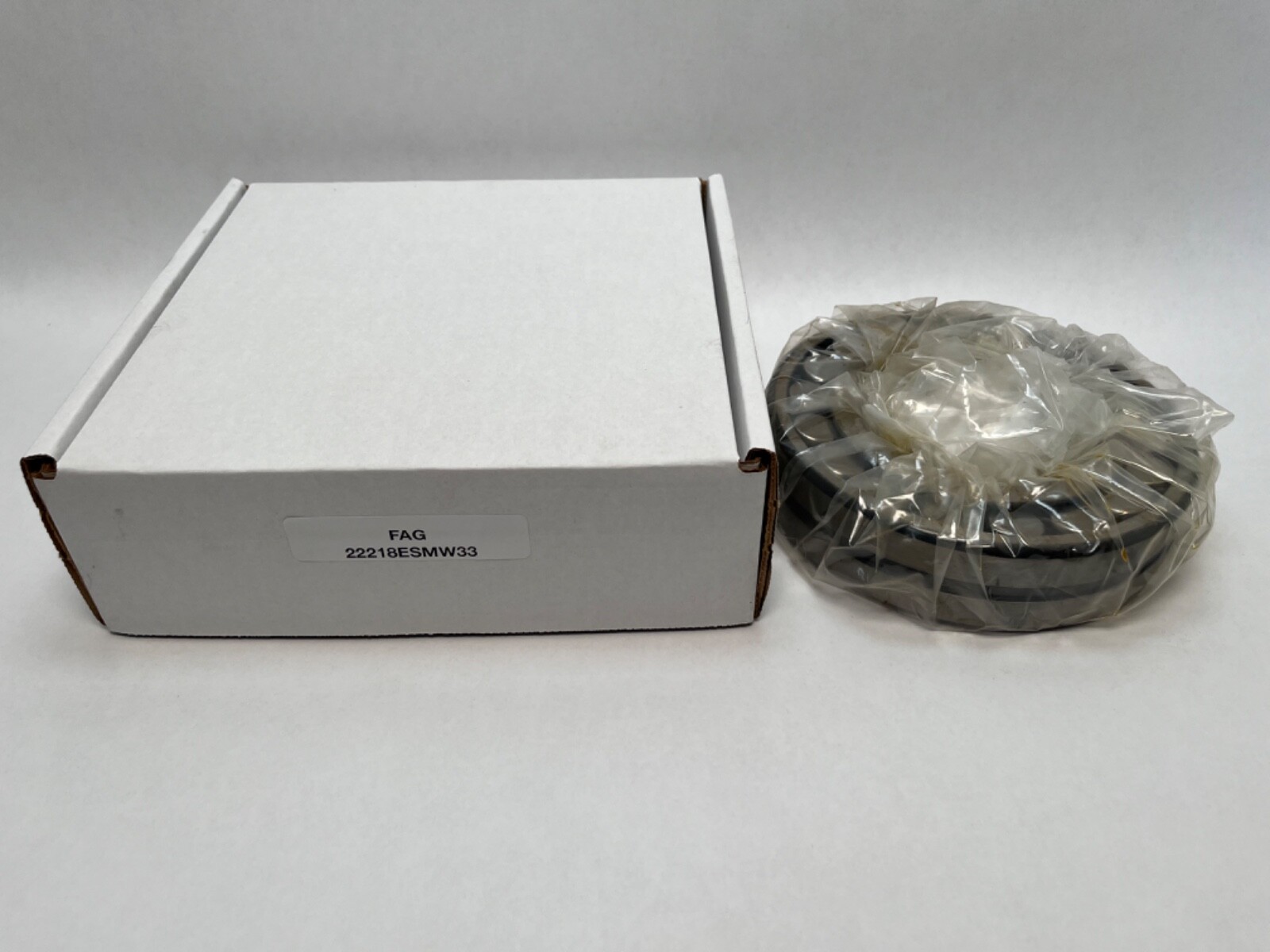

FAG 22218ESMW33 spherical roller bearing, 90 x 160 x 40 mm, cylindrical bore, machined brass cage, W33 lubrication groove and holes, normal clearance.
List Price
$117.95
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ESMW33 |
| Model | 22218ESMW33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Dynamic Load Rating | 345,000 N |
| Static Load Rating | 375,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 3.335 kg (7.35 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Limiting Speed | 5,200 rpm |
| Overall Width | 40 mm |
| Mpn Variants | 22218ESMW33, 22218-ES-M-W33, 22218ESM, 22218E |
| Compatible With Replaces | Schaeffler successor 22218-E1A-XL-M |
| Additional Attributes | Reference Speed: 3,400 rpm (successor 22218-E1A-XL-M). Lubrication groove width: 6.5 mm. |
| Relubrication Feature | Yes |
| Cross Reference 1 | Timken 22218EMW33 |
|---|---|
| Cross Reference 2 | NSK 22218CAME4 |
| Cross Reference 3 | Timken 22218EJW33 |
| Cross Reference 4 | SKF 22218 E |

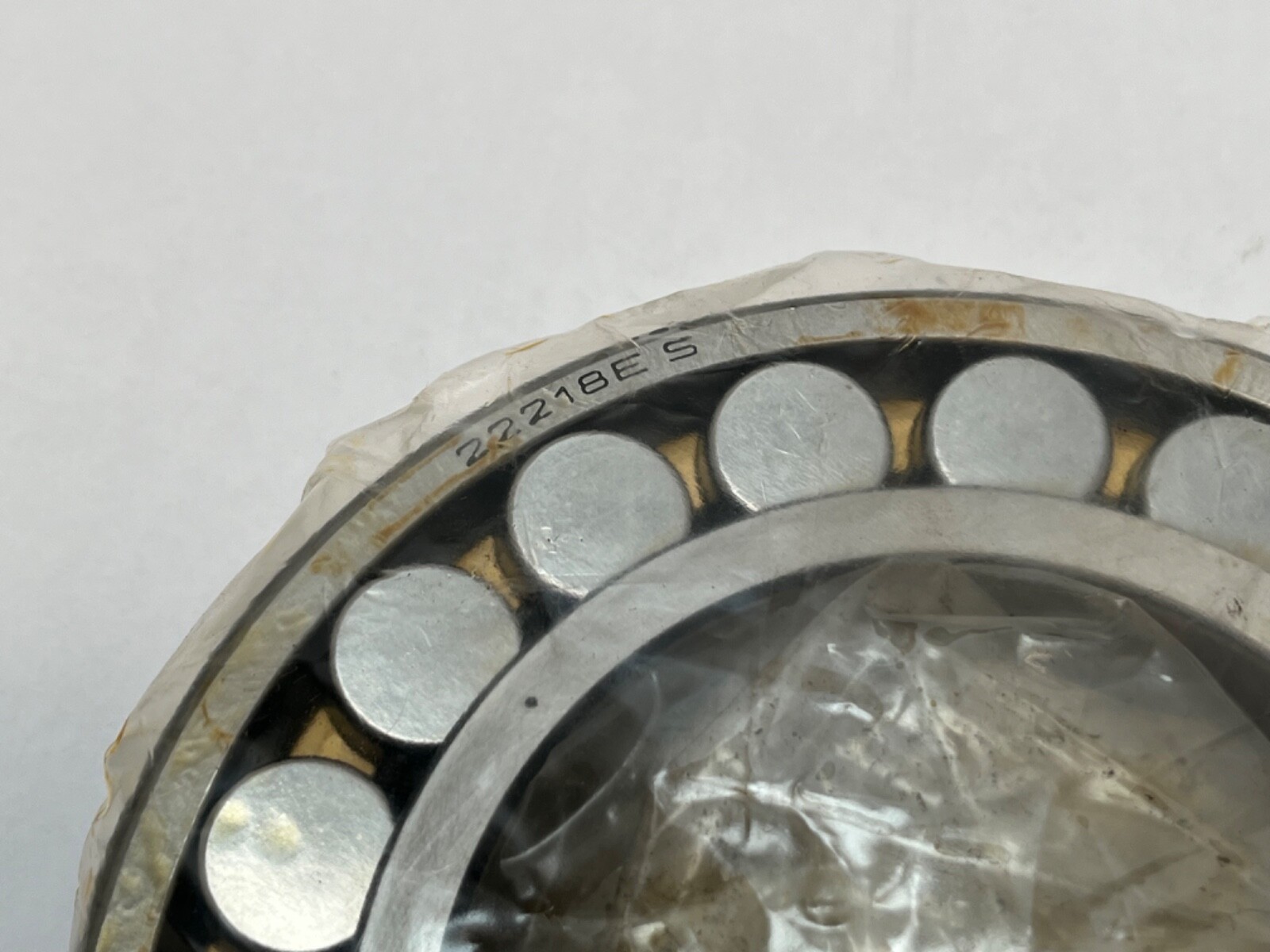

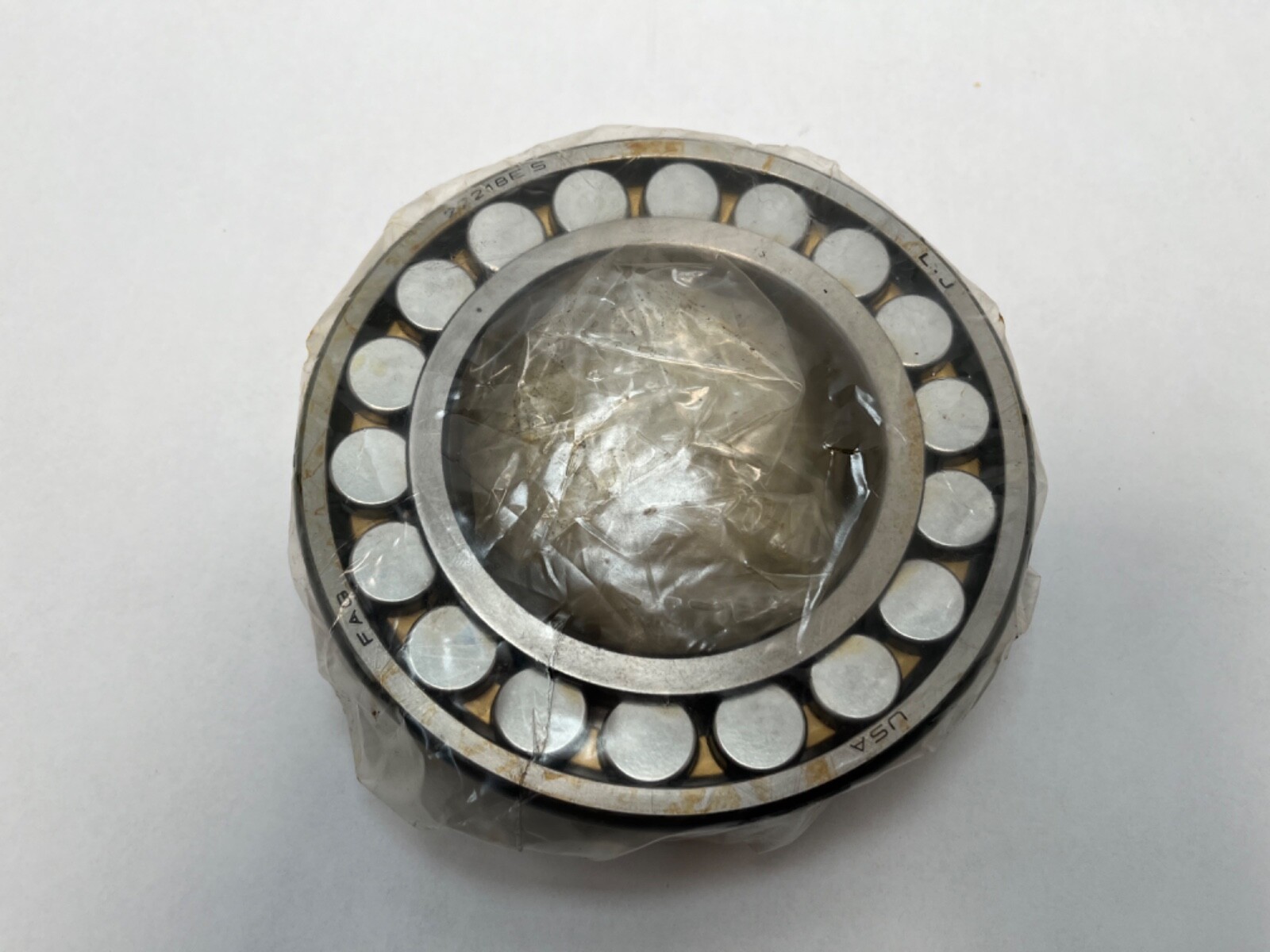

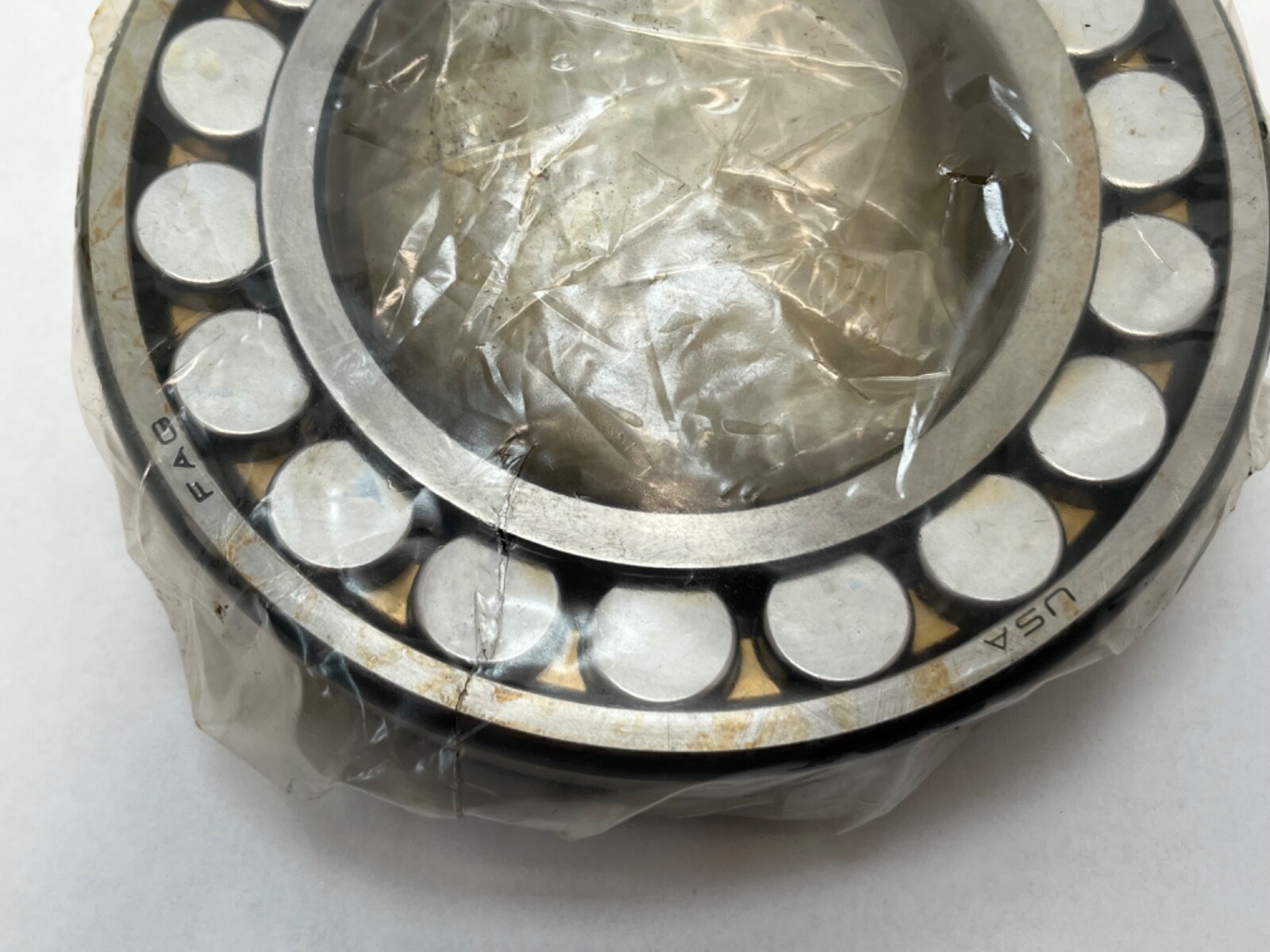

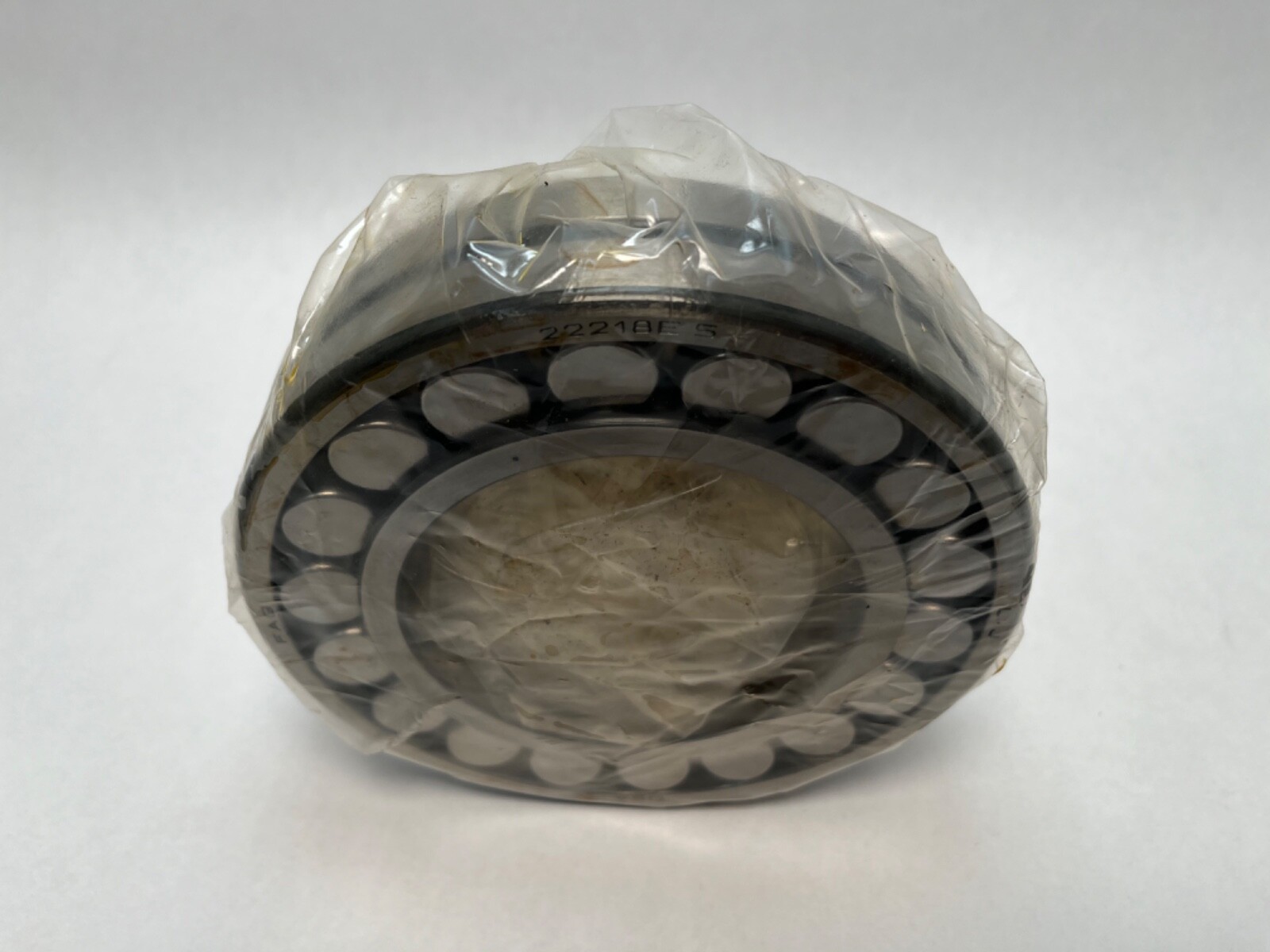

FAG 22218ESMW33 is a double-row spherical roller bearing with a cylindrical bore, a machined brass cage and an outer-ring lubrication groove with radial holes. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. The self-aligning outer raceway accepts shaft misalignment under heavy radial and moderate axial load.
22218 — 222 series spherical roller bearing, bore code 18 = 90 mm, envelope 90 x 160 x 40 mm.
E — FAG reinforced internal design without a central rib.
S — lubrication groove and radial lubrication holes in the outer ring.
M — machined brass cage.
W33 — North American marking for the outer-ring lubrication groove and holes.
Successor 22218-E1A-XL-M data: Dynamic Load Rating: 345,000 N. Static Load Rating: 375,000 N. Limiting Speed: 5,200 rpm. Reference Speed: 3,400 rpm. Item Weight: 3.335 kg (7.35 lb). Internal Clearance: CN (normal). Cage Material: Machined brass. Lubricant: grease or oil, fed through the outer-ring groove and holes. Bore Type: Cylindrical.
Successor 22218-E1A-XL-M data: Minimum shaft shoulder diameter: 101 mm. Maximum housing shoulder diameter: 149 mm. Maximum fillet radius: 2 mm. Minimum chamfer: 2 mm. Lubrication groove width: 6.5 mm.

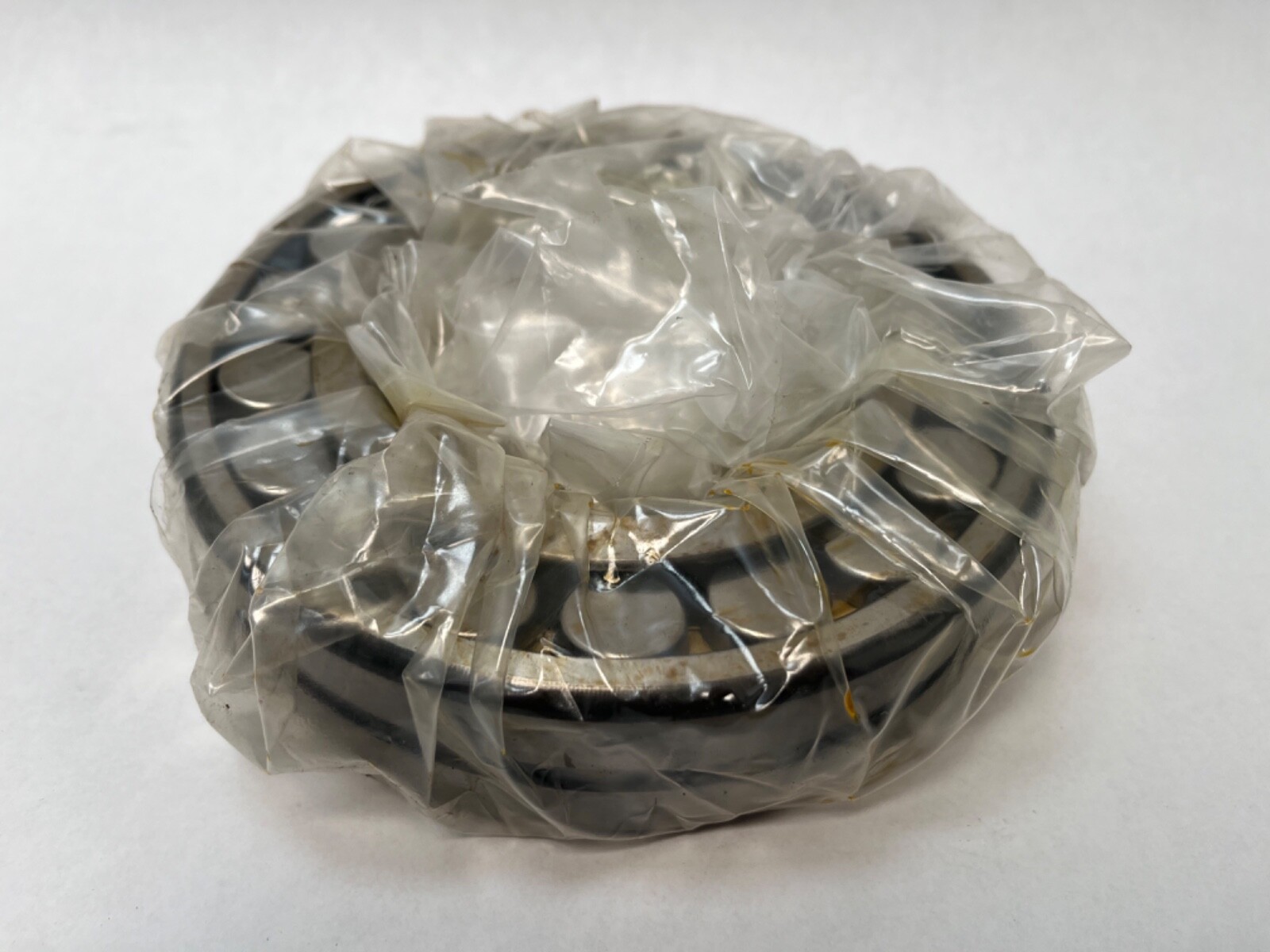

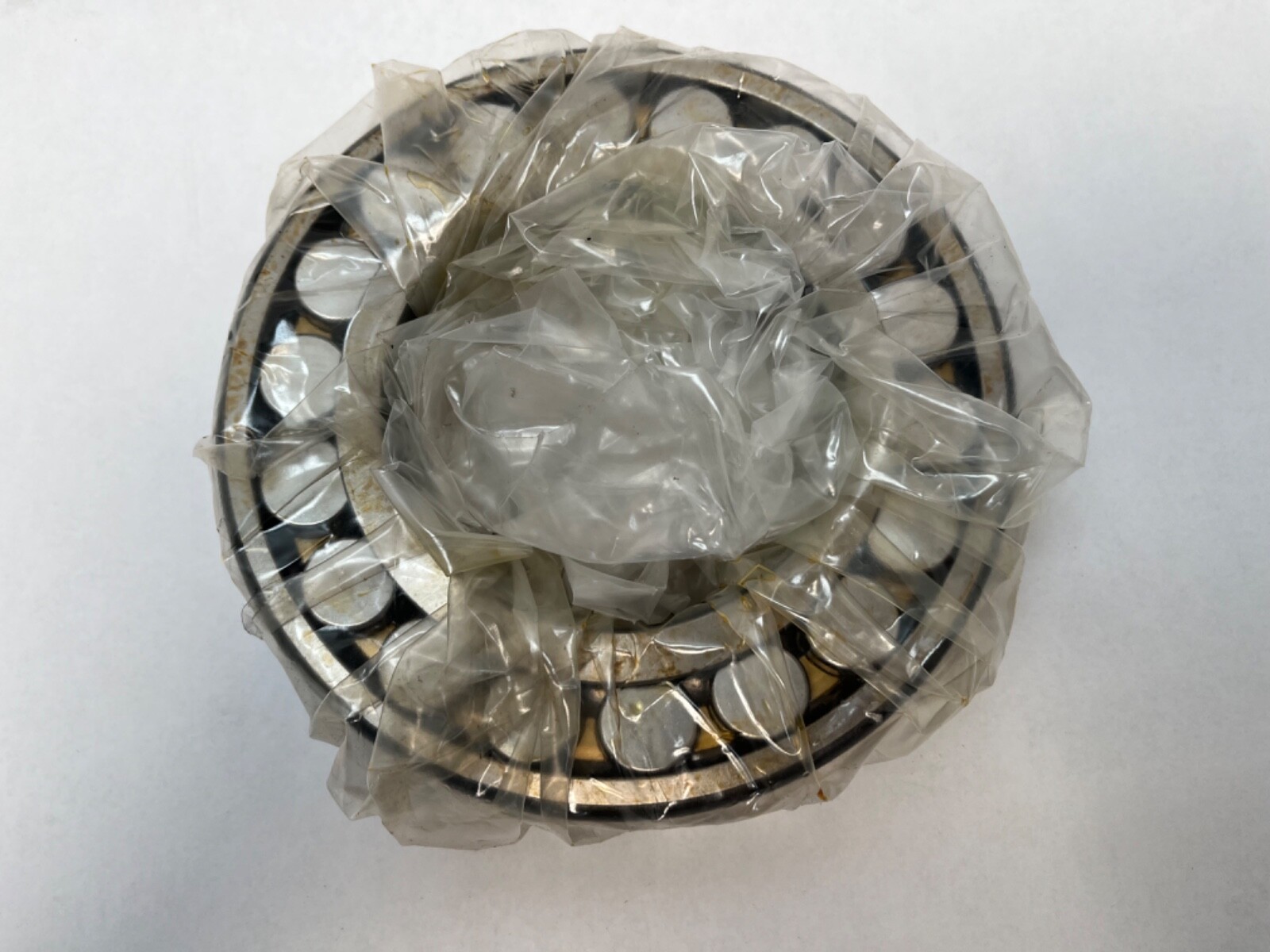

Unit Quantity: 1 Pc. Single open double-row spherical roller bearing, cylindrical bore.
Current Schaeffler successor: 22218-E1A-XL-M on the same 90 x 160 x 40 mm envelope. Equivalent brass-cage executions: Timken 22218EMW33, NSK 22218CAME4, SKF 22218 E. Timken 22218EJW33 is the steel-cage execution on the same envelope.
