Availability:
1 in stock

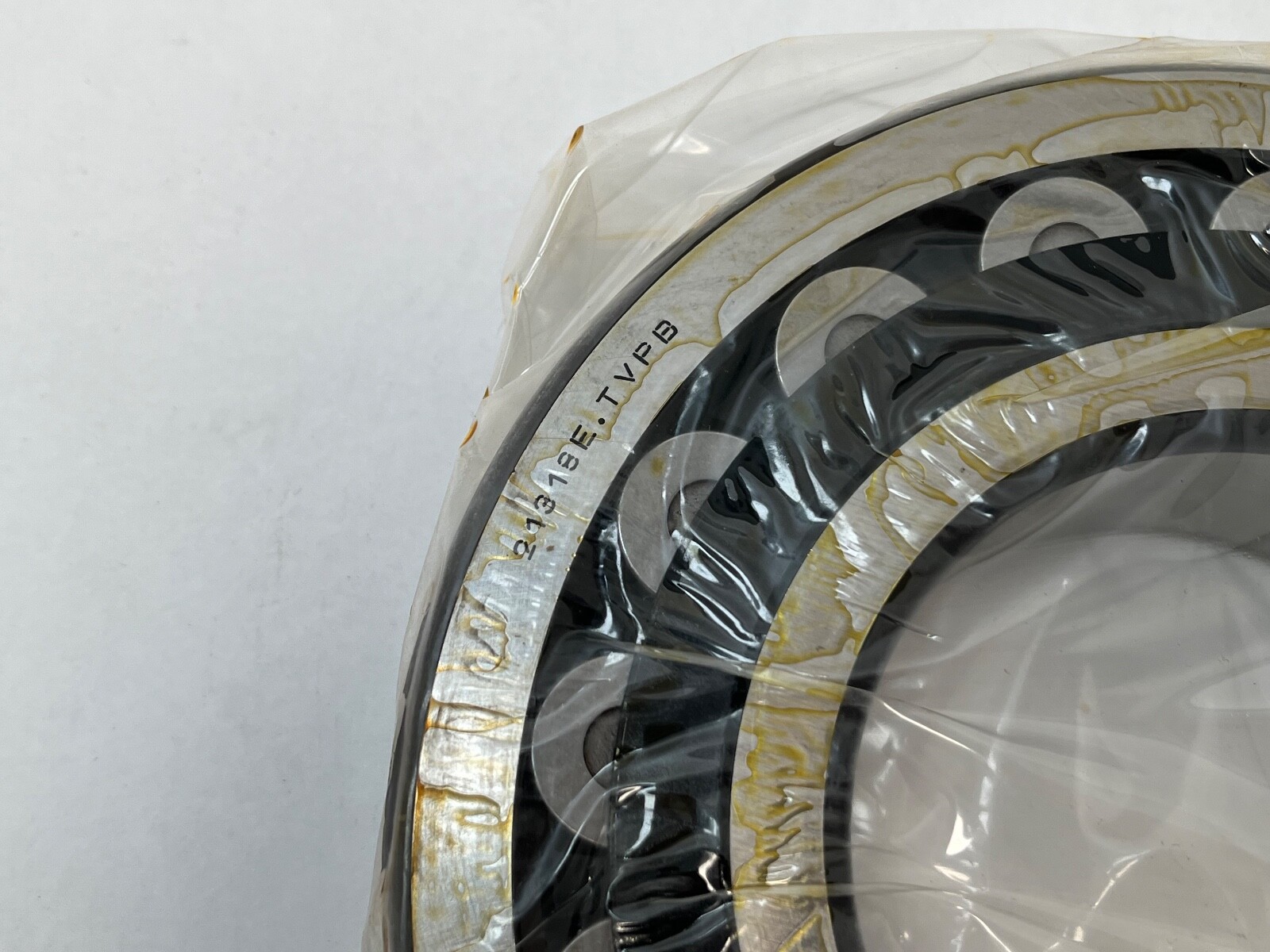

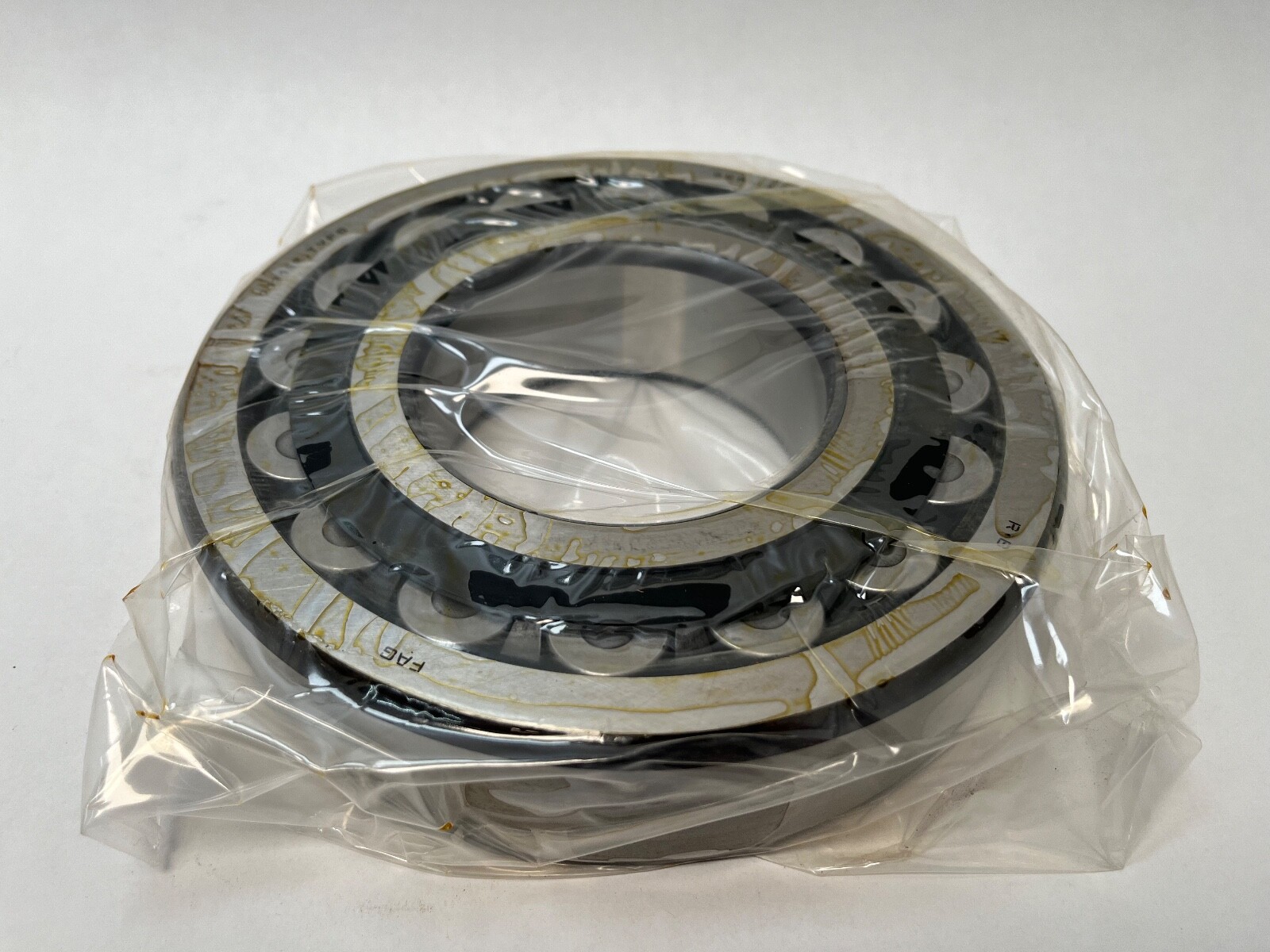

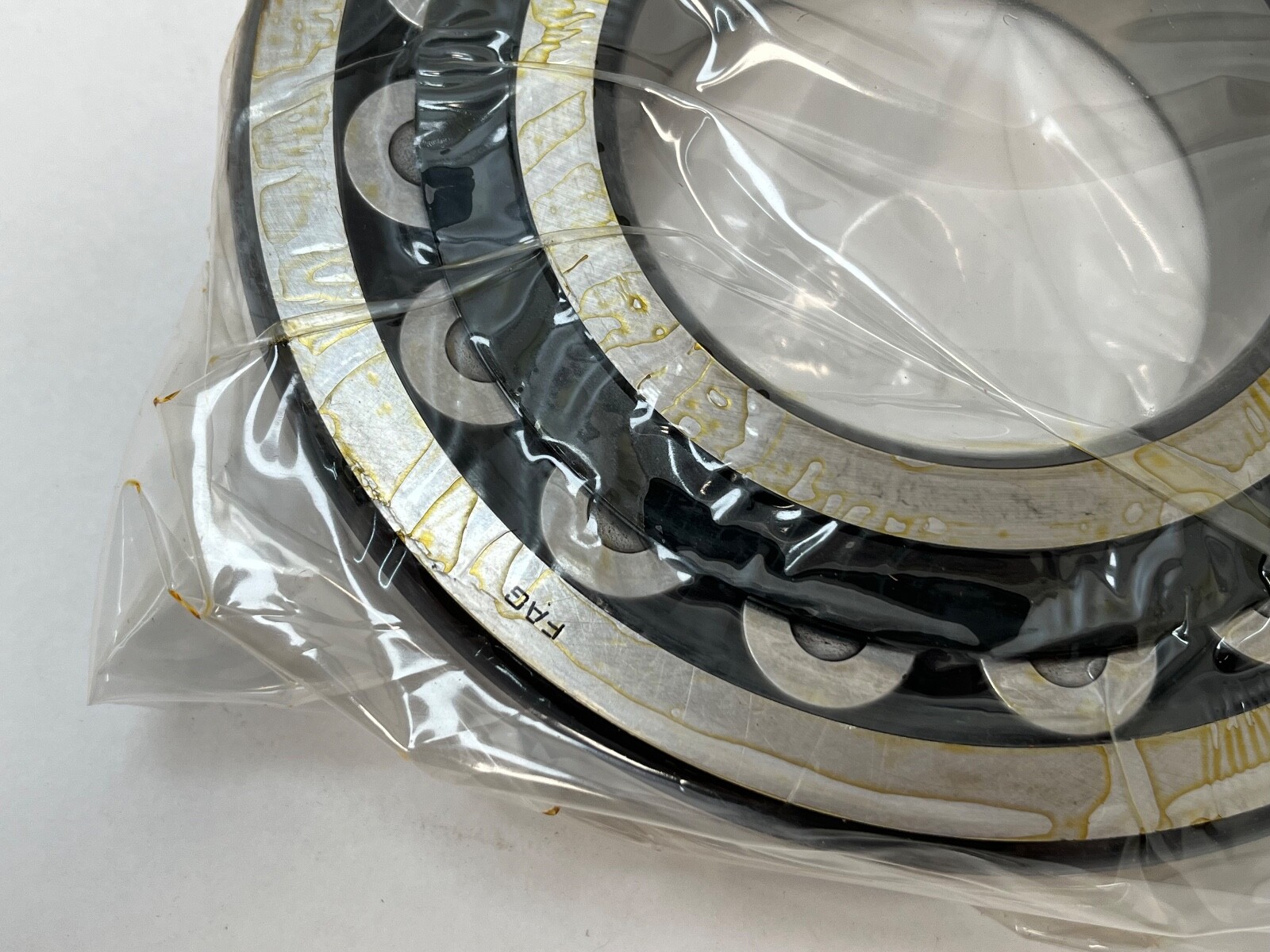

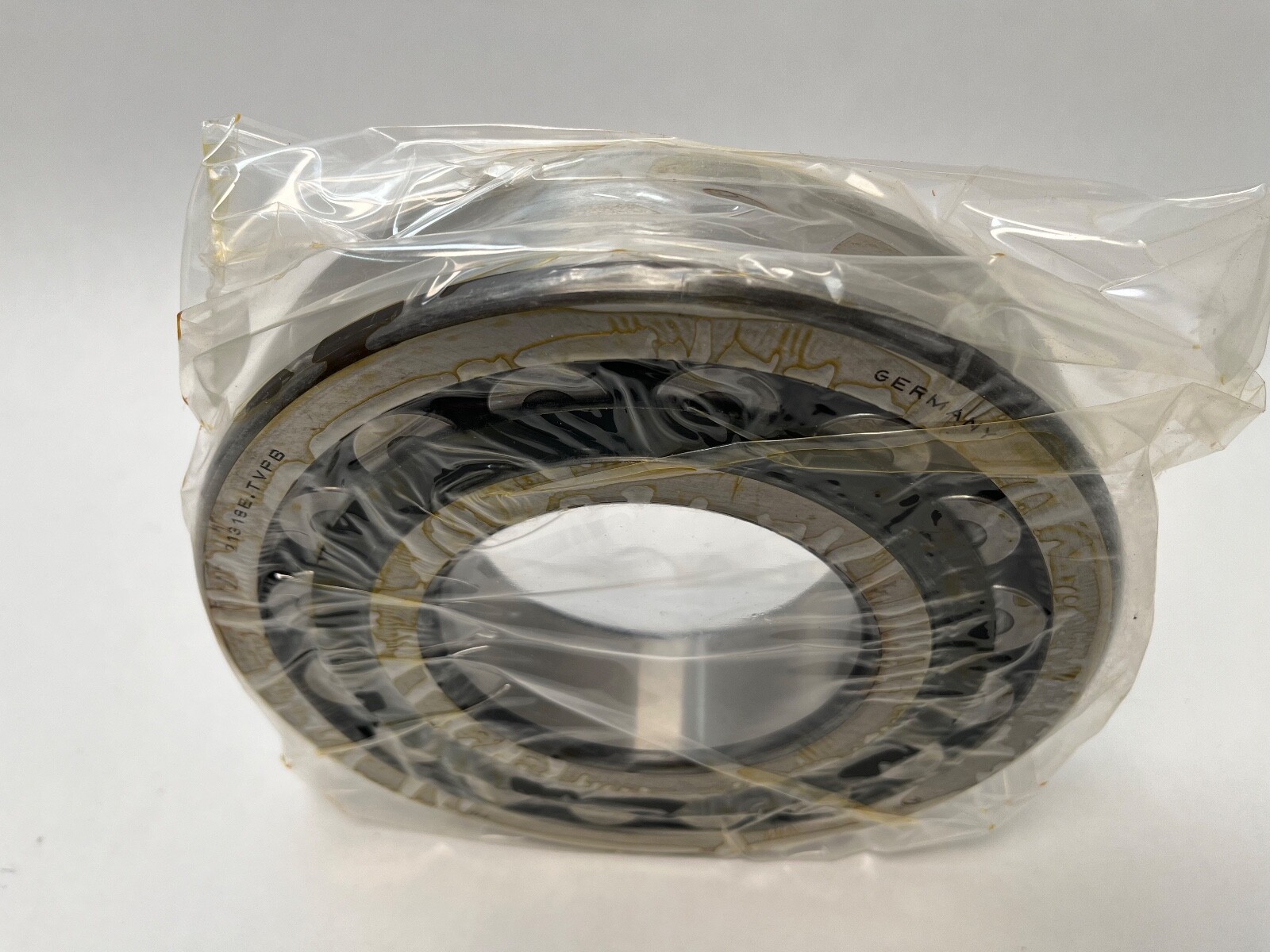

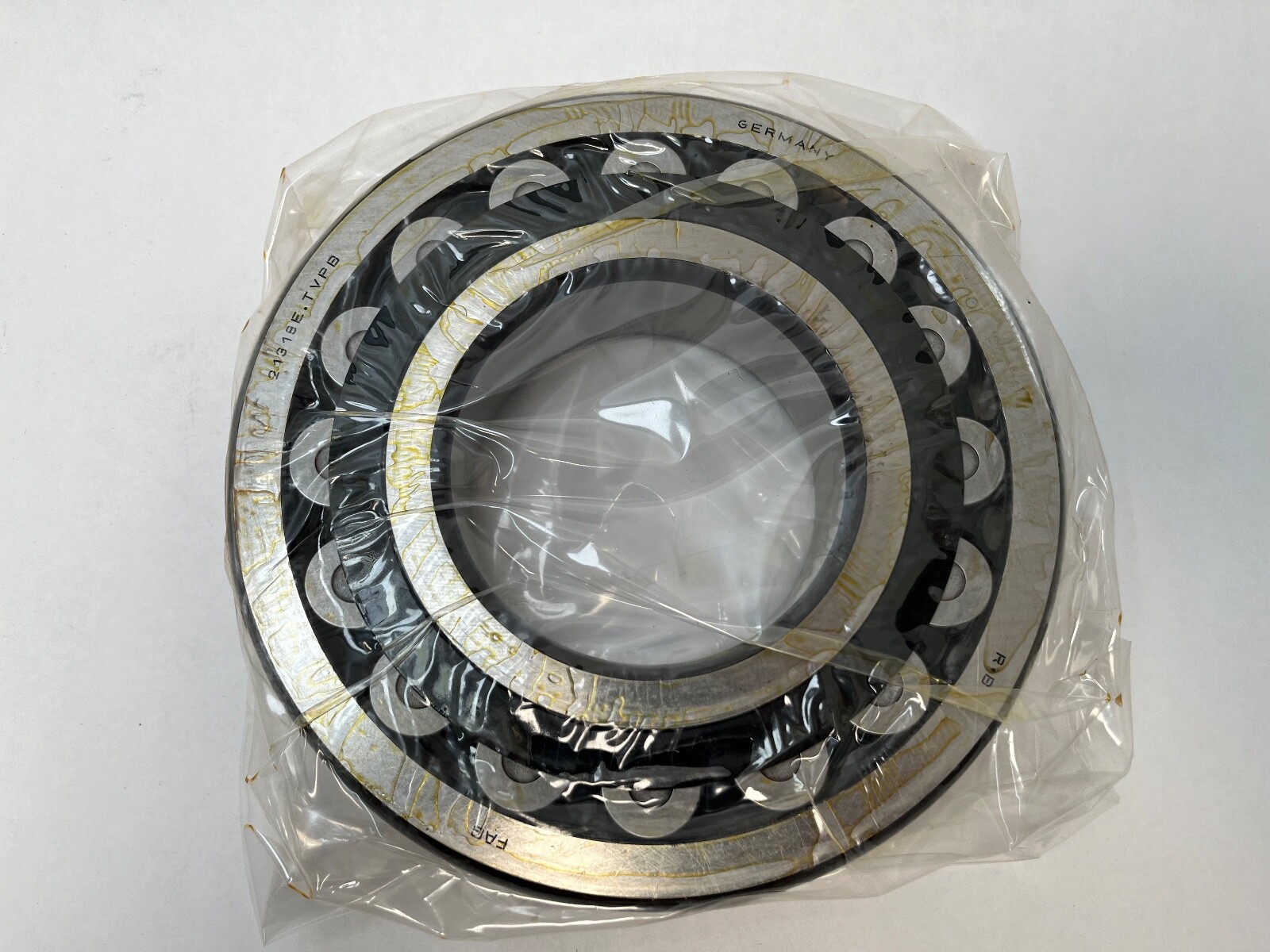

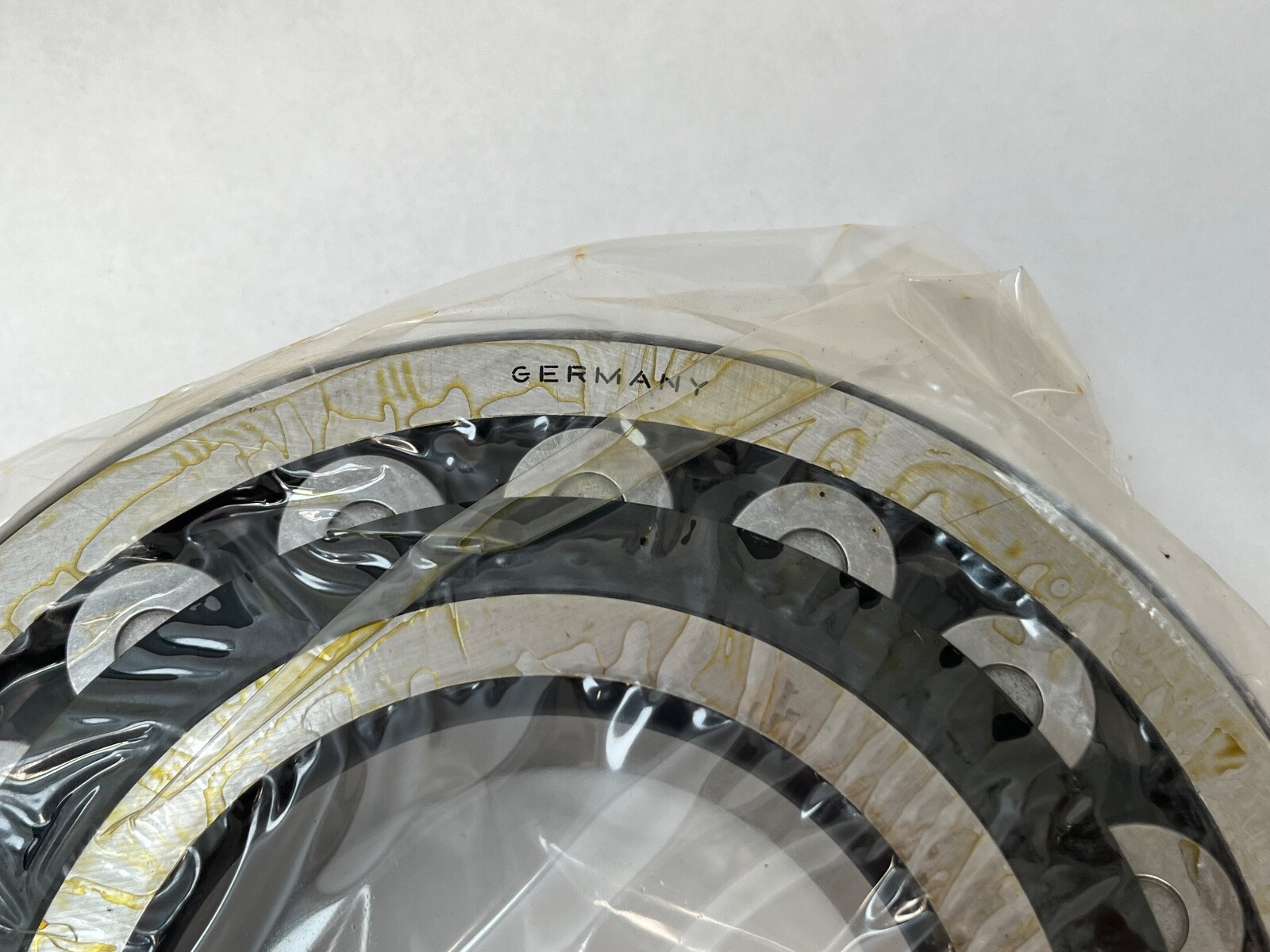

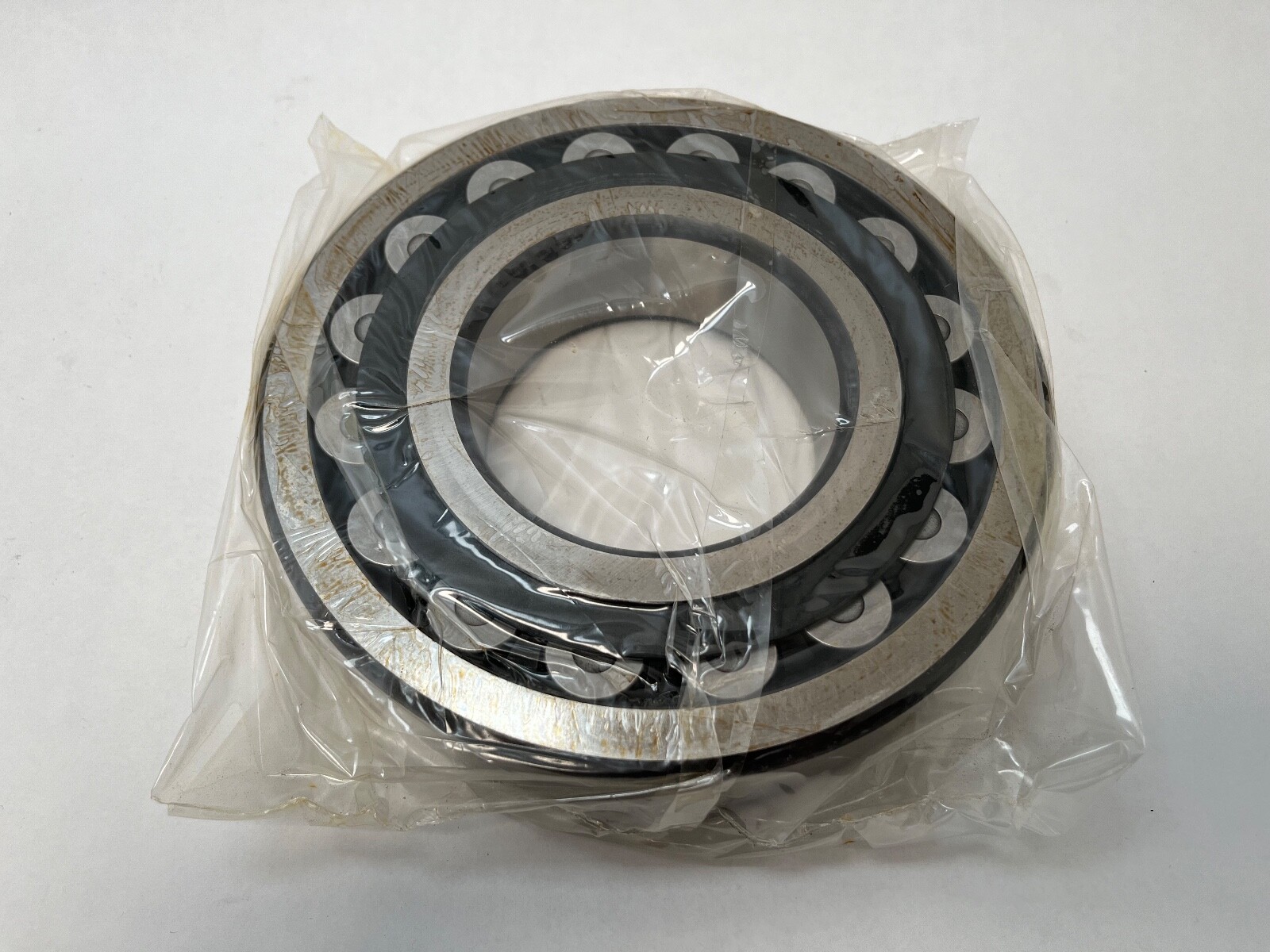

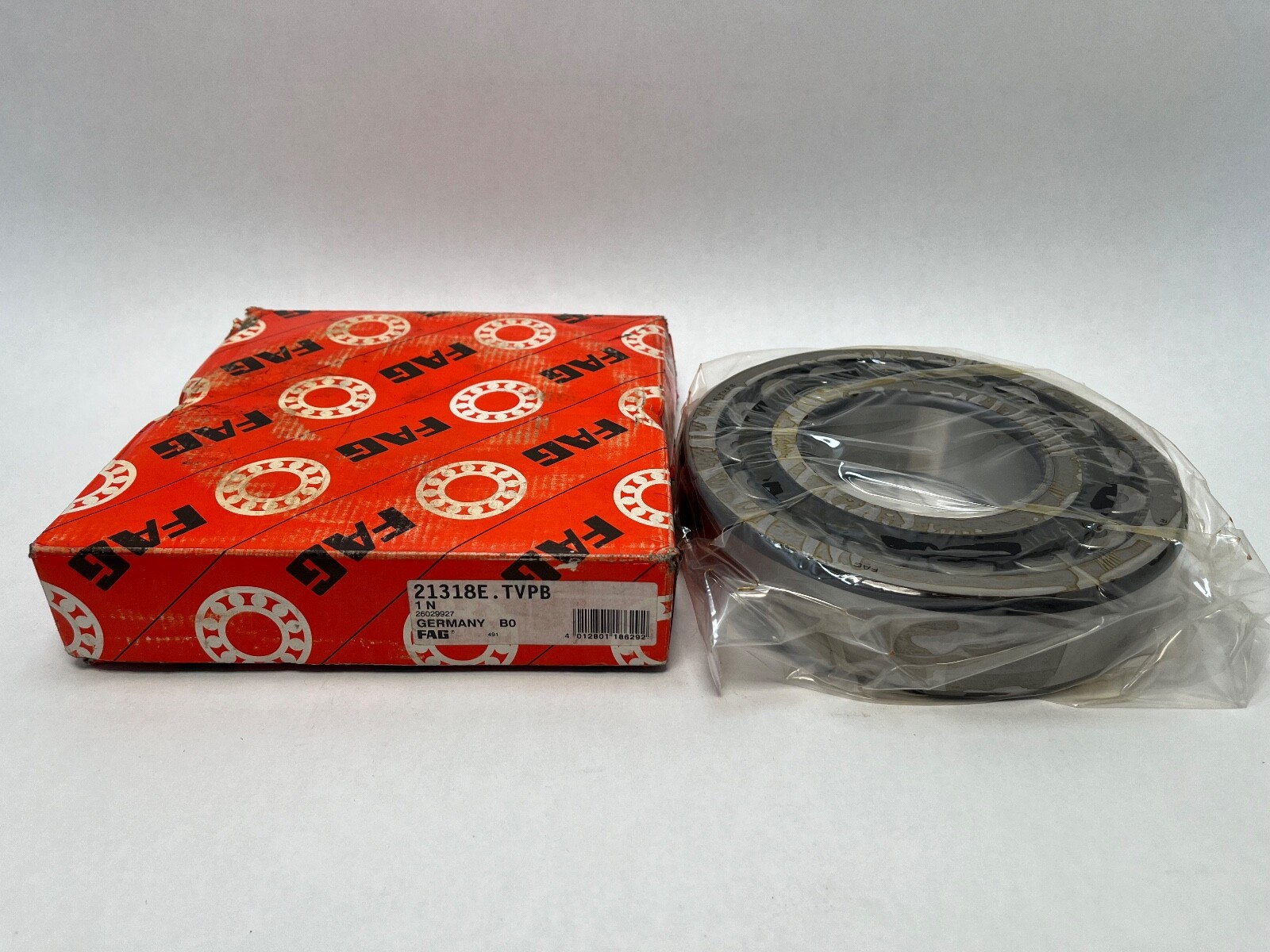

FAG 21318E.TVPB spherical roller bearing, 90 x 190 x 43 mm, straight bore, polyamide cage, normal CN clearance. Successor: Schaeffler 21318-E1-XL-TVPB.
List Price
$183.58
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 21318E.TVPB |
| Model | 21318E.TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 190 mm |
| Width | 43 mm |
| Series | 21300 |
|---|---|
| Min Temp | -30 °C (successor data) |
| Cage Type | TVPB glass-fibre reinforced polyamide |
| Dynamic Load Rating | 380,000 N (successor 21318-E1-XL-TVPB data) |
| Static Load Rating | 415,000 N (successor 21318-E1-XL-TVPB data) |
| Rolling Elements | Spherical Roller |
| Max Temp | 120 °C (successor data) |
| Item Weight | 5.92 kg (13.06 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Limiting Speed | 4,850 rpm (successor 21318-E1-XL-TVPB data) |
| Base Number | 21318 |
| Overall Width | 43 mm |
| Mpn Variants | 21318E.TVPB, 21318-E-TVPB, 21318ETVPB, 21318E |
| Compatible With Replaces | Successor: Schaeffler 21318-E1-XL-TVPB |
| Additional Attributes | Reference Speed: 3,600 rpm (successor data); Mounting: da min 104 mm, Da max 176 mm, ra max 2.5 mm |
| Cross Reference 1 | SKF 21318 E |
|---|---|
| Cross Reference 2 | NSK 21318EAE4 |
| Cross Reference 3 | NTN 21318EAW33 |
| Cross Reference 4 | Timken 21318EJW33 |
FAG 21318E.TVPB is a double-row spherical roller bearing with a straight bore and a glass-fibre polyamide cage. Bore Diameter: 90 mm. Outside Diameter: 190 mm. Overall Width: 43 mm. The spherical outer raceway lets the bearing self-align under shaft deflection and mounting misalignment.
213 — spherical roller bearing, 03 diameter series (heavy section).
18 — bore code; 18 x 5 = 90 mm bore.
E — FAG reinforced internal design.
TVPB — glass-fibre reinforced polyamide cage.
Bearing Type: Spherical Roller Bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight (cylindrical). Cage Material: Polyamide. Closure Type: Open. Internal Clearance: CN. Successor 21318-E1-XL-TVPB data: Dynamic Load Rating: 380,000 N. Static Load Rating: 415,000 N. Limiting Speed: 4,850 rpm. Reference Speed: 3,600 rpm. Operating temperature: −30 °C to 120 °C.
Successor 21318-E1-XL-TVPB data: minimum shaft shoulder diameter 104 mm, maximum housing shoulder diameter 176 mm, maximum fillet radius 2.5 mm, minimum chamfer 3 mm, outer-ring lubrication hole diameter 4.8 mm, lubrication groove width 9.5 mm. Mass: 5.92 kg (13.06 lb).
Same 90 x 190 x 43 mm envelope as SKF 21318 E, NSK 21318EAE4, NTN 21318EAW33 and Timken 21318EJW33. Current Schaeffler equivalent: 21318-E1-XL-TVPB.
